LS Electric XGT XGL RAPIEnet+ and Edge Gateway Communication Modules

LS Electric XGT XGL RAPIEnet+ and Edge Gateway Communication Modules

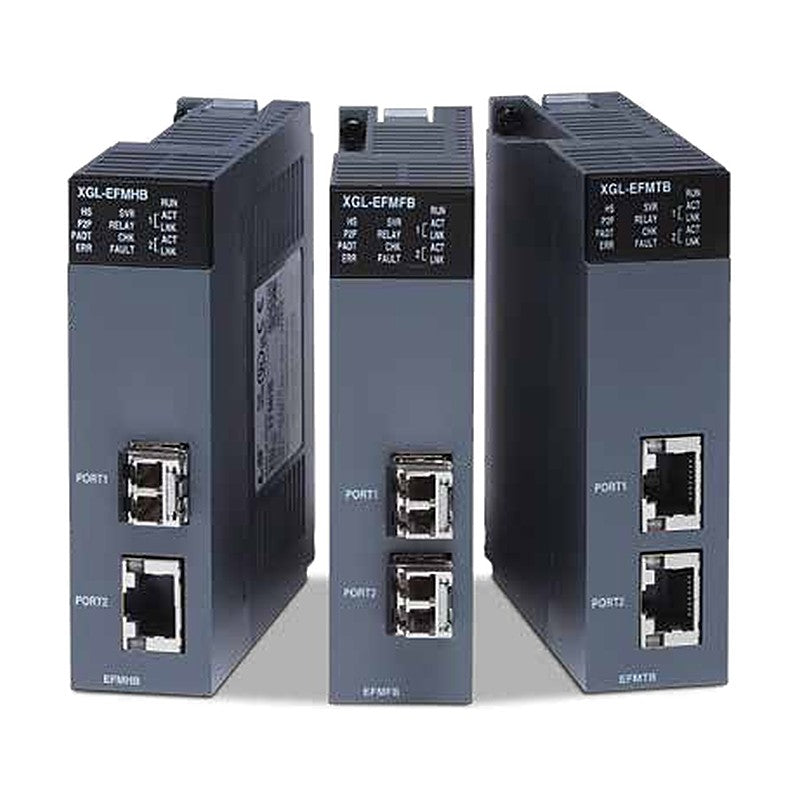

LS Electric XGT XGL communication modules: RAPIEnet+ master modules XGL-EFMxB, expansion-drive slave modules XGL-DBDx, and the XGL-EDGT IT/OT edge gateway module.

Key features

  • XGL-EFMxB master/client: RAPIEnet v2, EtherNet/IP, Modbus TCP and XGT protocol simultaneously, OPC UA server (O/S V7.0)
  • XGL-DBDx slave modules turn an XGK/XGI base into a networked expansion station: up to 63 stations, 49,152 I/O points
  • Dual-port electrical (T), optical (F) or hybrid (H) media; ring topology without external switch
  • Smart expansion wizard and auto-scan in XG5000 for Smart I/O and inverters
  • XGL-EDGT: DB client (Oracle, MS-SQL, MySQL, PostgreSQL, Tibero), MQTT, REST API, FTP, Web UI, DNP3.0, BACnet/IP, HSMS

Specifications

Compatible CPUs XGK / XGI / XGR (EFMxB); XGK / XGI (DBDx, EDGT)
Protocols (EFMxB/DBDx) RAPIEnet, EtherNet/IP, Modbus TCP/IP
Max. load Ethernet 10,000 pps, RAPIEnet 40,000 pps
Topology Line, tree, star, ring (RAPIEnet)
Media Cat. 5e STP; MMF/SMF optical (SFP)
Max. frame size 1,500 bytes
Module size 27 x 98 x 90 mm
Configuration XG5000 (EDGT: MicroEdgt, Web-UI)
Source LS Electric RAPIEnet+ catalog (2021-03), p. 8-11; XGL-EDGT leaflet (2024-03), p. 2
XGL-EFMTB Role: RAPIEnet+ master/client | Ports: 2 x RJ45 electrical | Speed: 10/100/1000 Mbps | Max. distance: 100 m
XGL-EFMFB Role: RAPIEnet+ master/client | Ports: 2 x SFP optical | Speed: 100/1000 Mbps | Max. distance: 2 km (MMF, 100 Mbps)
XGL-EFMHB Role: RAPIEnet+ master/client | Ports: 1 x RJ45 + 1 x SFP optical | Speed: 10/100/1000 Mbps | Max. distance: 100 m elec. / 2 km opt.
XGL-DBDT Role: Expansion drive slave/server | Ports: 2 x RJ45 electrical | Speed: 100/1000 Mbps | Max. distance: 100 m
XGL-DBDF Role: Expansion drive slave/server | Ports: 2 x SFP optical | Speed: 100/1000 Mbps | Max. distance: 2 km (MMF, 100 Mbps)
XGL-DBDH Role: Expansion drive slave/server | Ports: 1 x RJ45 + 1 x SFP optical | Speed: 100/1000 Mbps | Max. distance: 100 m elec. / 2 km opt.
XGL-EDGT Role: IT/OT edge gateway (DB, MQTT, Web) | Ports: 1 x RJ45 + USB host + micro SD | Speed: 100/1000 Mbps | Max. distance: 100 m
