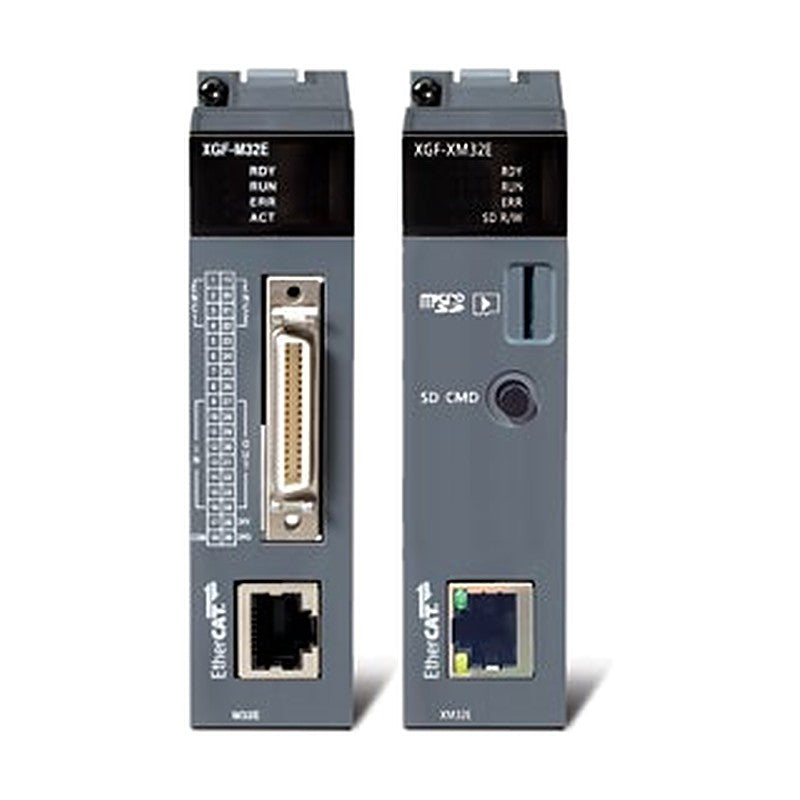

LS Electric XGT XGF EtherCAT Positioning and Motion Modules

LS Electric XGT XGF EtherCAT Positioning and Motion Modules

LS Electric XGT XGF network positioning and motion control modules drive EtherCAT servo systems from XGK/XGI/XGR PLCs, from 4-axis positioning up to 32-axis synchronized motion with EtherCAT I/O.

Key features

  • XGF-PN4B/PN8B/PN16B: 4, 8 or 16 axes on standard EtherCAT; XGF-PN8A for LS-dedicated EtherCAT (XDA-N servo)
  • 2-8 axis linear, 2-axis circular and 3-axis helical interpolation; position/speed/torque switching
  • XGF-M32E: 32 real + 4 virtual axes, 4 EtherCAT I/O slaves, LD(FB)/ST programs, built-in encoder and I/O
  • XGF-XM32E: 32 real + 4 virtual axes, 32 EtherCAT I/O slaves, LD(FB)/ST/G-code, microSD backup
  • Electronic CAM, synchronous operation and absolute encoder systems supported
  • Parameters and operation data retained in battery-free memory

Specifications

Platform XGT (XGK / XGI / XGR) I/O slot
Physical layer 100BASE-TX, max. 100 m
Cable CAT.5 or better STP
Control units pulse, mm, inch, degree
Accel/decel Trapezoidal, S-curve
Manual operation Jog, MPG
I/O allocation Fixed 64 points, variable 16 points
Source LS Electric XGT Series catalog (2026-07), p. 114-117, 124-125, 148
XGF-PN8A Function: Positioning | Axes: 8 | Network: LS EtherCAT (XDA-N servo) | Engineering tool: XG-PM | Current (DC 5 V): 500 mA
XGF-PN4B Function: Positioning | Axes: 4 | Network: Standard EtherCAT (XDL servo) | Engineering tool: XG-PM | Current (DC 5 V): 500 mA
XGF-PN8B Function: Positioning | Axes: 8 | Network: Standard EtherCAT (XDL servo) | Engineering tool: XG-PM | Current (DC 5 V): 500 mA
XGF-PN16B Function: Positioning | Axes: 16 | Network: Standard EtherCAT (XDL servo) | Engineering tool: XG-PM | Current (DC 5 V): 900 mA
XGF-M32E Function: Motion control | Axes: 32 + 4 virtual | Network: EtherCAT CoE, 4 I/O slaves | Engineering tool: XG-PM | Current (DC 5 V): 900 mA
XGF-XM32E Function: Motion control | Axes: 32 + 4 virtual | Network: EtherCAT CoE, 32 I/O slaves | Engineering tool: XG5000 | Current (DC 5 V): 700 mA
XGF-M16M Function: Motion control (legacy code) | Axes: Not listed | Network: Not listed | Engineering tool: Not listed | Current (DC 5 V): Not listed
Motion ControllersLS Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGF EtherCAT Positioning and Motion Modules

Brand LS Electric·Motion Controllers

Available part numbers (7)

XGF-PN8A, XGF-PN4B, XGF-PN8B, XGF-PN16B, XGF-M32E, XGF-XM32E, XGF-M16M

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XGF-PN8AFunction: Positioning | Axes: 8 | Network: LS EtherCAT (XDA-N servo) | Engineering tool: XG-PM | Current (DC 5 V): 500 mA
XGF-PN4BFunction: Positioning | Axes: 4 | Network: Standard EtherCAT (XDL servo) | Engineering tool: XG-PM | Current (DC 5 V): 500 mA
XGF-PN8BFunction: Positioning | Axes: 8 | Network: Standard EtherCAT (XDL servo) | Engineering tool: XG-PM | Current (DC 5 V): 500 mA
XGF-PN16BFunction: Positioning | Axes: 16 | Network: Standard EtherCAT (XDL servo) | Engineering tool: XG-PM | Current (DC 5 V): 900 mA
XGF-M32EFunction: Motion control | Axes: 32 + 4 virtual | Network: EtherCAT CoE, 4 I/O slaves | Engineering tool: XG-PM | Current (DC 5 V): 900 mA
XGF-XM32EFunction: Motion control | Axes: 32 + 4 virtual | Network: EtherCAT CoE, 32 I/O slaves | Engineering tool: XG5000 | Current (DC 5 V): 700 mA
XGF-M16MFunction: Motion control (legacy code) | Axes: Not listed | Network: Not listed | Engineering tool: Not listed | Current (DC 5 V): Not listed
