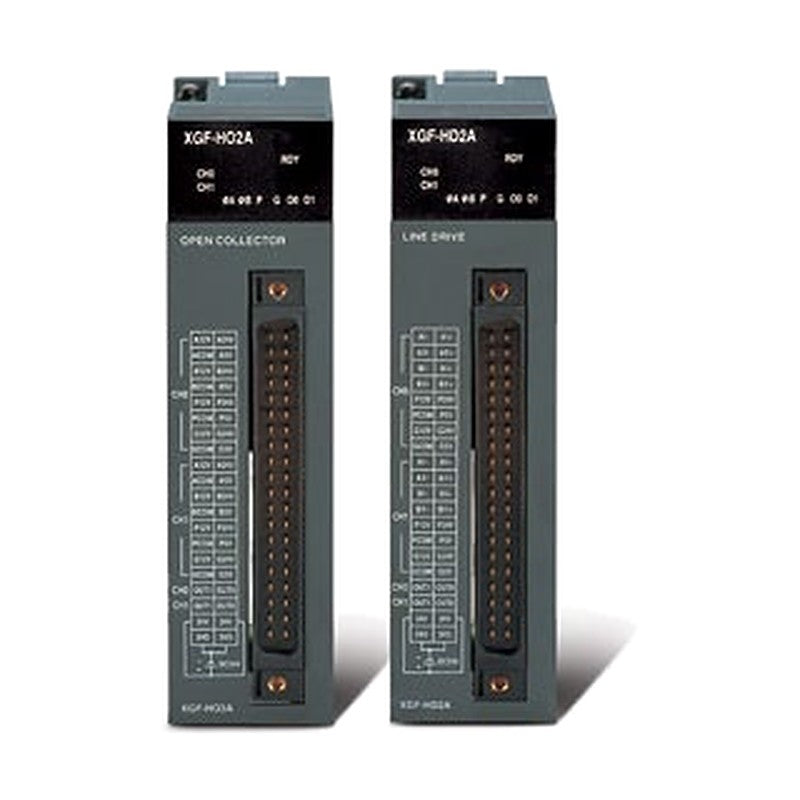

LS Electric XGT XGF High-Speed Counter Modules (2 and 8 Channels)

LS Electric XGT XGF High-Speed Counter Modules (2 and 8 Channels)

LS Electric XGT XGF high-speed counter modules count incremental encoder pulses for XGK/XGI/XGR PLCs, in 2-channel open-collector or line-driver and 8-channel multi-counter versions.

Key features

  • 1-phase, 2-phase and CW/CCW pulse inputs with 1x/2x/4x multiplication
  • Signed 32-bit linear or ring counting
  • Single or band comparison outputs (open collector, sink) per channel
  • Preset, gate/count inhibit, latch, frequency and RPM measurement functions
  • XGF-HD2A accepts RS-422A line driver or 24 V HTL encoders
  • XGF-HO8A: 8 channels with selectable input filter (100k/10k/1k/0.1 kpps)

Specifications

Platform XGT (XGK / XGI / XGR) I/O slot
Count range -2,147,483,648 to 2,147,483,647
Count modes Linear, ring
Pulse input 1-phase, 2-phase, CW/CCW
Multiplication 1x / 2x / 4x (2-phase)
I/O allocation (XGK) Fixed 64 points, variable 16 points
Connector Included (C-marked in model list)
Source LS Electric XGT Series catalog (2026-07), p. 108-111, 148
XGF-HO2A Channels: 2 | Input type: Open collector DC 5/12/24 V | Max. count speed: 200 kpps | Compare outputs: 2 per channel | Connector: 40-pin
XGF-HD2A Channels: 2 | Input type: Line driver RS-422A / HTL 24 V | Max. count speed: 500 kpps (HTL 250 kpps) | Compare outputs: 2 per channel | Connector: 40-pin
XGF-HO8A Channels: 8 | Input type: DC 5 V / 24 V | Max. count speed: 200 kpps | Compare outputs: 1 per channel | Connector: 80-pin
PLC I/O ModulesLS Electric
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGF High-Speed Counter Modules (2 and 8 Channels)

Brand LS Electric·PLC I/O Modules

Available part numbers (3)

XGF-HO2A, XGF-HD2A, XGF-HO8A

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XGF-HO2AChannels: 2 | Input type: Open collector DC 5/12/24 V | Max. count speed: 200 kpps | Compare outputs: 2 per channel | Connector: 40-pin
XGF-HD2AChannels: 2 | Input type: Line driver RS-422A / HTL 24 V | Max. count speed: 500 kpps (HTL 250 kpps) | Compare outputs: 2 per channel | Connector: 40-pin
XGF-HO8AChannels: 8 | Input type: DC 5 V / 24 V | Max. count speed: 200 kpps | Compare outputs: 1 per channel | Connector: 80-pin
