LS Electric XGT XGQ Digital Output and XGH Mixed I/O Modules

LS Electric XGT XGQ- digital output modules offer 8 to 64 relay, triac and transistor (sink or source) outputs, and the XGH-DT4A combines 16 DC inputs with 16 transistor outputs in one slot.

Key features

Relay outputs 8/16 points at 2 A per point, with or without built-in surge killer (RY2B)
Transistor outputs 8 to 64 points, sink (A) or source (B) types; XGQ-TR1C 2 A per point with isolated commons
XGQ-SS2A 16-point triac output for AC 110/220 V loads

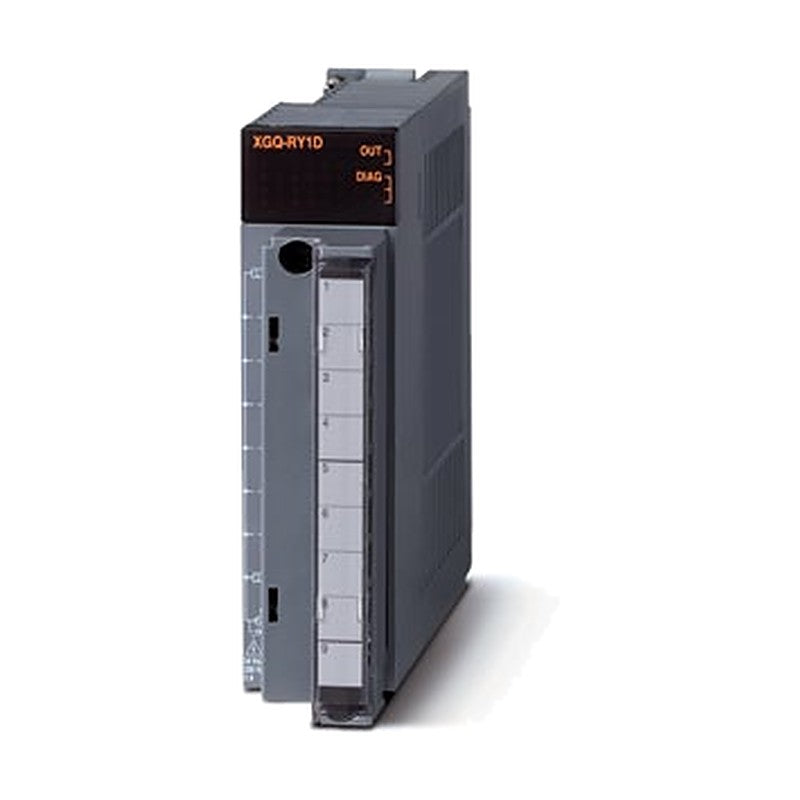

XGQ-RY1D diagnostic relay output detects load wire breaks and internal relay coil faults
XGH-DT4A mixed module: 16 x DC 24 V inputs plus 16 x transistor sink outputs

Specifications

Relay load rating	DC 12/24 V, AC 110/220 V
Transistor load rating	DC 12/24 V
Transistor isolation	Photocoupler
Compatible CPUs	XGK, XGI, XGR
Operating temperature	0 to 55 C
Humidity	5 to 95% RH, non-condensing
Vibration / shock	IEC 61131-2
Source	LS Electric XGT Series catalog (2026-07), p. 17, 25, 27, 29-30, 148

XGQ-RY1A		Output type: Relay \| Points: 8 \| Rated load voltage: DC 12/24 V, AC 110/220 V \| Current per point: 2 A \| Common: 1 pt/COM
XGQ-RY1D		Output type: Relay, wire-break diag \| Points: 8 \| Rated load voltage: DC 24 V, AC 220 V \| Current per point: 2 A \| Common: 8 pt/COM
XGQ-RY2A		Output type: Relay \| Points: 16 \| Rated load voltage: DC 12/24 V, AC 110/220 V \| Current per point: 2 A \| Common: 16 pt/COM
XGQ-RY2B		Output type: Relay, surge killer \| Points: 16 \| Rated load voltage: DC 12/24 V, AC 110/220 V \| Current per point: 2 A \| Common: 16 pt/COM
XGQ-SS2A		Output type: Triac \| Points: 16 \| Rated load voltage: AC 110/220 V \| Current per point: 0.6 A \| Common: 16 pt/COM
XGQ-TR1C		Output type: Transistor, isolated \| Points: 8 \| Rated load voltage: DC 12/24 V \| Current per point: 2 A \| Common: 1 pt/COM
XGQ-TR2A		Output type: Transistor, sink \| Points: 16 \| Rated load voltage: DC 12/24 V \| Current per point: 0.5 A \| Common: 16 pt/COM
XGQ-TR2B		Output type: Transistor, source \| Points: 16 \| Rated load voltage: DC 12/24 V \| Current per point: 0.5 A \| Common: 16 pt/COM
XGQ-TR4A		Output type: Transistor, sink \| Points: 32 \| Rated load voltage: DC 12/24 V \| Current per point: 0.1 A \| Common: 32 pt/COM
XGQ-TR4B		Output type: Transistor, source \| Points: 32 \| Rated load voltage: DC 12/24 V \| Current per point: 0.1 A \| Common: 32 pt/COM
XGQ-TR8A		Output type: Transistor, sink \| Points: 64 \| Rated load voltage: DC 12/24 V \| Current per point: 0.1 A \| Common: 32 pt/COM
XGQ-TR8B		Output type: Transistor, source \| Points: 64 \| Rated load voltage: DC 12/24 V \| Current per point: 0.1 A \| Common: 32 pt/COM
XGH-DT4A		Output type: Mixed: 16 DC in / 16 TR sink \| Points: 32 \| Rated load voltage: DC 12/24 V \| Current per point: 0.1 A \| Common: 16 pt/COM

PLC I/O ModulesLS Electric

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGQ Digital Output and XGH Mixed I/O Modules

Brand LS Electric·PLC I/O Modules

Available part numbers (13)

XGQ-RY1A, XGQ-RY1D, XGQ-RY2A, XGQ-RY2B, XGQ-SS2A, XGQ-TR1C, XGQ-TR2A, XGQ-TR2B, XGQ-TR4A, XGQ-TR4B + 3 more — see full table ↓
