LS Electric XOL RAPIEnet Multiport Switches (MRS)

LS Electric XOL RAPIEnet Multiport Switches (MRS)

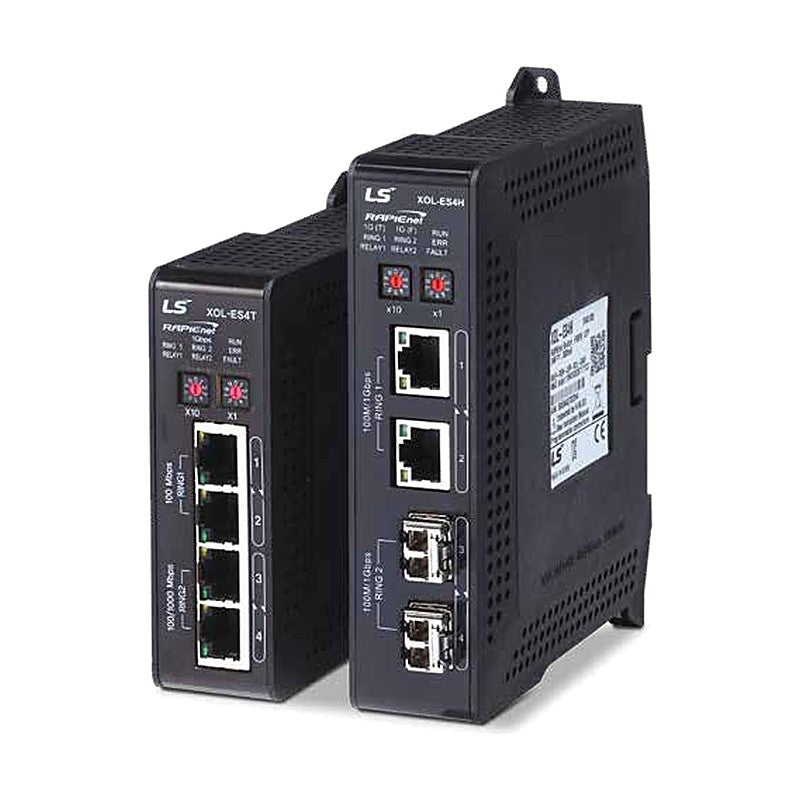

LS Electric XOL-ES4T and XOL-ES4H stand-alone multiport RAPIEnet switches (MRS) link RAPIEnet rings and lines with Modbus TCP and EtherNet/IP networks.

Key features

  • Combines RAPIEnet ring networks with Modbus TCP/IP and EtherNet/IP segments
  • Up to 64 stations including the master module
  • Station number set by rotary switches only, no software setup; auto-scan in XG5000
  • Ring-to-ring, ring-to-line and line-to-line system configurations
  • XOL-ES4H offers two LC fiber ports for up to 2 km links

Specifications

Network RAPIEnet v2 (with XGL-EFMTB V6.0 or later)
Max. stations 64 incl. master
Diagnostics LED indication
Current consumption 300 mA
Mounting DIN rail, stand-alone
Configuration Rotary station switches; XG5000 auto-scan
Source LS Electric RAPIEnet+ catalog (2021-03), p. 16-17
XOL-ES4T Ports: 4 x RJ45 | Speed: 100 Mbps (P1-2), 100/1000 Mbps (P3-4) | Max. distance: 100 m | Status: Current
XOL-ES4H Ports: 2 x RJ45 + 2 x LC fiber | Speed: 100/1000 Mbps | Max. distance: 100 m elec. / 2 km fiber | Status: Current
XOL-RCPUA Ports: PC card (not in current catalog) | Speed: - | Max. distance: - | Status: Legacy code
Network SwitchesLS Electric
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XOL RAPIEnet Multiport Switches (MRS)

Brand LS Electric·Network Switches

Available part numbers (3)

XOL-ES4T, XOL-ES4H, XOL-RCPUA

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XOL-ES4TPorts: 4 x RJ45 | Speed: 100 Mbps (P1-2), 100/1000 Mbps (P3-4) | Max. distance: 100 m | Status: Current
XOL-ES4HPorts: 2 x RJ45 + 2 x LC fiber | Speed: 100/1000 Mbps | Max. distance: 100 m elec. / 2 km fiber | Status: Current
XOL-RCPUAPorts: PC card (not in current catalog) | Speed: - | Max. distance: - | Status: Legacy code
