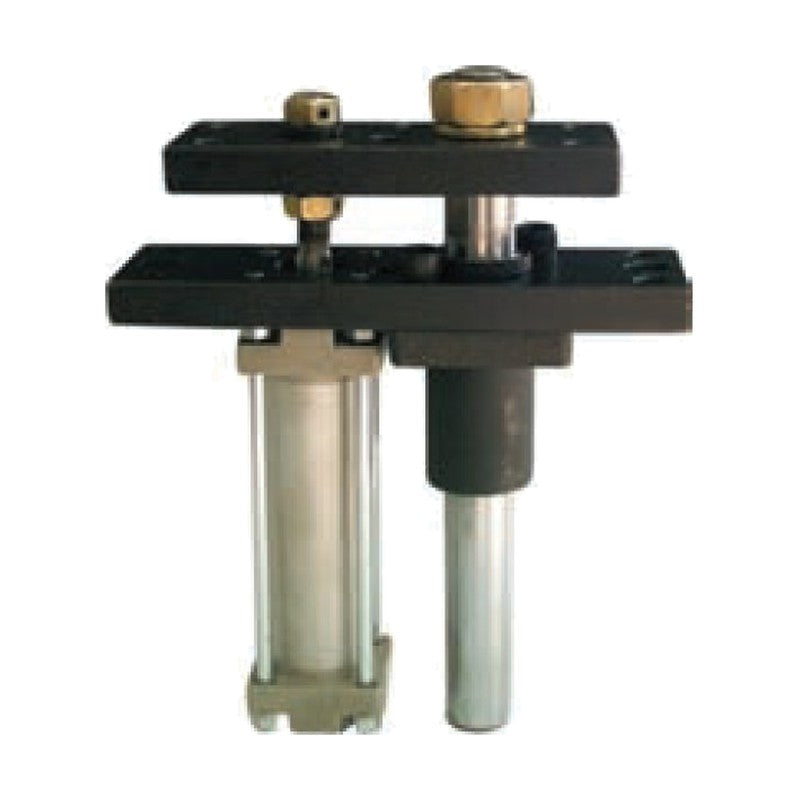

LuBo LHLM Mini Lifters (8 sizes)

LuBo LHLM Mini Lifters (8 sizes)

LuBo LHLM Mini Lifters from the LuBo Lifters catalogue, listed in 8 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Mini Lifters - series LHLM
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 8 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LHLM
Product Mini Lifters
Catalogue chapter Lifters
Orderable codes 8
Size range 8 sizes
Code example LHLM-40X25
Row spec keys Cylinder bore, Stroke ST, Max. load
Source LuBo Lifters catalogue
LHLM-40X25 Cylinder bore: 40 mm | Stroke ST: 25 mm | Max. load: 40 kg
LHLM-40X50 Cylinder bore: 40 mm | Stroke ST: 50 mm | Max. load: 40 kg
LHLM-40X75 Cylinder bore: 40 mm | Stroke ST: 75 mm | Max. load: 40 kg
LHLM-40X100 Cylinder bore: 40 mm | Stroke ST: 100 mm | Max. load: 40 kg
LHLM-40X125 Cylinder bore: 40 mm | Stroke ST: 125 mm | Max. load: 40 kg
LHLM-40X150 Cylinder bore: 40 mm | Stroke ST: 150 mm | Max. load: 40 kg
LHLM-40X175 Cylinder bore: 40 mm | Stroke ST: 175 mm | Max. load: 40 kg
LHLM-40X200 Cylinder bore: 40 mm | Stroke ST: 200 mm | Max. load: 40 kg
Die LifterLuBo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LHLM Mini Lifters (8 sizes)

Brand LuBo·Die Lifter

Available part numbers (8)

LHLM-40X25, LHLM-40X50, LHLM-40X75, LHLM-40X100, LHLM-40X125, LHLM-40X150, LHLM-40X175, LHLM-40X200

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LHLM-40X25Cylinder bore: 40 mm | Stroke ST: 25 mm | Max. load: 40 kg
LHLM-40X50Cylinder bore: 40 mm | Stroke ST: 50 mm | Max. load: 40 kg
LHLM-40X75Cylinder bore: 40 mm | Stroke ST: 75 mm | Max. load: 40 kg
LHLM-40X100Cylinder bore: 40 mm | Stroke ST: 100 mm | Max. load: 40 kg
LHLM-40X125Cylinder bore: 40 mm | Stroke ST: 125 mm | Max. load: 40 kg
LHLM-40X150Cylinder bore: 40 mm | Stroke ST: 150 mm | Max. load: 40 kg
LHLM-40X175Cylinder bore: 40 mm | Stroke ST: 175 mm | Max. load: 40 kg
LHLM-40X200Cylinder bore: 40 mm | Stroke ST: 200 mm | Max. load: 40 kg
