MEAN WELL NPB Series Ultra Wide Voltage Smart Charger (120-1700W)

MEAN WELL NPB Series Ultra Wide Voltage Smart Charger (120-1700W)

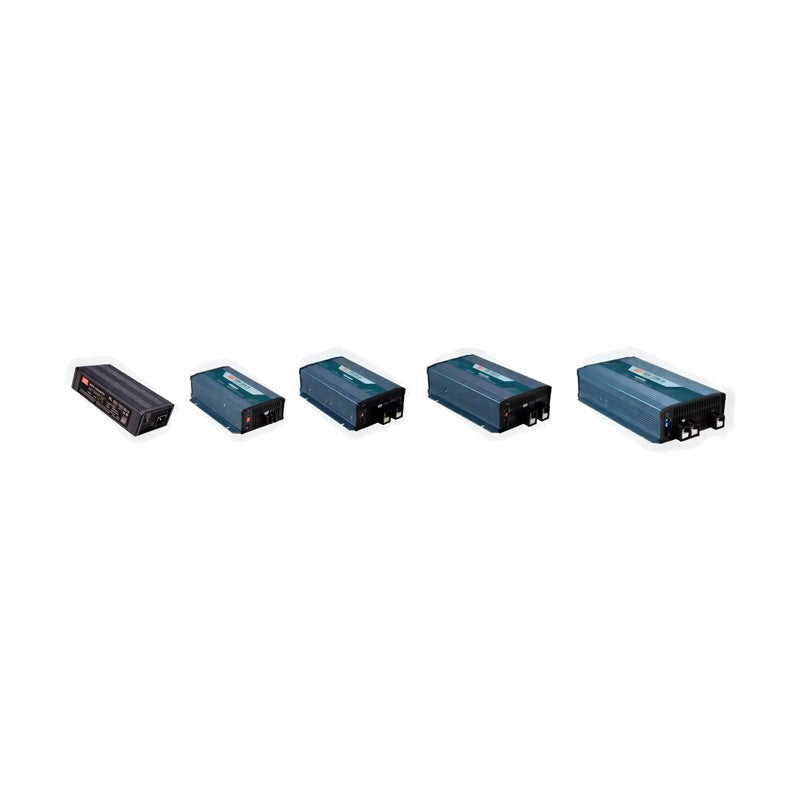

The NPB series is a 120-1700W ultra wide voltage smart battery charger for lead-acid and lithium batteries.

Key features

  • Key features: Universal AC input/Full range: 90~264VAC; Compact size, wide output voltage range for charging; Fanless design (NPB-120/240); Fan ON/OFF control (Depends on internal temperature, NPB-360); Charging voltage/current adjustable by VR
  • Also: 2 or 3 stage selectable by DIP S.W; No load power consumption<0.5W (AC S.W off); -30~+70°C wide operating temperature; Protections: Short Circuit/Over Voltage/Over Temp./Battery Reverse Polarity
NPB-120-□ Output: 14.4V(10.5~15.2V), 6.8A; 28.8V(21~30.4V), 4A; 57.6V(42~60.8V), 2A | Dimensions: 180x96x49 mm
NPB-240-□ Output: 14.4V(10.5~15.2V), 13.5A; 28.8V(21~30.4V), 8A; 57.6V(42~60.8V), 4A | Dimensions: 180x96x49 mm
NPB-360-□ Output: 14.4V(10.5~15.2V), 20A; 28.8V(21~30.4V), 12A; 57.6V(42~60.8V), 6A | Dimensions: 180x96x49 mm
NPB-450-□ Output: 14.4V(10.5~21V), 0~25A; 28.8V(21~42V), 0~13.5A; 57.6V(42~80V), 0~6.8A; 72V(54~100V), 0~5.5A | Dimensions: 205x130x55 mm
NPB-750 Output: 14.4V(10.5~21V), 0~43A; 28.8V(21~42V), 0~22.5A; 57.6V(42~80V), 0~11.3A | Dimensions: 230x158x67 mm
NPB-1200 Output: 14.4V(10.5~21V), 0~70A; 28.8V(21~42V), 0~36A; 57.6V(42~80V), 0~18A | Dimensions: 250x158x67 mm
NPB-1700 Output: 14.4V(10.5~21V), 0~85A; 28.8V(21~42V), 0~50A; 57.6V(42~80V), 0~25A | Dimensions: 300x184x70 mm
Battery ChargersMEAN WELL
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL NPB Series Ultra Wide Voltage Smart Charger (120-1700W)

Brand MEAN WELL·Battery Chargers

Available part numbers (7)

NPB-120-□, NPB-240-□, NPB-360-□, NPB-450-□, NPB-750, NPB-1200, NPB-1700

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NPB-120-□Output: 14.4V(10.5~15.2V), 6.8A; 28.8V(21~30.4V), 4A; 57.6V(42~60.8V), 2A | Dimensions: 180x96x49 mm
NPB-240-□Output: 14.4V(10.5~15.2V), 13.5A; 28.8V(21~30.4V), 8A; 57.6V(42~60.8V), 4A | Dimensions: 180x96x49 mm
NPB-360-□Output: 14.4V(10.5~15.2V), 20A; 28.8V(21~30.4V), 12A; 57.6V(42~60.8V), 6A | Dimensions: 180x96x49 mm
NPB-450-□Output: 14.4V(10.5~21V), 0~25A; 28.8V(21~42V), 0~13.5A; 57.6V(42~80V), 0~6.8A; 72V(54~100V), 0~5.5A | Dimensions: 205x130x55 mm
NPB-750Output: 14.4V(10.5~21V), 0~43A; 28.8V(21~42V), 0~22.5A; 57.6V(42~80V), 0~11.3A | Dimensions: 230x158x67 mm
NPB-1200Output: 14.4V(10.5~21V), 0~70A; 28.8V(21~42V), 0~36A; 57.6V(42~80V), 0~18A | Dimensions: 250x158x67 mm
NPB-1700Output: 14.4V(10.5~21V), 0~85A; 28.8V(21~42V), 0~50A; 57.6V(42~80V), 0~25A | Dimensions: 300x184x70 mm
