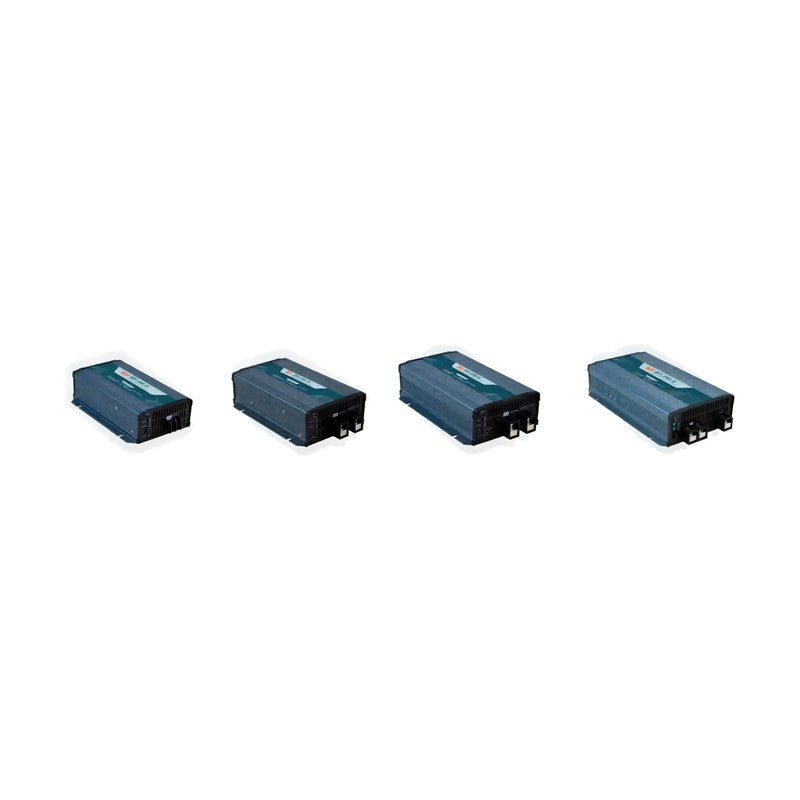

MEAN WELL NPP Series 2-in-1 Charger and Constant Voltage Power Supply (450-1700W)

MEAN WELL NPP Series 2-in-1 Charger and Constant Voltage Power Supply (450-1700W)

The NPP series is a 450-1700W 2-in-1 ultra wide voltage battery charger and constant voltage power supply.

Key features

  • Key features: Universal AC input/Full range: 90~264VAC; Charger or power supply constant voltage switchable (plug pin on the panel); 2 times wide voltage output; Vout and Iout adjustable by VR; 3 stage charging curve (Charging Mode)
  • Also: Protections: Short Circuit/Overload/Over Voltage/Over Temp; Remote S.W /thermal control DC fan; Suitable for charging lead-acid batteries and lithium batteries; Comply with UL/EN62368-1 & EN60335-1/2-29 dual certification
NPP-450 Output: 14.4V(10.5~21V) 12.5~25A; 28.8V(21~42V) 6.75~13.5A; 57.6V(42~80V) 3.4~6.8A | Dimensions: 205x130x55 mm
NPP-750 Output: 14.4V(10.5~21V) 21.5~43A; 28.8V(21~42V) 11.25~22.5A; 57.6V(42~80V) 5.65~11.3A | Dimensions: 230x158x67 mm
NPP-1200 Output: 14.4V(10.5~21V) 35~70A; 28.8V(21~42V) 18~36A; 57.6V(42~80V) 9~18A | Dimensions: 250x158x67 mm
NPP-1700 Output: 14.4V(10.5~21V) 42.5~85A; 28.8V(21~42V) 25~50A; 57.6V(42~80V) 12.5~25A | Dimensions: 300x184x70 mm
Battery ChargersMEAN WELL
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL NPP Series 2-in-1 Charger and Constant Voltage Power Supply (450-1700W)

Brand MEAN WELL·Battery Chargers

Available part numbers (4)

NPP-450, NPP-750, NPP-1200, NPP-1700

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NPP-450Output: 14.4V(10.5~21V) 12.5~25A; 28.8V(21~42V) 6.75~13.5A; 57.6V(42~80V) 3.4~6.8A | Dimensions: 205x130x55 mm
NPP-750Output: 14.4V(10.5~21V) 21.5~43A; 28.8V(21~42V) 11.25~22.5A; 57.6V(42~80V) 5.65~11.3A | Dimensions: 230x158x67 mm
NPP-1200Output: 14.4V(10.5~21V) 35~70A; 28.8V(21~42V) 18~36A; 57.6V(42~80V) 9~18A | Dimensions: 250x158x67 mm
NPP-1700Output: 14.4V(10.5~21V) 42.5~85A; 28.8V(21~42V) 25~50A; 57.6V(42~80V) 12.5~25A | Dimensions: 300x184x70 mm
