• Mitutoyo 314-251-30 V Anvil Micrometer (Digimatic)
1 1

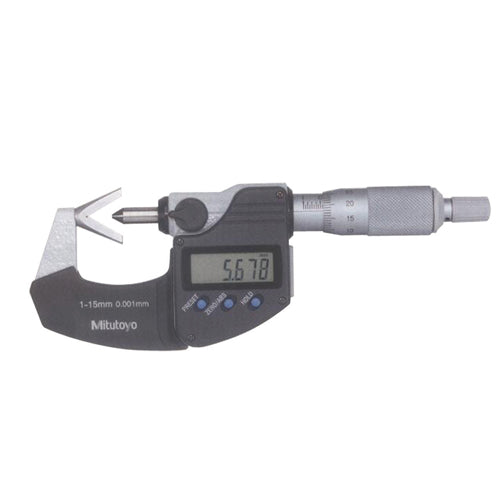

Mitutoyo 314-251-30 V Anvil Micrometer (Digimatic)

Mitutoyo 314-251-30 V Anvil Micrometer (Digimatic)

The Mitutoyo 314-251-30 Digimatic V Anvil Micrometer is a digital precision measuring instrument designed for accurate outside diameter measurement of odd-fluted cutting tools, sourced direct from Korea.

Key features

  • V anvil micrometers are commonly used in tool rooms and machining environments to measure the diameter of 3-flute end mills, drills, and reamers — workpieces that standard flat-anvil micrometers cannot reliably measure

Specifications

Minimum Division 0.001
402-8262 314-251-30 | 314-251(1~15/0.001) | Measurement Range: 1~15 | Minimum Division: 0.001
402-8271 314-252-30 | 314-252(10~25/0.001) | Note: Data Output Type/Digital | Measurement Range: 10~25 | Minimum Division: 0.001
Measuring InstrumentsMitutoyo
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitutoyo 314-251-30 V Anvil Micrometer (Digimatic)

Brand Mitutoyo·Measuring Instruments

Available part numbers (2)

402-8262, 402-8271

How to order

Send the Mitutoyo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
402-8262314-251-30 | 314-251(1~15/0.001) | Measurement Range: 1~15 | Minimum Division: 0.001
402-8271314-252-30 | 314-252(10~25/0.001) | Note: Data Output Type/Digital | Measurement Range: 10~25 | Minimum Division: 0.001
