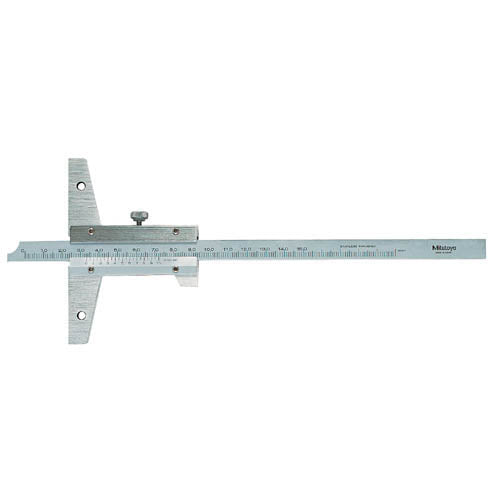

Mitutoyo 527-201 Vernier Depth Gauge

Mitutoyo 527-201 Vernier Depth Gauge

Mitutoyo's 527-201 Vernier Depth Gauge delivers precise depth measurement for stepped surfaces, slots, and blind holes, sourced direct from Korea.

Key features

  • Depth gauges of this type are commonly used by machinists, toolroom technicians, and quality control inspectors to verify dimensional accuracy on machined components and assemblies
402-0622 527-201 (150*0.05) | Measurement Range: 0~150 | Minimum Division: 0.05 | Base: 100
402-0631 527-202 (200*0.05) | Measurement Range: 0~200 | Minimum Division: 0.05 | Base: 100
402-0640 527-203 (300*0.05) | Measurement Range: 0~300 | Minimum Division: 0.05 | Base: 100
402-6282 527-204 (600*0.05) | Measurement Range: 0~600 | Minimum Division: 0.05 | Base: 250
402-6291 527-121 (150*0.02) | Measurement Range: 0~150 | Minimum Scale: 0.02 | Base: 100
402-6307 527-122 (200*0.02) | Measurement Range: 0~200 | Minimum Division: 0.02 | Base: 100
402-6316 527-123 (300*0.02) | Measurement Range: 0~300 | Minimum Division: 0.02 | Base: 100
Measuring InstrumentsMitutoyo
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitutoyo 527-201 Vernier Depth Gauge

Brand Mitutoyo·Measuring Instruments

Available part numbers (7)

402-0622, 402-0631, 402-0640, 402-6282, 402-6291, 402-6307, 402-6316

How to order

Send the Mitutoyo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
402-0622527-201 (150*0.05) | Measurement Range: 0~150 | Minimum Division: 0.05 | Base: 100
402-0631527-202 (200*0.05) | Measurement Range: 0~200 | Minimum Division: 0.05 | Base: 100
402-0640527-203 (300*0.05) | Measurement Range: 0~300 | Minimum Division: 0.05 | Base: 100
402-6282527-204 (600*0.05) | Measurement Range: 0~600 | Minimum Division: 0.05 | Base: 250
402-6291527-121 (150*0.02) | Measurement Range: 0~150 | Minimum Scale: 0.02 | Base: 100
402-6307527-122 (200*0.02) | Measurement Range: 0~200 | Minimum Division: 0.02 | Base: 100
402-6316527-123 (300*0.02) | Measurement Range: 0~300 | Minimum Division: 0.02 | Base: 100
