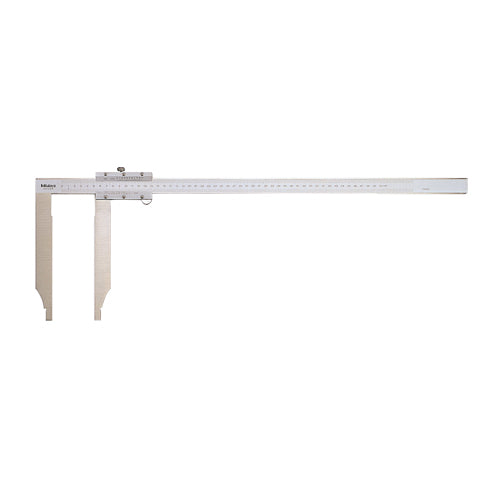

Mitutoyo 534-109 Vernier Caliper (Long Jaw)

Mitutoyo 534-109 Vernier Caliper (Long Jaw)

Mitutoyo 534-109 Vernier Caliper (Long Jaw) delivers precise linear measurement with extended jaws for reaching into deep or recessed features, sourced direct from Korea.

Key features

  • Long-jaw calipers are commonly used in metalworking, machining, and quality control applications where standard jaw depth is insufficient to access the workpiece geometry
402-0190 534-109 (300*0.05) | Measurement Range: 0(10.1)~300 | Least Division: 0.05 | Jaw Length A: 90
402-0206 534-110 (500*0.05) | Measurement Range: 0(20.1)~500 | Minimum Scale: 0.05 | Jaw Length A: 200
402-0215 534-113 (300*0.02) | Measuring Range: 0(10.1)~300 | Minimum Scale: 0.02 | Jaw Length A: 90
402-0224 534-114 (500*0.02) | Measurement Range: 0(20.1)~500 | Minimum Division: 0.02 | Jaw Length A: 200
402-0233 534-115 (750*0.02) | Measurement Range: 0(20.1)~750 | Minimum Graduation: 0.02 | Jaw Length A: 200
402-0242 534-116 (1000*0.02) | Measurement Range: 0(20.1)~1/000 | Minimum Graduation: 0.02 | Jaw Length A: 200
Measuring InstrumentsMitutoyo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitutoyo 534-109 Vernier Caliper (Long Jaw)

Brand Mitutoyo·Measuring Instruments

Available part numbers (6)

402-0190, 402-0206, 402-0215, 402-0224, 402-0233, 402-0242

How to order

Send the Mitutoyo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
402-0190534-109 (300*0.05) | Measurement Range: 0(10.1)~300 | Least Division: 0.05 | Jaw Length A: 90
402-0206534-110 (500*0.05) | Measurement Range: 0(20.1)~500 | Minimum Scale: 0.05 | Jaw Length A: 200
402-0215534-113 (300*0.02) | Measuring Range: 0(10.1)~300 | Minimum Scale: 0.02 | Jaw Length A: 90
402-0224534-114 (500*0.02) | Measurement Range: 0(20.1)~500 | Minimum Division: 0.02 | Jaw Length A: 200
402-0233534-115 (750*0.02) | Measurement Range: 0(20.1)~750 | Minimum Graduation: 0.02 | Jaw Length A: 200
402-0242534-116 (1000*0.02) | Measurement Range: 0(20.1)~1/000 | Minimum Graduation: 0.02 | Jaw Length A: 200
