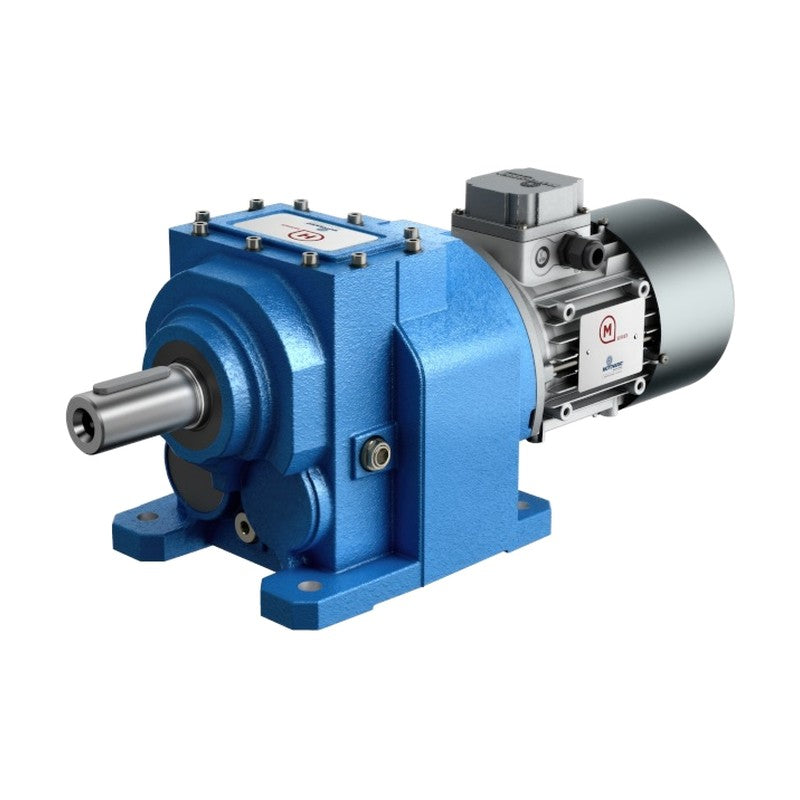

Motovario H Cast Iron Helical Inline Gearmotors (082-083, 0.37-15 kW)

Motovario H cast iron two- and three-stage helical inline gearmotors in sizes 082 to 083, supplied with a fitted IEC motor, covering every unit, ratio and motor combination in the current selection tables.

Key features

Two-stage (..2) and three-stage (..3) helical inline gear units, cast iron housing
Sizes 082/083
Reduction ratios 5.39 to 222.78, output torque up to 2,092 Nm
Fitted with Motovario IEC motors 0.37 to 15 kW, 2, 4 and 6 poles
Foot (F) and flange (U) versions; PAM (H), compact (CH) and coupling (PH) motor mounting
Output flanges FA/FB/FC and mounting positions B3-V3 selected at order

Specifications

Brand	Motovario (Italy)
Series	H two/three-stage, cast iron
Gear type	Helical inline (coaxial) gearmotor
Sizes	082, 083
Ratio range	5.39 to 222.78
Motor power range	0.37 to 15 kW
Motor supply	50 Hz, 2/4/6-pole IEC motors
Stages	2 or 3
Housing	Cast iron
Code format	<unit> <ratio i> <IEC motor size+poles>
Source	Motovario H Series Technical Catalogue IEC STD, p. 15-196

H082 5,39 132MA6		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 178.1 rpm \| Output torque M2: 208 Nm
H082 5,39 132MS4		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 187 Nm
H082 5,39 132S4		Unit: H082 \| Ratio i: 5.39 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 187 Nm
H082 5,39 132MB6		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 178.1 rpm \| Output torque M2: 286 Nm
H082 5,39 132MA4		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 256 Nm
H082 5,39 132M4		Unit: H082 \| Ratio i: 5.39 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 256 Nm
H082 5,39 160M6		Unit: H082 \| Ratio i: 5.39 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 180.0 rpm \| Output torque M2: 386 Nm
H082 5,39 132M2		Unit: H082 \| Ratio i: 5.39 \| Motor: 132M2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 540.0 rpm \| Output torque M2: 151 Nm
H082 5,39 132MA2		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 540.0 rpm \| Output torque M2: 151 Nm
H082 5,39 132MB4		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 313 Nm
H082 5,39 132MB2		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 540.0 rpm \| Output torque M2: 180 Nm
H082 5,39 132MC4		Unit: H082 \| Ratio i: 5.39 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 267.2 rpm \| Output torque M2: 377 Nm
H082 5,39 160MA4		Unit: H082 \| Ratio i: 5.39 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 267.2 rpm \| Output torque M2: 377 Nm
H082 5,39 160S4		Unit: H082 \| Ratio i: 5.39 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 267.2 rpm \| Output torque M2: 377 Nm
H082 5,39 160L6		Unit: H082 \| Ratio i: 5.39 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 180.0 rpm \| Output torque M2: 566 Nm
H082 5,39 160LA4		Unit: H082 \| Ratio i: 5.39 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 273.7 rpm \| Output torque M2: 502 Nm
H082 5,95 132MA6		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 161.5 rpm \| Output torque M2: 229 Nm
H082 5,95 132MS4		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 207 Nm
H082 5,95 132S4		Unit: H082 \| Ratio i: 5.95 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 207 Nm
H082 5,95 132MB6		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 161.5 rpm \| Output torque M2: 315 Nm
H082 5,95 132M2		Unit: H082 \| Ratio i: 5.95 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 136 Nm
H082 5,95 132SB2		Unit: H082 \| Ratio i: 5.95 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 136 Nm
H082 5,95 132MA4		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 282 Nm
H082 5,95 132M4		Unit: H082 \| Ratio i: 5.95 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 282 Nm
H082 5,95 160M6		Unit: H082 \| Ratio i: 5.95 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 163.1 rpm \| Output torque M2: 426 Nm
H082 5,95 132MA2		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 166 Nm
H082 5,95 132MB4		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 346 Nm
H082 5,95 132MB2		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 199 Nm
H082 5,95 132MC4		Unit: H082 \| Ratio i: 5.95 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 242.2 rpm \| Output torque M2: 416 Nm
H082 5,95 160MA4		Unit: H082 \| Ratio i: 5.95 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 242.2 rpm \| Output torque M2: 416 Nm
H082 5,95 160S4		Unit: H082 \| Ratio i: 5.95 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 242.2 rpm \| Output torque M2: 416 Nm
H082 5,95 160L6		Unit: H082 \| Ratio i: 5.95 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 163.1 rpm \| Output torque M2: 624 Nm
H082 5,95 160LA4		Unit: H082 \| Ratio i: 5.95 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 248.1 rpm \| Output torque M2: 554 Nm
H082 7,39 132S6		Unit: H082 \| Ratio i: 7.39 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 214 Nm
H082 7,39 132SA6		Unit: H082 \| Ratio i: 7.39 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 214 Nm
H082 7,39 132MA6		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 285 Nm
H082 7,39 132MS4		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 257 Nm
H082 7,39 132S4		Unit: H082 \| Ratio i: 7.39 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 257 Nm
H082 7,39 132MB6		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 392 Nm
H082 7,39 132M2		Unit: H082 \| Ratio i: 7.39 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 169 Nm
H082 7,39 132SB2		Unit: H082 \| Ratio i: 7.39 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 169 Nm
H082 7,39 132MA4		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 351 Nm
H082 7,39 132M4		Unit: H082 \| Ratio i: 7.39 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 351 Nm
H082 7,39 160M6		Unit: H082 \| Ratio i: 7.39 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 131.2 rpm \| Output torque M2: 529 Nm
H082 7,39 132MA2		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 207 Nm
H082 7,39 132MB4		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 430 Nm
H082 7,39 132MB2		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 247 Nm
H082 7,39 132MC4		Unit: H082 \| Ratio i: 7.39 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 194.7 rpm \| Output torque M2: 518 Nm
H082 7,39 160MA4		Unit: H082 \| Ratio i: 7.39 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 194.7 rpm \| Output torque M2: 518 Nm
H082 7,39 160S4		Unit: H082 \| Ratio i: 7.39 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 194.7 rpm \| Output torque M2: 518 Nm
H082 7,39 160L6		Unit: H082 \| Ratio i: 7.39 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 131.2 rpm \| Output torque M2: 776 Nm
H082 7,39 160LA4		Unit: H082 \| Ratio i: 7.39 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 199.5 rpm \| Output torque M2: 689 Nm
H082 8,02 132S6		Unit: H082 \| Ratio i: 8.02 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 232 Nm
H082 8,02 132SA6		Unit: H082 \| Ratio i: 8.02 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 232 Nm
H082 8,02 132MA6		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 309 Nm
H082 8,02 132MS4		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 279 Nm
H082 8,02 132S4		Unit: H082 \| Ratio i: 8.02 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 279 Nm
H082 8,02 132MB6		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 426 Nm
H082 8,02 132M2		Unit: H082 \| Ratio i: 8.02 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 183 Nm
H082 8,02 132SB2		Unit: H082 \| Ratio i: 8.02 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 183 Nm
H082 8,02 132MA4		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 380 Nm
H082 8,02 132M4		Unit: H082 \| Ratio i: 8.02 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 380 Nm
H082 8,02 160M6		Unit: H082 \| Ratio i: 8.02 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 120.9 rpm \| Output torque M2: 574 Nm
H082 8,02 132MA2		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 224 Nm
H082 8,02 132MB4		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 467 Nm
H082 8,02 132MB2		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 268 Nm
H082 8,02 132MC4		Unit: H082 \| Ratio i: 8.02 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 179.5 rpm \| Output torque M2: 562 Nm
H082 8,02 160MA4		Unit: H082 \| Ratio i: 8.02 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 179.5 rpm \| Output torque M2: 562 Nm
H082 8,02 160S4		Unit: H082 \| Ratio i: 8.02 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 179.5 rpm \| Output torque M2: 562 Nm
H082 8,02 160L6		Unit: H082 \| Ratio i: 8.02 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 120.9 rpm \| Output torque M2: 842 Nm
H082 8,02 160LA4		Unit: H082 \| Ratio i: 8.02 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 183.9 rpm \| Output torque M2: 748 Nm
H082 8,85 132S6		Unit: H082 \| Ratio i: 8.85 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 256 Nm
H082 8,85 132SA6		Unit: H082 \| Ratio i: 8.85 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 256 Nm
H082 8,85 132MA6		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 341 Nm
H082 8,85 132MS4		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 308 Nm
H082 8,85 132S4		Unit: H082 \| Ratio i: 8.85 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 308 Nm
H082 8,85 132MB6		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 470 Nm
H082 8,85 132M2		Unit: H082 \| Ratio i: 8.85 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 202 Nm
H082 8,85 132SB2		Unit: H082 \| Ratio i: 8.85 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 202 Nm
H082 8,85 132MA4		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 420 Nm
H082 8,85 132M4		Unit: H082 \| Ratio i: 8.85 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 420 Nm
H082 8,85 160M6		Unit: H082 \| Ratio i: 8.85 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 634 Nm
H082 8,85 132MA2		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 248 Nm
H082 8,85 132MB4		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 515 Nm
H082 8,85 132MB2		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 296 Nm
H082 8,85 132MC4		Unit: H082 \| Ratio i: 8.85 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 162.7 rpm \| Output torque M2: 620 Nm
H082 8,85 160MA4		Unit: H082 \| Ratio i: 8.85 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 162.7 rpm \| Output torque M2: 620 Nm
H082 8,85 160S4		Unit: H082 \| Ratio i: 8.85 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 162.7 rpm \| Output torque M2: 620 Nm
H082 8,85 160L6		Unit: H082 \| Ratio i: 8.85 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 929 Nm
H082 8,85 160LA4		Unit: H082 \| Ratio i: 8.85 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 825 Nm
H082 11,01 132S6		Unit: H082 \| Ratio i: 11.01 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 319 Nm
H082 11,01 132SA6		Unit: H082 \| Ratio i: 11.01 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 319 Nm
H082 11,01 132MA6		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 425 Nm
H082 11,01 132MS4		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 383 Nm
H082 11,01 132S4		Unit: H082 \| Ratio i: 11.01 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 383 Nm
H082 11,01 132MB6		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 584 Nm
H082 11,01 132M2		Unit: H082 \| Ratio i: 11.01 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 251 Nm
H082 11,01 132SB2		Unit: H082 \| Ratio i: 11.01 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 251 Nm
H082 11,01 132MA4		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 522 Nm
H082 11,01 132M4		Unit: H082 \| Ratio i: 11.01 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 522 Nm
H082 11,01 160M6		Unit: H082 \| Ratio i: 11.01 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 88.1 rpm \| Output torque M2: 788 Nm
H082 11,01 132MA2		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 308 Nm
H082 11,01 132MB4		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 640 Nm
H082 11,01 132MB2		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 368 Nm
H082 11,01 132MC4		Unit: H082 \| Ratio i: 11.01 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 771 Nm
H082 11,01 160MA4		Unit: H082 \| Ratio i: 11.01 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 771 Nm
H082 11,01 160S4		Unit: H082 \| Ratio i: 11.01 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 771 Nm
H082 11,01 160L6		Unit: H082 \| Ratio i: 11.01 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 88.1 rpm \| Output torque M2: 1156 Nm
H082 11,01 160LA4		Unit: H082 \| Ratio i: 11.01 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 134.0 rpm \| Output torque M2: 1026 Nm
H082 13,50 112MB6		Unit: H082 \| Ratio i: 13.50 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 403 Nm
H082 13,50 132S6		Unit: H082 \| Ratio i: 13.50 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 403 Nm
H082 13,50 132SA6		Unit: H082 \| Ratio i: 13.50 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 403 Nm
H082 13,50 132MA6		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 71.1 rpm \| Output torque M2: 521 Nm
H082 13,50 112MB4		Unit: H082 \| Ratio i: 13.50 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 105.9 rpm \| Output torque M2: 415 Nm
H082 13,50 132MS4		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 469 Nm
H082 13,50 132S4		Unit: H082 \| Ratio i: 13.50 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 469 Nm
H082 13,50 132MB6		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 71.1 rpm \| Output torque M2: 716 Nm
H082 13,50 132M2		Unit: H082 \| Ratio i: 13.50 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 308 Nm
H082 13,50 132SB2		Unit: H082 \| Ratio i: 13.50 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 308 Nm
H082 13,50 132MA4		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 640 Nm
H082 13,50 132M4		Unit: H082 \| Ratio i: 13.50 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 640 Nm
H082 13,50 160M6		Unit: H082 \| Ratio i: 13.50 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 71.9 rpm \| Output torque M2: 967 Nm
H082 13,50 132MA2		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 378 Nm
H082 13,50 132MB4		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 785 Nm
H082 13,50 132MB2		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 451 Nm
H082 13,50 132MC4		Unit: H082 \| Ratio i: 13.50 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 106.7 rpm \| Output torque M2: 945 Nm
H082 13,50 160MA4		Unit: H082 \| Ratio i: 13.50 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 106.7 rpm \| Output torque M2: 945 Nm
H082 13,50 160S4		Unit: H082 \| Ratio i: 13.50 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 106.7 rpm \| Output torque M2: 945 Nm
H082 13,50 160L6		Unit: H082 \| Ratio i: 13.50 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 71.9 rpm \| Output torque M2: 1418 Nm
H082 13,50 160LA4		Unit: H082 \| Ratio i: 13.50 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 109.3 rpm \| Output torque M2: 1259 Nm
H082 14,90 112MB6		Unit: H082 \| Ratio i: 14.90 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 62.4 rpm \| Output torque M2: 445 Nm
H082 14,90 132S6		Unit: H082 \| Ratio i: 14.90 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 62.4 rpm \| Output torque M2: 445 Nm
H082 14,90 132SA6		Unit: H082 \| Ratio i: 14.90 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 62.4 rpm \| Output torque M2: 445 Nm
H082 14,90 112M4		Unit: H082 \| Ratio i: 14.90 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 379 Nm
H082 14,90 112MA4		Unit: H082 \| Ratio i: 14.90 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 379 Nm
H082 14,90 132MA6		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 64.4 rpm \| Output torque M2: 575 Nm
H082 14,90 112MB4		Unit: H082 \| Ratio i: 14.90 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 96.0 rpm \| Output torque M2: 458 Nm
H082 14,90 132MS4		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 518 Nm
H082 14,90 132S4		Unit: H082 \| Ratio i: 14.90 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 518 Nm
H082 14,90 132MB6		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 64.4 rpm \| Output torque M2: 790 Nm
H082 14,90 132M2		Unit: H082 \| Ratio i: 14.90 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 340 Nm
H082 14,90 132SB2		Unit: H082 \| Ratio i: 14.90 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 340 Nm
H082 14,90 132MA4		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 706 Nm
H082 14,90 132M4		Unit: H082 \| Ratio i: 14.90 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 706 Nm
H082 14,90 160M6		Unit: H082 \| Ratio i: 14.90 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 65.1 rpm \| Output torque M2: 1066 Nm
H082 14,90 132MA2		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 417 Nm
H082 14,90 132MB4		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 866 Nm
H082 14,90 132MB2		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 498 Nm
H082 14,90 132MC4		Unit: H082 \| Ratio i: 14.90 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 1043 Nm
H082 14,90 160MA4		Unit: H082 \| Ratio i: 14.90 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 1043 Nm
H082 14,90 160S4		Unit: H082 \| Ratio i: 14.90 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 1043 Nm
H082 14,90 160L6		Unit: H082 \| Ratio i: 14.90 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 65.1 rpm \| Output torque M2: 1564 Nm
H082 14,90 160LA4		Unit: H082 \| Ratio i: 14.90 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 99.0 rpm \| Output torque M2: 1389 Nm
H082 16,62 112MB6		Unit: H082 \| Ratio i: 16.62 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 56.0 rpm \| Output torque M2: 496 Nm
H082 16,62 132S6		Unit: H082 \| Ratio i: 16.62 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 56.0 rpm \| Output torque M2: 496 Nm
H082 16,62 132SA6		Unit: H082 \| Ratio i: 16.62 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 56.0 rpm \| Output torque M2: 496 Nm
H082 16,62 112M4		Unit: H082 \| Ratio i: 16.62 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 423 Nm
H082 16,62 112MA4		Unit: H082 \| Ratio i: 16.62 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 423 Nm
H082 16,62 132MA6		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 57.8 rpm \| Output torque M2: 641 Nm
H082 16,62 112MB4		Unit: H082 \| Ratio i: 16.62 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 86.1 rpm \| Output torque M2: 511 Nm
H082 16,62 132MS4		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 578 Nm
H082 16,62 132S4		Unit: H082 \| Ratio i: 16.62 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 578 Nm
H082 16,62 132MB6		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 57.8 rpm \| Output torque M2: 881 Nm
H082 16,62 132M2		Unit: H082 \| Ratio i: 16.62 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 379 Nm
H082 16,62 132SB2		Unit: H082 \| Ratio i: 16.62 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 379 Nm
H082 16,62 132MA4		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 788 Nm
H082 16,62 132M4		Unit: H082 \| Ratio i: 16.62 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 788 Nm
H082 16,62 160M6		Unit: H082 \| Ratio i: 16.62 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 1190 Nm
H082 16,62 132MA2		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 465 Nm
H082 16,62 132MB4		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 967 Nm
H082 16,62 132MB2		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 556 Nm
H082 16,62 132MC4		Unit: H082 \| Ratio i: 16.62 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 1164 Nm
H082 16,62 160MA4		Unit: H082 \| Ratio i: 16.62 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 1164 Nm
H082 16,62 160S4		Unit: H082 \| Ratio i: 16.62 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 1164 Nm
H082 16,62 160L6		Unit: H082 \| Ratio i: 16.62 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 1745 Nm
H082 16,62 160LA4		Unit: H082 \| Ratio i: 16.62 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 88.8 rpm \| Output torque M2: 1549 Nm
H082 18,53 112MA6		Unit: H082 \| Ratio i: 18.53 \| Motor: 112MA6 \| Power P1: 2.20 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 406 Nm
H082 18,53 112MB6		Unit: H082 \| Ratio i: 18.53 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 553 Nm
H082 18,53 132S6		Unit: H082 \| Ratio i: 18.53 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 553 Nm
H082 18,53 132SA6		Unit: H082 \| Ratio i: 18.53 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 553 Nm
H082 18,53 112M4		Unit: H082 \| Ratio i: 18.53 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 472 Nm
H082 18,53 112MA4		Unit: H082 \| Ratio i: 18.53 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 472 Nm
H082 18,53 132MA6		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 51.8 rpm \| Output torque M2: 715 Nm
H082 18,53 112MB4		Unit: H082 \| Ratio i: 18.53 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 77.2 rpm \| Output torque M2: 570 Nm
H082 18,53 112MB2		Unit: H082 \| Ratio i: 18.53 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 310 Nm
H082 18,53 132SA2		Unit: H082 \| Ratio i: 18.53 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 310 Nm
H082 18,53 132S2		Unit: H082 \| Ratio i: 18.53 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 310 Nm
H082 18,53 132MS4		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 644 Nm
H082 18,53 132S4		Unit: H082 \| Ratio i: 18.53 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 644 Nm
H082 18,53 132MB6		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 51.8 rpm \| Output torque M2: 983 Nm
H082 18,53 132M2		Unit: H082 \| Ratio i: 18.53 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 422 Nm
H082 18,53 132SB2		Unit: H082 \| Ratio i: 18.53 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 422 Nm
H082 18,53 132MA4		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 878 Nm
H082 18,53 132M4		Unit: H082 \| Ratio i: 18.53 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 878 Nm
H082 18,53 160M6		Unit: H082 \| Ratio i: 18.53 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 52.4 rpm \| Output torque M2: 1326 Nm
H082 18,53 132MA2		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 518 Nm
H082 18,53 132MB4		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 1078 Nm
H082 18,53 132MB2		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 620 Nm
H082 18,53 132MC4		Unit: H082 \| Ratio i: 18.53 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 1297 Nm
H082 18,53 160MA4		Unit: H082 \| Ratio i: 18.53 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 1297 Nm
H082 18,53 160S4		Unit: H082 \| Ratio i: 18.53 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 1297 Nm
H082 19,38 112MA6		Unit: H082 \| Ratio i: 19.38 \| Motor: 112MA6 \| Power P1: 2.20 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 425 Nm
H082 19,38 112MB6		Unit: H082 \| Ratio i: 19.38 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 579 Nm
H082 19,38 132S6		Unit: H082 \| Ratio i: 19.38 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 579 Nm
H082 19,38 132SA6		Unit: H082 \| Ratio i: 19.38 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 579 Nm
H082 19,38 112M4		Unit: H082 \| Ratio i: 19.38 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 494 Nm
H082 19,38 112MA4		Unit: H082 \| Ratio i: 19.38 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 494 Nm
H082 19,38 132MA6		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 49.5 rpm \| Output torque M2: 748 Nm
H082 19,38 112MB4		Unit: H082 \| Ratio i: 19.38 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 73.8 rpm \| Output torque M2: 597 Nm
H082 19,38 112MB2		Unit: H082 \| Ratio i: 19.38 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 324 Nm
H082 19,38 132SA2		Unit: H082 \| Ratio i: 19.38 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 324 Nm
H082 19,38 132S2		Unit: H082 \| Ratio i: 19.38 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 324 Nm
H082 19,38 132MS4		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 674 Nm
H082 19,38 132S4		Unit: H082 \| Ratio i: 19.38 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 674 Nm
H082 19,38 132MB6		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 49.5 rpm \| Output torque M2: 1028 Nm
H082 19,38 132M2		Unit: H082 \| Ratio i: 19.38 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 442 Nm
H082 19,38 132SB2		Unit: H082 \| Ratio i: 19.38 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 442 Nm
H082 19,38 132MA4		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 919 Nm
H082 19,38 132M4		Unit: H082 \| Ratio i: 19.38 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 919 Nm
H082 19,38 160M6		Unit: H082 \| Ratio i: 19.38 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 50.0 rpm \| Output torque M2: 1388 Nm
H082 19,38 132MA2		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 542 Nm
H082 19,38 132MB4		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 1128 Nm
H082 19,38 132MB2		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 648 Nm
H082 19,38 132MC4		Unit: H082 \| Ratio i: 19.38 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 1358 Nm
H082 19,38 160MA4		Unit: H082 \| Ratio i: 19.38 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 1358 Nm
H082 19,38 160S4		Unit: H082 \| Ratio i: 19.38 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 1358 Nm
H082 21,39 112M6		Unit: H082 \| Ratio i: 21.39 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 469 Nm
H082 21,39 112MA6		Unit: H082 \| Ratio i: 21.39 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 469 Nm
H082 21,39 100LB4		Unit: H082 \| Ratio i: 21.39 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 414 Nm
H082 21,39 112MS4		Unit: H082 \| Ratio i: 21.39 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 414 Nm
H082 21,39 112MB6		Unit: H082 \| Ratio i: 21.39 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 639 Nm
H082 21,39 132S6		Unit: H082 \| Ratio i: 21.39 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 639 Nm
H082 21,39 132SA6		Unit: H082 \| Ratio i: 21.39 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 639 Nm
H082 21,39 112M4		Unit: H082 \| Ratio i: 21.39 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 545 Nm
H082 21,39 112MA4		Unit: H082 \| Ratio i: 21.39 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 545 Nm
H082 21,39 132MA6		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 825 Nm
H082 21,39 112MB4		Unit: H082 \| Ratio i: 21.39 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 66.9 rpm \| Output torque M2: 658 Nm
H082 21,39 112MB2		Unit: H082 \| Ratio i: 21.39 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 358 Nm
H082 21,39 132SA2		Unit: H082 \| Ratio i: 21.39 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 358 Nm
H082 21,39 132S2		Unit: H082 \| Ratio i: 21.39 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 358 Nm
H082 21,39 132MS4		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 744 Nm
H082 21,39 132S4		Unit: H082 \| Ratio i: 21.39 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 744 Nm
H082 21,39 132MB6		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 1135 Nm
H082 21,39 132M2		Unit: H082 \| Ratio i: 21.39 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 488 Nm
H082 21,39 132SB2		Unit: H082 \| Ratio i: 21.39 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 488 Nm
H082 21,39 132MA4		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 1014 Nm
H082 21,39 132M4		Unit: H082 \| Ratio i: 21.39 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 1014 Nm
H082 21,39 160M6		Unit: H082 \| Ratio i: 21.39 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 1531 Nm
H082 21,39 132MA2		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 598 Nm
H082 21,39 132MB4		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 1244 Nm
H082 21,39 132MB2		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 715 Nm
H082 21,39 132MC4		Unit: H082 \| Ratio i: 21.39 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 1498 Nm
H082 21,39 160MA4		Unit: H082 \| Ratio i: 21.39 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 1498 Nm
H082 21,39 160S4		Unit: H082 \| Ratio i: 21.39 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 1498 Nm
H082 22,80 112M6		Unit: H082 \| Ratio i: 22.80 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 499 Nm
H082 22,80 112MA6		Unit: H082 \| Ratio i: 22.80 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 499 Nm
H082 22,80 100LB4		Unit: H082 \| Ratio i: 22.80 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 62.3 rpm \| Output torque M2: 442 Nm
H082 22,80 112MS4		Unit: H082 \| Ratio i: 22.80 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 62.3 rpm \| Output torque M2: 442 Nm
H082 22,80 112MB6		Unit: H082 \| Ratio i: 22.80 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 681 Nm
H082 22,80 132S6		Unit: H082 \| Ratio i: 22.80 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 681 Nm
H082 22,80 132SA6		Unit: H082 \| Ratio i: 22.80 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 681 Nm
H082 22,80 112M4		Unit: H082 \| Ratio i: 22.80 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 581 Nm
H082 22,80 112MA4		Unit: H082 \| Ratio i: 22.80 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 581 Nm
H082 22,80 132MA6		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 880 Nm
H082 22,80 112MB4		Unit: H082 \| Ratio i: 22.80 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 62.7 rpm \| Output torque M2: 702 Nm
H082 22,80 112MB2		Unit: H082 \| Ratio i: 22.80 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 381 Nm
H082 22,80 132SA2		Unit: H082 \| Ratio i: 22.80 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 381 Nm
H082 22,80 132S2		Unit: H082 \| Ratio i: 22.80 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 381 Nm
H082 22,80 132MS4		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 793 Nm
H082 22,80 132S4		Unit: H082 \| Ratio i: 22.80 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 793 Nm
H082 22,80 132MB6		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 1210 Nm
H082 22,80 132M2		Unit: H082 \| Ratio i: 22.80 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 520 Nm
H082 22,80 132SB2		Unit: H082 \| Ratio i: 22.80 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 520 Nm
H082 22,80 132MA4		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 1081 Nm
H082 22,80 132M4		Unit: H082 \| Ratio i: 22.80 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 1081 Nm
H082 22,80 160M6		Unit: H082 \| Ratio i: 22.80 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 42.5 rpm \| Output torque M2: 1632 Nm
H082 22,80 132MA2		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 638 Nm
H082 22,80 132MB4		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 1326 Nm
H082 22,80 132MB2		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 762 Nm
H082 22,80 132MC4		Unit: H082 \| Ratio i: 22.80 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 1597 Nm
H082 22,80 160MA4		Unit: H082 \| Ratio i: 22.80 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 1597 Nm
H082 22,80 160S4		Unit: H082 \| Ratio i: 22.80 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 1597 Nm
H082 26,60 100LB6		Unit: H082 \| Ratio i: 26.60 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 490 Nm
H082 26,60 112M6		Unit: H082 \| Ratio i: 26.60 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 583 Nm
H082 26,60 112MA6		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 583 Nm
H082 26,60 100LB4		Unit: H082 \| Ratio i: 26.60 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 515 Nm
H082 26,60 112MS4		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 515 Nm
H082 26,60 112MB6		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 795 Nm
H082 26,60 132S6		Unit: H082 \| Ratio i: 26.60 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 795 Nm
H082 26,60 132SA6		Unit: H082 \| Ratio i: 26.60 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 795 Nm
H082 26,60 100LB2		Unit: H082 \| Ratio i: 26.60 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 107.9 rpm \| Output torque M2: 328 Nm
H082 26,60 112M2		Unit: H082 \| Ratio i: 26.60 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 107.9 rpm \| Output torque M2: 328 Nm
H082 26,60 112MA2		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 107.9 rpm \| Output torque M2: 328 Nm
H082 26,60 112M4		Unit: H082 \| Ratio i: 26.60 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 677 Nm
H082 26,60 112MA4		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 677 Nm
H082 26,60 132MA6		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 36.1 rpm \| Output torque M2: 1026 Nm
H082 26,60 112MB4		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 819 Nm
H082 26,60 112MB2		Unit: H082 \| Ratio i: 26.60 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 445 Nm
H082 26,60 132SA2		Unit: H082 \| Ratio i: 26.60 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 445 Nm
H082 26,60 132S2		Unit: H082 \| Ratio i: 26.60 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 445 Nm
H082 26,60 132MS4		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 925 Nm
H082 26,60 132S4		Unit: H082 \| Ratio i: 26.60 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 925 Nm
H082 26,60 132MB6		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 36.1 rpm \| Output torque M2: 1411 Nm
H082 26,60 132M2		Unit: H082 \| Ratio i: 26.60 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 607 Nm
H082 26,60 132SB2		Unit: H082 \| Ratio i: 26.60 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 607 Nm
H082 26,60 132MA4		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 1261 Nm
H082 26,60 132M4		Unit: H082 \| Ratio i: 26.60 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 1261 Nm
H082 26,60 132MA2		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 744 Nm
H082 26,60 132MB4		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 1547 Nm
H082 26,60 132MB2		Unit: H082 \| Ratio i: 26.60 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 890 Nm
H082 27,88 100LB6		Unit: H082 \| Ratio i: 27.88 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 514 Nm
H082 27,88 112M6		Unit: H082 \| Ratio i: 27.88 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 611 Nm
H082 27,88 112MA6		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 611 Nm
H082 27,88 100LB4		Unit: H082 \| Ratio i: 27.88 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 50.9 rpm \| Output torque M2: 540 Nm
H082 27,88 112MS4		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 50.9 rpm \| Output torque M2: 540 Nm
H082 27,88 112MB6		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 833 Nm
H082 27,88 132S6		Unit: H082 \| Ratio i: 27.88 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 833 Nm
H082 27,88 132SA6		Unit: H082 \| Ratio i: 27.88 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 833 Nm
H082 27,88 100LB2		Unit: H082 \| Ratio i: 27.88 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 344 Nm
H082 27,88 112M2		Unit: H082 \| Ratio i: 27.88 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 344 Nm
H082 27,88 112MA2		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 344 Nm
H082 27,88 112M4		Unit: H082 \| Ratio i: 27.88 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 710 Nm
H082 27,88 112MA4		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 710 Nm
H082 27,88 132MA6		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.4 rpm \| Output torque M2: 1076 Nm
H082 27,88 112MB4		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 51.3 rpm \| Output torque M2: 858 Nm
H082 27,88 112MB2		Unit: H082 \| Ratio i: 27.88 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 466 Nm
H082 27,88 132SA2		Unit: H082 \| Ratio i: 27.88 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 466 Nm
H082 27,88 132S2		Unit: H082 \| Ratio i: 27.88 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 466 Nm
H082 27,88 132MS4		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 970 Nm
H082 27,88 132S4		Unit: H082 \| Ratio i: 27.88 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 970 Nm
H082 27,88 132MB6		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 34.4 rpm \| Output torque M2: 1479 Nm
H082 27,88 132M2		Unit: H082 \| Ratio i: 27.88 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 636 Nm
H082 27,88 132SB2		Unit: H082 \| Ratio i: 27.88 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 636 Nm
H082 27,88 132MA4		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 1322 Nm
H082 27,88 132M4		Unit: H082 \| Ratio i: 27.88 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 1322 Nm
H082 27,88 132MA2		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 780 Nm
H082 27,88 132MB4		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 1622 Nm
H082 27,88 132MB2		Unit: H082 \| Ratio i: 27.88 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 932 Nm
H082 31,15 100L6		Unit: H082 \| Ratio i: 31.15 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 465 Nm
H082 31,15 100LA6		Unit: H082 \| Ratio i: 31.15 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 465 Nm
H082 31,15 100LB6		Unit: H082 \| Ratio i: 31.15 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 574 Nm
H082 31,15 100LA4		Unit: H082 \| Ratio i: 31.15 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 443 Nm
H082 31,15 112MR4		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 443 Nm
H082 31,15 112M6		Unit: H082 \| Ratio i: 31.15 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 682 Nm
H082 31,15 112MA6		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 682 Nm
H082 31,15 100LB4		Unit: H082 \| Ratio i: 31.15 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 603 Nm
H082 31,15 112MS4		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 603 Nm
H082 31,15 112MB6		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 931 Nm
H082 31,15 132S6		Unit: H082 \| Ratio i: 31.15 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 931 Nm
H082 31,15 132SA6		Unit: H082 \| Ratio i: 31.15 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 931 Nm
H082 31,15 100LB2		Unit: H082 \| Ratio i: 31.15 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 384 Nm
H082 31,15 112M2		Unit: H082 \| Ratio i: 31.15 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 384 Nm
H082 31,15 112MA2		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 384 Nm
H082 31,15 112M4		Unit: H082 \| Ratio i: 31.15 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 46.2 rpm \| Output torque M2: 793 Nm
H082 31,15 112MA4		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 46.2 rpm \| Output torque M2: 793 Nm
H082 31,15 132MA6		Unit: H082 \| Ratio i: 31.15 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 1202 Nm
H082 31,15 112MB4		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 959 Nm
H082 31,15 112MB2		Unit: H082 \| Ratio i: 31.15 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 521 Nm
H082 31,15 132SA2		Unit: H082 \| Ratio i: 31.15 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 521 Nm
H082 31,15 132S2		Unit: H082 \| Ratio i: 31.15 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 521 Nm
H082 31,15 132MS4		Unit: H082 \| Ratio i: 31.15 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1083 Nm
H082 31,15 132S4		Unit: H082 \| Ratio i: 31.15 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1083 Nm
H082 31,15 132MB6		Unit: H082 \| Ratio i: 31.15 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 1653 Nm
H082 31,15 132M2		Unit: H082 \| Ratio i: 31.15 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 710 Nm
H082 31,15 132SB2		Unit: H082 \| Ratio i: 31.15 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 710 Nm
H082 31,15 132MA4		Unit: H082 \| Ratio i: 31.15 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1477 Nm
H082 31,15 132M4		Unit: H082 \| Ratio i: 31.15 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1477 Nm
H082 31,15 132MA2		Unit: H082 \| Ratio i: 31.15 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 871 Nm
H082 31,15 132MB2		Unit: H082 \| Ratio i: 31.15 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 1042 Nm
H082 34,38 100L6		Unit: H082 \| Ratio i: 34.38 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 513 Nm
H082 34,38 100LA6		Unit: H082 \| Ratio i: 34.38 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 513 Nm
H082 34,38 90LB4		Unit: H082 \| Ratio i: 34.38 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 40.7 rpm \| Output torque M2: 416 Nm
H082 34,38 100LB6		Unit: H082 \| Ratio i: 34.38 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 633 Nm
H082 34,38 100LA4		Unit: H082 \| Ratio i: 34.38 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 488 Nm
H082 34,38 112MR4		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 488 Nm
H082 34,38 112M6		Unit: H082 \| Ratio i: 34.38 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 753 Nm
H082 34,38 112MA6		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 753 Nm
H082 34,38 100L2		Unit: H082 \| Ratio i: 34.38 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 318 Nm
H082 34,38 100LA2		Unit: H082 \| Ratio i: 34.38 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 318 Nm
H082 34,38 100LB4		Unit: H082 \| Ratio i: 34.38 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 666 Nm
H082 34,38 112MS4		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 666 Nm
H082 34,38 112MB6		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 1027 Nm
H082 34,38 132S6		Unit: H082 \| Ratio i: 34.38 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 1027 Nm
H082 34,38 132SA6		Unit: H082 \| Ratio i: 34.38 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 1027 Nm
H082 34,38 100LB2		Unit: H082 \| Ratio i: 34.38 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 424 Nm
H082 34,38 112M2		Unit: H082 \| Ratio i: 34.38 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 424 Nm
H082 34,38 112MA2		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 424 Nm
H082 34,38 112M4		Unit: H082 \| Ratio i: 34.38 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 875 Nm
H082 34,38 112MA4		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 875 Nm
H082 34,38 132MA6		Unit: H082 \| Ratio i: 34.38 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 27.9 rpm \| Output torque M2: 1326 Nm
H082 34,38 112MB4		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 1058 Nm
H082 34,38 112MB2		Unit: H082 \| Ratio i: 34.38 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 575 Nm
H082 34,38 132SA2		Unit: H082 \| Ratio i: 34.38 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 575 Nm
H082 34,38 132S2		Unit: H082 \| Ratio i: 34.38 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 575 Nm
H082 34,38 132MS4		Unit: H082 \| Ratio i: 34.38 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1195 Nm
H082 34,38 132S4		Unit: H082 \| Ratio i: 34.38 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1195 Nm
H082 34,38 132MB6		Unit: H082 \| Ratio i: 34.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 27.9 rpm \| Output torque M2: 1824 Nm
H082 34,38 132M2		Unit: H082 \| Ratio i: 34.38 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 784 Nm
H082 34,38 132SB2		Unit: H082 \| Ratio i: 34.38 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 784 Nm
H082 34,38 132MA4		Unit: H082 \| Ratio i: 34.38 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1630 Nm
H082 34,38 132M4		Unit: H082 \| Ratio i: 34.38 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1630 Nm
H082 34,38 132MA2		Unit: H082 \| Ratio i: 34.38 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 961 Nm
H082 34,38 132MB2		Unit: H082 \| Ratio i: 34.38 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 1150 Nm
H082 38,70 90L6		Unit: H082 \| Ratio i: 38.70 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 424 Nm
H082 38,70 100L6		Unit: H082 \| Ratio i: 38.70 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 578 Nm
H082 38,70 100LA6		Unit: H082 \| Ratio i: 38.70 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 578 Nm
H082 38,70 90LB4		Unit: H082 \| Ratio i: 38.70 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 469 Nm
H082 38,70 100LB6		Unit: H082 \| Ratio i: 38.70 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 713 Nm
H082 38,70 100LA4		Unit: H082 \| Ratio i: 38.70 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 550 Nm
H082 38,70 112MR4		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 550 Nm
H082 38,70 112M6		Unit: H082 \| Ratio i: 38.70 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 848 Nm
H082 38,70 112MA6		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 848 Nm
H082 38,70 100L2		Unit: H082 \| Ratio i: 38.70 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 358 Nm
H082 38,70 100LA2		Unit: H082 \| Ratio i: 38.70 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 358 Nm
H082 38,70 100LB4		Unit: H082 \| Ratio i: 38.70 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 750 Nm
H082 38,70 112MS4		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 750 Nm
H082 38,70 112MB6		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 1156 Nm
H082 38,70 132S6		Unit: H082 \| Ratio i: 38.70 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 1156 Nm
H082 38,70 132SA6		Unit: H082 \| Ratio i: 38.70 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 1156 Nm
H082 38,70 100LB2		Unit: H082 \| Ratio i: 38.70 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 477 Nm
H082 38,70 112M2		Unit: H082 \| Ratio i: 38.70 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 477 Nm
H082 38,70 112MA2		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 477 Nm
H082 38,70 112M4		Unit: H082 \| Ratio i: 38.70 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 986 Nm
H082 38,70 112MA4		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 986 Nm
H082 38,70 132MA6		Unit: H082 \| Ratio i: 38.70 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 1493 Nm
H082 38,70 112MB4		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 36.9 rpm \| Output torque M2: 1191 Nm
H082 38,70 112MB2		Unit: H082 \| Ratio i: 38.70 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 647 Nm
H082 38,70 132SA2		Unit: H082 \| Ratio i: 38.70 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 647 Nm
H082 38,70 132S2		Unit: H082 \| Ratio i: 38.70 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 647 Nm
H082 38,70 132MS4		Unit: H082 \| Ratio i: 38.70 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 1346 Nm
H082 38,70 132S4		Unit: H082 \| Ratio i: 38.70 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 1346 Nm
H082 38,70 132M2		Unit: H082 \| Ratio i: 38.70 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 883 Nm
H082 38,70 132SB2		Unit: H082 \| Ratio i: 38.70 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 883 Nm
H082 38,70 132MA2		Unit: H082 \| Ratio i: 38.70 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 1083 Nm
H082 42,75 90L6		Unit: H082 \| Ratio i: 42.75 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 468 Nm
H082 42,75 100LR6		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 468 Nm
H082 42,75 90L4		Unit: H082 \| Ratio i: 42.75 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 420 Nm
H082 42,75 90LA4		Unit: H082 \| Ratio i: 42.75 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 420 Nm
H082 42,75 100L6		Unit: H082 \| Ratio i: 42.75 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 638 Nm
H082 42,75 100LA6		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 638 Nm
H082 42,75 90LB4		Unit: H082 \| Ratio i: 42.75 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 518 Nm
H082 42,75 100LB6		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 787 Nm
H082 42,75 100LA4		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 607 Nm
H082 42,75 112MR4		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 607 Nm
H082 42,75 112M6		Unit: H082 \| Ratio i: 42.75 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 936 Nm
H082 42,75 112MA6		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 936 Nm
H082 42,75 100L2		Unit: H082 \| Ratio i: 42.75 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 395 Nm
H082 42,75 100LA2		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 395 Nm
H082 42,75 100LB4		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 828 Nm
H082 42,75 112MS4		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 828 Nm
H082 42,75 112MB6		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 1277 Nm
H082 42,75 132S6		Unit: H082 \| Ratio i: 42.75 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 1277 Nm
H082 42,75 132SA6		Unit: H082 \| Ratio i: 42.75 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 1277 Nm
H082 42,75 100LB2		Unit: H082 \| Ratio i: 42.75 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 527 Nm
H082 42,75 112M2		Unit: H082 \| Ratio i: 42.75 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 527 Nm
H082 42,75 112MA2		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 527 Nm
H082 42,75 112M4		Unit: H082 \| Ratio i: 42.75 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1089 Nm
H082 42,75 112MA4		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1089 Nm
H082 42,75 132MA6		Unit: H082 \| Ratio i: 42.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 1649 Nm
H082 42,75 112MB4		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 1316 Nm
H082 42,75 112MB2		Unit: H082 \| Ratio i: 42.75 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 715 Nm
H082 42,75 132SA2		Unit: H082 \| Ratio i: 42.75 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 715 Nm
H082 42,75 132S2		Unit: H082 \| Ratio i: 42.75 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 715 Nm
H082 42,75 132MS4		Unit: H082 \| Ratio i: 42.75 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1487 Nm
H082 42,75 132S4		Unit: H082 \| Ratio i: 42.75 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1487 Nm
H082 42,75 132M2		Unit: H082 \| Ratio i: 42.75 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 975 Nm
H082 42,75 132SB2		Unit: H082 \| Ratio i: 42.75 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 975 Nm
H082 42,75 132MA2		Unit: H082 \| Ratio i: 42.75 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 1196 Nm
H082 48,13 90L6		Unit: H082 \| Ratio i: 48.13 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 527 Nm
H082 48,13 100LR6		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 527 Nm
H082 48,13 90L4		Unit: H082 \| Ratio i: 48.13 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 29.1 rpm \| Output torque M2: 473 Nm
H082 48,13 90LA4		Unit: H082 \| Ratio i: 48.13 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 29.1 rpm \| Output torque M2: 473 Nm
H082 48,13 100L6		Unit: H082 \| Ratio i: 48.13 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 719 Nm
H082 48,13 100LA6		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 719 Nm
H082 48,13 90LB4		Unit: H082 \| Ratio i: 48.13 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 29.1 rpm \| Output torque M2: 583 Nm
H082 48,13 100LB6		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 887 Nm
H082 48,13 90L2		Unit: H082 \| Ratio i: 48.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 59.4 rpm \| Output torque M2: 328 Nm
H082 48,13 100LA4		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 684 Nm
H082 48,13 112MR4		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 684 Nm
H082 48,13 112M6		Unit: H082 \| Ratio i: 48.13 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1054 Nm
H082 48,13 112MA6		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1054 Nm
H082 48,13 100L2		Unit: H082 \| Ratio i: 48.13 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 445 Nm
H082 48,13 100LA2		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 445 Nm
H082 48,13 100LB4		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 932 Nm
H082 48,13 112MS4		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 932 Nm
H082 48,13 112MB6		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1438 Nm
H082 48,13 132S6		Unit: H082 \| Ratio i: 48.13 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1438 Nm
H082 48,13 132SA6		Unit: H082 \| Ratio i: 48.13 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1438 Nm
H082 48,13 100LB2		Unit: H082 \| Ratio i: 48.13 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 594 Nm
H082 48,13 112M2		Unit: H082 \| Ratio i: 48.13 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 594 Nm
H082 48,13 112MA2		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 594 Nm
H082 48,13 112M4		Unit: H082 \| Ratio i: 48.13 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1226 Nm
H082 48,13 112MA4		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1226 Nm
H082 48,13 132MA6		Unit: H082 \| Ratio i: 48.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 1857 Nm
H082 48,13 112MB4		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 29.7 rpm \| Output torque M2: 1481 Nm
H082 48,13 112MB2		Unit: H082 \| Ratio i: 48.13 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 805 Nm
H082 48,13 132SA2		Unit: H082 \| Ratio i: 48.13 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 805 Nm
H082 48,13 132S2		Unit: H082 \| Ratio i: 48.13 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 805 Nm
H082 48,13 132MS4		Unit: H082 \| Ratio i: 48.13 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 30.1 rpm \| Output torque M2: 1674 Nm
H082 48,13 132S4		Unit: H082 \| Ratio i: 48.13 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 30.1 rpm \| Output torque M2: 1674 Nm
H082 48,13 132M2		Unit: H082 \| Ratio i: 48.13 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 1098 Nm
H082 48,13 132SB2		Unit: H082 \| Ratio i: 48.13 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 1098 Nm
H083 56,53 90L6		Unit: H083 \| Ratio i: 56.53 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 606 Nm
H083 56,53 100LR6		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 606 Nm
H083 56,53 90L4		Unit: H083 \| Ratio i: 56.53 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 544 Nm
H083 56,53 90LA4		Unit: H083 \| Ratio i: 56.53 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 544 Nm
H083 56,53 100L6		Unit: H083 \| Ratio i: 56.53 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 827 Nm
H083 56,53 100LA6		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 827 Nm
H083 56,53 90LB4		Unit: H083 \| Ratio i: 56.53 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 671 Nm
H083 56,53 100LB6		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1019 Nm
H083 56,53 90L2		Unit: H083 \| Ratio i: 56.53 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 50.6 rpm \| Output torque M2: 377 Nm
H083 56,53 100LA4		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 786 Nm
H083 56,53 112MR4		Unit: H083 \| Ratio i: 56.53 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 786 Nm
H083 56,53 112M6		Unit: H083 \| Ratio i: 56.53 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1212 Nm
H083 56,53 112MA6		Unit: H083 \| Ratio i: 56.53 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1212 Nm
H083 56,53 100L2		Unit: H083 \| Ratio i: 56.53 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 512 Nm
H083 56,53 100LA2		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 512 Nm
H083 56,53 100LB4		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 1072 Nm
H083 56,53 112MS4		Unit: H083 \| Ratio i: 56.53 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 1072 Nm
H083 56,53 100LB2		Unit: H083 \| Ratio i: 56.53 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 682 Nm
H083 56,53 112M2		Unit: H083 \| Ratio i: 56.53 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 682 Nm
H083 56,53 112MA2		Unit: H083 \| Ratio i: 56.53 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 682 Nm
H083 56,53 112M4		Unit: H083 \| Ratio i: 56.53 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.5 rpm \| Output torque M2: 1410 Nm
H083 56,53 112MA4		Unit: H083 \| Ratio i: 56.53 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.5 rpm \| Output torque M2: 1410 Nm
H083 56,53 112MB4		Unit: H083 \| Ratio i: 56.53 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 1703 Nm
H083 71,48 80C6		Unit: H083 \| Ratio i: 71.48 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 528 Nm
H083 71,48 90S6		Unit: H083 \| Ratio i: 71.48 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 528 Nm
H083 71,48 80D4		Unit: H083 \| Ratio i: 71.48 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 504 Nm
H083 71,48 90S4		Unit: H083 \| Ratio i: 71.48 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 504 Nm
H083 71,48 90L6		Unit: H083 \| Ratio i: 71.48 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 767 Nm
H083 71,48 100LR6		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 767 Nm
H083 71,48 90L4		Unit: H083 \| Ratio i: 71.48 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 688 Nm
H083 71,48 90LA4		Unit: H083 \| Ratio i: 71.48 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 688 Nm
H083 71,48 100L6		Unit: H083 \| Ratio i: 71.48 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1045 Nm
H083 71,48 100LA6		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1045 Nm
H083 71,48 90LB4		Unit: H083 \| Ratio i: 71.48 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 848 Nm
H083 71,48 100LB6		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1289 Nm
H083 71,48 90L2		Unit: H083 \| Ratio i: 71.48 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 476 Nm
H083 71,48 100LA4		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 994 Nm
H083 71,48 112MR4		Unit: H083 \| Ratio i: 71.48 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 994 Nm
H083 71,48 112M6		Unit: H083 \| Ratio i: 71.48 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1533 Nm
H083 71,48 112MA6		Unit: H083 \| Ratio i: 71.48 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1533 Nm
H083 71,48 100L2		Unit: H083 \| Ratio i: 71.48 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 647 Nm
H083 71,48 100LA2		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 647 Nm
H083 71,48 100LB4		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 1356 Nm
H083 71,48 112MS4		Unit: H083 \| Ratio i: 71.48 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 1356 Nm
H083 71,48 112MB6		Unit: H083 \| Ratio i: 71.48 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 2091 Nm
H083 71,48 132S6		Unit: H083 \| Ratio i: 71.48 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 2091 Nm
H083 71,48 132SA6		Unit: H083 \| Ratio i: 71.48 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 2091 Nm
H083 71,48 100LB2		Unit: H083 \| Ratio i: 71.48 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 863 Nm
H083 71,48 112M2		Unit: H083 \| Ratio i: 71.48 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 863 Nm
H083 71,48 112MA2		Unit: H083 \| Ratio i: 71.48 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 863 Nm
H083 71,48 112M4		Unit: H083 \| Ratio i: 71.48 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 20.1 rpm \| Output torque M2: 1782 Nm
H083 71,48 112MA4		Unit: H083 \| Ratio i: 71.48 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 20.1 rpm \| Output torque M2: 1782 Nm
H083 78,87 80C6		Unit: H083 \| Ratio i: 78.87 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 583 Nm
H083 78,87 90S6		Unit: H083 \| Ratio i: 78.87 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 583 Nm
H083 78,87 80C4		Unit: H083 \| Ratio i: 78.87 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 465 Nm
H083 78,87 80D4		Unit: H083 \| Ratio i: 78.87 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 556 Nm
H083 78,87 90S4		Unit: H083 \| Ratio i: 78.87 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 556 Nm
H083 78,87 90L6		Unit: H083 \| Ratio i: 78.87 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 846 Nm
H083 78,87 100LR6		Unit: H083 \| Ratio i: 78.87 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 846 Nm
H083 78,87 80C2		Unit: H083 \| Ratio i: 78.87 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 365 Nm
H083 78,87 90S2		Unit: H083 \| Ratio i: 78.87 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 365 Nm
H083 78,87 90L4		Unit: H083 \| Ratio i: 78.87 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 759 Nm
H083 78,87 90LA4		Unit: H083 \| Ratio i: 78.87 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 759 Nm
H083 78,87 100L6		Unit: H083 \| Ratio i: 78.87 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1153 Nm
H083 78,87 100LA6		Unit: H083 \| Ratio i: 78.87 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1153 Nm
H083 78,87 90LB4		Unit: H083 \| Ratio i: 78.87 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 936 Nm
H083 78,87 100LB6		Unit: H083 \| Ratio i: 78.87 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1423 Nm
H083 78,87 90L2		Unit: H083 \| Ratio i: 78.87 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 36.3 rpm \| Output torque M2: 526 Nm
H083 78,87 100LA4		Unit: H083 \| Ratio i: 78.87 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1097 Nm
H083 78,87 112MR4		Unit: H083 \| Ratio i: 78.87 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1097 Nm
H083 78,87 100LB4		Unit: H083 \| Ratio i: 78.87 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1496 Nm
H083 78,87 112MS4		Unit: H083 \| Ratio i: 78.87 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1496 Nm
H083 78,87 112M4		Unit: H083 \| Ratio i: 78.87 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 1967 Nm
H083 78,87 112MA4		Unit: H083 \| Ratio i: 78.87 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 1967 Nm
H083 85,56 80C6		Unit: H083 \| Ratio i: 85.56 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 632 Nm
H083 85,56 90S6		Unit: H083 \| Ratio i: 85.56 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 632 Nm
H083 85,56 80C4		Unit: H083 \| Ratio i: 85.56 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 505 Nm
H083 85,56 80D4		Unit: H083 \| Ratio i: 85.56 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 603 Nm
H083 85,56 90S4		Unit: H083 \| Ratio i: 85.56 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 603 Nm
H083 85,56 90L6		Unit: H083 \| Ratio i: 85.56 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 918 Nm
H083 85,56 100LR6		Unit: H083 \| Ratio i: 85.56 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 918 Nm
H083 85,56 80C2		Unit: H083 \| Ratio i: 85.56 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 396 Nm
H083 85,56 90S2		Unit: H083 \| Ratio i: 85.56 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 396 Nm
H083 85,56 90L4		Unit: H083 \| Ratio i: 85.56 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 823 Nm
H083 85,56 90LA4		Unit: H083 \| Ratio i: 85.56 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 823 Nm
H083 85,56 100L6		Unit: H083 \| Ratio i: 85.56 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 1251 Nm
H083 85,56 100LA6		Unit: H083 \| Ratio i: 85.56 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 1251 Nm
H083 85,56 90LB4		Unit: H083 \| Ratio i: 85.56 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 1015 Nm
H083 85,56 100LB6		Unit: H083 \| Ratio i: 85.56 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 1543 Nm
H083 85,56 90L2		Unit: H083 \| Ratio i: 85.56 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 570 Nm
H083 85,56 100LA4		Unit: H083 \| Ratio i: 85.56 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1190 Nm
H083 85,56 112MR4		Unit: H083 \| Ratio i: 85.56 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1190 Nm
H083 85,56 100L2		Unit: H083 \| Ratio i: 85.56 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 775 Nm
H083 85,56 100LA2		Unit: H083 \| Ratio i: 85.56 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 775 Nm
H083 85,56 100LB4		Unit: H083 \| Ratio i: 85.56 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1623 Nm
H083 85,56 112MS4		Unit: H083 \| Ratio i: 85.56 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1623 Nm
H083 98,09 80B6		Unit: H083 \| Ratio i: 98.09 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 526 Nm
H083 98,09 80B4		Unit: H083 \| Ratio i: 98.09 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 472 Nm
H083 98,09 80C6		Unit: H083 \| Ratio i: 98.09 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 725 Nm
H083 98,09 90S6		Unit: H083 \| Ratio i: 98.09 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 725 Nm
H083 98,09 80C4		Unit: H083 \| Ratio i: 98.09 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 579 Nm
H083 98,09 80D4		Unit: H083 \| Ratio i: 98.09 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 692 Nm
H083 98,09 90S4		Unit: H083 \| Ratio i: 98.09 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 692 Nm
H083 98,09 90L6		Unit: H083 \| Ratio i: 98.09 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1052 Nm
H083 98,09 100LR6		Unit: H083 \| Ratio i: 98.09 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1052 Nm
H083 98,09 80C2		Unit: H083 \| Ratio i: 98.09 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 454 Nm
H083 98,09 90S2		Unit: H083 \| Ratio i: 98.09 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 454 Nm
H083 98,09 90L4		Unit: H083 \| Ratio i: 98.09 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 943 Nm
H083 98,09 90LA4		Unit: H083 \| Ratio i: 98.09 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 943 Nm
H083 98,09 100L6		Unit: H083 \| Ratio i: 98.09 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1434 Nm
H083 98,09 100LA6		Unit: H083 \| Ratio i: 98.09 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1434 Nm
H083 98,09 90LB4		Unit: H083 \| Ratio i: 98.09 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 1164 Nm
H083 98,09 100LB6		Unit: H083 \| Ratio i: 98.09 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1769 Nm
H083 98,09 90L2		Unit: H083 \| Ratio i: 98.09 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 29.2 rpm \| Output torque M2: 654 Nm
H083 98,09 100LA4		Unit: H083 \| Ratio i: 98.09 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1364 Nm
H083 98,09 112MR4		Unit: H083 \| Ratio i: 98.09 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1364 Nm
H083 98,09 112M6		Unit: H083 \| Ratio i: 98.09 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 2038 Nm
H083 98,09 100L2		Unit: H083 \| Ratio i: 98.09 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 29.3 rpm \| Output torque M2: 888 Nm
H083 98,09 100LA2		Unit: H083 \| Ratio i: 98.09 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 29.3 rpm \| Output torque M2: 888 Nm
H083 98,09 100LB4		Unit: H083 \| Ratio i: 98.09 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1860 Nm
H083 98,09 112MS4		Unit: H083 \| Ratio i: 98.09 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1860 Nm
H083 112,78 80B6		Unit: H083 \| Ratio i: 112.78 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 605 Nm
H083 112,78 80B4		Unit: H083 \| Ratio i: 112.78 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 542 Nm
H083 112,78 80C6		Unit: H083 \| Ratio i: 112.78 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 834 Nm
H083 112,78 90S6		Unit: H083 \| Ratio i: 112.78 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 834 Nm
H083 112,78 80C4		Unit: H083 \| Ratio i: 112.78 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 665 Nm
H083 112,78 80B2		Unit: H083 \| Ratio i: 112.78 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 380 Nm
H083 112,78 80D4		Unit: H083 \| Ratio i: 112.78 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 796 Nm
H083 112,78 90S4		Unit: H083 \| Ratio i: 112.78 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 796 Nm
H083 112,78 90L6		Unit: H083 \| Ratio i: 112.78 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1210 Nm
H083 112,78 100LR6		Unit: H083 \| Ratio i: 112.78 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1210 Nm
H083 112,78 80C2		Unit: H083 \| Ratio i: 112.78 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 24.9 rpm \| Output torque M2: 522 Nm
H083 112,78 90S2		Unit: H083 \| Ratio i: 112.78 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 24.9 rpm \| Output torque M2: 522 Nm
H083 112,78 90L4		Unit: H083 \| Ratio i: 112.78 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 1085 Nm
H083 112,78 90LA4		Unit: H083 \| Ratio i: 112.78 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 1085 Nm
H083 112,78 100L6		Unit: H083 \| Ratio i: 112.78 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1649 Nm
H083 112,78 100LA6		Unit: H083 \| Ratio i: 112.78 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1649 Nm
H083 112,78 90LB4		Unit: H083 \| Ratio i: 112.78 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 1338 Nm
H083 112,78 100LB6		Unit: H083 \| Ratio i: 112.78 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 2034 Nm
H083 112,78 90L2		Unit: H083 \| Ratio i: 112.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 752 Nm
H083 112,78 100LA4		Unit: H083 \| Ratio i: 112.78 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1569 Nm
H083 112,78 112MR4		Unit: H083 \| Ratio i: 112.78 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1569 Nm
H083 112,78 100L2		Unit: H083 \| Ratio i: 112.78 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 1021 Nm
H083 112,78 100LA2		Unit: H083 \| Ratio i: 112.78 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 1021 Nm
H083 112,78 112M2		Unit: H083 \| Ratio i: 112.78 \| Motor: 112M2 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 1348 Nm
H083 112,78 112MA2		Unit: H083 \| Ratio i: 112.78 \| Motor: 112MA2 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 1348 Nm
H083 124,44 80B6		Unit: H083 \| Ratio i: 124.44 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 667 Nm
H083 124,44 80B4		Unit: H083 \| Ratio i: 124.44 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 598 Nm
H083 124,44 80C6		Unit: H083 \| Ratio i: 124.44 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 920 Nm
H083 124,44 90S6		Unit: H083 \| Ratio i: 124.44 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 920 Nm
H083 124,44 80C4		Unit: H083 \| Ratio i: 124.44 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 734 Nm
H083 124,44 80B2		Unit: H083 \| Ratio i: 124.44 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 22.7 rpm \| Output torque M2: 419 Nm
H083 124,44 80D4		Unit: H083 \| Ratio i: 124.44 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 878 Nm
H083 124,44 90S4		Unit: H083 \| Ratio i: 124.44 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 878 Nm
H083 124,44 90L6		Unit: H083 \| Ratio i: 124.44 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1335 Nm
H083 124,44 100LR6		Unit: H083 \| Ratio i: 124.44 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1335 Nm
H083 124,44 80C2		Unit: H083 \| Ratio i: 124.44 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 575 Nm
H083 124,44 90S2		Unit: H083 \| Ratio i: 124.44 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 575 Nm
H083 124,44 90L4		Unit: H083 \| Ratio i: 124.44 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1197 Nm
H083 124,44 90LA4		Unit: H083 \| Ratio i: 124.44 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1197 Nm
H083 124,44 100L6		Unit: H083 \| Ratio i: 124.44 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1820 Nm
H083 124,44 100LA6		Unit: H083 \| Ratio i: 124.44 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1820 Nm
H083 124,44 90LB4		Unit: H083 \| Ratio i: 124.44 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1476 Nm
H083 124,44 90L2		Unit: H083 \| Ratio i: 124.44 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 23.0 rpm \| Output torque M2: 829 Nm
H083 124,44 100LA4		Unit: H083 \| Ratio i: 124.44 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 11.4 rpm \| Output torque M2: 1731 Nm
H083 124,44 112MR4		Unit: H083 \| Ratio i: 124.44 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 11.4 rpm \| Output torque M2: 1731 Nm
H083 124,44 100L2		Unit: H083 \| Ratio i: 124.44 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 1127 Nm
H083 124,44 100LA2		Unit: H083 \| Ratio i: 124.44 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 1127 Nm
H083 142,15 80A6		Unit: H083 \| Ratio i: 142.15 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 507 Nm
H083 142,15 80A4		Unit: H083 \| Ratio i: 142.15 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 501 Nm
H083 142,15 80B6		Unit: H083 \| Ratio i: 142.15 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 762 Nm
H083 142,15 80B4		Unit: H083 \| Ratio i: 142.15 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 684 Nm
H083 142,15 80C6		Unit: H083 \| Ratio i: 142.15 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1051 Nm
H083 142,15 90S6		Unit: H083 \| Ratio i: 142.15 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1051 Nm
H083 142,15 80C4		Unit: H083 \| Ratio i: 142.15 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 839 Nm
H083 142,15 80B2		Unit: H083 \| Ratio i: 142.15 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 479 Nm
H083 142,15 80D4		Unit: H083 \| Ratio i: 142.15 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1003 Nm
H083 142,15 90S4		Unit: H083 \| Ratio i: 142.15 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1003 Nm
H083 142,15 90L6		Unit: H083 \| Ratio i: 142.15 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1524 Nm
H083 142,15 100LR6		Unit: H083 \| Ratio i: 142.15 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1524 Nm
H083 142,15 80C2		Unit: H083 \| Ratio i: 142.15 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 657 Nm
H083 142,15 90S2		Unit: H083 \| Ratio i: 142.15 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 657 Nm
H083 142,15 90L4		Unit: H083 \| Ratio i: 142.15 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1367 Nm
H083 142,15 90LA4		Unit: H083 \| Ratio i: 142.15 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1367 Nm
H083 142,15 100L6		Unit: H083 \| Ratio i: 142.15 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 2079 Nm
H083 142,15 100LA6		Unit: H083 \| Ratio i: 142.15 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 2079 Nm
H083 142,15 90LB4		Unit: H083 \| Ratio i: 142.15 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1686 Nm
H083 142,15 90L2		Unit: H083 \| Ratio i: 142.15 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 20.1 rpm \| Output torque M2: 947 Nm
H083 142,15 100LA4		Unit: H083 \| Ratio i: 142.15 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 1977 Nm
H083 142,15 112MR4		Unit: H083 \| Ratio i: 142.15 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 1977 Nm
H083 154,76 80A6		Unit: H083 \| Ratio i: 154.76 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 552 Nm
H083 154,76 80A4		Unit: H083 \| Ratio i: 154.76 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 546 Nm
H083 154,76 80B6		Unit: H083 \| Ratio i: 154.76 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 830 Nm
H083 154,76 80A2		Unit: H083 \| Ratio i: 154.76 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 358 Nm
H083 154,76 80B4		Unit: H083 \| Ratio i: 154.76 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 744 Nm
H083 154,76 80C6		Unit: H083 \| Ratio i: 154.76 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 1144 Nm
H083 154,76 90S6		Unit: H083 \| Ratio i: 154.76 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 1144 Nm
H083 154,76 80C4		Unit: H083 \| Ratio i: 154.76 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 913 Nm
H083 154,76 80B2		Unit: H083 \| Ratio i: 154.76 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 521 Nm
H083 154,76 80D4		Unit: H083 \| Ratio i: 154.76 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1092 Nm
H083 154,76 90S4		Unit: H083 \| Ratio i: 154.76 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1092 Nm
H083 154,76 90L6		Unit: H083 \| Ratio i: 154.76 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1660 Nm
H083 154,76 100LR6		Unit: H083 \| Ratio i: 154.76 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1660 Nm
H083 154,76 80C2		Unit: H083 \| Ratio i: 154.76 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 716 Nm
H083 154,76 90S2		Unit: H083 \| Ratio i: 154.76 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 716 Nm
H083 154,76 90L4		Unit: H083 \| Ratio i: 154.76 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1489 Nm
H083 154,76 90LA4		Unit: H083 \| Ratio i: 154.76 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1489 Nm
H083 154,76 90LB4		Unit: H083 \| Ratio i: 154.76 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1836 Nm
H083 154,76 90L2		Unit: H083 \| Ratio i: 154.76 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 1031 Nm
H083 162,35 80A6		Unit: H083 \| Ratio i: 162.35 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 5.8 rpm \| Output torque M2: 579 Nm
H083 162,35 80A4		Unit: H083 \| Ratio i: 162.35 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 573 Nm
H083 162,35 80B6		Unit: H083 \| Ratio i: 162.35 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 871 Nm
H083 162,35 80A2		Unit: H083 \| Ratio i: 162.35 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 375 Nm
H083 162,35 80B4		Unit: H083 \| Ratio i: 162.35 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 781 Nm
H083 162,35 80C6		Unit: H083 \| Ratio i: 162.35 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 1200 Nm
H083 162,35 90S6		Unit: H083 \| Ratio i: 162.35 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 1200 Nm
H083 162,35 80C4		Unit: H083 \| Ratio i: 162.35 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 958 Nm
H083 162,35 80B2		Unit: H083 \| Ratio i: 162.35 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 547 Nm
H083 162,35 80D4		Unit: H083 \| Ratio i: 162.35 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1145 Nm
H083 162,35 90S4		Unit: H083 \| Ratio i: 162.35 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1145 Nm
H083 162,35 90L6		Unit: H083 \| Ratio i: 162.35 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 1741 Nm
H083 162,35 80C2		Unit: H083 \| Ratio i: 162.35 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 751 Nm
H083 162,35 90S2		Unit: H083 \| Ratio i: 162.35 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 751 Nm
H083 162,35 90L4		Unit: H083 \| Ratio i: 162.35 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1561 Nm
H083 162,35 90LA4		Unit: H083 \| Ratio i: 162.35 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1561 Nm
H083 162,35 90LB4		Unit: H083 \| Ratio i: 162.35 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1926 Nm
H083 162,35 90L2		Unit: H083 \| Ratio i: 162.35 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 17.6 rpm \| Output torque M2: 1082 Nm
H083 179,13 80A6		Unit: H083 \| Ratio i: 179.13 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 639 Nm
H083 179,13 80A4		Unit: H083 \| Ratio i: 179.13 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 632 Nm
H083 179,13 80B6		Unit: H083 \| Ratio i: 179.13 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 961 Nm
H083 179,13 80A2		Unit: H083 \| Ratio i: 179.13 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 414 Nm
H083 179,13 80B4		Unit: H083 \| Ratio i: 179.13 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 861 Nm
H083 179,13 80C6		Unit: H083 \| Ratio i: 179.13 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1324 Nm
H083 179,13 90S6		Unit: H083 \| Ratio i: 179.13 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1324 Nm
H083 179,13 80C4		Unit: H083 \| Ratio i: 179.13 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1057 Nm
H083 179,13 80B2		Unit: H083 \| Ratio i: 179.13 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 603 Nm
H083 179,13 80D4		Unit: H083 \| Ratio i: 179.13 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1263 Nm
H083 179,13 90S4		Unit: H083 \| Ratio i: 179.13 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1263 Nm
H083 179,13 90L6		Unit: H083 \| Ratio i: 179.13 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 1921 Nm
H083 179,13 80C2		Unit: H083 \| Ratio i: 179.13 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 828 Nm
H083 179,13 90S2		Unit: H083 \| Ratio i: 179.13 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 828 Nm
H083 179,13 90L4		Unit: H083 \| Ratio i: 179.13 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1723 Nm
H083 179,13 90LA4		Unit: H083 \| Ratio i: 179.13 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1723 Nm
H083 179,13 90L2		Unit: H083 \| Ratio i: 179.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 1194 Nm
H083 195,07 80A6		Unit: H083 \| Ratio i: 195.07 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 696 Nm
H083 195,07 80A4		Unit: H083 \| Ratio i: 195.07 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 688 Nm
H083 195,07 80B6		Unit: H083 \| Ratio i: 195.07 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1046 Nm
H083 195,07 80A2		Unit: H083 \| Ratio i: 195.07 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 451 Nm
H083 195,07 80B4		Unit: H083 \| Ratio i: 195.07 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 938 Nm
H083 195,07 80C6		Unit: H083 \| Ratio i: 195.07 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1442 Nm
H083 195,07 90S6		Unit: H083 \| Ratio i: 195.07 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1442 Nm
H083 195,07 80C4		Unit: H083 \| Ratio i: 195.07 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1151 Nm
H083 195,07 80B2		Unit: H083 \| Ratio i: 195.07 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 657 Nm
H083 195,07 80D4		Unit: H083 \| Ratio i: 195.07 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1376 Nm
H083 195,07 90S4		Unit: H083 \| Ratio i: 195.07 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1376 Nm
H083 195,07 90L6		Unit: H083 \| Ratio i: 195.07 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 2092 Nm
H083 195,07 80C2		Unit: H083 \| Ratio i: 195.07 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 902 Nm
H083 195,07 90S2		Unit: H083 \| Ratio i: 195.07 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 902 Nm
H083 195,07 90L4		Unit: H083 \| Ratio i: 195.07 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1876 Nm
H083 195,07 90LA4		Unit: H083 \| Ratio i: 195.07 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1876 Nm
H083 195,07 90L2		Unit: H083 \| Ratio i: 195.07 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 1300 Nm
H083 222,78 80A6		Unit: H083 \| Ratio i: 222.78 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 795 Nm
H083 222,78 80A4		Unit: H083 \| Ratio i: 222.78 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 786 Nm
H083 222,78 80B6		Unit: H083 \| Ratio i: 222.78 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1195 Nm
H083 222,78 80A2		Unit: H083 \| Ratio i: 222.78 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 515 Nm
H083 222,78 80B4		Unit: H083 \| Ratio i: 222.78 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1071 Nm
H083 222,78 80C6		Unit: H083 \| Ratio i: 222.78 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1647 Nm
H083 222,78 90S6		Unit: H083 \| Ratio i: 222.78 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1647 Nm
H083 222,78 80C4		Unit: H083 \| Ratio i: 222.78 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1314 Nm
H083 222,78 80B2		Unit: H083 \| Ratio i: 222.78 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 750 Nm
H083 222,78 80D4		Unit: H083 \| Ratio i: 222.78 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1571 Nm
H083 222,78 90S4		Unit: H083 \| Ratio i: 222.78 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1571 Nm
H083 222,78 80C2		Unit: H083 \| Ratio i: 222.78 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1030 Nm
H083 222,78 90S2		Unit: H083 \| Ratio i: 222.78 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1030 Nm
H082 7.39 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 7.39 \| Motor: 132L4
H082 8.02 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.02 \| Motor: 132L4
H082 8.85 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.85 \| Motor: 132L4
H082 11.01 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 11.01 \| Motor: 132L4
H082 13.50 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 13.50 \| Motor: 132L4
H082 14.90 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 14.90 \| Motor: 132L4
H082 16.62 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 16.62 \| Motor: 132L4
H082 18.53 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 18.53 \| Motor: 132L4
H082 19.38 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 19.38 \| Motor: 132L4
H082 21.39 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 21.39 \| Motor: 132L4
H082 22.80 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 22.80 \| Motor: 132L4
H082 26.60 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 26.60 \| Motor: 132L4
H082 27.88 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 27.88 \| Motor: 132L4
H082 31.15 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 31.15 \| Motor: 132L4
H082 34.38 132L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 34.38 \| Motor: 132L4
H082 5.39 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.39 \| Motor: 160M4
H082 5.95 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.95 \| Motor: 160M4
H082 7.39 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 7.39 \| Motor: 160M4
H082 8.02 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.02 \| Motor: 160M4
H082 8.85 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.85 \| Motor: 160M4
H082 11.01 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 11.01 \| Motor: 160M4
H082 13.50 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 13.50 \| Motor: 160M4
H082 14.90 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 14.90 \| Motor: 160M4
H082 16.62 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 16.62 \| Motor: 160M4
H082 18.53 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 18.53 \| Motor: 160M4
H082 19.38 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 19.38 \| Motor: 160M4
H082 21.39 160M4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 21.39 \| Motor: 160M4
H082 5.39 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.39 \| Motor: 160L4
H082 5.95 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.95 \| Motor: 160L4
H082 7.39 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 7.39 \| Motor: 160L4
H082 8.02 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.02 \| Motor: 160L4
H082 8.85 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.85 \| Motor: 160L4
H082 11.01 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 11.01 \| Motor: 160L4
H082 13.50 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 13.50 \| Motor: 160L4
H082 14.90 160L4		Legacy code: previous edition \| Unit: H082 \| Ratio i: 14.90 \| Motor: 160L4
H083 71.48 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 71.48 \| Motor: 90LL4
H083 78.87 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 78.87 \| Motor: 90LL4
H083 85.56 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 85.56 \| Motor: 90LL4
H083 98.09 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 98.09 \| Motor: 90LL4
H083 112.78 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 112.78 \| Motor: 90LL4
H083 124.44 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 124.44 \| Motor: 90LL4
H083 142.15 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 142.15 \| Motor: 90LL4
H083 154.76 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 154.76 \| Motor: 90LL4
H083 162.35 90LL4		Legacy code: previous edition \| Unit: H083 \| Ratio i: 162.35 \| Motor: 90LL4
H083		Legacy code: previous edition \| Unit: H083 \| Note: size-level code, specify ratio and motor
H082		Legacy code: previous edition \| Unit: H082 \| Note: size-level code, specify ratio and motor

Helical Gear ReducersMotovario

822 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario H Cast Iron Helical Inline Gearmotors (082-083, 0.37-15 kW)

Brand Motovario·Helical Gear Reducers

Available part numbers (822)

H082 5,39 132MA6, H082 5,39 132MS4, H082 5,39 132S4, H082 5,39 132MB6, H082 5,39 132MA4, H082 5,39 132M4, H082 5,39 160M6, H082 5,39 132M2, H082 5,39 132MA2, H082 5,39 132MB4 + 812 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	H082 5,39 132MA6	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 178.1 rpm \| Output torque M2: 208 Nm
	H082 5,39 132MS4	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 187 Nm
	H082 5,39 132S4	Unit: H082 \| Ratio i: 5.39 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 187 Nm
	H082 5,39 132MB6	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 178.1 rpm \| Output torque M2: 286 Nm
	H082 5,39 132MA4	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 256 Nm
	H082 5,39 132M4	Unit: H082 \| Ratio i: 5.39 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 256 Nm
	H082 5,39 160M6	Unit: H082 \| Ratio i: 5.39 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 180.0 rpm \| Output torque M2: 386 Nm
	H082 5,39 132M2	Unit: H082 \| Ratio i: 5.39 \| Motor: 132M2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 540.0 rpm \| Output torque M2: 151 Nm
	H082 5,39 132MA2	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 540.0 rpm \| Output torque M2: 151 Nm
	H082 5,39 132MB4	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 269.1 rpm \| Output torque M2: 313 Nm
	H082 5,39 132MB2	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 540.0 rpm \| Output torque M2: 180 Nm
	H082 5,39 132MC4	Unit: H082 \| Ratio i: 5.39 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 267.2 rpm \| Output torque M2: 377 Nm
	H082 5,39 160MA4	Unit: H082 \| Ratio i: 5.39 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 267.2 rpm \| Output torque M2: 377 Nm
	H082 5,39 160S4	Unit: H082 \| Ratio i: 5.39 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 267.2 rpm \| Output torque M2: 377 Nm
	H082 5,39 160L6	Unit: H082 \| Ratio i: 5.39 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 180.0 rpm \| Output torque M2: 566 Nm
	H082 5,39 160LA4	Unit: H082 \| Ratio i: 5.39 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 273.7 rpm \| Output torque M2: 502 Nm
	H082 5,95 132MA6	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 161.5 rpm \| Output torque M2: 229 Nm
	H082 5,95 132MS4	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 207 Nm
	H082 5,95 132S4	Unit: H082 \| Ratio i: 5.95 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 207 Nm
	H082 5,95 132MB6	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 161.5 rpm \| Output torque M2: 315 Nm
	H082 5,95 132M2	Unit: H082 \| Ratio i: 5.95 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 136 Nm
	H082 5,95 132SB2	Unit: H082 \| Ratio i: 5.95 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 136 Nm
	H082 5,95 132MA4	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 282 Nm
	H082 5,95 132M4	Unit: H082 \| Ratio i: 5.95 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 282 Nm
	H082 5,95 160M6	Unit: H082 \| Ratio i: 5.95 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 163.1 rpm \| Output torque M2: 426 Nm
	H082 5,95 132MA2	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 166 Nm
	H082 5,95 132MB4	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 243.9 rpm \| Output torque M2: 346 Nm
	H082 5,95 132MB2	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 489.4 rpm \| Output torque M2: 199 Nm
	H082 5,95 132MC4	Unit: H082 \| Ratio i: 5.95 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 242.2 rpm \| Output torque M2: 416 Nm
	H082 5,95 160MA4	Unit: H082 \| Ratio i: 5.95 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 242.2 rpm \| Output torque M2: 416 Nm
	H082 5,95 160S4	Unit: H082 \| Ratio i: 5.95 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 242.2 rpm \| Output torque M2: 416 Nm
	H082 5,95 160L6	Unit: H082 \| Ratio i: 5.95 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 163.1 rpm \| Output torque M2: 624 Nm
	H082 5,95 160LA4	Unit: H082 \| Ratio i: 5.95 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 248.1 rpm \| Output torque M2: 554 Nm
	H082 7,39 132S6	Unit: H082 \| Ratio i: 7.39 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 214 Nm
	H082 7,39 132SA6	Unit: H082 \| Ratio i: 7.39 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 214 Nm
	H082 7,39 132MA6	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 285 Nm
	H082 7,39 132MS4	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 257 Nm
	H082 7,39 132S4	Unit: H082 \| Ratio i: 7.39 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 257 Nm
	H082 7,39 132MB6	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 129.8 rpm \| Output torque M2: 392 Nm
	H082 7,39 132M2	Unit: H082 \| Ratio i: 7.39 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 169 Nm
	H082 7,39 132SB2	Unit: H082 \| Ratio i: 7.39 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 169 Nm
	H082 7,39 132MA4	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 351 Nm
	H082 7,39 132M4	Unit: H082 \| Ratio i: 7.39 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 351 Nm
	H082 7,39 160M6	Unit: H082 \| Ratio i: 7.39 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 131.2 rpm \| Output torque M2: 529 Nm
	H082 7,39 132MA2	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 207 Nm
	H082 7,39 132MB4	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 196.1 rpm \| Output torque M2: 430 Nm
	H082 7,39 132MB2	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 393.5 rpm \| Output torque M2: 247 Nm
	H082 7,39 132MC4	Unit: H082 \| Ratio i: 7.39 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 194.7 rpm \| Output torque M2: 518 Nm
	H082 7,39 160MA4	Unit: H082 \| Ratio i: 7.39 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 194.7 rpm \| Output torque M2: 518 Nm
	H082 7,39 160S4	Unit: H082 \| Ratio i: 7.39 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 194.7 rpm \| Output torque M2: 518 Nm
	H082 7,39 160L6	Unit: H082 \| Ratio i: 7.39 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 131.2 rpm \| Output torque M2: 776 Nm
	H082 7,39 160LA4	Unit: H082 \| Ratio i: 7.39 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 199.5 rpm \| Output torque M2: 689 Nm
	H082 8,02 132S6	Unit: H082 \| Ratio i: 8.02 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 232 Nm
	H082 8,02 132SA6	Unit: H082 \| Ratio i: 8.02 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 232 Nm
	H082 8,02 132MA6	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 309 Nm
	H082 8,02 132MS4	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 279 Nm
	H082 8,02 132S4	Unit: H082 \| Ratio i: 8.02 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 279 Nm
	H082 8,02 132MB6	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 119.7 rpm \| Output torque M2: 426 Nm
	H082 8,02 132M2	Unit: H082 \| Ratio i: 8.02 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 183 Nm
	H082 8,02 132SB2	Unit: H082 \| Ratio i: 8.02 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 183 Nm
	H082 8,02 132MA4	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 380 Nm
	H082 8,02 132M4	Unit: H082 \| Ratio i: 8.02 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 380 Nm
	H082 8,02 160M6	Unit: H082 \| Ratio i: 8.02 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 120.9 rpm \| Output torque M2: 574 Nm
	H082 8,02 132MA2	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 224 Nm
	H082 8,02 132MB4	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 180.8 rpm \| Output torque M2: 467 Nm
	H082 8,02 132MB2	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 362.8 rpm \| Output torque M2: 268 Nm
	H082 8,02 132MC4	Unit: H082 \| Ratio i: 8.02 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 179.5 rpm \| Output torque M2: 562 Nm
	H082 8,02 160MA4	Unit: H082 \| Ratio i: 8.02 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 179.5 rpm \| Output torque M2: 562 Nm
	H082 8,02 160S4	Unit: H082 \| Ratio i: 8.02 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 179.5 rpm \| Output torque M2: 562 Nm
	H082 8,02 160L6	Unit: H082 \| Ratio i: 8.02 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 120.9 rpm \| Output torque M2: 842 Nm
	H082 8,02 160LA4	Unit: H082 \| Ratio i: 8.02 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 183.9 rpm \| Output torque M2: 748 Nm
	H082 8,85 132S6	Unit: H082 \| Ratio i: 8.85 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 256 Nm
	H082 8,85 132SA6	Unit: H082 \| Ratio i: 8.85 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 256 Nm
	H082 8,85 132MA6	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 341 Nm
	H082 8,85 132MS4	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 308 Nm
	H082 8,85 132S4	Unit: H082 \| Ratio i: 8.85 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 308 Nm
	H082 8,85 132MB6	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 470 Nm
	H082 8,85 132M2	Unit: H082 \| Ratio i: 8.85 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 202 Nm
	H082 8,85 132SB2	Unit: H082 \| Ratio i: 8.85 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 202 Nm
	H082 8,85 132MA4	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 420 Nm
	H082 8,85 132M4	Unit: H082 \| Ratio i: 8.85 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 420 Nm
	H082 8,85 160M6	Unit: H082 \| Ratio i: 8.85 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 634 Nm
	H082 8,85 132MA2	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 248 Nm
	H082 8,85 132MB4	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 163.8 rpm \| Output torque M2: 515 Nm
	H082 8,85 132MB2	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 328.8 rpm \| Output torque M2: 296 Nm
	H082 8,85 132MC4	Unit: H082 \| Ratio i: 8.85 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 162.7 rpm \| Output torque M2: 620 Nm
	H082 8,85 160MA4	Unit: H082 \| Ratio i: 8.85 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 162.7 rpm \| Output torque M2: 620 Nm
	H082 8,85 160S4	Unit: H082 \| Ratio i: 8.85 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 162.7 rpm \| Output torque M2: 620 Nm
	H082 8,85 160L6	Unit: H082 \| Ratio i: 8.85 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 929 Nm
	H082 8,85 160LA4	Unit: H082 \| Ratio i: 8.85 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 825 Nm
	H082 11,01 132S6	Unit: H082 \| Ratio i: 11.01 \| Motor: 132S6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 319 Nm
	H082 11,01 132SA6	Unit: H082 \| Ratio i: 11.01 \| Motor: 132SA6 (frame printed 132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 319 Nm
	H082 11,01 132MA6	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 425 Nm
	H082 11,01 132MS4	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 383 Nm
	H082 11,01 132S4	Unit: H082 \| Ratio i: 11.01 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 383 Nm
	H082 11,01 132MB6	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 87.2 rpm \| Output torque M2: 584 Nm
	H082 11,01 132M2	Unit: H082 \| Ratio i: 11.01 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 251 Nm
	H082 11,01 132SB2	Unit: H082 \| Ratio i: 11.01 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 251 Nm
	H082 11,01 132MA4	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 522 Nm
	H082 11,01 132M4	Unit: H082 \| Ratio i: 11.01 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 522 Nm
	H082 11,01 160M6	Unit: H082 \| Ratio i: 11.01 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 88.1 rpm \| Output torque M2: 788 Nm
	H082 11,01 132MA2	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 308 Nm
	H082 11,01 132MB4	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 131.7 rpm \| Output torque M2: 640 Nm
	H082 11,01 132MB2	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 264.4 rpm \| Output torque M2: 368 Nm
	H082 11,01 132MC4	Unit: H082 \| Ratio i: 11.01 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 771 Nm
	H082 11,01 160MA4	Unit: H082 \| Ratio i: 11.01 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 771 Nm
	H082 11,01 160S4	Unit: H082 \| Ratio i: 11.01 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 771 Nm
	H082 11,01 160L6	Unit: H082 \| Ratio i: 11.01 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 88.1 rpm \| Output torque M2: 1156 Nm
	H082 11,01 160LA4	Unit: H082 \| Ratio i: 11.01 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 134.0 rpm \| Output torque M2: 1026 Nm
	H082 13,50 112MB6	Unit: H082 \| Ratio i: 13.50 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 403 Nm
	H082 13,50 132S6	Unit: H082 \| Ratio i: 13.50 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 403 Nm
	H082 13,50 132SA6	Unit: H082 \| Ratio i: 13.50 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 403 Nm
	H082 13,50 132MA6	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 71.1 rpm \| Output torque M2: 521 Nm
	H082 13,50 112MB4	Unit: H082 \| Ratio i: 13.50 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 105.9 rpm \| Output torque M2: 415 Nm
	H082 13,50 132MS4	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 469 Nm
	H082 13,50 132S4	Unit: H082 \| Ratio i: 13.50 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 469 Nm
	H082 13,50 132MB6	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 71.1 rpm \| Output torque M2: 716 Nm
	H082 13,50 132M2	Unit: H082 \| Ratio i: 13.50 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 308 Nm
	H082 13,50 132SB2	Unit: H082 \| Ratio i: 13.50 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 308 Nm
	H082 13,50 132MA4	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 640 Nm
	H082 13,50 132M4	Unit: H082 \| Ratio i: 13.50 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 640 Nm
	H082 13,50 160M6	Unit: H082 \| Ratio i: 13.50 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 71.9 rpm \| Output torque M2: 967 Nm
	H082 13,50 132MA2	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 378 Nm
	H082 13,50 132MB4	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 785 Nm
	H082 13,50 132MB2	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 215.6 rpm \| Output torque M2: 451 Nm
	H082 13,50 132MC4	Unit: H082 \| Ratio i: 13.50 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 106.7 rpm \| Output torque M2: 945 Nm
	H082 13,50 160MA4	Unit: H082 \| Ratio i: 13.50 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 106.7 rpm \| Output torque M2: 945 Nm
	H082 13,50 160S4	Unit: H082 \| Ratio i: 13.50 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 106.7 rpm \| Output torque M2: 945 Nm
	H082 13,50 160L6	Unit: H082 \| Ratio i: 13.50 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 71.9 rpm \| Output torque M2: 1418 Nm
	H082 13,50 160LA4	Unit: H082 \| Ratio i: 13.50 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 109.3 rpm \| Output torque M2: 1259 Nm
	H082 14,90 112MB6	Unit: H082 \| Ratio i: 14.90 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 62.4 rpm \| Output torque M2: 445 Nm
	H082 14,90 132S6	Unit: H082 \| Ratio i: 14.90 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 62.4 rpm \| Output torque M2: 445 Nm
	H082 14,90 132SA6	Unit: H082 \| Ratio i: 14.90 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 62.4 rpm \| Output torque M2: 445 Nm
	H082 14,90 112M4	Unit: H082 \| Ratio i: 14.90 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 379 Nm
	H082 14,90 112MA4	Unit: H082 \| Ratio i: 14.90 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 379 Nm
	H082 14,90 132MA6	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 64.4 rpm \| Output torque M2: 575 Nm
	H082 14,90 112MB4	Unit: H082 \| Ratio i: 14.90 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 96.0 rpm \| Output torque M2: 458 Nm
	H082 14,90 132MS4	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 518 Nm
	H082 14,90 132S4	Unit: H082 \| Ratio i: 14.90 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 518 Nm
	H082 14,90 132MB6	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 64.4 rpm \| Output torque M2: 790 Nm
	H082 14,90 132M2	Unit: H082 \| Ratio i: 14.90 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 340 Nm
	H082 14,90 132SB2	Unit: H082 \| Ratio i: 14.90 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 340 Nm
	H082 14,90 132MA4	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 706 Nm
	H082 14,90 132M4	Unit: H082 \| Ratio i: 14.90 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 706 Nm
	H082 14,90 160M6	Unit: H082 \| Ratio i: 14.90 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 65.1 rpm \| Output torque M2: 1066 Nm
	H082 14,90 132MA2	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 417 Nm
	H082 14,90 132MB4	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 866 Nm
	H082 14,90 132MB2	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 195.4 rpm \| Output torque M2: 498 Nm
	H082 14,90 132MC4	Unit: H082 \| Ratio i: 14.90 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 1043 Nm
	H082 14,90 160MA4	Unit: H082 \| Ratio i: 14.90 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 1043 Nm
	H082 14,90 160S4	Unit: H082 \| Ratio i: 14.90 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 1043 Nm
	H082 14,90 160L6	Unit: H082 \| Ratio i: 14.90 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 65.1 rpm \| Output torque M2: 1564 Nm
	H082 14,90 160LA4	Unit: H082 \| Ratio i: 14.90 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 99.0 rpm \| Output torque M2: 1389 Nm
	H082 16,62 112MB6	Unit: H082 \| Ratio i: 16.62 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 56.0 rpm \| Output torque M2: 496 Nm
	H082 16,62 132S6	Unit: H082 \| Ratio i: 16.62 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 56.0 rpm \| Output torque M2: 496 Nm
	H082 16,62 132SA6	Unit: H082 \| Ratio i: 16.62 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 56.0 rpm \| Output torque M2: 496 Nm
	H082 16,62 112M4	Unit: H082 \| Ratio i: 16.62 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 423 Nm
	H082 16,62 112MA4	Unit: H082 \| Ratio i: 16.62 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 423 Nm
	H082 16,62 132MA6	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 57.8 rpm \| Output torque M2: 641 Nm
	H082 16,62 112MB4	Unit: H082 \| Ratio i: 16.62 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 86.1 rpm \| Output torque M2: 511 Nm
	H082 16,62 132MS4	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 578 Nm
	H082 16,62 132S4	Unit: H082 \| Ratio i: 16.62 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 578 Nm
	H082 16,62 132MB6	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 57.8 rpm \| Output torque M2: 881 Nm
	H082 16,62 132M2	Unit: H082 \| Ratio i: 16.62 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 379 Nm
	H082 16,62 132SB2	Unit: H082 \| Ratio i: 16.62 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 379 Nm
	H082 16,62 132MA4	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 788 Nm
	H082 16,62 132M4	Unit: H082 \| Ratio i: 16.62 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 788 Nm
	H082 16,62 160M6	Unit: H082 \| Ratio i: 16.62 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 1190 Nm
	H082 16,62 132MA2	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 465 Nm
	H082 16,62 132MB4	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 87.3 rpm \| Output torque M2: 967 Nm
	H082 16,62 132MB2	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 175.1 rpm \| Output torque M2: 556 Nm
	H082 16,62 132MC4	Unit: H082 \| Ratio i: 16.62 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 1164 Nm
	H082 16,62 160MA4	Unit: H082 \| Ratio i: 16.62 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 1164 Nm
	H082 16,62 160S4	Unit: H082 \| Ratio i: 16.62 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 86.7 rpm \| Output torque M2: 1164 Nm
	H082 16,62 160L6	Unit: H082 \| Ratio i: 16.62 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 1745 Nm
	H082 16,62 160LA4	Unit: H082 \| Ratio i: 16.62 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 88.8 rpm \| Output torque M2: 1549 Nm
	H082 18,53 112MA6	Unit: H082 \| Ratio i: 18.53 \| Motor: 112MA6 \| Power P1: 2.20 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 406 Nm
	H082 18,53 112MB6	Unit: H082 \| Ratio i: 18.53 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 553 Nm
	H082 18,53 132S6	Unit: H082 \| Ratio i: 18.53 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 553 Nm
	H082 18,53 132SA6	Unit: H082 \| Ratio i: 18.53 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 553 Nm
	H082 18,53 112M4	Unit: H082 \| Ratio i: 18.53 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 472 Nm
	H082 18,53 112MA4	Unit: H082 \| Ratio i: 18.53 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 472 Nm
	H082 18,53 132MA6	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 51.8 rpm \| Output torque M2: 715 Nm
	H082 18,53 112MB4	Unit: H082 \| Ratio i: 18.53 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 77.2 rpm \| Output torque M2: 570 Nm
	H082 18,53 112MB2	Unit: H082 \| Ratio i: 18.53 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 310 Nm
	H082 18,53 132SA2	Unit: H082 \| Ratio i: 18.53 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 310 Nm
	H082 18,53 132S2	Unit: H082 \| Ratio i: 18.53 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 310 Nm
	H082 18,53 132MS4	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 644 Nm
	H082 18,53 132S4	Unit: H082 \| Ratio i: 18.53 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 644 Nm
	H082 18,53 132MB6	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 51.8 rpm \| Output torque M2: 983 Nm
	H082 18,53 132M2	Unit: H082 \| Ratio i: 18.53 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 422 Nm
	H082 18,53 132SB2	Unit: H082 \| Ratio i: 18.53 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 422 Nm
	H082 18,53 132MA4	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 878 Nm
	H082 18,53 132M4	Unit: H082 \| Ratio i: 18.53 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 878 Nm
	H082 18,53 160M6	Unit: H082 \| Ratio i: 18.53 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 52.4 rpm \| Output torque M2: 1326 Nm
	H082 18,53 132MA2	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 518 Nm
	H082 18,53 132MB4	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 78.3 rpm \| Output torque M2: 1078 Nm
	H082 18,53 132MB2	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 157.1 rpm \| Output torque M2: 620 Nm
	H082 18,53 132MC4	Unit: H082 \| Ratio i: 18.53 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 1297 Nm
	H082 18,53 160MA4	Unit: H082 \| Ratio i: 18.53 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 1297 Nm
	H082 18,53 160S4	Unit: H082 \| Ratio i: 18.53 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 77.7 rpm \| Output torque M2: 1297 Nm
	H082 19,38 112MA6	Unit: H082 \| Ratio i: 19.38 \| Motor: 112MA6 \| Power P1: 2.20 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 425 Nm
	H082 19,38 112MB6	Unit: H082 \| Ratio i: 19.38 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 579 Nm
	H082 19,38 132S6	Unit: H082 \| Ratio i: 19.38 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 579 Nm
	H082 19,38 132SA6	Unit: H082 \| Ratio i: 19.38 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 48.0 rpm \| Output torque M2: 579 Nm
	H082 19,38 112M4	Unit: H082 \| Ratio i: 19.38 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 494 Nm
	H082 19,38 112MA4	Unit: H082 \| Ratio i: 19.38 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 494 Nm
	H082 19,38 132MA6	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 49.5 rpm \| Output torque M2: 748 Nm
	H082 19,38 112MB4	Unit: H082 \| Ratio i: 19.38 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 73.8 rpm \| Output torque M2: 597 Nm
	H082 19,38 112MB2	Unit: H082 \| Ratio i: 19.38 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 324 Nm
	H082 19,38 132SA2	Unit: H082 \| Ratio i: 19.38 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 324 Nm
	H082 19,38 132S2	Unit: H082 \| Ratio i: 19.38 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 324 Nm
	H082 19,38 132MS4	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 674 Nm
	H082 19,38 132S4	Unit: H082 \| Ratio i: 19.38 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 674 Nm
	H082 19,38 132MB6	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 49.5 rpm \| Output torque M2: 1028 Nm
	H082 19,38 132M2	Unit: H082 \| Ratio i: 19.38 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 442 Nm
	H082 19,38 132SB2	Unit: H082 \| Ratio i: 19.38 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 442 Nm
	H082 19,38 132MA4	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 919 Nm
	H082 19,38 132M4	Unit: H082 \| Ratio i: 19.38 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 919 Nm
	H082 19,38 160M6	Unit: H082 \| Ratio i: 19.38 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 50.0 rpm \| Output torque M2: 1388 Nm
	H082 19,38 132MA2	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 542 Nm
	H082 19,38 132MB4	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 1128 Nm
	H082 19,38 132MB2	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 150.1 rpm \| Output torque M2: 648 Nm
	H082 19,38 132MC4	Unit: H082 \| Ratio i: 19.38 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 1358 Nm
	H082 19,38 160MA4	Unit: H082 \| Ratio i: 19.38 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 1358 Nm
	H082 19,38 160S4	Unit: H082 \| Ratio i: 19.38 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 74.3 rpm \| Output torque M2: 1358 Nm
	H082 21,39 112M6	Unit: H082 \| Ratio i: 21.39 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 469 Nm
	H082 21,39 112MA6	Unit: H082 \| Ratio i: 21.39 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 469 Nm
	H082 21,39 100LB4	Unit: H082 \| Ratio i: 21.39 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 414 Nm
	H082 21,39 112MS4	Unit: H082 \| Ratio i: 21.39 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 414 Nm
	H082 21,39 112MB6	Unit: H082 \| Ratio i: 21.39 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 639 Nm
	H082 21,39 132S6	Unit: H082 \| Ratio i: 21.39 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 639 Nm
	H082 21,39 132SA6	Unit: H082 \| Ratio i: 21.39 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 639 Nm
	H082 21,39 112M4	Unit: H082 \| Ratio i: 21.39 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 545 Nm
	H082 21,39 112MA4	Unit: H082 \| Ratio i: 21.39 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 545 Nm
	H082 21,39 132MA6	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 825 Nm
	H082 21,39 112MB4	Unit: H082 \| Ratio i: 21.39 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 66.9 rpm \| Output torque M2: 658 Nm
	H082 21,39 112MB2	Unit: H082 \| Ratio i: 21.39 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 358 Nm
	H082 21,39 132SA2	Unit: H082 \| Ratio i: 21.39 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 358 Nm
	H082 21,39 132S2	Unit: H082 \| Ratio i: 21.39 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 358 Nm
	H082 21,39 132MS4	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 744 Nm
	H082 21,39 132S4	Unit: H082 \| Ratio i: 21.39 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 744 Nm
	H082 21,39 132MB6	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 1135 Nm
	H082 21,39 132M2	Unit: H082 \| Ratio i: 21.39 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 488 Nm
	H082 21,39 132SB2	Unit: H082 \| Ratio i: 21.39 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 488 Nm
	H082 21,39 132MA4	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 1014 Nm
	H082 21,39 132M4	Unit: H082 \| Ratio i: 21.39 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 1014 Nm
	H082 21,39 160M6	Unit: H082 \| Ratio i: 21.39 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 1531 Nm
	H082 21,39 132MA2	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 598 Nm
	H082 21,39 132MB4	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 67.8 rpm \| Output torque M2: 1244 Nm
	H082 21,39 132MB2	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 136.1 rpm \| Output torque M2: 715 Nm
	H082 21,39 132MC4	Unit: H082 \| Ratio i: 21.39 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 1498 Nm
	H082 21,39 160MA4	Unit: H082 \| Ratio i: 21.39 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 1498 Nm
	H082 21,39 160S4	Unit: H082 \| Ratio i: 21.39 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 67.3 rpm \| Output torque M2: 1498 Nm
	H082 22,80 112M6	Unit: H082 \| Ratio i: 22.80 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 499 Nm
	H082 22,80 112MA6	Unit: H082 \| Ratio i: 22.80 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 499 Nm
	H082 22,80 100LB4	Unit: H082 \| Ratio i: 22.80 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 62.3 rpm \| Output torque M2: 442 Nm
	H082 22,80 112MS4	Unit: H082 \| Ratio i: 22.80 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 62.3 rpm \| Output torque M2: 442 Nm
	H082 22,80 112MB6	Unit: H082 \| Ratio i: 22.80 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 681 Nm
	H082 22,80 132S6	Unit: H082 \| Ratio i: 22.80 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 681 Nm
	H082 22,80 132SA6	Unit: H082 \| Ratio i: 22.80 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 681 Nm
	H082 22,80 112M4	Unit: H082 \| Ratio i: 22.80 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 581 Nm
	H082 22,80 112MA4	Unit: H082 \| Ratio i: 22.80 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 581 Nm
	H082 22,80 132MA6	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 880 Nm
	H082 22,80 112MB4	Unit: H082 \| Ratio i: 22.80 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 62.7 rpm \| Output torque M2: 702 Nm
	H082 22,80 112MB2	Unit: H082 \| Ratio i: 22.80 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 381 Nm
	H082 22,80 132SA2	Unit: H082 \| Ratio i: 22.80 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 381 Nm
	H082 22,80 132S2	Unit: H082 \| Ratio i: 22.80 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 381 Nm
	H082 22,80 132MS4	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 793 Nm
	H082 22,80 132S4	Unit: H082 \| Ratio i: 22.80 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 793 Nm
	H082 22,80 132MB6	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 1210 Nm
	H082 22,80 132M2	Unit: H082 \| Ratio i: 22.80 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 520 Nm
	H082 22,80 132SB2	Unit: H082 \| Ratio i: 22.80 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 520 Nm
	H082 22,80 132MA4	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 1081 Nm
	H082 22,80 132M4	Unit: H082 \| Ratio i: 22.80 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 1081 Nm
	H082 22,80 160M6	Unit: H082 \| Ratio i: 22.80 \| Motor: 160M6 \| Power P1: 7.50 kW \| Output speed n2: 42.5 rpm \| Output torque M2: 1632 Nm
	H082 22,80 132MA2	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 638 Nm
	H082 22,80 132MB4	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 63.6 rpm \| Output torque M2: 1326 Nm
	H082 22,80 132MB2	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 127.6 rpm \| Output torque M2: 762 Nm
	H082 22,80 132MC4	Unit: H082 \| Ratio i: 22.80 \| Motor: 132MC4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 1597 Nm
	H082 22,80 160MA4	Unit: H082 \| Ratio i: 22.80 \| Motor: 160MA4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 1597 Nm
	H082 22,80 160S4	Unit: H082 \| Ratio i: 22.80 \| Motor: 160S4 (frame printed 132MC/160MA/160S) \| Power P1: 11.00 kW \| Output speed n2: 63.2 rpm \| Output torque M2: 1597 Nm
	H082 26,60 100LB6	Unit: H082 \| Ratio i: 26.60 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 490 Nm
	H082 26,60 112M6	Unit: H082 \| Ratio i: 26.60 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 583 Nm
	H082 26,60 112MA6	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 583 Nm
	H082 26,60 100LB4	Unit: H082 \| Ratio i: 26.60 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 515 Nm
	H082 26,60 112MS4	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 515 Nm
	H082 26,60 112MB6	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 795 Nm
	H082 26,60 132S6	Unit: H082 \| Ratio i: 26.60 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 795 Nm
	H082 26,60 132SA6	Unit: H082 \| Ratio i: 26.60 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 795 Nm
	H082 26,60 100LB2	Unit: H082 \| Ratio i: 26.60 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 107.9 rpm \| Output torque M2: 328 Nm
	H082 26,60 112M2	Unit: H082 \| Ratio i: 26.60 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 107.9 rpm \| Output torque M2: 328 Nm
	H082 26,60 112MA2	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 107.9 rpm \| Output torque M2: 328 Nm
	H082 26,60 112M4	Unit: H082 \| Ratio i: 26.60 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 677 Nm
	H082 26,60 112MA4	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 677 Nm
	H082 26,60 132MA6	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 36.1 rpm \| Output torque M2: 1026 Nm
	H082 26,60 112MB4	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 819 Nm
	H082 26,60 112MB2	Unit: H082 \| Ratio i: 26.60 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 445 Nm
	H082 26,60 132SA2	Unit: H082 \| Ratio i: 26.60 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 445 Nm
	H082 26,60 132S2	Unit: H082 \| Ratio i: 26.60 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 445 Nm
	H082 26,60 132MS4	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 925 Nm
	H082 26,60 132S4	Unit: H082 \| Ratio i: 26.60 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 925 Nm
	H082 26,60 132MB6	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 36.1 rpm \| Output torque M2: 1411 Nm
	H082 26,60 132M2	Unit: H082 \| Ratio i: 26.60 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 607 Nm
	H082 26,60 132SB2	Unit: H082 \| Ratio i: 26.60 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 607 Nm
	H082 26,60 132MA4	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 1261 Nm
	H082 26,60 132M4	Unit: H082 \| Ratio i: 26.60 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 1261 Nm
	H082 26,60 132MA2	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 744 Nm
	H082 26,60 132MB4	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 54.5 rpm \| Output torque M2: 1547 Nm
	H082 26,60 132MB2	Unit: H082 \| Ratio i: 26.60 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 109.4 rpm \| Output torque M2: 890 Nm
	H082 27,88 100LB6	Unit: H082 \| Ratio i: 27.88 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 514 Nm
	H082 27,88 112M6	Unit: H082 \| Ratio i: 27.88 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 611 Nm
	H082 27,88 112MA6	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 611 Nm
	H082 27,88 100LB4	Unit: H082 \| Ratio i: 27.88 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 50.9 rpm \| Output torque M2: 540 Nm
	H082 27,88 112MS4	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 50.9 rpm \| Output torque M2: 540 Nm
	H082 27,88 112MB6	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 833 Nm
	H082 27,88 132S6	Unit: H082 \| Ratio i: 27.88 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 833 Nm
	H082 27,88 132SA6	Unit: H082 \| Ratio i: 27.88 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 833 Nm
	H082 27,88 100LB2	Unit: H082 \| Ratio i: 27.88 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 344 Nm
	H082 27,88 112M2	Unit: H082 \| Ratio i: 27.88 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 344 Nm
	H082 27,88 112MA2	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 344 Nm
	H082 27,88 112M4	Unit: H082 \| Ratio i: 27.88 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 710 Nm
	H082 27,88 112MA4	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 710 Nm
	H082 27,88 132MA6	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.4 rpm \| Output torque M2: 1076 Nm
	H082 27,88 112MB4	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 51.3 rpm \| Output torque M2: 858 Nm
	H082 27,88 112MB2	Unit: H082 \| Ratio i: 27.88 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 466 Nm
	H082 27,88 132SA2	Unit: H082 \| Ratio i: 27.88 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 466 Nm
	H082 27,88 132S2	Unit: H082 \| Ratio i: 27.88 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 466 Nm
	H082 27,88 132MS4	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 970 Nm
	H082 27,88 132S4	Unit: H082 \| Ratio i: 27.88 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 970 Nm
	H082 27,88 132MB6	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 34.4 rpm \| Output torque M2: 1479 Nm
	H082 27,88 132M2	Unit: H082 \| Ratio i: 27.88 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 636 Nm
	H082 27,88 132SB2	Unit: H082 \| Ratio i: 27.88 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 636 Nm
	H082 27,88 132MA4	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 1322 Nm
	H082 27,88 132M4	Unit: H082 \| Ratio i: 27.88 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 1322 Nm
	H082 27,88 132MA2	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 780 Nm
	H082 27,88 132MB4	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MB4 \| Power P1: 9.20 kW \| Output speed n2: 52.0 rpm \| Output torque M2: 1622 Nm
	H082 27,88 132MB2	Unit: H082 \| Ratio i: 27.88 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 932 Nm
	H082 31,15 100L6	Unit: H082 \| Ratio i: 31.15 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 465 Nm
	H082 31,15 100LA6	Unit: H082 \| Ratio i: 31.15 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 465 Nm
	H082 31,15 100LB6	Unit: H082 \| Ratio i: 31.15 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 574 Nm
	H082 31,15 100LA4	Unit: H082 \| Ratio i: 31.15 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 443 Nm
	H082 31,15 112MR4	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 443 Nm
	H082 31,15 112M6	Unit: H082 \| Ratio i: 31.15 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 682 Nm
	H082 31,15 112MA6	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 682 Nm
	H082 31,15 100LB4	Unit: H082 \| Ratio i: 31.15 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 603 Nm
	H082 31,15 112MS4	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 603 Nm
	H082 31,15 112MB6	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 931 Nm
	H082 31,15 132S6	Unit: H082 \| Ratio i: 31.15 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 931 Nm
	H082 31,15 132SA6	Unit: H082 \| Ratio i: 31.15 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 931 Nm
	H082 31,15 100LB2	Unit: H082 \| Ratio i: 31.15 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 384 Nm
	H082 31,15 112M2	Unit: H082 \| Ratio i: 31.15 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 384 Nm
	H082 31,15 112MA2	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 384 Nm
	H082 31,15 112M4	Unit: H082 \| Ratio i: 31.15 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 46.2 rpm \| Output torque M2: 793 Nm
	H082 31,15 112MA4	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 46.2 rpm \| Output torque M2: 793 Nm
	H082 31,15 132MA6	Unit: H082 \| Ratio i: 31.15 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 1202 Nm
	H082 31,15 112MB4	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 959 Nm
	H082 31,15 112MB2	Unit: H082 \| Ratio i: 31.15 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 521 Nm
	H082 31,15 132SA2	Unit: H082 \| Ratio i: 31.15 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 521 Nm
	H082 31,15 132S2	Unit: H082 \| Ratio i: 31.15 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 521 Nm
	H082 31,15 132MS4	Unit: H082 \| Ratio i: 31.15 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1083 Nm
	H082 31,15 132S4	Unit: H082 \| Ratio i: 31.15 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1083 Nm
	H082 31,15 132MB6	Unit: H082 \| Ratio i: 31.15 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 1653 Nm
	H082 31,15 132M2	Unit: H082 \| Ratio i: 31.15 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 710 Nm
	H082 31,15 132SB2	Unit: H082 \| Ratio i: 31.15 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 710 Nm
	H082 31,15 132MA4	Unit: H082 \| Ratio i: 31.15 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1477 Nm
	H082 31,15 132M4	Unit: H082 \| Ratio i: 31.15 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 46.5 rpm \| Output torque M2: 1477 Nm
	H082 31,15 132MA2	Unit: H082 \| Ratio i: 31.15 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 871 Nm
	H082 31,15 132MB2	Unit: H082 \| Ratio i: 31.15 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 93.4 rpm \| Output torque M2: 1042 Nm
	H082 34,38 100L6	Unit: H082 \| Ratio i: 34.38 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 513 Nm
	H082 34,38 100LA6	Unit: H082 \| Ratio i: 34.38 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 513 Nm
	H082 34,38 90LB4	Unit: H082 \| Ratio i: 34.38 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 40.7 rpm \| Output torque M2: 416 Nm
	H082 34,38 100LB6	Unit: H082 \| Ratio i: 34.38 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 633 Nm
	H082 34,38 100LA4	Unit: H082 \| Ratio i: 34.38 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 488 Nm
	H082 34,38 112MR4	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 488 Nm
	H082 34,38 112M6	Unit: H082 \| Ratio i: 34.38 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 753 Nm
	H082 34,38 112MA6	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 753 Nm
	H082 34,38 100L2	Unit: H082 \| Ratio i: 34.38 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 318 Nm
	H082 34,38 100LA2	Unit: H082 \| Ratio i: 34.38 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 318 Nm
	H082 34,38 100LB4	Unit: H082 \| Ratio i: 34.38 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 666 Nm
	H082 34,38 112MS4	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 666 Nm
	H082 34,38 112MB6	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 1027 Nm
	H082 34,38 132S6	Unit: H082 \| Ratio i: 34.38 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 1027 Nm
	H082 34,38 132SA6	Unit: H082 \| Ratio i: 34.38 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 27.1 rpm \| Output torque M2: 1027 Nm
	H082 34,38 100LB2	Unit: H082 \| Ratio i: 34.38 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 424 Nm
	H082 34,38 112M2	Unit: H082 \| Ratio i: 34.38 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 424 Nm
	H082 34,38 112MA2	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 83.5 rpm \| Output torque M2: 424 Nm
	H082 34,38 112M4	Unit: H082 \| Ratio i: 34.38 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 875 Nm
	H082 34,38 112MA4	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 875 Nm
	H082 34,38 132MA6	Unit: H082 \| Ratio i: 34.38 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 27.9 rpm \| Output torque M2: 1326 Nm
	H082 34,38 112MB4	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 1058 Nm
	H082 34,38 112MB2	Unit: H082 \| Ratio i: 34.38 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 575 Nm
	H082 34,38 132SA2	Unit: H082 \| Ratio i: 34.38 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 575 Nm
	H082 34,38 132S2	Unit: H082 \| Ratio i: 34.38 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 575 Nm
	H082 34,38 132MS4	Unit: H082 \| Ratio i: 34.38 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1195 Nm
	H082 34,38 132S4	Unit: H082 \| Ratio i: 34.38 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1195 Nm
	H082 34,38 132MB6	Unit: H082 \| Ratio i: 34.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 27.9 rpm \| Output torque M2: 1824 Nm
	H082 34,38 132M2	Unit: H082 \| Ratio i: 34.38 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 784 Nm
	H082 34,38 132SB2	Unit: H082 \| Ratio i: 34.38 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 784 Nm
	H082 34,38 132MA4	Unit: H082 \| Ratio i: 34.38 \| Motor: 132MA4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1630 Nm
	H082 34,38 132M4	Unit: H082 \| Ratio i: 34.38 \| Motor: 132M4 (frame printed 132MA/132M) \| Power P1: 7.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 1630 Nm
	H082 34,38 132MA2	Unit: H082 \| Ratio i: 34.38 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 961 Nm
	H082 34,38 132MB2	Unit: H082 \| Ratio i: 34.38 \| Motor: 132MB2 (brake motor TBS only) \| Power P1: 11.00 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 1150 Nm
	H082 38,70 90L6	Unit: H082 \| Ratio i: 38.70 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 424 Nm
	H082 38,70 100L6	Unit: H082 \| Ratio i: 38.70 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 578 Nm
	H082 38,70 100LA6	Unit: H082 \| Ratio i: 38.70 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 578 Nm
	H082 38,70 90LB4	Unit: H082 \| Ratio i: 38.70 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 469 Nm
	H082 38,70 100LB6	Unit: H082 \| Ratio i: 38.70 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 713 Nm
	H082 38,70 100LA4	Unit: H082 \| Ratio i: 38.70 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 550 Nm
	H082 38,70 112MR4	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 550 Nm
	H082 38,70 112M6	Unit: H082 \| Ratio i: 38.70 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 848 Nm
	H082 38,70 112MA6	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 848 Nm
	H082 38,70 100L2	Unit: H082 \| Ratio i: 38.70 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 358 Nm
	H082 38,70 100LA2	Unit: H082 \| Ratio i: 38.70 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 358 Nm
	H082 38,70 100LB4	Unit: H082 \| Ratio i: 38.70 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 750 Nm
	H082 38,70 112MS4	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 750 Nm
	H082 38,70 112MB6	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 1156 Nm
	H082 38,70 132S6	Unit: H082 \| Ratio i: 38.70 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 1156 Nm
	H082 38,70 132SA6	Unit: H082 \| Ratio i: 38.70 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 1156 Nm
	H082 38,70 100LB2	Unit: H082 \| Ratio i: 38.70 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 477 Nm
	H082 38,70 112M2	Unit: H082 \| Ratio i: 38.70 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 477 Nm
	H082 38,70 112MA2	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 74.2 rpm \| Output torque M2: 477 Nm
	H082 38,70 112M4	Unit: H082 \| Ratio i: 38.70 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 986 Nm
	H082 38,70 112MA4	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 986 Nm
	H082 38,70 132MA6	Unit: H082 \| Ratio i: 38.70 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 1493 Nm
	H082 38,70 112MB4	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 36.9 rpm \| Output torque M2: 1191 Nm
	H082 38,70 112MB2	Unit: H082 \| Ratio i: 38.70 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 647 Nm
	H082 38,70 132SA2	Unit: H082 \| Ratio i: 38.70 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 647 Nm
	H082 38,70 132S2	Unit: H082 \| Ratio i: 38.70 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 647 Nm
	H082 38,70 132MS4	Unit: H082 \| Ratio i: 38.70 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 1346 Nm
	H082 38,70 132S4	Unit: H082 \| Ratio i: 38.70 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 1346 Nm
	H082 38,70 132M2	Unit: H082 \| Ratio i: 38.70 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 883 Nm
	H082 38,70 132SB2	Unit: H082 \| Ratio i: 38.70 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 883 Nm
	H082 38,70 132MA2	Unit: H082 \| Ratio i: 38.70 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 75.2 rpm \| Output torque M2: 1083 Nm
	H082 42,75 90L6	Unit: H082 \| Ratio i: 42.75 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 468 Nm
	H082 42,75 100LR6	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 468 Nm
	H082 42,75 90L4	Unit: H082 \| Ratio i: 42.75 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 420 Nm
	H082 42,75 90LA4	Unit: H082 \| Ratio i: 42.75 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 420 Nm
	H082 42,75 100L6	Unit: H082 \| Ratio i: 42.75 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 638 Nm
	H082 42,75 100LA6	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 638 Nm
	H082 42,75 90LB4	Unit: H082 \| Ratio i: 42.75 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 518 Nm
	H082 42,75 100LB6	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 787 Nm
	H082 42,75 100LA4	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 607 Nm
	H082 42,75 112MR4	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 607 Nm
	H082 42,75 112M6	Unit: H082 \| Ratio i: 42.75 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 936 Nm
	H082 42,75 112MA6	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 936 Nm
	H082 42,75 100L2	Unit: H082 \| Ratio i: 42.75 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 395 Nm
	H082 42,75 100LA2	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 395 Nm
	H082 42,75 100LB4	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 828 Nm
	H082 42,75 112MS4	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 828 Nm
	H082 42,75 112MB6	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 1277 Nm
	H082 42,75 132S6	Unit: H082 \| Ratio i: 42.75 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 1277 Nm
	H082 42,75 132SA6	Unit: H082 \| Ratio i: 42.75 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 1277 Nm
	H082 42,75 100LB2	Unit: H082 \| Ratio i: 42.75 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 527 Nm
	H082 42,75 112M2	Unit: H082 \| Ratio i: 42.75 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 527 Nm
	H082 42,75 112MA2	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 67.1 rpm \| Output torque M2: 527 Nm
	H082 42,75 112M4	Unit: H082 \| Ratio i: 42.75 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1089 Nm
	H082 42,75 112MA4	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1089 Nm
	H082 42,75 132MA6	Unit: H082 \| Ratio i: 42.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 1649 Nm
	H082 42,75 112MB4	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 1316 Nm
	H082 42,75 112MB2	Unit: H082 \| Ratio i: 42.75 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 715 Nm
	H082 42,75 132SA2	Unit: H082 \| Ratio i: 42.75 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 715 Nm
	H082 42,75 132S2	Unit: H082 \| Ratio i: 42.75 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 715 Nm
	H082 42,75 132MS4	Unit: H082 \| Ratio i: 42.75 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1487 Nm
	H082 42,75 132S4	Unit: H082 \| Ratio i: 42.75 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1487 Nm
	H082 42,75 132M2	Unit: H082 \| Ratio i: 42.75 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 975 Nm
	H082 42,75 132SB2	Unit: H082 \| Ratio i: 42.75 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 975 Nm
	H082 42,75 132MA2	Unit: H082 \| Ratio i: 42.75 \| Motor: 132MA2 (frame printed 132M/132MA) \| Power P1: 9.20 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 1196 Nm
	H082 48,13 90L6	Unit: H082 \| Ratio i: 48.13 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 527 Nm
	H082 48,13 100LR6	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 527 Nm
	H082 48,13 90L4	Unit: H082 \| Ratio i: 48.13 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 29.1 rpm \| Output torque M2: 473 Nm
	H082 48,13 90LA4	Unit: H082 \| Ratio i: 48.13 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 29.1 rpm \| Output torque M2: 473 Nm
	H082 48,13 100L6	Unit: H082 \| Ratio i: 48.13 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 719 Nm
	H082 48,13 100LA6	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 719 Nm
	H082 48,13 90LB4	Unit: H082 \| Ratio i: 48.13 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 29.1 rpm \| Output torque M2: 583 Nm
	H082 48,13 100LB6	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 887 Nm
	H082 48,13 90L2	Unit: H082 \| Ratio i: 48.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 59.4 rpm \| Output torque M2: 328 Nm
	H082 48,13 100LA4	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 684 Nm
	H082 48,13 112MR4	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 684 Nm
	H082 48,13 112M6	Unit: H082 \| Ratio i: 48.13 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1054 Nm
	H082 48,13 112MA6	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1054 Nm
	H082 48,13 100L2	Unit: H082 \| Ratio i: 48.13 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 445 Nm
	H082 48,13 100LA2	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 445 Nm
	H082 48,13 100LB4	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 932 Nm
	H082 48,13 112MS4	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 932 Nm
	H082 48,13 112MB6	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1438 Nm
	H082 48,13 132S6	Unit: H082 \| Ratio i: 48.13 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1438 Nm
	H082 48,13 132SA6	Unit: H082 \| Ratio i: 48.13 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1438 Nm
	H082 48,13 100LB2	Unit: H082 \| Ratio i: 48.13 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 594 Nm
	H082 48,13 112M2	Unit: H082 \| Ratio i: 48.13 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 594 Nm
	H082 48,13 112MA2	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 59.6 rpm \| Output torque M2: 594 Nm
	H082 48,13 112M4	Unit: H082 \| Ratio i: 48.13 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1226 Nm
	H082 48,13 112MA4	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1226 Nm
	H082 48,13 132MA6	Unit: H082 \| Ratio i: 48.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 1857 Nm
	H082 48,13 112MB4	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 29.7 rpm \| Output torque M2: 1481 Nm
	H082 48,13 112MB2	Unit: H082 \| Ratio i: 48.13 \| Motor: 112MB2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 805 Nm
	H082 48,13 132SA2	Unit: H082 \| Ratio i: 48.13 \| Motor: 132SA2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 805 Nm
	H082 48,13 132S2	Unit: H082 \| Ratio i: 48.13 \| Motor: 132S2 (frame printed 112MB/132SA/132S) \| Power P1: 5.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 805 Nm
	H082 48,13 132MS4	Unit: H082 \| Ratio i: 48.13 \| Motor: 132MS4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 30.1 rpm \| Output torque M2: 1674 Nm
	H082 48,13 132S4	Unit: H082 \| Ratio i: 48.13 \| Motor: 132S4 (frame printed 132MS/132S) \| Power P1: 5.50 kW \| Output speed n2: 30.1 rpm \| Output torque M2: 1674 Nm
	H082 48,13 132M2	Unit: H082 \| Ratio i: 48.13 \| Motor: 132M2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 1098 Nm
	H082 48,13 132SB2	Unit: H082 \| Ratio i: 48.13 \| Motor: 132SB2 (frame printed 132M/132SB) \| Power P1: 7.50 kW \| Output speed n2: 60.5 rpm \| Output torque M2: 1098 Nm
	H083 56,53 90L6	Unit: H083 \| Ratio i: 56.53 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 606 Nm
	H083 56,53 100LR6	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 606 Nm
	H083 56,53 90L4	Unit: H083 \| Ratio i: 56.53 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 544 Nm
	H083 56,53 90LA4	Unit: H083 \| Ratio i: 56.53 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 544 Nm
	H083 56,53 100L6	Unit: H083 \| Ratio i: 56.53 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 827 Nm
	H083 56,53 100LA6	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 827 Nm
	H083 56,53 90LB4	Unit: H083 \| Ratio i: 56.53 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 671 Nm
	H083 56,53 100LB6	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1019 Nm
	H083 56,53 90L2	Unit: H083 \| Ratio i: 56.53 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 50.6 rpm \| Output torque M2: 377 Nm
	H083 56,53 100LA4	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 786 Nm
	H083 56,53 112MR4	Unit: H083 \| Ratio i: 56.53 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 786 Nm
	H083 56,53 112M6	Unit: H083 \| Ratio i: 56.53 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1212 Nm
	H083 56,53 112MA6	Unit: H083 \| Ratio i: 56.53 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1212 Nm
	H083 56,53 100L2	Unit: H083 \| Ratio i: 56.53 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 512 Nm
	H083 56,53 100LA2	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 512 Nm
	H083 56,53 100LB4	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 1072 Nm
	H083 56,53 112MS4	Unit: H083 \| Ratio i: 56.53 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 1072 Nm
	H083 56,53 100LB2	Unit: H083 \| Ratio i: 56.53 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 682 Nm
	H083 56,53 112M2	Unit: H083 \| Ratio i: 56.53 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 682 Nm
	H083 56,53 112MA2	Unit: H083 \| Ratio i: 56.53 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 50.8 rpm \| Output torque M2: 682 Nm
	H083 56,53 112M4	Unit: H083 \| Ratio i: 56.53 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.5 rpm \| Output torque M2: 1410 Nm
	H083 56,53 112MA4	Unit: H083 \| Ratio i: 56.53 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.5 rpm \| Output torque M2: 1410 Nm
	H083 56,53 112MB4	Unit: H083 \| Ratio i: 56.53 \| Motor: 112MB4 (brake motor TBS only) \| Power P1: 4.80 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 1703 Nm
	H083 71,48 80C6	Unit: H083 \| Ratio i: 71.48 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 528 Nm
	H083 71,48 90S6	Unit: H083 \| Ratio i: 71.48 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 528 Nm
	H083 71,48 80D4	Unit: H083 \| Ratio i: 71.48 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 504 Nm
	H083 71,48 90S4	Unit: H083 \| Ratio i: 71.48 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 504 Nm
	H083 71,48 90L6	Unit: H083 \| Ratio i: 71.48 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 767 Nm
	H083 71,48 100LR6	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 767 Nm
	H083 71,48 90L4	Unit: H083 \| Ratio i: 71.48 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 688 Nm
	H083 71,48 90LA4	Unit: H083 \| Ratio i: 71.48 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 688 Nm
	H083 71,48 100L6	Unit: H083 \| Ratio i: 71.48 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1045 Nm
	H083 71,48 100LA6	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1045 Nm
	H083 71,48 90LB4	Unit: H083 \| Ratio i: 71.48 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 848 Nm
	H083 71,48 100LB6	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1289 Nm
	H083 71,48 90L2	Unit: H083 \| Ratio i: 71.48 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 476 Nm
	H083 71,48 100LA4	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 994 Nm
	H083 71,48 112MR4	Unit: H083 \| Ratio i: 71.48 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 994 Nm
	H083 71,48 112M6	Unit: H083 \| Ratio i: 71.48 \| Motor: 112M6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1533 Nm
	H083 71,48 112MA6	Unit: H083 \| Ratio i: 71.48 \| Motor: 112MA6 (frame printed 112M/112MA) \| Power P1: 2.20 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1533 Nm
	H083 71,48 100L2	Unit: H083 \| Ratio i: 71.48 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 647 Nm
	H083 71,48 100LA2	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 647 Nm
	H083 71,48 100LB4	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 1356 Nm
	H083 71,48 112MS4	Unit: H083 \| Ratio i: 71.48 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 1356 Nm
	H083 71,48 112MB6	Unit: H083 \| Ratio i: 71.48 \| Motor: 112MB6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 2091 Nm
	H083 71,48 132S6	Unit: H083 \| Ratio i: 71.48 \| Motor: 132S6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 2091 Nm
	H083 71,48 132SA6	Unit: H083 \| Ratio i: 71.48 \| Motor: 132SA6 (frame printed 112MB/132S/132SA) \| Power P1: 3.00 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 2091 Nm
	H083 71,48 100LB2	Unit: H083 \| Ratio i: 71.48 \| Motor: 100LB2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 863 Nm
	H083 71,48 112M2	Unit: H083 \| Ratio i: 71.48 \| Motor: 112M2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 863 Nm
	H083 71,48 112MA2	Unit: H083 \| Ratio i: 71.48 \| Motor: 112MA2 (frame printed 100LB/112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 863 Nm
	H083 71,48 112M4	Unit: H083 \| Ratio i: 71.48 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 20.1 rpm \| Output torque M2: 1782 Nm
	H083 71,48 112MA4	Unit: H083 \| Ratio i: 71.48 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 20.1 rpm \| Output torque M2: 1782 Nm
	H083 78,87 80C6	Unit: H083 \| Ratio i: 78.87 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 583 Nm
	H083 78,87 90S6	Unit: H083 \| Ratio i: 78.87 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 583 Nm
	H083 78,87 80C4	Unit: H083 \| Ratio i: 78.87 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 465 Nm
	H083 78,87 80D4	Unit: H083 \| Ratio i: 78.87 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 556 Nm
	H083 78,87 90S4	Unit: H083 \| Ratio i: 78.87 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 556 Nm
	H083 78,87 90L6	Unit: H083 \| Ratio i: 78.87 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 846 Nm
	H083 78,87 100LR6	Unit: H083 \| Ratio i: 78.87 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 846 Nm
	H083 78,87 80C2	Unit: H083 \| Ratio i: 78.87 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 365 Nm
	H083 78,87 90S2	Unit: H083 \| Ratio i: 78.87 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 365 Nm
	H083 78,87 90L4	Unit: H083 \| Ratio i: 78.87 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 759 Nm
	H083 78,87 90LA4	Unit: H083 \| Ratio i: 78.87 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 759 Nm
	H083 78,87 100L6	Unit: H083 \| Ratio i: 78.87 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1153 Nm
	H083 78,87 100LA6	Unit: H083 \| Ratio i: 78.87 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1153 Nm
	H083 78,87 90LB4	Unit: H083 \| Ratio i: 78.87 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 936 Nm
	H083 78,87 100LB6	Unit: H083 \| Ratio i: 78.87 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1423 Nm
	H083 78,87 90L2	Unit: H083 \| Ratio i: 78.87 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 36.3 rpm \| Output torque M2: 526 Nm
	H083 78,87 100LA4	Unit: H083 \| Ratio i: 78.87 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1097 Nm
	H083 78,87 112MR4	Unit: H083 \| Ratio i: 78.87 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1097 Nm
	H083 78,87 100LB4	Unit: H083 \| Ratio i: 78.87 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1496 Nm
	H083 78,87 112MS4	Unit: H083 \| Ratio i: 78.87 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1496 Nm
	H083 78,87 112M4	Unit: H083 \| Ratio i: 78.87 \| Motor: 112M4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 1967 Nm
	H083 78,87 112MA4	Unit: H083 \| Ratio i: 78.87 \| Motor: 112MA4 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 1967 Nm
	H083 85,56 80C6	Unit: H083 \| Ratio i: 85.56 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 632 Nm
	H083 85,56 90S6	Unit: H083 \| Ratio i: 85.56 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 632 Nm
	H083 85,56 80C4	Unit: H083 \| Ratio i: 85.56 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 505 Nm
	H083 85,56 80D4	Unit: H083 \| Ratio i: 85.56 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 603 Nm
	H083 85,56 90S4	Unit: H083 \| Ratio i: 85.56 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 603 Nm
	H083 85,56 90L6	Unit: H083 \| Ratio i: 85.56 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 918 Nm
	H083 85,56 100LR6	Unit: H083 \| Ratio i: 85.56 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 918 Nm
	H083 85,56 80C2	Unit: H083 \| Ratio i: 85.56 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 396 Nm
	H083 85,56 90S2	Unit: H083 \| Ratio i: 85.56 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 396 Nm
	H083 85,56 90L4	Unit: H083 \| Ratio i: 85.56 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 823 Nm
	H083 85,56 90LA4	Unit: H083 \| Ratio i: 85.56 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 823 Nm
	H083 85,56 100L6	Unit: H083 \| Ratio i: 85.56 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 1251 Nm
	H083 85,56 100LA6	Unit: H083 \| Ratio i: 85.56 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 1251 Nm
	H083 85,56 90LB4	Unit: H083 \| Ratio i: 85.56 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 1015 Nm
	H083 85,56 100LB6	Unit: H083 \| Ratio i: 85.56 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 1543 Nm
	H083 85,56 90L2	Unit: H083 \| Ratio i: 85.56 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 570 Nm
	H083 85,56 100LA4	Unit: H083 \| Ratio i: 85.56 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1190 Nm
	H083 85,56 112MR4	Unit: H083 \| Ratio i: 85.56 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1190 Nm
	H083 85,56 100L2	Unit: H083 \| Ratio i: 85.56 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 775 Nm
	H083 85,56 100LA2	Unit: H083 \| Ratio i: 85.56 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 775 Nm
	H083 85,56 100LB4	Unit: H083 \| Ratio i: 85.56 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1623 Nm
	H083 85,56 112MS4	Unit: H083 \| Ratio i: 85.56 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1623 Nm
	H083 98,09 80B6	Unit: H083 \| Ratio i: 98.09 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 526 Nm
	H083 98,09 80B4	Unit: H083 \| Ratio i: 98.09 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 472 Nm
	H083 98,09 80C6	Unit: H083 \| Ratio i: 98.09 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 725 Nm
	H083 98,09 90S6	Unit: H083 \| Ratio i: 98.09 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 725 Nm
	H083 98,09 80C4	Unit: H083 \| Ratio i: 98.09 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 579 Nm
	H083 98,09 80D4	Unit: H083 \| Ratio i: 98.09 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 692 Nm
	H083 98,09 90S4	Unit: H083 \| Ratio i: 98.09 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 692 Nm
	H083 98,09 90L6	Unit: H083 \| Ratio i: 98.09 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1052 Nm
	H083 98,09 100LR6	Unit: H083 \| Ratio i: 98.09 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1052 Nm
	H083 98,09 80C2	Unit: H083 \| Ratio i: 98.09 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 454 Nm
	H083 98,09 90S2	Unit: H083 \| Ratio i: 98.09 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 454 Nm
	H083 98,09 90L4	Unit: H083 \| Ratio i: 98.09 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 943 Nm
	H083 98,09 90LA4	Unit: H083 \| Ratio i: 98.09 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 943 Nm
	H083 98,09 100L6	Unit: H083 \| Ratio i: 98.09 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1434 Nm
	H083 98,09 100LA6	Unit: H083 \| Ratio i: 98.09 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1434 Nm
	H083 98,09 90LB4	Unit: H083 \| Ratio i: 98.09 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 1164 Nm
	H083 98,09 100LB6	Unit: H083 \| Ratio i: 98.09 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1769 Nm
	H083 98,09 90L2	Unit: H083 \| Ratio i: 98.09 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 29.2 rpm \| Output torque M2: 654 Nm
	H083 98,09 100LA4	Unit: H083 \| Ratio i: 98.09 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1364 Nm
	H083 98,09 112MR4	Unit: H083 \| Ratio i: 98.09 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1364 Nm
	H083 98,09 112M6	Unit: H083 \| Ratio i: 98.09 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 2038 Nm
	H083 98,09 100L2	Unit: H083 \| Ratio i: 98.09 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 29.3 rpm \| Output torque M2: 888 Nm
	H083 98,09 100LA2	Unit: H083 \| Ratio i: 98.09 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 29.3 rpm \| Output torque M2: 888 Nm
	H083 98,09 100LB4	Unit: H083 \| Ratio i: 98.09 \| Motor: 100LB4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1860 Nm
	H083 98,09 112MS4	Unit: H083 \| Ratio i: 98.09 \| Motor: 112MS4 (frame printed 100LB/112MS) \| Power P1: 3.00 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1860 Nm
	H083 112,78 80B6	Unit: H083 \| Ratio i: 112.78 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 605 Nm
	H083 112,78 80B4	Unit: H083 \| Ratio i: 112.78 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 542 Nm
	H083 112,78 80C6	Unit: H083 \| Ratio i: 112.78 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 834 Nm
	H083 112,78 90S6	Unit: H083 \| Ratio i: 112.78 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 834 Nm
	H083 112,78 80C4	Unit: H083 \| Ratio i: 112.78 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 665 Nm
	H083 112,78 80B2	Unit: H083 \| Ratio i: 112.78 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 380 Nm
	H083 112,78 80D4	Unit: H083 \| Ratio i: 112.78 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 796 Nm
	H083 112,78 90S4	Unit: H083 \| Ratio i: 112.78 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 796 Nm
	H083 112,78 90L6	Unit: H083 \| Ratio i: 112.78 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1210 Nm
	H083 112,78 100LR6	Unit: H083 \| Ratio i: 112.78 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1210 Nm
	H083 112,78 80C2	Unit: H083 \| Ratio i: 112.78 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 24.9 rpm \| Output torque M2: 522 Nm
	H083 112,78 90S2	Unit: H083 \| Ratio i: 112.78 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 24.9 rpm \| Output torque M2: 522 Nm
	H083 112,78 90L4	Unit: H083 \| Ratio i: 112.78 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 1085 Nm
	H083 112,78 90LA4	Unit: H083 \| Ratio i: 112.78 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 1085 Nm
	H083 112,78 100L6	Unit: H083 \| Ratio i: 112.78 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1649 Nm
	H083 112,78 100LA6	Unit: H083 \| Ratio i: 112.78 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 1649 Nm
	H083 112,78 90LB4	Unit: H083 \| Ratio i: 112.78 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 1338 Nm
	H083 112,78 100LB6	Unit: H083 \| Ratio i: 112.78 \| Motor: 100LB6 \| Power P1: 1.85 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 2034 Nm
	H083 112,78 90L2	Unit: H083 \| Ratio i: 112.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 752 Nm
	H083 112,78 100LA4	Unit: H083 \| Ratio i: 112.78 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1569 Nm
	H083 112,78 112MR4	Unit: H083 \| Ratio i: 112.78 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1569 Nm
	H083 112,78 100L2	Unit: H083 \| Ratio i: 112.78 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 1021 Nm
	H083 112,78 100LA2	Unit: H083 \| Ratio i: 112.78 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 1021 Nm
	H083 112,78 112M2	Unit: H083 \| Ratio i: 112.78 \| Motor: 112M2 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 1348 Nm
	H083 112,78 112MA2	Unit: H083 \| Ratio i: 112.78 \| Motor: 112MA2 (frame printed 112M/112MA) \| Power P1: 4.00 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 1348 Nm
	H083 124,44 80B6	Unit: H083 \| Ratio i: 124.44 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 667 Nm
	H083 124,44 80B4	Unit: H083 \| Ratio i: 124.44 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 598 Nm
	H083 124,44 80C6	Unit: H083 \| Ratio i: 124.44 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 920 Nm
	H083 124,44 90S6	Unit: H083 \| Ratio i: 124.44 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 920 Nm
	H083 124,44 80C4	Unit: H083 \| Ratio i: 124.44 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 734 Nm
	H083 124,44 80B2	Unit: H083 \| Ratio i: 124.44 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 22.7 rpm \| Output torque M2: 419 Nm
	H083 124,44 80D4	Unit: H083 \| Ratio i: 124.44 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 878 Nm
	H083 124,44 90S4	Unit: H083 \| Ratio i: 124.44 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 878 Nm
	H083 124,44 90L6	Unit: H083 \| Ratio i: 124.44 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1335 Nm
	H083 124,44 100LR6	Unit: H083 \| Ratio i: 124.44 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1335 Nm
	H083 124,44 80C2	Unit: H083 \| Ratio i: 124.44 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 575 Nm
	H083 124,44 90S2	Unit: H083 \| Ratio i: 124.44 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 575 Nm
	H083 124,44 90L4	Unit: H083 \| Ratio i: 124.44 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1197 Nm
	H083 124,44 90LA4	Unit: H083 \| Ratio i: 124.44 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1197 Nm
	H083 124,44 100L6	Unit: H083 \| Ratio i: 124.44 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1820 Nm
	H083 124,44 100LA6	Unit: H083 \| Ratio i: 124.44 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 1820 Nm
	H083 124,44 90LB4	Unit: H083 \| Ratio i: 124.44 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1476 Nm
	H083 124,44 90L2	Unit: H083 \| Ratio i: 124.44 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 23.0 rpm \| Output torque M2: 829 Nm
	H083 124,44 100LA4	Unit: H083 \| Ratio i: 124.44 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 11.4 rpm \| Output torque M2: 1731 Nm
	H083 124,44 112MR4	Unit: H083 \| Ratio i: 124.44 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 11.4 rpm \| Output torque M2: 1731 Nm
	H083 124,44 100L2	Unit: H083 \| Ratio i: 124.44 \| Motor: 100L2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 1127 Nm
	H083 124,44 100LA2	Unit: H083 \| Ratio i: 124.44 \| Motor: 100LA2 (frame printed 100L/100LA) \| Power P1: 3.00 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 1127 Nm
	H083 142,15 80A6	Unit: H083 \| Ratio i: 142.15 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 507 Nm
	H083 142,15 80A4	Unit: H083 \| Ratio i: 142.15 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 501 Nm
	H083 142,15 80B6	Unit: H083 \| Ratio i: 142.15 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 762 Nm
	H083 142,15 80B4	Unit: H083 \| Ratio i: 142.15 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 684 Nm
	H083 142,15 80C6	Unit: H083 \| Ratio i: 142.15 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1051 Nm
	H083 142,15 90S6	Unit: H083 \| Ratio i: 142.15 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1051 Nm
	H083 142,15 80C4	Unit: H083 \| Ratio i: 142.15 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 839 Nm
	H083 142,15 80B2	Unit: H083 \| Ratio i: 142.15 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 479 Nm
	H083 142,15 80D4	Unit: H083 \| Ratio i: 142.15 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1003 Nm
	H083 142,15 90S4	Unit: H083 \| Ratio i: 142.15 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1003 Nm
	H083 142,15 90L6	Unit: H083 \| Ratio i: 142.15 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1524 Nm
	H083 142,15 100LR6	Unit: H083 \| Ratio i: 142.15 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1524 Nm
	H083 142,15 80C2	Unit: H083 \| Ratio i: 142.15 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 657 Nm
	H083 142,15 90S2	Unit: H083 \| Ratio i: 142.15 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 657 Nm
	H083 142,15 90L4	Unit: H083 \| Ratio i: 142.15 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1367 Nm
	H083 142,15 90LA4	Unit: H083 \| Ratio i: 142.15 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1367 Nm
	H083 142,15 100L6	Unit: H083 \| Ratio i: 142.15 \| Motor: 100L6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 2079 Nm
	H083 142,15 100LA6	Unit: H083 \| Ratio i: 142.15 \| Motor: 100LA6 (frame printed 100L/100LA) \| Power P1: 1.50 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 2079 Nm
	H083 142,15 90LB4	Unit: H083 \| Ratio i: 142.15 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 1686 Nm
	H083 142,15 90L2	Unit: H083 \| Ratio i: 142.15 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 20.1 rpm \| Output torque M2: 947 Nm
	H083 142,15 100LA4	Unit: H083 \| Ratio i: 142.15 \| Motor: 100LA4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 1977 Nm
	H083 142,15 112MR4	Unit: H083 \| Ratio i: 142.15 \| Motor: 112MR4 (frame printed 100LA/112MR) \| Power P1: 2.20 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 1977 Nm
	H083 154,76 80A6	Unit: H083 \| Ratio i: 154.76 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 552 Nm
	H083 154,76 80A4	Unit: H083 \| Ratio i: 154.76 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 546 Nm
	H083 154,76 80B6	Unit: H083 \| Ratio i: 154.76 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 830 Nm
	H083 154,76 80A2	Unit: H083 \| Ratio i: 154.76 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 358 Nm
	H083 154,76 80B4	Unit: H083 \| Ratio i: 154.76 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 744 Nm
	H083 154,76 80C6	Unit: H083 \| Ratio i: 154.76 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 1144 Nm
	H083 154,76 90S6	Unit: H083 \| Ratio i: 154.76 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 1144 Nm
	H083 154,76 80C4	Unit: H083 \| Ratio i: 154.76 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 913 Nm
	H083 154,76 80B2	Unit: H083 \| Ratio i: 154.76 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 521 Nm
	H083 154,76 80D4	Unit: H083 \| Ratio i: 154.76 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1092 Nm
	H083 154,76 90S4	Unit: H083 \| Ratio i: 154.76 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1092 Nm
	H083 154,76 90L6	Unit: H083 \| Ratio i: 154.76 \| Motor: 90L6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1660 Nm
	H083 154,76 100LR6	Unit: H083 \| Ratio i: 154.76 \| Motor: 100LR6 (frame printed 90L/100LR) \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1660 Nm
	H083 154,76 80C2	Unit: H083 \| Ratio i: 154.76 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 716 Nm
	H083 154,76 90S2	Unit: H083 \| Ratio i: 154.76 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 716 Nm
	H083 154,76 90L4	Unit: H083 \| Ratio i: 154.76 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1489 Nm
	H083 154,76 90LA4	Unit: H083 \| Ratio i: 154.76 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1489 Nm
	H083 154,76 90LB4	Unit: H083 \| Ratio i: 154.76 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1836 Nm
	H083 154,76 90L2	Unit: H083 \| Ratio i: 154.76 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 1031 Nm
	H083 162,35 80A6	Unit: H083 \| Ratio i: 162.35 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 5.8 rpm \| Output torque M2: 579 Nm
	H083 162,35 80A4	Unit: H083 \| Ratio i: 162.35 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 573 Nm
	H083 162,35 80B6	Unit: H083 \| Ratio i: 162.35 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 871 Nm
	H083 162,35 80A2	Unit: H083 \| Ratio i: 162.35 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 375 Nm
	H083 162,35 80B4	Unit: H083 \| Ratio i: 162.35 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 781 Nm
	H083 162,35 80C6	Unit: H083 \| Ratio i: 162.35 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 1200 Nm
	H083 162,35 90S6	Unit: H083 \| Ratio i: 162.35 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 1200 Nm
	H083 162,35 80C4	Unit: H083 \| Ratio i: 162.35 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 958 Nm
	H083 162,35 80B2	Unit: H083 \| Ratio i: 162.35 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 547 Nm
	H083 162,35 80D4	Unit: H083 \| Ratio i: 162.35 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1145 Nm
	H083 162,35 90S4	Unit: H083 \| Ratio i: 162.35 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1145 Nm
	H083 162,35 90L6	Unit: H083 \| Ratio i: 162.35 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 1741 Nm
	H083 162,35 80C2	Unit: H083 \| Ratio i: 162.35 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 751 Nm
	H083 162,35 90S2	Unit: H083 \| Ratio i: 162.35 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 751 Nm
	H083 162,35 90L4	Unit: H083 \| Ratio i: 162.35 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1561 Nm
	H083 162,35 90LA4	Unit: H083 \| Ratio i: 162.35 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1561 Nm
	H083 162,35 90LB4	Unit: H083 \| Ratio i: 162.35 \| Motor: 90LB4 (brake motor TBS only) \| Power P1: 1.85 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1926 Nm
	H083 162,35 90L2	Unit: H083 \| Ratio i: 162.35 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 17.6 rpm \| Output torque M2: 1082 Nm
	H083 179,13 80A6	Unit: H083 \| Ratio i: 179.13 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 639 Nm
	H083 179,13 80A4	Unit: H083 \| Ratio i: 179.13 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 632 Nm
	H083 179,13 80B6	Unit: H083 \| Ratio i: 179.13 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 961 Nm
	H083 179,13 80A2	Unit: H083 \| Ratio i: 179.13 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 414 Nm
	H083 179,13 80B4	Unit: H083 \| Ratio i: 179.13 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 861 Nm
	H083 179,13 80C6	Unit: H083 \| Ratio i: 179.13 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1324 Nm
	H083 179,13 90S6	Unit: H083 \| Ratio i: 179.13 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1324 Nm
	H083 179,13 80C4	Unit: H083 \| Ratio i: 179.13 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1057 Nm
	H083 179,13 80B2	Unit: H083 \| Ratio i: 179.13 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 603 Nm
	H083 179,13 80D4	Unit: H083 \| Ratio i: 179.13 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1263 Nm
	H083 179,13 90S4	Unit: H083 \| Ratio i: 179.13 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1263 Nm
	H083 179,13 90L6	Unit: H083 \| Ratio i: 179.13 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 1921 Nm
	H083 179,13 80C2	Unit: H083 \| Ratio i: 179.13 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 828 Nm
	H083 179,13 90S2	Unit: H083 \| Ratio i: 179.13 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 828 Nm
	H083 179,13 90L4	Unit: H083 \| Ratio i: 179.13 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1723 Nm
	H083 179,13 90LA4	Unit: H083 \| Ratio i: 179.13 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1723 Nm
	H083 179,13 90L2	Unit: H083 \| Ratio i: 179.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 1194 Nm
	H083 195,07 80A6	Unit: H083 \| Ratio i: 195.07 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 696 Nm
	H083 195,07 80A4	Unit: H083 \| Ratio i: 195.07 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 688 Nm
	H083 195,07 80B6	Unit: H083 \| Ratio i: 195.07 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1046 Nm
	H083 195,07 80A2	Unit: H083 \| Ratio i: 195.07 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 451 Nm
	H083 195,07 80B4	Unit: H083 \| Ratio i: 195.07 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 938 Nm
	H083 195,07 80C6	Unit: H083 \| Ratio i: 195.07 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1442 Nm
	H083 195,07 90S6	Unit: H083 \| Ratio i: 195.07 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1442 Nm
	H083 195,07 80C4	Unit: H083 \| Ratio i: 195.07 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1151 Nm
	H083 195,07 80B2	Unit: H083 \| Ratio i: 195.07 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 657 Nm
	H083 195,07 80D4	Unit: H083 \| Ratio i: 195.07 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1376 Nm
	H083 195,07 90S4	Unit: H083 \| Ratio i: 195.07 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1376 Nm
	H083 195,07 90L6	Unit: H083 \| Ratio i: 195.07 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 2092 Nm
	H083 195,07 80C2	Unit: H083 \| Ratio i: 195.07 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 902 Nm
	H083 195,07 90S2	Unit: H083 \| Ratio i: 195.07 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 902 Nm
	H083 195,07 90L4	Unit: H083 \| Ratio i: 195.07 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1876 Nm
	H083 195,07 90LA4	Unit: H083 \| Ratio i: 195.07 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1876 Nm
	H083 195,07 90L2	Unit: H083 \| Ratio i: 195.07 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 1300 Nm
	H083 222,78 80A6	Unit: H083 \| Ratio i: 222.78 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 795 Nm
	H083 222,78 80A4	Unit: H083 \| Ratio i: 222.78 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 786 Nm
	H083 222,78 80B6	Unit: H083 \| Ratio i: 222.78 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1195 Nm
	H083 222,78 80A2	Unit: H083 \| Ratio i: 222.78 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 515 Nm
	H083 222,78 80B4	Unit: H083 \| Ratio i: 222.78 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1071 Nm
	H083 222,78 80C6	Unit: H083 \| Ratio i: 222.78 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1647 Nm
	H083 222,78 90S6	Unit: H083 \| Ratio i: 222.78 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1647 Nm
	H083 222,78 80C4	Unit: H083 \| Ratio i: 222.78 \| Motor: 80C4 (brake motor TBS only) \| Power P1: 0.92 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1314 Nm
	H083 222,78 80B2	Unit: H083 \| Ratio i: 222.78 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 750 Nm
	H083 222,78 80D4	Unit: H083 \| Ratio i: 222.78 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1571 Nm
	H083 222,78 90S4	Unit: H083 \| Ratio i: 222.78 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1571 Nm
	H083 222,78 80C2	Unit: H083 \| Ratio i: 222.78 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1030 Nm
	H083 222,78 90S2	Unit: H083 \| Ratio i: 222.78 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1030 Nm
	H082 7.39 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 7.39 \| Motor: 132L4
	H082 8.02 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.02 \| Motor: 132L4
	H082 8.85 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.85 \| Motor: 132L4
	H082 11.01 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 11.01 \| Motor: 132L4
	H082 13.50 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 13.50 \| Motor: 132L4
	H082 14.90 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 14.90 \| Motor: 132L4
	H082 16.62 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 16.62 \| Motor: 132L4
	H082 18.53 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 18.53 \| Motor: 132L4
	H082 19.38 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 19.38 \| Motor: 132L4
	H082 21.39 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 21.39 \| Motor: 132L4
	H082 22.80 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 22.80 \| Motor: 132L4
	H082 26.60 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 26.60 \| Motor: 132L4
	H082 27.88 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 27.88 \| Motor: 132L4
	H082 31.15 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 31.15 \| Motor: 132L4
	H082 34.38 132L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 34.38 \| Motor: 132L4
	H082 5.39 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.39 \| Motor: 160M4
	H082 5.95 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.95 \| Motor: 160M4
	H082 7.39 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 7.39 \| Motor: 160M4
	H082 8.02 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.02 \| Motor: 160M4
	H082 8.85 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.85 \| Motor: 160M4
	H082 11.01 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 11.01 \| Motor: 160M4
	H082 13.50 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 13.50 \| Motor: 160M4
	H082 14.90 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 14.90 \| Motor: 160M4
	H082 16.62 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 16.62 \| Motor: 160M4
	H082 18.53 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 18.53 \| Motor: 160M4
	H082 19.38 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 19.38 \| Motor: 160M4
	H082 21.39 160M4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 21.39 \| Motor: 160M4
	H082 5.39 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.39 \| Motor: 160L4
	H082 5.95 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 5.95 \| Motor: 160L4
	H082 7.39 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 7.39 \| Motor: 160L4
	H082 8.02 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.02 \| Motor: 160L4
	H082 8.85 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 8.85 \| Motor: 160L4
	H082 11.01 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 11.01 \| Motor: 160L4
	H082 13.50 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 13.50 \| Motor: 160L4
	H082 14.90 160L4	Legacy code: previous edition \| Unit: H082 \| Ratio i: 14.90 \| Motor: 160L4
	H083 71.48 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 71.48 \| Motor: 90LL4
	H083 78.87 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 78.87 \| Motor: 90LL4
	H083 85.56 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 85.56 \| Motor: 90LL4
	H083 98.09 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 98.09 \| Motor: 90LL4
	H083 112.78 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 112.78 \| Motor: 90LL4
	H083 124.44 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 124.44 \| Motor: 90LL4
	H083 142.15 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 142.15 \| Motor: 90LL4
	H083 154.76 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 154.76 \| Motor: 90LL4
	H083 162.35 90LL4	Legacy code: previous edition \| Unit: H083 \| Ratio i: 162.35 \| Motor: 90LL4
	H083	Legacy code: previous edition \| Unit: H083 \| Note: size-level code, specify ratio and motor
	H082	Legacy code: previous edition \| Unit: H082 \| Note: size-level code, specify ratio and motor

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario H Cast Iron Helical Inline Gearmotors (082-083, 0.37-15 kW)
