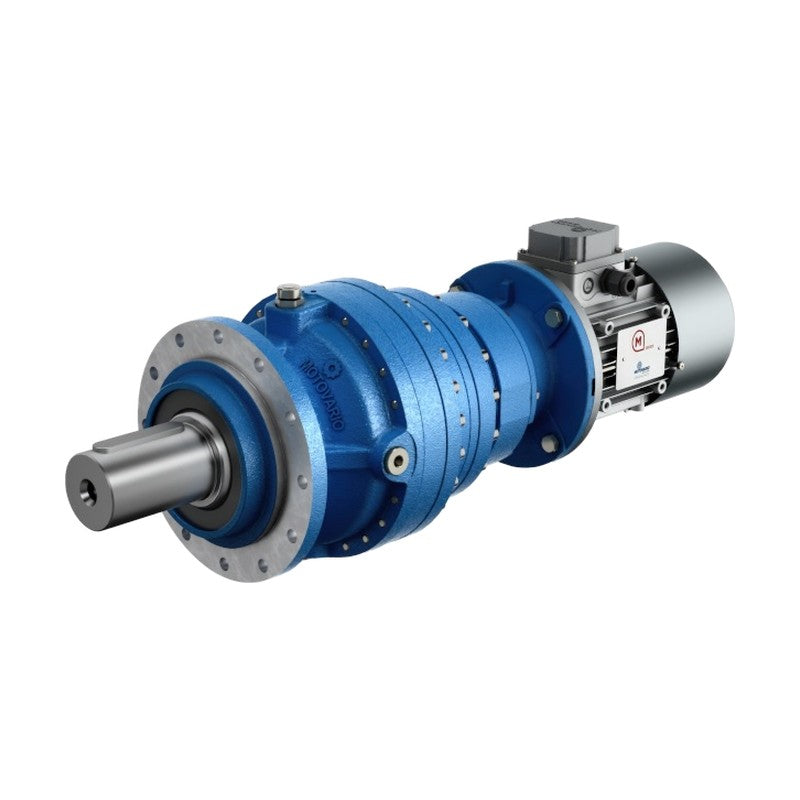

Motovario HL Planetary Inline Gearmotors (HL1-HL4, 0.25-30 kW)

Motovario HL planetary geared motors from the HPL series combine a coaxial 1- to 4-stage planetary gear unit with a Motovario IEC electric motor for high output torque in a compact cast iron package.

Key features

Coaxial planetary gear units with 1, 2, 3 or 4 reduction stages, sizes 010, 020, 030, 050, 080, 130, 180
Supplied with Motovario 4-pole IEC motors from 71A to 200L, 0.25 to 30 kW (n1 approx. 1400 rpm)
External ring gear in nitrided steel, sun and planet gears in case-hardened steel
Foot (T) or flange (F) casing with solid, splined solid, splined hollow or shrink disk output shaft
Admissible radial load listed for solid (CS) and splined (SS) output shafts
Also available as PHL (motor with flexible coupling) and CHL compact versions per designation chart

Specifications

Gear type	Coaxial planetary, 1 to 4 stages
Ring gear	Nitrided steel
Sun and planet gears	Case-hardened steel
Housing	Spheroidal cast iron, RAL 7021
Casing versions	T foot / F flange
Output shaft	CS solid, SS splined, HS hollow, HM disk
Efficiency	0.97 / 0.94 / 0.91 / 0.88 (1-4 stages)
Motor poles	4 (IEC, TH/TP efficiency)
Code format	Unit / ratio i / motor (e.g. HL3 010 188 71A4)
Source	Motovario HPL Technical Catalogue IEC STD, p. 18-23, 66-89

HL3 010 188 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 7.4 rpm \| Output torque M2: 296 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 216 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 6.4 rpm \| Output torque M2: 341 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 236 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 5.9 rpm \| Output torque M2: 372 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 297 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 4.7 rpm \| Output torque M2: 468 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 23800/27150 N
HL4 010 348 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 4.0 rpm \| Output torque M2: 533 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 24600/28100 N
HL3 010 369 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 3.7 rpm \| Output torque M2: 582 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 24700/28250 N
HL3 020 369 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 3.7 rpm \| Output torque M2: 582 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 24700/28250 N
HL4 010 433 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 3.2 rpm \| Output torque M2: 663 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 25000/28500 N
HL4 010 474 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.9 rpm \| Output torque M2: 726 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 25200/28800 N
HL4 020 474 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.9 rpm \| Output torque M2: 726 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 25200/28800 N
HL4 010 538 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.6 rpm \| Output torque M2: 824 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 25850/29300 N
HL4 020 538 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.6 rpm \| Output torque M2: 824 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 25850/29300 N
HL4 010 668 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1024 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 26200/29650 N
HL4 020 668 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1024 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 26200/29650 N
HL4 030 668 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1024 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 010 740 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 27000/30150 N
HL4 020 740 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 27000/30150 N
HL4 030 740 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 010 811 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1242 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27300/30900 N
HL4 020 811 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1242 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 27300/30900 N
HL4 030 831 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1272 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 020 919 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.5 rpm \| Output torque M2: 1408 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 27400/31000 N
HL4 030 919 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.5 rpm \| Output torque M2: 1408 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 020 1020 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.4 rpm \| Output torque M2: 1559 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 27450/31050 N
HL4 030 1020 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.4 rpm \| Output torque M2: 1559 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 53000/61650 N
HL4 020 1160 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.2 rpm \| Output torque M2: 1773 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 27550/31200 N
HL4 030 1140 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.2 rpm \| Output torque M2: 1750 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 53600/62200 N
HL4 020 1270 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.1 rpm \| Output torque M2: 1937 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 27600/31350 N
HL4 030 1270 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.1 rpm \| Output torque M2: 1937 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 54800/63500 N
HL4 030 1440 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.0 rpm \| Output torque M2: 2204 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 55300/64200 N
HL4 050 1440 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.0 rpm \| Output torque M2: 2204 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 55300/64200 N
HL4 020 1590 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.9 rpm \| Output torque M2: 2439 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 27700/31800 N
HL4 030 1590 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.9 rpm \| Output torque M2: 2439 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 55850/65600 N
HL4 050 1590 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.9 rpm \| Output torque M2: 2439 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 55850/65600 N
HL4 020 1740 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.8 rpm \| Output torque M2: 2664 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27800/32000 N
HL4 030 1740 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.8 rpm \| Output torque M2: 2664 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 56400/67100 N
HL4 050 1740 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.8 rpm \| Output torque M2: 2664 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 56400/67100 N
HL4 030 1980 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.7 rpm \| Output torque M2: 3031 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 56950/67750 N
HL4 050 1980 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.7 rpm \| Output torque M2: 3031 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 56950/67750 N
HL4 080 2090 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.7 rpm \| Output torque M2: 3204 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 78700/90700 N
HL4 050 2190 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3355 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 57500/68900 N
HL4 050 2280 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3494 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 57500/68900 N
HL4 050 2490 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3816 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 57500/68900 N
HL4 080 2270 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3471 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 080 2500 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3824 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 050 2720 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.5 rpm \| Output torque M2: 4170 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 58600/69800 N
HL4 080 2710 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.5 rpm \| Output torque M2: 4142 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 79500/91600 N
HL4 130 2510 71A4		Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.5 rpm \| Output torque M2: 3843 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 95000/125000 N
HL3 010 138 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 10.2 rpm \| Output torque M2: 317 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 23200/26300 N
HL3 010 155 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 9.0 rpm \| Output torque M2: 356 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 174 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 8.1 rpm \| Output torque M2: 400 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 188 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 7.5 rpm \| Output torque M2: 432 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 216 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 6.5 rpm \| Output torque M2: 497 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 236 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 5.9 rpm \| Output torque M2: 543 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 297 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 683 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23800/27150 N
HL3 020 297 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 683 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23800/27150 N
HL3 030 309 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.5 rpm \| Output torque M2: 712 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 45550/52400 N
HL4 010 348 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.0 rpm \| Output torque M2: 778 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24600/28100 N
HL4 020 348 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.0 rpm \| Output torque M2: 778 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 24600/28100 N
HL3 010 369 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.8 rpm \| Output torque M2: 849 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 24650/28150 N
HL3 020 369 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.8 rpm \| Output torque M2: 849 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 24650/28150 N
HL3 030 369 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.8 rpm \| Output torque M2: 849 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 46200/53650 N
HL3 030 425 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 979 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 010 433 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.2 rpm \| Output torque M2: 967 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 25000/28500 N
HL4 020 433 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.2 rpm \| Output torque M2: 967 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 25000/28500 N
HL4 030 433 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.2 rpm \| Output torque M2: 967 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 47200/54800 N
HL4 010 474 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 1060 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 25150/28600 N
HL4 020 474 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 1060 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25150/28600 N
HL4 030 474 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 1060 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 020 538 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.6 rpm \| Output torque M2: 1202 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 25850/29300 N
HL4 030 538 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.6 rpm \| Output torque M2: 1202 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 48600/56450 N
HL4 020 668 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1493 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 26200/29650 N
HL4 030 668 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1493 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 020 740 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1653 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 27000/30150 N
HL4 030 740 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1653 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 020 811 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1811 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 27300/30900 N
HL4 030 831 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1856 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 050 831 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1856 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 020 919 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.5 rpm \| Output torque M2: 2054 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 27400/31000 N
HL4 030 919 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.5 rpm \| Output torque M2: 2054 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 050 919 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.5 rpm \| Output torque M2: 2054 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 020 1020 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 2274 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 27450/31050 N
HL4 030 1020 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 2274 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 53000/61650 N
HL4 050 1020 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 2274 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 53000/61650 N
HL4 020 1160 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 2587 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27550/31200 N
HL4 030 1140 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 2553 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 53600/62200 N
HL4 050 1140 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 2553 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 53600/62200 N
HL4 030 1270 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 2826 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 54800/63500 N
HL4 050 1270 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 2826 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 54800/63500 N
HL4 050 1440 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.0 rpm \| Output torque M2: 3215 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 55300/64200 N
HL4 050 1590 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 3559 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 55850/65600 N
HL4 080 1570 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 3501 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 78000/90000 N
HL4 050 1740 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 3887 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 56400/67100 N
HL4 080 1800 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 4021 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 78300/90300 N
HL4 050 1980 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 4422 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 56950/67750 N
HL4 080 2090 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 4674 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 78700/90700 N
HL4 050 2190 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 4895 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 57500/68900 N
HL4 050 2280 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5097 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 57500/68900 N
HL4 080 2270 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5064 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 080 2500 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5578 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 130 2510 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5606 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 92600/122000 N
HL4 080 2710 71B4		Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.5 rpm \| Output torque M2: 6043 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 79500/91600 N
HL2 010 68,7 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 20.4 rpm \| Output torque M2: 242 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 18400/20850 N
HL2 010 68,7 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 20.4 rpm \| Output torque M2: 242 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 18400/20850 N
HL3 010 87,4 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 16.0 rpm \| Output torque M2: 299 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 010 87,4 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 16.0 rpm \| Output torque M2: 299 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 010 100 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 14.0 rpm \| Output torque M2: 343 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 21200/24050 N
HL3 010 100 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 14.0 rpm \| Output torque M2: 343 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 21200/24050 N
HL3 010 110 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 12.8 rpm \| Output torque M2: 376 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 21900/24750 N
HL3 010 110 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 12.8 rpm \| Output torque M2: 376 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 21900/24750 N
HL3 010 125 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 11.2 rpm \| Output torque M2: 426 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 22650/25750 N
HL3 010 125 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 11.2 rpm \| Output torque M2: 426 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 22650/25750 N
HL3 010 138 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 10.2 rpm \| Output torque M2: 472 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23200/26300 N
HL3 010 138 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 10.2 rpm \| Output torque M2: 472 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23200/26300 N
HL3 010 155 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 155 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 155 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 155 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 174 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 8.1 rpm \| Output torque M2: 594 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 174 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 8.1 rpm \| Output torque M2: 594 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 188 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 188 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 188 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 188 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 197 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 7.1 rpm \| Output torque M2: 676 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 197 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 7.1 rpm \| Output torque M2: 676 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 010 216 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 216 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 216 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 216 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 236 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 236 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 236 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 236 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 249 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 5.6 rpm \| Output torque M2: 851 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 249 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 5.6 rpm \| Output torque M2: 851 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 293 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.8 rpm \| Output torque M2: 1002 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45300/52000 N
HL3 030 293 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.8 rpm \| Output torque M2: 1002 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45300/52000 N
HL3 010 297 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23800/27150 N
HL3 010 297 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23800/27150 N
HL3 020 297 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23800/27150 N
HL3 020 297 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23800/27150 N
HL3 030 309 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.5 rpm \| Output torque M2: 1058 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 45550/52400 N
HL3 030 309 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.5 rpm \| Output torque M2: 1058 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 45550/52400 N
HL4 020 348 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 24600/28100 N
HL4 020 348 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 24600/28100 N
HL4 030 348 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 46000/53450 N
HL4 030 348 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 46000/53450 N
HL3 020 369 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24650/28150 N
HL3 020 369 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24650/28150 N
HL3 030 369 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 46200/53650 N
HL3 030 369 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 46200/53650 N
HL3 030 425 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
HL3 030 425 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
HL3 050 425 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 47100/54650 N
HL3 050 425 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 020 433 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25000/28500 N
HL4 020 433 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25000/28500 N
HL4 030 433 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 47200/54800 N
HL4 030 433 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 47200/54800 N
HL4 020 474 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 25150/28600 N
HL4 020 474 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 25150/28600 N
HL4 030 474 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 030 474 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 020 538 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 25850/29300 N
HL4 020 538 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 25850/29300 N
HL4 030 538 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 48600/56450 N
HL4 030 538 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 48600/56450 N
HL4 020 668 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 26200/29650 N
HL4 020 668 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 26200/29650 N
HL4 030 668 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 030 668 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 050 668 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 050 668 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 020 740 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27000/30150 N
HL4 020 740 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27000/30150 N
HL4 030 740 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 030 740 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 050 740 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 050 740 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 030 831 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 030 831 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 050 831 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 050 831 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 030 919 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 030 919 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 050 919 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 050 919 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 52150/60400 N
HL4 050 1020 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.4 rpm \| Output torque M2: 3380 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 53000/61650 N
HL4 050 1020 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.4 rpm \| Output torque M2: 3380 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 53000/61650 N
HL4 050 1140 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3795 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 53600/62200 N
HL4 050 1140 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3795 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 53600/62200 N
HL4 080 1140 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3783 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 75450/87100 N
HL4 080 1140 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3783 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 75450/87100 N
HL4 050 1270 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4200 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 54800/63500 N
HL4 050 1270 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4200 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 54800/63500 N
HL4 080 1260 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4188 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 76400/88500 N
HL4 080 1260 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4188 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 76400/88500 N
HL4 050 1440 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4779 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55300/64200 N
HL4 050 1440 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4779 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55300/64200 N
HL4 080 1430 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4748 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 77500/89400 N
HL4 080 1430 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4748 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 77500/89400 N
HL4 050 1590 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5290 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55850/65600 N
HL4 050 1590 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5290 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55850/65600 N
HL4 080 1570 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5204 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 78000/90000 N
HL4 080 1570 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5204 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 78000/90000 N
HL4 130 1560 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5173 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 86500/114400 N
HL4 130 1560 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5173 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 86500/114400 N
HL4 080 1800 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5977 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 78300/90300 N
HL4 080 1800 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5977 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 78300/90300 N
HL4 130 1770 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5883 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 88000/116100 N
HL4 130 1770 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5883 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 88000/116100 N
HL4 080 2090 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6948 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 78700/90700 N
HL4 080 2090 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6948 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 78700/90700 N
HL4 130 1940 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6429 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 89100/117800 N
HL4 130 1940 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6429 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 89100/117800 N
HL4 080 2270 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 7527 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 080 2270 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 7527 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 080 2500 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8292 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 080 2500 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8292 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 130 2510 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 92600/122000 N
HL4 130 2510 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 92600/122000 N
HL4 180 2510 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 94400/122000 N
HL4 180 2510 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 94400/122000 N
HL4 080 2710 71C4		Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.5 rpm \| Output torque M2: 8983 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79500/91600 N
HL4 080 2710 80A4		Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.5 rpm \| Output torque M2: 8983 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79500/91600 N
HL2 010 49,9 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 28.8 rpm \| Output torque M2: 234 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 16950/19250 N
HL3 010 64,2 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 22.4 rpm \| Output torque M2: 292 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 18200/20550 N
HL2 010 68,7 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 21.0 rpm \| Output torque M2: 321 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 18350/20750 N
HL3 010 80,6 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 17.9 rpm \| Output torque M2: 366 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 010 87,4 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 16.5 rpm \| Output torque M2: 397 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 010 100 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 14.4 rpm \| Output torque M2: 455 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 21000/23800 N
HL3 010 110 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 13.1 rpm \| Output torque M2: 498 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 21700/24500 N
HL3 010 125 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 11.6 rpm \| Output torque M2: 565 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 22450/25500 N
HL3 010 138 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 10.4 rpm \| Output torque M2: 626 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 020 138 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 10.4 rpm \| Output torque M2: 626 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 010 155 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 9.3 rpm \| Output torque M2: 702 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 155 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 9.3 rpm \| Output torque M2: 702 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 010 174 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 8.3 rpm \| Output torque M2: 788 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 174 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 8.3 rpm \| Output torque M2: 788 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 188 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 7.7 rpm \| Output torque M2: 852 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 197 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 7.3 rpm \| Output torque M2: 896 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 010 216 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.7 rpm \| Output torque M2: 979 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 216 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.7 rpm \| Output torque M2: 979 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 216 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.7 rpm \| Output torque M2: 979 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 236 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.1 rpm \| Output torque M2: 1069 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 249 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 5.8 rpm \| Output torque M2: 1128 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 297 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1347 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23700/27050 N
HL3 030 293 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1329 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45200/51850 N
HL3 030 309 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 1402 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45350/52100 N
HL3 050 309 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 1402 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 45350/52100 N
HL4 020 348 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.1 rpm \| Output torque M2: 1534 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24200/27650 N
HL4 030 348 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.1 rpm \| Output torque M2: 1534 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45900/53250 N
HL3 020 369 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.9 rpm \| Output torque M2: 1674 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 24600/28100 N
HL3 030 369 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.9 rpm \| Output torque M2: 1674 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 46100/53550 N
HL3 050 369 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.9 rpm \| Output torque M2: 1674 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 46100/53550 N
HL3 080 409 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.5 rpm \| Output torque M2: 1857 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 65100/75150 N
HL3 030 425 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.4 rpm \| Output torque M2: 1929 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47000/54500 N
HL3 050 425 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.4 rpm \| Output torque M2: 1929 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 47000/54500 N
HL4 020 433 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 1906 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 24900/28400 N
HL4 030 433 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 1906 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 050 433 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 1906 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 020 474 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 2088 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 25150/28600 N
HL4 030 474 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 2088 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 050 474 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 2088 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 030 538 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.7 rpm \| Output torque M2: 2368 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 48450/56100 N
HL4 050 538 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.7 rpm \| Output torque M2: 2368 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 48450/56100 N
HL4 030 668 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.2 rpm \| Output torque M2: 2943 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 49500/57200 N
HL4 050 668 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.2 rpm \| Output torque M2: 2943 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 49500/57200 N
HL4 080 728 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.0 rpm \| Output torque M2: 3205 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 70300/81150 N
HL4 050 740 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.9 rpm \| Output torque M2: 3258 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 050 831 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 3657 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 080 825 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 3633 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 72250/83400 N
HL4 050 919 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.6 rpm \| Output torque M2: 4048 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 51800/60050 N
HL4 080 905 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.6 rpm \| Output torque M2: 3983 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 72650/83900 N
HL4 050 1020 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 4481 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 53000/61650 N
HL4 080 1000 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 4408 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 74600/86150 N
HL4 050 1140 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.3 rpm \| Output torque M2: 5031 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 53300/62000 N
HL4 080 1140 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.3 rpm \| Output torque M2: 5016 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 75050/86650 N
HL4 130 1130 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.3 rpm \| Output torque M2: 4986 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 82300/107700 N
HL4 130 1240 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 5446 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 83000/109300 N
HL4 050 1270 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 5569 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 54800/63500 N
HL4 080 1260 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 5552 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 76400/88500 N
HL4 080 1430 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.0 rpm \| Output torque M2: 6294 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 77500/89400 N
HL4 130 1410 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.0 rpm \| Output torque M2: 6196 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 85100/112000 N
HL4 080 1570 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 6899 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 78000/90000 N
HL4 130 1560 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 6858 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 86500/114400 N
HL4 080 1800 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 7924 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 78300/90300 N
HL4 130 1770 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 7800 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 88000/116100 N
HL4 180 1770 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 7800 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 90300/116100 N
HL4 080 2090 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 9211 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78700/90700 N
HL4 130 1940 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 8523 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 89100/117800 N
HL4 180 1940 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 8523 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 91200/117800 N
HL4 080 2270 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 9979 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79000/91100 N
HL4 130 2510 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 11048 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 92600/122000 N
HL4 180 2510 80B4		Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 11048 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 94400/122000 N
HL2 010 39,6 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 36.1 rpm \| Output torque M2: 274 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 010 49,9 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 28.6 rpm \| Output torque M2: 345 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 17000/19350 N
HL3 010 51,2 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 28.0 rpm \| Output torque M2: 343 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 17150/19500 N
HL3 010 64,2 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 22.3 rpm \| Output torque M2: 431 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 18200/20550 N
HL2 010 68,7 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 20.8 rpm \| Output torque M2: 475 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 18400/20850 N
HL2 020 68,7 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 20.8 rpm \| Output torque M2: 475 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 18400/20850 N
HL3 010 80,6 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 17.7 rpm \| Output torque M2: 540 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 010 87,4 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 16.4 rpm \| Output torque M2: 586 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 020 87,4 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 16.4 rpm \| Output torque M2: 586 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 010 100 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 14.3 rpm \| Output torque M2: 672 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 21100/23900 N
HL3 020 100 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 14.3 rpm \| Output torque M2: 672 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 21100/23900 N
HL3 010 110 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 13.0 rpm \| Output torque M2: 736 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 21750/24600 N
HL3 020 110 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 13.0 rpm \| Output torque M2: 736 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 21750/24600 N
HL3 030 114 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 12.5 rpm \| Output torque M2: 766 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 40450/46900 N
HL3 010 125 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 11.5 rpm \| Output torque M2: 835 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 22500/25600 N
HL3 020 125 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 11.5 rpm \| Output torque M2: 835 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 22500/25600 N
HL3 010 138 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 10.4 rpm \| Output torque M2: 924 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 020 138 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 10.4 rpm \| Output torque M2: 924 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 030 138 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 10.4 rpm \| Output torque M2: 924 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 43350/50300 N
HL3 020 155 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1037 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 155 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1037 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 171 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 8.3 rpm \| Output torque M2: 1148 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 174 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 8.2 rpm \| Output torque M2: 1164 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 020 188 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 7.6 rpm \| Output torque M2: 1258 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 197 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1323 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 197 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1323 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 216 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1446 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 216 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1446 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 236 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 6.1 rpm \| Output torque M2: 1579 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 249 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 5.8 rpm \| Output torque M2: 1667 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 249 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 5.8 rpm \| Output torque M2: 1667 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 293 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1963 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45200/51850 N
HL3 050 293 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1963 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 45200/51850 N
HL3 020 297 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.8 rpm \| Output torque M2: 1989 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 23750/27100 N
HL3 030 309 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.6 rpm \| Output torque M2: 2071 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45450/52250 N
HL3 050 309 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.6 rpm \| Output torque M2: 2071 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45450/52250 N
HL4 030 348 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.1 rpm \| Output torque M2: 2265 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45900/53250 N
HL4 050 348 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.1 rpm \| Output torque M2: 2265 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 45900/53250 N
HL3 080 357 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.0 rpm \| Output torque M2: 2392 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 64600/74400 N
HL3 030 369 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.9 rpm \| Output torque M2: 2472 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 46100/53550 N
HL3 050 369 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.9 rpm \| Output torque M2: 2472 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 46100/53550 N
HL3 080 409 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.5 rpm \| Output torque M2: 2742 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 65100/75150 N
HL3 050 425 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.4 rpm \| Output torque M2: 2849 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 47000/54500 N
HL4 030 433 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.3 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 050 433 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.3 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 050 474 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.0 rpm \| Output torque M2: 3084 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 050 538 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.7 rpm \| Output torque M2: 3498 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 48450/56100 N
HL4 080 529 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.7 rpm \| Output torque M2: 3441 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 67750/78150 N
HL4 080 586 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.4 rpm \| Output torque M2: 3809 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 69100/79750 N
HL4 080 658 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.2 rpm \| Output torque M2: 4276 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 69600/80250 N
HL4 050 668 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.1 rpm \| Output torque M2: 4346 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 080 728 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.0 rpm \| Output torque M2: 4733 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 70300/81150 N
HL4 050 740 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.9 rpm \| Output torque M2: 4811 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 50500/58600 N
HL4 130 812 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.8 rpm \| Output torque M2: 5282 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 78300/103100 N
HL4 050 831 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.7 rpm \| Output torque M2: 5401 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51400/59700 N
HL4 080 825 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.7 rpm \| Output torque M2: 5366 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 72250/83400 N
HL4 050 919 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.6 rpm \| Output torque M2: 5979 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51800/60050 N
HL4 080 905 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.6 rpm \| Output torque M2: 5882 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 72650/83900 N
HL4 130 899 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.6 rpm \| Output torque M2: 5847 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 80000/104800 N
HL4 130 964 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.5 rpm \| Output torque M2: 6267 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 81000/105900 N
HL4 180 980 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.5 rpm \| Output torque M2: 6371 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 82100/105900 N
HL4 080 1000 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.4 rpm \| Output torque M2: 6511 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 74600/86150 N
HL4 080 1140 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.3 rpm \| Output torque M2: 7408 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 75050/86650 N
HL4 130 1130 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.3 rpm \| Output torque M2: 7364 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 82300/107700 N
HL4 180 1130 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.3 rpm \| Output torque M2: 7364 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 84000/107700 N
HL4 130 1240 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.2 rpm \| Output torque M2: 8043 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 83000/109300 N
HL4 180 1240 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.2 rpm \| Output torque M2: 8043 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 84900/109300 N
HL4 080 1260 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.1 rpm \| Output torque M2: 8200 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 76400/88500 N
HL4 080 1430 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.0 rpm \| Output torque M2: 9296 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 77500/89400 N
HL4 130 1410 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.0 rpm \| Output torque M2: 9151 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 85100/112000 N
HL4 180 1410 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.0 rpm \| Output torque M2: 9151 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 87100/112000 N
HL4 080 1570 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.9 rpm \| Output torque M2: 10190 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78000/90000 N
HL4 130 1560 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.9 rpm \| Output torque M2: 10129 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 86500/114400 N
HL4 180 1560 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.9 rpm \| Output torque M2: 10129 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 88500/114400 N
HL4 130 1770 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.8 rpm \| Output torque M2: 11520 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 88000/116100 N
HL4 180 1770 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.8 rpm \| Output torque M2: 11520 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 90300/116100 N
HL4 130 1940 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.7 rpm \| Output torque M2: 12587 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 89100/117800 N
HL4 180 1940 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.7 rpm \| Output torque M2: 12587 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 91200/117800 N
HL4 180 2510 90S4		Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.6 rpm \| Output torque M2: 16317 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 94400/122000 N
HL2 010 28,8 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 49.6 rpm \| Output torque M2: 272 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 14650/16550 N
HL2 010 31,9 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 44.8 rpm \| Output torque M2: 301 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 010 39,6 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 36.1 rpm \| Output torque M2: 374 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 010 40,2 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 35.6 rpm \| Output torque M2: 379 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 010 49,9 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 28.6 rpm \| Output torque M2: 471 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 17000/19350 N
HL2 020 49,9 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 28.6 rpm \| Output torque M2: 471 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 17000/19350 N
HL3 010 51,2 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 28.0 rpm \| Output torque M2: 468 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 17150/19500 N
HL3 010 64,2 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 22.3 rpm \| Output torque M2: 587 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 18200/20550 N
HL3 020 64,2 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 22.3 rpm \| Output torque M2: 587 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 18200/20550 N
HL2 020 68,7 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 20.8 rpm \| Output torque M2: 647 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 18400/20850 N
HL3 030 73,3 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 19.5 rpm \| Output torque M2: 670 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 35550/41300 N
HL3 010 80,6 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 17.7 rpm \| Output torque M2: 737 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 020 80,6 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 17.7 rpm \| Output torque M2: 737 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 010 87,4 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 16.4 rpm \| Output torque M2: 799 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 020 87,4 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 16.4 rpm \| Output torque M2: 799 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 030 92,0 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 15.5 rpm \| Output torque M2: 841 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 37900/43900 N
HL3 010 100 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 14.3 rpm \| Output torque M2: 916 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 21100/23900 N
HL3 020 100 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 14.3 rpm \| Output torque M2: 916 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 21100/23900 N
HL3 030 100 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 14.3 rpm \| Output torque M2: 916 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 39200/45500 N
HL3 020 110 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 13.0 rpm \| Output torque M2: 1004 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 21750/24600 N
HL3 030 114 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 12.5 rpm \| Output torque M2: 1045 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 40450/46900 N
HL3 020 125 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 11.5 rpm \| Output torque M2: 1138 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 22500/25600 N
HL3 030 125 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 11.5 rpm \| Output torque M2: 1138 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 41750/48450 N
HL3 020 138 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 10.4 rpm \| Output torque M2: 1260 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 030 138 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 10.4 rpm \| Output torque M2: 1260 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 43350/50300 N
HL3 020 155 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1414 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 155 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1414 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 171 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 8.3 rpm \| Output torque M2: 1566 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 174 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 8.2 rpm \| Output torque M2: 1587 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 197 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1805 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 197 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1805 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 020 216 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1972 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23650/27000 N
HL3 030 216 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1972 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 216 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1972 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 249 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 5.8 rpm \| Output torque M2: 2273 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 293 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.9 rpm \| Output torque M2: 2676 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 45200/51850 N
HL3 080 307 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.7 rpm \| Output torque M2: 2806 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 63250/73050 N
HL3 050 309 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.6 rpm \| Output torque M2: 2824 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45450/52250 N
HL3 130 340 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.2 rpm \| Output torque M2: 3106 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 70150/91100 N
HL4 050 348 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.1 rpm \| Output torque M2: 3089 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45900/53250 N
HL3 080 357 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.0 rpm \| Output torque M2: 3262 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 64600/74400 N
HL3 050 369 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.9 rpm \| Output torque M2: 3371 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 46100/53550 N
HL4 080 395 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.6 rpm \| Output torque M2: 3505 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 65050/75000 N
HL3 080 409 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.5 rpm \| Output torque M2: 3739 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 65100/75150 N
HL3 050 425 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.4 rpm \| Output torque M2: 3885 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47000/54500 N
HL4 050 433 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.3 rpm \| Output torque M2: 3838 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 080 467 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.1 rpm \| Output torque M2: 4137 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 66150/76300 N
HL4 050 474 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.0 rpm \| Output torque M2: 4205 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 47850/55100 N
HL4 050 538 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.7 rpm \| Output torque M2: 4770 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 48450/56100 N
HL4 080 529 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.7 rpm \| Output torque M2: 4692 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67750/78150 N
HL4 130 564 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.5 rpm \| Output torque M2: 5000 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 75150/98300 N
HL4 080 586 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.4 rpm \| Output torque M2: 5194 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 69100/79750 N
HL4 130 633 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.3 rpm \| Output torque M2: 5613 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 75700/99600 N
HL4 080 658 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.2 rpm \| Output torque M2: 5831 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 69600/80250 N
HL4 050 668 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.1 rpm \| Output torque M2: 5927 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 49750/57300 N
HL4 080 728 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.0 rpm \| Output torque M2: 6454 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 70300/81150 N
HL4 130 701 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.0 rpm \| Output torque M2: 6213 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 77100/101600 N
HL4 130 812 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.8 rpm \| Output torque M2: 7203 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 78300/103100 N
HL4 180 812 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.8 rpm \| Output torque M2: 7203 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 80100/103100 N
HL4 080 825 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.7 rpm \| Output torque M2: 7317 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 72250/83400 N
HL4 080 905 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.6 rpm \| Output torque M2: 8021 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 72650/83900 N
HL4 130 899 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.6 rpm \| Output torque M2: 7973 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 80000/104800 N
HL4 180 899 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.6 rpm \| Output torque M2: 7973 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 81600/104800 N
HL4 130 964 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.5 rpm \| Output torque M2: 8546 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 81000/105900 N
HL4 180 980 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.5 rpm \| Output torque M2: 8688 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 82100/105900 N
HL4 080 1000 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.4 rpm \| Output torque M2: 8879 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 74600/86150 N
HL4 080 1140 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.3 rpm \| Output torque M2: 10101 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 75050/86650 N
HL4 130 1130 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.3 rpm \| Output torque M2: 10041 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 82300/107700 N
HL4 180 1130 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.3 rpm \| Output torque M2: 10041 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 84000/107700 N
HL4 130 1240 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.2 rpm \| Output torque M2: 10968 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 83000/109300 N
HL4 180 1240 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.2 rpm \| Output torque M2: 10968 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 84900/109300 N
HL4 080 1260 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.1 rpm \| Output torque M2: 11181 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 76400/88500 N
HL4 130 1410 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.0 rpm \| Output torque M2: 12478 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 85100/112000 N
HL4 180 1410 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.0 rpm \| Output torque M2: 12478 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 87100/112000 N
HL4 130 1560 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.9 rpm \| Output torque M2: 13812 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 86500/114400 N
HL4 180 1560 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.9 rpm \| Output torque M2: 13812 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 88500/114400 N
HL4 130 1770 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.8 rpm \| Output torque M2: 15709 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 88000/116100 N
HL4 180 1770 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.8 rpm \| Output torque M2: 15709 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 90300/116100 N
HL4 180 1940 90L4		Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.7 rpm \| Output torque M2: 17164 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 91200/117800 N
HL1 010 9,30 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 154.8 rpm \| Output torque M2: 132 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 10200/11500 N
HL1 010 9,30 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 154.8 rpm \| Output torque M2: 132 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 10200/11500 N
HL2 010 18,7 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 77.2 rpm \| Output torque M2: 256 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 12400/14150 N
HL2 010 18,7 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 77.2 rpm \| Output torque M2: 256 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 12400/14150 N
HL2 010 23,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 62.1 rpm \| Output torque M2: 318 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 13650/15500 N
HL2 010 23,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 62.1 rpm \| Output torque M2: 318 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 13650/15500 N
HL2 010 28,8 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 50.0 rpm \| Output torque M2: 396 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 14600/16500 N
HL2 010 28,8 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 50.0 rpm \| Output torque M2: 396 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 14600/16500 N
HL2 010 31,9 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 45.1 rpm \| Output torque M2: 438 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 010 31,9 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 45.1 rpm \| Output torque M2: 438 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 010 39,6 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 010 39,6 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 020 39,6 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 020 39,6 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 010 40,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 010 40,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 020 40,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 020 40,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 030 45,7 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 31.5 rpm \| Output torque M2: 627 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 30200/35000 N
HL2 030 45,7 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 31.5 rpm \| Output torque M2: 627 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 30200/35000 N
HL2 010 49,9 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 16950/19250 N
HL2 010 49,9 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 16950/19250 N
HL2 020 49,9 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 16950/19250 N
HL2 020 49,9 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 16950/19250 N
HL3 010 51,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 17150/19500 N
HL3 010 51,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 17150/19500 N
HL3 020 51,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 17150/19500 N
HL3 020 51,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 17150/19500 N
HL2 030 57,5 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 25.0 rpm \| Output torque M2: 790 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 33000/38350 N
HL2 030 57,5 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 25.0 rpm \| Output torque M2: 790 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 33000/38350 N
HL3 010 64,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 18200/20550 N
HL3 010 64,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 18200/20550 N
HL3 020 64,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 18200/20550 N
HL3 020 64,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 18200/20550 N
HL3 030 64,2 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 33950/39400 N
HL3 030 64,2 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 33950/39400 N
HL2 020 68,7 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 21.0 rpm \| Output torque M2: 943 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 18350/20750 N
HL2 020 68,7 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 21.0 rpm \| Output torque M2: 943 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 18350/20750 N
HL3 030 73,3 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 19.7 rpm \| Output torque M2: 976 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 35400/41100 N
HL3 030 73,3 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 19.7 rpm \| Output torque M2: 976 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 35400/41100 N
HL3 020 80,6 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 020 80,6 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 030 80,6 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 37000/42900 N
HL3 030 80,6 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 37000/42900 N
HL3 020 87,4 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 16.5 rpm \| Output torque M2: 1164 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 020 87,4 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 16.5 rpm \| Output torque M2: 1164 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 20200/22800 N
HL3 030 92,0 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 030 92,0 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 050 92,0 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 050 92,0 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 020 100 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 21000/23800 N
HL3 020 100 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 21000/23800 N
HL3 030 100 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 39100/45400 N
HL3 030 100 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 39100/45400 N
HL3 020 110 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 13.1 rpm \| Output torque M2: 1462 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 21700/24500 N
HL3 020 110 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 13.1 rpm \| Output torque M2: 1462 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 21700/24500 N
HL3 030 114 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 40300/46750 N
HL3 030 114 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 40300/46750 N
HL3 050 114 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 40300/46750 N
HL3 050 114 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 40300/46750 N
HL3 020 125 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 22450/25500 N
HL3 020 125 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 22450/25500 N
HL3 030 125 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 41600/48300 N
HL3 030 125 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 41600/48300 N
HL3 020 138 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 020 138 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23050/26150 N
HL3 030 138 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 43350/50300 N
HL3 030 138 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 43350/50300 N
HL3 050 138 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 43350/50300 N
HL3 050 138 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 43350/50300 N
HL3 030 155 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 155 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 155 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 155 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 171 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 171 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 171 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 171 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 194 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 7.4 rpm \| Output torque M2: 2586 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 194 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 7.4 rpm \| Output torque M2: 2586 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 197 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 7.3 rpm \| Output torque M2: 2628 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 197 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 7.3 rpm \| Output torque M2: 2628 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 211 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.8 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 211 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.8 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 030 216 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 030 216 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 216 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 216 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 232 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.2 rpm \| Output torque M2: 3086 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 232 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.2 rpm \| Output torque M2: 3086 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 244 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.9 rpm \| Output torque M2: 3245 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 244 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.9 rpm \| Output torque M2: 3245 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 249 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.8 rpm \| Output torque M2: 3310 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 050 249 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.8 rpm \| Output torque M2: 3310 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 266 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.4 rpm \| Output torque M2: 3545 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 266 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.4 rpm \| Output torque M2: 3545 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 291 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3873 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 291 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3873 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 286 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3812 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 130 286 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3812 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 050 293 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.9 rpm \| Output torque M2: 3898 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45200/51850 N
HL3 050 293 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.9 rpm \| Output torque M2: 3898 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45200/51850 N
HL3 080 307 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.7 rpm \| Output torque M2: 4086 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 63250/73050 N
HL3 080 307 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.7 rpm \| Output torque M2: 4086 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 63250/73050 N
HL3 130 340 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 70150/91100 N
HL3 130 340 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 70150/91100 N
HL3 180 340 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 70700/91100 N
HL3 180 340 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 70700/91100 N
HL4 050 348 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.1 rpm \| Output torque M2: 4498 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45900/53250 N
HL4 050 348 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.1 rpm \| Output torque M2: 4498 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45900/53250 N
HL3 080 357 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.0 rpm \| Output torque M2: 4750 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 64600/74400 N
HL3 080 357 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.0 rpm \| Output torque M2: 4750 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 64600/74400 N
HL3 050 369 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.9 rpm \| Output torque M2: 4909 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 46100/53550 N
HL3 050 369 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.9 rpm \| Output torque M2: 4909 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 46100/53550 N
HL4 080 395 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.6 rpm \| Output torque M2: 5104 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 65050/75000 N
HL4 080 395 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.6 rpm \| Output torque M2: 5104 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 65050/75000 N
HL3 080 409 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5446 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 65100/75150 N
HL3 080 409 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5446 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 65100/75150 N
HL4 130 410 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5294 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 70900/93500 N
HL4 130 410 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5294 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 70900/93500 N
HL4 050 433 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.3 rpm \| Output torque M2: 5590 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 050 433 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.3 rpm \| Output torque M2: 5590 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47100/54650 N
HL4 130 449 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.2 rpm \| Output torque M2: 5800 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 71800/94500 N
HL4 130 449 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.2 rpm \| Output torque M2: 5800 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 71800/94500 N
HL4 080 467 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.1 rpm \| Output torque M2: 6026 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 66150/76300 N
HL4 080 467 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.1 rpm \| Output torque M2: 6026 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 66150/76300 N
HL4 130 509 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.8 rpm \| Output torque M2: 6578 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 73550/96500 N
HL4 130 509 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.8 rpm \| Output torque M2: 6578 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 73550/96500 N
HL4 080 529 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.7 rpm \| Output torque M2: 6834 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 67750/78150 N
HL4 080 529 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.7 rpm \| Output torque M2: 6834 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 67750/78150 N
HL4 130 564 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 74450/97600 N
HL4 130 564 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 74450/97600 N
HL4 180 564 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 76000/97600 N
HL4 180 564 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 76000/97600 N
HL4 080 586 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.5 rpm \| Output torque M2: 7565 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 68650/79200 N
HL4 080 586 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.5 rpm \| Output torque M2: 7565 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 68650/79200 N
HL4 130 633 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.3 rpm \| Output torque M2: 8175 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 75700/99600 N
HL4 130 633 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.3 rpm \| Output torque M2: 8175 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 75700/99600 N
HL4 080 658 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8493 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69600/80250 N
HL4 080 658 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8493 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69600/80250 N
HL4 180 654 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8442 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 77800/100200 N
HL4 180 654 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8442 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 77800/100200 N
HL4 130 701 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 76500/100700 N
HL4 130 701 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 76500/100700 N
HL4 180 701 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 78200/100700 N
HL4 180 701 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 78200/100700 N
HL4 080 728 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.0 rpm \| Output torque M2: 9401 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 70300/81150 N
HL4 080 728 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.0 rpm \| Output torque M2: 9401 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 70300/81150 N
HL4 130 812 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 78300/103100 N
HL4 130 812 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 78300/103100 N
HL4 180 812 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 80100/103100 N
HL4 180 812 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 80100/103100 N
HL4 130 899 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 80000/104800 N
HL4 130 899 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 80000/104800 N
HL4 180 899 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 81600/104800 N
HL4 180 899 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 81600/104800 N
HL4 130 964 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12447 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 81000/105900 N
HL4 130 964 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12447 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 81000/105900 N
HL4 180 980 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12653 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 82100/105900 N
HL4 180 980 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12653 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 82100/105900 N
HL4 130 1130 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 82300/107700 N
HL4 130 1130 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 82300/107700 N
HL4 180 1130 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 84000/107700 N
HL4 180 1130 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 84000/107700 N
HL4 180 1240 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.2 rpm \| Output torque M2: 15974 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 84900/109300 N
HL4 180 1240 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.2 rpm \| Output torque M2: 15974 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 84900/109300 N
HL4 180 1410 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.0 rpm \| Output torque M2: 18174 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 87100/112000 N
HL4 180 1410 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.0 rpm \| Output torque M2: 18174 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 87100/112000 N
HL4 180 1560 100LA4		Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 0.9 rpm \| Output torque M2: 20117 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 88500/114400 N
HL4 180 1560 112MR4		Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 0.9 rpm \| Output torque M2: 20117 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 88500/114400 N
HL1 010 9,30 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 155.9 rpm \| Output torque M2: 178 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 10200/11500 N
HL2 010 14,9 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 97.5 rpm \| Output torque M2: 276 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 11700/13200 N
HL2 010 18,7 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 77.7 rpm \| Output torque M2: 347 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 12350/14100 N
HL2 010 23,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 62.5 rpm \| Output torque M2: 431 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 13600/15450 N
HL2 010 28,8 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 50.3 rpm \| Output torque M2: 536 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 14600/16500 N
HL2 020 28,8 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 50.3 rpm \| Output torque M2: 536 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 14600/16500 N
HL2 010 31,9 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 45.5 rpm \| Output torque M2: 593 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 020 31,9 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 45.5 rpm \| Output torque M2: 593 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 030 33,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 43.7 rpm \| Output torque M2: 617 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 27750/32150 N
HL2 020 39,6 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.6 rpm \| Output torque M2: 737 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 15850/17950 N
HL2 030 39,6 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.6 rpm \| Output torque M2: 737 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 29350/33850 N
HL2 010 40,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.1 rpm \| Output torque M2: 747 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 020 40,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.1 rpm \| Output torque M2: 747 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 030 45,7 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 31.7 rpm \| Output torque M2: 849 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 30150/34950 N
HL2 020 49,9 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 29.0 rpm \| Output torque M2: 928 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 16950/19250 N
HL3 010 51,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 28.3 rpm \| Output torque M2: 922 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 17100/19450 N
HL3 020 51,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 28.3 rpm \| Output torque M2: 922 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 17100/19450 N
HL3 030 51,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 28.3 rpm \| Output torque M2: 922 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 31600/36650 N
HL2 030 57,5 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 25.2 rpm \| Output torque M2: 1070 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 33000/38350 N
HL3 020 64,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1158 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 17900/20300 N
HL3 030 64,2 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1158 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 33850/39250 N
HL3 030 73,3 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1321 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 35300/41000 N
HL3 050 73,3 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1321 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 35300/41000 N
HL3 020 80,6 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1454 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 19600/22250 N
HL3 030 80,6 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1454 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 36900/42800 N
HL3 030 92,0 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 15.8 rpm \| Output torque M2: 1659 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 050 92,0 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 15.8 rpm \| Output torque M2: 1659 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 020 100 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 14.5 rpm \| Output torque M2: 1807 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 21000/23800 N
HL3 030 100 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 14.5 rpm \| Output torque M2: 1807 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 39000/45300 N
HL3 050 100 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 14.5 rpm \| Output torque M2: 1807 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 39000/45300 N
HL3 030 114 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 12.7 rpm \| Output torque M2: 2061 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 40250/46650 N
HL3 050 114 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 12.7 rpm \| Output torque M2: 2061 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 40250/46650 N
HL3 030 125 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 11.6 rpm \| Output torque M2: 2245 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 41600/48300 N
HL3 050 125 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 11.6 rpm \| Output torque M2: 2245 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 41600/48300 N
HL3 030 138 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 10.5 rpm \| Output torque M2: 2485 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 43100/50050 N
HL3 050 138 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 10.5 rpm \| Output torque M2: 2485 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 43100/50050 N
HL3 080 143 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 10.2 rpm \| Output torque M2: 2571 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 62150/71850 N
HL3 050 155 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 9.4 rpm \| Output torque M2: 2790 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 168 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 8.6 rpm \| Output torque M2: 3038 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 171 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 8.5 rpm \| Output torque M2: 3088 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 194 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 7.5 rpm \| Output torque M2: 3502 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 197 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 7.3 rpm \| Output torque M2: 3559 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 130 208 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 7.0 rpm \| Output torque M2: 3753 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 080 211 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.9 rpm \| Output torque M2: 3813 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 216 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.7 rpm \| Output torque M2: 3889 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 130 223 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.5 rpm \| Output torque M2: 4023 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 080 232 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.3 rpm \| Output torque M2: 4179 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 244 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.0 rpm \| Output torque M2: 4394 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 240 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.0 rpm \| Output torque M2: 4326 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 080 266 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.4 rpm \| Output torque M2: 4801 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 286 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.1 rpm \| Output torque M2: 5162 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 285 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.1 rpm \| Output torque M2: 5134 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 291 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.0 rpm \| Output torque M2: 5244 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 307 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.7 rpm \| Output torque M2: 5534 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 63250/73050 N
HL4 130 330 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.4 rpm \| Output torque M2: 5769 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 68800/90500 N
HL3 130 340 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.3 rpm \| Output torque M2: 6127 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 69000/90700 N
HL3 180 340 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.3 rpm \| Output torque M2: 6127 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 70500/90700 N
HL3 080 357 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.1 rpm \| Output torque M2: 6433 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 64400/74200 N
HL4 130 358 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.1 rpm \| Output torque M2: 6257 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 70250/91500 N
HL4 080 395 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.7 rpm \| Output torque M2: 6912 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 64950/74900 N
HL4 130 410 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.5 rpm \| Output torque M2: 7169 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 70900/93500 N
HL4 180 410 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.5 rpm \| Output torque M2: 7169 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 72550/93500 N
HL4 130 449 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.2 rpm \| Output torque M2: 7855 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 71800/94500 N
HL4 180 449 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.2 rpm \| Output torque M2: 7855 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 73500/94500 N
HL4 080 467 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.1 rpm \| Output torque M2: 8161 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 66150/76300 N
HL4 130 509 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.8 rpm \| Output torque M2: 8909 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 73550/96500 N
HL4 180 509 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.8 rpm \| Output torque M2: 8909 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 75150/96500 N
HL4 080 529 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.7 rpm \| Output torque M2: 9255 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 67750/78150 N
HL4 130 564 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.6 rpm \| Output torque M2: 9861 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 74450/97600 N
HL4 180 564 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.6 rpm \| Output torque M2: 9861 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 76000/97600 N
HL4 080 586 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.5 rpm \| Output torque M2: 10245 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 68650/79200 N
HL4 130 633 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.3 rpm \| Output torque M2: 11071 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 75700/99600 N
HL4 180 654 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.2 rpm \| Output torque M2: 11433 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 77800/100200 N
HL4 130 701 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.1 rpm \| Output torque M2: 12254 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 76500/100700 N
HL4 180 701 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.1 rpm \| Output torque M2: 12254 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 78200/100700 N
HL4 130 812 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.8 rpm \| Output torque M2: 14207 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78300/103100 N
HL4 180 812 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.8 rpm \| Output torque M2: 14207 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 80100/103100 N
HL4 180 899 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.6 rpm \| Output torque M2: 15726 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 81600/104800 N
HL4 180 980 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.5 rpm \| Output torque M2: 17136 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 82100/105900 N
HL4 180 1130 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.3 rpm \| Output torque M2: 19805 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 84000/107700 N
HL4 180 1240 112MS4		Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.2 rpm \| Output torque M2: 21633 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 84900/109300 N
HL1 010 7,38 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 196.4 rpm \| Output torque M2: 189 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 9400/10650 N
HL1 010 9,30 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 155.9 rpm \| Output torque M2: 238 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 10200/11500 N
HL1 020 9,30 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 155.9 rpm \| Output torque M2: 238 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 10200/11500 N
HL2 010 11,8 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 122.4 rpm \| Output torque M2: 294 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 010 14,9 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 97.5 rpm \| Output torque M2: 368 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 11700/13200 N
HL2 010 18,7 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 77.7 rpm \| Output torque M2: 463 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 12350/14100 N
HL2 010 23,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 62.5 rpm \| Output torque M2: 575 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 13600/15450 N
HL2 020 23,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 62.5 rpm \| Output torque M2: 575 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 13600/15450 N
HL2 030 26,7 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 54.2 rpm \| Output torque M2: 663 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 25700/29950 N
HL2 020 28,8 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 50.3 rpm \| Output torque M2: 714 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 14600/16500 N
HL2 030 28,8 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 50.3 rpm \| Output torque M2: 714 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 26200/30400 N
HL2 010 31,9 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 45.5 rpm \| Output torque M2: 791 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 020 31,9 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 45.5 rpm \| Output torque M2: 791 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 15050/17950 N
HL2 030 31,9 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 45.5 rpm \| Output torque M2: 791 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 27400/31750 N
HL2 030 33,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 43.7 rpm \| Output torque M2: 823 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 27750/32150 N
HL2 020 39,6 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 36.6 rpm \| Output torque M2: 983 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 15850/17950 N
HL2 030 39,6 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 36.6 rpm \| Output torque M2: 983 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 29350/33850 N
HL2 020 40,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 36.1 rpm \| Output torque M2: 996 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 15900/18000 N
HL2 030 45,7 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 31.7 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 30150/34950 N
HL2 020 49,9 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 29.0 rpm \| Output torque M2: 1237 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 16950/19250 N
HL3 020 51,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 28.3 rpm \| Output torque M2: 1230 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 17100/19450 N
HL3 030 51,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 28.3 rpm \| Output torque M2: 1230 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 31600/36650 N
HL2 030 57,5 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 25.2 rpm \| Output torque M2: 1426 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 33000/38350 N
HL2 050 57,5 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 25.2 rpm \| Output torque M2: 1426 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 33000/38350 N
HL3 020 64,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1544 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 17900/20300 N
HL3 030 64,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1544 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 33850/39250 N
HL3 050 64,2 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1544 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 33850/39250 N
HL2 080 69,8 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 20.8 rpm \| Output torque M2: 1729 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 49900/57600 N
HL3 030 73,3 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1762 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 35300/41000 N
HL3 050 73,3 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1762 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 35300/41000 N
HL3 030 80,6 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1938 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 36900/42800 N
HL3 050 80,6 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1938 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 36900/42800 N
HL3 050 92,0 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 15.8 rpm \| Output torque M2: 2211 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 37700/43700 N
HL3 030 100 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 14.5 rpm \| Output torque M2: 2409 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 39000/45300 N
HL3 050 100 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 14.5 rpm \| Output torque M2: 2409 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 39000/45300 N
HL3 080 114 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 12.8 rpm \| Output torque M2: 2731 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 57200/65950 N
HL3 050 114 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 12.7 rpm \| Output torque M2: 2748 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 40250/46650 N
HL3 080 122 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 11.8 rpm \| Output torque M2: 2945 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 58250/67200 N
HL3 050 125 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 11.6 rpm \| Output torque M2: 2993 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 41600/48300 N
HL3 050 138 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 10.5 rpm \| Output torque M2: 3313 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 43100/50050 N
HL3 080 143 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 10.2 rpm \| Output torque M2: 3427 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 62150/71850 N
HL3 130 151 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 9.6 rpm \| Output torque M2: 3638 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 050 155 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 9.4 rpm \| Output torque M2: 3720 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 168 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 8.6 rpm \| Output torque M2: 4051 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 171 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 8.5 rpm \| Output torque M2: 4118 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 080 194 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 7.5 rpm \| Output torque M2: 4669 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 208 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 7.0 rpm \| Output torque M2: 5004 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 080 211 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.9 rpm \| Output torque M2: 5083 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 216 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.7 rpm \| Output torque M2: 5186 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 130 223 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.5 rpm \| Output torque M2: 5364 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 080 232 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.3 rpm \| Output torque M2: 5572 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 244 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.0 rpm \| Output torque M2: 5859 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 240 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.0 rpm \| Output torque M2: 5767 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 240 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.0 rpm \| Output torque M2: 5767 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 266 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.4 rpm \| Output torque M2: 6402 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 286 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.1 rpm \| Output torque M2: 6883 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 285 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.1 rpm \| Output torque M2: 6845 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 291 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.0 rpm \| Output torque M2: 6993 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 307 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.7 rpm \| Output torque M2: 7379 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 63250/73050 N
HL4 130 330 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 7692 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 68800/90500 N
HL4 180 330 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 7692 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 70300/90500 N
HL3 130 340 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.3 rpm \| Output torque M2: 8169 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69000/90700 N
HL3 180 340 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.3 rpm \| Output torque M2: 8169 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 70500/90700 N
HL4 130 358 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.1 rpm \| Output torque M2: 8343 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 70250/91500 N
HL4 130 410 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.5 rpm \| Output torque M2: 9558 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 70900/93500 N
HL4 180 410 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.5 rpm \| Output torque M2: 9558 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 72550/93500 N
HL4 130 449 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.2 rpm \| Output torque M2: 10473 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 71800/94500 N
HL4 180 449 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.2 rpm \| Output torque M2: 10473 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 73500/94500 N
HL4 130 509 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.8 rpm \| Output torque M2: 11878 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 73550/96500 N
HL4 180 509 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.8 rpm \| Output torque M2: 11878 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 75150/96500 N
HL4 130 564 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.6 rpm \| Output torque M2: 13148 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 74450/97600 N
HL4 180 564 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.6 rpm \| Output torque M2: 13148 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 76000/97600 N
HL4 130 633 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.3 rpm \| Output torque M2: 14761 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 75700/99600 N
HL4 180 654 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.2 rpm \| Output torque M2: 15244 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 77800/100200 N
HL4 180 701 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.1 rpm \| Output torque M2: 16339 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 78200/100700 N
HL4 180 812 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 1.8 rpm \| Output torque M2: 18943 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 80100/103100 N
HL4 180 899 112M4		Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 1.6 rpm \| Output torque M2: 20969 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 81600/104800 N
HL1 010 5,37 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 273.8 rpm \| Output torque M2: 186 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 8750/9900 N
HL1 010 7,38 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 199.1 rpm \| Output torque M2: 256 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 9350/10600 N
HL1 020 7,38 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 199.1 rpm \| Output torque M2: 256 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 9350/10600 N
HL1 010 9,30 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 158.1 rpm \| Output torque M2: 322 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 10200/11500 N
HL1 020 9,30 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 158.1 rpm \| Output torque M2: 322 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 10200/11500 N
HL1 030 9,30 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 158.1 rpm \| Output torque M2: 322 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 19300/22350 N
HL2 010 11,8 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 124.1 rpm \| Output torque M2: 398 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 020 11,8 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 124.1 rpm \| Output torque M2: 398 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 010 14,9 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 98.9 rpm \| Output torque M2: 500 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 11650/13200 N
HL2 020 14,9 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 98.9 rpm \| Output torque M2: 500 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 11650/13200 N
HL2 010 18,7 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 78.8 rpm \| Output torque M2: 627 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 12300/14050 N
HL2 020 18,7 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 78.8 rpm \| Output torque M2: 627 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 12300/14050 N
HL2 030 21,3 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 69.0 rpm \| Output torque M2: 716 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 24300/28100 N
HL2 010 23,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 63.4 rpm \| Output torque M2: 780 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 13500/15350 N
HL2 020 23,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 63.4 rpm \| Output torque M2: 780 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 13500/15350 N
HL2 030 23,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 63.4 rpm \| Output torque M2: 780 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 24950/28950 N
HL2 030 26,7 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 55.0 rpm \| Output torque M2: 899 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25600/29850 N
HL2 020 28,8 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 51.0 rpm \| Output torque M2: 969 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 14550/16450 N
HL2 030 28,8 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 51.0 rpm \| Output torque M2: 969 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 26050/30300 N
HL2 020 31,9 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 46.1 rpm \| Output torque M2: 1072 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 15000/16900 N
HL2 030 31,9 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 46.1 rpm \| Output torque M2: 1072 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 27250/31600 N
HL2 050 31,9 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 46.1 rpm \| Output torque M2: 1072 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 27250/31600 N
HL2 030 33,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 44.3 rpm \| Output torque M2: 1117 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 27600/32000 N
HL2 020 39,6 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 37.1 rpm \| Output torque M2: 1333 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 15850/17950 N
HL2 030 39,6 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 37.1 rpm \| Output torque M2: 1333 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 29150/33650 N
HL2 050 39,6 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 37.1 rpm \| Output torque M2: 1333 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 29150/33650 N
HL2 020 40,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 36.6 rpm \| Output torque M2: 1351 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 15850/17950 N
HL2 030 45,7 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 32.2 rpm \| Output torque M2: 1536 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 28900/34750 N
HL2 050 45,7 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 32.2 rpm \| Output torque M2: 1536 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 28900/34750 N
HL3 020 51,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 28.7 rpm \| Output torque M2: 1668 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 17000/19350 N
HL3 030 51,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 28.7 rpm \| Output torque M2: 1668 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 31450/36350 N
HL3 050 51,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 28.7 rpm \| Output torque M2: 1668 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 31450/36350 N
HL2 080 55,4 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 26.5 rpm \| Output torque M2: 1862 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 45850/52850 N
HL2 030 57,5 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 25.5 rpm \| Output torque M2: 1934 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 32950/38300 N
HL2 050 57,5 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 25.5 rpm \| Output torque M2: 1934 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 32950/38300 N
HL3 030 64,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 22.9 rpm \| Output torque M2: 2094 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 33700/39050 N
HL3 050 64,2 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 22.9 rpm \| Output torque M2: 2094 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 33700/39050 N
HL2 080 69,8 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 21.1 rpm \| Output torque M2: 2345 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 49650/57350 N
HL3 050 73,3 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 20.1 rpm \| Output torque M2: 2389 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 35200/40950 N
HL3 030 80,6 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 18.2 rpm \| Output torque M2: 2629 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 36700/42600 N
HL3 050 80,6 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 18.2 rpm \| Output torque M2: 2629 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 36700/42600 N
HL3 080 83,5 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 17.6 rpm \| Output torque M2: 2722 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 51450/59400 N
HL3 080 90,5 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 16.2 rpm \| Output torque M2: 2951 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 52800/61000 N
HL3 050 92,0 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 16.0 rpm \| Output torque M2: 2999 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 37650/43650 N
HL3 080 98,6 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 14.9 rpm \| Output torque M2: 3214 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 54700/63200 N
HL3 050 100 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 14.7 rpm \| Output torque M2: 3267 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 38800/45050 N
HL3 130 104 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 14.1 rpm \| Output torque M2: 3390 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 60950/80200 N
HL3 130 112 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 13.2 rpm \| Output torque M2: 3645 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62050/81700 N
HL3 050 114 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.9 rpm \| Output torque M2: 3727 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 40100/46550 N
HL3 080 114 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.9 rpm \| Output torque M2: 3704 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 57150/65900 N
HL3 130 122 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.1 rpm \| Output torque M2: 3970 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 63700/83850 N
HL3 080 122 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.0 rpm \| Output torque M2: 3994 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 58000/66850 N
HL3 050 125 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 11.8 rpm \| Output torque M2: 4060 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 41400/48000 N
HL3 050 138 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 10.7 rpm \| Output torque M2: 4494 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 42650/49550 N
HL3 130 140 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 10.5 rpm \| Output torque M2: 4576 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 66600/87600 N
HL3 080 143 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 10.3 rpm \| Output torque M2: 4649 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 61900/71500 N
HL3 130 151 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 9.7 rpm \| Output torque M2: 4934 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 130 162 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 9.1 rpm \| Output torque M2: 5288 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 162 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 9.1 rpm \| Output torque M2: 5288 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 168 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 8.7 rpm \| Output torque M2: 5494 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 050 171 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 8.6 rpm \| Output torque M2: 5585 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45100/51700 N
HL3 180 174 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 8.4 rpm \| Output torque M2: 5687 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 187 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.9 rpm \| Output torque M2: 6095 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 080 194 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.6 rpm \| Output torque M2: 6332 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 208 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.1 rpm \| Output torque M2: 6787 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 208 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.1 rpm \| Output torque M2: 6787 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 211 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.0 rpm \| Output torque M2: 6895 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 130 223 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.6 rpm \| Output torque M2: 7275 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 130 240 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.1 rpm \| Output torque M2: 7822 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 240 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.1 rpm \| Output torque M2: 7822 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 244 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.0 rpm \| Output torque M2: 7946 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 080 266 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 5.5 rpm \| Output torque M2: 8683 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 180 285 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 5.2 rpm \| Output torque M2: 9284 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 286 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 5.1 rpm \| Output torque M2: 9336 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 67500/88800 N
HL4 130 330 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.5 rpm \| Output torque M2: 10432 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 68600/90300 N
HL4 180 330 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.5 rpm \| Output torque M2: 10432 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 70050/90300 N
HL3 180 340 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.3 rpm \| Output torque M2: 11080 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 70500/90700 N
HL4 130 358 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.1 rpm \| Output torque M2: 11315 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 70250/91500 N
HL4 130 410 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.6 rpm \| Output torque M2: 12964 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 70700/93100 N
HL4 180 410 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.6 rpm \| Output torque M2: 12964 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 72300/93100 N
HL4 130 449 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.3 rpm \| Output torque M2: 14205 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 71600/94200 N
HL4 180 449 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.3 rpm \| Output torque M2: 14205 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 73100/94200 N
HL4 180 509 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.9 rpm \| Output torque M2: 16110 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 74700/96200 N
HL4 180 564 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.6 rpm \| Output torque M2: 17833 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 76000/97600 N
HL4 180 654 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.2 rpm \| Output torque M2: 20675 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 77800/100200 N
HL4 180 701 132MS4		Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.1 rpm \| Output torque M2: 22161 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78200/100700 N
HL1 010 3,44 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 424.3 rpm \| Output torque M2: 164 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 7550/8550 N
HL1 010 4,32 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 338.0 rpm \| Output torque M2: 206 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 8050/9100 N
HL1 010 5,37 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 272.0 rpm \| Output torque M2: 255 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 8800/9950 N
HL1 010 7,38 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 197.7 rpm \| Output torque M2: 351 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 9400/10650 N
HL1 020 7,38 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 197.7 rpm \| Output torque M2: 351 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 9400/10650 N
HL1 020 9,30 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 157.0 rpm \| Output torque M2: 443 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 10200/11500 N
HL1 030 9,30 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 157.0 rpm \| Output torque M2: 443 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19350/22400 N
HL2 010 11,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 123.3 rpm \| Output torque M2: 547 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 020 11,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 123.3 rpm \| Output torque M2: 547 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 030 11,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 123.3 rpm \| Output torque M2: 547 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 20650/23900 N
HL2 010 14,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 98.2 rpm \| Output torque M2: 686 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 11650/13200 N
HL2 020 14,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 98.2 rpm \| Output torque M2: 686 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 11650/13200 N
HL2 030 14,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 98.2 rpm \| Output torque M2: 686 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 22300/25850 N
HL2 020 18,7 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 78.2 rpm \| Output torque M2: 861 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 12350/14100 N
HL2 030 18,7 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 78.2 rpm \| Output torque M2: 861 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 23500/27300 N
HL2 030 21,3 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 68.6 rpm \| Output torque M2: 983 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 24350/28200 N
HL2 020 23,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 63.0 rpm \| Output torque M2: 1070 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 13550/15400 N
HL2 030 23,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 63.0 rpm \| Output torque M2: 1070 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25000/29000 N
HL2 030 26,7 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 54.6 rpm \| Output torque M2: 1234 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25650/29900 N
HL2 050 26,7 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 54.6 rpm \| Output torque M2: 1234 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 25650/29900 N
HL2 020 28,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 50.7 rpm \| Output torque M2: 1330 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 14550/16450 N
HL2 030 28,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 50.7 rpm \| Output torque M2: 1330 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 26100/30350 N
HL2 020 31,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 45.8 rpm \| Output torque M2: 1472 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 15000/16900 N
HL2 030 31,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 45.8 rpm \| Output torque M2: 1472 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 27350/31700 N
HL2 050 31,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 45.8 rpm \| Output torque M2: 1472 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 27350/31700 N
HL2 030 33,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 44.0 rpm \| Output torque M2: 1533 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 27700/32100 N
HL2 050 33,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 44.0 rpm \| Output torque M2: 1533 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 27700/32100 N
HL2 030 39,6 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 36.8 rpm \| Output torque M2: 1830 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 29300/33800 N
HL2 050 39,6 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 36.8 rpm \| Output torque M2: 1830 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 29300/33800 N
HL2 050 45,7 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 32.0 rpm \| Output torque M2: 2109 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 28950/34800 N
HL2 080 45,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 31.9 rpm \| Output torque M2: 2113 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 43300/50050 N
HL3 030 51,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 28.5 rpm \| Output torque M2: 2290 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 31550/36450 N
HL3 050 51,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 28.5 rpm \| Output torque M2: 2290 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 31550/36450 N
HL3 080 53,5 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 27.3 rpm \| Output torque M2: 2396 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 45450/52500 N
HL2 080 55,4 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 26.4 rpm \| Output torque M2: 2556 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 45900/52900 N
HL2 050 57,5 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 25.4 rpm \| Output torque M2: 2656 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 32950/38300 N
HL3 080 63,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 23.1 rpm \| Output torque M2: 2829 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 48250/55700 N
HL3 050 64,2 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 22.7 rpm \| Output torque M2: 2875 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 33800/39200 N
HL2 080 69,8 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 20.9 rpm \| Output torque M2: 3219 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 49800/57550 N
HL3 050 73,3 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 19.9 rpm \| Output torque M2: 3280 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 35350/41050 N
HL3 130 78,0 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 18.7 rpm \| Output torque M2: 3494 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 55900/73700 N
HL3 080 79,3 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 18.4 rpm \| Output torque M2: 3551 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 51050/59000 N
HL3 050 80,6 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 18.1 rpm \| Output torque M2: 3609 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 36800/42700 N
HL3 080 83,5 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 17.5 rpm \| Output torque M2: 3738 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 51550/59550 N
HL3 080 90,5 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 16.1 rpm \| Output torque M2: 4051 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 52900/61100 N
HL3 130 94,9 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 15.4 rpm \| Output torque M2: 4248 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 59300/78100 N
HL3 080 98,6 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 14.8 rpm \| Output torque M2: 4413 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 54950/63450 N
HL3 050 100 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 14.6 rpm \| Output torque M2: 4485 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 38900/45200 N
HL3 130 104 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 14.0 rpm \| Output torque M2: 4654 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 61100/80400 N
HL3 130 112 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 13.1 rpm \| Output torque M2: 5005 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 62200/81850 N
HL3 180 112 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 13.1 rpm \| Output torque M2: 5005 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 63650/81850 N
HL3 080 114 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 12.9 rpm \| Output torque M2: 5086 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 57150/65900 N
HL3 130 122 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 12.0 rpm \| Output torque M2: 5451 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 63850/84150 N
HL3 180 122 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 12.0 rpm \| Output torque M2: 5451 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 65400/84150 N
HL3 080 122 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 11.9 rpm \| Output torque M2: 5484 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 58150/67000 N
HL3 050 125 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 11.7 rpm \| Output torque M2: 5574 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 41500/48150 N
HL3 130 140 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 10.4 rpm \| Output torque M2: 6283 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 66800/87850 N
HL3 180 140 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 10.4 rpm \| Output torque M2: 6283 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 68150/87850 N
HL3 080 143 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 10.2 rpm \| Output torque M2: 6383 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62150/71850 N
HL3 130 151 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.6 rpm \| Output torque M2: 6774 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 151 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.6 rpm \| Output torque M2: 6774 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 162 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.0 rpm \| Output torque M2: 7261 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 162 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.0 rpm \| Output torque M2: 7261 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 080 168 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 8.7 rpm \| Output torque M2: 7543 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 62700/72500 N
HL3 180 174 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 8.4 rpm \| Output torque M2: 7808 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 187 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 7.8 rpm \| Output torque M2: 8369 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 130 208 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 7.0 rpm \| Output torque M2: 9318 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 208 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 7.0 rpm \| Output torque M2: 9318 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 223 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 6.5 rpm \| Output torque M2: 9988 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 130 240 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 6.1 rpm \| Output torque M2: 10740 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 240 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 6.1 rpm \| Output torque M2: 10740 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 180 285 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 5.1 rpm \| Output torque M2: 12746 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 69000/88800 N
HL4 130 330 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 14323 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 68800/90500 N
HL4 180 330 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 14323 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 70300/90500 N
HL4 130 358 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 4.1 rpm \| Output torque M2: 15536 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 70250/91500 N
HL4 180 410 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 3.6 rpm \| Output torque M2: 17799 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 72300/93100 N
HL4 180 449 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 3.3 rpm \| Output torque M2: 19503 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 73100/94200 N
HL4 180 509 132M4		Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 2.9 rpm \| Output torque M2: 22119 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 74700/96200 N
HL1 010 3,44 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 428.6 rpm \| Output torque M2: 238 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 7500/8550 N
HL1 010 4,32 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 341.4 rpm \| Output torque M2: 298 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 8000/9050 N
HL1 010 5,37 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 371 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 8750/9900 N
HL1 020 5,37 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 371 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 8750/9900 N
HL1 020 7,38 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 510 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 9350/10600 N
HL1 030 7,38 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 510 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 17850/20650 N
HL1 020 9,30 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 158.6 rpm \| Output torque M2: 642 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 10200/11500 N
HL1 030 9,30 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 158.6 rpm \| Output torque M2: 642 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 19300/22350 N
HL2 020 11,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 793 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 030 11,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 793 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 20600/23850 N
HL2 020 14,9 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 996 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 11600/13150 N
HL2 030 14,9 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 996 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 22250/25800 N
HL2 020 18,7 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1250 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 12300/14050 N
HL2 030 18,7 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1250 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 23450/27250 N
HL2 050 18,7 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1250 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23450/27250 N
HL2 030 21,3 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 69.3 rpm \| Output torque M2: 1427 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 24250/28050 N
HL2 050 21,3 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 69.3 rpm \| Output torque M2: 1427 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 24250/28050 N
HL2 020 23,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 1554 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 13500/15350 N
HL2 030 23,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 1554 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24950/28950 N
HL2 050 23,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 1554 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 24950/28950 N
HL2 030 26,7 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 55.2 rpm \| Output torque M2: 1791 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 25600/29850 N
HL2 050 26,7 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 55.2 rpm \| Output torque M2: 1791 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25600/29850 N
HL2 030 28,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 51.2 rpm \| Output torque M2: 1931 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 26050/30300 N
HL2 050 28,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 51.2 rpm \| Output torque M2: 1931 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 26050/30300 N
HL2 050 31,9 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 46.2 rpm \| Output torque M2: 2138 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 27250/31600 N
HL2 080 33,0 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 44.7 rpm \| Output torque M2: 2211 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 39200/45300 N
HL2 050 33,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 44.4 rpm \| Output torque M2: 2226 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 27600/32000 N
HL2 080 38,4 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 38.4 rpm \| Output torque M2: 2571 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 41250/47650 N
HL2 050 39,6 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 37.2 rpm \| Output torque M2: 2656 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 29150/33650 N
HL2 050 45,7 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 32.3 rpm \| Output torque M2: 3062 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 28900/34750 N
HL2 080 45,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 32.2 rpm \| Output torque M2: 3068 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 43200/49900 N
HL2 130 46,0 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 32.1 rpm \| Output torque M2: 3083 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 47750/62800 N
HL3 050 51,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 28.8 rpm \| Output torque M2: 3325 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 31450/36350 N
HL3 080 53,5 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 27.6 rpm \| Output torque M2: 3478 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 45300/52350 N
HL2 080 55,4 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 26.6 rpm \| Output torque M2: 3711 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45800/52800 N
HL2 050 57,5 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 25.6 rpm \| Output torque M2: 3856 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 32950/38300 N
HL3 130 60,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 24.3 rpm \| Output torque M2: 3953 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 51700/68100 N
HL3 080 63,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 23.3 rpm \| Output torque M2: 4106 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 48100/55550 N
HL3 050 64,2 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 23.0 rpm \| Output torque M2: 4174 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 33700/39050 N
HL2 080 69,8 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 21.1 rpm \| Output torque M2: 4674 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 49650/57350 N
HL3 130 76,3 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 4962 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 55450/73000 N
HL3 180 76,3 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 4962 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 56650/73000 N
HL3 130 78,0 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 5073 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 55750/73450 N
HL3 180 78,0 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 5073 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 57000/73450 N
HL3 080 79,3 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 18.6 rpm \| Output torque M2: 5155 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 51000/58900 N
HL3 080 83,5 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 17.7 rpm \| Output torque M2: 5427 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 51350/59300 N
HL3 080 90,5 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 16.3 rpm \| Output torque M2: 5882 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 52700/60900 N
HL3 130 94,9 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 6166 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 59200/77950 N
HL3 180 94,9 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 6166 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 61150/77950 N
HL3 180 98,0 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.1 rpm \| Output torque M2: 6368 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 61300/78550 N
HL3 080 98,6 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.0 rpm \| Output torque M2: 6406 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 54500/62950 N
HL3 130 104 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 14.2 rpm \| Output torque M2: 6757 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 60800/80000 N
HL3 130 112 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 7266 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 62050/81700 N
HL3 180 112 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 7266 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 63500/81700 N
HL3 080 114 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 13.0 rpm \| Output torque M2: 7384 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 57050/65800 N
HL3 130 122 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 7914 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 63700/83850 N
HL3 180 122 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 7914 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 65150/83850 N
HL3 080 122 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 12.0 rpm \| Output torque M2: 7961 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 58000/66850 N
HL3 130 140 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 10.5 rpm \| Output torque M2: 9121 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 66600/87600 N
HL3 180 140 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 10.5 rpm \| Output torque M2: 9121 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 68000/87600 N
HL3 130 151 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.7 rpm \| Output torque M2: 9834 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 151 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.7 rpm \| Output torque M2: 9834 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 162 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 10541 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 162 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 10541 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 180 174 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 8.5 rpm \| Output torque M2: 11335 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 187 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 7.9 rpm \| Output torque M2: 12149 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 208 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 7.1 rpm \| Output torque M2: 13528 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 180 240 160MA4		Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 6.1 rpm \| Output torque M2: 15592 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 69000/88800 N
HL1 010 3,44 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 428.6 rpm \| Output torque M2: 324 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 7500/8550 N
HL1 020 3,44 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 428.6 rpm \| Output torque M2: 324 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 7500/8550 N
HL1 010 4,32 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 341.4 rpm \| Output torque M2: 407 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 8000/9050 N
HL1 020 4,32 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 341.4 rpm \| Output torque M2: 407 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 8000/9050 N
HL1 010 5,37 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 506 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 8750/9900 N
HL1 020 5,37 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 506 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 8750/9900 N
HL1 030 5,37 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 506 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 16150/18650 N
HL1 030 6,19 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 238.4 rpm \| Output torque M2: 583 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 16900/19600 N
HL1 020 7,38 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 696 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 9350/10600 N
HL1 030 7,38 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 696 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 17850/20650 N
HL2 020 11,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 1082 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 10900/12300 N
HL2 030 11,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 1082 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 20600/23850 N
HL2 050 11,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 1082 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 20600/23850 N
HL2 020 14,9 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 1358 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 11600/13150 N
HL2 030 14,9 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 1358 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 22250/25800 N
HL2 050 14,9 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 1358 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 22250/25800 N
HL2 030 18,7 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1705 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23450/27250 N
HL2 050 18,7 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1705 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 23450/27250 N
HL2 050 21,3 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 69.3 rpm \| Output torque M2: 1946 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 24250/28050 N
HL2 080 22,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 64.6 rpm \| Output torque M2: 2085 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 35000/40450 N
HL2 030 23,2 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 2119 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 24950/28950 N
HL2 050 23,2 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 2119 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 24950/28950 N
HL2 080 26,3 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 56.1 rpm \| Output torque M2: 2403 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 36750/42500 N
HL2 050 26,7 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 55.2 rpm \| Output torque M2: 2442 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25600/29850 N
HL2 080 28,6 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 51.5 rpm \| Output torque M2: 2616 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 37550/43400 N
HL2 050 28,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 51.2 rpm \| Output torque M2: 2633 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 26050/30300 N
HL2 050 31,9 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 46.2 rpm \| Output torque M2: 2915 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 27250/31600 N
HL2 080 33,0 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 44.7 rpm \| Output torque M2: 3015 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 38950/45100 N
HL2 050 33,2 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 44.4 rpm \| Output torque M2: 3035 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 27600/32000 N
HL2 080 38,4 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 38.4 rpm \| Output torque M2: 3505 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 41250/47650 N
HL2 130 38,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 38.0 rpm \| Output torque M2: 3542 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 45300/59600 N
HL2 050 39,6 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 37.2 rpm \| Output torque M2: 3622 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 29150/33650 N
HL2 080 45,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 32.2 rpm \| Output torque M2: 4183 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 43200/49900 N
HL2 130 46,0 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 32.1 rpm \| Output torque M2: 4204 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 47750/62800 N
HL2 180 46,0 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 32.1 rpm \| Output torque M2: 4204 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 48800/62800 N
HL3 130 48,4 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 30.4 rpm \| Output torque M2: 4294 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 48350/63550 N
HL3 180 48,4 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 30.4 rpm \| Output torque M2: 4294 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 49350/63550 N
HL3 050 51,2 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 28.8 rpm \| Output torque M2: 4534 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 31450/36350 N
HL3 080 53,5 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 27.6 rpm \| Output torque M2: 4743 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45300/52350 N
HL2 080 55,4 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 26.6 rpm \| Output torque M2: 5061 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 45800/52800 N
HL3 130 60,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 24.3 rpm \| Output torque M2: 5390 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 51700/68100 N
HL3 180 60,8 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 24.3 rpm \| Output torque M2: 5390 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 52900/68100 N
HL3 080 63,2 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 23.3 rpm \| Output torque M2: 5600 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 48100/55550 N
HL3 130 76,3 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 6767 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 55450/73000 N
HL3 180 76,3 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 6767 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 56650/73000 N
HL3 130 78,0 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 6917 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 55750/73450 N
HL3 180 78,0 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 6917 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 57000/73450 N
HL3 080 79,3 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 18.6 rpm \| Output torque M2: 7030 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 51000/58900 N
HL3 080 83,5 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 17.7 rpm \| Output torque M2: 7400 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51350/59300 N
HL3 130 94,9 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 8409 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 59200/77950 N
HL3 180 94,9 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 8409 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 61150/77950 N
HL3 180 98,0 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.1 rpm \| Output torque M2: 8684 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 61300/78550 N
HL3 080 98,6 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.0 rpm \| Output torque M2: 8736 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 54500/62950 N
HL3 130 104 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 14.2 rpm \| Output torque M2: 9214 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 60800/80000 N
HL3 130 112 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 9908 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 62050/81700 N
HL3 180 112 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 9908 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 63500/81700 N
HL3 130 122 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 10791 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 63700/83850 N
HL3 180 122 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 10791 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 65150/83850 N
HL3 180 140 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 10.5 rpm \| Output torque M2: 12438 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 68000/87600 N
HL3 180 151 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 9.7 rpm \| Output torque M2: 13410 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 130 162 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 14374 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 67500/88800 N
HL3 180 162 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 14374 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69000/88800 N
HL3 180 174 160LA4		Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 8.5 rpm \| Output torque M2: 15456 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 69000/88800 N
HL1 080 7,50 200L4		Power P1: 30.00 kW \| Motor: 200L4 \| Output speed n2: 196.7 rpm \| Output torque M2: 1413 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 25100/29000 N

Planetary GearboxesMotovario

1078 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario HL Planetary Inline Gearmotors (HL1-HL4, 0.25-30 kW)

Brand Motovario·Planetary Gearboxes

Available part numbers (1078)

HL3 010 188 71A4, HL3 010 216 71A4, HL3 010 236 71A4, HL3 010 297 71A4, HL4 010 348 71A4, HL3 010 369 71A4, HL3 020 369 71A4, HL4 010 433 71A4, HL4 010 474 71A4, HL4 020 474 71A4 + 1068 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HL3 010 188 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 7.4 rpm \| Output torque M2: 296 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 216 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 6.4 rpm \| Output torque M2: 341 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 236 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 5.9 rpm \| Output torque M2: 372 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 297 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 4.7 rpm \| Output torque M2: 468 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL4 010 348 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 4.0 rpm \| Output torque M2: 533 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 24600/28100 N
	HL3 010 369 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 3.7 rpm \| Output torque M2: 582 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 24700/28250 N
	HL3 020 369 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 3.7 rpm \| Output torque M2: 582 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 24700/28250 N
	HL4 010 433 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 3.2 rpm \| Output torque M2: 663 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 25000/28500 N
	HL4 010 474 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.9 rpm \| Output torque M2: 726 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 25200/28800 N
	HL4 020 474 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.9 rpm \| Output torque M2: 726 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 25200/28800 N
	HL4 010 538 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.6 rpm \| Output torque M2: 824 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 25850/29300 N
	HL4 020 538 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.6 rpm \| Output torque M2: 824 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 25850/29300 N
	HL4 010 668 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1024 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 26200/29650 N
	HL4 020 668 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1024 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 26200/29650 N
	HL4 030 668 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1024 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 010 740 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 27000/30150 N
	HL4 020 740 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 27000/30150 N
	HL4 030 740 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 010 811 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1242 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27300/30900 N
	HL4 020 811 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1242 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 27300/30900 N
	HL4 030 831 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1272 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 020 919 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.5 rpm \| Output torque M2: 1408 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 27400/31000 N
	HL4 030 919 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.5 rpm \| Output torque M2: 1408 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 020 1020 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.4 rpm \| Output torque M2: 1559 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 27450/31050 N
	HL4 030 1020 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.4 rpm \| Output torque M2: 1559 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 53000/61650 N
	HL4 020 1160 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.2 rpm \| Output torque M2: 1773 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 27550/31200 N
	HL4 030 1140 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.2 rpm \| Output torque M2: 1750 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 53600/62200 N
	HL4 020 1270 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.1 rpm \| Output torque M2: 1937 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 27600/31350 N
	HL4 030 1270 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.1 rpm \| Output torque M2: 1937 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 54800/63500 N
	HL4 030 1440 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.0 rpm \| Output torque M2: 2204 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 55300/64200 N
	HL4 050 1440 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 1.0 rpm \| Output torque M2: 2204 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 55300/64200 N
	HL4 020 1590 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.9 rpm \| Output torque M2: 2439 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 27700/31800 N
	HL4 030 1590 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.9 rpm \| Output torque M2: 2439 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 55850/65600 N
	HL4 050 1590 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.9 rpm \| Output torque M2: 2439 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 55850/65600 N
	HL4 020 1740 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.8 rpm \| Output torque M2: 2664 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27800/32000 N
	HL4 030 1740 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.8 rpm \| Output torque M2: 2664 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 56400/67100 N
	HL4 050 1740 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.8 rpm \| Output torque M2: 2664 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 56400/67100 N
	HL4 030 1980 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.7 rpm \| Output torque M2: 3031 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 56950/67750 N
	HL4 050 1980 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.7 rpm \| Output torque M2: 3031 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 56950/67750 N
	HL4 080 2090 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.7 rpm \| Output torque M2: 3204 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 78700/90700 N
	HL4 050 2190 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3355 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 57500/68900 N
	HL4 050 2280 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3494 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 57500/68900 N
	HL4 050 2490 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3816 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 57500/68900 N
	HL4 080 2270 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3471 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 080 2500 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.6 rpm \| Output torque M2: 3824 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 050 2720 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.5 rpm \| Output torque M2: 4170 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 58600/69800 N
	HL4 080 2710 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.5 rpm \| Output torque M2: 4142 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 79500/91600 N
	HL4 130 2510 71A4	Power P1: 0.25 kW \| Motor: 71A4 \| Output speed n2: 0.5 rpm \| Output torque M2: 3843 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 95000/125000 N
	HL3 010 138 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 10.2 rpm \| Output torque M2: 317 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 23200/26300 N
	HL3 010 155 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 9.0 rpm \| Output torque M2: 356 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 174 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 8.1 rpm \| Output torque M2: 400 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 188 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 7.5 rpm \| Output torque M2: 432 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 216 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 6.5 rpm \| Output torque M2: 497 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 236 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 5.9 rpm \| Output torque M2: 543 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 297 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 683 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL3 020 297 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 683 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL3 030 309 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.5 rpm \| Output torque M2: 712 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 45550/52400 N
	HL4 010 348 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.0 rpm \| Output torque M2: 778 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24600/28100 N
	HL4 020 348 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 4.0 rpm \| Output torque M2: 778 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 24600/28100 N
	HL3 010 369 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.8 rpm \| Output torque M2: 849 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 24650/28150 N
	HL3 020 369 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.8 rpm \| Output torque M2: 849 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 24650/28150 N
	HL3 030 369 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.8 rpm \| Output torque M2: 849 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 46200/53650 N
	HL3 030 425 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 979 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 010 433 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.2 rpm \| Output torque M2: 967 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 25000/28500 N
	HL4 020 433 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.2 rpm \| Output torque M2: 967 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 25000/28500 N
	HL4 030 433 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.2 rpm \| Output torque M2: 967 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 47200/54800 N
	HL4 010 474 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 1060 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 25150/28600 N
	HL4 020 474 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 1060 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25150/28600 N
	HL4 030 474 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 1060 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 020 538 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.6 rpm \| Output torque M2: 1202 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 25850/29300 N
	HL4 030 538 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.6 rpm \| Output torque M2: 1202 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 48600/56450 N
	HL4 020 668 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1493 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 26200/29650 N
	HL4 030 668 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 2.1 rpm \| Output torque M2: 1493 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 020 740 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1653 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 27000/30150 N
	HL4 030 740 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.9 rpm \| Output torque M2: 1653 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 020 811 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1811 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 27300/30900 N
	HL4 030 831 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1856 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 050 831 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 1856 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 020 919 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.5 rpm \| Output torque M2: 2054 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 27400/31000 N
	HL4 030 919 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.5 rpm \| Output torque M2: 2054 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 050 919 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.5 rpm \| Output torque M2: 2054 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 020 1020 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 2274 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 27450/31050 N
	HL4 030 1020 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 2274 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 53000/61650 N
	HL4 050 1020 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 2274 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 53000/61650 N
	HL4 020 1160 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 2587 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27550/31200 N
	HL4 030 1140 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 2553 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 53600/62200 N
	HL4 050 1140 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 2553 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 53600/62200 N
	HL4 030 1270 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 2826 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 54800/63500 N
	HL4 050 1270 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 2826 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 54800/63500 N
	HL4 050 1440 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 1.0 rpm \| Output torque M2: 3215 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 55300/64200 N
	HL4 050 1590 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 3559 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 55850/65600 N
	HL4 080 1570 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 3501 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 78000/90000 N
	HL4 050 1740 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 3887 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 56400/67100 N
	HL4 080 1800 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 4021 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 78300/90300 N
	HL4 050 1980 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 4422 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 56950/67750 N
	HL4 080 2090 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 4674 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 78700/90700 N
	HL4 050 2190 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 4895 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 57500/68900 N
	HL4 050 2280 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5097 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 57500/68900 N
	HL4 080 2270 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5064 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 080 2500 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5578 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 130 2510 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 5606 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 92600/122000 N
	HL4 080 2710 71B4	Power P1: 0.37 kW \| Motor: 71B4 \| Output speed n2: 0.5 rpm \| Output torque M2: 6043 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 79500/91600 N
	HL2 010 68,7 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 20.4 rpm \| Output torque M2: 242 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 18400/20850 N
	HL2 010 68,7 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 20.4 rpm \| Output torque M2: 242 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 18400/20850 N
	HL3 010 87,4 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 16.0 rpm \| Output torque M2: 299 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 010 87,4 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 16.0 rpm \| Output torque M2: 299 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 010 100 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 14.0 rpm \| Output torque M2: 343 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 21200/24050 N
	HL3 010 100 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 14.0 rpm \| Output torque M2: 343 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 21200/24050 N
	HL3 010 110 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 12.8 rpm \| Output torque M2: 376 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 21900/24750 N
	HL3 010 110 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 12.8 rpm \| Output torque M2: 376 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 21900/24750 N
	HL3 010 125 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 11.2 rpm \| Output torque M2: 426 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 22650/25750 N
	HL3 010 125 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 11.2 rpm \| Output torque M2: 426 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 22650/25750 N
	HL3 010 138 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 10.2 rpm \| Output torque M2: 472 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23200/26300 N
	HL3 010 138 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 10.2 rpm \| Output torque M2: 472 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23200/26300 N
	HL3 010 155 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 155 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 155 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 155 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 9.0 rpm \| Output torque M2: 530 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 174 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 8.1 rpm \| Output torque M2: 594 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 174 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 8.1 rpm \| Output torque M2: 594 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 188 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 188 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 188 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 188 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 7.5 rpm \| Output torque M2: 643 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 197 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 7.1 rpm \| Output torque M2: 676 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 197 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 7.1 rpm \| Output torque M2: 676 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 010 216 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 216 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 216 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 216 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 6.5 rpm \| Output torque M2: 738 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 236 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 236 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 236 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 236 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 5.9 rpm \| Output torque M2: 807 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 249 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 5.6 rpm \| Output torque M2: 851 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 249 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 5.6 rpm \| Output torque M2: 851 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 293 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.8 rpm \| Output torque M2: 1002 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45300/52000 N
	HL3 030 293 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.8 rpm \| Output torque M2: 1002 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45300/52000 N
	HL3 010 297 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL3 010 297 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL3 020 297 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL3 020 297 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.7 rpm \| Output torque M2: 1016 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23800/27150 N
	HL3 030 309 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.5 rpm \| Output torque M2: 1058 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 45550/52400 N
	HL3 030 309 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.5 rpm \| Output torque M2: 1058 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 45550/52400 N
	HL4 020 348 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 24600/28100 N
	HL4 020 348 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 24600/28100 N
	HL4 030 348 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 46000/53450 N
	HL4 030 348 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 4.0 rpm \| Output torque M2: 1157 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 46000/53450 N
	HL3 020 369 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24650/28150 N
	HL3 020 369 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24650/28150 N
	HL3 030 369 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 46200/53650 N
	HL3 030 369 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.8 rpm \| Output torque M2: 1262 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 46200/53650 N
	HL3 030 425 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL3 030 425 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL3 050 425 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL3 050 425 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.3 rpm \| Output torque M2: 1455 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 020 433 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25000/28500 N
	HL4 020 433 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25000/28500 N
	HL4 030 433 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 47200/54800 N
	HL4 030 433 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.2 rpm \| Output torque M2: 1437 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 47200/54800 N
	HL4 020 474 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 25150/28600 N
	HL4 020 474 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 25150/28600 N
	HL4 030 474 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 030 474 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 3.0 rpm \| Output torque M2: 1575 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 020 538 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 25850/29300 N
	HL4 020 538 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 25850/29300 N
	HL4 030 538 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 48600/56450 N
	HL4 030 538 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.6 rpm \| Output torque M2: 1786 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 48600/56450 N
	HL4 020 668 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 26200/29650 N
	HL4 020 668 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 26200/29650 N
	HL4 030 668 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 030 668 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 050 668 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 050 668 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 2.1 rpm \| Output torque M2: 2220 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 020 740 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27000/30150 N
	HL4 020 740 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 27000/30150 N
	HL4 030 740 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 030 740 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 050 740 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 050 740 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.9 rpm \| Output torque M2: 2457 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 030 831 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 030 831 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 050 831 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 050 831 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.7 rpm \| Output torque M2: 2759 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 030 919 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 030 919 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 050 919 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 050 919 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.5 rpm \| Output torque M2: 3053 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 52150/60400 N
	HL4 050 1020 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.4 rpm \| Output torque M2: 3380 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 53000/61650 N
	HL4 050 1020 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.4 rpm \| Output torque M2: 3380 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 53000/61650 N
	HL4 050 1140 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3795 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 53600/62200 N
	HL4 050 1140 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3795 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 53600/62200 N
	HL4 080 1140 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3783 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 75450/87100 N
	HL4 080 1140 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.2 rpm \| Output torque M2: 3783 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 75450/87100 N
	HL4 050 1270 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4200 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 54800/63500 N
	HL4 050 1270 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4200 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 54800/63500 N
	HL4 080 1260 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4188 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 76400/88500 N
	HL4 080 1260 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.1 rpm \| Output torque M2: 4188 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 76400/88500 N
	HL4 050 1440 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4779 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55300/64200 N
	HL4 050 1440 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4779 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55300/64200 N
	HL4 080 1430 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4748 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 77500/89400 N
	HL4 080 1430 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 1.0 rpm \| Output torque M2: 4748 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 77500/89400 N
	HL4 050 1590 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5290 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55850/65600 N
	HL4 050 1590 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5290 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 55850/65600 N
	HL4 080 1570 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5204 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 78000/90000 N
	HL4 080 1570 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5204 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 78000/90000 N
	HL4 130 1560 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5173 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 86500/114400 N
	HL4 130 1560 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.9 rpm \| Output torque M2: 5173 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 86500/114400 N
	HL4 080 1800 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5977 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 78300/90300 N
	HL4 080 1800 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5977 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 78300/90300 N
	HL4 130 1770 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5883 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 88000/116100 N
	HL4 130 1770 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.8 rpm \| Output torque M2: 5883 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 88000/116100 N
	HL4 080 2090 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6948 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 78700/90700 N
	HL4 080 2090 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6948 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 78700/90700 N
	HL4 130 1940 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6429 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 89100/117800 N
	HL4 130 1940 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.7 rpm \| Output torque M2: 6429 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 89100/117800 N
	HL4 080 2270 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 7527 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 080 2270 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 7527 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 080 2500 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8292 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 080 2500 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8292 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 130 2510 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 92600/122000 N
	HL4 130 2510 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 92600/122000 N
	HL4 180 2510 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 94400/122000 N
	HL4 180 2510 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.6 rpm \| Output torque M2: 8333 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 94400/122000 N
	HL4 080 2710 71C4	Power P1: 0.55 kW \| Motor: 71C4 (frame printed 71C/80A) \| Output speed n2: 0.5 rpm \| Output torque M2: 8983 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79500/91600 N
	HL4 080 2710 80A4	Power P1: 0.55 kW \| Motor: 80A4 (frame printed 71C/80A) \| Output speed n2: 0.5 rpm \| Output torque M2: 8983 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79500/91600 N
	HL2 010 49,9 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 28.8 rpm \| Output torque M2: 234 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL3 010 64,2 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 22.4 rpm \| Output torque M2: 292 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL2 010 68,7 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 21.0 rpm \| Output torque M2: 321 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 18350/20750 N
	HL3 010 80,6 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 17.9 rpm \| Output torque M2: 366 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 010 87,4 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 16.5 rpm \| Output torque M2: 397 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 010 100 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 14.4 rpm \| Output torque M2: 455 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 21000/23800 N
	HL3 010 110 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 13.1 rpm \| Output torque M2: 498 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 21700/24500 N
	HL3 010 125 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 11.6 rpm \| Output torque M2: 565 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 22450/25500 N
	HL3 010 138 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 10.4 rpm \| Output torque M2: 626 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 020 138 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 10.4 rpm \| Output torque M2: 626 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 010 155 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 9.3 rpm \| Output torque M2: 702 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 155 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 9.3 rpm \| Output torque M2: 702 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 010 174 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 8.3 rpm \| Output torque M2: 788 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 174 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 8.3 rpm \| Output torque M2: 788 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 188 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 7.7 rpm \| Output torque M2: 852 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 197 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 7.3 rpm \| Output torque M2: 896 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 010 216 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.7 rpm \| Output torque M2: 979 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 216 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.7 rpm \| Output torque M2: 979 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 216 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.7 rpm \| Output torque M2: 979 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 236 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 6.1 rpm \| Output torque M2: 1069 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 249 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 5.8 rpm \| Output torque M2: 1128 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 297 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1347 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23700/27050 N
	HL3 030 293 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1329 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45200/51850 N
	HL3 030 309 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 1402 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45350/52100 N
	HL3 050 309 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.7 rpm \| Output torque M2: 1402 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 45350/52100 N
	HL4 020 348 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.1 rpm \| Output torque M2: 1534 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24200/27650 N
	HL4 030 348 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 4.1 rpm \| Output torque M2: 1534 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45900/53250 N
	HL3 020 369 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.9 rpm \| Output torque M2: 1674 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 24600/28100 N
	HL3 030 369 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.9 rpm \| Output torque M2: 1674 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL3 050 369 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.9 rpm \| Output torque M2: 1674 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL3 080 409 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.5 rpm \| Output torque M2: 1857 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 65100/75150 N
	HL3 030 425 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.4 rpm \| Output torque M2: 1929 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47000/54500 N
	HL3 050 425 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.4 rpm \| Output torque M2: 1929 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 47000/54500 N
	HL4 020 433 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 1906 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 24900/28400 N
	HL4 030 433 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 1906 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 050 433 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.3 rpm \| Output torque M2: 1906 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 020 474 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 2088 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 25150/28600 N
	HL4 030 474 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 2088 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 050 474 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 3.0 rpm \| Output torque M2: 2088 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 030 538 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.7 rpm \| Output torque M2: 2368 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 48450/56100 N
	HL4 050 538 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.7 rpm \| Output torque M2: 2368 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 48450/56100 N
	HL4 030 668 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.2 rpm \| Output torque M2: 2943 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 49500/57200 N
	HL4 050 668 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.2 rpm \| Output torque M2: 2943 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 49500/57200 N
	HL4 080 728 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 2.0 rpm \| Output torque M2: 3205 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 70300/81150 N
	HL4 050 740 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.9 rpm \| Output torque M2: 3258 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 050 831 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 3657 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 080 825 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.7 rpm \| Output torque M2: 3633 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 72250/83400 N
	HL4 050 919 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.6 rpm \| Output torque M2: 4048 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 51800/60050 N
	HL4 080 905 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.6 rpm \| Output torque M2: 3983 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 72650/83900 N
	HL4 050 1020 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 4481 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 53000/61650 N
	HL4 080 1000 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.4 rpm \| Output torque M2: 4408 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 74600/86150 N
	HL4 050 1140 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.3 rpm \| Output torque M2: 5031 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 53300/62000 N
	HL4 080 1140 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.3 rpm \| Output torque M2: 5016 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 75050/86650 N
	HL4 130 1130 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.3 rpm \| Output torque M2: 4986 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 82300/107700 N
	HL4 130 1240 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.2 rpm \| Output torque M2: 5446 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 83000/109300 N
	HL4 050 1270 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 5569 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 54800/63500 N
	HL4 080 1260 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.1 rpm \| Output torque M2: 5552 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 76400/88500 N
	HL4 080 1430 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.0 rpm \| Output torque M2: 6294 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 77500/89400 N
	HL4 130 1410 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 1.0 rpm \| Output torque M2: 6196 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 85100/112000 N
	HL4 080 1570 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 6899 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 78000/90000 N
	HL4 130 1560 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.9 rpm \| Output torque M2: 6858 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 86500/114400 N
	HL4 080 1800 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 7924 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 78300/90300 N
	HL4 130 1770 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 7800 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 88000/116100 N
	HL4 180 1770 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.8 rpm \| Output torque M2: 7800 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 90300/116100 N
	HL4 080 2090 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 9211 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78700/90700 N
	HL4 130 1940 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 8523 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 89100/117800 N
	HL4 180 1940 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.7 rpm \| Output torque M2: 8523 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 91200/117800 N
	HL4 080 2270 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 9979 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 79000/91100 N
	HL4 130 2510 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 11048 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 92600/122000 N
	HL4 180 2510 80B4	Power P1: 0.75 kW \| Motor: 80B4 \| Output speed n2: 0.6 rpm \| Output torque M2: 11048 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 94400/122000 N
	HL2 010 39,6 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 36.1 rpm \| Output torque M2: 274 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 010 49,9 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 28.6 rpm \| Output torque M2: 345 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 17000/19350 N
	HL3 010 51,2 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 28.0 rpm \| Output torque M2: 343 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 17150/19500 N
	HL3 010 64,2 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 22.3 rpm \| Output torque M2: 431 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL2 010 68,7 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 20.8 rpm \| Output torque M2: 475 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 18400/20850 N
	HL2 020 68,7 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 20.8 rpm \| Output torque M2: 475 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 18400/20850 N
	HL3 010 80,6 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 17.7 rpm \| Output torque M2: 540 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 010 87,4 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 16.4 rpm \| Output torque M2: 586 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 020 87,4 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 16.4 rpm \| Output torque M2: 586 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 010 100 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 14.3 rpm \| Output torque M2: 672 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 21100/23900 N
	HL3 020 100 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 14.3 rpm \| Output torque M2: 672 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 21100/23900 N
	HL3 010 110 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 13.0 rpm \| Output torque M2: 736 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 21750/24600 N
	HL3 020 110 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 13.0 rpm \| Output torque M2: 736 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 21750/24600 N
	HL3 030 114 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 12.5 rpm \| Output torque M2: 766 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 40450/46900 N
	HL3 010 125 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 11.5 rpm \| Output torque M2: 835 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 22500/25600 N
	HL3 020 125 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 11.5 rpm \| Output torque M2: 835 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 22500/25600 N
	HL3 010 138 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 10.4 rpm \| Output torque M2: 924 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 020 138 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 10.4 rpm \| Output torque M2: 924 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 030 138 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 10.4 rpm \| Output torque M2: 924 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 43350/50300 N
	HL3 020 155 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1037 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 155 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1037 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 171 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 8.3 rpm \| Output torque M2: 1148 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 174 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 8.2 rpm \| Output torque M2: 1164 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 020 188 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 7.6 rpm \| Output torque M2: 1258 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 197 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1323 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 197 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1323 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 216 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1446 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 216 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1446 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 236 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 6.1 rpm \| Output torque M2: 1579 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 249 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 5.8 rpm \| Output torque M2: 1667 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 249 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 5.8 rpm \| Output torque M2: 1667 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 293 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1963 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45200/51850 N
	HL3 050 293 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.9 rpm \| Output torque M2: 1963 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 45200/51850 N
	HL3 020 297 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.8 rpm \| Output torque M2: 1989 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 23750/27100 N
	HL3 030 309 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.6 rpm \| Output torque M2: 2071 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45450/52250 N
	HL3 050 309 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.6 rpm \| Output torque M2: 2071 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45450/52250 N
	HL4 030 348 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.1 rpm \| Output torque M2: 2265 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45900/53250 N
	HL4 050 348 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.1 rpm \| Output torque M2: 2265 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 45900/53250 N
	HL3 080 357 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 4.0 rpm \| Output torque M2: 2392 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 64600/74400 N
	HL3 030 369 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.9 rpm \| Output torque M2: 2472 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL3 050 369 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.9 rpm \| Output torque M2: 2472 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL3 080 409 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.5 rpm \| Output torque M2: 2742 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 65100/75150 N
	HL3 050 425 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.4 rpm \| Output torque M2: 2849 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 47000/54500 N
	HL4 030 433 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.3 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 050 433 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.3 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 050 474 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 3.0 rpm \| Output torque M2: 3084 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 050 538 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.7 rpm \| Output torque M2: 3498 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 48450/56100 N
	HL4 080 529 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.7 rpm \| Output torque M2: 3441 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 67750/78150 N
	HL4 080 586 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.4 rpm \| Output torque M2: 3809 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 69100/79750 N
	HL4 080 658 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.2 rpm \| Output torque M2: 4276 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 69600/80250 N
	HL4 050 668 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.1 rpm \| Output torque M2: 4346 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 080 728 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 2.0 rpm \| Output torque M2: 4733 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 70300/81150 N
	HL4 050 740 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.9 rpm \| Output torque M2: 4811 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 50500/58600 N
	HL4 130 812 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.8 rpm \| Output torque M2: 5282 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 78300/103100 N
	HL4 050 831 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.7 rpm \| Output torque M2: 5401 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51400/59700 N
	HL4 080 825 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.7 rpm \| Output torque M2: 5366 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 72250/83400 N
	HL4 050 919 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.6 rpm \| Output torque M2: 5979 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51800/60050 N
	HL4 080 905 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.6 rpm \| Output torque M2: 5882 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 72650/83900 N
	HL4 130 899 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.6 rpm \| Output torque M2: 5847 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 80000/104800 N
	HL4 130 964 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.5 rpm \| Output torque M2: 6267 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 81000/105900 N
	HL4 180 980 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.5 rpm \| Output torque M2: 6371 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 82100/105900 N
	HL4 080 1000 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.4 rpm \| Output torque M2: 6511 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 74600/86150 N
	HL4 080 1140 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.3 rpm \| Output torque M2: 7408 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 75050/86650 N
	HL4 130 1130 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.3 rpm \| Output torque M2: 7364 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 82300/107700 N
	HL4 180 1130 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.3 rpm \| Output torque M2: 7364 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 84000/107700 N
	HL4 130 1240 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.2 rpm \| Output torque M2: 8043 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 83000/109300 N
	HL4 180 1240 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.2 rpm \| Output torque M2: 8043 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 84900/109300 N
	HL4 080 1260 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.1 rpm \| Output torque M2: 8200 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 76400/88500 N
	HL4 080 1430 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.0 rpm \| Output torque M2: 9296 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 77500/89400 N
	HL4 130 1410 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.0 rpm \| Output torque M2: 9151 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 85100/112000 N
	HL4 180 1410 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 1.0 rpm \| Output torque M2: 9151 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 87100/112000 N
	HL4 080 1570 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.9 rpm \| Output torque M2: 10190 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78000/90000 N
	HL4 130 1560 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.9 rpm \| Output torque M2: 10129 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 86500/114400 N
	HL4 180 1560 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.9 rpm \| Output torque M2: 10129 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 88500/114400 N
	HL4 130 1770 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.8 rpm \| Output torque M2: 11520 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 88000/116100 N
	HL4 180 1770 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.8 rpm \| Output torque M2: 11520 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 90300/116100 N
	HL4 130 1940 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.7 rpm \| Output torque M2: 12587 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 89100/117800 N
	HL4 180 1940 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.7 rpm \| Output torque M2: 12587 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 91200/117800 N
	HL4 180 2510 90S4	Power P1: 1.10 kW \| Motor: 90S4 \| Output speed n2: 0.6 rpm \| Output torque M2: 16317 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 94400/122000 N
	HL2 010 28,8 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 49.6 rpm \| Output torque M2: 272 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 14650/16550 N
	HL2 010 31,9 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 44.8 rpm \| Output torque M2: 301 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 010 39,6 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 36.1 rpm \| Output torque M2: 374 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 010 40,2 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 35.6 rpm \| Output torque M2: 379 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 010 49,9 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 28.6 rpm \| Output torque M2: 471 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 17000/19350 N
	HL2 020 49,9 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 28.6 rpm \| Output torque M2: 471 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 17000/19350 N
	HL3 010 51,2 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 28.0 rpm \| Output torque M2: 468 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 17150/19500 N
	HL3 010 64,2 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 22.3 rpm \| Output torque M2: 587 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL3 020 64,2 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 22.3 rpm \| Output torque M2: 587 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL2 020 68,7 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 20.8 rpm \| Output torque M2: 647 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 18400/20850 N
	HL3 030 73,3 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 19.5 rpm \| Output torque M2: 670 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 35550/41300 N
	HL3 010 80,6 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 17.7 rpm \| Output torque M2: 737 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 020 80,6 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 17.7 rpm \| Output torque M2: 737 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 010 87,4 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 16.4 rpm \| Output torque M2: 799 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 020 87,4 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 16.4 rpm \| Output torque M2: 799 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 030 92,0 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 15.5 rpm \| Output torque M2: 841 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 37900/43900 N
	HL3 010 100 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 14.3 rpm \| Output torque M2: 916 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 21100/23900 N
	HL3 020 100 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 14.3 rpm \| Output torque M2: 916 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 21100/23900 N
	HL3 030 100 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 14.3 rpm \| Output torque M2: 916 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 39200/45500 N
	HL3 020 110 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 13.0 rpm \| Output torque M2: 1004 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 21750/24600 N
	HL3 030 114 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 12.5 rpm \| Output torque M2: 1045 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 40450/46900 N
	HL3 020 125 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 11.5 rpm \| Output torque M2: 1138 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 22500/25600 N
	HL3 030 125 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 11.5 rpm \| Output torque M2: 1138 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 41750/48450 N
	HL3 020 138 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 10.4 rpm \| Output torque M2: 1260 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 030 138 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 10.4 rpm \| Output torque M2: 1260 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 43350/50300 N
	HL3 020 155 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1414 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 155 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 9.2 rpm \| Output torque M2: 1414 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 171 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 8.3 rpm \| Output torque M2: 1566 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 174 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 8.2 rpm \| Output torque M2: 1587 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 197 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1805 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 197 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 7.2 rpm \| Output torque M2: 1805 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 020 216 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1972 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23650/27000 N
	HL3 030 216 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1972 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 216 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 6.6 rpm \| Output torque M2: 1972 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 249 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 5.8 rpm \| Output torque M2: 2273 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 293 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.9 rpm \| Output torque M2: 2676 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 45200/51850 N
	HL3 080 307 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.7 rpm \| Output torque M2: 2806 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 63250/73050 N
	HL3 050 309 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.6 rpm \| Output torque M2: 2824 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45450/52250 N
	HL3 130 340 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.2 rpm \| Output torque M2: 3106 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 70150/91100 N
	HL4 050 348 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.1 rpm \| Output torque M2: 3089 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45900/53250 N
	HL3 080 357 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 4.0 rpm \| Output torque M2: 3262 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 64600/74400 N
	HL3 050 369 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.9 rpm \| Output torque M2: 3371 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL4 080 395 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.6 rpm \| Output torque M2: 3505 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 65050/75000 N
	HL3 080 409 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.5 rpm \| Output torque M2: 3739 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 65100/75150 N
	HL3 050 425 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.4 rpm \| Output torque M2: 3885 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47000/54500 N
	HL4 050 433 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.3 rpm \| Output torque M2: 3838 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 080 467 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.1 rpm \| Output torque M2: 4137 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 66150/76300 N
	HL4 050 474 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 3.0 rpm \| Output torque M2: 4205 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 47850/55100 N
	HL4 050 538 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.7 rpm \| Output torque M2: 4770 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 48450/56100 N
	HL4 080 529 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.7 rpm \| Output torque M2: 4692 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67750/78150 N
	HL4 130 564 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.5 rpm \| Output torque M2: 5000 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 75150/98300 N
	HL4 080 586 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.4 rpm \| Output torque M2: 5194 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 69100/79750 N
	HL4 130 633 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.3 rpm \| Output torque M2: 5613 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 75700/99600 N
	HL4 080 658 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.2 rpm \| Output torque M2: 5831 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 69600/80250 N
	HL4 050 668 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.1 rpm \| Output torque M2: 5927 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 49750/57300 N
	HL4 080 728 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.0 rpm \| Output torque M2: 6454 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 70300/81150 N
	HL4 130 701 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 2.0 rpm \| Output torque M2: 6213 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 77100/101600 N
	HL4 130 812 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.8 rpm \| Output torque M2: 7203 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 78300/103100 N
	HL4 180 812 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.8 rpm \| Output torque M2: 7203 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 80100/103100 N
	HL4 080 825 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.7 rpm \| Output torque M2: 7317 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 72250/83400 N
	HL4 080 905 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.6 rpm \| Output torque M2: 8021 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 72650/83900 N
	HL4 130 899 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.6 rpm \| Output torque M2: 7973 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 80000/104800 N
	HL4 180 899 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.6 rpm \| Output torque M2: 7973 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 81600/104800 N
	HL4 130 964 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.5 rpm \| Output torque M2: 8546 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 81000/105900 N
	HL4 180 980 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.5 rpm \| Output torque M2: 8688 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 82100/105900 N
	HL4 080 1000 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.4 rpm \| Output torque M2: 8879 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 74600/86150 N
	HL4 080 1140 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.3 rpm \| Output torque M2: 10101 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 75050/86650 N
	HL4 130 1130 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.3 rpm \| Output torque M2: 10041 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 82300/107700 N
	HL4 180 1130 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.3 rpm \| Output torque M2: 10041 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 84000/107700 N
	HL4 130 1240 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.2 rpm \| Output torque M2: 10968 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 83000/109300 N
	HL4 180 1240 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.2 rpm \| Output torque M2: 10968 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 84900/109300 N
	HL4 080 1260 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.1 rpm \| Output torque M2: 11181 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 76400/88500 N
	HL4 130 1410 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.0 rpm \| Output torque M2: 12478 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 85100/112000 N
	HL4 180 1410 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 1.0 rpm \| Output torque M2: 12478 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 87100/112000 N
	HL4 130 1560 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.9 rpm \| Output torque M2: 13812 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 86500/114400 N
	HL4 180 1560 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.9 rpm \| Output torque M2: 13812 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 88500/114400 N
	HL4 130 1770 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.8 rpm \| Output torque M2: 15709 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 88000/116100 N
	HL4 180 1770 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.8 rpm \| Output torque M2: 15709 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 90300/116100 N
	HL4 180 1940 90L4	Power P1: 1.50 kW \| Motor: 90L4 \| Output speed n2: 0.7 rpm \| Output torque M2: 17164 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 91200/117800 N
	HL1 010 9,30 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 154.8 rpm \| Output torque M2: 132 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL1 010 9,30 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 154.8 rpm \| Output torque M2: 132 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL2 010 18,7 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 77.2 rpm \| Output torque M2: 256 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 12400/14150 N
	HL2 010 18,7 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 77.2 rpm \| Output torque M2: 256 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 12400/14150 N
	HL2 010 23,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 62.1 rpm \| Output torque M2: 318 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 13650/15500 N
	HL2 010 23,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 62.1 rpm \| Output torque M2: 318 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 13650/15500 N
	HL2 010 28,8 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 50.0 rpm \| Output torque M2: 396 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 14600/16500 N
	HL2 010 28,8 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 50.0 rpm \| Output torque M2: 396 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 14600/16500 N
	HL2 010 31,9 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 45.1 rpm \| Output torque M2: 438 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 010 31,9 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 45.1 rpm \| Output torque M2: 438 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 010 39,6 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 010 39,6 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 020 39,6 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 020 39,6 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 36.3 rpm \| Output torque M2: 544 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 010 40,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 010 40,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 020 40,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 020 40,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 35.8 rpm \| Output torque M2: 551 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 030 45,7 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 31.5 rpm \| Output torque M2: 627 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 30200/35000 N
	HL2 030 45,7 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 31.5 rpm \| Output torque M2: 627 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 30200/35000 N
	HL2 010 49,9 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL2 010 49,9 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL2 020 49,9 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL2 020 49,9 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.8 rpm \| Output torque M2: 685 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL3 010 51,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 17150/19500 N
	HL3 010 51,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 17150/19500 N
	HL3 020 51,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 17150/19500 N
	HL3 020 51,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 28.1 rpm \| Output torque M2: 681 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 17150/19500 N
	HL2 030 57,5 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 25.0 rpm \| Output torque M2: 790 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 33000/38350 N
	HL2 030 57,5 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 25.0 rpm \| Output torque M2: 790 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 33000/38350 N
	HL3 010 64,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL3 010 64,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL3 020 64,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL3 020 64,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 18200/20550 N
	HL3 030 64,2 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 33950/39400 N
	HL3 030 64,2 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 22.4 rpm \| Output torque M2: 855 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 33950/39400 N
	HL2 020 68,7 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 21.0 rpm \| Output torque M2: 943 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 18350/20750 N
	HL2 020 68,7 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 21.0 rpm \| Output torque M2: 943 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 18350/20750 N
	HL3 030 73,3 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 19.7 rpm \| Output torque M2: 976 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 35400/41100 N
	HL3 030 73,3 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 19.7 rpm \| Output torque M2: 976 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 35400/41100 N
	HL3 020 80,6 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 020 80,6 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 030 80,6 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 37000/42900 N
	HL3 030 80,6 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 17.9 rpm \| Output torque M2: 1073 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 37000/42900 N
	HL3 020 87,4 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 16.5 rpm \| Output torque M2: 1164 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 020 87,4 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 16.5 rpm \| Output torque M2: 1164 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 20200/22800 N
	HL3 030 92,0 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 030 92,0 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 050 92,0 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 050 92,0 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 15.7 rpm \| Output torque M2: 1225 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 020 100 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 21000/23800 N
	HL3 020 100 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 21000/23800 N
	HL3 030 100 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 39100/45400 N
	HL3 030 100 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 14.4 rpm \| Output torque M2: 1334 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 39100/45400 N
	HL3 020 110 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 13.1 rpm \| Output torque M2: 1462 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 21700/24500 N
	HL3 020 110 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 13.1 rpm \| Output torque M2: 1462 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 21700/24500 N
	HL3 030 114 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 40300/46750 N
	HL3 030 114 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 40300/46750 N
	HL3 050 114 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 40300/46750 N
	HL3 050 114 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 12.6 rpm \| Output torque M2: 1522 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 40300/46750 N
	HL3 020 125 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 22450/25500 N
	HL3 020 125 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 22450/25500 N
	HL3 030 125 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 41600/48300 N
	HL3 030 125 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 11.6 rpm \| Output torque M2: 1658 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 41600/48300 N
	HL3 020 138 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 020 138 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 23050/26150 N
	HL3 030 138 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 43350/50300 N
	HL3 030 138 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 43350/50300 N
	HL3 050 138 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 43350/50300 N
	HL3 050 138 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 10.4 rpm \| Output torque M2: 1835 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 43350/50300 N
	HL3 030 155 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 155 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 155 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 155 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 9.3 rpm \| Output torque M2: 2060 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 171 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 171 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 171 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 171 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 8.4 rpm \| Output torque M2: 2280 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 194 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 7.4 rpm \| Output torque M2: 2586 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 194 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 7.4 rpm \| Output torque M2: 2586 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 197 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 7.3 rpm \| Output torque M2: 2628 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 197 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 7.3 rpm \| Output torque M2: 2628 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 211 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.8 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 211 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.8 rpm \| Output torque M2: 2815 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 030 216 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 030 216 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 216 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 216 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.7 rpm \| Output torque M2: 2872 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 232 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 6.2 rpm \| Output torque M2: 3086 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 232 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 6.2 rpm \| Output torque M2: 3086 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 244 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.9 rpm \| Output torque M2: 3245 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 244 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.9 rpm \| Output torque M2: 3245 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 249 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.8 rpm \| Output torque M2: 3310 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 050 249 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.8 rpm \| Output torque M2: 3310 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 266 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.4 rpm \| Output torque M2: 3545 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 266 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.4 rpm \| Output torque M2: 3545 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 291 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3873 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 291 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3873 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 286 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3812 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 130 286 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 5.0 rpm \| Output torque M2: 3812 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 050 293 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.9 rpm \| Output torque M2: 3898 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45200/51850 N
	HL3 050 293 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.9 rpm \| Output torque M2: 3898 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45200/51850 N
	HL3 080 307 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.7 rpm \| Output torque M2: 4086 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 63250/73050 N
	HL3 080 307 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.7 rpm \| Output torque M2: 4086 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 63250/73050 N
	HL3 130 340 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 70150/91100 N
	HL3 130 340 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 70150/91100 N
	HL3 180 340 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 70700/91100 N
	HL3 180 340 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.2 rpm \| Output torque M2: 4524 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 70700/91100 N
	HL4 050 348 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.1 rpm \| Output torque M2: 4498 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45900/53250 N
	HL4 050 348 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.1 rpm \| Output torque M2: 4498 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 45900/53250 N
	HL3 080 357 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 4.0 rpm \| Output torque M2: 4750 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 64600/74400 N
	HL3 080 357 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 4.0 rpm \| Output torque M2: 4750 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 64600/74400 N
	HL3 050 369 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.9 rpm \| Output torque M2: 4909 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL3 050 369 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.9 rpm \| Output torque M2: 4909 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 46100/53550 N
	HL4 080 395 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.6 rpm \| Output torque M2: 5104 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 65050/75000 N
	HL4 080 395 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.6 rpm \| Output torque M2: 5104 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 65050/75000 N
	HL3 080 409 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5446 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 65100/75150 N
	HL3 080 409 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5446 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 65100/75150 N
	HL4 130 410 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5294 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 70900/93500 N
	HL4 130 410 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.5 rpm \| Output torque M2: 5294 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 70900/93500 N
	HL4 050 433 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.3 rpm \| Output torque M2: 5590 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 050 433 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.3 rpm \| Output torque M2: 5590 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 47100/54650 N
	HL4 130 449 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.2 rpm \| Output torque M2: 5800 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 71800/94500 N
	HL4 130 449 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.2 rpm \| Output torque M2: 5800 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 71800/94500 N
	HL4 080 467 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 3.1 rpm \| Output torque M2: 6026 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 66150/76300 N
	HL4 080 467 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 3.1 rpm \| Output torque M2: 6026 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 66150/76300 N
	HL4 130 509 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.8 rpm \| Output torque M2: 6578 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 73550/96500 N
	HL4 130 509 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.8 rpm \| Output torque M2: 6578 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 73550/96500 N
	HL4 080 529 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.7 rpm \| Output torque M2: 6834 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 67750/78150 N
	HL4 080 529 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.7 rpm \| Output torque M2: 6834 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 67750/78150 N
	HL4 130 564 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 74450/97600 N
	HL4 130 564 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 74450/97600 N
	HL4 180 564 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 76000/97600 N
	HL4 180 564 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.6 rpm \| Output torque M2: 7282 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 76000/97600 N
	HL4 080 586 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.5 rpm \| Output torque M2: 7565 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 68650/79200 N
	HL4 080 586 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.5 rpm \| Output torque M2: 7565 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 68650/79200 N
	HL4 130 633 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.3 rpm \| Output torque M2: 8175 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 75700/99600 N
	HL4 130 633 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.3 rpm \| Output torque M2: 8175 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 75700/99600 N
	HL4 080 658 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8493 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69600/80250 N
	HL4 080 658 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8493 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69600/80250 N
	HL4 180 654 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8442 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 77800/100200 N
	HL4 180 654 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.2 rpm \| Output torque M2: 8442 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 77800/100200 N
	HL4 130 701 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 76500/100700 N
	HL4 130 701 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 76500/100700 N
	HL4 180 701 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 78200/100700 N
	HL4 180 701 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.1 rpm \| Output torque M2: 9049 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 78200/100700 N
	HL4 080 728 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 2.0 rpm \| Output torque M2: 9401 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 70300/81150 N
	HL4 080 728 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 2.0 rpm \| Output torque M2: 9401 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 70300/81150 N
	HL4 130 812 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 78300/103100 N
	HL4 130 812 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 78300/103100 N
	HL4 180 812 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 80100/103100 N
	HL4 180 812 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.8 rpm \| Output torque M2: 10491 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 80100/103100 N
	HL4 130 899 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 80000/104800 N
	HL4 130 899 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 80000/104800 N
	HL4 180 899 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 81600/104800 N
	HL4 180 899 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.6 rpm \| Output torque M2: 11613 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 81600/104800 N
	HL4 130 964 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12447 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 81000/105900 N
	HL4 130 964 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12447 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 81000/105900 N
	HL4 180 980 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12653 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 82100/105900 N
	HL4 180 980 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.5 rpm \| Output torque M2: 12653 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 82100/105900 N
	HL4 130 1130 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 82300/107700 N
	HL4 130 1130 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 82300/107700 N
	HL4 180 1130 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 84000/107700 N
	HL4 180 1130 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.3 rpm \| Output torque M2: 14625 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 84000/107700 N
	HL4 180 1240 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.2 rpm \| Output torque M2: 15974 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 84900/109300 N
	HL4 180 1240 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.2 rpm \| Output torque M2: 15974 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 84900/109300 N
	HL4 180 1410 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 1.0 rpm \| Output torque M2: 18174 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 87100/112000 N
	HL4 180 1410 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 1.0 rpm \| Output torque M2: 18174 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 87100/112000 N
	HL4 180 1560 100LA4	Power P1: 2.20 kW \| Motor: 100LA4 (frame printed 100LA/112MR) \| Output speed n2: 0.9 rpm \| Output torque M2: 20117 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 88500/114400 N
	HL4 180 1560 112MR4	Power P1: 2.20 kW \| Motor: 112MR4 (frame printed 100LA/112MR) \| Output speed n2: 0.9 rpm \| Output torque M2: 20117 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 88500/114400 N
	HL1 010 9,30 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 155.9 rpm \| Output torque M2: 178 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL2 010 14,9 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 97.5 rpm \| Output torque M2: 276 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 11700/13200 N
	HL2 010 18,7 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 77.7 rpm \| Output torque M2: 347 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 12350/14100 N
	HL2 010 23,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 62.5 rpm \| Output torque M2: 431 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 13600/15450 N
	HL2 010 28,8 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 50.3 rpm \| Output torque M2: 536 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 14600/16500 N
	HL2 020 28,8 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 50.3 rpm \| Output torque M2: 536 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 14600/16500 N
	HL2 010 31,9 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 45.5 rpm \| Output torque M2: 593 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 020 31,9 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 45.5 rpm \| Output torque M2: 593 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 030 33,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 43.7 rpm \| Output torque M2: 617 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 27750/32150 N
	HL2 020 39,6 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.6 rpm \| Output torque M2: 737 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 15850/17950 N
	HL2 030 39,6 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.6 rpm \| Output torque M2: 737 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 29350/33850 N
	HL2 010 40,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.1 rpm \| Output torque M2: 747 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 020 40,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 36.1 rpm \| Output torque M2: 747 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 030 45,7 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 31.7 rpm \| Output torque M2: 849 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 30150/34950 N
	HL2 020 49,9 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 29.0 rpm \| Output torque M2: 928 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL3 010 51,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 28.3 rpm \| Output torque M2: 922 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 17100/19450 N
	HL3 020 51,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 28.3 rpm \| Output torque M2: 922 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 17100/19450 N
	HL3 030 51,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 28.3 rpm \| Output torque M2: 922 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 31600/36650 N
	HL2 030 57,5 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 25.2 rpm \| Output torque M2: 1070 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 33000/38350 N
	HL3 020 64,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1158 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 17900/20300 N
	HL3 030 64,2 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1158 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 33850/39250 N
	HL3 030 73,3 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1321 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 35300/41000 N
	HL3 050 73,3 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1321 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 35300/41000 N
	HL3 020 80,6 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1454 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 19600/22250 N
	HL3 030 80,6 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1454 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 36900/42800 N
	HL3 030 92,0 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 15.8 rpm \| Output torque M2: 1659 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 050 92,0 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 15.8 rpm \| Output torque M2: 1659 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 020 100 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 14.5 rpm \| Output torque M2: 1807 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 21000/23800 N
	HL3 030 100 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 14.5 rpm \| Output torque M2: 1807 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 39000/45300 N
	HL3 050 100 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 14.5 rpm \| Output torque M2: 1807 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 39000/45300 N
	HL3 030 114 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 12.7 rpm \| Output torque M2: 2061 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 40250/46650 N
	HL3 050 114 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 12.7 rpm \| Output torque M2: 2061 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 40250/46650 N
	HL3 030 125 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 11.6 rpm \| Output torque M2: 2245 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 41600/48300 N
	HL3 050 125 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 11.6 rpm \| Output torque M2: 2245 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 41600/48300 N
	HL3 030 138 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 10.5 rpm \| Output torque M2: 2485 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 43100/50050 N
	HL3 050 138 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 10.5 rpm \| Output torque M2: 2485 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 43100/50050 N
	HL3 080 143 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 10.2 rpm \| Output torque M2: 2571 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 62150/71850 N
	HL3 050 155 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 9.4 rpm \| Output torque M2: 2790 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 168 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 8.6 rpm \| Output torque M2: 3038 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 171 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 8.5 rpm \| Output torque M2: 3088 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 194 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 7.5 rpm \| Output torque M2: 3502 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 197 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 7.3 rpm \| Output torque M2: 3559 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 130 208 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 7.0 rpm \| Output torque M2: 3753 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 080 211 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.9 rpm \| Output torque M2: 3813 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 216 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.7 rpm \| Output torque M2: 3889 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 130 223 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.5 rpm \| Output torque M2: 4023 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 080 232 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.3 rpm \| Output torque M2: 4179 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 244 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.0 rpm \| Output torque M2: 4394 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 240 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 6.0 rpm \| Output torque M2: 4326 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 080 266 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.4 rpm \| Output torque M2: 4801 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 286 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.1 rpm \| Output torque M2: 5162 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 285 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.1 rpm \| Output torque M2: 5134 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 291 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 5.0 rpm \| Output torque M2: 5244 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 307 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.7 rpm \| Output torque M2: 5534 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 63250/73050 N
	HL4 130 330 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.4 rpm \| Output torque M2: 5769 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 68800/90500 N
	HL3 130 340 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.3 rpm \| Output torque M2: 6127 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 69000/90700 N
	HL3 180 340 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.3 rpm \| Output torque M2: 6127 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 70500/90700 N
	HL3 080 357 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.1 rpm \| Output torque M2: 6433 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 64400/74200 N
	HL4 130 358 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 4.1 rpm \| Output torque M2: 6257 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 70250/91500 N
	HL4 080 395 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.7 rpm \| Output torque M2: 6912 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 64950/74900 N
	HL4 130 410 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.5 rpm \| Output torque M2: 7169 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 70900/93500 N
	HL4 180 410 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.5 rpm \| Output torque M2: 7169 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 72550/93500 N
	HL4 130 449 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.2 rpm \| Output torque M2: 7855 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 71800/94500 N
	HL4 180 449 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.2 rpm \| Output torque M2: 7855 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 73500/94500 N
	HL4 080 467 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 3.1 rpm \| Output torque M2: 8161 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 66150/76300 N
	HL4 130 509 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.8 rpm \| Output torque M2: 8909 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 73550/96500 N
	HL4 180 509 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.8 rpm \| Output torque M2: 8909 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 75150/96500 N
	HL4 080 529 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.7 rpm \| Output torque M2: 9255 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 67750/78150 N
	HL4 130 564 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.6 rpm \| Output torque M2: 9861 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 74450/97600 N
	HL4 180 564 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.6 rpm \| Output torque M2: 9861 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 76000/97600 N
	HL4 080 586 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.5 rpm \| Output torque M2: 10245 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 68650/79200 N
	HL4 130 633 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.3 rpm \| Output torque M2: 11071 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 75700/99600 N
	HL4 180 654 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.2 rpm \| Output torque M2: 11433 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 77800/100200 N
	HL4 130 701 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.1 rpm \| Output torque M2: 12254 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 76500/100700 N
	HL4 180 701 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 2.1 rpm \| Output torque M2: 12254 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 78200/100700 N
	HL4 130 812 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.8 rpm \| Output torque M2: 14207 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78300/103100 N
	HL4 180 812 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.8 rpm \| Output torque M2: 14207 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 80100/103100 N
	HL4 180 899 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.6 rpm \| Output torque M2: 15726 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 81600/104800 N
	HL4 180 980 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.5 rpm \| Output torque M2: 17136 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 82100/105900 N
	HL4 180 1130 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.3 rpm \| Output torque M2: 19805 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 84000/107700 N
	HL4 180 1240 112MS4	Power P1: 3.00 kW \| Motor: 112MS4 \| Output speed n2: 1.2 rpm \| Output torque M2: 21633 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 84900/109300 N
	HL1 010 7,38 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 196.4 rpm \| Output torque M2: 189 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 9400/10650 N
	HL1 010 9,30 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 155.9 rpm \| Output torque M2: 238 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL1 020 9,30 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 155.9 rpm \| Output torque M2: 238 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL2 010 11,8 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 122.4 rpm \| Output torque M2: 294 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 010 14,9 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 97.5 rpm \| Output torque M2: 368 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 11700/13200 N
	HL2 010 18,7 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 77.7 rpm \| Output torque M2: 463 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 12350/14100 N
	HL2 010 23,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 62.5 rpm \| Output torque M2: 575 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 13600/15450 N
	HL2 020 23,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 62.5 rpm \| Output torque M2: 575 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 13600/15450 N
	HL2 030 26,7 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 54.2 rpm \| Output torque M2: 663 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 25700/29950 N
	HL2 020 28,8 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 50.3 rpm \| Output torque M2: 714 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 14600/16500 N
	HL2 030 28,8 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 50.3 rpm \| Output torque M2: 714 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 26200/30400 N
	HL2 010 31,9 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 45.5 rpm \| Output torque M2: 791 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 020 31,9 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 45.5 rpm \| Output torque M2: 791 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 15050/17950 N
	HL2 030 31,9 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 45.5 rpm \| Output torque M2: 791 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 27400/31750 N
	HL2 030 33,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 43.7 rpm \| Output torque M2: 823 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 27750/32150 N
	HL2 020 39,6 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 36.6 rpm \| Output torque M2: 983 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 15850/17950 N
	HL2 030 39,6 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 36.6 rpm \| Output torque M2: 983 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 29350/33850 N
	HL2 020 40,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 36.1 rpm \| Output torque M2: 996 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 15900/18000 N
	HL2 030 45,7 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 31.7 rpm \| Output torque M2: 1133 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 30150/34950 N
	HL2 020 49,9 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 29.0 rpm \| Output torque M2: 1237 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 16950/19250 N
	HL3 020 51,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 28.3 rpm \| Output torque M2: 1230 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 17100/19450 N
	HL3 030 51,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 28.3 rpm \| Output torque M2: 1230 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 31600/36650 N
	HL2 030 57,5 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 25.2 rpm \| Output torque M2: 1426 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 33000/38350 N
	HL2 050 57,5 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 25.2 rpm \| Output torque M2: 1426 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 33000/38350 N
	HL3 020 64,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1544 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 17900/20300 N
	HL3 030 64,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1544 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 33850/39250 N
	HL3 050 64,2 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 22.6 rpm \| Output torque M2: 1544 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 33850/39250 N
	HL2 080 69,8 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 20.8 rpm \| Output torque M2: 1729 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 49900/57600 N
	HL3 030 73,3 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1762 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 35300/41000 N
	HL3 050 73,3 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 19.8 rpm \| Output torque M2: 1762 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 35300/41000 N
	HL3 030 80,6 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1938 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 36900/42800 N
	HL3 050 80,6 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 18.0 rpm \| Output torque M2: 1938 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 36900/42800 N
	HL3 050 92,0 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 15.8 rpm \| Output torque M2: 2211 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 37700/43700 N
	HL3 030 100 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 14.5 rpm \| Output torque M2: 2409 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 39000/45300 N
	HL3 050 100 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 14.5 rpm \| Output torque M2: 2409 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 39000/45300 N
	HL3 080 114 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 12.8 rpm \| Output torque M2: 2731 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 57200/65950 N
	HL3 050 114 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 12.7 rpm \| Output torque M2: 2748 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 40250/46650 N
	HL3 080 122 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 11.8 rpm \| Output torque M2: 2945 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 58250/67200 N
	HL3 050 125 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 11.6 rpm \| Output torque M2: 2993 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 41600/48300 N
	HL3 050 138 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 10.5 rpm \| Output torque M2: 3313 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 43100/50050 N
	HL3 080 143 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 10.2 rpm \| Output torque M2: 3427 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 62150/71850 N
	HL3 130 151 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 9.6 rpm \| Output torque M2: 3638 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 050 155 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 9.4 rpm \| Output torque M2: 3720 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 168 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 8.6 rpm \| Output torque M2: 4051 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 171 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 8.5 rpm \| Output torque M2: 4118 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 080 194 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 7.5 rpm \| Output torque M2: 4669 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 208 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 7.0 rpm \| Output torque M2: 5004 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 080 211 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.9 rpm \| Output torque M2: 5083 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 216 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.7 rpm \| Output torque M2: 5186 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 130 223 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.5 rpm \| Output torque M2: 5364 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 080 232 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.3 rpm \| Output torque M2: 5572 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 244 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.0 rpm \| Output torque M2: 5859 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 240 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.0 rpm \| Output torque M2: 5767 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 240 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 6.0 rpm \| Output torque M2: 5767 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 266 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.4 rpm \| Output torque M2: 6402 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 286 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.1 rpm \| Output torque M2: 6883 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 285 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.1 rpm \| Output torque M2: 6845 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 291 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 5.0 rpm \| Output torque M2: 6993 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 307 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.7 rpm \| Output torque M2: 7379 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 63250/73050 N
	HL4 130 330 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 7692 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 68800/90500 N
	HL4 180 330 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 7692 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 70300/90500 N
	HL3 130 340 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.3 rpm \| Output torque M2: 8169 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69000/90700 N
	HL3 180 340 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.3 rpm \| Output torque M2: 8169 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 70500/90700 N
	HL4 130 358 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 4.1 rpm \| Output torque M2: 8343 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 70250/91500 N
	HL4 130 410 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.5 rpm \| Output torque M2: 9558 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 70900/93500 N
	HL4 180 410 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.5 rpm \| Output torque M2: 9558 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 72550/93500 N
	HL4 130 449 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.2 rpm \| Output torque M2: 10473 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 71800/94500 N
	HL4 180 449 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 3.2 rpm \| Output torque M2: 10473 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 73500/94500 N
	HL4 130 509 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.8 rpm \| Output torque M2: 11878 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 73550/96500 N
	HL4 180 509 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.8 rpm \| Output torque M2: 11878 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 75150/96500 N
	HL4 130 564 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.6 rpm \| Output torque M2: 13148 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 74450/97600 N
	HL4 180 564 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.6 rpm \| Output torque M2: 13148 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 76000/97600 N
	HL4 130 633 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.3 rpm \| Output torque M2: 14761 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 75700/99600 N
	HL4 180 654 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.2 rpm \| Output torque M2: 15244 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 77800/100200 N
	HL4 180 701 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 2.1 rpm \| Output torque M2: 16339 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 78200/100700 N
	HL4 180 812 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 1.8 rpm \| Output torque M2: 18943 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 80100/103100 N
	HL4 180 899 112M4	Power P1: 4.00 kW \| Motor: 112M4 \| Output speed n2: 1.6 rpm \| Output torque M2: 20969 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 81600/104800 N
	HL1 010 5,37 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 273.8 rpm \| Output torque M2: 186 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 8750/9900 N
	HL1 010 7,38 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 199.1 rpm \| Output torque M2: 256 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 9350/10600 N
	HL1 020 7,38 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 199.1 rpm \| Output torque M2: 256 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 9350/10600 N
	HL1 010 9,30 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 158.1 rpm \| Output torque M2: 322 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL1 020 9,30 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 158.1 rpm \| Output torque M2: 322 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL1 030 9,30 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 158.1 rpm \| Output torque M2: 322 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 19300/22350 N
	HL2 010 11,8 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 124.1 rpm \| Output torque M2: 398 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 020 11,8 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 124.1 rpm \| Output torque M2: 398 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 010 14,9 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 98.9 rpm \| Output torque M2: 500 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 11650/13200 N
	HL2 020 14,9 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 98.9 rpm \| Output torque M2: 500 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 11650/13200 N
	HL2 010 18,7 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 78.8 rpm \| Output torque M2: 627 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 12300/14050 N
	HL2 020 18,7 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 78.8 rpm \| Output torque M2: 627 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 12300/14050 N
	HL2 030 21,3 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 69.0 rpm \| Output torque M2: 716 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 24300/28100 N
	HL2 010 23,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 63.4 rpm \| Output torque M2: 780 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 13500/15350 N
	HL2 020 23,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 63.4 rpm \| Output torque M2: 780 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 13500/15350 N
	HL2 030 23,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 63.4 rpm \| Output torque M2: 780 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 24950/28950 N
	HL2 030 26,7 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 55.0 rpm \| Output torque M2: 899 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25600/29850 N
	HL2 020 28,8 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 51.0 rpm \| Output torque M2: 969 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 14550/16450 N
	HL2 030 28,8 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 51.0 rpm \| Output torque M2: 969 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 26050/30300 N
	HL2 020 31,9 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 46.1 rpm \| Output torque M2: 1072 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 15000/16900 N
	HL2 030 31,9 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 46.1 rpm \| Output torque M2: 1072 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 27250/31600 N
	HL2 050 31,9 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 46.1 rpm \| Output torque M2: 1072 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 27250/31600 N
	HL2 030 33,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 44.3 rpm \| Output torque M2: 1117 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 27600/32000 N
	HL2 020 39,6 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 37.1 rpm \| Output torque M2: 1333 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 15850/17950 N
	HL2 030 39,6 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 37.1 rpm \| Output torque M2: 1333 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 29150/33650 N
	HL2 050 39,6 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 37.1 rpm \| Output torque M2: 1333 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 29150/33650 N
	HL2 020 40,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 36.6 rpm \| Output torque M2: 1351 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 15850/17950 N
	HL2 030 45,7 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 32.2 rpm \| Output torque M2: 1536 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 28900/34750 N
	HL2 050 45,7 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 32.2 rpm \| Output torque M2: 1536 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 28900/34750 N
	HL3 020 51,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 28.7 rpm \| Output torque M2: 1668 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 17000/19350 N
	HL3 030 51,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 28.7 rpm \| Output torque M2: 1668 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 31450/36350 N
	HL3 050 51,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 28.7 rpm \| Output torque M2: 1668 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 31450/36350 N
	HL2 080 55,4 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 26.5 rpm \| Output torque M2: 1862 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 45850/52850 N
	HL2 030 57,5 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 25.5 rpm \| Output torque M2: 1934 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 32950/38300 N
	HL2 050 57,5 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 25.5 rpm \| Output torque M2: 1934 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 32950/38300 N
	HL3 030 64,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 22.9 rpm \| Output torque M2: 2094 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 33700/39050 N
	HL3 050 64,2 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 22.9 rpm \| Output torque M2: 2094 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 33700/39050 N
	HL2 080 69,8 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 21.1 rpm \| Output torque M2: 2345 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 49650/57350 N
	HL3 050 73,3 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 20.1 rpm \| Output torque M2: 2389 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 35200/40950 N
	HL3 030 80,6 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 18.2 rpm \| Output torque M2: 2629 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 36700/42600 N
	HL3 050 80,6 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 18.2 rpm \| Output torque M2: 2629 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 36700/42600 N
	HL3 080 83,5 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 17.6 rpm \| Output torque M2: 2722 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 51450/59400 N
	HL3 080 90,5 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 16.2 rpm \| Output torque M2: 2951 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 52800/61000 N
	HL3 050 92,0 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 16.0 rpm \| Output torque M2: 2999 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 37650/43650 N
	HL3 080 98,6 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 14.9 rpm \| Output torque M2: 3214 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 54700/63200 N
	HL3 050 100 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 14.7 rpm \| Output torque M2: 3267 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 38800/45050 N
	HL3 130 104 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 14.1 rpm \| Output torque M2: 3390 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 60950/80200 N
	HL3 130 112 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 13.2 rpm \| Output torque M2: 3645 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 62050/81700 N
	HL3 050 114 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.9 rpm \| Output torque M2: 3727 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 40100/46550 N
	HL3 080 114 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.9 rpm \| Output torque M2: 3704 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 57150/65900 N
	HL3 130 122 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.1 rpm \| Output torque M2: 3970 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 63700/83850 N
	HL3 080 122 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 12.0 rpm \| Output torque M2: 3994 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 58000/66850 N
	HL3 050 125 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 11.8 rpm \| Output torque M2: 4060 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 41400/48000 N
	HL3 050 138 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 10.7 rpm \| Output torque M2: 4494 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 42650/49550 N
	HL3 130 140 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 10.5 rpm \| Output torque M2: 4576 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 66600/87600 N
	HL3 080 143 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 10.3 rpm \| Output torque M2: 4649 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 61900/71500 N
	HL3 130 151 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 9.7 rpm \| Output torque M2: 4934 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 130 162 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 9.1 rpm \| Output torque M2: 5288 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 162 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 9.1 rpm \| Output torque M2: 5288 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 168 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 8.7 rpm \| Output torque M2: 5494 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 050 171 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 8.6 rpm \| Output torque M2: 5585 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 45100/51700 N
	HL3 180 174 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 8.4 rpm \| Output torque M2: 5687 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 187 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.9 rpm \| Output torque M2: 6095 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 080 194 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.6 rpm \| Output torque M2: 6332 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 208 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.1 rpm \| Output torque M2: 6787 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 208 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.1 rpm \| Output torque M2: 6787 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 211 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 7.0 rpm \| Output torque M2: 6895 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 130 223 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.6 rpm \| Output torque M2: 7275 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 130 240 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.1 rpm \| Output torque M2: 7822 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 240 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.1 rpm \| Output torque M2: 7822 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 244 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 6.0 rpm \| Output torque M2: 7946 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 080 266 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 5.5 rpm \| Output torque M2: 8683 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 180 285 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 5.2 rpm \| Output torque M2: 9284 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 286 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 5.1 rpm \| Output torque M2: 9336 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL4 130 330 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.5 rpm \| Output torque M2: 10432 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 68600/90300 N
	HL4 180 330 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.5 rpm \| Output torque M2: 10432 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 70050/90300 N
	HL3 180 340 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.3 rpm \| Output torque M2: 11080 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 70500/90700 N
	HL4 130 358 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 4.1 rpm \| Output torque M2: 11315 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 70250/91500 N
	HL4 130 410 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.6 rpm \| Output torque M2: 12964 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 70700/93100 N
	HL4 180 410 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.6 rpm \| Output torque M2: 12964 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 72300/93100 N
	HL4 130 449 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.3 rpm \| Output torque M2: 14205 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 71600/94200 N
	HL4 180 449 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 3.3 rpm \| Output torque M2: 14205 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 73100/94200 N
	HL4 180 509 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.9 rpm \| Output torque M2: 16110 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 74700/96200 N
	HL4 180 564 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.6 rpm \| Output torque M2: 17833 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 76000/97600 N
	HL4 180 654 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.2 rpm \| Output torque M2: 20675 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 77800/100200 N
	HL4 180 701 132MS4	Power P1: 5.50 kW \| Motor: 132MS4 \| Output speed n2: 2.1 rpm \| Output torque M2: 22161 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 78200/100700 N
	HL1 010 3,44 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 424.3 rpm \| Output torque M2: 164 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 7550/8550 N
	HL1 010 4,32 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 338.0 rpm \| Output torque M2: 206 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 8050/9100 N
	HL1 010 5,37 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 272.0 rpm \| Output torque M2: 255 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 8800/9950 N
	HL1 010 7,38 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 197.7 rpm \| Output torque M2: 351 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 9400/10650 N
	HL1 020 7,38 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 197.7 rpm \| Output torque M2: 351 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 9400/10650 N
	HL1 020 9,30 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 157.0 rpm \| Output torque M2: 443 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL1 030 9,30 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 157.0 rpm \| Output torque M2: 443 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 19350/22400 N
	HL2 010 11,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 123.3 rpm \| Output torque M2: 547 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 020 11,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 123.3 rpm \| Output torque M2: 547 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 030 11,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 123.3 rpm \| Output torque M2: 547 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 20650/23900 N
	HL2 010 14,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 98.2 rpm \| Output torque M2: 686 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 11650/13200 N
	HL2 020 14,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 98.2 rpm \| Output torque M2: 686 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 11650/13200 N
	HL2 030 14,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 98.2 rpm \| Output torque M2: 686 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 22300/25850 N
	HL2 020 18,7 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 78.2 rpm \| Output torque M2: 861 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 12350/14100 N
	HL2 030 18,7 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 78.2 rpm \| Output torque M2: 861 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 23500/27300 N
	HL2 030 21,3 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 68.6 rpm \| Output torque M2: 983 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 24350/28200 N
	HL2 020 23,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 63.0 rpm \| Output torque M2: 1070 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 13550/15400 N
	HL2 030 23,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 63.0 rpm \| Output torque M2: 1070 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25000/29000 N
	HL2 030 26,7 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 54.6 rpm \| Output torque M2: 1234 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25650/29900 N
	HL2 050 26,7 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 54.6 rpm \| Output torque M2: 1234 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 25650/29900 N
	HL2 020 28,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 50.7 rpm \| Output torque M2: 1330 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 14550/16450 N
	HL2 030 28,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 50.7 rpm \| Output torque M2: 1330 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 26100/30350 N
	HL2 020 31,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 45.8 rpm \| Output torque M2: 1472 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 15000/16900 N
	HL2 030 31,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 45.8 rpm \| Output torque M2: 1472 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 27350/31700 N
	HL2 050 31,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 45.8 rpm \| Output torque M2: 1472 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 27350/31700 N
	HL2 030 33,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 44.0 rpm \| Output torque M2: 1533 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 27700/32100 N
	HL2 050 33,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 44.0 rpm \| Output torque M2: 1533 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 27700/32100 N
	HL2 030 39,6 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 36.8 rpm \| Output torque M2: 1830 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 29300/33800 N
	HL2 050 39,6 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 36.8 rpm \| Output torque M2: 1830 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 29300/33800 N
	HL2 050 45,7 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 32.0 rpm \| Output torque M2: 2109 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 28950/34800 N
	HL2 080 45,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 31.9 rpm \| Output torque M2: 2113 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 43300/50050 N
	HL3 030 51,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 28.5 rpm \| Output torque M2: 2290 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 31550/36450 N
	HL3 050 51,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 28.5 rpm \| Output torque M2: 2290 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 31550/36450 N
	HL3 080 53,5 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 27.3 rpm \| Output torque M2: 2396 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 45450/52500 N
	HL2 080 55,4 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 26.4 rpm \| Output torque M2: 2556 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 45900/52900 N
	HL2 050 57,5 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 25.4 rpm \| Output torque M2: 2656 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 32950/38300 N
	HL3 080 63,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 23.1 rpm \| Output torque M2: 2829 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 48250/55700 N
	HL3 050 64,2 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 22.7 rpm \| Output torque M2: 2875 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 33800/39200 N
	HL2 080 69,8 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 20.9 rpm \| Output torque M2: 3219 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 49800/57550 N
	HL3 050 73,3 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 19.9 rpm \| Output torque M2: 3280 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 35350/41050 N
	HL3 130 78,0 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 18.7 rpm \| Output torque M2: 3494 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 55900/73700 N
	HL3 080 79,3 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 18.4 rpm \| Output torque M2: 3551 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 51050/59000 N
	HL3 050 80,6 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 18.1 rpm \| Output torque M2: 3609 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 36800/42700 N
	HL3 080 83,5 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 17.5 rpm \| Output torque M2: 3738 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 51550/59550 N
	HL3 080 90,5 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 16.1 rpm \| Output torque M2: 4051 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 52900/61100 N
	HL3 130 94,9 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 15.4 rpm \| Output torque M2: 4248 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 59300/78100 N
	HL3 080 98,6 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 14.8 rpm \| Output torque M2: 4413 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 54950/63450 N
	HL3 050 100 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 14.6 rpm \| Output torque M2: 4485 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 38900/45200 N
	HL3 130 104 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 14.0 rpm \| Output torque M2: 4654 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 61100/80400 N
	HL3 130 112 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 13.1 rpm \| Output torque M2: 5005 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 62200/81850 N
	HL3 180 112 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 13.1 rpm \| Output torque M2: 5005 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 63650/81850 N
	HL3 080 114 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 12.9 rpm \| Output torque M2: 5086 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 57150/65900 N
	HL3 130 122 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 12.0 rpm \| Output torque M2: 5451 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 63850/84150 N
	HL3 180 122 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 12.0 rpm \| Output torque M2: 5451 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 65400/84150 N
	HL3 080 122 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 11.9 rpm \| Output torque M2: 5484 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 58150/67000 N
	HL3 050 125 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 11.7 rpm \| Output torque M2: 5574 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 41500/48150 N
	HL3 130 140 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 10.4 rpm \| Output torque M2: 6283 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 66800/87850 N
	HL3 180 140 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 10.4 rpm \| Output torque M2: 6283 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 68150/87850 N
	HL3 080 143 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 10.2 rpm \| Output torque M2: 6383 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 62150/71850 N
	HL3 130 151 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.6 rpm \| Output torque M2: 6774 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 151 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.6 rpm \| Output torque M2: 6774 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 162 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.0 rpm \| Output torque M2: 7261 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 162 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 9.0 rpm \| Output torque M2: 7261 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 080 168 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 8.7 rpm \| Output torque M2: 7543 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 62700/72500 N
	HL3 180 174 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 8.4 rpm \| Output torque M2: 7808 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 187 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 7.8 rpm \| Output torque M2: 8369 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 130 208 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 7.0 rpm \| Output torque M2: 9318 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 208 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 7.0 rpm \| Output torque M2: 9318 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 223 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 6.5 rpm \| Output torque M2: 9988 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 130 240 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 6.1 rpm \| Output torque M2: 10740 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 240 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 6.1 rpm \| Output torque M2: 10740 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 180 285 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 5.1 rpm \| Output torque M2: 12746 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL4 130 330 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 14323 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 68800/90500 N
	HL4 180 330 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 4.4 rpm \| Output torque M2: 14323 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 70300/90500 N
	HL4 130 358 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 4.1 rpm \| Output torque M2: 15536 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 70250/91500 N
	HL4 180 410 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 3.6 rpm \| Output torque M2: 17799 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 72300/93100 N
	HL4 180 449 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 3.3 rpm \| Output torque M2: 19503 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 73100/94200 N
	HL4 180 509 132M4	Power P1: 7.50 kW \| Motor: 132M4 \| Output speed n2: 2.9 rpm \| Output torque M2: 22119 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 74700/96200 N
	HL1 010 3,44 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 428.6 rpm \| Output torque M2: 238 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 7500/8550 N
	HL1 010 4,32 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 341.4 rpm \| Output torque M2: 298 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 8000/9050 N
	HL1 010 5,37 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 371 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 8750/9900 N
	HL1 020 5,37 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 371 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 8750/9900 N
	HL1 020 7,38 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 510 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 9350/10600 N
	HL1 030 7,38 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 510 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 17850/20650 N
	HL1 020 9,30 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 158.6 rpm \| Output torque M2: 642 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 10200/11500 N
	HL1 030 9,30 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 158.6 rpm \| Output torque M2: 642 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 19300/22350 N
	HL2 020 11,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 793 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 030 11,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 793 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 20600/23850 N
	HL2 020 14,9 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 996 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 11600/13150 N
	HL2 030 14,9 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 996 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 22250/25800 N
	HL2 020 18,7 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1250 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 12300/14050 N
	HL2 030 18,7 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1250 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 23450/27250 N
	HL2 050 18,7 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1250 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 23450/27250 N
	HL2 030 21,3 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 69.3 rpm \| Output torque M2: 1427 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 24250/28050 N
	HL2 050 21,3 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 69.3 rpm \| Output torque M2: 1427 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 24250/28050 N
	HL2 020 23,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 1554 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 13500/15350 N
	HL2 030 23,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 1554 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 24950/28950 N
	HL2 050 23,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 1554 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 24950/28950 N
	HL2 030 26,7 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 55.2 rpm \| Output torque M2: 1791 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 25600/29850 N
	HL2 050 26,7 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 55.2 rpm \| Output torque M2: 1791 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 25600/29850 N
	HL2 030 28,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 51.2 rpm \| Output torque M2: 1931 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 26050/30300 N
	HL2 050 28,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 51.2 rpm \| Output torque M2: 1931 Nm \| Service factor fs: 2.1 \| Radial load Fr2 CS/SS: 26050/30300 N
	HL2 050 31,9 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 46.2 rpm \| Output torque M2: 2138 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 27250/31600 N
	HL2 080 33,0 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 44.7 rpm \| Output torque M2: 2211 Nm \| Service factor fs: 3.0 \| Radial load Fr2 CS/SS: 39200/45300 N
	HL2 050 33,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 44.4 rpm \| Output torque M2: 2226 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 27600/32000 N
	HL2 080 38,4 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 38.4 rpm \| Output torque M2: 2571 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 41250/47650 N
	HL2 050 39,6 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 37.2 rpm \| Output torque M2: 2656 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 29150/33650 N
	HL2 050 45,7 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 32.3 rpm \| Output torque M2: 3062 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 28900/34750 N
	HL2 080 45,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 32.2 rpm \| Output torque M2: 3068 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 43200/49900 N
	HL2 130 46,0 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 32.1 rpm \| Output torque M2: 3083 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 47750/62800 N
	HL3 050 51,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 28.8 rpm \| Output torque M2: 3325 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 31450/36350 N
	HL3 080 53,5 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 27.6 rpm \| Output torque M2: 3478 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 45300/52350 N
	HL2 080 55,4 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 26.6 rpm \| Output torque M2: 3711 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 45800/52800 N
	HL2 050 57,5 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 25.6 rpm \| Output torque M2: 3856 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 32950/38300 N
	HL3 130 60,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 24.3 rpm \| Output torque M2: 3953 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 51700/68100 N
	HL3 080 63,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 23.3 rpm \| Output torque M2: 4106 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 48100/55550 N
	HL3 050 64,2 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 23.0 rpm \| Output torque M2: 4174 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 33700/39050 N
	HL2 080 69,8 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 21.1 rpm \| Output torque M2: 4674 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 49650/57350 N
	HL3 130 76,3 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 4962 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 55450/73000 N
	HL3 180 76,3 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 4962 Nm \| Service factor fs: 2.9 \| Radial load Fr2 CS/SS: 56650/73000 N
	HL3 130 78,0 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 5073 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 55750/73450 N
	HL3 180 78,0 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 5073 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 57000/73450 N
	HL3 080 79,3 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 18.6 rpm \| Output torque M2: 5155 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 51000/58900 N
	HL3 080 83,5 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 17.7 rpm \| Output torque M2: 5427 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 51350/59300 N
	HL3 080 90,5 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 16.3 rpm \| Output torque M2: 5882 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 52700/60900 N
	HL3 130 94,9 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 6166 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 59200/77950 N
	HL3 180 94,9 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 6166 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 61150/77950 N
	HL3 180 98,0 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.1 rpm \| Output torque M2: 6368 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 61300/78550 N
	HL3 080 98,6 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 15.0 rpm \| Output torque M2: 6406 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 54500/62950 N
	HL3 130 104 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 14.2 rpm \| Output torque M2: 6757 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 60800/80000 N
	HL3 130 112 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 7266 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 62050/81700 N
	HL3 180 112 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 7266 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 63500/81700 N
	HL3 080 114 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 13.0 rpm \| Output torque M2: 7384 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 57050/65800 N
	HL3 130 122 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 7914 Nm \| Service factor fs: 1.3 \| Radial load Fr2 CS/SS: 63700/83850 N
	HL3 180 122 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 7914 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 65150/83850 N
	HL3 080 122 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 12.0 rpm \| Output torque M2: 7961 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 58000/66850 N
	HL3 130 140 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 10.5 rpm \| Output torque M2: 9121 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 66600/87600 N
	HL3 180 140 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 10.5 rpm \| Output torque M2: 9121 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 68000/87600 N
	HL3 130 151 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.7 rpm \| Output torque M2: 9834 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 151 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.7 rpm \| Output torque M2: 9834 Nm \| Service factor fs: 1.6 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 162 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 10541 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 162 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 10541 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 180 174 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 8.5 rpm \| Output torque M2: 11335 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 187 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 7.9 rpm \| Output torque M2: 12149 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 208 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 7.1 rpm \| Output torque M2: 13528 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 180 240 160MA4	Power P1: 11.00 kW \| Motor: 160MA4 \| Output speed n2: 6.1 rpm \| Output torque M2: 15592 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL1 010 3,44 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 428.6 rpm \| Output torque M2: 324 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 7500/8550 N
	HL1 020 3,44 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 428.6 rpm \| Output torque M2: 324 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 7500/8550 N
	HL1 010 4,32 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 341.4 rpm \| Output torque M2: 407 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 8000/9050 N
	HL1 020 4,32 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 341.4 rpm \| Output torque M2: 407 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 8000/9050 N
	HL1 010 5,37 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 506 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 8750/9900 N
	HL1 020 5,37 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 506 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 8750/9900 N
	HL1 030 5,37 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 274.8 rpm \| Output torque M2: 506 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 16150/18650 N
	HL1 030 6,19 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 238.4 rpm \| Output torque M2: 583 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 16900/19600 N
	HL1 020 7,38 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 696 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 9350/10600 N
	HL1 030 7,38 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 199.7 rpm \| Output torque M2: 696 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 17850/20650 N
	HL2 020 11,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 1082 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 10900/12300 N
	HL2 030 11,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 1082 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 20600/23850 N
	HL2 050 11,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 124.6 rpm \| Output torque M2: 1082 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 20600/23850 N
	HL2 020 14,9 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 1358 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 11600/13150 N
	HL2 030 14,9 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 1358 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 22250/25800 N
	HL2 050 14,9 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 99.2 rpm \| Output torque M2: 1358 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 22250/25800 N
	HL2 030 18,7 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1705 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 23450/27250 N
	HL2 050 18,7 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 79.0 rpm \| Output torque M2: 1705 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 23450/27250 N
	HL2 050 21,3 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 69.3 rpm \| Output torque M2: 1946 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 24250/28050 N
	HL2 080 22,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 64.6 rpm \| Output torque M2: 2085 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 35000/40450 N
	HL2 030 23,2 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 2119 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 24950/28950 N
	HL2 050 23,2 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 63.6 rpm \| Output torque M2: 2119 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 24950/28950 N
	HL2 080 26,3 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 56.1 rpm \| Output torque M2: 2403 Nm \| Service factor fs: 2.3 \| Radial load Fr2 CS/SS: 36750/42500 N
	HL2 050 26,7 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 55.2 rpm \| Output torque M2: 2442 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 25600/29850 N
	HL2 080 28,6 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 51.5 rpm \| Output torque M2: 2616 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 37550/43400 N
	HL2 050 28,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 51.2 rpm \| Output torque M2: 2633 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 26050/30300 N
	HL2 050 31,9 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 46.2 rpm \| Output torque M2: 2915 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 27250/31600 N
	HL2 080 33,0 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 44.7 rpm \| Output torque M2: 3015 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 38950/45100 N
	HL2 050 33,2 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 44.4 rpm \| Output torque M2: 3035 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 27600/32000 N
	HL2 080 38,4 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 38.4 rpm \| Output torque M2: 3505 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 41250/47650 N
	HL2 130 38,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 38.0 rpm \| Output torque M2: 3542 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 45300/59600 N
	HL2 050 39,6 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 37.2 rpm \| Output torque M2: 3622 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 29150/33650 N
	HL2 080 45,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 32.2 rpm \| Output torque M2: 4183 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 43200/49900 N
	HL2 130 46,0 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 32.1 rpm \| Output torque M2: 4204 Nm \| Service factor fs: 1.9 \| Radial load Fr2 CS/SS: 47750/62800 N
	HL2 180 46,0 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 32.1 rpm \| Output torque M2: 4204 Nm \| Service factor fs: 2.8 \| Radial load Fr2 CS/SS: 48800/62800 N
	HL3 130 48,4 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 30.4 rpm \| Output torque M2: 4294 Nm \| Service factor fs: 2.4 \| Radial load Fr2 CS/SS: 48350/63550 N
	HL3 180 48,4 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 30.4 rpm \| Output torque M2: 4294 Nm \| Service factor fs: 2.6 \| Radial load Fr2 CS/SS: 49350/63550 N
	HL3 050 51,2 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 28.8 rpm \| Output torque M2: 4534 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 31450/36350 N
	HL3 080 53,5 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 27.6 rpm \| Output torque M2: 4743 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 45300/52350 N
	HL2 080 55,4 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 26.6 rpm \| Output torque M2: 5061 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 45800/52800 N
	HL3 130 60,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 24.3 rpm \| Output torque M2: 5390 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 51700/68100 N
	HL3 180 60,8 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 24.3 rpm \| Output torque M2: 5390 Nm \| Service factor fs: 2.5 \| Radial load Fr2 CS/SS: 52900/68100 N
	HL3 080 63,2 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 23.3 rpm \| Output torque M2: 5600 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 48100/55550 N
	HL3 130 76,3 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 6767 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 55450/73000 N
	HL3 180 76,3 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 19.3 rpm \| Output torque M2: 6767 Nm \| Service factor fs: 2.2 \| Radial load Fr2 CS/SS: 56650/73000 N
	HL3 130 78,0 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 6917 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 55750/73450 N
	HL3 180 78,0 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 18.9 rpm \| Output torque M2: 6917 Nm \| Service factor fs: 2.0 \| Radial load Fr2 CS/SS: 57000/73450 N
	HL3 080 79,3 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 18.6 rpm \| Output torque M2: 7030 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 51000/58900 N
	HL3 080 83,5 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 17.7 rpm \| Output torque M2: 7400 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 51350/59300 N
	HL3 130 94,9 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 8409 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 59200/77950 N
	HL3 180 94,9 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.5 rpm \| Output torque M2: 8409 Nm \| Service factor fs: 1.8 \| Radial load Fr2 CS/SS: 61150/77950 N
	HL3 180 98,0 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.1 rpm \| Output torque M2: 8684 Nm \| Service factor fs: 1.7 \| Radial load Fr2 CS/SS: 61300/78550 N
	HL3 080 98,6 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 15.0 rpm \| Output torque M2: 8736 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 54500/62950 N
	HL3 130 104 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 14.2 rpm \| Output torque M2: 9214 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 60800/80000 N
	HL3 130 112 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 9908 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 62050/81700 N
	HL3 180 112 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 13.2 rpm \| Output torque M2: 9908 Nm \| Service factor fs: 1.5 \| Radial load Fr2 CS/SS: 63500/81700 N
	HL3 130 122 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 10791 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 63700/83850 N
	HL3 180 122 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 12.1 rpm \| Output torque M2: 10791 Nm \| Service factor fs: 1.4 \| Radial load Fr2 CS/SS: 65150/83850 N
	HL3 180 140 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 10.5 rpm \| Output torque M2: 12438 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 68000/87600 N
	HL3 180 151 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 9.7 rpm \| Output torque M2: 13410 Nm \| Service factor fs: 1.2 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 130 162 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 14374 Nm \| Service factor fs: 0.9 \| Radial load Fr2 CS/SS: 67500/88800 N
	HL3 180 162 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 9.1 rpm \| Output torque M2: 14374 Nm \| Service factor fs: 1.1 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL3 180 174 160LA4	Power P1: 15.00 kW \| Motor: 160LA4 \| Output speed n2: 8.5 rpm \| Output torque M2: 15456 Nm \| Service factor fs: 1.0 \| Radial load Fr2 CS/SS: 69000/88800 N
	HL1 080 7,50 200L4	Power P1: 30.00 kW \| Motor: 200L4 \| Output speed n2: 196.7 rpm \| Output torque M2: 1413 Nm \| Service factor fs: 2.7 \| Radial load Fr2 CS/SS: 25100/29000 N

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario HL Planetary Inline Gearmotors (HL1-HL4, 0.25-30 kW)
