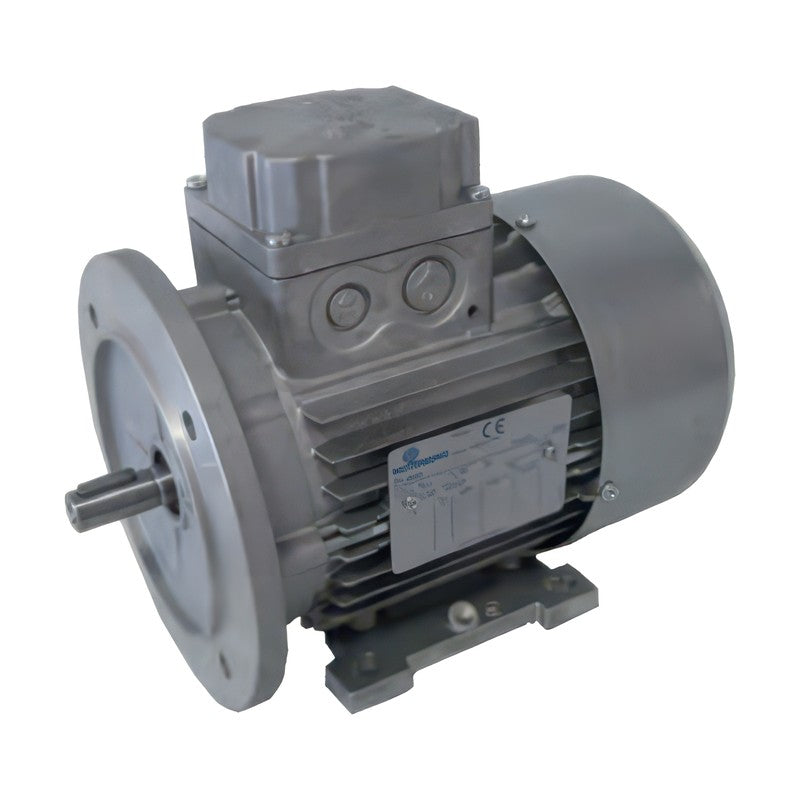

Motovario HSE Single-Phase High Starting Torque Motors (0.12-2.2 kW)

Motovario HSE series single-phase motors with run and electronically switched start capacitors for high starting torque, 4-pole, 230 V 50 Hz, IEC frames 63 to 100.

Key features

Run capacitor plus start capacitor disconnected by an electronic switch after start-up
Starting torque Ms/Mn 2.1 to 2.5 - for compressors, conveyors and loaded starts on single-phase supply
4-pole design, rated outputs 0.12 to 2.2 kW in IEC frames 63 to 100
Triac electronic cutout senses start-capacitor voltage and disconnects at approx. 70% of rated speed; restart possible after 1 s
Internal protection trips if start-up exceeds 3 s; discharge resistor protects the capacitors; same overall dimensions as S series

Specifications

Motor type	Single-phase asynchronous, run + start capacitor
Poles	4
Supply	230 V 50 Hz single-phase
Power range	0.12 - 2.2 kW
Frame sizes	IEC 63 - 100
Starting torque Ms/Mn	2.1 - 2.5
Duty / insulation	S1 / class F
Mounting positions	B5, B14, B3, B10, B11, B34, B35
Brake version	HSB on request
Source	Motovario Electric Motors catalog, p. 31, 104-107, 161

HSE 63A4		Frame: 63A \| Power Pn: 0.12 kW \| Speed nn: 1420 rpm \| Current In 230V: 1.3 A \| Rated torque Mn: 0.81 Nm \| Capacitor run/start: 6.3/12.5 uF
HSE 63B4		Frame: 63B \| Power Pn: 0.18 kW \| Speed nn: 1400 rpm \| Current In 230V: 1.6 A \| Rated torque Mn: 1.23 Nm \| Capacitor run/start: 8/16 uF
HSE 71A4		Frame: 71A \| Power Pn: 0.25 kW \| Speed nn: 1340 rpm \| Current In 230V: 2.1 A \| Rated torque Mn: 1.78 Nm \| Capacitor run/start: 10/20 uF
HSE 71B4		Frame: 71B \| Power Pn: 0.37 kW \| Speed nn: 1360 rpm \| Current In 230V: 2.8 A \| Rated torque Mn: 2.6 Nm \| Capacitor run/start: 14/25 uF
HSE 80A4		Frame: 80A \| Power Pn: 0.55 kW \| Speed nn: 1400 rpm \| Current In 230V: 3.8 A \| Rated torque Mn: 3.8 Nm \| Capacitor run/start: 20/40 uF
HSE 80B4		Frame: 80B \| Power Pn: 0.75 kW \| Speed nn: 1400 rpm \| Current In 230V: 5.1 A \| Rated torque Mn: 5.1 Nm \| Capacitor run/start: 25/50 uF
HSE 90S4		Frame: 90S \| Power Pn: 1.1 kW \| Speed nn: 1370 rpm \| Current In 230V: 7.7 A \| Rated torque Mn: 7.7 Nm \| Capacitor run/start: 30/100 uF
HSE 90L4		Frame: 90L \| Power Pn: 1.5 kW \| Speed nn: 1350 rpm \| Current In 230V: 9.3 A \| Rated torque Mn: 10.6 Nm \| Capacitor run/start: 40/125 uF
HSE 100LA4		Frame: 100LA \| Power Pn: 2.2 kW \| Speed nn: 1360 rpm \| Current In 230V: 14.7 A \| Rated torque Mn: 15.4 Nm \| Capacitor run/start: 50/150 uF
