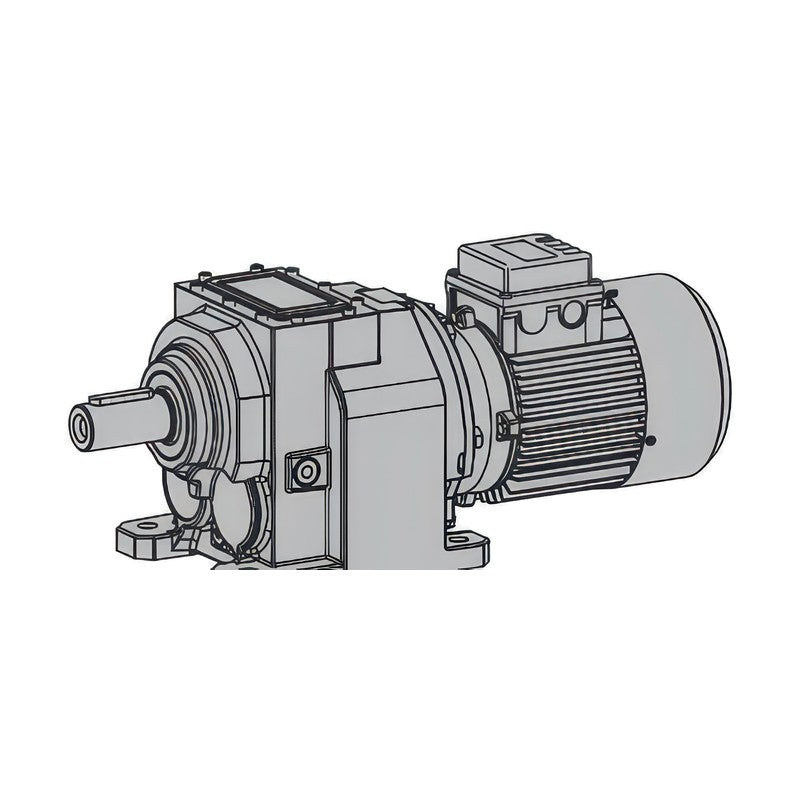

Motovario IH Cast Iron Helical Inline Gear Reducers, Input Shaft

Motovario H series double and triple stage helical inline gear reducers with solid input shaft (IH type) in grey cast iron, sizes 032/033 to 142/143.

Key features

Order code = unit + ratio as printed in the IH/IHA performance tables, e.g. IH032 4,70
Double stage sizes 032-142 and triple stage sizes 033-143; average efficiency 0.96 / 0.94
Grey cast iron casing, blue RAL 5010 paint; sizes 125/140 with cast iron cover and metal nameplate
Foot (standard), F flanged and U universal casings; output flanges FA, FB, FC, FD
Output shaft 25 to 90 mm, input shaft 24 to 42 mm depending on size
Ratings published for input speeds 500 to 1750 rpm; row data at 1400 rpm

Specifications

Series	H cast iron helical inline, IH type
Input	Solid input shaft (IH, ECE)
Sizes	032/033 to 142/143 (8 frame sizes)
Stages	2 (size xx2) or 3 (size xx3)
Ratio range i	4.70-282.10
Rated torque Mn2	95-8000 Nm
Rated power Pn1 (1400 rpm)	0.13-133.18 kW
Rating basis (rows)	Input speed n1 = 1400 rpm
Rating tables also at	n1 = 1750, 1140, 900, 700, 500 rpm
Mounting positions	B3, B5, B8, B6, B7, V5, V1, V6, V3
Source	Motovario H Series Technical Catalogue IEC STD, p. 15-19, 64-65, 208-288

IH032 4,70		Size: 032 \| Ratio i: 4.70 \| Rated torque Mn2: 95 Nm \| Rated power Pn1: 3.09 kW \| Output speed n2: 298.1 rpm \| Radial load Fr1/Fr2: 700/2996 N
IH032 6,23		Size: 032 \| Ratio i: 6.23 \| Rated torque Mn2: 105 Nm \| Rated power Pn1: 2.57 kW \| Output speed n2: 224.8 rpm \| Radial load Fr1/Fr2: 817/3285 N
IH032 7,76		Size: 032 \| Ratio i: 7.76 \| Rated torque Mn2: 125 Nm \| Rated power Pn1: 2.46 kW \| Output speed n2: 180.3 rpm \| Radial load Fr1/Fr2: 843/3410 N
IH032 8,87		Size: 032 \| Ratio i: 8.87 \| Rated torque Mn2: 130 Nm \| Rated power Pn1: 2.24 kW \| Output speed n2: 157.9 rpm \| Radial load Fr1/Fr2: 894/3572 N
IH032 10,14		Size: 032 \| Ratio i: 10.14 \| Rated torque Mn2: 140 Nm \| Rated power Pn1: 2.11 kW \| Output speed n2: 138.0 rpm \| Radial load Fr1/Fr2: 924/3694 N
IH032 11,76		Size: 032 \| Ratio i: 11.76 \| Rated torque Mn2: 145 Nm \| Rated power Pn1: 1.88 kW \| Output speed n2: 119.0 rpm \| Radial load Fr1/Fr2: 975/3902 N
IH032 13,72		Size: 032 \| Ratio i: 13.72 \| Rated torque Mn2: 170 Nm \| Rated power Pn1: 1.89 kW \| Output speed n2: 102.0 rpm \| Radial load Fr1/Fr2: 973/3927 N
IH032 14,66		Size: 032 \| Ratio i: 14.66 \| Rated torque Mn2: 170 Nm \| Rated power Pn1: 1.77 kW \| Output speed n2: 95.5 rpm \| Radial load Fr1/Fr2: 1000/4054 N
IH032 16,77		Size: 032 \| Ratio i: 16.77 \| Rated torque Mn2: 190 Nm \| Rated power Pn1: 1.73 kW \| Output speed n2: 83.5 rpm \| Radial load Fr1/Fr2: 1010/4113 N
IH032 18,20		Size: 032 \| Ratio i: 18.20 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.68 kW \| Output speed n2: 76.9 rpm \| Radial load Fr1/Fr2: 1021/4178 N
IH032 19,90		Size: 032 \| Ratio i: 19.90 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.53 kW \| Output speed n2: 70.4 rpm \| Radial load Fr1/Fr2: 1054/4366 N
IH032 22,68		Size: 032 \| Ratio i: 22.68 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.35 kW \| Output speed n2: 61.7 rpm \| Radial load Fr1/Fr2: 1097/4654 N
IH032 23,83		Size: 032 \| Ratio i: 23.83 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.28 kW \| Output speed n2: 58.7 rpm \| Radial load Fr1/Fr2: 1112/4766 N
IH032 26,39		Size: 032 \| Ratio i: 26.39 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.16 kW \| Output speed n2: 53.0 rpm \| Radial load Fr1/Fr2: 1140/5003 N
IH032 29,70		Size: 032 \| Ratio i: 29.70 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.03 kW \| Output speed n2: 47.1 rpm \| Radial load Fr1/Fr2: 1169/5287 N
IH032 32,89		Size: 032 \| Ratio i: 32.89 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.93 kW \| Output speed n2: 42.6 rpm \| Radial load Fr1/Fr2: 1192/5500 N
IH032 37,92		Size: 032 \| Ratio i: 37.92 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.81 kW \| Output speed n2: 36.9 rpm \| Radial load Fr1/Fr2: 1220/5500 N
IH032 41,40		Size: 032 \| Ratio i: 41.40 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.74 kW \| Output speed n2: 33.8 rpm \| Radial load Fr1/Fr2: 1236/5500 N
IH032 47,25		Size: 032 \| Ratio i: 47.25 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.65 kW \| Output speed n2: 29.6 rpm \| Radial load Fr1/Fr2: 1257/5500 N
IH033 53,59		Size: 033 \| Ratio i: 53.59 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.58 kW \| Output speed n2: 26.1 rpm \| Radial load Fr1/Fr2: 1274/5500 N
IH033 66,78		Size: 033 \| Ratio i: 66.78 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.47 kW \| Output speed n2: 21.0 rpm \| Radial load Fr1/Fr2: 1300/5500 N
IH033 74,84		Size: 033 \| Ratio i: 74.84 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.42 kW \| Output speed n2: 18.7 rpm \| Radial load Fr1/Fr2: 1311/5500 N
IH033 99,27		Size: 033 \| Ratio i: 99.27 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.31 kW \| Output speed n2: 14.1 rpm \| Radial load Fr1/Fr2: 1334/5500 N
IH033 108,05		Size: 033 \| Ratio i: 108.05 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.29 kW \| Output speed n2: 13.0 rpm \| Radial load Fr1/Fr2: 1339/5500 N
IH033 123,71		Size: 033 \| Ratio i: 123.71 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.25 kW \| Output speed n2: 11.3 rpm \| Radial load Fr1/Fr2: 1348/5500 N
IH033 143,33		Size: 033 \| Ratio i: 143.33 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.22 kW \| Output speed n2: 9.8 rpm \| Radial load Fr1/Fr2: 1355/5500 N
IH033 178,61		Size: 033 \| Ratio i: 178.61 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.17 kW \| Output speed n2: 7.8 rpm \| Radial load Fr1/Fr2: 1365/5500 N
IH033 197,17		Size: 033 \| Ratio i: 197.17 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.16 kW \| Output speed n2: 7.1 rpm \| Radial load Fr1/Fr2: 1369/5500 N
IH033 245,70		Size: 033 \| Ratio i: 245.70 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.13 kW \| Output speed n2: 5.7 rpm \| Radial load Fr1/Fr2: 1375/5500 N
IH042 5,46		Size: 042 \| Ratio i: 5.46 \| Rated torque Mn2: 160 Nm \| Rated power Pn1: 4.47 kW \| Output speed n2: 256.3 rpm \| Radial load Fr1/Fr2: 434/3883 N
IH042 7,19		Size: 042 \| Ratio i: 7.19 \| Rated torque Mn2: 160 Nm \| Rated power Pn1: 3.40 kW \| Output speed n2: 194.8 rpm \| Radial load Fr1/Fr2: 673/4382 N
IH042 8,91		Size: 042 \| Ratio i: 8.91 \| Rated torque Mn2: 210 Nm \| Rated power Pn1: 3.60 kW \| Output speed n2: 157.1 rpm \| Radial load Fr1/Fr2: 628/4391 N
IH042 10,31		Size: 042 \| Ratio i: 10.31 \| Rated torque Mn2: 240 Nm \| Rated power Pn1: 3.55 kW \| Output speed n2: 135.7 rpm \| Radial load Fr1/Fr2: 638/4449 N
IH042 11,80		Size: 042 \| Ratio i: 11.80 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 3.24 kW \| Output speed n2: 118.6 rpm \| Radial load Fr1/Fr2: 709/4661 N
IH042 13,57		Size: 042 \| Ratio i: 13.57 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 2.81 kW \| Output speed n2: 103.2 rpm \| Radial load Fr1/Fr2: 803/4983 N
IH042 15,96		Size: 042 \| Ratio i: 15.96 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 2.39 kW \| Output speed n2: 87.7 rpm \| Radial load Fr1/Fr2: 897/5374 N
IH042 19,00		Size: 042 \| Ratio i: 19.00 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 2.01 kW \| Output speed n2: 73.7 rpm \| Radial load Fr1/Fr2: 982/5820 N
IH042 21,00		Size: 042 \| Ratio i: 21.00 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 1.82 kW \| Output speed n2: 66.7 rpm \| Radial load Fr1/Fr2: 1024/6088 N
IH042 23,15		Size: 042 \| Ratio i: 23.15 \| Rated torque Mn2: 260 Nm \| Rated power Pn1: 1.72 kW \| Output speed n2: 60.5 rpm \| Radial load Fr1/Fr2: 1047/6274 N
IH042 26,04		Size: 042 \| Ratio i: 26.04 \| Rated torque Mn2: 260 Nm \| Rated power Pn1: 1.52 kW \| Output speed n2: 53.8 rpm \| Radial load Fr1/Fr2: 1089/6600 N
IH042 27,50		Size: 042 \| Ratio i: 27.50 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.55 kW \| Output speed n2: 50.9 rpm \| Radial load Fr1/Fr2: 1083/6600 N
IH042 30,45		Size: 042 \| Ratio i: 30.45 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.40 kW \| Output speed n2: 46.0 rpm \| Radial load Fr1/Fr2: 1116/6600 N
IH042 34,10		Size: 042 \| Ratio i: 34.10 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.25 kW \| Output speed n2: 41.1 rpm \| Radial load Fr1/Fr2: 1150/6600 N
IH042 37,76		Size: 042 \| Ratio i: 37.76 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.13 kW \| Output speed n2: 37.1 rpm \| Radial load Fr1/Fr2: 1177/6600 N
IH042 43,75		Size: 042 \| Ratio i: 43.75 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 0.98 kW \| Output speed n2: 32.0 rpm \| Radial load Fr1/Fr2: 1211/6600 N
IH042 47,53		Size: 042 \| Ratio i: 47.53 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 0.90 kW \| Output speed n2: 29.4 rpm \| Radial load Fr1/Fr2: 1228/6600 N
IH042 54,25		Size: 042 \| Ratio i: 54.25 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 0.79 kW \| Output speed n2: 25.8 rpm \| Radial load Fr1/Fr2: 1253/6600 N
IH043 61,83		Size: 043 \| Ratio i: 61.83 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.76 kW \| Output speed n2: 22.6 rpm \| Radial load Fr1/Fr2: 1264/6600 N
IH043 76,67		Size: 043 \| Ratio i: 76.67 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.61 kW \| Output speed n2: 18.3 rpm \| Radial load Fr1/Fr2: 1296/6600 N
IH043 87,05		Size: 043 \| Ratio i: 87.05 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.54 kW \| Output speed n2: 16.1 rpm \| Radial load Fr1/Fr2: 1311/6600 N
IH043 114,55		Size: 043 \| Ratio i: 114.55 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.41 kW \| Output speed n2: 12.2 rpm \| Radial load Fr1/Fr2: 1340/6600 N
IH043 125,69		Size: 043 \| Ratio i: 125.69 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.37 kW \| Output speed n2: 11.1 rpm \| Radial load Fr1/Fr2: 1347/6600 N
IH043 142,04		Size: 043 \| Ratio i: 142.04 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.33 kW \| Output speed n2: 9.9 rpm \| Radial load Fr1/Fr2: 1357/6600 N
IH043 165,38		Size: 043 \| Ratio i: 165.38 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.28 kW \| Output speed n2: 8.5 rpm \| Radial load Fr1/Fr2: 1367/6600 N
IH043 205,07		Size: 043 \| Ratio i: 205.07 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.23 kW \| Output speed n2: 6.8 rpm \| Radial load Fr1/Fr2: 1379/6600 N
IH043 227,50		Size: 043 \| Ratio i: 227.50 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.21 kW \| Output speed n2: 6.2 rpm \| Radial load Fr1/Fr2: 1384/6600 N
IH043 282,10		Size: 043 \| Ratio i: 282.10 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.17 kW \| Output speed n2: 5.0 rpm \| Radial load Fr1/Fr2: 1392/6600 N
IH052 5,73		Size: 052 \| Ratio i: 5.73 \| Rated torque Mn2: 260 Nm \| Rated power Pn1: 6.93 kW \| Output speed n2: 244.4 rpm \| Radial load Fr1/Fr2: 259/4808 N
IH052 6,89		Size: 052 \| Ratio i: 6.89 \| Rated torque Mn2: 290 Nm \| Rated power Pn1: 6.42 kW \| Output speed n2: 203.1 rpm \| Radial load Fr1/Fr2: 343/5024 N
IH052 8,53		Size: 052 \| Ratio i: 8.53 \| Rated torque Mn2: 340 Nm \| Rated power Pn1: 6.09 kW \| Output speed n2: 164.2 rpm \| Radial load Fr1/Fr2: 398/5202 N
IH052 9,56		Size: 052 \| Ratio i: 9.56 \| Rated torque Mn2: 370 Nm \| Rated power Pn1: 5.91 kW \| Output speed n2: 146.4 rpm \| Radial load Fr1/Fr2: 428/5292 N
IH052 11,51		Size: 052 \| Ratio i: 11.51 \| Rated torque Mn2: 390 Nm \| Rated power Pn1: 5.17 kW \| Output speed n2: 121.6 rpm \| Radial load Fr1/Fr2: 548/5654 N
IH052 14,24		Size: 052 \| Ratio i: 14.24 \| Rated torque Mn2: 430 Nm \| Rated power Pn1: 4.61 kW \| Output speed n2: 98.3 rpm \| Radial load Fr1/Fr2: 641/5993 N
IH052 16,59		Size: 052 \| Ratio i: 16.59 \| Rated torque Mn2: 450 Nm \| Rated power Pn1: 4.14 kW \| Output speed n2: 84.4 rpm \| Radial load Fr1/Fr2: 718/6324 N
IH052 18,00		Size: 052 \| Ratio i: 18.00 \| Rated torque Mn2: 460 Nm \| Rated power Pn1: 3.90 kW \| Output speed n2: 77.8 rpm \| Radial load Fr1/Fr2: 757/6513 N
IH052 19,97		Size: 052 \| Ratio i: 19.97 \| Rated torque Mn2: 460 Nm \| Rated power Pn1: 3.52 kW \| Output speed n2: 70.1 rpm \| Radial load Fr1/Fr2: 821/6852 N
IH052 21,67		Size: 052 \| Ratio i: 21.67 \| Rated torque Mn2: 470 Nm \| Rated power Pn1: 3.31 kW \| Output speed n2: 64.6 rpm \| Radial load Fr1/Fr2: 854/7058 N
IH052 24,71		Size: 052 \| Ratio i: 24.71 \| Rated torque Mn2: 470 Nm \| Rated power Pn1: 2.90 kW \| Output speed n2: 56.7 rpm \| Radial load Fr1/Fr2: 921/7514 N
IH052 26,18		Size: 052 \| Ratio i: 26.18 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.86 kW \| Output speed n2: 53.5 rpm \| Radial load Fr1/Fr2: 929/7588 N
IH052 28,44		Size: 052 \| Ratio i: 28.44 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.63 kW \| Output speed n2: 49.2 rpm \| Radial load Fr1/Fr2: 966/7892 N
IH052 31,52		Size: 052 \| Ratio i: 31.52 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.37 kW \| Output speed n2: 44.4 rpm \| Radial load Fr1/Fr2: 1008/8000 N
IH052 33,00		Size: 052 \| Ratio i: 33.00 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.27 kW \| Output speed n2: 42.4 rpm \| Radial load Fr1/Fr2: 1026/8000 N
IH052 38,98		Size: 052 \| Ratio i: 38.98 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.92 kW \| Output speed n2: 35.9 rpm \| Radial load Fr1/Fr2: 1083/8000 N
IH052 45,36		Size: 052 \| Ratio i: 45.36 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.65 kW \| Output speed n2: 30.9 rpm \| Radial load Fr1/Fr2: 1127/8000 N
IH052 49,13		Size: 052 \| Ratio i: 49.13 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.52 kW \| Output speed n2: 28.5 rpm \| Radial load Fr1/Fr2: 1148/8000 N
IH052 56,11		Size: 052 \| Ratio i: 56.11 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.33 kW \| Output speed n2: 24.9 rpm \| Radial load Fr1/Fr2: 1179/8000 N
IH053 58,81		Size: 053 \| Ratio i: 58.81 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 1.33 kW \| Output speed n2: 23.8 rpm \| Radial load Fr1/Fr2: 1185/8000 N
IH053 72,75		Size: 053 \| Ratio i: 72.75 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 1.07 kW \| Output speed n2: 19.2 rpm \| Radial load Fr1/Fr2: 1226/8000 N
IH053 90,51		Size: 053 \| Ratio i: 90.51 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.86 kW \| Output speed n2: 15.5 rpm \| Radial load Fr1/Fr2: 1260/8000 N
IH053 108,95		Size: 053 \| Ratio i: 108.95 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.72 kW \| Output speed n2: 12.8 rpm \| Radial load Fr1/Fr2: 1283/8000 N
IH053 134,76		Size: 053 \| Ratio i: 134.76 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.58 kW \| Output speed n2: 10.4 rpm \| Radial load Fr1/Fr2: 1305/8000 N
IH053 157,29		Size: 053 \| Ratio i: 157.29 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.50 kW \| Output speed n2: 8.9 rpm \| Radial load Fr1/Fr2: 1319/8000 N
IH053 194,56		Size: 053 \| Ratio i: 194.56 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.40 kW \| Output speed n2: 7.2 rpm \| Radial load Fr1/Fr2: 1334/8000 N
IH053 216,38		Size: 053 \| Ratio i: 216.38 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.36 kW \| Output speed n2: 6.5 rpm \| Radial load Fr1/Fr2: 1340/8000 N
IH053 267,65		Size: 053 \| Ratio i: 267.65 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.29 kW \| Output speed n2: 5.2 rpm \| Radial load Fr1/Fr2: 1352/8000 N
IH062 5,38		Size: 062 \| Ratio i: 5.38 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 14.21 kW \| Output speed n2: 260.5 rpm \| Radial load Fr1/Fr2: 853/7772 N
IH062 5,93		Size: 062 \| Ratio i: 5.93 \| Rated torque Mn2: 550 Nm \| Rated power Pn1: 14.15 kW \| Output speed n2: 235.9 rpm \| Radial load Fr1/Fr2: 860/7839 N
IH062 7,39		Size: 062 \| Ratio i: 7.39 \| Rated torque Mn2: 550 Nm \| Rated power Pn1: 11.36 kW \| Output speed n2: 189.4 rpm \| Radial load Fr1/Fr2: 1250/8677 N
IH062 8,50		Size: 062 \| Ratio i: 8.50 \| Rated torque Mn2: 600 Nm \| Rated power Pn1: 10.78 kW \| Output speed n2: 164.7 rpm \| Radial load Fr1/Fr2: 1332/8953 N
IH062 9,39		Size: 062 \| Ratio i: 9.39 \| Rated torque Mn2: 600 Nm \| Rated power Pn1: 9.76 kW \| Output speed n2: 149.2 rpm \| Radial load Fr1/Fr2: 1475/9371 N
IH062 11,69		Size: 062 \| Ratio i: 11.69 \| Rated torque Mn2: 650 Nm \| Rated power Pn1: 8.49 kW \| Output speed n2: 119.8 rpm \| Radial load Fr1/Fr2: 1652/10056 N
IH062 12,67		Size: 062 \| Ratio i: 12.67 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 8.44 kW \| Output speed n2: 110.5 rpm \| Radial load Fr1/Fr2: 1660/10141 N
IH062 14,75		Size: 062 \| Ratio i: 14.75 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 7.25 kW \| Output speed n2: 94.9 rpm \| Radial load Fr1/Fr2: 1827/10881 N
IH062 16,29		Size: 062 \| Ratio i: 16.29 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 7.50 kW \| Output speed n2: 86.0 rpm \| Radial load Fr1/Fr2: 1791/10801 N
IH062 17,67		Size: 062 \| Ratio i: 17.67 \| Rated torque Mn2: 830 Nm \| Rated power Pn1: 7.17 kW \| Output speed n2: 79.2 rpm \| Radial load Fr1/Fr2: 1837/11051 N
IH062 20,28		Size: 062 \| Ratio i: 20.28 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 6.40 kW \| Output speed n2: 69.0 rpm \| Radial load Fr1/Fr2: 1946/11682 N
IH062 23,27		Size: 062 \| Ratio i: 23.27 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 5.58 kW \| Output speed n2: 60.2 rpm \| Radial load Fr1/Fr2: 2061/12000 N
IH062 25,70		Size: 062 \| Ratio i: 25.70 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 5.05 kW \| Output speed n2: 54.5 rpm \| Radial load Fr1/Fr2: 2134/12000 N
IH062 29,33		Size: 062 \| Ratio i: 29.33 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 4.16 kW \| Output speed n2: 47.7 rpm \| Radial load Fr1/Fr2: 2259/12000 N
IH062 32,00		Size: 062 \| Ratio i: 32.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 4.06 kW \| Output speed n2: 43.8 rpm \| Radial load Fr1/Fr2: 2274/12000 N
IH062 36,99		Size: 062 \| Ratio i: 36.99 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 3.30 kW \| Output speed n2: 37.9 rpm \| Radial load Fr1/Fr2: 2379/12000 N
IH062 40,33		Size: 062 \| Ratio i: 40.33 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 3.22 kW \| Output speed n2: 34.7 rpm \| Radial load Fr1/Fr2: 2391/12000 N
IH062 46,06		Size: 062 \| Ratio i: 46.06 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 2.82 kW \| Output speed n2: 30.4 rpm \| Radial load Fr1/Fr2: 2447/12000 N
IH063 49,45		Size: 063 \| Ratio i: 49.45 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 2.68 kW \| Output speed n2: 28.3 rpm \| Radial load Fr1/Fr2: 2474/12000 N
IH063 54,61		Size: 063 \| Ratio i: 54.61 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 2.43 kW \| Output speed n2: 25.6 rpm \| Radial load Fr1/Fr2: 2509/12000 N
IH063 68,00		Size: 063 \| Ratio i: 68.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.95 kW \| Output speed n2: 20.6 rpm \| Radial load Fr1/Fr2: 2574/12000 N
IH063 85,82		Size: 063 \| Ratio i: 85.82 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.54 kW \| Output speed n2: 16.3 rpm \| Radial load Fr1/Fr2: 2630/12000 N
IH063 94,76		Size: 063 \| Ratio i: 94.76 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.40 kW \| Output speed n2: 14.8 rpm \| Radial load Fr1/Fr2: 2650/12000 N
IH063 118,00		Size: 063 \| Ratio i: 118.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.12 kW \| Output speed n2: 11.9 rpm \| Radial load Fr1/Fr2: 2688/12000 N
IH063 135,40		Size: 063 \| Ratio i: 135.40 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.98 kW \| Output speed n2: 10.3 rpm \| Radial load Fr1/Fr2: 2707/12000 N
IH063 149,51		Size: 063 \| Ratio i: 149.51 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.89 kW \| Output speed n2: 9.4 rpm \| Radial load Fr1/Fr2: 2720/12000 N
IH063 170,67		Size: 063 \| Ratio i: 170.67 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.78 kW \| Output speed n2: 8.2 rpm \| Radial load Fr1/Fr2: 2735/12000 N
IH063 186,18		Size: 063 \| Ratio i: 186.18 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.71 kW \| Output speed n2: 7.5 rpm \| Radial load Fr1/Fr2: 2744/12000 N
IH063 215,21		Size: 063 \| Ratio i: 215.21 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.62 kW \| Output speed n2: 6.5 rpm \| Radial load Fr1/Fr2: 2757/12000 N
IH063 234,67		Size: 063 \| Ratio i: 234.67 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.56 kW \| Output speed n2: 6.0 rpm \| Radial load Fr1/Fr2: 2764/12000 N
IH063 268,00		Size: 063 \| Ratio i: 268.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.49 kW \| Output speed n2: 5.2 rpm \| Radial load Fr1/Fr2: 2774/12000 N
IH082 5,39		Size: 082 \| Ratio i: 5.39 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 19.84 kW \| Output speed n2: 259.8 rpm \| Radial load Fr1/Fr2: 816/9756 N
IH082 5,95		Size: 082 \| Ratio i: 5.95 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 17.98 kW \| Output speed n2: 235.4 rpm \| Radial load Fr1/Fr2: 1021/10188 N
IH082 7,39		Size: 082 \| Ratio i: 7.39 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 16.52 kW \| Output speed n2: 189.3 rpm \| Radial load Fr1/Fr2: 1182/10739 N
IH082 8,02		Size: 082 \| Ratio i: 8.02 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 15.23 kW \| Output speed n2: 174.5 rpm \| Radial load Fr1/Fr2: 1325/11135 N
IH082 8,85		Size: 082 \| Ratio i: 8.85 \| Rated torque Mn2: 900 Nm \| Rated power Pn1: 15.53 kW \| Output speed n2: 158.2 rpm \| Radial load Fr1/Fr2: 1292/11171 N
IH082 11,01		Size: 082 \| Ratio i: 11.01 \| Rated torque Mn2: 1100 Nm \| Rated power Pn1: 15.26 kW \| Output speed n2: 127.2 rpm \| Radial load Fr1/Fr2: 1321/11409 N
IH082 13,50		Size: 082 \| Ratio i: 13.50 \| Rated torque Mn2: 1400 Nm \| Rated power Pn1: 15.84 kW \| Output speed n2: 103.7 rpm \| Radial load Fr1/Fr2: 1258/11195 N
IH082 14,90		Size: 082 \| Ratio i: 14.90 \| Rated torque Mn2: 1500 Nm \| Rated power Pn1: 15.38 kW \| Output speed n2: 94.0 rpm \| Radial load Fr1/Fr2: 1308/11324 N
IH082 16,62		Size: 082 \| Ratio i: 16.62 \| Rated torque Mn2: 1500 Nm \| Rated power Pn1: 13.79 kW \| Output speed n2: 84.3 rpm \| Radial load Fr1/Fr2: 1484/11998 N
IH082 18,53		Size: 082 \| Ratio i: 18.53 \| Rated torque Mn2: 1500 Nm \| Rated power Pn1: 12.36 kW \| Output speed n2: 75.6 rpm \| Radial load Fr1/Fr2: 1641/12695 N
IH082 19,38		Size: 082 \| Ratio i: 19.38 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 12.60 kW \| Output speed n2: 72.2 rpm \| Radial load Fr1/Fr2: 1615/12535 N
IH082 21,39		Size: 082 \| Ratio i: 21.39 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 11.42 kW \| Output speed n2: 65.5 rpm \| Radial load Fr1/Fr2: 1745/13197 N
IH082 22,80		Size: 082 \| Ratio i: 22.80 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 10.72 kW \| Output speed n2: 61.4 rpm \| Radial load Fr1/Fr2: 1824/13639 N
IH082 26,60		Size: 082 \| Ratio i: 26.60 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 9.19 kW \| Output speed n2: 52.6 rpm \| Radial load Fr1/Fr2: 1993/14744 N
IH082 27,88		Size: 082 \| Ratio i: 27.88 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 8.76 kW \| Output speed n2: 50.2 rpm \| Radial load Fr1/Fr2: 2040/15093 N
IH082 31,15		Size: 082 \| Ratio i: 31.15 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 7.84 kW \| Output speed n2: 44.9 rpm \| Radial load Fr1/Fr2: 2141/15937 N
IH082 34,38		Size: 082 \| Ratio i: 34.38 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 7.11 kW \| Output speed n2: 40.7 rpm \| Radial load Fr1/Fr2: 2222/16712 N
IH082 38,70		Size: 082 \| Ratio i: 38.70 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 6.31 kW \| Output speed n2: 36.2 rpm \| Radial load Fr1/Fr2: 2310/17681 N
IH082 42,75		Size: 082 \| Ratio i: 42.75 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 5.72 kW \| Output speed n2: 32.8 rpm \| Radial load Fr1/Fr2: 2376/18000 N
IH082 48,13		Size: 082 \| Ratio i: 48.13 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 5.08 kW \| Output speed n2: 29.1 rpm \| Radial load Fr1/Fr2: 2447/18000 N
IH083 56,53		Size: 083 \| Ratio i: 56.53 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 4.41 kW \| Output speed n2: 24.8 rpm \| Radial load Fr1/Fr2: 2530/18000 N
IH083 71,48		Size: 083 \| Ratio i: 71.48 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 3.93 kW \| Output speed n2: 19.6 rpm \| Radial load Fr1/Fr2: 2583/18000 N
IH083 78,87		Size: 083 \| Ratio i: 78.87 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 3.56 kW \| Output speed n2: 17.8 rpm \| Radial load Fr1/Fr2: 2623/18000 N
IH083 85,56		Size: 083 \| Ratio i: 85.56 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 3.28 kW \| Output speed n2: 16.4 rpm \| Radial load Fr1/Fr2: 2653/18000 N
IH083 98,09		Size: 083 \| Ratio i: 98.09 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 2.86 kW \| Output speed n2: 14.3 rpm \| Radial load Fr1/Fr2: 2698/18000 N
IH083 112,78		Size: 083 \| Ratio i: 112.78 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 2.49 kW \| Output speed n2: 12.4 rpm \| Radial load Fr1/Fr2: 2739/18000 N
IH083 124,44		Size: 083 \| Ratio i: 124.44 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 2.26 kW \| Output speed n2: 11.2 rpm \| Radial load Fr1/Fr2: 2764/18000 N
IH083 142,15		Size: 083 \| Ratio i: 142.15 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.97 kW \| Output speed n2: 9.8 rpm \| Radial load Fr1/Fr2: 2794/18000 N
IH083 154,76		Size: 083 \| Ratio i: 154.76 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.81 kW \| Output speed n2: 9.1 rpm \| Radial load Fr1/Fr2: 2812/18000 N
IH083 162,35		Size: 083 \| Ratio i: 162.35 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.73 kW \| Output speed n2: 8.6 rpm \| Radial load Fr1/Fr2: 2821/18000 N
IH083 179,13		Size: 083 \| Ratio i: 179.13 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.57 kW \| Output speed n2: 7.8 rpm \| Radial load Fr1/Fr2: 2838/18000 N
IH083 195,07		Size: 083 \| Ratio i: 195.07 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.44 kW \| Output speed n2: 7.2 rpm \| Radial load Fr1/Fr2: 2852/18000 N
IH083 222,78		Size: 083 \| Ratio i: 222.78 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.26 kW \| Output speed n2: 6.3 rpm \| Radial load Fr1/Fr2: 2872/18000 N
IH102 5,26		Size: 102 \| Ratio i: 5.26 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 52.23 kW \| Output speed n2: 266.0 rpm \| Radial load Fr1/Fr2: 1731/10378 N
IH102 6,36		Size: 102 \| Ratio i: 6.36 \| Rated torque Mn2: 2000 Nm \| Rated power Pn1: 48.05 kW \| Output speed n2: 220.3 rpm \| Radial load Fr1/Fr2: 1919/10737 N
IH102 7,05		Size: 102 \| Ratio i: 7.05 \| Rated torque Mn2: 2300 Nm \| Rated power Pn1: 49.81 kW \| Output speed n2: 198.6 rpm \| Radial load Fr1/Fr2: 1840/10244 N
IH102 8,27		Size: 102 \| Ratio i: 8.27 \| Rated torque Mn2: 2500 Nm \| Rated power Pn1: 46.14 kW \| Output speed n2: 169.2 rpm \| Radial load Fr1/Fr2: 2006/10525 N
IH102 9,99		Size: 102 \| Ratio i: 9.99 \| Rated torque Mn2: 2800 Nm \| Rated power Pn1: 42.79 kW \| Output speed n2: 140.1 rpm \| Radial load Fr1/Fr2: 2157/10686 N
IH102 11,09		Size: 102 \| Ratio i: 11.09 \| Rated torque Mn2: 3000 Nm \| Rated power Pn1: 41.33 kW \| Output speed n2: 126.3 rpm \| Radial load Fr1/Fr2: 2223/10677 N
IH102 13,32		Size: 102 \| Ratio i: 13.32 \| Rated torque Mn2: 3100 Nm \| Rated power Pn1: 35.53 kW \| Output speed n2: 105.1 rpm \| Radial load Fr1/Fr2: 2486/11693 N
IH102 16,09		Size: 102 \| Ratio i: 16.09 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 30.37 kW \| Output speed n2: 87.0 rpm \| Radial load Fr1/Fr2: 2719/12836 N
IH102 17,85		Size: 102 \| Ratio i: 17.85 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 27.37 kW \| Output speed n2: 78.4 rpm \| Radial load Fr1/Fr2: 2854/13715 N
IH102 19,85		Size: 102 \| Ratio i: 19.85 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 24.62 kW \| Output speed n2: 70.5 rpm \| Radial load Fr1/Fr2: 2979/14645 N
IH102 21,44		Size: 102 \| Ratio i: 21.44 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 22.79 kW \| Output speed n2: 65.3 rpm \| Radial load Fr1/Fr2: 3061/15343 N
IH102 23,97		Size: 102 \| Ratio i: 23.97 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 21.02 kW \| Output speed n2: 58.4 rpm \| Radial load Fr1/Fr2: 3141/16003 N
IH102 25,89		Size: 102 \| Ratio i: 25.89 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 19.46 kW \| Output speed n2: 54.1 rpm \| Radial load Fr1/Fr2: 3212/16747 N
IH102 28,73		Size: 102 \| Ratio i: 28.73 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 17.54 kW \| Output speed n2: 48.7 rpm \| Radial load Fr1/Fr2: 3299/17778 N
IH102 30,72		Size: 102 \| Ratio i: 30.72 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 15.91 kW \| Output speed n2: 45.6 rpm \| Radial load Fr1/Fr2: 3372/18842 N
IH102 34,20		Size: 102 \| Ratio i: 34.20 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 14.29 kW \| Output speed n2: 40.9 rpm \| Radial load Fr1/Fr2: 3446/19969 N
IH102 38,45		Size: 102 \| Ratio i: 38.45 \| Rated torque Mn2: 2800 Nm \| Rated power Pn1: 11.12 kW \| Output speed n2: 36.4 rpm \| Radial load Fr1/Fr2: 3589/22000 N
IH102 41,30		Size: 102 \| Ratio i: 41.30 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 12.20 kW \| Output speed n2: 33.9 rpm \| Radial load Fr1/Fr2: 3540/21674 N
IH102 45,82		Size: 102 \| Ratio i: 45.82 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 11.00 kW \| Output speed n2: 30.6 rpm \| Radial load Fr1/Fr2: 3594/22000 N
IH102 51,52		Size: 102 \| Ratio i: 51.52 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 9.78 kW \| Output speed n2: 27.2 rpm \| Radial load Fr1/Fr2: 3649/22000 N
IH103 55,47		Size: 103 \| Ratio i: 55.47 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 9.84 kW \| Output speed n2: 25.2 rpm \| Radial load Fr1/Fr2: 3656/22000 N
IH103 69,69		Size: 103 \| Ratio i: 69.69 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 7.83 kW \| Output speed n2: 20.1 rpm \| Radial load Fr1/Fr2: 3745/22000 N
IH103 79,82		Size: 103 \| Ratio i: 79.82 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 6.84 kW \| Output speed n2: 17.5 rpm \| Radial load Fr1/Fr2: 3789/22000 N
IH103 84,16		Size: 103 \| Ratio i: 84.16 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 6.49 kW \| Output speed n2: 16.6 rpm \| Radial load Fr1/Fr2: 3804/22000 N
IH103 93,36		Size: 103 \| Ratio i: 93.36 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 5.85 kW \| Output speed n2: 15.0 rpm \| Radial load Fr1/Fr2: 3833/22000 N
IH103 100,07		Size: 103 \| Ratio i: 100.07 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 5.45 kW \| Output speed n2: 14.0 rpm \| Radial load Fr1/Fr2: 3850/22000 N
IH103 120,84		Size: 103 \| Ratio i: 120.84 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 4.52 kW \| Output speed n2: 11.6 rpm \| Radial load Fr1/Fr2: 3892/22000 N
IH103 134,06		Size: 103 \| Ratio i: 134.06 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 4.07 kW \| Output speed n2: 10.4 rpm \| Radial load Fr1/Fr2: 3911/22000 N
IH103 143,42		Size: 103 \| Ratio i: 143.42 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 3.81 kW \| Output speed n2: 9.8 rpm \| Radial load Fr1/Fr2: 3923/22000 N
IH103 160,82		Size: 103 \| Ratio i: 160.82 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 3.39 kW \| Output speed n2: 8.7 rpm \| Radial load Fr1/Fr2: 3941/22000 N
IH103 181,07		Size: 103 \| Ratio i: 181.07 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 3.01 kW \| Output speed n2: 7.7 rpm \| Radial load Fr1/Fr2: 3958/22000 N
IH103 194,21		Size: 103 \| Ratio i: 194.21 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 2.81 kW \| Output speed n2: 7.2 rpm \| Radial load Fr1/Fr2: 3967/22000 N
IH103 215,45		Size: 103 \| Ratio i: 215.45 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 2.53 kW \| Output speed n2: 6.5 rpm \| Radial load Fr1/Fr2: 3979/22000 N
IH103 242,59		Size: 103 \| Ratio i: 242.59 \| Rated torque Mn2: 3600 Nm \| Rated power Pn1: 2.31 kW \| Output speed n2: 5.8 rpm \| Radial load Fr1/Fr2: 3989/22000 N
IH122 5,27		Size: 122 \| Ratio i: 5.27 \| Rated torque Mn2: 3000 Nm \| Rated power Pn1: 86.85 kW \| Output speed n2: 265.4 rpm \| Radial load Fr1/Fr2: 778/15066 N
IH122 5,78		Size: 122 \| Ratio i: 5.78 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 84.61 kW \| Output speed n2: 242.4 rpm \| Radial load Fr1/Fr2: 862/15180 N
IH122 7,05		Size: 122 \| Ratio i: 7.05 \| Rated torque Mn2: 3600 Nm \| Rated power Pn1: 77.99 kW \| Output speed n2: 198.6 rpm \| Radial load Fr1/Fr2: 1110/15643 N
IH122 7,74		Size: 122 \| Ratio i: 7.74 \| Rated torque Mn2: 3700 Nm \| Rated power Pn1: 72.98 kW \| Output speed n2: 180.8 rpm \| Radial load Fr1/Fr2: 1297/16186 N
IH122 8,48		Size: 122 \| Ratio i: 8.48 \| Rated torque Mn2: 3800 Nm \| Rated power Pn1: 68.46 kW \| Output speed n2: 165.2 rpm \| Radial load Fr1/Fr2: 1467/16726 N
IH122 10,35		Size: 122 \| Ratio i: 10.35 \| Rated torque Mn2: 4000 Nm \| Rated power Pn1: 59.04 kW \| Output speed n2: 135.3 rpm \| Radial load Fr1/Fr2: 1819/18071 N
IH122 12,66		Size: 122 \| Ratio i: 12.66 \| Rated torque Mn2: 4400 Nm \| Rated power Pn1: 53.06 kW \| Output speed n2: 110.6 rpm \| Radial load Fr1/Fr2: 2043/18939 N
IH122 13,86		Size: 122 \| Ratio i: 13.86 \| Rated torque Mn2: 4600 Nm \| Rated power Pn1: 50.67 kW \| Output speed n2: 101.0 rpm \| Radial load Fr1/Fr2: 2132/19311 N
IH122 16,92		Size: 122 \| Ratio i: 16.92 \| Rated torque Mn2: 4800 Nm \| Rated power Pn1: 43.32 kW \| Output speed n2: 82.7 rpm \| Radial load Fr1/Fr2: 2408/21011 N
IH122 19,32		Size: 122 \| Ratio i: 19.32 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 39.52 kW \| Output speed n2: 72.5 rpm \| Radial load Fr1/Fr2: 2550/22015 N
IH122 20,57		Size: 122 \| Ratio i: 20.57 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 37.12 kW \| Output speed n2: 68.1 rpm \| Radial load Fr1/Fr2: 2640/22820 N
IH122 22,52		Size: 122 \| Ratio i: 22.52 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 33.90 kW \| Output speed n2: 62.2 rpm \| Radial load Fr1/Fr2: 2760/24014 N
IH122 24,47		Size: 122 \| Ratio i: 24.47 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 31.21 kW \| Output speed n2: 57.2 rpm \| Radial load Fr1/Fr2: 2861/25137 N
IH122 27,49		Size: 122 \| Ratio i: 27.49 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 27.77 kW \| Output speed n2: 50.9 rpm \| Radial load Fr1/Fr2: 2989/26770 N
IH122 29,86		Size: 122 \| Ratio i: 29.86 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 25.57 kW \| Output speed n2: 46.9 rpm \| Radial load Fr1/Fr2: 3072/27970 N
IH122 33,00		Size: 122 \| Ratio i: 33.00 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 23.14 kW \| Output speed n2: 42.4 rpm \| Radial load Fr1/Fr2: 3163/29461 N
IH122 36,13		Size: 122 \| Ratio i: 36.13 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 21.13 kW \| Output speed n2: 38.8 rpm \| Radial load Fr1/Fr2: 3238/30000 N
IH122 44,10		Size: 122 \| Ratio i: 44.10 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 17.31 kW \| Output speed n2: 31.8 rpm \| Radial load Fr1/Fr2: 3381/30000 N
IH123 45,77		Size: 123 \| Ratio i: 45.77 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 17.04 kW \| Output speed n2: 30.6 rpm \| Radial load Fr1/Fr2: 3405/30000 N
IH123 55,87		Size: 123 \| Ratio i: 55.87 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 13.96 kW \| Output speed n2: 25.1 rpm \| Radial load Fr1/Fr2: 3518/30000 N
IH123 67,32		Size: 123 \| Ratio i: 67.32 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 11.58 kW \| Output speed n2: 20.8 rpm \| Radial load Fr1/Fr2: 3605/30000 N
IH123 73,71		Size: 123 \| Ratio i: 73.71 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 10.58 kW \| Output speed n2: 19.0 rpm \| Radial load Fr1/Fr2: 3641/30000 N
IH123 83,34		Size: 123 \| Ratio i: 83.34 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 9.36 kW \| Output speed n2: 16.8 rpm \| Radial load Fr1/Fr2: 3686/30000 N
IH123 89,97		Size: 123 \| Ratio i: 89.97 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 8.67 kW \| Output speed n2: 15.6 rpm \| Radial load Fr1/Fr2: 3711/30000 N
IH123 100,29		Size: 123 \| Ratio i: 100.29 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 7.78 kW \| Output speed n2: 14.0 rpm \| Radial load Fr1/Fr2: 3744/30000 N
IH123 108,34		Size: 123 \| Ratio i: 108.34 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 7.20 kW \| Output speed n2: 12.9 rpm \| Radial load Fr1/Fr2: 3765/30000 N
IH123 118,62		Size: 123 \| Ratio i: 118.62 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 6.57 kW \| Output speed n2: 11.8 rpm \| Radial load Fr1/Fr2: 3788/30000 N
IH123 128,18		Size: 123 \| Ratio i: 128.18 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 6.08 kW \| Output speed n2: 10.9 rpm \| Radial load Fr1/Fr2: 3806/30000 N
IH123 144,79		Size: 123 \| Ratio i: 144.79 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 5.39 kW \| Output speed n2: 9.7 rpm \| Radial load Fr1/Fr2: 3832/30000 N
IH123 155,22		Size: 123 \| Ratio i: 155.22 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 5.02 kW \| Output speed n2: 9.0 rpm \| Radial load Fr1/Fr2: 3845/30000 N
IH123 172,80		Size: 123 \| Ratio i: 172.80 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 4.51 kW \| Output speed n2: 8.1 rpm \| Radial load Fr1/Fr2: 3864/30000 N
IH123 189,19		Size: 123 \| Ratio i: 189.19 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 4.12 kW \| Output speed n2: 7.4 rpm \| Radial load Fr1/Fr2: 3878/30000 N
IH123 207,43		Size: 123 \| Ratio i: 207.43 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 3.76 kW \| Output speed n2: 6.8 rpm \| Radial load Fr1/Fr2: 3891/30000 N
IH123 230,92		Size: 123 \| Ratio i: 230.92 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 3.38 kW \| Output speed n2: 6.1 rpm \| Radial load Fr1/Fr2: 3905/30000 N
IH142 5,27		Size: 142 \| Ratio i: 5.27 \| Rated torque Mn2: 4600 Nm \| Rated power Pn1: 133.18 kW \| Output speed n2: 265.4 rpm \| Radial load Fr1/Fr2: 5102/19072 N
IH142 6,36		Size: 142 \| Ratio i: 6.36 \| Rated torque Mn2: 4900 Nm \| Rated power Pn1: 117.74 kW \| Output speed n2: 220.3 rpm \| Radial load Fr1/Fr2: 5730/20279 N
IH142 7,04		Size: 142 \| Ratio i: 7.04 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 108.41 kW \| Output speed n2: 198.8 rpm \| Radial load Fr1/Fr2: 6109/21198 N
IH142 7,84		Size: 142 \| Ratio i: 7.84 \| Rated torque Mn2: 5300 Nm \| Rated power Pn1: 103.19 kW \| Output speed n2: 178.5 rpm \| Radial load Fr1/Fr2: 6321/21620 N
IH142 9,45		Size: 142 \| Ratio i: 9.45 \| Rated torque Mn2: 6500 Nm \| Rated power Pn1: 105.04 kW \| Output speed n2: 148.2 rpm \| Radial load Fr1/Fr2: 6247/20432 N
IH142 10,47		Size: 142 \| Ratio i: 10.47 \| Rated torque Mn2: 7200 Nm \| Rated power Pn1: 104.98 kW \| Output speed n2: 133.7 rpm \| Radial load Fr1/Fr2: 6249/19728 N
IH142 13,07		Size: 142 \| Ratio i: 13.07 \| Rated torque Mn2: 7300 Nm \| Rated power Pn1: 85.28 kW \| Output speed n2: 107.1 rpm \| Radial load Fr1/Fr2: 7050/22593 N
IH142 15,75		Size: 142 \| Ratio i: 15.75 \| Rated torque Mn2: 7800 Nm \| Rated power Pn1: 75.63 kW \| Output speed n2: 88.9 rpm \| Radial load Fr1/Fr2: 7443/23946 N
IH142 17,45		Size: 142 \| Ratio i: 17.45 \| Rated torque Mn2: 7900 Nm \| Rated power Pn1: 69.11 kW \| Output speed n2: 80.2 rpm \| Radial load Fr1/Fr2: 7708/25294 N
IH142 20,04		Size: 142 \| Ratio i: 20.04 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 60.95 kW \| Output speed n2: 69.8 rpm \| Radial load Fr1/Fr2: 8040/27303 N
IH142 24,15		Size: 142 \| Ratio i: 24.15 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 50.59 kW \| Output speed n2: 58.0 rpm \| Radial load Fr1/Fr2: 8462/30588 N
IH142 26,76		Size: 142 \| Ratio i: 26.76 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 45.65 kW \| Output speed n2: 52.3 rpm \| Radial load Fr1/Fr2: 8663/32488 N
IH142 32,24		Size: 142 \| Ratio i: 32.24 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 37.89 kW \| Output speed n2: 43.4 rpm \| Radial load Fr1/Fr2: 8978/36102 N
IH142 38,85		Size: 142 \| Ratio i: 38.85 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 31.45 kW \| Output speed n2: 36.0 rpm \| Radial load Fr1/Fr2: 9240/39950 N
IH142 43,05		Size: 142 \| Ratio i: 43.05 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 28.37 kW \| Output speed n2: 32.5 rpm \| Radial load Fr1/Fr2: 9365/42176 N
IH143 48,35		Size: 143 \| Ratio i: 48.35 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 25.81 kW \| Output speed n2: 29.0 rpm \| Radial load Fr1/Fr2: 9492/44781 N
IH143 53,53		Size: 143 \| Ratio i: 53.53 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 23.31 kW \| Output speed n2: 26.1 rpm \| Radial load Fr1/Fr2: 9591/47153 N
IH143 59,22		Size: 143 \| Ratio i: 59.22 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 21.07 kW \| Output speed n2: 23.6 rpm \| Radial load Fr1/Fr2: 9680/49587 N
IH143 62,99		Size: 143 \| Ratio i: 62.99 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 19.81 kW \| Output speed n2: 22.2 rpm \| Radial load Fr1/Fr2: 9731/51117 N
IH143 71,35		Size: 143 \| Ratio i: 71.35 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 17.49 kW \| Output speed n2: 19.6 rpm \| Radial load Fr1/Fr2: 9823/54301 N
IH143 79,07		Size: 143 \| Ratio i: 79.07 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 15.78 kW \| Output speed n2: 17.7 rpm \| Radial load Fr1/Fr2: 9891/55000 N
IH143 86,43		Size: 143 \| Ratio i: 86.43 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 14.43 kW \| Output speed n2: 16.2 rpm \| Radial load Fr1/Fr2: 9945/55000 N
IH143 96,21		Size: 143 \| Ratio i: 96.21 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 12.97 kW \| Output speed n2: 14.6 rpm \| Radial load Fr1/Fr2: 10003/55000 N
IH143 104,51		Size: 143 \| Ratio i: 104.51 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 11.94 kW \| Output speed n2: 13.4 rpm \| Radial load Fr1/Fr2: 10044/55000 N
IH143 115,92		Size: 143 \| Ratio i: 115.92 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 10.76 kW \| Output speed n2: 12.1 rpm \| Radial load Fr1/Fr2: 10091/55000 N
IH143 128,47		Size: 143 \| Ratio i: 128.47 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 9.71 kW \| Output speed n2: 10.9 rpm \| Radial load Fr1/Fr2: 10133/55000 N
IH143 139,55		Size: 143 \| Ratio i: 139.55 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 8.94 kW \| Output speed n2: 10.0 rpm \| Radial load Fr1/Fr2: 10164/55000 N
IH143 154,33		Size: 143 \| Ratio i: 154.33 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 8.08 kW \| Output speed n2: 9.1 rpm \| Radial load Fr1/Fr2: 10198/55000 N
IH143 185,96		Size: 143 \| Ratio i: 185.96 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 6.71 kW \| Output speed n2: 7.5 rpm \| Radial load Fr1/Fr2: 10252/55000 N
IH143 206,08		Size: 143 \| Ratio i: 206.08 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 6.05 kW \| Output speed n2: 6.8 rpm \| Radial load Fr1/Fr2: 10279/55000 N
IH123 207.40		Legacy code (older edition, not in current tables) \| Size: 123 \| Ratio i: 207.40
IH032		Legacy code (unit-level listing, ratio to be specified) \| Size: 032 \| Stages: 2
IH033		Legacy code (unit-level listing, ratio to be specified) \| Size: 033 \| Stages: 3
IH042		Legacy code (unit-level listing, ratio to be specified) \| Size: 042 \| Stages: 2
IH043		Legacy code (unit-level listing, ratio to be specified) \| Size: 043 \| Stages: 3
IH052		Legacy code (unit-level listing, ratio to be specified) \| Size: 052 \| Stages: 2
IH053		Legacy code (unit-level listing, ratio to be specified) \| Size: 053 \| Stages: 3
IH062		Legacy code (unit-level listing, ratio to be specified) \| Size: 062 \| Stages: 2
IH063		Legacy code (unit-level listing, ratio to be specified) \| Size: 063 \| Stages: 3
IH082		Legacy code (unit-level listing, ratio to be specified) \| Size: 082 \| Stages: 2
IH083		Legacy code (unit-level listing, ratio to be specified) \| Size: 083 \| Stages: 3
IH102		Legacy code (unit-level listing, ratio to be specified) \| Size: 102 \| Stages: 2
IH103		Legacy code (unit-level listing, ratio to be specified) \| Size: 103 \| Stages: 3
IH122		Legacy code (unit-level listing, ratio to be specified) \| Size: 122 \| Stages: 2
IH123		Legacy code (unit-level listing, ratio to be specified) \| Size: 123 \| Stages: 3
IH142		Legacy code (unit-level listing, ratio to be specified) \| Size: 142 \| Stages: 2
IH143		Legacy code (unit-level listing, ratio to be specified) \| Size: 143 \| Stages: 3

Helical Gear ReducersMotovario

264 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario IH Cast Iron Helical Inline Gear Reducers, Input Shaft

Brand Motovario·Helical Gear Reducers

Available part numbers (264)

IH032 4,70, IH032 6,23, IH032 7,76, IH032 8,87, IH032 10,14, IH032 11,76, IH032 13,72, IH032 14,66, IH032 16,77, IH032 18,20 + 254 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	IH032 4,70	Size: 032 \| Ratio i: 4.70 \| Rated torque Mn2: 95 Nm \| Rated power Pn1: 3.09 kW \| Output speed n2: 298.1 rpm \| Radial load Fr1/Fr2: 700/2996 N
	IH032 6,23	Size: 032 \| Ratio i: 6.23 \| Rated torque Mn2: 105 Nm \| Rated power Pn1: 2.57 kW \| Output speed n2: 224.8 rpm \| Radial load Fr1/Fr2: 817/3285 N
	IH032 7,76	Size: 032 \| Ratio i: 7.76 \| Rated torque Mn2: 125 Nm \| Rated power Pn1: 2.46 kW \| Output speed n2: 180.3 rpm \| Radial load Fr1/Fr2: 843/3410 N
	IH032 8,87	Size: 032 \| Ratio i: 8.87 \| Rated torque Mn2: 130 Nm \| Rated power Pn1: 2.24 kW \| Output speed n2: 157.9 rpm \| Radial load Fr1/Fr2: 894/3572 N
	IH032 10,14	Size: 032 \| Ratio i: 10.14 \| Rated torque Mn2: 140 Nm \| Rated power Pn1: 2.11 kW \| Output speed n2: 138.0 rpm \| Radial load Fr1/Fr2: 924/3694 N
	IH032 11,76	Size: 032 \| Ratio i: 11.76 \| Rated torque Mn2: 145 Nm \| Rated power Pn1: 1.88 kW \| Output speed n2: 119.0 rpm \| Radial load Fr1/Fr2: 975/3902 N
	IH032 13,72	Size: 032 \| Ratio i: 13.72 \| Rated torque Mn2: 170 Nm \| Rated power Pn1: 1.89 kW \| Output speed n2: 102.0 rpm \| Radial load Fr1/Fr2: 973/3927 N
	IH032 14,66	Size: 032 \| Ratio i: 14.66 \| Rated torque Mn2: 170 Nm \| Rated power Pn1: 1.77 kW \| Output speed n2: 95.5 rpm \| Radial load Fr1/Fr2: 1000/4054 N
	IH032 16,77	Size: 032 \| Ratio i: 16.77 \| Rated torque Mn2: 190 Nm \| Rated power Pn1: 1.73 kW \| Output speed n2: 83.5 rpm \| Radial load Fr1/Fr2: 1010/4113 N
	IH032 18,20	Size: 032 \| Ratio i: 18.20 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.68 kW \| Output speed n2: 76.9 rpm \| Radial load Fr1/Fr2: 1021/4178 N
	IH032 19,90	Size: 032 \| Ratio i: 19.90 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.53 kW \| Output speed n2: 70.4 rpm \| Radial load Fr1/Fr2: 1054/4366 N
	IH032 22,68	Size: 032 \| Ratio i: 22.68 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.35 kW \| Output speed n2: 61.7 rpm \| Radial load Fr1/Fr2: 1097/4654 N
	IH032 23,83	Size: 032 \| Ratio i: 23.83 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.28 kW \| Output speed n2: 58.7 rpm \| Radial load Fr1/Fr2: 1112/4766 N
	IH032 26,39	Size: 032 \| Ratio i: 26.39 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.16 kW \| Output speed n2: 53.0 rpm \| Radial load Fr1/Fr2: 1140/5003 N
	IH032 29,70	Size: 032 \| Ratio i: 29.70 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 1.03 kW \| Output speed n2: 47.1 rpm \| Radial load Fr1/Fr2: 1169/5287 N
	IH032 32,89	Size: 032 \| Ratio i: 32.89 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.93 kW \| Output speed n2: 42.6 rpm \| Radial load Fr1/Fr2: 1192/5500 N
	IH032 37,92	Size: 032 \| Ratio i: 37.92 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.81 kW \| Output speed n2: 36.9 rpm \| Radial load Fr1/Fr2: 1220/5500 N
	IH032 41,40	Size: 032 \| Ratio i: 41.40 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.74 kW \| Output speed n2: 33.8 rpm \| Radial load Fr1/Fr2: 1236/5500 N
	IH032 47,25	Size: 032 \| Ratio i: 47.25 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.65 kW \| Output speed n2: 29.6 rpm \| Radial load Fr1/Fr2: 1257/5500 N
	IH033 53,59	Size: 033 \| Ratio i: 53.59 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.58 kW \| Output speed n2: 26.1 rpm \| Radial load Fr1/Fr2: 1274/5500 N
	IH033 66,78	Size: 033 \| Ratio i: 66.78 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.47 kW \| Output speed n2: 21.0 rpm \| Radial load Fr1/Fr2: 1300/5500 N
	IH033 74,84	Size: 033 \| Ratio i: 74.84 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.42 kW \| Output speed n2: 18.7 rpm \| Radial load Fr1/Fr2: 1311/5500 N
	IH033 99,27	Size: 033 \| Ratio i: 99.27 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.31 kW \| Output speed n2: 14.1 rpm \| Radial load Fr1/Fr2: 1334/5500 N
	IH033 108,05	Size: 033 \| Ratio i: 108.05 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.29 kW \| Output speed n2: 13.0 rpm \| Radial load Fr1/Fr2: 1339/5500 N
	IH033 123,71	Size: 033 \| Ratio i: 123.71 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.25 kW \| Output speed n2: 11.3 rpm \| Radial load Fr1/Fr2: 1348/5500 N
	IH033 143,33	Size: 033 \| Ratio i: 143.33 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.22 kW \| Output speed n2: 9.8 rpm \| Radial load Fr1/Fr2: 1355/5500 N
	IH033 178,61	Size: 033 \| Ratio i: 178.61 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.17 kW \| Output speed n2: 7.8 rpm \| Radial load Fr1/Fr2: 1365/5500 N
	IH033 197,17	Size: 033 \| Ratio i: 197.17 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.16 kW \| Output speed n2: 7.1 rpm \| Radial load Fr1/Fr2: 1369/5500 N
	IH033 245,70	Size: 033 \| Ratio i: 245.70 \| Rated torque Mn2: 200 Nm \| Rated power Pn1: 0.13 kW \| Output speed n2: 5.7 rpm \| Radial load Fr1/Fr2: 1375/5500 N
	IH042 5,46	Size: 042 \| Ratio i: 5.46 \| Rated torque Mn2: 160 Nm \| Rated power Pn1: 4.47 kW \| Output speed n2: 256.3 rpm \| Radial load Fr1/Fr2: 434/3883 N
	IH042 7,19	Size: 042 \| Ratio i: 7.19 \| Rated torque Mn2: 160 Nm \| Rated power Pn1: 3.40 kW \| Output speed n2: 194.8 rpm \| Radial load Fr1/Fr2: 673/4382 N
	IH042 8,91	Size: 042 \| Ratio i: 8.91 \| Rated torque Mn2: 210 Nm \| Rated power Pn1: 3.60 kW \| Output speed n2: 157.1 rpm \| Radial load Fr1/Fr2: 628/4391 N
	IH042 10,31	Size: 042 \| Ratio i: 10.31 \| Rated torque Mn2: 240 Nm \| Rated power Pn1: 3.55 kW \| Output speed n2: 135.7 rpm \| Radial load Fr1/Fr2: 638/4449 N
	IH042 11,80	Size: 042 \| Ratio i: 11.80 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 3.24 kW \| Output speed n2: 118.6 rpm \| Radial load Fr1/Fr2: 709/4661 N
	IH042 13,57	Size: 042 \| Ratio i: 13.57 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 2.81 kW \| Output speed n2: 103.2 rpm \| Radial load Fr1/Fr2: 803/4983 N
	IH042 15,96	Size: 042 \| Ratio i: 15.96 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 2.39 kW \| Output speed n2: 87.7 rpm \| Radial load Fr1/Fr2: 897/5374 N
	IH042 19,00	Size: 042 \| Ratio i: 19.00 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 2.01 kW \| Output speed n2: 73.7 rpm \| Radial load Fr1/Fr2: 982/5820 N
	IH042 21,00	Size: 042 \| Ratio i: 21.00 \| Rated torque Mn2: 250 Nm \| Rated power Pn1: 1.82 kW \| Output speed n2: 66.7 rpm \| Radial load Fr1/Fr2: 1024/6088 N
	IH042 23,15	Size: 042 \| Ratio i: 23.15 \| Rated torque Mn2: 260 Nm \| Rated power Pn1: 1.72 kW \| Output speed n2: 60.5 rpm \| Radial load Fr1/Fr2: 1047/6274 N
	IH042 26,04	Size: 042 \| Ratio i: 26.04 \| Rated torque Mn2: 260 Nm \| Rated power Pn1: 1.52 kW \| Output speed n2: 53.8 rpm \| Radial load Fr1/Fr2: 1089/6600 N
	IH042 27,50	Size: 042 \| Ratio i: 27.50 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.55 kW \| Output speed n2: 50.9 rpm \| Radial load Fr1/Fr2: 1083/6600 N
	IH042 30,45	Size: 042 \| Ratio i: 30.45 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.40 kW \| Output speed n2: 46.0 rpm \| Radial load Fr1/Fr2: 1116/6600 N
	IH042 34,10	Size: 042 \| Ratio i: 34.10 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.25 kW \| Output speed n2: 41.1 rpm \| Radial load Fr1/Fr2: 1150/6600 N
	IH042 37,76	Size: 042 \| Ratio i: 37.76 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 1.13 kW \| Output speed n2: 37.1 rpm \| Radial load Fr1/Fr2: 1177/6600 N
	IH042 43,75	Size: 042 \| Ratio i: 43.75 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 0.98 kW \| Output speed n2: 32.0 rpm \| Radial load Fr1/Fr2: 1211/6600 N
	IH042 47,53	Size: 042 \| Ratio i: 47.53 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 0.90 kW \| Output speed n2: 29.4 rpm \| Radial load Fr1/Fr2: 1228/6600 N
	IH042 54,25	Size: 042 \| Ratio i: 54.25 \| Rated torque Mn2: 280 Nm \| Rated power Pn1: 0.79 kW \| Output speed n2: 25.8 rpm \| Radial load Fr1/Fr2: 1253/6600 N
	IH043 61,83	Size: 043 \| Ratio i: 61.83 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.76 kW \| Output speed n2: 22.6 rpm \| Radial load Fr1/Fr2: 1264/6600 N
	IH043 76,67	Size: 043 \| Ratio i: 76.67 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.61 kW \| Output speed n2: 18.3 rpm \| Radial load Fr1/Fr2: 1296/6600 N
	IH043 87,05	Size: 043 \| Ratio i: 87.05 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.54 kW \| Output speed n2: 16.1 rpm \| Radial load Fr1/Fr2: 1311/6600 N
	IH043 114,55	Size: 043 \| Ratio i: 114.55 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.41 kW \| Output speed n2: 12.2 rpm \| Radial load Fr1/Fr2: 1340/6600 N
	IH043 125,69	Size: 043 \| Ratio i: 125.69 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.37 kW \| Output speed n2: 11.1 rpm \| Radial load Fr1/Fr2: 1347/6600 N
	IH043 142,04	Size: 043 \| Ratio i: 142.04 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.33 kW \| Output speed n2: 9.9 rpm \| Radial load Fr1/Fr2: 1357/6600 N
	IH043 165,38	Size: 043 \| Ratio i: 165.38 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.28 kW \| Output speed n2: 8.5 rpm \| Radial load Fr1/Fr2: 1367/6600 N
	IH043 205,07	Size: 043 \| Ratio i: 205.07 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.23 kW \| Output speed n2: 6.8 rpm \| Radial load Fr1/Fr2: 1379/6600 N
	IH043 227,50	Size: 043 \| Ratio i: 227.50 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.21 kW \| Output speed n2: 6.2 rpm \| Radial load Fr1/Fr2: 1384/6600 N
	IH043 282,10	Size: 043 \| Ratio i: 282.10 \| Rated torque Mn2: 300 Nm \| Rated power Pn1: 0.17 kW \| Output speed n2: 5.0 rpm \| Radial load Fr1/Fr2: 1392/6600 N
	IH052 5,73	Size: 052 \| Ratio i: 5.73 \| Rated torque Mn2: 260 Nm \| Rated power Pn1: 6.93 kW \| Output speed n2: 244.4 rpm \| Radial load Fr1/Fr2: 259/4808 N
	IH052 6,89	Size: 052 \| Ratio i: 6.89 \| Rated torque Mn2: 290 Nm \| Rated power Pn1: 6.42 kW \| Output speed n2: 203.1 rpm \| Radial load Fr1/Fr2: 343/5024 N
	IH052 8,53	Size: 052 \| Ratio i: 8.53 \| Rated torque Mn2: 340 Nm \| Rated power Pn1: 6.09 kW \| Output speed n2: 164.2 rpm \| Radial load Fr1/Fr2: 398/5202 N
	IH052 9,56	Size: 052 \| Ratio i: 9.56 \| Rated torque Mn2: 370 Nm \| Rated power Pn1: 5.91 kW \| Output speed n2: 146.4 rpm \| Radial load Fr1/Fr2: 428/5292 N
	IH052 11,51	Size: 052 \| Ratio i: 11.51 \| Rated torque Mn2: 390 Nm \| Rated power Pn1: 5.17 kW \| Output speed n2: 121.6 rpm \| Radial load Fr1/Fr2: 548/5654 N
	IH052 14,24	Size: 052 \| Ratio i: 14.24 \| Rated torque Mn2: 430 Nm \| Rated power Pn1: 4.61 kW \| Output speed n2: 98.3 rpm \| Radial load Fr1/Fr2: 641/5993 N
	IH052 16,59	Size: 052 \| Ratio i: 16.59 \| Rated torque Mn2: 450 Nm \| Rated power Pn1: 4.14 kW \| Output speed n2: 84.4 rpm \| Radial load Fr1/Fr2: 718/6324 N
	IH052 18,00	Size: 052 \| Ratio i: 18.00 \| Rated torque Mn2: 460 Nm \| Rated power Pn1: 3.90 kW \| Output speed n2: 77.8 rpm \| Radial load Fr1/Fr2: 757/6513 N
	IH052 19,97	Size: 052 \| Ratio i: 19.97 \| Rated torque Mn2: 460 Nm \| Rated power Pn1: 3.52 kW \| Output speed n2: 70.1 rpm \| Radial load Fr1/Fr2: 821/6852 N
	IH052 21,67	Size: 052 \| Ratio i: 21.67 \| Rated torque Mn2: 470 Nm \| Rated power Pn1: 3.31 kW \| Output speed n2: 64.6 rpm \| Radial load Fr1/Fr2: 854/7058 N
	IH052 24,71	Size: 052 \| Ratio i: 24.71 \| Rated torque Mn2: 470 Nm \| Rated power Pn1: 2.90 kW \| Output speed n2: 56.7 rpm \| Radial load Fr1/Fr2: 921/7514 N
	IH052 26,18	Size: 052 \| Ratio i: 26.18 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.86 kW \| Output speed n2: 53.5 rpm \| Radial load Fr1/Fr2: 929/7588 N
	IH052 28,44	Size: 052 \| Ratio i: 28.44 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.63 kW \| Output speed n2: 49.2 rpm \| Radial load Fr1/Fr2: 966/7892 N
	IH052 31,52	Size: 052 \| Ratio i: 31.52 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.37 kW \| Output speed n2: 44.4 rpm \| Radial load Fr1/Fr2: 1008/8000 N
	IH052 33,00	Size: 052 \| Ratio i: 33.00 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 2.27 kW \| Output speed n2: 42.4 rpm \| Radial load Fr1/Fr2: 1026/8000 N
	IH052 38,98	Size: 052 \| Ratio i: 38.98 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.92 kW \| Output speed n2: 35.9 rpm \| Radial load Fr1/Fr2: 1083/8000 N
	IH052 45,36	Size: 052 \| Ratio i: 45.36 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.65 kW \| Output speed n2: 30.9 rpm \| Radial load Fr1/Fr2: 1127/8000 N
	IH052 49,13	Size: 052 \| Ratio i: 49.13 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.52 kW \| Output speed n2: 28.5 rpm \| Radial load Fr1/Fr2: 1148/8000 N
	IH052 56,11	Size: 052 \| Ratio i: 56.11 \| Rated torque Mn2: 490 Nm \| Rated power Pn1: 1.33 kW \| Output speed n2: 24.9 rpm \| Radial load Fr1/Fr2: 1179/8000 N
	IH053 58,81	Size: 053 \| Ratio i: 58.81 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 1.33 kW \| Output speed n2: 23.8 rpm \| Radial load Fr1/Fr2: 1185/8000 N
	IH053 72,75	Size: 053 \| Ratio i: 72.75 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 1.07 kW \| Output speed n2: 19.2 rpm \| Radial load Fr1/Fr2: 1226/8000 N
	IH053 90,51	Size: 053 \| Ratio i: 90.51 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.86 kW \| Output speed n2: 15.5 rpm \| Radial load Fr1/Fr2: 1260/8000 N
	IH053 108,95	Size: 053 \| Ratio i: 108.95 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.72 kW \| Output speed n2: 12.8 rpm \| Radial load Fr1/Fr2: 1283/8000 N
	IH053 134,76	Size: 053 \| Ratio i: 134.76 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.58 kW \| Output speed n2: 10.4 rpm \| Radial load Fr1/Fr2: 1305/8000 N
	IH053 157,29	Size: 053 \| Ratio i: 157.29 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.50 kW \| Output speed n2: 8.9 rpm \| Radial load Fr1/Fr2: 1319/8000 N
	IH053 194,56	Size: 053 \| Ratio i: 194.56 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.40 kW \| Output speed n2: 7.2 rpm \| Radial load Fr1/Fr2: 1334/8000 N
	IH053 216,38	Size: 053 \| Ratio i: 216.38 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.36 kW \| Output speed n2: 6.5 rpm \| Radial load Fr1/Fr2: 1340/8000 N
	IH053 267,65	Size: 053 \| Ratio i: 267.65 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 0.29 kW \| Output speed n2: 5.2 rpm \| Radial load Fr1/Fr2: 1352/8000 N
	IH062 5,38	Size: 062 \| Ratio i: 5.38 \| Rated torque Mn2: 500 Nm \| Rated power Pn1: 14.21 kW \| Output speed n2: 260.5 rpm \| Radial load Fr1/Fr2: 853/7772 N
	IH062 5,93	Size: 062 \| Ratio i: 5.93 \| Rated torque Mn2: 550 Nm \| Rated power Pn1: 14.15 kW \| Output speed n2: 235.9 rpm \| Radial load Fr1/Fr2: 860/7839 N
	IH062 7,39	Size: 062 \| Ratio i: 7.39 \| Rated torque Mn2: 550 Nm \| Rated power Pn1: 11.36 kW \| Output speed n2: 189.4 rpm \| Radial load Fr1/Fr2: 1250/8677 N
	IH062 8,50	Size: 062 \| Ratio i: 8.50 \| Rated torque Mn2: 600 Nm \| Rated power Pn1: 10.78 kW \| Output speed n2: 164.7 rpm \| Radial load Fr1/Fr2: 1332/8953 N
	IH062 9,39	Size: 062 \| Ratio i: 9.39 \| Rated torque Mn2: 600 Nm \| Rated power Pn1: 9.76 kW \| Output speed n2: 149.2 rpm \| Radial load Fr1/Fr2: 1475/9371 N
	IH062 11,69	Size: 062 \| Ratio i: 11.69 \| Rated torque Mn2: 650 Nm \| Rated power Pn1: 8.49 kW \| Output speed n2: 119.8 rpm \| Radial load Fr1/Fr2: 1652/10056 N
	IH062 12,67	Size: 062 \| Ratio i: 12.67 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 8.44 kW \| Output speed n2: 110.5 rpm \| Radial load Fr1/Fr2: 1660/10141 N
	IH062 14,75	Size: 062 \| Ratio i: 14.75 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 7.25 kW \| Output speed n2: 94.9 rpm \| Radial load Fr1/Fr2: 1827/10881 N
	IH062 16,29	Size: 062 \| Ratio i: 16.29 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 7.50 kW \| Output speed n2: 86.0 rpm \| Radial load Fr1/Fr2: 1791/10801 N
	IH062 17,67	Size: 062 \| Ratio i: 17.67 \| Rated torque Mn2: 830 Nm \| Rated power Pn1: 7.17 kW \| Output speed n2: 79.2 rpm \| Radial load Fr1/Fr2: 1837/11051 N
	IH062 20,28	Size: 062 \| Ratio i: 20.28 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 6.40 kW \| Output speed n2: 69.0 rpm \| Radial load Fr1/Fr2: 1946/11682 N
	IH062 23,27	Size: 062 \| Ratio i: 23.27 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 5.58 kW \| Output speed n2: 60.2 rpm \| Radial load Fr1/Fr2: 2061/12000 N
	IH062 25,70	Size: 062 \| Ratio i: 25.70 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 5.05 kW \| Output speed n2: 54.5 rpm \| Radial load Fr1/Fr2: 2134/12000 N
	IH062 29,33	Size: 062 \| Ratio i: 29.33 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 4.16 kW \| Output speed n2: 47.7 rpm \| Radial load Fr1/Fr2: 2259/12000 N
	IH062 32,00	Size: 062 \| Ratio i: 32.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 4.06 kW \| Output speed n2: 43.8 rpm \| Radial load Fr1/Fr2: 2274/12000 N
	IH062 36,99	Size: 062 \| Ratio i: 36.99 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 3.30 kW \| Output speed n2: 37.9 rpm \| Radial load Fr1/Fr2: 2379/12000 N
	IH062 40,33	Size: 062 \| Ratio i: 40.33 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 3.22 kW \| Output speed n2: 34.7 rpm \| Radial load Fr1/Fr2: 2391/12000 N
	IH062 46,06	Size: 062 \| Ratio i: 46.06 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 2.82 kW \| Output speed n2: 30.4 rpm \| Radial load Fr1/Fr2: 2447/12000 N
	IH063 49,45	Size: 063 \| Ratio i: 49.45 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 2.68 kW \| Output speed n2: 28.3 rpm \| Radial load Fr1/Fr2: 2474/12000 N
	IH063 54,61	Size: 063 \| Ratio i: 54.61 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 2.43 kW \| Output speed n2: 25.6 rpm \| Radial load Fr1/Fr2: 2509/12000 N
	IH063 68,00	Size: 063 \| Ratio i: 68.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.95 kW \| Output speed n2: 20.6 rpm \| Radial load Fr1/Fr2: 2574/12000 N
	IH063 85,82	Size: 063 \| Ratio i: 85.82 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.54 kW \| Output speed n2: 16.3 rpm \| Radial load Fr1/Fr2: 2630/12000 N
	IH063 94,76	Size: 063 \| Ratio i: 94.76 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.40 kW \| Output speed n2: 14.8 rpm \| Radial load Fr1/Fr2: 2650/12000 N
	IH063 118,00	Size: 063 \| Ratio i: 118.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 1.12 kW \| Output speed n2: 11.9 rpm \| Radial load Fr1/Fr2: 2688/12000 N
	IH063 135,40	Size: 063 \| Ratio i: 135.40 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.98 kW \| Output speed n2: 10.3 rpm \| Radial load Fr1/Fr2: 2707/12000 N
	IH063 149,51	Size: 063 \| Ratio i: 149.51 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.89 kW \| Output speed n2: 9.4 rpm \| Radial load Fr1/Fr2: 2720/12000 N
	IH063 170,67	Size: 063 \| Ratio i: 170.67 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.78 kW \| Output speed n2: 8.2 rpm \| Radial load Fr1/Fr2: 2735/12000 N
	IH063 186,18	Size: 063 \| Ratio i: 186.18 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.71 kW \| Output speed n2: 7.5 rpm \| Radial load Fr1/Fr2: 2744/12000 N
	IH063 215,21	Size: 063 \| Ratio i: 215.21 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.62 kW \| Output speed n2: 6.5 rpm \| Radial load Fr1/Fr2: 2757/12000 N
	IH063 234,67	Size: 063 \| Ratio i: 234.67 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.56 kW \| Output speed n2: 6.0 rpm \| Radial load Fr1/Fr2: 2764/12000 N
	IH063 268,00	Size: 063 \| Ratio i: 268.00 \| Rated torque Mn2: 850 Nm \| Rated power Pn1: 0.49 kW \| Output speed n2: 5.2 rpm \| Radial load Fr1/Fr2: 2774/12000 N
	IH082 5,39	Size: 082 \| Ratio i: 5.39 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 19.84 kW \| Output speed n2: 259.8 rpm \| Radial load Fr1/Fr2: 816/9756 N
	IH082 5,95	Size: 082 \| Ratio i: 5.95 \| Rated torque Mn2: 700 Nm \| Rated power Pn1: 17.98 kW \| Output speed n2: 235.4 rpm \| Radial load Fr1/Fr2: 1021/10188 N
	IH082 7,39	Size: 082 \| Ratio i: 7.39 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 16.52 kW \| Output speed n2: 189.3 rpm \| Radial load Fr1/Fr2: 1182/10739 N
	IH082 8,02	Size: 082 \| Ratio i: 8.02 \| Rated torque Mn2: 800 Nm \| Rated power Pn1: 15.23 kW \| Output speed n2: 174.5 rpm \| Radial load Fr1/Fr2: 1325/11135 N
	IH082 8,85	Size: 082 \| Ratio i: 8.85 \| Rated torque Mn2: 900 Nm \| Rated power Pn1: 15.53 kW \| Output speed n2: 158.2 rpm \| Radial load Fr1/Fr2: 1292/11171 N
	IH082 11,01	Size: 082 \| Ratio i: 11.01 \| Rated torque Mn2: 1100 Nm \| Rated power Pn1: 15.26 kW \| Output speed n2: 127.2 rpm \| Radial load Fr1/Fr2: 1321/11409 N
	IH082 13,50	Size: 082 \| Ratio i: 13.50 \| Rated torque Mn2: 1400 Nm \| Rated power Pn1: 15.84 kW \| Output speed n2: 103.7 rpm \| Radial load Fr1/Fr2: 1258/11195 N
	IH082 14,90	Size: 082 \| Ratio i: 14.90 \| Rated torque Mn2: 1500 Nm \| Rated power Pn1: 15.38 kW \| Output speed n2: 94.0 rpm \| Radial load Fr1/Fr2: 1308/11324 N
	IH082 16,62	Size: 082 \| Ratio i: 16.62 \| Rated torque Mn2: 1500 Nm \| Rated power Pn1: 13.79 kW \| Output speed n2: 84.3 rpm \| Radial load Fr1/Fr2: 1484/11998 N
	IH082 18,53	Size: 082 \| Ratio i: 18.53 \| Rated torque Mn2: 1500 Nm \| Rated power Pn1: 12.36 kW \| Output speed n2: 75.6 rpm \| Radial load Fr1/Fr2: 1641/12695 N
	IH082 19,38	Size: 082 \| Ratio i: 19.38 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 12.60 kW \| Output speed n2: 72.2 rpm \| Radial load Fr1/Fr2: 1615/12535 N
	IH082 21,39	Size: 082 \| Ratio i: 21.39 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 11.42 kW \| Output speed n2: 65.5 rpm \| Radial load Fr1/Fr2: 1745/13197 N
	IH082 22,80	Size: 082 \| Ratio i: 22.80 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 10.72 kW \| Output speed n2: 61.4 rpm \| Radial load Fr1/Fr2: 1824/13639 N
	IH082 26,60	Size: 082 \| Ratio i: 26.60 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 9.19 kW \| Output speed n2: 52.6 rpm \| Radial load Fr1/Fr2: 1993/14744 N
	IH082 27,88	Size: 082 \| Ratio i: 27.88 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 8.76 kW \| Output speed n2: 50.2 rpm \| Radial load Fr1/Fr2: 2040/15093 N
	IH082 31,15	Size: 082 \| Ratio i: 31.15 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 7.84 kW \| Output speed n2: 44.9 rpm \| Radial load Fr1/Fr2: 2141/15937 N
	IH082 34,38	Size: 082 \| Ratio i: 34.38 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 7.11 kW \| Output speed n2: 40.7 rpm \| Radial load Fr1/Fr2: 2222/16712 N
	IH082 38,70	Size: 082 \| Ratio i: 38.70 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 6.31 kW \| Output speed n2: 36.2 rpm \| Radial load Fr1/Fr2: 2310/17681 N
	IH082 42,75	Size: 082 \| Ratio i: 42.75 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 5.72 kW \| Output speed n2: 32.8 rpm \| Radial load Fr1/Fr2: 2376/18000 N
	IH082 48,13	Size: 082 \| Ratio i: 48.13 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 5.08 kW \| Output speed n2: 29.1 rpm \| Radial load Fr1/Fr2: 2447/18000 N
	IH083 56,53	Size: 083 \| Ratio i: 56.53 \| Rated torque Mn2: 1600 Nm \| Rated power Pn1: 4.41 kW \| Output speed n2: 24.8 rpm \| Radial load Fr1/Fr2: 2530/18000 N
	IH083 71,48	Size: 083 \| Ratio i: 71.48 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 3.93 kW \| Output speed n2: 19.6 rpm \| Radial load Fr1/Fr2: 2583/18000 N
	IH083 78,87	Size: 083 \| Ratio i: 78.87 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 3.56 kW \| Output speed n2: 17.8 rpm \| Radial load Fr1/Fr2: 2623/18000 N
	IH083 85,56	Size: 083 \| Ratio i: 85.56 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 3.28 kW \| Output speed n2: 16.4 rpm \| Radial load Fr1/Fr2: 2653/18000 N
	IH083 98,09	Size: 083 \| Ratio i: 98.09 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 2.86 kW \| Output speed n2: 14.3 rpm \| Radial load Fr1/Fr2: 2698/18000 N
	IH083 112,78	Size: 083 \| Ratio i: 112.78 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 2.49 kW \| Output speed n2: 12.4 rpm \| Radial load Fr1/Fr2: 2739/18000 N
	IH083 124,44	Size: 083 \| Ratio i: 124.44 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 2.26 kW \| Output speed n2: 11.2 rpm \| Radial load Fr1/Fr2: 2764/18000 N
	IH083 142,15	Size: 083 \| Ratio i: 142.15 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.97 kW \| Output speed n2: 9.8 rpm \| Radial load Fr1/Fr2: 2794/18000 N
	IH083 154,76	Size: 083 \| Ratio i: 154.76 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.81 kW \| Output speed n2: 9.1 rpm \| Radial load Fr1/Fr2: 2812/18000 N
	IH083 162,35	Size: 083 \| Ratio i: 162.35 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.73 kW \| Output speed n2: 8.6 rpm \| Radial load Fr1/Fr2: 2821/18000 N
	IH083 179,13	Size: 083 \| Ratio i: 179.13 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.57 kW \| Output speed n2: 7.8 rpm \| Radial load Fr1/Fr2: 2838/18000 N
	IH083 195,07	Size: 083 \| Ratio i: 195.07 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.44 kW \| Output speed n2: 7.2 rpm \| Radial load Fr1/Fr2: 2852/18000 N
	IH083 222,78	Size: 083 \| Ratio i: 222.78 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 1.26 kW \| Output speed n2: 6.3 rpm \| Radial load Fr1/Fr2: 2872/18000 N
	IH102 5,26	Size: 102 \| Ratio i: 5.26 \| Rated torque Mn2: 1800 Nm \| Rated power Pn1: 52.23 kW \| Output speed n2: 266.0 rpm \| Radial load Fr1/Fr2: 1731/10378 N
	IH102 6,36	Size: 102 \| Ratio i: 6.36 \| Rated torque Mn2: 2000 Nm \| Rated power Pn1: 48.05 kW \| Output speed n2: 220.3 rpm \| Radial load Fr1/Fr2: 1919/10737 N
	IH102 7,05	Size: 102 \| Ratio i: 7.05 \| Rated torque Mn2: 2300 Nm \| Rated power Pn1: 49.81 kW \| Output speed n2: 198.6 rpm \| Radial load Fr1/Fr2: 1840/10244 N
	IH102 8,27	Size: 102 \| Ratio i: 8.27 \| Rated torque Mn2: 2500 Nm \| Rated power Pn1: 46.14 kW \| Output speed n2: 169.2 rpm \| Radial load Fr1/Fr2: 2006/10525 N
	IH102 9,99	Size: 102 \| Ratio i: 9.99 \| Rated torque Mn2: 2800 Nm \| Rated power Pn1: 42.79 kW \| Output speed n2: 140.1 rpm \| Radial load Fr1/Fr2: 2157/10686 N
	IH102 11,09	Size: 102 \| Ratio i: 11.09 \| Rated torque Mn2: 3000 Nm \| Rated power Pn1: 41.33 kW \| Output speed n2: 126.3 rpm \| Radial load Fr1/Fr2: 2223/10677 N
	IH102 13,32	Size: 102 \| Ratio i: 13.32 \| Rated torque Mn2: 3100 Nm \| Rated power Pn1: 35.53 kW \| Output speed n2: 105.1 rpm \| Radial load Fr1/Fr2: 2486/11693 N
	IH102 16,09	Size: 102 \| Ratio i: 16.09 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 30.37 kW \| Output speed n2: 87.0 rpm \| Radial load Fr1/Fr2: 2719/12836 N
	IH102 17,85	Size: 102 \| Ratio i: 17.85 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 27.37 kW \| Output speed n2: 78.4 rpm \| Radial load Fr1/Fr2: 2854/13715 N
	IH102 19,85	Size: 102 \| Ratio i: 19.85 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 24.62 kW \| Output speed n2: 70.5 rpm \| Radial load Fr1/Fr2: 2979/14645 N
	IH102 21,44	Size: 102 \| Ratio i: 21.44 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 22.79 kW \| Output speed n2: 65.3 rpm \| Radial load Fr1/Fr2: 3061/15343 N
	IH102 23,97	Size: 102 \| Ratio i: 23.97 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 21.02 kW \| Output speed n2: 58.4 rpm \| Radial load Fr1/Fr2: 3141/16003 N
	IH102 25,89	Size: 102 \| Ratio i: 25.89 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 19.46 kW \| Output speed n2: 54.1 rpm \| Radial load Fr1/Fr2: 3212/16747 N
	IH102 28,73	Size: 102 \| Ratio i: 28.73 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 17.54 kW \| Output speed n2: 48.7 rpm \| Radial load Fr1/Fr2: 3299/17778 N
	IH102 30,72	Size: 102 \| Ratio i: 30.72 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 15.91 kW \| Output speed n2: 45.6 rpm \| Radial load Fr1/Fr2: 3372/18842 N
	IH102 34,20	Size: 102 \| Ratio i: 34.20 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 14.29 kW \| Output speed n2: 40.9 rpm \| Radial load Fr1/Fr2: 3446/19969 N
	IH102 38,45	Size: 102 \| Ratio i: 38.45 \| Rated torque Mn2: 2800 Nm \| Rated power Pn1: 11.12 kW \| Output speed n2: 36.4 rpm \| Radial load Fr1/Fr2: 3589/22000 N
	IH102 41,30	Size: 102 \| Ratio i: 41.30 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 12.20 kW \| Output speed n2: 33.9 rpm \| Radial load Fr1/Fr2: 3540/21674 N
	IH102 45,82	Size: 102 \| Ratio i: 45.82 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 11.00 kW \| Output speed n2: 30.6 rpm \| Radial load Fr1/Fr2: 3594/22000 N
	IH102 51,52	Size: 102 \| Ratio i: 51.52 \| Rated torque Mn2: 3300 Nm \| Rated power Pn1: 9.78 kW \| Output speed n2: 27.2 rpm \| Radial load Fr1/Fr2: 3649/22000 N
	IH103 55,47	Size: 103 \| Ratio i: 55.47 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 9.84 kW \| Output speed n2: 25.2 rpm \| Radial load Fr1/Fr2: 3656/22000 N
	IH103 69,69	Size: 103 \| Ratio i: 69.69 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 7.83 kW \| Output speed n2: 20.1 rpm \| Radial load Fr1/Fr2: 3745/22000 N
	IH103 79,82	Size: 103 \| Ratio i: 79.82 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 6.84 kW \| Output speed n2: 17.5 rpm \| Radial load Fr1/Fr2: 3789/22000 N
	IH103 84,16	Size: 103 \| Ratio i: 84.16 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 6.49 kW \| Output speed n2: 16.6 rpm \| Radial load Fr1/Fr2: 3804/22000 N
	IH103 93,36	Size: 103 \| Ratio i: 93.36 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 5.85 kW \| Output speed n2: 15.0 rpm \| Radial load Fr1/Fr2: 3833/22000 N
	IH103 100,07	Size: 103 \| Ratio i: 100.07 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 5.45 kW \| Output speed n2: 14.0 rpm \| Radial load Fr1/Fr2: 3850/22000 N
	IH103 120,84	Size: 103 \| Ratio i: 120.84 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 4.52 kW \| Output speed n2: 11.6 rpm \| Radial load Fr1/Fr2: 3892/22000 N
	IH103 134,06	Size: 103 \| Ratio i: 134.06 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 4.07 kW \| Output speed n2: 10.4 rpm \| Radial load Fr1/Fr2: 3911/22000 N
	IH103 143,42	Size: 103 \| Ratio i: 143.42 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 3.81 kW \| Output speed n2: 9.8 rpm \| Radial load Fr1/Fr2: 3923/22000 N
	IH103 160,82	Size: 103 \| Ratio i: 160.82 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 3.39 kW \| Output speed n2: 8.7 rpm \| Radial load Fr1/Fr2: 3941/22000 N
	IH103 181,07	Size: 103 \| Ratio i: 181.07 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 3.01 kW \| Output speed n2: 7.7 rpm \| Radial load Fr1/Fr2: 3958/22000 N
	IH103 194,21	Size: 103 \| Ratio i: 194.21 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 2.81 kW \| Output speed n2: 7.2 rpm \| Radial load Fr1/Fr2: 3967/22000 N
	IH103 215,45	Size: 103 \| Ratio i: 215.45 \| Rated torque Mn2: 3500 Nm \| Rated power Pn1: 2.53 kW \| Output speed n2: 6.5 rpm \| Radial load Fr1/Fr2: 3979/22000 N
	IH103 242,59	Size: 103 \| Ratio i: 242.59 \| Rated torque Mn2: 3600 Nm \| Rated power Pn1: 2.31 kW \| Output speed n2: 5.8 rpm \| Radial load Fr1/Fr2: 3989/22000 N
	IH122 5,27	Size: 122 \| Ratio i: 5.27 \| Rated torque Mn2: 3000 Nm \| Rated power Pn1: 86.85 kW \| Output speed n2: 265.4 rpm \| Radial load Fr1/Fr2: 778/15066 N
	IH122 5,78	Size: 122 \| Ratio i: 5.78 \| Rated torque Mn2: 3200 Nm \| Rated power Pn1: 84.61 kW \| Output speed n2: 242.4 rpm \| Radial load Fr1/Fr2: 862/15180 N
	IH122 7,05	Size: 122 \| Ratio i: 7.05 \| Rated torque Mn2: 3600 Nm \| Rated power Pn1: 77.99 kW \| Output speed n2: 198.6 rpm \| Radial load Fr1/Fr2: 1110/15643 N
	IH122 7,74	Size: 122 \| Ratio i: 7.74 \| Rated torque Mn2: 3700 Nm \| Rated power Pn1: 72.98 kW \| Output speed n2: 180.8 rpm \| Radial load Fr1/Fr2: 1297/16186 N
	IH122 8,48	Size: 122 \| Ratio i: 8.48 \| Rated torque Mn2: 3800 Nm \| Rated power Pn1: 68.46 kW \| Output speed n2: 165.2 rpm \| Radial load Fr1/Fr2: 1467/16726 N
	IH122 10,35	Size: 122 \| Ratio i: 10.35 \| Rated torque Mn2: 4000 Nm \| Rated power Pn1: 59.04 kW \| Output speed n2: 135.3 rpm \| Radial load Fr1/Fr2: 1819/18071 N
	IH122 12,66	Size: 122 \| Ratio i: 12.66 \| Rated torque Mn2: 4400 Nm \| Rated power Pn1: 53.06 kW \| Output speed n2: 110.6 rpm \| Radial load Fr1/Fr2: 2043/18939 N
	IH122 13,86	Size: 122 \| Ratio i: 13.86 \| Rated torque Mn2: 4600 Nm \| Rated power Pn1: 50.67 kW \| Output speed n2: 101.0 rpm \| Radial load Fr1/Fr2: 2132/19311 N
	IH122 16,92	Size: 122 \| Ratio i: 16.92 \| Rated torque Mn2: 4800 Nm \| Rated power Pn1: 43.32 kW \| Output speed n2: 82.7 rpm \| Radial load Fr1/Fr2: 2408/21011 N
	IH122 19,32	Size: 122 \| Ratio i: 19.32 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 39.52 kW \| Output speed n2: 72.5 rpm \| Radial load Fr1/Fr2: 2550/22015 N
	IH122 20,57	Size: 122 \| Ratio i: 20.57 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 37.12 kW \| Output speed n2: 68.1 rpm \| Radial load Fr1/Fr2: 2640/22820 N
	IH122 22,52	Size: 122 \| Ratio i: 22.52 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 33.90 kW \| Output speed n2: 62.2 rpm \| Radial load Fr1/Fr2: 2760/24014 N
	IH122 24,47	Size: 122 \| Ratio i: 24.47 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 31.21 kW \| Output speed n2: 57.2 rpm \| Radial load Fr1/Fr2: 2861/25137 N
	IH122 27,49	Size: 122 \| Ratio i: 27.49 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 27.77 kW \| Output speed n2: 50.9 rpm \| Radial load Fr1/Fr2: 2989/26770 N
	IH122 29,86	Size: 122 \| Ratio i: 29.86 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 25.57 kW \| Output speed n2: 46.9 rpm \| Radial load Fr1/Fr2: 3072/27970 N
	IH122 33,00	Size: 122 \| Ratio i: 33.00 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 23.14 kW \| Output speed n2: 42.4 rpm \| Radial load Fr1/Fr2: 3163/29461 N
	IH122 36,13	Size: 122 \| Ratio i: 36.13 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 21.13 kW \| Output speed n2: 38.8 rpm \| Radial load Fr1/Fr2: 3238/30000 N
	IH122 44,10	Size: 122 \| Ratio i: 44.10 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 17.31 kW \| Output speed n2: 31.8 rpm \| Radial load Fr1/Fr2: 3381/30000 N
	IH123 45,77	Size: 123 \| Ratio i: 45.77 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 17.04 kW \| Output speed n2: 30.6 rpm \| Radial load Fr1/Fr2: 3405/30000 N
	IH123 55,87	Size: 123 \| Ratio i: 55.87 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 13.96 kW \| Output speed n2: 25.1 rpm \| Radial load Fr1/Fr2: 3518/30000 N
	IH123 67,32	Size: 123 \| Ratio i: 67.32 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 11.58 kW \| Output speed n2: 20.8 rpm \| Radial load Fr1/Fr2: 3605/30000 N
	IH123 73,71	Size: 123 \| Ratio i: 73.71 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 10.58 kW \| Output speed n2: 19.0 rpm \| Radial load Fr1/Fr2: 3641/30000 N
	IH123 83,34	Size: 123 \| Ratio i: 83.34 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 9.36 kW \| Output speed n2: 16.8 rpm \| Radial load Fr1/Fr2: 3686/30000 N
	IH123 89,97	Size: 123 \| Ratio i: 89.97 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 8.67 kW \| Output speed n2: 15.6 rpm \| Radial load Fr1/Fr2: 3711/30000 N
	IH123 100,29	Size: 123 \| Ratio i: 100.29 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 7.78 kW \| Output speed n2: 14.0 rpm \| Radial load Fr1/Fr2: 3744/30000 N
	IH123 108,34	Size: 123 \| Ratio i: 108.34 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 7.20 kW \| Output speed n2: 12.9 rpm \| Radial load Fr1/Fr2: 3765/30000 N
	IH123 118,62	Size: 123 \| Ratio i: 118.62 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 6.57 kW \| Output speed n2: 11.8 rpm \| Radial load Fr1/Fr2: 3788/30000 N
	IH123 128,18	Size: 123 \| Ratio i: 128.18 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 6.08 kW \| Output speed n2: 10.9 rpm \| Radial load Fr1/Fr2: 3806/30000 N
	IH123 144,79	Size: 123 \| Ratio i: 144.79 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 5.39 kW \| Output speed n2: 9.7 rpm \| Radial load Fr1/Fr2: 3832/30000 N
	IH123 155,22	Size: 123 \| Ratio i: 155.22 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 5.02 kW \| Output speed n2: 9.0 rpm \| Radial load Fr1/Fr2: 3845/30000 N
	IH123 172,80	Size: 123 \| Ratio i: 172.80 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 4.51 kW \| Output speed n2: 8.1 rpm \| Radial load Fr1/Fr2: 3864/30000 N
	IH123 189,19	Size: 123 \| Ratio i: 189.19 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 4.12 kW \| Output speed n2: 7.4 rpm \| Radial load Fr1/Fr2: 3878/30000 N
	IH123 207,43	Size: 123 \| Ratio i: 207.43 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 3.76 kW \| Output speed n2: 6.8 rpm \| Radial load Fr1/Fr2: 3891/30000 N
	IH123 230,92	Size: 123 \| Ratio i: 230.92 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 3.38 kW \| Output speed n2: 6.1 rpm \| Radial load Fr1/Fr2: 3905/30000 N
	IH142 5,27	Size: 142 \| Ratio i: 5.27 \| Rated torque Mn2: 4600 Nm \| Rated power Pn1: 133.18 kW \| Output speed n2: 265.4 rpm \| Radial load Fr1/Fr2: 5102/19072 N
	IH142 6,36	Size: 142 \| Ratio i: 6.36 \| Rated torque Mn2: 4900 Nm \| Rated power Pn1: 117.74 kW \| Output speed n2: 220.3 rpm \| Radial load Fr1/Fr2: 5730/20279 N
	IH142 7,04	Size: 142 \| Ratio i: 7.04 \| Rated torque Mn2: 5000 Nm \| Rated power Pn1: 108.41 kW \| Output speed n2: 198.8 rpm \| Radial load Fr1/Fr2: 6109/21198 N
	IH142 7,84	Size: 142 \| Ratio i: 7.84 \| Rated torque Mn2: 5300 Nm \| Rated power Pn1: 103.19 kW \| Output speed n2: 178.5 rpm \| Radial load Fr1/Fr2: 6321/21620 N
	IH142 9,45	Size: 142 \| Ratio i: 9.45 \| Rated torque Mn2: 6500 Nm \| Rated power Pn1: 105.04 kW \| Output speed n2: 148.2 rpm \| Radial load Fr1/Fr2: 6247/20432 N
	IH142 10,47	Size: 142 \| Ratio i: 10.47 \| Rated torque Mn2: 7200 Nm \| Rated power Pn1: 104.98 kW \| Output speed n2: 133.7 rpm \| Radial load Fr1/Fr2: 6249/19728 N
	IH142 13,07	Size: 142 \| Ratio i: 13.07 \| Rated torque Mn2: 7300 Nm \| Rated power Pn1: 85.28 kW \| Output speed n2: 107.1 rpm \| Radial load Fr1/Fr2: 7050/22593 N
	IH142 15,75	Size: 142 \| Ratio i: 15.75 \| Rated torque Mn2: 7800 Nm \| Rated power Pn1: 75.63 kW \| Output speed n2: 88.9 rpm \| Radial load Fr1/Fr2: 7443/23946 N
	IH142 17,45	Size: 142 \| Ratio i: 17.45 \| Rated torque Mn2: 7900 Nm \| Rated power Pn1: 69.11 kW \| Output speed n2: 80.2 rpm \| Radial load Fr1/Fr2: 7708/25294 N
	IH142 20,04	Size: 142 \| Ratio i: 20.04 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 60.95 kW \| Output speed n2: 69.8 rpm \| Radial load Fr1/Fr2: 8040/27303 N
	IH142 24,15	Size: 142 \| Ratio i: 24.15 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 50.59 kW \| Output speed n2: 58.0 rpm \| Radial load Fr1/Fr2: 8462/30588 N
	IH142 26,76	Size: 142 \| Ratio i: 26.76 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 45.65 kW \| Output speed n2: 52.3 rpm \| Radial load Fr1/Fr2: 8663/32488 N
	IH142 32,24	Size: 142 \| Ratio i: 32.24 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 37.89 kW \| Output speed n2: 43.4 rpm \| Radial load Fr1/Fr2: 8978/36102 N
	IH142 38,85	Size: 142 \| Ratio i: 38.85 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 31.45 kW \| Output speed n2: 36.0 rpm \| Radial load Fr1/Fr2: 9240/39950 N
	IH142 43,05	Size: 142 \| Ratio i: 43.05 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 28.37 kW \| Output speed n2: 32.5 rpm \| Radial load Fr1/Fr2: 9365/42176 N
	IH143 48,35	Size: 143 \| Ratio i: 48.35 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 25.81 kW \| Output speed n2: 29.0 rpm \| Radial load Fr1/Fr2: 9492/44781 N
	IH143 53,53	Size: 143 \| Ratio i: 53.53 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 23.31 kW \| Output speed n2: 26.1 rpm \| Radial load Fr1/Fr2: 9591/47153 N
	IH143 59,22	Size: 143 \| Ratio i: 59.22 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 21.07 kW \| Output speed n2: 23.6 rpm \| Radial load Fr1/Fr2: 9680/49587 N
	IH143 62,99	Size: 143 \| Ratio i: 62.99 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 19.81 kW \| Output speed n2: 22.2 rpm \| Radial load Fr1/Fr2: 9731/51117 N
	IH143 71,35	Size: 143 \| Ratio i: 71.35 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 17.49 kW \| Output speed n2: 19.6 rpm \| Radial load Fr1/Fr2: 9823/54301 N
	IH143 79,07	Size: 143 \| Ratio i: 79.07 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 15.78 kW \| Output speed n2: 17.7 rpm \| Radial load Fr1/Fr2: 9891/55000 N
	IH143 86,43	Size: 143 \| Ratio i: 86.43 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 14.43 kW \| Output speed n2: 16.2 rpm \| Radial load Fr1/Fr2: 9945/55000 N
	IH143 96,21	Size: 143 \| Ratio i: 96.21 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 12.97 kW \| Output speed n2: 14.6 rpm \| Radial load Fr1/Fr2: 10003/55000 N
	IH143 104,51	Size: 143 \| Ratio i: 104.51 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 11.94 kW \| Output speed n2: 13.4 rpm \| Radial load Fr1/Fr2: 10044/55000 N
	IH143 115,92	Size: 143 \| Ratio i: 115.92 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 10.76 kW \| Output speed n2: 12.1 rpm \| Radial load Fr1/Fr2: 10091/55000 N
	IH143 128,47	Size: 143 \| Ratio i: 128.47 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 9.71 kW \| Output speed n2: 10.9 rpm \| Radial load Fr1/Fr2: 10133/55000 N
	IH143 139,55	Size: 143 \| Ratio i: 139.55 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 8.94 kW \| Output speed n2: 10.0 rpm \| Radial load Fr1/Fr2: 10164/55000 N
	IH143 154,33	Size: 143 \| Ratio i: 154.33 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 8.08 kW \| Output speed n2: 9.1 rpm \| Radial load Fr1/Fr2: 10198/55000 N
	IH143 185,96	Size: 143 \| Ratio i: 185.96 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 6.71 kW \| Output speed n2: 7.5 rpm \| Radial load Fr1/Fr2: 10252/55000 N
	IH143 206,08	Size: 143 \| Ratio i: 206.08 \| Rated torque Mn2: 8000 Nm \| Rated power Pn1: 6.05 kW \| Output speed n2: 6.8 rpm \| Radial load Fr1/Fr2: 10279/55000 N
	IH123 207.40	Legacy code (older edition, not in current tables) \| Size: 123 \| Ratio i: 207.40
	IH032	Legacy code (unit-level listing, ratio to be specified) \| Size: 032 \| Stages: 2
	IH033	Legacy code (unit-level listing, ratio to be specified) \| Size: 033 \| Stages: 3
	IH042	Legacy code (unit-level listing, ratio to be specified) \| Size: 042 \| Stages: 2
	IH043	Legacy code (unit-level listing, ratio to be specified) \| Size: 043 \| Stages: 3
	IH052	Legacy code (unit-level listing, ratio to be specified) \| Size: 052 \| Stages: 2
	IH053	Legacy code (unit-level listing, ratio to be specified) \| Size: 053 \| Stages: 3
	IH062	Legacy code (unit-level listing, ratio to be specified) \| Size: 062 \| Stages: 2
	IH063	Legacy code (unit-level listing, ratio to be specified) \| Size: 063 \| Stages: 3
	IH082	Legacy code (unit-level listing, ratio to be specified) \| Size: 082 \| Stages: 2
	IH083	Legacy code (unit-level listing, ratio to be specified) \| Size: 083 \| Stages: 3
	IH102	Legacy code (unit-level listing, ratio to be specified) \| Size: 102 \| Stages: 2
	IH103	Legacy code (unit-level listing, ratio to be specified) \| Size: 103 \| Stages: 3
	IH122	Legacy code (unit-level listing, ratio to be specified) \| Size: 122 \| Stages: 2
	IH123	Legacy code (unit-level listing, ratio to be specified) \| Size: 123 \| Stages: 3
	IH142	Legacy code (unit-level listing, ratio to be specified) \| Size: 142 \| Stages: 2
	IH143	Legacy code (unit-level listing, ratio to be specified) \| Size: 143 \| Stages: 3

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario IH Cast Iron Helical Inline Gear Reducers, Input Shaft
