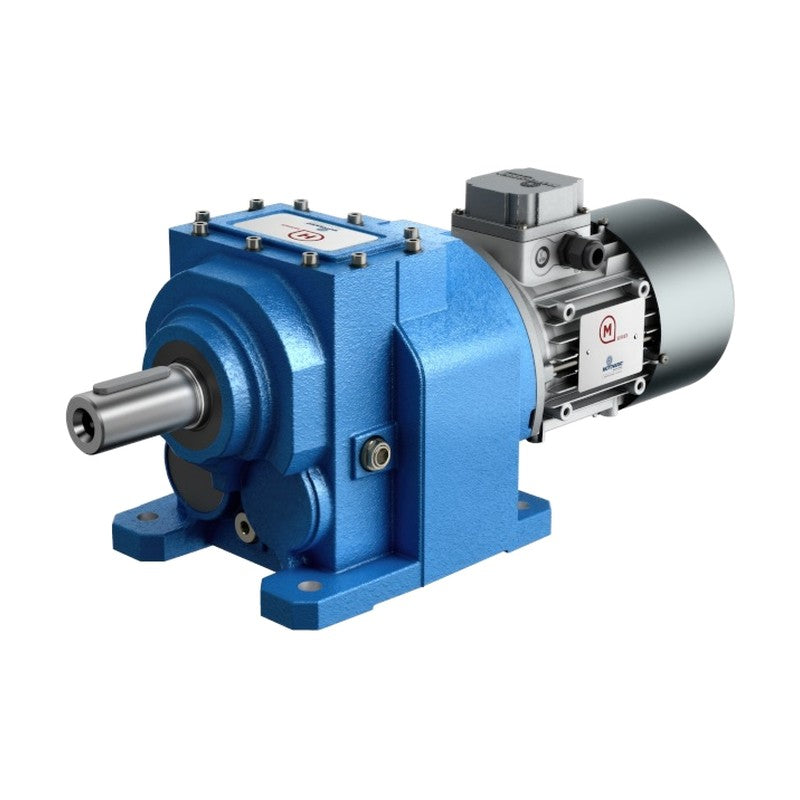

Motovario IHR Helical Inline Gear Reducers, Input Shaft (041-121)

Motovario IHR Helical Inline Gear Reducers, Input Shaft (041-121)

Motovario HR single-stage helical inline gear reducers with solid input shaft (IHR type) in grey cast iron, sizes 041-121, listed in the catalogue performance tables as IH041-IH121.

Key features

  • Order code = unit + ratio as printed in the IH/IHA performance tables, e.g. IH041 1,44
  • Single reduction stage, average efficiency 0.97
  • Grey cast iron casing with blue RAL 5010 epoxy-polyester paint
  • Foot (standard), F flanged, U universal and M mono casings; output flanges FA, FB, FC
  • Output shaft 19 to 55 mm, input shaft 16 to 38 mm depending on size
  • Ratings published for input speeds 500 to 1750 rpm; row data at 1400 rpm

Specifications

Series HR cast iron helical inline, IH type
Input Solid input shaft (IHR, ECE)
Sizes 041, 051, 061, 081, 101, 121
Stages 1
Ratio range i 1.23-8.75
Rated torque Mn2 25-1000 Nm
Rated power Pn1 (1400 rpm) 0.95-79.82 kW
Rating basis (rows) Input speed n1 = 1400 rpm
Rating tables also at n1 = 1750, 1140, 900, 700, 500 rpm
Mounting positions B3, B5, B8, B6, B7, V5, V1, V6, V3
Source Motovario H Series Technical Catalogue IEC STD, p. 15-19, 58-59, 209-286
IH041 1,44 Size: 041 | Ratio i: 1.44 | Rated torque Mn2: 25 Nm | Rated power Pn1: 2.63 kW | Output speed n2: 973.9 rpm | Radial load Fr1/Fr2: 996/592 N
IH041 2,00 Size: 041 | Ratio i: 2.00 | Rated torque Mn2: 25 Nm | Rated power Pn1: 1.89 kW | Output speed n2: 700.0 rpm | Radial load Fr1/Fr2: 1101/675 N
IH041 2,55 Size: 041 | Ratio i: 2.55 | Rated torque Mn2: 30 Nm | Rated power Pn1: 1.78 kW | Output speed n2: 550.0 rpm | Radial load Fr1/Fr2: 1116/718 N
IH041 2,71 Size: 041 | Ratio i: 2.71 | Rated torque Mn2: 30 Nm | Rated power Pn1: 1.67 kW | Output speed n2: 515.8 rpm | Radial load Fr1/Fr2: 1132/736 N
IH041 3,11 Size: 041 | Ratio i: 3.11 | Rated torque Mn2: 40 Nm | Rated power Pn1: 1.95 kW | Output speed n2: 450.9 rpm | Radial load Fr1/Fr2: 1093/730 N
IH041 3,59 Size: 041 | Ratio i: 3.59 | Rated torque Mn2: 45 Nm | Rated power Pn1: 1.90 kW | Output speed n2: 390.2 rpm | Radial load Fr1/Fr2: 1100/752 N
IH041 4,20 Size: 041 | Ratio i: 4.20 | Rated torque Mn2: 45 Nm | Rated power Pn1: 1.62 kW | Output speed n2: 333.3 rpm | Radial load Fr1/Fr2: 1139/804 N
IH041 5,00 Size: 041 | Ratio i: 5.00 | Rated torque Mn2: 45 Nm | Rated power Pn1: 1.36 kW | Output speed n2: 280.0 rpm | Radial load Fr1/Fr2: 1176/864 N
IH041 5,50 Size: 041 | Ratio i: 5.50 | Rated torque Mn2: 50 Nm | Rated power Pn1: 1.37 kW | Output speed n2: 254.6 rpm | Radial load Fr1/Fr2: 1174/876 N
IH041 6,09 Size: 041 | Ratio i: 6.09 | Rated torque Mn2: 50 Nm | Rated power Pn1: 1.24 kW | Output speed n2: 229.8 rpm | Radial load Fr1/Fr2: 1193/914 N
IH041 7,67 Size: 041 | Ratio i: 7.67 | Rated torque Mn2: 50 Nm | Rated power Pn1: 0.99 kW | Output speed n2: 182.6 rpm | Radial load Fr1/Fr2: 1230/1000 N
IH041 8,75 Size: 041 | Ratio i: 8.75 | Rated torque Mn2: 55 Nm | Rated power Pn1: 0.95 kW | Output speed n2: 160.0 rpm | Radial load Fr1/Fr2: 1235/1000 N
IH051 1,27 Size: 051 | Ratio i: 1.27 | Rated torque Mn2: 40 Nm | Rated power Pn1: 4.75 kW | Output speed n2: 1100.0 rpm | Radial load Fr1/Fr2: 825/1483 N
IH051 1,42 Size: 051 | Ratio i: 1.42 | Rated torque Mn2: 60 Nm | Rated power Pn1: 6.39 kW | Output speed n2: 986.4 rpm | Radial load Fr1/Fr2: 630/1457 N
IH051 2,13 Size: 051 | Ratio i: 2.13 | Rated torque Mn2: 60 Nm | Rated power Pn1: 4.27 kW | Output speed n2: 658.8 rpm | Radial load Fr1/Fr2: 883/1705 N
IH051 2,57 Size: 051 | Ratio i: 2.57 | Rated torque Mn2: 70 Nm | Rated power Pn1: 4.11 kW | Output speed n2: 544.4 rpm | Radial load Fr1/Fr2: 901/1790 N
IH051 3,17 Size: 051 | Ratio i: 3.17 | Rated torque Mn2: 80 Nm | Rated power Pn1: 3.82 kW | Output speed n2: 442.1 rpm | Radial load Fr1/Fr2: 937/1897 N
IH051 3,69 Size: 051 | Ratio i: 3.69 | Rated torque Mn2: 90 Nm | Rated power Pn1: 3.69 kW | Output speed n2: 379.7 rpm | Radial load Fr1/Fr2: 952/1971 N
IH051 4,00 Size: 051 | Ratio i: 4.00 | Rated torque Mn2: 90 Nm | Rated power Pn1: 3.40 kW | Output speed n2: 350.0 rpm | Radial load Fr1/Fr2: 987/2036 N
IH051 4,77 Size: 051 | Ratio i: 4.77 | Rated torque Mn2: 95 Nm | Rated power Pn1: 3.01 kW | Output speed n2: 293.6 rpm | Radial load Fr1/Fr2: 1033/2160 N
IH051 5,25 Size: 051 | Ratio i: 5.25 | Rated torque Mn2: 100 Nm | Rated power Pn1: 2.88 kW | Output speed n2: 266.7 rpm | Radial load Fr1/Fr2: 1049/2222 N
IH051 5,82 Size: 051 | Ratio i: 5.82 | Rated torque Mn2: 100 Nm | Rated power Pn1: 2.60 kW | Output speed n2: 240.6 rpm | Radial load Fr1/Fr2: 1083/2315 N
IH051 7,33 Size: 051 | Ratio i: 7.33 | Rated torque Mn2: 100 Nm | Rated power Pn1: 2.06 kW | Output speed n2: 190.9 rpm | Radial load Fr1/Fr2: 1147/2500 N
IH051 8,38 Size: 051 | Ratio i: 8.38 | Rated torque Mn2: 100 Nm | Rated power Pn1: 1.80 kW | Output speed n2: 167.2 rpm | Radial load Fr1/Fr2: 1178/2500 N
IH061 1,34 Size: 061 | Ratio i: 1.34 | Rated torque Mn2: 80 Nm | Rated power Pn1: 9.00 kW | Output speed n2: 1041.9 rpm | Radial load Fr1/Fr2: 2094/2204 N
IH061 2,13 Size: 061 | Ratio i: 2.13 | Rated torque Mn2: 120 Nm | Rated power Pn1: 8.53 kW | Output speed n2: 658.8 rpm | Radial load Fr1/Fr2: 2140/2415 N
IH061 2,57 Size: 061 | Ratio i: 2.57 | Rated torque Mn2: 120 Nm | Rated power Pn1: 7.05 kW | Output speed n2: 544.4 rpm | Radial load Fr1/Fr2: 2285/2618 N
IH061 3,17 Size: 061 | Ratio i: 3.17 | Rated torque Mn2: 130 Nm | Rated power Pn1: 6.20 kW | Output speed n2: 442.1 rpm | Radial load Fr1/Fr2: 2368/2799 N
IH061 3,69 Size: 061 | Ratio i: 3.69 | Rated torque Mn2: 150 Nm | Rated power Pn1: 6.15 kW | Output speed n2: 379.7 rpm | Radial load Fr1/Fr2: 2374/2870 N
IH061 4,00 Size: 061 | Ratio i: 4.00 | Rated torque Mn2: 150 Nm | Rated power Pn1: 5.67 kW | Output speed n2: 350.0 rpm | Radial load Fr1/Fr2: 2421/2972 N
IH061 4,77 Size: 061 | Ratio i: 4.77 | Rated torque Mn2: 160 Nm | Rated power Pn1: 5.07 kW | Output speed n2: 293.6 rpm | Radial load Fr1/Fr2: 2479/3146 N
IH061 5,25 Size: 061 | Ratio i: 5.25 | Rated torque Mn2: 170 Nm | Rated power Pn1: 4.89 kW | Output speed n2: 266.7 rpm | Radial load Fr1/Fr2: 2496/3221 N
IH061 5,82 Size: 061 | Ratio i: 5.82 | Rated torque Mn2: 170 Nm | Rated power Pn1: 4.42 kW | Output speed n2: 240.6 rpm | Radial load Fr1/Fr2: 2543/3367 N
IH061 7,33 Size: 061 | Ratio i: 7.33 | Rated torque Mn2: 170 Nm | Rated power Pn1: 3.50 kW | Output speed n2: 190.9 rpm | Radial load Fr1/Fr2: 2632/3700 N
IH061 8,38 Size: 061 | Ratio i: 8.38 | Rated torque Mn2: 170 Nm | Rated power Pn1: 3.07 kW | Output speed n2: 167.2 rpm | Radial load Fr1/Fr2: 2675/3700 N
IH081 1,30 Size: 081 | Ratio i: 1.30 | Rated torque Mn2: 200 Nm | Rated power Pn1: 23.30 kW | Output speed n2: 1079.2 rpm | Radial load Fr1/Fr2: 922/2316 N
IH081 1,43 Size: 081 | Ratio i: 1.43 | Rated torque Mn2: 220 Nm | Rated power Pn1: 23.27 kW | Output speed n2: 980.0 rpm | Radial load Fr1/Fr2: 925/2337 N
IH081 1,93 Size: 081 | Ratio i: 1.93 | Rated torque Mn2: 230 Nm | Rated power Pn1: 18.00 kW | Output speed n2: 725.0 rpm | Radial load Fr1/Fr2: 1404/2637 N
IH081 2,54 Size: 081 | Ratio i: 2.54 | Rated torque Mn2: 280 Nm | Rated power Pn1: 16.65 kW | Output speed n2: 550.8 rpm | Radial load Fr1/Fr2: 1527/2777 N
IH081 3,25 Size: 081 | Ratio i: 3.25 | Rated torque Mn2: 310 Nm | Rated power Pn1: 14.42 kW | Output speed n2: 430.8 rpm | Radial load Fr1/Fr2: 1730/2990 N
IH081 3,72 Size: 081 | Ratio i: 3.72 | Rated torque Mn2: 310 Nm | Rated power Pn1: 12.59 kW | Output speed n2: 376.1 rpm | Radial load Fr1/Fr2: 1896/3186 N
IH081 4,00 Size: 081 | Ratio i: 4.00 | Rated torque Mn2: 320 Nm | Rated power Pn1: 12.09 kW | Output speed n2: 350.0 rpm | Radial load Fr1/Fr2: 1941/3253 N
IH081 4,67 Size: 081 | Ratio i: 4.67 | Rated torque Mn2: 320 Nm | Rated power Pn1: 10.36 kW | Output speed n2: 300.0 rpm | Radial load Fr1/Fr2: 2098/3493 N
IH081 5,54 Size: 081 | Ratio i: 5.54 | Rated torque Mn2: 330 Nm | Rated power Pn1: 9.00 kW | Output speed n2: 252.8 rpm | Radial load Fr1/Fr2: 2221/3734 N
IH081 6,08 Size: 081 | Ratio i: 6.08 | Rated torque Mn2: 340 Nm | Rated power Pn1: 8.45 kW | Output speed n2: 230.1 rpm | Radial load Fr1/Fr2: 2272/3854 N
IH081 7,50 Size: 081 | Ratio i: 7.50 | Rated torque Mn2: 350 Nm | Rated power Pn1: 7.05 kW | Output speed n2: 186.7 rpm | Radial load Fr1/Fr2: 2398/4000 N
IH081 8,44 Size: 081 | Ratio i: 8.44 | Rated torque Mn2: 350 Nm | Rated power Pn1: 6.26 kW | Output speed n2: 165.8 rpm | Radial load Fr1/Fr2: 2470/4000 N
IH101 1,29 Size: 101 | Ratio i: 1.29 | Rated torque Mn2: 400 Nm | Rated power Pn1: 46.76 kW | Output speed n2: 1083.0 rpm | Radial load Fr1/Fr2: 1816/2827 N
IH101 1,41 Size: 101 | Ratio i: 1.41 | Rated torque Mn2: 450 Nm | Rated power Pn1: 48.22 kW | Output speed n2: 992.7 rpm | Radial load Fr1/Fr2: 1749/2813 N
IH101 2,03 Size: 101 | Ratio i: 2.03 | Rated torque Mn2: 450 Nm | Rated power Pn1: 33.46 kW | Output speed n2: 688.9 rpm | Radial load Fr1/Fr2: 2427/3326 N
IH101 2,48 Size: 101 | Ratio i: 2.48 | Rated torque Mn2: 550 Nm | Rated power Pn1: 33.50 kW | Output speed n2: 564.2 rpm | Radial load Fr1/Fr2: 2425/3378 N
IH101 3,27 Size: 101 | Ratio i: 3.27 | Rated torque Mn2: 600 Nm | Rated power Pn1: 27.71 kW | Output speed n2: 427.8 rpm | Radial load Fr1/Fr2: 2691/3713 N
IH101 3,70 Size: 101 | Ratio i: 3.70 | Rated torque Mn2: 600 Nm | Rated power Pn1: 24.51 kW | Output speed n2: 378.4 rpm | Radial load Fr1/Fr2: 2838/3932 N
IH101 4,22 Size: 101 | Ratio i: 4.22 | Rated torque Mn2: 610 Nm | Rated power Pn1: 21.83 kW | Output speed n2: 331.6 rpm | Radial load Fr1/Fr2: 2961/4152 N
IH101 4,88 Size: 101 | Ratio i: 4.88 | Rated torque Mn2: 620 Nm | Rated power Pn1: 19.22 kW | Output speed n2: 287.2 rpm | Radial load Fr1/Fr2: 3081/4407 N
IH101 5,27 Size: 101 | Ratio i: 5.27 | Rated torque Mn2: 620 Nm | Rated power Pn1: 17.79 kW | Output speed n2: 265.8 rpm | Radial load Fr1/Fr2: 3147/4563 N
IH101 6,23 Size: 101 | Ratio i: 6.23 | Rated torque Mn2: 640 Nm | Rated power Pn1: 15.52 kW | Output speed n2: 224.7 rpm | Radial load Fr1/Fr2: 3251/4866 N
IH101 7,55 Size: 101 | Ratio i: 7.55 | Rated torque Mn2: 650 Nm | Rated power Pn1: 13.02 kW | Output speed n2: 185.5 rpm | Radial load Fr1/Fr2: 3366/5000 N
IH101 8,40 Size: 101 | Ratio i: 8.40 | Rated torque Mn2: 650 Nm | Rated power Pn1: 11.69 kW | Output speed n2: 166.7 rpm | Radial load Fr1/Fr2: 3427/5000 N
IH121 1,23 Size: 121 | Ratio i: 1.23 | Rated torque Mn2: 650 Nm | Rated power Pn1: 79.82 kW | Output speed n2: 1137.5 rpm | Radial load Fr1/Fr2: 869/3360 N
IH121 1,42 Size: 121 | Ratio i: 1.42 | Rated torque Mn2: 700 Nm | Rated power Pn1: 74.68 kW | Output speed n2: 988.2 rpm | Radial load Fr1/Fr2: 1066/3478 N
IH121 1,81 Size: 121 | Ratio i: 1.81 | Rated torque Mn2: 700 Nm | Rated power Pn1: 58.56 kW | Output speed n2: 775.0 rpm | Radial load Fr1/Fr2: 1685/3907 N
IH121 2,00 Size: 121 | Ratio i: 2.00 | Rated torque Mn2: 750 Nm | Rated power Pn1: 56.67 kW | Output speed n2: 700.0 rpm | Radial load Fr1/Fr2: 1757/3983 N
IH121 2,48 Size: 121 | Ratio i: 2.48 | Rated torque Mn2: 800 Nm | Rated power Pn1: 48.75 kW | Output speed n2: 564.5 rpm | Radial load Fr1/Fr2: 2061/4292 N
IH121 2,95 Size: 121 | Ratio i: 2.95 | Rated torque Mn2: 800 Nm | Rated power Pn1: 40.92 kW | Output speed n2: 473.9 rpm | Radial load Fr1/Fr2: 2362/4659 N
IH121 3,14 Size: 121 | Ratio i: 3.14 | Rated torque Mn2: 820 Nm | Rated power Pn1: 39.43 kW | Output speed n2: 445.4 rpm | Radial load Fr1/Fr2: 2419/4749 N
IH121 3,58 Size: 121 | Ratio i: 3.58 | Rated torque Mn2: 850 Nm | Rated power Pn1: 35.89 kW | Output speed n2: 391.2 rpm | Radial load Fr1/Fr2: 2555/4973 N
IH121 4,12 Size: 121 | Ratio i: 4.12 | Rated torque Mn2: 850 Nm | Rated power Pn1: 31.20 kW | Output speed n2: 340.0 rpm | Radial load Fr1/Fr2: 2735/5304 N
IH121 4,80 Size: 121 | Ratio i: 4.80 | Rated torque Mn2: 870 Nm | Rated power Pn1: 27.39 kW | Output speed n2: 291.7 rpm | Radial load Fr1/Fr2: 2881/5638 N
IH121 5,21 Size: 121 | Ratio i: 5.21 | Rated torque Mn2: 880 Nm | Rated power Pn1: 25.51 kW | Output speed n2: 268.5 rpm | Radial load Fr1/Fr2: 2953/5829 N
IH121 6,25 Size: 121 | Ratio i: 6.25 | Rated torque Mn2: 900 Nm | Rated power Pn1: 21.76 kW | Output speed n2: 224.0 rpm | Radial load Fr1/Fr2: 3097/6000 N
IH121 7,70 Size: 121 | Ratio i: 7.70 | Rated torque Mn2: 1000 Nm | Rated power Pn1: 19.63 kW | Output speed n2: 181.8 rpm | Radial load Fr1/Fr2: 3179/6000 N
IH041 Legacy code (unit-level listing, ratio to be specified) | Size: 041 | Stages: 1
IH051 Legacy code (unit-level listing, ratio to be specified) | Size: 051 | Stages: 1
IH061 Legacy code (unit-level listing, ratio to be specified) | Size: 061 | Stages: 1
IH081 Legacy code (unit-level listing, ratio to be specified) | Size: 081 | Stages: 1
IH101 Legacy code (unit-level listing, ratio to be specified) | Size: 101 | Stages: 1
IH121 Legacy code (unit-level listing, ratio to be specified) | Size: 121 | Stages: 1
