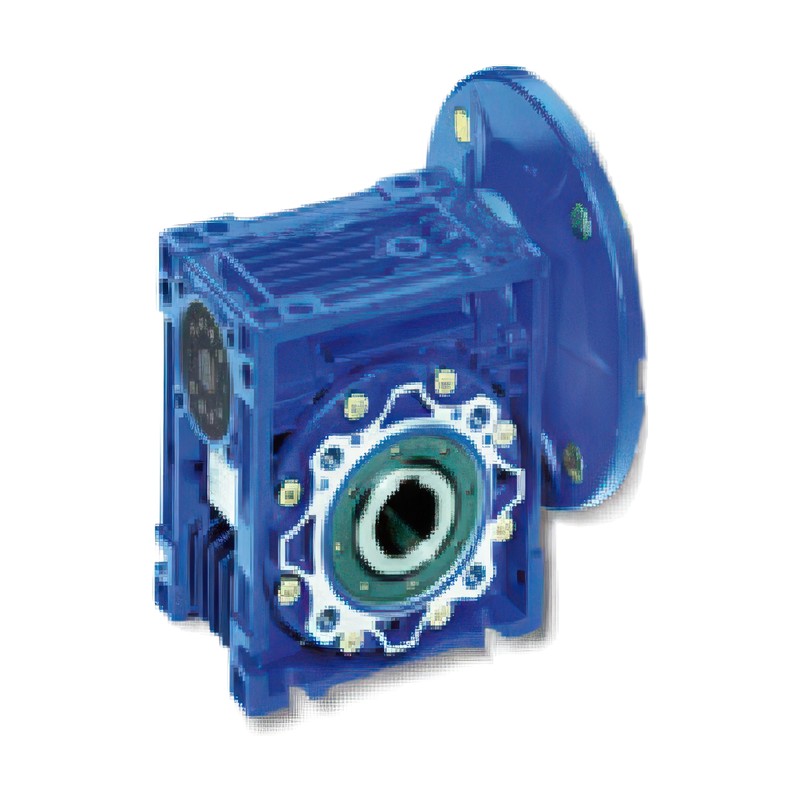

Motovario NMRV/NMRV Double Worm Gearmotors (025/030-063/150)

Motovario NMRV/NMRV Double Worm Gearmotors (025/030-063/150)

Motovario NMRV/NMRV combined double worm gearmotors for very low output speeds, listed with every ratio and motor combination printed in the performance tables.

Key features

  • Two NMRV worm stages combined for total ratios from 100 to 5000
  • Output speeds from 28 rpm down to 0.28 rpm, output torque up to 3,744 Nm
  • Eleven printed combinations from NMRV025/030 to NMRV063/150
  • Supplied with small IEC motors 56-90 frame (2, 4 and 6 poles), 0.06 to 1.84 kW
  • High irreversibility; condition is set by the stage with the lowest efficiency
  • Output flange, execution (AS/BS/VS/PS) and mounting position selected at order

Specifications

Brand Motovario (Italy)
Gear type Two-stage worm/worm, right-angle
Combinations 025/030 to 063/150 (11 printed)
Ratio range 100 to 5000
Motor power range 0.06 to 1.84 kW
Output Hollow shaft; optional output flange FA-FE
Execution AS1/AS2, BS1/BS2, VS1/VS2, PS1/PS2
Code format NMRV<size>/<size> <ratio> <IEC motor>
Lubrication Synthetic 025-105, mineral oil 110-150
Source Motovario NMRV Worm Geared Motors catalog, p. 21, 34-59
NMRV025/030 100 56A4 Unit: NMRV025/030 | Ratio i: 100 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 14.0 rpm | Output torque M2: 25 Nm
NMRV025/030 150 56A4 Unit: NMRV025/030 | Ratio i: 150 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 9.3 rpm | Output torque M2: 32 Nm
NMRV025/030 200 56A4 Unit: NMRV025/030 | Ratio i: 200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 7.0 rpm | Output torque M2: 41 Nm
NMRV025/030 250 56A4 Unit: NMRV025/030 | Ratio i: 250 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 5.6 rpm | Output torque M2: 44 Nm
NMRV025/040 300 56A4 Unit: NMRV025/040 | Ratio i: 300 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 4.7 rpm | Output torque M2: 59 Nm
NMRV025/040 400 56A4 Unit: NMRV025/040 | Ratio i: 400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 3.5 rpm | Output torque M2: 71 Nm
NMRV025/040 500 56A4 Unit: NMRV025/040 | Ratio i: 500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.8 rpm | Output torque M2: 82 Nm
NMRV025/040 600 56A4 Unit: NMRV025/040 | Ratio i: 600 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.3 rpm | Output torque M2: 101 Nm
NMRV025/040 750 56A4 Unit: NMRV025/040 | Ratio i: 750 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.9 rpm | Output torque M2: 116 Nm
NMRV025/040 900 56A4 Unit: NMRV025/040 | Ratio i: 900 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.6 rpm | Output torque M2: 143 Nm
NMRV025/040 1200 56A4 Unit: NMRV025/040 | Ratio i: 1200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.2 rpm | Output torque M2: 171 Nm
NMRV025/040 1500 56A4 Unit: NMRV025/040 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.9 rpm | Output torque M2: 197 Nm
NMRV025/040 1800 56A4 Unit: NMRV025/040 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.8 rpm | Output torque M2: 217 Nm
NMRV025/040 2400 56A4 Unit: NMRV025/040 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.6 rpm | Output torque M2: 268 Nm
NMRV025/040 3000 56A4 Unit: NMRV025/040 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.5 rpm | Output torque M2: 324 Nm
NMRV025/040 4000 56A4 Unit: NMRV025/040 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.4 rpm | Output torque M2: 294 Nm
NMRV025/040 5000 56A4 Unit: NMRV025/040 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.3 rpm | Output torque M2: 356 Nm
NMRV030/040 300 56A4 Unit: NMRV030/040 | Ratio i: 300 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 4.7 rpm | Output torque M2: 60 Nm
NMRV030/040 400 56A4 Unit: NMRV030/040 | Ratio i: 400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 3.5 rpm | Output torque M2: 72 Nm
NMRV030/040 500 56A4 Unit: NMRV030/040 | Ratio i: 500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.8 rpm | Output torque M2: 98 Nm
NMRV030/040 600 56A4 Unit: NMRV030/040 | Ratio i: 600 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.3 rpm | Output torque M2: 107 Nm
NMRV030/040 750 56A4 Unit: NMRV030/040 | Ratio i: 750 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.9 rpm | Output torque M2: 125 Nm
NMRV030/040 900 56A4 Unit: NMRV030/040 | Ratio i: 900 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.6 rpm | Output torque M2: 143 Nm
NMRV030/040 1200 56A4 Unit: NMRV030/040 | Ratio i: 1200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.2 rpm | Output torque M2: 172 Nm
NMRV030/040 1500 56A4 Unit: NMRV030/040 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.9 rpm | Output torque M2: 203 Nm
NMRV030/040 1800 56A4 Unit: NMRV030/040 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.8 rpm | Output torque M2: 226 Nm
NMRV030/040 2400 56A4 Unit: NMRV030/040 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.58 rpm | Output torque M2: 271 Nm
NMRV030/040 3200 56A4 Unit: NMRV030/040 | Ratio i: 3200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.4 rpm | Output torque M2: 312 Nm
NMRV030/040 4000 56A4 Unit: NMRV030/040 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.4 rpm | Output torque M2: 367 Nm
NMRV030/040 5000 56A4 Unit: NMRV030/040 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 401 Nm
NMRV030/050 900 56A4 Unit: NMRV030/050 | Ratio i: 900 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.6 rpm | Output torque M2: 146 Nm
NMRV030/050 1200 56A4 Unit: NMRV030/050 | Ratio i: 1200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.2 rpm | Output torque M2: 175 Nm
NMRV030/050 1500 56A4 Unit: NMRV030/050 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.93 rpm | Output torque M2: 206 Nm
NMRV030/050 1800 56A4 Unit: NMRV030/050 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.78 rpm | Output torque M2: 230 Nm
NMRV030/050 2400 56A4 Unit: NMRV030/050 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.6 rpm | Output torque M2: 276 Nm
NMRV030/050 3000 56A4 Unit: NMRV030/050 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.5 rpm | Output torque M2: 319 Nm
NMRV030/050 4000 56A4 Unit: NMRV030/050 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 367 Nm
NMRV030/050 4800 56A4 Unit: NMRV030/050 | Ratio i: 4800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.29 rpm | Output torque M2: 409 Nm
NMRV030/063 1500 56A4 Unit: NMRV030/063 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.93 rpm | Output torque M2: 211 Nm
NMRV030/063 1800 56A4 Unit: NMRV030/063 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.78 rpm | Output torque M2: 233 Nm
NMRV030/063 2400 56A4 Unit: NMRV030/063 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.58 rpm | Output torque M2: 286 Nm
NMRV030/063 3000 56A4 Unit: NMRV030/063 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.47 rpm | Output torque M2: 332 Nm
NMRV030/063 4000 56A4 Unit: NMRV030/063 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 385 Nm
NMRV030/063 5000 56A4 Unit: NMRV030/063 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 424 Nm
NMRV040/075 2400 56A4 Unit: NMRV040/075 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.58 rpm | Output torque M2: 342 Nm
NMRV040/075 3000 56A4 Unit: NMRV040/075 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.47 rpm | Output torque M2: 391 Nm
NMRV040/075 4000 56A4 Unit: NMRV040/075 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 464 Nm
NMRV040/075 5000 56A4 Unit: NMRV040/075 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 516 Nm
NMRV040/090 3000 56A4 Unit: NMRV040/090 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.47 rpm | Output torque M2: 420 Nm
NMRV040/090 4000 56A4 Unit: NMRV040/090 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 505 Nm
NMRV040/090 5000 56A4 Unit: NMRV040/090 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 567 Nm
NMRV025/030 100 56A2 Unit: NMRV025/030 | Ratio i: 100 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 28.0 rpm | Output torque M2: 20 Nm
NMRV025/030 150 56A2 Unit: NMRV025/030 | Ratio i: 150 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 18.7 rpm | Output torque M2: 25 Nm
NMRV025/030 200 56A2 Unit: NMRV025/030 | Ratio i: 200 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 14.0 rpm | Output torque M2: 33 Nm
NMRV025/030 100 56B4 Unit: NMRV025/030 | Ratio i: 100 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 14.0 rpm | Output torque M2: 38 Nm
NMRV025/030 150 56B4 Unit: NMRV025/030 | Ratio i: 150 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 9.3 rpm | Output torque M2: 49 Nm
NMRV025/030 200 56B4 Unit: NMRV025/030 | Ratio i: 200 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 7.0 rpm | Output torque M2: 62 Nm
NMRV025/030 250 56B4 Unit: NMRV025/030 | Ratio i: 250 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 5.6 rpm | Output torque M2: 66 Nm
NMRV025/030 300 56B4 Unit: NMRV025/030 | Ratio i: 300 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 4.7 rpm | Output torque M2: 75 Nm
NMRV025/030 400 56B4 Unit: NMRV025/030 | Ratio i: 400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 3.5 rpm | Output torque M2: 107 Nm
NMRV025/030 500 56B4 Unit: NMRV025/030 | Ratio i: 500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.8 rpm | Output torque M2: 115 Nm
NMRV025/030 600 56B4 Unit: NMRV025/030 | Ratio i: 600 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.3 rpm | Output torque M2: 135 Nm
NMRV025/030 750 56B4 Unit: NMRV025/030 | Ratio i: 750 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.9 rpm | Output torque M2: 151 Nm
NMRV025/030 900 56B4 Unit: NMRV025/030 | Ratio i: 900 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.6 rpm | Output torque M2: 178 Nm
NMRV025/030 1200 56B4 Unit: NMRV025/030 | Ratio i: 1200 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.2 rpm | Output torque M2: 212 Nm
NMRV025/030 1500 56B4 Unit: NMRV025/030 | Ratio i: 1500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.9 rpm | Output torque M2: 247 Nm
NMRV025/030 1800 56B4 Unit: NMRV025/030 | Ratio i: 1800 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.78 rpm | Output torque M2: 304 Nm
NMRV025/030 2400 56B4 Unit: NMRV025/030 | Ratio i: 2400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.58 rpm | Output torque M2: 340 Nm
NMRV025/030 3000 56B4 Unit: NMRV025/030 | Ratio i: 3000 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.47 rpm | Output torque M2: 405 Nm
NMRV025/040 300 56A2 Unit: NMRV025/040 | Ratio i: 300 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 9.3 rpm | Output torque M2: 45 Nm
NMRV025/040 400 56A2 Unit: NMRV025/040 | Ratio i: 400 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 7.0 rpm | Output torque M2: 54 Nm
NMRV025/040 500 56A2 Unit: NMRV025/040 | Ratio i: 500 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 5.6 rpm | Output torque M2: 77 Nm
NMRV030/040 300 56B4 Unit: NMRV030/040 | Ratio i: 300 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 4.7 rpm | Output torque M2: 90 Nm
NMRV030/050 400 56B4 Unit: NMRV030/050 | Ratio i: 400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 3.5 rpm | Output torque M2: 110 Nm
NMRV030/050 500 56B4 Unit: NMRV030/050 | Ratio i: 500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.8 rpm | Output torque M2: 127 Nm
NMRV030/050 600 56B4 Unit: NMRV030/050 | Ratio i: 600 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.3 rpm | Output torque M2: 164 Nm
NMRV030/050 750 56B4 Unit: NMRV030/050 | Ratio i: 750 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.9 rpm | Output torque M2: 191 Nm
NMRV030/050 900 56B4 Unit: NMRV030/050 | Ratio i: 900 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.6 rpm | Output torque M2: 219 Nm
NMRV030/063 900 56B4 Unit: NMRV030/063 | Ratio i: 900 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.6 rpm | Output torque M2: 207 Nm
NMRV030/063 1200 56B4 Unit: NMRV030/063 | Ratio i: 1200 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.2 rpm | Output torque M2: 272 Nm
NMRV030/063 1500 56B4 Unit: NMRV030/063 | Ratio i: 1500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.93 rpm | Output torque M2: 316 Nm
NMRV040/075 1500 56B4 Unit: NMRV040/075 | Ratio i: 1500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.93 rpm | Output torque M2: 371 Nm
NMRV040/075 1800 56B4 Unit: NMRV040/075 | Ratio i: 1800 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.78 rpm | Output torque M2: 417 Nm
NMRV040/075 2400 56B4 Unit: NMRV040/075 | Ratio i: 2400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.58 rpm | Output torque M2: 513 Nm
NMRV040/090 3000 56B4 Unit: NMRV040/090 | Ratio i: 3000 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.47 rpm | Output torque M2: 630 Nm
NMRV040/090 4000 56B4 Unit: NMRV040/090 | Ratio i: 4000 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.35 rpm | Output torque M2: 758 Nm
NMRV030/050 300 63A4 Unit: NMRV030/050 | Ratio i: 300 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 4.7 rpm | Output torque M2: 122 Nm
NMRV030/050 400 63A4 Unit: NMRV030/050 | Ratio i: 400 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 3.5 rpm | Output torque M2: 147 Nm
NMRV030/050 500 63A4 Unit: NMRV030/050 | Ratio i: 500 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 2.8 rpm | Output torque M2: 170 Nm
NMRV030/063 500 63A4 Unit: NMRV030/063 | Ratio i: 500 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 2.8 rpm | Output torque M2: 177 Nm
NMRV030/063 600 63A4 Unit: NMRV030/063 | Ratio i: 600 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 2.3 rpm | Output torque M2: 215 Nm
NMRV030/063 750 63A4 Unit: NMRV030/063 | Ratio i: 750 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 1.9 rpm | Output torque M2: 249 Nm
NMRV040/075 900 63A4 Unit: NMRV040/075 | Ratio i: 900 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 1.6 rpm | Output torque M2: 335 Nm
NMRV040/075 1200 63A4 Unit: NMRV040/075 | Ratio i: 1200 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 1.2 rpm | Output torque M2: 411 Nm
NMRV040/090 1800 63A4 Unit: NMRV040/090 | Ratio i: 1800 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.78 rpm | Output torque M2: 565 Nm
NMRV040/090 2400 63A4 Unit: NMRV040/090 | Ratio i: 2400 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.58 rpm | Output torque M2: 719 Nm
NMRV050/105 3000 63A4 Unit: NMRV050/105 | Ratio i: 3000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.47 rpm | Output torque M2: 914 Nm
NMRV050/105 4000 63A4 Unit: NMRV050/105 | Ratio i: 4000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.35 rpm | Output torque M2: 1111 Nm
NMRV050/105 5000 63A4 Unit: NMRV050/105 | Ratio i: 5000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.28 rpm | Output torque M2: 1257 Nm
NMRV050/110 3000 63A4 Unit: NMRV050/110 | Ratio i: 3000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.47 rpm | Output torque M2: 914 Nm
NMRV050/110 4000 63A4 Unit: NMRV050/110 | Ratio i: 4000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.35 rpm | Output torque M2: 1111 Nm
NMRV050/110 5000 63A4 Unit: NMRV050/110 | Ratio i: 5000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.28 rpm | Output torque M2: 1257 Nm
NMRV030/063 400 63B4 Unit: NMRV030/063 | Ratio i: 400 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 3.5 rpm | Output torque M2: 228 Nm
NMRV030/063 500 63B4 Unit: NMRV030/063 | Ratio i: 500 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 2.8 rpm | Output torque M2: 265 Nm
NMRV040/075 600 63B4 Unit: NMRV040/075 | Ratio i: 600 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 2.3 rpm | Output torque M2: 372 Nm
NMRV040/075 750 63B4 Unit: NMRV040/075 | Ratio i: 750 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 1.9 rpm | Output torque M2: 448 Nm
NMRV040/075 900 63B4 Unit: NMRV040/075 | Ratio i: 900 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 1.6 rpm | Output torque M2: 502 Nm
NMRV040/090 1200 63B4 Unit: NMRV040/090 | Ratio i: 1200 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 1.2 rpm | Output torque M2: 649 Nm
NMRV040/090 1500 63B4 Unit: NMRV040/090 | Ratio i: 1500 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.93 rpm | Output torque M2: 758 Nm
NMRV050/105 1800 63B4 Unit: NMRV050/105 | Ratio i: 1800 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.78 rpm | Output torque M2: 888 Nm
NMRV050/105 2400 63B4 Unit: NMRV050/105 | Ratio i: 2400 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.58 rpm | Output torque M2: 1149 Nm
NMRV050/110 1800 63B4 Unit: NMRV050/110 | Ratio i: 1800 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.78 rpm | Output torque M2: 888 Nm
NMRV050/110 2400 63B4 Unit: NMRV050/110 | Ratio i: 2400 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.58 rpm | Output torque M2: 1149 Nm
NMRV030/063 300 63C4 Unit: NMRV030/063 | Ratio i: 300 | Motor: 63C4 | Power P1: 0.22 kW | Output speed n2: 4.7 rpm | Output torque M2: 214 Nm
NMRV030/063 400 63C4 Unit: NMRV030/063 | Ratio i: 400 | Motor: 63C4 | Power P1: 0.22 kW | Output speed n2: 3.5 rpm | Output torque M2: 279 Nm
NMRV030/063 400 63B2 Unit: NMRV030/063 | Ratio i: 400 | Motor: 63B2 | Power P1: 0.25 kW | Output speed n2: 7.0 rpm | Output torque M2: 159 Nm
NMRV030/063 500 63B2 Unit: NMRV030/063 | Ratio i: 500 | Motor: 63B2 | Power P1: 0.25 kW | Output speed n2: 5.6 rpm | Output torque M2: 185 Nm
NMRV040/075 400 71A4 Unit: NMRV040/075 | Ratio i: 400 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 3.5 rpm | Output torque M2: 342 Nm
NMRV040/075 500 71A4 Unit: NMRV040/075 | Ratio i: 500 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 2.8 rpm | Output torque M2: 391 Nm
NMRV040/090 600 71A4 Unit: NMRV040/090 | Ratio i: 600 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 2.3 rpm | Output torque M2: 527 Nm
NMRV040/090 750 71A4 Unit: NMRV040/090 | Ratio i: 750 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.9 rpm | Output torque M2: 616 Nm
NMRV040/090 900 71A4 Unit: NMRV040/090 | Ratio i: 900 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.6 rpm | Output torque M2: 688 Nm
NMRV050/105 1200 71A4 Unit: NMRV050/105 | Ratio i: 1200 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.2 rpm | Output torque M2: 971 Nm
NMRV050/105 1500 71A4 Unit: NMRV050/105 | Ratio i: 1500 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.93 rpm | Output torque M2: 1097 Nm
NMRV050/105 1800 71A4 Unit: NMRV050/105 | Ratio i: 1800 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.78 rpm | Output torque M2: 1234 Nm
NMRV050/110 1200 71A4 Unit: NMRV050/110 | Ratio i: 1200 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.2 rpm | Output torque M2: 971 Nm
NMRV050/110 1500 71A4 Unit: NMRV050/110 | Ratio i: 1500 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.93 rpm | Output torque M2: 1097 Nm
NMRV050/110 1800 71A4 Unit: NMRV050/110 | Ratio i: 1800 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.78 rpm | Output torque M2: 1234 Nm
NMRV063/130 2400 71A4 Unit: NMRV063/130 | Ratio i: 2400 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.58 rpm | Output torque M2: 1676 Nm
NMRV063/130 3000 71A4 Unit: NMRV063/130 | Ratio i: 3000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.47 rpm | Output torque M2: 1998 Nm
NMRV063/130 4000 71A4 Unit: NMRV063/130 | Ratio i: 4000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.35 rpm | Output torque M2: 2422 Nm
NMRV063/130 5000 71A4 Unit: NMRV063/130 | Ratio i: 5000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.28 rpm | Output torque M2: 2742 Nm
NMRV063/150 1800 71A4 Unit: NMRV063/150 | Ratio i: 1800 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.8 rpm | Output torque M2: 1412 Nm
NMRV063/150 2400 71A4 Unit: NMRV063/150 | Ratio i: 2400 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.6 rpm | Output torque M2: 1702 Nm
NMRV063/150 3000 71A4 Unit: NMRV063/150 | Ratio i: 3000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.5 rpm | Output torque M2: 1998 Nm
NMRV063/150 4000 71A4 Unit: NMRV063/150 | Ratio i: 4000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.4 rpm | Output torque M2: 2422 Nm
NMRV063/150 5000 71A4 Unit: NMRV063/150 | Ratio i: 5000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.3 rpm | Output torque M2: 2742 Nm
NMRV030/063 300 63C2 Unit: NMRV030/063 | Ratio i: 300 | Motor: 63C2 | Power P1: 0.37 kW | Output speed n2: 9.3 rpm | Output torque M2: 181 Nm
NMRV030/063 400 63C2 Unit: NMRV030/063 | Ratio i: 400 | Motor: 63C2 | Power P1: 0.37 kW | Output speed n2: 7.0 rpm | Output torque M2: 236 Nm
NMRV040/075 300 71B4 Unit: NMRV040/075 | Ratio i: 300 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 4.7 rpm | Output torque M2: 412 Nm
NMRV040/075 400 71B4 Unit: NMRV040/075 | Ratio i: 400 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 3.5 rpm | Output torque M2: 506 Nm
NMRV040/090 300 71B4 Unit: NMRV040/090 | Ratio i: 300 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 4.7 rpm | Output torque M2: 408 Nm
NMRV040/090 400 71B4 Unit: NMRV040/090 | Ratio i: 400 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 3.5 rpm | Output torque M2: 532 Nm
NMRV040/090 500 71B4 Unit: NMRV040/090 | Ratio i: 500 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 2.8 rpm | Output torque M2: 622 Nm
NMRV040/090 600 71B4 Unit: NMRV040/090 | Ratio i: 600 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 2.3 rpm | Output torque M2: 779 Nm
NMRV050/105 750 71B4 Unit: NMRV050/105 | Ratio i: 750 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.9 rpm | Output torque M2: 977 Nm
NMRV050/105 900 71B4 Unit: NMRV050/105 | Ratio i: 900 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.6 rpm | Output torque M2: 1111 Nm
NMRV050/105 1200 71B4 Unit: NMRV050/105 | Ratio i: 1200 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.2 rpm | Output torque M2: 1437 Nm
NMRV050/110 750 71B4 Unit: NMRV050/110 | Ratio i: 750 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.9 rpm | Output torque M2: 977 Nm
NMRV050/110 900 71B4 Unit: NMRV050/110 | Ratio i: 900 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.6 rpm | Output torque M2: 1111 Nm
NMRV050/110 1200 71B4 Unit: NMRV050/110 | Ratio i: 1200 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.2 rpm | Output torque M2: 1437 Nm
NMRV063/130 1500 71B4 Unit: NMRV063/130 | Ratio i: 1500 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.93 rpm | Output torque M2: 1699 Nm
NMRV063/130 1800 71B4 Unit: NMRV063/130 | Ratio i: 1800 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.78 rpm | Output torque M2: 1918 Nm
NMRV063/150 1800 71B4 Unit: NMRV063/150 | Ratio i: 1800 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.8 rpm | Output torque M2: 2089 Nm
NMRV063/150 2400 71B4 Unit: NMRV063/150 | Ratio i: 2400 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.6 rpm | Output torque M2: 2519 Nm
NMRV063/150 3000 71B4 Unit: NMRV063/150 | Ratio i: 3000 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.5 rpm | Output torque M2: 2958 Nm
NMRV040/090 300 71B2 Unit: NMRV040/090 | Ratio i: 300 | Motor: 71B2 | Power P1: 0.55 kW | Output speed n2: 9.3 rpm | Output torque M2: 306 Nm
NMRV040/090 400 71B2 Unit: NMRV040/090 | Ratio i: 400 | Motor: 71B2 | Power P1: 0.55 kW | Output speed n2: 7.0 rpm | Output torque M2: 403 Nm
NMRV040/090 500 71B2 Unit: NMRV040/090 | Ratio i: 500 | Motor: 71B2 | Power P1: 0.55 kW | Output speed n2: 5.6 rpm | Output torque M2: 470 Nm
NMRV050/105 300 80A4 Unit: NMRV050/105 | Ratio i: 300 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 4.7 rpm | Output torque M2: 656 Nm
NMRV050/105 400 80A4 Unit: NMRV050/105 | Ratio i: 400 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 3.5 rpm | Output torque M2: 849 Nm
NMRV050/105 500 80A4 Unit: NMRV050/105 | Ratio i: 500 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.8 rpm | Output torque M2: 1012 Nm
NMRV050/105 600 80A4 Unit: NMRV050/105 | Ratio i: 600 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.3 rpm | Output torque M2: 1214 Nm
NMRV050/105 750 80A4 Unit: NMRV050/105 | Ratio i: 750 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.9 rpm | Output torque M2: 1452 Nm
NMRV050/110 300 80A4 Unit: NMRV050/110 | Ratio i: 300 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 4.7 rpm | Output torque M2: 656 Nm
NMRV050/110 400 80A4 Unit: NMRV050/110 | Ratio i: 400 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 3.5 rpm | Output torque M2: 849 Nm
NMRV050/110 500 80A4 Unit: NMRV050/110 | Ratio i: 500 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.8 rpm | Output torque M2: 1012 Nm
NMRV050/110 600 80A4 Unit: NMRV050/110 | Ratio i: 600 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.3 rpm | Output torque M2: 1214 Nm
NMRV050/110 750 80A4 Unit: NMRV050/110 | Ratio i: 750 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.9 rpm | Output torque M2: 1452 Nm
NMRV063/130 500 80A4 Unit: NMRV063/130 | Ratio i: 500 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.8 rpm | Output torque M2: 1012 Nm
NMRV063/130 750 80A4 Unit: NMRV063/130 | Ratio i: 750 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.9 rpm | Output torque M2: 1489 Nm
NMRV063/130 1200 80A4 Unit: NMRV063/130 | Ratio i: 1200 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.2 rpm | Output torque M2: 2195 Nm
NMRV063/150 1800 80A4 Unit: NMRV063/150 | Ratio i: 1800 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 0.8 rpm | Output torque M2: 3106 Nm
NMRV063/150 2400 80A4 Unit: NMRV063/150 | Ratio i: 2400 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 0.6 rpm | Output torque M2: 3744 Nm
NMRV040/090 400 71C2 Unit: NMRV040/090 | Ratio i: 400 | Motor: 71C2 | Power P1: 0.75 kW | Output speed n2: 7.0 rpm | Output torque M2: 549 Nm
NMRV040/090 500 71C2 Unit: NMRV040/090 | Ratio i: 500 | Motor: 71C2 | Power P1: 0.75 kW | Output speed n2: 5.6 rpm | Output torque M2: 642 Nm
NMRV050/105 300 80A2 Unit: NMRV050/105 | Ratio i: 300 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 9.3 rpm | Output torque M2: 446 Nm
NMRV050/105 400 80A2 Unit: NMRV050/105 | Ratio i: 400 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 7.0 rpm | Output torque M2: 563 Nm
NMRV050/105 500 80A2 Unit: NMRV050/105 | Ratio i: 500 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 5.6 rpm | Output torque M2: 687 Nm
NMRV050/105 300 80B4 Unit: NMRV050/105 | Ratio i: 300 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 4.7 rpm | Output torque M2: 895 Nm
NMRV050/105 400 80B4 Unit: NMRV050/105 | Ratio i: 400 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 3.5 rpm | Output torque M2: 1157 Nm
NMRV050/110 300 80A2 Unit: NMRV050/110 | Ratio i: 300 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 9.3 rpm | Output torque M2: 446 Nm
NMRV050/110 400 80A2 Unit: NMRV050/110 | Ratio i: 400 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 7.0 rpm | Output torque M2: 563 Nm
NMRV050/110 500 80A2 Unit: NMRV050/110 | Ratio i: 500 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 5.6 rpm | Output torque M2: 687 Nm
NMRV050/110 300 80B4 Unit: NMRV050/110 | Ratio i: 300 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 4.7 rpm | Output torque M2: 895 Nm
NMRV050/110 400 80B4 Unit: NMRV050/110 | Ratio i: 400 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 3.5 rpm | Output torque M2: 1157 Nm
NMRV063/130 500 80B4 Unit: NMRV063/130 | Ratio i: 500 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.8 rpm | Output torque M2: 1380 Nm
NMRV063/130 600 80B4 Unit: NMRV063/130 | Ratio i: 600 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.3 rpm | Output torque M2: 1676 Nm
NMRV063/130 750 80B4 Unit: NMRV063/130 | Ratio i: 750 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.9 rpm | Output torque M2: 2031 Nm
NMRV063/130 900 80B4 Unit: NMRV063/130 | Ratio i: 900 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.6 rpm | Output torque M2: 2314 Nm
NMRV063/150 500 80B4 Unit: NMRV063/150 | Ratio i: 500 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.8 rpm | Output torque M2: 1380 Nm
NMRV063/150 600 80B4 Unit: NMRV063/150 | Ratio i: 600 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.3 rpm | Output torque M2: 1702 Nm
NMRV063/150 750 80B4 Unit: NMRV063/150 | Ratio i: 750 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.9 rpm | Output torque M2: 1998 Nm
NMRV063/150 900 80B4 Unit: NMRV063/150 | Ratio i: 900 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.6 rpm | Output torque M2: 2521 Nm
NMRV063/150 1200 80B4 Unit: NMRV063/150 | Ratio i: 1200 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.2 rpm | Output torque M2: 3039 Nm
NMRV050/105 300 80C4 Unit: NMRV050/105 | Ratio i: 300 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 4.7 rpm | Output torque M2: 1097 Nm
NMRV050/105 400 80C4 Unit: NMRV050/105 | Ratio i: 400 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 3.5 rpm | Output torque M2: 1420 Nm
NMRV050/110 300 80C4 Unit: NMRV050/110 | Ratio i: 300 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 4.7 rpm | Output torque M2: 1097 Nm
NMRV050/110 400 80C4 Unit: NMRV050/110 | Ratio i: 400 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 3.5 rpm | Output torque M2: 1420 Nm
NMRV063/130 400 80C4 Unit: NMRV063/130 | Ratio i: 400 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 3.5 rpm | Output torque M2: 1420 Nm
NMRV063/130 500 80C4 Unit: NMRV063/130 | Ratio i: 500 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 2.8 rpm | Output torque M2: 1693 Nm
NMRV063/150 500 80C4 Unit: NMRV063/150 | Ratio i: 500 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 2.8 rpm | Output torque M2: 1693 Nm
NMRV063/150 600 80C4 Unit: NMRV063/150 | Ratio i: 600 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 2.3 rpm | Output torque M2: 2088 Nm
NMRV063/150 750 80C4 Unit: NMRV063/150 | Ratio i: 750 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 1.9 rpm | Output torque M2: 2451 Nm
NMRV063/150 900 80C4 Unit: NMRV063/150 | Ratio i: 900 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 1.6 rpm | Output torque M2: 3092 Nm
NMRV063/150 1200 80C4 Unit: NMRV063/150 | Ratio i: 1200 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 1.2 rpm | Output torque M2: 3728 Nm
NMRV050/105 300 80B2 Unit: NMRV050/105 | Ratio i: 300 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 9.3 rpm | Output torque M2: 654 Nm
NMRV050/105 400 80B2 Unit: NMRV050/105 | Ratio i: 400 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 7.0 rpm | Output torque M2: 845 Nm
NMRV050/105 500 80B2 Unit: NMRV050/105 | Ratio i: 500 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 5.6 rpm | Output torque M2: 1007 Nm
NMRV050/110 300 80B2 Unit: NMRV050/110 | Ratio i: 300 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 9.3 rpm | Output torque M2: 654 Nm
NMRV050/110 400 80B2 Unit: NMRV050/110 | Ratio i: 400 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 7.0 rpm | Output torque M2: 845 Nm
NMRV050/110 500 80B2 Unit: NMRV050/110 | Ratio i: 500 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 5.6 rpm | Output torque M2: 1007 Nm
NMRV063/130 300 90S4 Unit: NMRV063/130 | Ratio i: 300 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 4.7 rpm | Output torque M2: 1332 Nm
NMRV063/130 400 90S4 Unit: NMRV063/130 | Ratio i: 400 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 3.5 rpm | Output torque M2: 1697 Nm
NMRV063/130 500 90S4 Unit: NMRV063/130 | Ratio i: 500 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 2.8 rpm | Output torque M2: 2024 Nm
NMRV063/150 150 90S4 Unit: NMRV063/150 | Ratio i: 150 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 9.3 rpm | Output torque M2: 771 Nm
NMRV063/150 200 90S4 Unit: NMRV063/150 | Ratio i: 200 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 7.0 rpm | Output torque M2: 1005 Nm
NMRV063/150 250 90S4 Unit: NMRV063/150 | Ratio i: 250 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 5.6 rpm | Output torque M2: 1224 Nm
NMRV063/150 300 90S4 Unit: NMRV063/150 | Ratio i: 300 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 4.7 rpm | Output torque M2: 1456 Nm
NMRV063/150 400 90S4 Unit: NMRV063/150 | Ratio i: 400 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 3.5 rpm | Output torque M2: 1723 Nm
NMRV063/150 500 90S4 Unit: NMRV063/150 | Ratio i: 500 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 2.8 rpm | Output torque M2: 2024 Nm
NMRV063/150 600 90S4 Unit: NMRV063/150 | Ratio i: 600 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 2.3 rpm | Output torque M2: 2496 Nm
NMRV063/150 750 90S4 Unit: NMRV063/150 | Ratio i: 750 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 1.9 rpm | Output torque M2: 2931 Nm
NMRV050/105 300 80C2 Unit: NMRV050/105 | Ratio i: 300 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 891 Nm
NMRV050/105 400 80C2 Unit: NMRV050/105 | Ratio i: 400 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1153 Nm
NMRV050/105 500 80C2 Unit: NMRV050/105 | Ratio i: 500 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1373 Nm
NMRV050/110 300 80C2 Unit: NMRV050/110 | Ratio i: 300 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 891 Nm
NMRV050/110 400 80C2 Unit: NMRV050/110 | Ratio i: 400 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1153 Nm
NMRV050/110 500 80C2 Unit: NMRV050/110 | Ratio i: 500 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1373 Nm
NMRV063/130 300 90S2 Unit: NMRV063/130 | Ratio i: 300 | Motor: 90S2 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 915 Nm
NMRV063/130 400 90S2 Unit: NMRV063/130 | Ratio i: 400 | Motor: 90S2 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1166 Nm
NMRV063/130 500 90S2 Unit: NMRV063/130 | Ratio i: 500 | Motor: 90S2 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1389 Nm
NMRV063/130 300 90L4 Unit: NMRV063/130 | Ratio i: 300 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 4.7 rpm | Output torque M2: 1816 Nm
NMRV063/130 400 90L4 Unit: NMRV063/130 | Ratio i: 400 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 3.5 rpm | Output torque M2: 2315 Nm
NMRV063/150 150 90L4 Unit: NMRV063/150 | Ratio i: 150 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 1052 Nm
NMRV063/150 200 90L4 Unit: NMRV063/150 | Ratio i: 200 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1371 Nm
NMRV063/150 250 90L4 Unit: NMRV063/150 | Ratio i: 250 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1669 Nm
NMRV063/150 300 90L4 Unit: NMRV063/150 | Ratio i: 300 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 4.7 rpm | Output torque M2: 1985 Nm
NMRV063/150 400 90L4 Unit: NMRV063/150 | Ratio i: 400 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 3.5 rpm | Output torque M2: 2350 Nm
NMRV063/150 500 90L4 Unit: NMRV063/150 | Ratio i: 500 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 2.8 rpm | Output torque M2: 2760 Nm
NMRV063/150 600 90L4 Unit: NMRV063/150 | Ratio i: 600 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 2.3 rpm | Output torque M2: 3404 Nm
NMRV063/150 150 90LL4 Unit: NMRV063/150 | Ratio i: 150 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 9.3 rpm | Output torque M2: 1290 Nm
NMRV063/150 200 90LL4 Unit: NMRV063/150 | Ratio i: 200 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 7.0 rpm | Output torque M2: 1682 Nm
NMRV063/150 250 90LL4 Unit: NMRV063/150 | Ratio i: 250 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 5.6 rpm | Output torque M2: 2047 Nm
NMRV063/150 300 90LL4 Unit: NMRV063/150 | Ratio i: 300 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 4.7 rpm | Output torque M2: 2435 Nm
NMRV063/150 400 90LL4 Unit: NMRV063/150 | Ratio i: 400 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 3.5 rpm | Output torque M2: 2883 Nm
NMRV063/150 500 90LL4 Unit: NMRV063/150 | Ratio i: 500 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 2.8 rpm | Output torque M2: 3385 Nm
NMRV025/030 Legacy code (size-level, see full codes) | Unit: NMRV025/030 | Ratio i: 100-3000 | Motor: 3 IEC motor options | Power P1: 0.06-0.09 kW | Output speed n2: 0.47-28.0 rpm | Output torque M2: 20-405 Nm
NMRV025/040 Legacy code (size-level, see full codes) | Unit: NMRV025/040 | Ratio i: 300-5000 | Motor: 2 IEC motor options | Power P1: 0.06-0.09 kW | Output speed n2: 0.3-9.3 rpm | Output torque M2: 45-356 Nm
NMRV030/040 Legacy code (size-level, see full codes) | Unit: NMRV030/040 | Ratio i: 300-5000 | Motor: 2 IEC motor options | Power P1: 0.06-0.09 kW | Output speed n2: 0.28-4.7 rpm | Output torque M2: 60-401 Nm
NMRV030/050 Legacy code (size-level, see full codes) | Unit: NMRV030/050 | Ratio i: 300-4800 | Motor: 3 IEC motor options | Power P1: 0.06-0.12 kW | Output speed n2: 0.29-4.7 rpm | Output torque M2: 110-409 Nm
NMRV030/063 Legacy code (size-level, see full codes) | Unit: NMRV030/063 | Ratio i: 300-5000 | Motor: 7 IEC motor options | Power P1: 0.06-0.37 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 159-424 Nm
NMRV040/075 Legacy code (size-level, see full codes) | Unit: NMRV040/075 | Ratio i: 300-5000 | Motor: 6 IEC motor options | Power P1: 0.06-0.37 kW | Output speed n2: 0.28-4.7 rpm | Output torque M2: 335-516 Nm
NMRV040/090 Legacy code (size-level, see full codes) | Unit: NMRV040/090 | Ratio i: 300-5000 | Motor: 8 IEC motor options | Power P1: 0.06-0.75 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 306-779 Nm
NMRV050/105 Legacy code (size-level, see full codes) | Unit: NMRV050/105 | Ratio i: 300-5000 | Motor: 10 IEC motor options | Power P1: 0.12-1.5 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 446-1452 Nm
NMRV050/110 Legacy code (size-level, see full codes) | Unit: NMRV050/110 | Ratio i: 300-5000 | Motor: 10 IEC motor options | Power P1: 0.12-1.5 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 446-1452 Nm
NMRV063/130 Legacy code (size-level, see full codes) | Unit: NMRV063/130 | Ratio i: 300-5000 | Motor: 8 IEC motor options | Power P1: 0.25-1.5 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 915-2742 Nm
NMRV063/150 Legacy code (size-level, see full codes) | Unit: NMRV063/150 | Ratio i: 150-5000 | Motor: 8 IEC motor options | Power P1: 0.25-1.84 kW | Output speed n2: 0.3-9.3 rpm | Output torque M2: 771-3744 Nm
Worm Gear ReducersMotovario
258 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario NMRV/NMRV Double Worm Gearmotors (025/030-063/150)

Brand Motovario·Worm Gear Reducers

Available part numbers (258)

NMRV025/030 100 56A4, NMRV025/030 150 56A4, NMRV025/030 200 56A4, NMRV025/030 250 56A4, NMRV025/040 300 56A4, NMRV025/040 400 56A4, NMRV025/040 500 56A4, NMRV025/040 600 56A4, NMRV025/040 750 56A4, NMRV025/040 900 56A4 + 248 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NMRV025/030 100 56A4Unit: NMRV025/030 | Ratio i: 100 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 14.0 rpm | Output torque M2: 25 Nm
NMRV025/030 150 56A4Unit: NMRV025/030 | Ratio i: 150 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 9.3 rpm | Output torque M2: 32 Nm
NMRV025/030 200 56A4Unit: NMRV025/030 | Ratio i: 200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 7.0 rpm | Output torque M2: 41 Nm
NMRV025/030 250 56A4Unit: NMRV025/030 | Ratio i: 250 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 5.6 rpm | Output torque M2: 44 Nm
NMRV025/040 300 56A4Unit: NMRV025/040 | Ratio i: 300 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 4.7 rpm | Output torque M2: 59 Nm
NMRV025/040 400 56A4Unit: NMRV025/040 | Ratio i: 400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 3.5 rpm | Output torque M2: 71 Nm
NMRV025/040 500 56A4Unit: NMRV025/040 | Ratio i: 500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.8 rpm | Output torque M2: 82 Nm
NMRV025/040 600 56A4Unit: NMRV025/040 | Ratio i: 600 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.3 rpm | Output torque M2: 101 Nm
NMRV025/040 750 56A4Unit: NMRV025/040 | Ratio i: 750 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.9 rpm | Output torque M2: 116 Nm
NMRV025/040 900 56A4Unit: NMRV025/040 | Ratio i: 900 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.6 rpm | Output torque M2: 143 Nm
NMRV025/040 1200 56A4Unit: NMRV025/040 | Ratio i: 1200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.2 rpm | Output torque M2: 171 Nm
NMRV025/040 1500 56A4Unit: NMRV025/040 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.9 rpm | Output torque M2: 197 Nm
NMRV025/040 1800 56A4Unit: NMRV025/040 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.8 rpm | Output torque M2: 217 Nm
NMRV025/040 2400 56A4Unit: NMRV025/040 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.6 rpm | Output torque M2: 268 Nm
NMRV025/040 3000 56A4Unit: NMRV025/040 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.5 rpm | Output torque M2: 324 Nm
NMRV025/040 4000 56A4Unit: NMRV025/040 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.4 rpm | Output torque M2: 294 Nm
NMRV025/040 5000 56A4Unit: NMRV025/040 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.3 rpm | Output torque M2: 356 Nm
NMRV030/040 300 56A4Unit: NMRV030/040 | Ratio i: 300 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 4.7 rpm | Output torque M2: 60 Nm
NMRV030/040 400 56A4Unit: NMRV030/040 | Ratio i: 400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 3.5 rpm | Output torque M2: 72 Nm
NMRV030/040 500 56A4Unit: NMRV030/040 | Ratio i: 500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.8 rpm | Output torque M2: 98 Nm
NMRV030/040 600 56A4Unit: NMRV030/040 | Ratio i: 600 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 2.3 rpm | Output torque M2: 107 Nm
NMRV030/040 750 56A4Unit: NMRV030/040 | Ratio i: 750 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.9 rpm | Output torque M2: 125 Nm
NMRV030/040 900 56A4Unit: NMRV030/040 | Ratio i: 900 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.6 rpm | Output torque M2: 143 Nm
NMRV030/040 1200 56A4Unit: NMRV030/040 | Ratio i: 1200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.2 rpm | Output torque M2: 172 Nm
NMRV030/040 1500 56A4Unit: NMRV030/040 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.9 rpm | Output torque M2: 203 Nm
NMRV030/040 1800 56A4Unit: NMRV030/040 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.8 rpm | Output torque M2: 226 Nm
NMRV030/040 2400 56A4Unit: NMRV030/040 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.58 rpm | Output torque M2: 271 Nm
NMRV030/040 3200 56A4Unit: NMRV030/040 | Ratio i: 3200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.4 rpm | Output torque M2: 312 Nm
NMRV030/040 4000 56A4Unit: NMRV030/040 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.4 rpm | Output torque M2: 367 Nm
NMRV030/040 5000 56A4Unit: NMRV030/040 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 401 Nm
NMRV030/050 900 56A4Unit: NMRV030/050 | Ratio i: 900 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.6 rpm | Output torque M2: 146 Nm
NMRV030/050 1200 56A4Unit: NMRV030/050 | Ratio i: 1200 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 1.2 rpm | Output torque M2: 175 Nm
NMRV030/050 1500 56A4Unit: NMRV030/050 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.93 rpm | Output torque M2: 206 Nm
NMRV030/050 1800 56A4Unit: NMRV030/050 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.78 rpm | Output torque M2: 230 Nm
NMRV030/050 2400 56A4Unit: NMRV030/050 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.6 rpm | Output torque M2: 276 Nm
NMRV030/050 3000 56A4Unit: NMRV030/050 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.5 rpm | Output torque M2: 319 Nm
NMRV030/050 4000 56A4Unit: NMRV030/050 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 367 Nm
NMRV030/050 4800 56A4Unit: NMRV030/050 | Ratio i: 4800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.29 rpm | Output torque M2: 409 Nm
NMRV030/063 1500 56A4Unit: NMRV030/063 | Ratio i: 1500 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.93 rpm | Output torque M2: 211 Nm
NMRV030/063 1800 56A4Unit: NMRV030/063 | Ratio i: 1800 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.78 rpm | Output torque M2: 233 Nm
NMRV030/063 2400 56A4Unit: NMRV030/063 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.58 rpm | Output torque M2: 286 Nm
NMRV030/063 3000 56A4Unit: NMRV030/063 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.47 rpm | Output torque M2: 332 Nm
NMRV030/063 4000 56A4Unit: NMRV030/063 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 385 Nm
NMRV030/063 5000 56A4Unit: NMRV030/063 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 424 Nm
NMRV040/075 2400 56A4Unit: NMRV040/075 | Ratio i: 2400 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.58 rpm | Output torque M2: 342 Nm
NMRV040/075 3000 56A4Unit: NMRV040/075 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.47 rpm | Output torque M2: 391 Nm
NMRV040/075 4000 56A4Unit: NMRV040/075 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 464 Nm
NMRV040/075 5000 56A4Unit: NMRV040/075 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 516 Nm
NMRV040/090 3000 56A4Unit: NMRV040/090 | Ratio i: 3000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.47 rpm | Output torque M2: 420 Nm
NMRV040/090 4000 56A4Unit: NMRV040/090 | Ratio i: 4000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.35 rpm | Output torque M2: 505 Nm
NMRV040/090 5000 56A4Unit: NMRV040/090 | Ratio i: 5000 | Motor: 56A4 | Power P1: 0.06 kW | Output speed n2: 0.28 rpm | Output torque M2: 567 Nm
NMRV025/030 100 56A2Unit: NMRV025/030 | Ratio i: 100 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 28.0 rpm | Output torque M2: 20 Nm
NMRV025/030 150 56A2Unit: NMRV025/030 | Ratio i: 150 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 18.7 rpm | Output torque M2: 25 Nm
NMRV025/030 200 56A2Unit: NMRV025/030 | Ratio i: 200 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 14.0 rpm | Output torque M2: 33 Nm
NMRV025/030 100 56B4Unit: NMRV025/030 | Ratio i: 100 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 14.0 rpm | Output torque M2: 38 Nm
NMRV025/030 150 56B4Unit: NMRV025/030 | Ratio i: 150 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 9.3 rpm | Output torque M2: 49 Nm
NMRV025/030 200 56B4Unit: NMRV025/030 | Ratio i: 200 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 7.0 rpm | Output torque M2: 62 Nm
NMRV025/030 250 56B4Unit: NMRV025/030 | Ratio i: 250 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 5.6 rpm | Output torque M2: 66 Nm
NMRV025/030 300 56B4Unit: NMRV025/030 | Ratio i: 300 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 4.7 rpm | Output torque M2: 75 Nm
NMRV025/030 400 56B4Unit: NMRV025/030 | Ratio i: 400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 3.5 rpm | Output torque M2: 107 Nm
NMRV025/030 500 56B4Unit: NMRV025/030 | Ratio i: 500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.8 rpm | Output torque M2: 115 Nm
NMRV025/030 600 56B4Unit: NMRV025/030 | Ratio i: 600 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.3 rpm | Output torque M2: 135 Nm
NMRV025/030 750 56B4Unit: NMRV025/030 | Ratio i: 750 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.9 rpm | Output torque M2: 151 Nm
NMRV025/030 900 56B4Unit: NMRV025/030 | Ratio i: 900 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.6 rpm | Output torque M2: 178 Nm
NMRV025/030 1200 56B4Unit: NMRV025/030 | Ratio i: 1200 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.2 rpm | Output torque M2: 212 Nm
NMRV025/030 1500 56B4Unit: NMRV025/030 | Ratio i: 1500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.9 rpm | Output torque M2: 247 Nm
NMRV025/030 1800 56B4Unit: NMRV025/030 | Ratio i: 1800 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.78 rpm | Output torque M2: 304 Nm
NMRV025/030 2400 56B4Unit: NMRV025/030 | Ratio i: 2400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.58 rpm | Output torque M2: 340 Nm
NMRV025/030 3000 56B4Unit: NMRV025/030 | Ratio i: 3000 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.47 rpm | Output torque M2: 405 Nm
NMRV025/040 300 56A2Unit: NMRV025/040 | Ratio i: 300 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 9.3 rpm | Output torque M2: 45 Nm
NMRV025/040 400 56A2Unit: NMRV025/040 | Ratio i: 400 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 7.0 rpm | Output torque M2: 54 Nm
NMRV025/040 500 56A2Unit: NMRV025/040 | Ratio i: 500 | Motor: 56A2 | Power P1: 0.09 kW | Output speed n2: 5.6 rpm | Output torque M2: 77 Nm
NMRV030/040 300 56B4Unit: NMRV030/040 | Ratio i: 300 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 4.7 rpm | Output torque M2: 90 Nm
NMRV030/050 400 56B4Unit: NMRV030/050 | Ratio i: 400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 3.5 rpm | Output torque M2: 110 Nm
NMRV030/050 500 56B4Unit: NMRV030/050 | Ratio i: 500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.8 rpm | Output torque M2: 127 Nm
NMRV030/050 600 56B4Unit: NMRV030/050 | Ratio i: 600 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 2.3 rpm | Output torque M2: 164 Nm
NMRV030/050 750 56B4Unit: NMRV030/050 | Ratio i: 750 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.9 rpm | Output torque M2: 191 Nm
NMRV030/050 900 56B4Unit: NMRV030/050 | Ratio i: 900 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.6 rpm | Output torque M2: 219 Nm
NMRV030/063 900 56B4Unit: NMRV030/063 | Ratio i: 900 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.6 rpm | Output torque M2: 207 Nm
NMRV030/063 1200 56B4Unit: NMRV030/063 | Ratio i: 1200 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 1.2 rpm | Output torque M2: 272 Nm
NMRV030/063 1500 56B4Unit: NMRV030/063 | Ratio i: 1500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.93 rpm | Output torque M2: 316 Nm
NMRV040/075 1500 56B4Unit: NMRV040/075 | Ratio i: 1500 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.93 rpm | Output torque M2: 371 Nm
NMRV040/075 1800 56B4Unit: NMRV040/075 | Ratio i: 1800 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.78 rpm | Output torque M2: 417 Nm
NMRV040/075 2400 56B4Unit: NMRV040/075 | Ratio i: 2400 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.58 rpm | Output torque M2: 513 Nm
NMRV040/090 3000 56B4Unit: NMRV040/090 | Ratio i: 3000 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.47 rpm | Output torque M2: 630 Nm
NMRV040/090 4000 56B4Unit: NMRV040/090 | Ratio i: 4000 | Motor: 56B4 | Power P1: 0.09 kW | Output speed n2: 0.35 rpm | Output torque M2: 758 Nm
NMRV030/050 300 63A4Unit: NMRV030/050 | Ratio i: 300 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 4.7 rpm | Output torque M2: 122 Nm
NMRV030/050 400 63A4Unit: NMRV030/050 | Ratio i: 400 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 3.5 rpm | Output torque M2: 147 Nm
NMRV030/050 500 63A4Unit: NMRV030/050 | Ratio i: 500 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 2.8 rpm | Output torque M2: 170 Nm
NMRV030/063 500 63A4Unit: NMRV030/063 | Ratio i: 500 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 2.8 rpm | Output torque M2: 177 Nm
NMRV030/063 600 63A4Unit: NMRV030/063 | Ratio i: 600 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 2.3 rpm | Output torque M2: 215 Nm
NMRV030/063 750 63A4Unit: NMRV030/063 | Ratio i: 750 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 1.9 rpm | Output torque M2: 249 Nm
NMRV040/075 900 63A4Unit: NMRV040/075 | Ratio i: 900 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 1.6 rpm | Output torque M2: 335 Nm
NMRV040/075 1200 63A4Unit: NMRV040/075 | Ratio i: 1200 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 1.2 rpm | Output torque M2: 411 Nm
NMRV040/090 1800 63A4Unit: NMRV040/090 | Ratio i: 1800 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.78 rpm | Output torque M2: 565 Nm
NMRV040/090 2400 63A4Unit: NMRV040/090 | Ratio i: 2400 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.58 rpm | Output torque M2: 719 Nm
NMRV050/105 3000 63A4Unit: NMRV050/105 | Ratio i: 3000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.47 rpm | Output torque M2: 914 Nm
NMRV050/105 4000 63A4Unit: NMRV050/105 | Ratio i: 4000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.35 rpm | Output torque M2: 1111 Nm
NMRV050/105 5000 63A4Unit: NMRV050/105 | Ratio i: 5000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.28 rpm | Output torque M2: 1257 Nm
NMRV050/110 3000 63A4Unit: NMRV050/110 | Ratio i: 3000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.47 rpm | Output torque M2: 914 Nm
NMRV050/110 4000 63A4Unit: NMRV050/110 | Ratio i: 4000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.35 rpm | Output torque M2: 1111 Nm
NMRV050/110 5000 63A4Unit: NMRV050/110 | Ratio i: 5000 | Motor: 63A4 | Power P1: 0.12 kW | Output speed n2: 0.28 rpm | Output torque M2: 1257 Nm
NMRV030/063 400 63B4Unit: NMRV030/063 | Ratio i: 400 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 3.5 rpm | Output torque M2: 228 Nm
NMRV030/063 500 63B4Unit: NMRV030/063 | Ratio i: 500 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 2.8 rpm | Output torque M2: 265 Nm
NMRV040/075 600 63B4Unit: NMRV040/075 | Ratio i: 600 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 2.3 rpm | Output torque M2: 372 Nm
NMRV040/075 750 63B4Unit: NMRV040/075 | Ratio i: 750 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 1.9 rpm | Output torque M2: 448 Nm
NMRV040/075 900 63B4Unit: NMRV040/075 | Ratio i: 900 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 1.6 rpm | Output torque M2: 502 Nm
NMRV040/090 1200 63B4Unit: NMRV040/090 | Ratio i: 1200 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 1.2 rpm | Output torque M2: 649 Nm
NMRV040/090 1500 63B4Unit: NMRV040/090 | Ratio i: 1500 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.93 rpm | Output torque M2: 758 Nm
NMRV050/105 1800 63B4Unit: NMRV050/105 | Ratio i: 1800 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.78 rpm | Output torque M2: 888 Nm
NMRV050/105 2400 63B4Unit: NMRV050/105 | Ratio i: 2400 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.58 rpm | Output torque M2: 1149 Nm
NMRV050/110 1800 63B4Unit: NMRV050/110 | Ratio i: 1800 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.78 rpm | Output torque M2: 888 Nm
NMRV050/110 2400 63B4Unit: NMRV050/110 | Ratio i: 2400 | Motor: 63B4 | Power P1: 0.18 kW | Output speed n2: 0.58 rpm | Output torque M2: 1149 Nm
NMRV030/063 300 63C4Unit: NMRV030/063 | Ratio i: 300 | Motor: 63C4 | Power P1: 0.22 kW | Output speed n2: 4.7 rpm | Output torque M2: 214 Nm
NMRV030/063 400 63C4Unit: NMRV030/063 | Ratio i: 400 | Motor: 63C4 | Power P1: 0.22 kW | Output speed n2: 3.5 rpm | Output torque M2: 279 Nm
NMRV030/063 400 63B2Unit: NMRV030/063 | Ratio i: 400 | Motor: 63B2 | Power P1: 0.25 kW | Output speed n2: 7.0 rpm | Output torque M2: 159 Nm
NMRV030/063 500 63B2Unit: NMRV030/063 | Ratio i: 500 | Motor: 63B2 | Power P1: 0.25 kW | Output speed n2: 5.6 rpm | Output torque M2: 185 Nm
NMRV040/075 400 71A4Unit: NMRV040/075 | Ratio i: 400 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 3.5 rpm | Output torque M2: 342 Nm
NMRV040/075 500 71A4Unit: NMRV040/075 | Ratio i: 500 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 2.8 rpm | Output torque M2: 391 Nm
NMRV040/090 600 71A4Unit: NMRV040/090 | Ratio i: 600 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 2.3 rpm | Output torque M2: 527 Nm
NMRV040/090 750 71A4Unit: NMRV040/090 | Ratio i: 750 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.9 rpm | Output torque M2: 616 Nm
NMRV040/090 900 71A4Unit: NMRV040/090 | Ratio i: 900 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.6 rpm | Output torque M2: 688 Nm
NMRV050/105 1200 71A4Unit: NMRV050/105 | Ratio i: 1200 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.2 rpm | Output torque M2: 971 Nm
NMRV050/105 1500 71A4Unit: NMRV050/105 | Ratio i: 1500 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.93 rpm | Output torque M2: 1097 Nm
NMRV050/105 1800 71A4Unit: NMRV050/105 | Ratio i: 1800 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.78 rpm | Output torque M2: 1234 Nm
NMRV050/110 1200 71A4Unit: NMRV050/110 | Ratio i: 1200 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 1.2 rpm | Output torque M2: 971 Nm
NMRV050/110 1500 71A4Unit: NMRV050/110 | Ratio i: 1500 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.93 rpm | Output torque M2: 1097 Nm
NMRV050/110 1800 71A4Unit: NMRV050/110 | Ratio i: 1800 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.78 rpm | Output torque M2: 1234 Nm
NMRV063/130 2400 71A4Unit: NMRV063/130 | Ratio i: 2400 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.58 rpm | Output torque M2: 1676 Nm
NMRV063/130 3000 71A4Unit: NMRV063/130 | Ratio i: 3000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.47 rpm | Output torque M2: 1998 Nm
NMRV063/130 4000 71A4Unit: NMRV063/130 | Ratio i: 4000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.35 rpm | Output torque M2: 2422 Nm
NMRV063/130 5000 71A4Unit: NMRV063/130 | Ratio i: 5000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.28 rpm | Output torque M2: 2742 Nm
NMRV063/150 1800 71A4Unit: NMRV063/150 | Ratio i: 1800 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.8 rpm | Output torque M2: 1412 Nm
NMRV063/150 2400 71A4Unit: NMRV063/150 | Ratio i: 2400 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.6 rpm | Output torque M2: 1702 Nm
NMRV063/150 3000 71A4Unit: NMRV063/150 | Ratio i: 3000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.5 rpm | Output torque M2: 1998 Nm
NMRV063/150 4000 71A4Unit: NMRV063/150 | Ratio i: 4000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.4 rpm | Output torque M2: 2422 Nm
NMRV063/150 5000 71A4Unit: NMRV063/150 | Ratio i: 5000 | Motor: 71A4 | Power P1: 0.25 kW | Output speed n2: 0.3 rpm | Output torque M2: 2742 Nm
NMRV030/063 300 63C2Unit: NMRV030/063 | Ratio i: 300 | Motor: 63C2 | Power P1: 0.37 kW | Output speed n2: 9.3 rpm | Output torque M2: 181 Nm
NMRV030/063 400 63C2Unit: NMRV030/063 | Ratio i: 400 | Motor: 63C2 | Power P1: 0.37 kW | Output speed n2: 7.0 rpm | Output torque M2: 236 Nm
NMRV040/075 300 71B4Unit: NMRV040/075 | Ratio i: 300 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 4.7 rpm | Output torque M2: 412 Nm
NMRV040/075 400 71B4Unit: NMRV040/075 | Ratio i: 400 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 3.5 rpm | Output torque M2: 506 Nm
NMRV040/090 300 71B4Unit: NMRV040/090 | Ratio i: 300 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 4.7 rpm | Output torque M2: 408 Nm
NMRV040/090 400 71B4Unit: NMRV040/090 | Ratio i: 400 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 3.5 rpm | Output torque M2: 532 Nm
NMRV040/090 500 71B4Unit: NMRV040/090 | Ratio i: 500 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 2.8 rpm | Output torque M2: 622 Nm
NMRV040/090 600 71B4Unit: NMRV040/090 | Ratio i: 600 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 2.3 rpm | Output torque M2: 779 Nm
NMRV050/105 750 71B4Unit: NMRV050/105 | Ratio i: 750 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.9 rpm | Output torque M2: 977 Nm
NMRV050/105 900 71B4Unit: NMRV050/105 | Ratio i: 900 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.6 rpm | Output torque M2: 1111 Nm
NMRV050/105 1200 71B4Unit: NMRV050/105 | Ratio i: 1200 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.2 rpm | Output torque M2: 1437 Nm
NMRV050/110 750 71B4Unit: NMRV050/110 | Ratio i: 750 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.9 rpm | Output torque M2: 977 Nm
NMRV050/110 900 71B4Unit: NMRV050/110 | Ratio i: 900 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.6 rpm | Output torque M2: 1111 Nm
NMRV050/110 1200 71B4Unit: NMRV050/110 | Ratio i: 1200 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 1.2 rpm | Output torque M2: 1437 Nm
NMRV063/130 1500 71B4Unit: NMRV063/130 | Ratio i: 1500 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.93 rpm | Output torque M2: 1699 Nm
NMRV063/130 1800 71B4Unit: NMRV063/130 | Ratio i: 1800 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.78 rpm | Output torque M2: 1918 Nm
NMRV063/150 1800 71B4Unit: NMRV063/150 | Ratio i: 1800 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.8 rpm | Output torque M2: 2089 Nm
NMRV063/150 2400 71B4Unit: NMRV063/150 | Ratio i: 2400 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.6 rpm | Output torque M2: 2519 Nm
NMRV063/150 3000 71B4Unit: NMRV063/150 | Ratio i: 3000 | Motor: 71B4 | Power P1: 0.37 kW | Output speed n2: 0.5 rpm | Output torque M2: 2958 Nm
NMRV040/090 300 71B2Unit: NMRV040/090 | Ratio i: 300 | Motor: 71B2 | Power P1: 0.55 kW | Output speed n2: 9.3 rpm | Output torque M2: 306 Nm
NMRV040/090 400 71B2Unit: NMRV040/090 | Ratio i: 400 | Motor: 71B2 | Power P1: 0.55 kW | Output speed n2: 7.0 rpm | Output torque M2: 403 Nm
NMRV040/090 500 71B2Unit: NMRV040/090 | Ratio i: 500 | Motor: 71B2 | Power P1: 0.55 kW | Output speed n2: 5.6 rpm | Output torque M2: 470 Nm
NMRV050/105 300 80A4Unit: NMRV050/105 | Ratio i: 300 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 4.7 rpm | Output torque M2: 656 Nm
NMRV050/105 400 80A4Unit: NMRV050/105 | Ratio i: 400 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 3.5 rpm | Output torque M2: 849 Nm
NMRV050/105 500 80A4Unit: NMRV050/105 | Ratio i: 500 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.8 rpm | Output torque M2: 1012 Nm
NMRV050/105 600 80A4Unit: NMRV050/105 | Ratio i: 600 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.3 rpm | Output torque M2: 1214 Nm
NMRV050/105 750 80A4Unit: NMRV050/105 | Ratio i: 750 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.9 rpm | Output torque M2: 1452 Nm
NMRV050/110 300 80A4Unit: NMRV050/110 | Ratio i: 300 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 4.7 rpm | Output torque M2: 656 Nm
NMRV050/110 400 80A4Unit: NMRV050/110 | Ratio i: 400 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 3.5 rpm | Output torque M2: 849 Nm
NMRV050/110 500 80A4Unit: NMRV050/110 | Ratio i: 500 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.8 rpm | Output torque M2: 1012 Nm
NMRV050/110 600 80A4Unit: NMRV050/110 | Ratio i: 600 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.3 rpm | Output torque M2: 1214 Nm
NMRV050/110 750 80A4Unit: NMRV050/110 | Ratio i: 750 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.9 rpm | Output torque M2: 1452 Nm
NMRV063/130 500 80A4Unit: NMRV063/130 | Ratio i: 500 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 2.8 rpm | Output torque M2: 1012 Nm
NMRV063/130 750 80A4Unit: NMRV063/130 | Ratio i: 750 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.9 rpm | Output torque M2: 1489 Nm
NMRV063/130 1200 80A4Unit: NMRV063/130 | Ratio i: 1200 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 1.2 rpm | Output torque M2: 2195 Nm
NMRV063/150 1800 80A4Unit: NMRV063/150 | Ratio i: 1800 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 0.8 rpm | Output torque M2: 3106 Nm
NMRV063/150 2400 80A4Unit: NMRV063/150 | Ratio i: 2400 | Motor: 80A4 | Power P1: 0.55 kW | Output speed n2: 0.6 rpm | Output torque M2: 3744 Nm
NMRV040/090 400 71C2Unit: NMRV040/090 | Ratio i: 400 | Motor: 71C2 | Power P1: 0.75 kW | Output speed n2: 7.0 rpm | Output torque M2: 549 Nm
NMRV040/090 500 71C2Unit: NMRV040/090 | Ratio i: 500 | Motor: 71C2 | Power P1: 0.75 kW | Output speed n2: 5.6 rpm | Output torque M2: 642 Nm
NMRV050/105 300 80A2Unit: NMRV050/105 | Ratio i: 300 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 9.3 rpm | Output torque M2: 446 Nm
NMRV050/105 400 80A2Unit: NMRV050/105 | Ratio i: 400 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 7.0 rpm | Output torque M2: 563 Nm
NMRV050/105 500 80A2Unit: NMRV050/105 | Ratio i: 500 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 5.6 rpm | Output torque M2: 687 Nm
NMRV050/105 300 80B4Unit: NMRV050/105 | Ratio i: 300 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 4.7 rpm | Output torque M2: 895 Nm
NMRV050/105 400 80B4Unit: NMRV050/105 | Ratio i: 400 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 3.5 rpm | Output torque M2: 1157 Nm
NMRV050/110 300 80A2Unit: NMRV050/110 | Ratio i: 300 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 9.3 rpm | Output torque M2: 446 Nm
NMRV050/110 400 80A2Unit: NMRV050/110 | Ratio i: 400 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 7.0 rpm | Output torque M2: 563 Nm
NMRV050/110 500 80A2Unit: NMRV050/110 | Ratio i: 500 | Motor: 80A2 | Power P1: 0.75 kW | Output speed n2: 5.6 rpm | Output torque M2: 687 Nm
NMRV050/110 300 80B4Unit: NMRV050/110 | Ratio i: 300 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 4.7 rpm | Output torque M2: 895 Nm
NMRV050/110 400 80B4Unit: NMRV050/110 | Ratio i: 400 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 3.5 rpm | Output torque M2: 1157 Nm
NMRV063/130 500 80B4Unit: NMRV063/130 | Ratio i: 500 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.8 rpm | Output torque M2: 1380 Nm
NMRV063/130 600 80B4Unit: NMRV063/130 | Ratio i: 600 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.3 rpm | Output torque M2: 1676 Nm
NMRV063/130 750 80B4Unit: NMRV063/130 | Ratio i: 750 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.9 rpm | Output torque M2: 2031 Nm
NMRV063/130 900 80B4Unit: NMRV063/130 | Ratio i: 900 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.6 rpm | Output torque M2: 2314 Nm
NMRV063/150 500 80B4Unit: NMRV063/150 | Ratio i: 500 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.8 rpm | Output torque M2: 1380 Nm
NMRV063/150 600 80B4Unit: NMRV063/150 | Ratio i: 600 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 2.3 rpm | Output torque M2: 1702 Nm
NMRV063/150 750 80B4Unit: NMRV063/150 | Ratio i: 750 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.9 rpm | Output torque M2: 1998 Nm
NMRV063/150 900 80B4Unit: NMRV063/150 | Ratio i: 900 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.6 rpm | Output torque M2: 2521 Nm
NMRV063/150 1200 80B4Unit: NMRV063/150 | Ratio i: 1200 | Motor: 80B4 | Power P1: 0.75 kW | Output speed n2: 1.2 rpm | Output torque M2: 3039 Nm
NMRV050/105 300 80C4Unit: NMRV050/105 | Ratio i: 300 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 4.7 rpm | Output torque M2: 1097 Nm
NMRV050/105 400 80C4Unit: NMRV050/105 | Ratio i: 400 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 3.5 rpm | Output torque M2: 1420 Nm
NMRV050/110 300 80C4Unit: NMRV050/110 | Ratio i: 300 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 4.7 rpm | Output torque M2: 1097 Nm
NMRV050/110 400 80C4Unit: NMRV050/110 | Ratio i: 400 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 3.5 rpm | Output torque M2: 1420 Nm
NMRV063/130 400 80C4Unit: NMRV063/130 | Ratio i: 400 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 3.5 rpm | Output torque M2: 1420 Nm
NMRV063/130 500 80C4Unit: NMRV063/130 | Ratio i: 500 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 2.8 rpm | Output torque M2: 1693 Nm
NMRV063/150 500 80C4Unit: NMRV063/150 | Ratio i: 500 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 2.8 rpm | Output torque M2: 1693 Nm
NMRV063/150 600 80C4Unit: NMRV063/150 | Ratio i: 600 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 2.3 rpm | Output torque M2: 2088 Nm
NMRV063/150 750 80C4Unit: NMRV063/150 | Ratio i: 750 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 1.9 rpm | Output torque M2: 2451 Nm
NMRV063/150 900 80C4Unit: NMRV063/150 | Ratio i: 900 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 1.6 rpm | Output torque M2: 3092 Nm
NMRV063/150 1200 80C4Unit: NMRV063/150 | Ratio i: 1200 | Motor: 80C4 | Power P1: 0.92 kW | Output speed n2: 1.2 rpm | Output torque M2: 3728 Nm
NMRV050/105 300 80B2Unit: NMRV050/105 | Ratio i: 300 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 9.3 rpm | Output torque M2: 654 Nm
NMRV050/105 400 80B2Unit: NMRV050/105 | Ratio i: 400 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 7.0 rpm | Output torque M2: 845 Nm
NMRV050/105 500 80B2Unit: NMRV050/105 | Ratio i: 500 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 5.6 rpm | Output torque M2: 1007 Nm
NMRV050/110 300 80B2Unit: NMRV050/110 | Ratio i: 300 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 9.3 rpm | Output torque M2: 654 Nm
NMRV050/110 400 80B2Unit: NMRV050/110 | Ratio i: 400 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 7.0 rpm | Output torque M2: 845 Nm
NMRV050/110 500 80B2Unit: NMRV050/110 | Ratio i: 500 | Motor: 80B2 | Power P1: 1.1 kW | Output speed n2: 5.6 rpm | Output torque M2: 1007 Nm
NMRV063/130 300 90S4Unit: NMRV063/130 | Ratio i: 300 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 4.7 rpm | Output torque M2: 1332 Nm
NMRV063/130 400 90S4Unit: NMRV063/130 | Ratio i: 400 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 3.5 rpm | Output torque M2: 1697 Nm
NMRV063/130 500 90S4Unit: NMRV063/130 | Ratio i: 500 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 2.8 rpm | Output torque M2: 2024 Nm
NMRV063/150 150 90S4Unit: NMRV063/150 | Ratio i: 150 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 9.3 rpm | Output torque M2: 771 Nm
NMRV063/150 200 90S4Unit: NMRV063/150 | Ratio i: 200 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 7.0 rpm | Output torque M2: 1005 Nm
NMRV063/150 250 90S4Unit: NMRV063/150 | Ratio i: 250 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 5.6 rpm | Output torque M2: 1224 Nm
NMRV063/150 300 90S4Unit: NMRV063/150 | Ratio i: 300 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 4.7 rpm | Output torque M2: 1456 Nm
NMRV063/150 400 90S4Unit: NMRV063/150 | Ratio i: 400 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 3.5 rpm | Output torque M2: 1723 Nm
NMRV063/150 500 90S4Unit: NMRV063/150 | Ratio i: 500 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 2.8 rpm | Output torque M2: 2024 Nm
NMRV063/150 600 90S4Unit: NMRV063/150 | Ratio i: 600 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 2.3 rpm | Output torque M2: 2496 Nm
NMRV063/150 750 90S4Unit: NMRV063/150 | Ratio i: 750 | Motor: 90S4 | Power P1: 1.1 kW | Output speed n2: 1.9 rpm | Output torque M2: 2931 Nm
NMRV050/105 300 80C2Unit: NMRV050/105 | Ratio i: 300 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 891 Nm
NMRV050/105 400 80C2Unit: NMRV050/105 | Ratio i: 400 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1153 Nm
NMRV050/105 500 80C2Unit: NMRV050/105 | Ratio i: 500 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1373 Nm
NMRV050/110 300 80C2Unit: NMRV050/110 | Ratio i: 300 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 891 Nm
NMRV050/110 400 80C2Unit: NMRV050/110 | Ratio i: 400 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1153 Nm
NMRV050/110 500 80C2Unit: NMRV050/110 | Ratio i: 500 | Motor: 80C2 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1373 Nm
NMRV063/130 300 90S2Unit: NMRV063/130 | Ratio i: 300 | Motor: 90S2 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 915 Nm
NMRV063/130 400 90S2Unit: NMRV063/130 | Ratio i: 400 | Motor: 90S2 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1166 Nm
NMRV063/130 500 90S2Unit: NMRV063/130 | Ratio i: 500 | Motor: 90S2 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1389 Nm
NMRV063/130 300 90L4Unit: NMRV063/130 | Ratio i: 300 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 4.7 rpm | Output torque M2: 1816 Nm
NMRV063/130 400 90L4Unit: NMRV063/130 | Ratio i: 400 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 3.5 rpm | Output torque M2: 2315 Nm
NMRV063/150 150 90L4Unit: NMRV063/150 | Ratio i: 150 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 9.3 rpm | Output torque M2: 1052 Nm
NMRV063/150 200 90L4Unit: NMRV063/150 | Ratio i: 200 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 7.0 rpm | Output torque M2: 1371 Nm
NMRV063/150 250 90L4Unit: NMRV063/150 | Ratio i: 250 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 5.6 rpm | Output torque M2: 1669 Nm
NMRV063/150 300 90L4Unit: NMRV063/150 | Ratio i: 300 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 4.7 rpm | Output torque M2: 1985 Nm
NMRV063/150 400 90L4Unit: NMRV063/150 | Ratio i: 400 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 3.5 rpm | Output torque M2: 2350 Nm
NMRV063/150 500 90L4Unit: NMRV063/150 | Ratio i: 500 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 2.8 rpm | Output torque M2: 2760 Nm
NMRV063/150 600 90L4Unit: NMRV063/150 | Ratio i: 600 | Motor: 90L4 | Power P1: 1.5 kW | Output speed n2: 2.3 rpm | Output torque M2: 3404 Nm
NMRV063/150 150 90LL4Unit: NMRV063/150 | Ratio i: 150 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 9.3 rpm | Output torque M2: 1290 Nm
NMRV063/150 200 90LL4Unit: NMRV063/150 | Ratio i: 200 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 7.0 rpm | Output torque M2: 1682 Nm
NMRV063/150 250 90LL4Unit: NMRV063/150 | Ratio i: 250 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 5.6 rpm | Output torque M2: 2047 Nm
NMRV063/150 300 90LL4Unit: NMRV063/150 | Ratio i: 300 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 4.7 rpm | Output torque M2: 2435 Nm
NMRV063/150 400 90LL4Unit: NMRV063/150 | Ratio i: 400 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 3.5 rpm | Output torque M2: 2883 Nm
NMRV063/150 500 90LL4Unit: NMRV063/150 | Ratio i: 500 | Motor: 90LL4 | Power P1: 1.84 kW | Output speed n2: 2.8 rpm | Output torque M2: 3385 Nm
NMRV025/030Legacy code (size-level, see full codes) | Unit: NMRV025/030 | Ratio i: 100-3000 | Motor: 3 IEC motor options | Power P1: 0.06-0.09 kW | Output speed n2: 0.47-28.0 rpm | Output torque M2: 20-405 Nm
NMRV025/040Legacy code (size-level, see full codes) | Unit: NMRV025/040 | Ratio i: 300-5000 | Motor: 2 IEC motor options | Power P1: 0.06-0.09 kW | Output speed n2: 0.3-9.3 rpm | Output torque M2: 45-356 Nm
NMRV030/040Legacy code (size-level, see full codes) | Unit: NMRV030/040 | Ratio i: 300-5000 | Motor: 2 IEC motor options | Power P1: 0.06-0.09 kW | Output speed n2: 0.28-4.7 rpm | Output torque M2: 60-401 Nm
NMRV030/050Legacy code (size-level, see full codes) | Unit: NMRV030/050 | Ratio i: 300-4800 | Motor: 3 IEC motor options | Power P1: 0.06-0.12 kW | Output speed n2: 0.29-4.7 rpm | Output torque M2: 110-409 Nm
NMRV030/063Legacy code (size-level, see full codes) | Unit: NMRV030/063 | Ratio i: 300-5000 | Motor: 7 IEC motor options | Power P1: 0.06-0.37 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 159-424 Nm
NMRV040/075Legacy code (size-level, see full codes) | Unit: NMRV040/075 | Ratio i: 300-5000 | Motor: 6 IEC motor options | Power P1: 0.06-0.37 kW | Output speed n2: 0.28-4.7 rpm | Output torque M2: 335-516 Nm
NMRV040/090Legacy code (size-level, see full codes) | Unit: NMRV040/090 | Ratio i: 300-5000 | Motor: 8 IEC motor options | Power P1: 0.06-0.75 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 306-779 Nm
NMRV050/105Legacy code (size-level, see full codes) | Unit: NMRV050/105 | Ratio i: 300-5000 | Motor: 10 IEC motor options | Power P1: 0.12-1.5 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 446-1452 Nm
NMRV050/110Legacy code (size-level, see full codes) | Unit: NMRV050/110 | Ratio i: 300-5000 | Motor: 10 IEC motor options | Power P1: 0.12-1.5 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 446-1452 Nm
NMRV063/130Legacy code (size-level, see full codes) | Unit: NMRV063/130 | Ratio i: 300-5000 | Motor: 8 IEC motor options | Power P1: 0.25-1.5 kW | Output speed n2: 0.28-9.3 rpm | Output torque M2: 915-2742 Nm
NMRV063/150Legacy code (size-level, see full codes) | Unit: NMRV063/150 | Ratio i: 150-5000 | Motor: 8 IEC motor options | Power P1: 0.25-1.84 kW | Output speed n2: 0.3-9.3 rpm | Output torque M2: 771-3744 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
