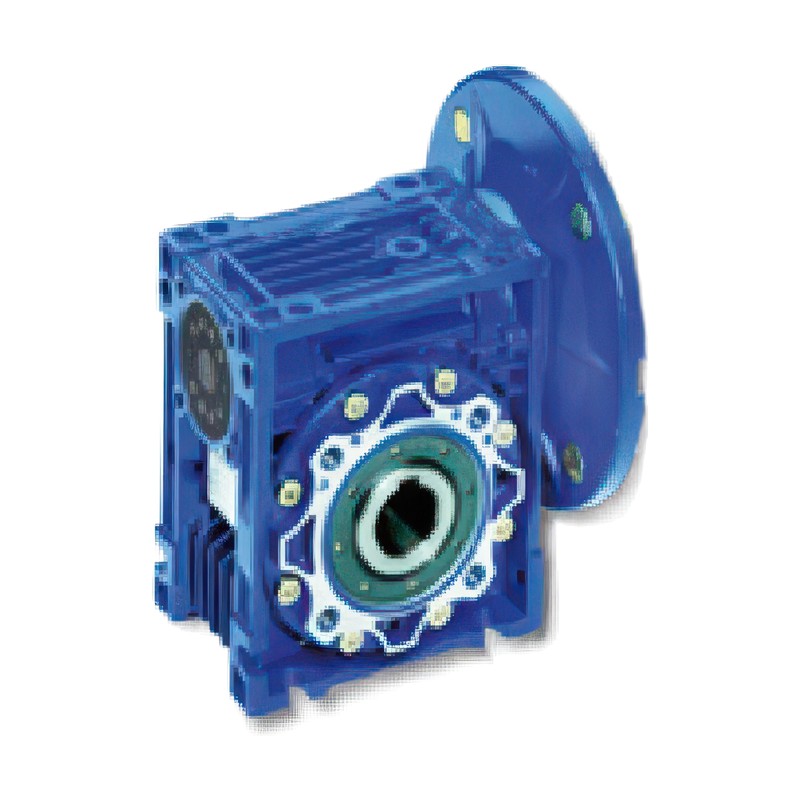

Motovario NRV/NMRV Double Worm Gear Reducers (030/040-063/150)

Motovario NRV/NMRV Double Worm Gear Reducers (030/040-063/150)

Motovario NRV/NMRV combined double worm gear reducers with solid input shaft for very high reduction ratios from 150 to 5000.

Key features

  • Two-stage combination of an NRV input-shaft reducer driving an NMRV worm gear reducer
  • Nine combinations from NRV030/040 to NRV063/150 with output torque up to 2670 Nm
  • Reduction ratios from 150 to 5000 for output speeds down to 0.28 rpm at n1 = 1400 rpm
  • Eight executions (AS1-PS2) set the position of the 1st reducer relative to the 2nd; BS2 standard
  • Hollow output shaft with optional output flanges FA-FE and plug-in low speed shafts

Specifications

Gearbox type NRV+NMRV combined (double worm) gear reducer, solid input shaft
Combinations NRV030/040, 030/050, 030/063, 040/075, 040/090, 050/105, 050/110, 063/130, 063/150
Ratio range i = 150 to 5000
Rated input speed n1 = 1400 rpm
Execution AS1, AS2, BS1, BS2, VS1, VS2, PS1, PS2 (standard BS2)
Output Hollow output shaft; optional output flange FA-FE
Mounting position Refers to the 2nd (output) reducer
Source Motovario NMRV-NRV worm gear reducers catalog, p. 21, 22, 31, 68-69, 75
NRV030/040 300 Size: 030/040 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 73 Nm | Input power P1: 0.07 kW | Radial load Fr2: 3490 N
NRV030/040 400 Size: 030/040 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 65 Nm | Input power P1: 0.05 kW | Radial load Fr2: 3490 N
NRV030/040 500 Size: 030/040 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 61 Nm | Input power P1: 0.04 kW | Radial load Fr2: 3490 N
NRV030/040 600 Size: 030/040 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 73 Nm | Input power P1: 0.04 kW | Radial load Fr2: 3490 N
NRV030/040 750 Size: 030/040 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 73 Nm | Input power P1: 0.04 kW | Radial load Fr2: 3490 N
NRV030/040 900 Size: 030/040 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 73 Nm | Input power P1: 0.03 kW | Radial load Fr2: 3490 N
NRV030/040 1200 Size: 030/040 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 65 Nm | Input power P1: 0.02 kW | Radial load Fr2: 3490 N
NRV030/040 1500 Size: 030/040 | Ratio i: 1500 | Output speed n2: 0.9 rpm | Output torque M2: 73 Nm | Input power P1: 0.02 kW | Radial load Fr2: 3490 N
NRV030/040 1800 Size: 030/040 | Ratio i: 1800 | Output speed n2: 0.8 rpm | Output torque M2: 73 Nm | Input power P1: 0.02 kW | Radial load Fr2: 3490 N
NRV030/040 2400 Size: 030/040 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 65 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/040 3200 Size: 030/040 | Ratio i: 3200 | Output speed n2: 0.4 rpm | Output torque M2: 65 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/040 4000 Size: 030/040 | Ratio i: 4000 | Output speed n2: 0.4 rpm | Output torque M2: 48 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/040 5000 Size: 030/040 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 43 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/050 300 Size: 030/050 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 145 Nm | Input power P1: 0.14 kW | Radial load Fr2: 4840 N
NRV030/050 400 Size: 030/050 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 124 Nm | Input power P1: 0.10 kW | Radial load Fr2: 4840 N
NRV030/050 500 Size: 030/050 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 120 Nm | Input power P1: 0.08 kW | Radial load Fr2: 4840 N
NRV030/050 600 Size: 030/050 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 145 Nm | Input power P1: 0.08 kW | Radial load Fr2: 4840 N
NRV030/050 750 Size: 030/050 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 145 Nm | Input power P1: 0.07 kW | Radial load Fr2: 4840 N
NRV030/050 900 Size: 030/050 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 145 Nm | Input power P1: 0.06 kW | Radial load Fr2: 4840 N
NRV030/050 1200 Size: 030/050 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 124 Nm | Input power P1: 0.04 kW | Radial load Fr2: 4840 N
NRV030/050 1500 Size: 030/050 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 145 Nm | Input power P1: 0.04 kW | Radial load Fr2: 4840 N
NRV030/050 1800 Size: 030/050 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 145 Nm | Input power P1: 0.04 kW | Radial load Fr2: 4840 N
NRV030/050 2400 Size: 030/050 | Ratio i: 2400 | Output speed n2: 0.6 rpm | Output torque M2: 124 Nm | Input power P1: 0.03 kW | Radial load Fr2: 4840 N
NRV030/050 3000 Size: 030/050 | Ratio i: 3000 | Output speed n2: 0.5 rpm | Output torque M2: 120 Nm | Input power P1: 0.02 kW | Radial load Fr2: 4840 N
NRV030/050 4000 Size: 030/050 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 82 Nm | Input power P1: 0.01 kW | Radial load Fr2: 4840 N
NRV030/050 4800 Size: 030/050 | Ratio i: 4800 | Output speed n2: 0.29 rpm | Output torque M2: 82 Nm | Input power P1: 0.01 kW | Radial load Fr2: 4840 N
NRV030/063 300 Size: 030/063 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 230 Nm | Input power P1: 0.24 kW | Radial load Fr2: 6270 N
NRV030/063 400 Size: 030/063 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 230 Nm | Input power P1: 0.18 kW | Radial load Fr2: 6270 N
NRV030/063 500 Size: 030/063 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 216 Nm | Input power P1: 0.15 kW | Radial load Fr2: 6270 N
NRV030/063 600 Size: 030/063 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 230 Nm | Input power P1: 0.13 kW | Radial load Fr2: 6270 N
NRV030/063 750 Size: 030/063 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 216 Nm | Input power P1: 0.10 kW | Radial load Fr2: 6270 N
NRV030/063 900 Size: 030/063 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 198 Nm | Input power P1: 0.09 kW | Radial load Fr2: 6270 N
NRV030/063 1200 Size: 030/063 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 230 Nm | Input power P1: 0.08 kW | Radial load Fr2: 6270 N
NRV030/063 1500 Size: 030/063 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 216 Nm | Input power P1: 0.06 kW | Radial load Fr2: 6270 N
NRV030/063 1800 Size: 030/063 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 198 Nm | Input power P1: 0.05 kW | Radial load Fr2: 6270 N
NRV030/063 2400 Size: 030/063 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 230 Nm | Input power P1: 0.05 kW | Radial load Fr2: 6270 N
NRV030/063 3000 Size: 030/063 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 216 Nm | Input power P1: 0.04 kW | Radial load Fr2: 6270 N
NRV030/063 4000 Size: 030/063 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 172 Nm | Input power P1: 0.03 kW | Radial load Fr2: 6270 N
NRV030/063 5000 Size: 030/063 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 150 Nm | Input power P1: 0.02 kW | Radial load Fr2: 6270 N
NRV040/075 300 Size: 040/075 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 390 Nm | Input power P1: 0.35 kW | Radial load Fr2: 7380 N
NRV040/075 400 Size: 040/075 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 360 Nm | Input power P1: 0.26 kW | Radial load Fr2: 7380 N
NRV040/075 500 Size: 040/075 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 320 Nm | Input power P1: 0.20 kW | Radial load Fr2: 7380 N
NRV040/075 600 Size: 040/075 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 390 Nm | Input power P1: 0.19 kW | Radial load Fr2: 7380 N
NRV040/075 750 Size: 040/075 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 390 Nm | Input power P1: 0.16 kW | Radial load Fr2: 7380 N
NRV040/075 900 Size: 040/075 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 390 Nm | Input power P1: 0.14 kW | Radial load Fr2: 7380 N
NRV040/075 1200 Size: 040/075 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 360 Nm | Input power P1: 0.10 kW | Radial load Fr2: 7380 N
NRV040/075 1500 Size: 040/075 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 390 Nm | Input power P1: 0.09 kW | Radial load Fr2: 7380 N
NRV040/075 1800 Size: 040/075 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 390 Nm | Input power P1: 0.08 kW | Radial load Fr2: 7380 N
NRV040/075 2400 Size: 040/075 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 360 Nm | Input power P1: 0.06 kW | Radial load Fr2: 7380 N
NRV040/075 3000 Size: 040/075 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 320 Nm | Input power P1: 0.05 kW | Radial load Fr2: 7380 N
NRV040/075 4000 Size: 040/075 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 250 Nm | Input power P1: 0.03 kW | Radial load Fr2: 7380 N
NRV040/075 5000 Size: 040/075 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 230 Nm | Input power P1: 0.03 kW | Radial load Fr2: 7380 N
NRV040/090 300 Size: 040/090 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 610 Nm | Input power P1: 0.55 kW | Radial load Fr2: 8180 N
NRV040/090 400 Size: 040/090 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 610 Nm | Input power P1: 0.42 kW | Radial load Fr2: 8180 N
NRV040/090 500 Size: 040/090 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 560 Nm | Input power P1: 0.33 kW | Radial load Fr2: 8180 N
NRV040/090 600 Size: 040/090 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 610 Nm | Input power P1: 0.29 kW | Radial load Fr2: 8180 N
NRV040/090 750 Size: 040/090 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 560 Nm | Input power P1: 0.23 kW | Radial load Fr2: 8180 N
NRV040/090 900 Size: 040/090 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 505 Nm | Input power P1: 0.18 kW | Radial load Fr2: 8180 N
NRV040/090 1200 Size: 040/090 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 610 Nm | Input power P1: 0.17 kW | Radial load Fr2: 8180 N
NRV040/090 1500 Size: 040/090 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 560 Nm | Input power P1: 0.13 kW | Radial load Fr2: 8180 N
NRV040/090 1800 Size: 040/090 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 505 Nm | Input power P1: 0.11 kW | Radial load Fr2: 8180 N
NRV040/090 2400 Size: 040/090 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 610 Nm | Input power P1: 0.10 kW | Radial load Fr2: 8180 N
NRV040/090 3000 Size: 040/090 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 560 Nm | Input power P1: 0.08 kW | Radial load Fr2: 8180 N
NRV040/090 4000 Size: 040/090 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 460 Nm | Input power P1: 0.05 kW | Radial load Fr2: 8180 N
NRV040/090 5000 Size: 040/090 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 410 Nm | Input power P1: 0.04 kW | Radial load Fr2: 8180 N
NRV050/105 300 Size: 050/105 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 1100 Nm | Input power P1: 0.92 kW | Radial load Fr2: 10320 N
NRV050/105 400 Size: 050/105 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 1030 Nm | Input power P1: 0.67 kW | Radial load Fr2: 10320 N
NRV050/105 500 Size: 050/105 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 1000 Nm | Input power P1: 0.54 kW | Radial load Fr2: 10320 N
NRV050/105 600 Size: 050/105 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 1030 Nm | Input power P1: 0.47 kW | Radial load Fr2: 10320 N
NRV050/105 750 Size: 050/105 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 1100 Nm | Input power P1: 0.42 kW | Radial load Fr2: 10320 N
NRV050/105 900 Size: 050/105 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 1100 Nm | Input power P1: 0.37 kW | Radial load Fr2: 10320 N
NRV050/105 1200 Size: 050/105 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 1030 Nm | Input power P1: 0.27 kW | Radial load Fr2: 10320 N
NRV050/105 1500 Size: 050/105 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 1100 Nm | Input power P1: 0.25 kW | Radial load Fr2: 10320 N
NRV050/105 1800 Size: 050/105 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 1100 Nm | Input power P1: 0.22 kW | Radial load Fr2: 10320 N
NRV050/105 2400 Size: 050/105 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 1030 Nm | Input power P1: 0.16 kW | Radial load Fr2: 10320 N
NRV050/105 3000 Size: 050/105 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 1000 Nm | Input power P1: 0.13 kW | Radial load Fr2: 10320 N
NRV050/105 4000 Size: 050/105 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 780 Nm | Input power P1: 0.08 kW | Radial load Fr2: 10320 N
NRV050/105 5000 Size: 050/105 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 710 Nm | Input power P1: 0.07 kW | Radial load Fr2: 10320 N
NRV050/110 300 Size: 050/110 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 1265 Nm | Input power P1: 1.06 kW | Radial load Fr2: 10320 N
NRV050/110 400 Size: 050/110 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 1185 Nm | Input power P1: 0.77 kW | Radial load Fr2: 10320 N
NRV050/110 500 Size: 050/110 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 1100 Nm | Input power P1: 0.60 kW | Radial load Fr2: 10320 N
NRV050/110 600 Size: 050/110 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 1185 Nm | Input power P1: 0.54 kW | Radial load Fr2: 10320 N
NRV050/110 750 Size: 050/110 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 1265 Nm | Input power P1: 0.48 kW | Radial load Fr2: 10320 N
NRV050/110 900 Size: 050/110 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 1265 Nm | Input power P1: 0.42 kW | Radial load Fr2: 10320 N
NRV050/110 1200 Size: 050/110 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 1185 Nm | Input power P1: 0.31 kW | Radial load Fr2: 10320 N
NRV050/110 1500 Size: 050/110 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 1265 Nm | Input power P1: 0.29 kW | Radial load Fr2: 10320 N
NRV050/110 1800 Size: 050/110 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 1265 Nm | Input power P1: 0.26 kW | Radial load Fr2: 10320 N
NRV050/110 2400 Size: 050/110 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 1185 Nm | Input power P1: 0.19 kW | Radial load Fr2: 10320 N
NRV050/110 3000 Size: 050/110 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 1100 Nm | Input power P1: 0.14 kW | Radial load Fr2: 10320 N
NRV050/110 4000 Size: 050/110 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 819 Nm | Input power P1: 0.09 kW | Radial load Fr2: 10320 N
NRV050/110 5000 Size: 050/110 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 746 Nm | Input power P1: 0.07 kW | Radial load Fr2: 10320 N
NRV063/130 300 Size: 063/130 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 1760 Nm | Input power P1: 1.45 kW | Radial load Fr2: 13500 N
NRV063/130 400 Size: 063/130 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 1650 Nm | Input power P1: 1.07 kW | Radial load Fr2: 13500 N
NRV063/130 500 Size: 063/130 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 1550 Nm | Input power P1: 0.84 kW | Radial load Fr2: 13500 N
NRV063/130 600 Size: 063/130 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 1650 Nm | Input power P1: 0.74 kW | Radial load Fr2: 13500 N
NRV063/130 750 Size: 063/130 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 1760 Nm | Input power P1: 0.65 kW | Radial load Fr2: 13500 N
NRV063/130 900 Size: 063/130 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 1760 Nm | Input power P1: 0.57 kW | Radial load Fr2: 13500 N
NRV063/130 1200 Size: 063/130 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 1650 Nm | Input power P1: 0.41 kW | Radial load Fr2: 13500 N
NRV063/130 1500 Size: 063/130 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 1760 Nm | Input power P1: 0.38 kW | Radial load Fr2: 13500 N
NRV063/130 1800 Size: 063/130 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 1760 Nm | Input power P1: 0.34 kW | Radial load Fr2: 13500 N
NRV063/130 2400 Size: 063/130 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 1650 Nm | Input power P1: 0.25 kW | Radial load Fr2: 13500 N
NRV063/130 3000 Size: 063/130 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 1550 Nm | Input power P1: 0.19 kW | Radial load Fr2: 13500 N
NRV063/130 4000 Size: 063/130 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 1220 Nm | Input power P1: 0.13 kW | Radial load Fr2: 13500 N
NRV063/130 5000 Size: 063/130 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 1100 Nm | Input power P1: 0.10 kW | Radial load Fr2: 13500 N
NRV063/150 150 Size: 063/150 | Ratio i: 150 | Output speed n2: 9.3 rpm | Output torque M2: 2340 Nm | Input power P1: 3.34 kW | Radial load Fr2: 18000 N
NRV063/150 200 Size: 063/150 | Ratio i: 200 | Output speed n2: 7.0 rpm | Output torque M2: 2340 Nm | Input power P1: 2.56 kW | Radial load Fr2: 18000 N
NRV063/150 250 Size: 063/150 | Ratio i: 250 | Output speed n2: 5.6 rpm | Output torque M2: 2050 Nm | Input power P1: 1.84 kW | Radial load Fr2: 18000 N
NRV063/150 300 Size: 063/150 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 2340 Nm | Input power P1: 1.77 kW | Radial load Fr2: 18000 N
NRV063/150 400 Size: 063/150 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 2670 Nm | Input power P1: 1.70 kW | Radial load Fr2: 18000 N
NRV063/150 500 Size: 063/150 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 2330 Nm | Input power P1: 1.27 kW | Radial load Fr2: 18000 N
NRV063/150 600 Size: 063/150 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 2670 Nm | Input power P1: 1.18 kW | Radial load Fr2: 18000 N
NRV063/150 750 Size: 063/150 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 2330 Nm | Input power P1: 0.87 kW | Radial load Fr2: 18000 N
NRV063/150 900 Size: 063/150 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 2100 Nm | Input power P1: 0.62 kW | Radial load Fr2: 18000 N
NRV063/150 1200 Size: 063/150 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 2670 Nm | Input power P1: 0.66 kW | Radial load Fr2: 18000 N
NRV063/150 1800 Size: 063/150 | Ratio i: 1800 | Output speed n2: 0.8 rpm | Output torque M2: 2100 Nm | Input power P1: 0.37 kW | Radial load Fr2: 18000 N
NRV063/150 2400 Size: 063/150 | Ratio i: 2400 | Output speed n2: 0.6 rpm | Output torque M2: 2670 Nm | Input power P1: 0.39 kW | Radial load Fr2: 18000 N
NRV063/150 3000 Size: 063/150 | Ratio i: 3000 | Output speed n2: 0.5 rpm | Output torque M2: 2330 Nm | Input power P1: 0.29 kW | Radial load Fr2: 18000 N
NRV063/150 4000 Size: 063/150 | Ratio i: 4000 | Output speed n2: 0.4 rpm | Output torque M2: 1880 Nm | Input power P1: 0.19 kW | Radial load Fr2: 18000 N
NRV063/150 5000 Size: 063/150 | Ratio i: 5000 | Output speed n2: 0.3 rpm | Output torque M2: 1650 Nm | Input power P1: 0.15 kW | Radial load Fr2: 18000 N
NRV030/040 Legacy code: size-level listing | Size: 030/040 | Ratio i: see NRV030/040 codes
NRV040/075 Legacy code: size-level listing | Size: 040/075 | Ratio i: see NRV040/075 codes
NRV030/050 Legacy code: size-level listing | Size: 030/050 | Ratio i: see NRV030/050 codes
NRV040/090 Legacy code: size-level listing | Size: 040/090 | Ratio i: see NRV040/090 codes
NRV030/063 Legacy code: size-level listing | Size: 030/063 | Ratio i: see NRV030/063 codes
NRV050/105 Legacy code: size-level listing | Size: 050/105 | Ratio i: see NRV050/105 codes
NRV063/130 Legacy code: size-level listing | Size: 063/130 | Ratio i: see NRV063/130 codes
NRV050/110 Legacy code: size-level listing | Size: 050/110 | Ratio i: see NRV050/110 codes
NRV063/150 Legacy code: size-level listing | Size: 063/150 | Ratio i: see NRV063/150 codes
Worm Gear ReducersMotovario
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario NRV/NMRV Double Worm Gear Reducers (030/040-063/150)

Brand Motovario·Worm Gear Reducers

Available part numbers (128)

NRV030/040 300, NRV030/040 400, NRV030/040 500, NRV030/040 600, NRV030/040 750, NRV030/040 900, NRV030/040 1200, NRV030/040 1500, NRV030/040 1800, NRV030/040 2400 + 118 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NRV030/040 300Size: 030/040 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 73 Nm | Input power P1: 0.07 kW | Radial load Fr2: 3490 N
NRV030/040 400Size: 030/040 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 65 Nm | Input power P1: 0.05 kW | Radial load Fr2: 3490 N
NRV030/040 500Size: 030/040 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 61 Nm | Input power P1: 0.04 kW | Radial load Fr2: 3490 N
NRV030/040 600Size: 030/040 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 73 Nm | Input power P1: 0.04 kW | Radial load Fr2: 3490 N
NRV030/040 750Size: 030/040 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 73 Nm | Input power P1: 0.04 kW | Radial load Fr2: 3490 N
NRV030/040 900Size: 030/040 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 73 Nm | Input power P1: 0.03 kW | Radial load Fr2: 3490 N
NRV030/040 1200Size: 030/040 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 65 Nm | Input power P1: 0.02 kW | Radial load Fr2: 3490 N
NRV030/040 1500Size: 030/040 | Ratio i: 1500 | Output speed n2: 0.9 rpm | Output torque M2: 73 Nm | Input power P1: 0.02 kW | Radial load Fr2: 3490 N
NRV030/040 1800Size: 030/040 | Ratio i: 1800 | Output speed n2: 0.8 rpm | Output torque M2: 73 Nm | Input power P1: 0.02 kW | Radial load Fr2: 3490 N
NRV030/040 2400Size: 030/040 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 65 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/040 3200Size: 030/040 | Ratio i: 3200 | Output speed n2: 0.4 rpm | Output torque M2: 65 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/040 4000Size: 030/040 | Ratio i: 4000 | Output speed n2: 0.4 rpm | Output torque M2: 48 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/040 5000Size: 030/040 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 43 Nm | Input power P1: 0.01 kW | Radial load Fr2: 3490 N
NRV030/050 300Size: 030/050 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 145 Nm | Input power P1: 0.14 kW | Radial load Fr2: 4840 N
NRV030/050 400Size: 030/050 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 124 Nm | Input power P1: 0.10 kW | Radial load Fr2: 4840 N
NRV030/050 500Size: 030/050 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 120 Nm | Input power P1: 0.08 kW | Radial load Fr2: 4840 N
NRV030/050 600Size: 030/050 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 145 Nm | Input power P1: 0.08 kW | Radial load Fr2: 4840 N
NRV030/050 750Size: 030/050 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 145 Nm | Input power P1: 0.07 kW | Radial load Fr2: 4840 N
NRV030/050 900Size: 030/050 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 145 Nm | Input power P1: 0.06 kW | Radial load Fr2: 4840 N
NRV030/050 1200Size: 030/050 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 124 Nm | Input power P1: 0.04 kW | Radial load Fr2: 4840 N
NRV030/050 1500Size: 030/050 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 145 Nm | Input power P1: 0.04 kW | Radial load Fr2: 4840 N
NRV030/050 1800Size: 030/050 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 145 Nm | Input power P1: 0.04 kW | Radial load Fr2: 4840 N
NRV030/050 2400Size: 030/050 | Ratio i: 2400 | Output speed n2: 0.6 rpm | Output torque M2: 124 Nm | Input power P1: 0.03 kW | Radial load Fr2: 4840 N
NRV030/050 3000Size: 030/050 | Ratio i: 3000 | Output speed n2: 0.5 rpm | Output torque M2: 120 Nm | Input power P1: 0.02 kW | Radial load Fr2: 4840 N
NRV030/050 4000Size: 030/050 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 82 Nm | Input power P1: 0.01 kW | Radial load Fr2: 4840 N
NRV030/050 4800Size: 030/050 | Ratio i: 4800 | Output speed n2: 0.29 rpm | Output torque M2: 82 Nm | Input power P1: 0.01 kW | Radial load Fr2: 4840 N
NRV030/063 300Size: 030/063 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 230 Nm | Input power P1: 0.24 kW | Radial load Fr2: 6270 N
NRV030/063 400Size: 030/063 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 230 Nm | Input power P1: 0.18 kW | Radial load Fr2: 6270 N
NRV030/063 500Size: 030/063 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 216 Nm | Input power P1: 0.15 kW | Radial load Fr2: 6270 N
NRV030/063 600Size: 030/063 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 230 Nm | Input power P1: 0.13 kW | Radial load Fr2: 6270 N
NRV030/063 750Size: 030/063 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 216 Nm | Input power P1: 0.10 kW | Radial load Fr2: 6270 N
NRV030/063 900Size: 030/063 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 198 Nm | Input power P1: 0.09 kW | Radial load Fr2: 6270 N
NRV030/063 1200Size: 030/063 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 230 Nm | Input power P1: 0.08 kW | Radial load Fr2: 6270 N
NRV030/063 1500Size: 030/063 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 216 Nm | Input power P1: 0.06 kW | Radial load Fr2: 6270 N
NRV030/063 1800Size: 030/063 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 198 Nm | Input power P1: 0.05 kW | Radial load Fr2: 6270 N
NRV030/063 2400Size: 030/063 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 230 Nm | Input power P1: 0.05 kW | Radial load Fr2: 6270 N
NRV030/063 3000Size: 030/063 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 216 Nm | Input power P1: 0.04 kW | Radial load Fr2: 6270 N
NRV030/063 4000Size: 030/063 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 172 Nm | Input power P1: 0.03 kW | Radial load Fr2: 6270 N
NRV030/063 5000Size: 030/063 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 150 Nm | Input power P1: 0.02 kW | Radial load Fr2: 6270 N
NRV040/075 300Size: 040/075 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 390 Nm | Input power P1: 0.35 kW | Radial load Fr2: 7380 N
NRV040/075 400Size: 040/075 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 360 Nm | Input power P1: 0.26 kW | Radial load Fr2: 7380 N
NRV040/075 500Size: 040/075 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 320 Nm | Input power P1: 0.20 kW | Radial load Fr2: 7380 N
NRV040/075 600Size: 040/075 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 390 Nm | Input power P1: 0.19 kW | Radial load Fr2: 7380 N
NRV040/075 750Size: 040/075 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 390 Nm | Input power P1: 0.16 kW | Radial load Fr2: 7380 N
NRV040/075 900Size: 040/075 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 390 Nm | Input power P1: 0.14 kW | Radial load Fr2: 7380 N
NRV040/075 1200Size: 040/075 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 360 Nm | Input power P1: 0.10 kW | Radial load Fr2: 7380 N
NRV040/075 1500Size: 040/075 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 390 Nm | Input power P1: 0.09 kW | Radial load Fr2: 7380 N
NRV040/075 1800Size: 040/075 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 390 Nm | Input power P1: 0.08 kW | Radial load Fr2: 7380 N
NRV040/075 2400Size: 040/075 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 360 Nm | Input power P1: 0.06 kW | Radial load Fr2: 7380 N
NRV040/075 3000Size: 040/075 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 320 Nm | Input power P1: 0.05 kW | Radial load Fr2: 7380 N
NRV040/075 4000Size: 040/075 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 250 Nm | Input power P1: 0.03 kW | Radial load Fr2: 7380 N
NRV040/075 5000Size: 040/075 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 230 Nm | Input power P1: 0.03 kW | Radial load Fr2: 7380 N
NRV040/090 300Size: 040/090 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 610 Nm | Input power P1: 0.55 kW | Radial load Fr2: 8180 N
NRV040/090 400Size: 040/090 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 610 Nm | Input power P1: 0.42 kW | Radial load Fr2: 8180 N
NRV040/090 500Size: 040/090 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 560 Nm | Input power P1: 0.33 kW | Radial load Fr2: 8180 N
NRV040/090 600Size: 040/090 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 610 Nm | Input power P1: 0.29 kW | Radial load Fr2: 8180 N
NRV040/090 750Size: 040/090 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 560 Nm | Input power P1: 0.23 kW | Radial load Fr2: 8180 N
NRV040/090 900Size: 040/090 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 505 Nm | Input power P1: 0.18 kW | Radial load Fr2: 8180 N
NRV040/090 1200Size: 040/090 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 610 Nm | Input power P1: 0.17 kW | Radial load Fr2: 8180 N
NRV040/090 1500Size: 040/090 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 560 Nm | Input power P1: 0.13 kW | Radial load Fr2: 8180 N
NRV040/090 1800Size: 040/090 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 505 Nm | Input power P1: 0.11 kW | Radial load Fr2: 8180 N
NRV040/090 2400Size: 040/090 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 610 Nm | Input power P1: 0.10 kW | Radial load Fr2: 8180 N
NRV040/090 3000Size: 040/090 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 560 Nm | Input power P1: 0.08 kW | Radial load Fr2: 8180 N
NRV040/090 4000Size: 040/090 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 460 Nm | Input power P1: 0.05 kW | Radial load Fr2: 8180 N
NRV040/090 5000Size: 040/090 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 410 Nm | Input power P1: 0.04 kW | Radial load Fr2: 8180 N
NRV050/105 300Size: 050/105 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 1100 Nm | Input power P1: 0.92 kW | Radial load Fr2: 10320 N
NRV050/105 400Size: 050/105 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 1030 Nm | Input power P1: 0.67 kW | Radial load Fr2: 10320 N
NRV050/105 500Size: 050/105 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 1000 Nm | Input power P1: 0.54 kW | Radial load Fr2: 10320 N
NRV050/105 600Size: 050/105 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 1030 Nm | Input power P1: 0.47 kW | Radial load Fr2: 10320 N
NRV050/105 750Size: 050/105 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 1100 Nm | Input power P1: 0.42 kW | Radial load Fr2: 10320 N
NRV050/105 900Size: 050/105 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 1100 Nm | Input power P1: 0.37 kW | Radial load Fr2: 10320 N
NRV050/105 1200Size: 050/105 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 1030 Nm | Input power P1: 0.27 kW | Radial load Fr2: 10320 N
NRV050/105 1500Size: 050/105 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 1100 Nm | Input power P1: 0.25 kW | Radial load Fr2: 10320 N
NRV050/105 1800Size: 050/105 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 1100 Nm | Input power P1: 0.22 kW | Radial load Fr2: 10320 N
NRV050/105 2400Size: 050/105 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 1030 Nm | Input power P1: 0.16 kW | Radial load Fr2: 10320 N
NRV050/105 3000Size: 050/105 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 1000 Nm | Input power P1: 0.13 kW | Radial load Fr2: 10320 N
NRV050/105 4000Size: 050/105 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 780 Nm | Input power P1: 0.08 kW | Radial load Fr2: 10320 N
NRV050/105 5000Size: 050/105 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 710 Nm | Input power P1: 0.07 kW | Radial load Fr2: 10320 N
NRV050/110 300Size: 050/110 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 1265 Nm | Input power P1: 1.06 kW | Radial load Fr2: 10320 N
NRV050/110 400Size: 050/110 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 1185 Nm | Input power P1: 0.77 kW | Radial load Fr2: 10320 N
NRV050/110 500Size: 050/110 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 1100 Nm | Input power P1: 0.60 kW | Radial load Fr2: 10320 N
NRV050/110 600Size: 050/110 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 1185 Nm | Input power P1: 0.54 kW | Radial load Fr2: 10320 N
NRV050/110 750Size: 050/110 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 1265 Nm | Input power P1: 0.48 kW | Radial load Fr2: 10320 N
NRV050/110 900Size: 050/110 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 1265 Nm | Input power P1: 0.42 kW | Radial load Fr2: 10320 N
NRV050/110 1200Size: 050/110 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 1185 Nm | Input power P1: 0.31 kW | Radial load Fr2: 10320 N
NRV050/110 1500Size: 050/110 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 1265 Nm | Input power P1: 0.29 kW | Radial load Fr2: 10320 N
NRV050/110 1800Size: 050/110 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 1265 Nm | Input power P1: 0.26 kW | Radial load Fr2: 10320 N
NRV050/110 2400Size: 050/110 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 1185 Nm | Input power P1: 0.19 kW | Radial load Fr2: 10320 N
NRV050/110 3000Size: 050/110 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 1100 Nm | Input power P1: 0.14 kW | Radial load Fr2: 10320 N
NRV050/110 4000Size: 050/110 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 819 Nm | Input power P1: 0.09 kW | Radial load Fr2: 10320 N
NRV050/110 5000Size: 050/110 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 746 Nm | Input power P1: 0.07 kW | Radial load Fr2: 10320 N
NRV063/130 300Size: 063/130 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 1760 Nm | Input power P1: 1.45 kW | Radial load Fr2: 13500 N
NRV063/130 400Size: 063/130 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 1650 Nm | Input power P1: 1.07 kW | Radial load Fr2: 13500 N
NRV063/130 500Size: 063/130 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 1550 Nm | Input power P1: 0.84 kW | Radial load Fr2: 13500 N
NRV063/130 600Size: 063/130 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 1650 Nm | Input power P1: 0.74 kW | Radial load Fr2: 13500 N
NRV063/130 750Size: 063/130 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 1760 Nm | Input power P1: 0.65 kW | Radial load Fr2: 13500 N
NRV063/130 900Size: 063/130 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 1760 Nm | Input power P1: 0.57 kW | Radial load Fr2: 13500 N
NRV063/130 1200Size: 063/130 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 1650 Nm | Input power P1: 0.41 kW | Radial load Fr2: 13500 N
NRV063/130 1500Size: 063/130 | Ratio i: 1500 | Output speed n2: 0.93 rpm | Output torque M2: 1760 Nm | Input power P1: 0.38 kW | Radial load Fr2: 13500 N
NRV063/130 1800Size: 063/130 | Ratio i: 1800 | Output speed n2: 0.78 rpm | Output torque M2: 1760 Nm | Input power P1: 0.34 kW | Radial load Fr2: 13500 N
NRV063/130 2400Size: 063/130 | Ratio i: 2400 | Output speed n2: 0.58 rpm | Output torque M2: 1650 Nm | Input power P1: 0.25 kW | Radial load Fr2: 13500 N
NRV063/130 3000Size: 063/130 | Ratio i: 3000 | Output speed n2: 0.47 rpm | Output torque M2: 1550 Nm | Input power P1: 0.19 kW | Radial load Fr2: 13500 N
NRV063/130 4000Size: 063/130 | Ratio i: 4000 | Output speed n2: 0.35 rpm | Output torque M2: 1220 Nm | Input power P1: 0.13 kW | Radial load Fr2: 13500 N
NRV063/130 5000Size: 063/130 | Ratio i: 5000 | Output speed n2: 0.28 rpm | Output torque M2: 1100 Nm | Input power P1: 0.10 kW | Radial load Fr2: 13500 N
NRV063/150 150Size: 063/150 | Ratio i: 150 | Output speed n2: 9.3 rpm | Output torque M2: 2340 Nm | Input power P1: 3.34 kW | Radial load Fr2: 18000 N
NRV063/150 200Size: 063/150 | Ratio i: 200 | Output speed n2: 7.0 rpm | Output torque M2: 2340 Nm | Input power P1: 2.56 kW | Radial load Fr2: 18000 N
NRV063/150 250Size: 063/150 | Ratio i: 250 | Output speed n2: 5.6 rpm | Output torque M2: 2050 Nm | Input power P1: 1.84 kW | Radial load Fr2: 18000 N
NRV063/150 300Size: 063/150 | Ratio i: 300 | Output speed n2: 4.7 rpm | Output torque M2: 2340 Nm | Input power P1: 1.77 kW | Radial load Fr2: 18000 N
NRV063/150 400Size: 063/150 | Ratio i: 400 | Output speed n2: 3.5 rpm | Output torque M2: 2670 Nm | Input power P1: 1.70 kW | Radial load Fr2: 18000 N
NRV063/150 500Size: 063/150 | Ratio i: 500 | Output speed n2: 2.8 rpm | Output torque M2: 2330 Nm | Input power P1: 1.27 kW | Radial load Fr2: 18000 N
NRV063/150 600Size: 063/150 | Ratio i: 600 | Output speed n2: 2.3 rpm | Output torque M2: 2670 Nm | Input power P1: 1.18 kW | Radial load Fr2: 18000 N
NRV063/150 750Size: 063/150 | Ratio i: 750 | Output speed n2: 1.9 rpm | Output torque M2: 2330 Nm | Input power P1: 0.87 kW | Radial load Fr2: 18000 N
NRV063/150 900Size: 063/150 | Ratio i: 900 | Output speed n2: 1.6 rpm | Output torque M2: 2100 Nm | Input power P1: 0.62 kW | Radial load Fr2: 18000 N
NRV063/150 1200Size: 063/150 | Ratio i: 1200 | Output speed n2: 1.2 rpm | Output torque M2: 2670 Nm | Input power P1: 0.66 kW | Radial load Fr2: 18000 N
NRV063/150 1800Size: 063/150 | Ratio i: 1800 | Output speed n2: 0.8 rpm | Output torque M2: 2100 Nm | Input power P1: 0.37 kW | Radial load Fr2: 18000 N
NRV063/150 2400Size: 063/150 | Ratio i: 2400 | Output speed n2: 0.6 rpm | Output torque M2: 2670 Nm | Input power P1: 0.39 kW | Radial load Fr2: 18000 N
NRV063/150 3000Size: 063/150 | Ratio i: 3000 | Output speed n2: 0.5 rpm | Output torque M2: 2330 Nm | Input power P1: 0.29 kW | Radial load Fr2: 18000 N
NRV063/150 4000Size: 063/150 | Ratio i: 4000 | Output speed n2: 0.4 rpm | Output torque M2: 1880 Nm | Input power P1: 0.19 kW | Radial load Fr2: 18000 N
NRV063/150 5000Size: 063/150 | Ratio i: 5000 | Output speed n2: 0.3 rpm | Output torque M2: 1650 Nm | Input power P1: 0.15 kW | Radial load Fr2: 18000 N
NRV030/040Legacy code: size-level listing | Size: 030/040 | Ratio i: see NRV030/040 codes
NRV040/075Legacy code: size-level listing | Size: 040/075 | Ratio i: see NRV040/075 codes
NRV030/050Legacy code: size-level listing | Size: 030/050 | Ratio i: see NRV030/050 codes
NRV040/090Legacy code: size-level listing | Size: 040/090 | Ratio i: see NRV040/090 codes
NRV030/063Legacy code: size-level listing | Size: 030/063 | Ratio i: see NRV030/063 codes
NRV050/105Legacy code: size-level listing | Size: 050/105 | Ratio i: see NRV050/105 codes
NRV063/130Legacy code: size-level listing | Size: 063/130 | Ratio i: see NRV063/130 codes
NRV050/110Legacy code: size-level listing | Size: 050/110 | Ratio i: see NRV050/110 codes
NRV063/150Legacy code: size-level listing | Size: 063/150 | Ratio i: see NRV063/150 codes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
