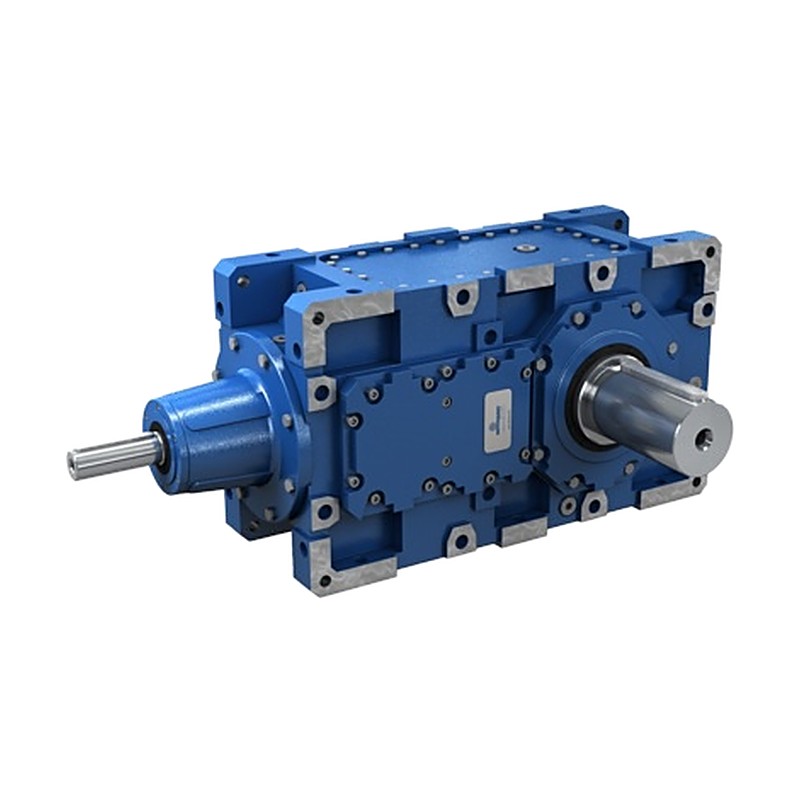

Motovario PBZ Bevel Helical Gear Reducers (B3Z/B4Z 179-409)

Motovario PBZ bevel helical gear reducers (B3Z, B4Z) are right-angle mid-heavy duty industrial gearboxes in spheroidal cast iron, rated up to 110,000 Nm output torque in ten frame sizes from 179 to 409.

Key features

3 and 4 stage bevel helical gear trains (B3Z, B4Z) with Gleason bevel gear set
Rated output torque Mn2 from 9,000 Nm (size 179) to 110,000 Nm (size 409)
B3Z in sizes 179-409, B4Z in sizes 219-409; ratios approx. 12 to 431
Solid input shaft or IEC bell-housing with coupling for motors IEC 132-280; NEMA adapter available
Executions LR, LL; solid, hollow keyed, shrink disc, splined or double-ended output shaft
Options: cooling coil, cooling fan, oil/water heat exchanger, backstop, torque arm, lubrication pump

Specifications

Construction	Bevel helical right angle, 3-4 stages
Efficiency	B3Z 0.93, B4Z 0.91
Executions	LR, LL
Casing	EN-GJS400-15 spheroidal cast iron
Gears	Case-hardened 21NiCrMo2 steel, ground
Frame sizes	179, 199, 219, 249, 269, 279, 319, 349, 399, 409
Rating basis	n1 = 1400 rpm (tables 500-1750 rpm)
Input	Solid shaft (I) or IEC bell-housing (P)
Output shaft	Solid, hollow keyed, shrink disc, splined
Mounting positions	B3, B3R, B6, B7, V5, V6
Source	Motovario PBZ Technical Catalogue IEC STD, p. 9-126

B3Z 179 13,3		Size: 179 \| Gear stages: 3 \| Ratio i: 13.3 \| Rated torque Mn2: 6060 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 105 rpm
B3Z 179 14,9		Size: 179 \| Gear stages: 3 \| Ratio i: 14.9 \| Rated torque Mn2: 6790 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 94.1 rpm
B3Z 179 16,8		Size: 179 \| Gear stages: 3 \| Ratio i: 16.8 \| Rated torque Mn2: 7670 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 83.4 rpm
B3Z 179 20,1		Size: 179 \| Gear stages: 3 \| Ratio i: 20.1 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 69.9 kW \| Output speed n2: 69.7 rpm
B3Z 179 21,8		Size: 179 \| Gear stages: 3 \| Ratio i: 21.8 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 64.4 kW \| Output speed n2: 64.3 rpm
B3Z 179 23,7		Size: 179 \| Gear stages: 3 \| Ratio i: 23.7 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 59.3 kW \| Output speed n2: 59.1 rpm
B3Z 179 28,5		Size: 179 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 49.2 kW \| Output speed n2: 49.1 rpm
B3Z 179 32,4		Size: 179 \| Gear stages: 3 \| Ratio i: 32.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 43.3 kW \| Output speed n2: 43.2 rpm
B3Z 179 35,0		Size: 179 \| Gear stages: 3 \| Ratio i: 35.0 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 40.1 kW \| Output speed n2: 40.0 rpm
B3Z 179 37,9		Size: 179 \| Gear stages: 3 \| Ratio i: 37.9 \| Rated torque Mn2: 6850 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 36.9 rpm
B3Z 179 45,6		Size: 179 \| Gear stages: 3 \| Ratio i: 45.6 \| Rated torque Mn2: 8250 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 30.7 rpm
B3Z 179 51,9		Size: 179 \| Gear stages: 3 \| Ratio i: 51.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 27.1 kW \| Output speed n2: 27.0 rpm
B3Z 179 56,0		Size: 179 \| Gear stages: 3 \| Ratio i: 56.0 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 25.1 kW \| Output speed n2: 25.0 rpm
B3Z 179 60,6		Size: 179 \| Gear stages: 3 \| Ratio i: 60.6 \| Rated torque Mn2: 8890 Nm \| Rated power Pn1: 22.9 kW \| Output speed n2: 23.1 rpm
B3Z 179 64,0		Size: 179 \| Gear stages: 3 \| Ratio i: 64.0 \| Rated torque Mn2: 6680 Nm \| Rated power Pn1: 16.3 kW \| Output speed n2: 21.9 rpm
B3Z 179 69,8		Size: 179 \| Gear stages: 3 \| Ratio i: 69.8 \| Rated torque Mn2: 7720 Nm \| Rated power Pn1: 17.3 kW \| Output speed n2: 20.1 rpm
B3Z 199 16,5		Size: 199 \| Gear stages: 3 \| Ratio i: 16.5 \| Rated torque Mn2: 7530 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 84.9 rpm
B3Z 199 18,5		Size: 199 \| Gear stages: 3 \| Ratio i: 18.5 \| Rated torque Mn2: 8430 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 75.8 rpm
B3Z 199 20,9		Size: 199 \| Gear stages: 3 \| Ratio i: 20.9 \| Rated torque Mn2: 9520 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 67.1 rpm
B3Z 199 25,0		Size: 199 \| Gear stages: 3 \| Ratio i: 25.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 68.8 kW \| Output speed n2: 56.1 rpm
B3Z 199 27,1		Size: 199 \| Gear stages: 3 \| Ratio i: 27.1 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 63.4 kW \| Output speed n2: 51.8 rpm
B3Z 199 29,4		Size: 199 \| Gear stages: 3 \| Ratio i: 29.4 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 58.3 kW \| Output speed n2: 47.6 rpm
B3Z 199 35,4		Size: 199 \| Gear stages: 3 \| Ratio i: 35.4 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 48.4 kW \| Output speed n2: 39.5 rpm
B3Z 199 40,3		Size: 199 \| Gear stages: 3 \| Ratio i: 40.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 42.6 kW \| Output speed n2: 34.8 rpm
B3Z 199 43,5		Size: 199 \| Gear stages: 3 \| Ratio i: 43.5 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 39.5 kW \| Output speed n2: 32.2 rpm
B3Z 199 47,1		Size: 199 \| Gear stages: 3 \| Ratio i: 47.1 \| Rated torque Mn2: 8500 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 29.7 rpm
B3Z 199 56,7		Size: 199 \| Gear stages: 3 \| Ratio i: 56.7 \| Rated torque Mn2: 10200 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 24.7 rpm
B3Z 199 64,4		Size: 199 \| Gear stages: 3 \| Ratio i: 64.4 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 26.6 kW \| Output speed n2: 21.7 rpm
B3Z 199 69,5		Size: 199 \| Gear stages: 3 \| Ratio i: 69.5 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 24.7 kW \| Output speed n2: 20.1 rpm
B3Z 199 75,3		Size: 199 \| Gear stages: 3 \| Ratio i: 75.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 22.8 kW \| Output speed n2: 18.6 rpm
B3Z 199 79,5		Size: 199 \| Gear stages: 3 \| Ratio i: 79.5 \| Rated torque Mn2: 8290 Nm \| Rated power Pn1: 16.3 kW \| Output speed n2: 17.6 rpm
B3Z 199 86,6		Size: 199 \| Gear stages: 3 \| Ratio i: 86.6 \| Rated torque Mn2: 9580 Nm \| Rated power Pn1: 17.2 kW \| Output speed n2: 16.2 rpm
B3Z 219 12,0		Size: 219 \| Gear stages: 3 \| Ratio i: 12.0 \| Rated torque Mn2: 11100 Nm \| Rated power Pn1: 144 kW \| Output speed n2: 116 rpm
B3Z 219 14,0		Size: 219 \| Gear stages: 3 \| Ratio i: 14.0 \| Rated torque Mn2: 12300 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 100 rpm
B3Z 219 15,1		Size: 219 \| Gear stages: 3 \| Ratio i: 15.1 \| Rated torque Mn2: 13000 Nm \| Rated power Pn1: 135 kW \| Output speed n2: 93.0 rpm
B3Z 219 16,3		Size: 219 \| Gear stages: 3 \| Ratio i: 16.3 \| Rated torque Mn2: 13700 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 85.9 rpm
B3Z 219 17,7		Size: 219 \| Gear stages: 3 \| Ratio i: 17.7 \| Rated torque Mn2: 14500 Nm \| Rated power Pn1: 128 kW \| Output speed n2: 79.2 rpm
B3Z 219 19,2		Size: 219 \| Gear stages: 3 \| Ratio i: 19.2 \| Rated torque Mn2: 15300 Nm \| Rated power Pn1: 124 kW \| Output speed n2: 72.8 rpm
B3Z 219 21,0		Size: 219 \| Gear stages: 3 \| Ratio i: 21.0 \| Rated torque Mn2: 16200 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 66.7 rpm
B3Z 219 24,3		Size: 219 \| Gear stages: 3 \| Ratio i: 24.3 \| Rated torque Mn2: 17800 Nm \| Rated power Pn1: 114 kW \| Output speed n2: 57.5 rpm
B3Z 219 28,2		Size: 219 \| Gear stages: 3 \| Ratio i: 28.2 \| Rated torque Mn2: 14600 Nm \| Rated power Pn1: 80.9 kW \| Output speed n2: 49.7 rpm
B3Z 219 30,9		Size: 219 \| Gear stages: 3 \| Ratio i: 30.9 \| Rated torque Mn2: 12100 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 45.2 rpm
B3Z 219 33,8		Size: 219 \| Gear stages: 3 \| Ratio i: 33.8 \| Rated torque Mn2: 13200 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 41.5 rpm
B3Z 219 39,1		Size: 219 \| Gear stages: 3 \| Ratio i: 39.1 \| Rated torque Mn2: 15300 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 35.8 rpm
B3Z 219 45,3		Size: 219 \| Gear stages: 3 \| Ratio i: 45.3 \| Rated torque Mn2: 17500 Nm \| Rated power Pn1: 60.3 kW \| Output speed n2: 30.9 rpm
B3Z 219 49,6		Size: 219 \| Gear stages: 3 \| Ratio i: 49.6 \| Rated torque Mn2: 16200 Nm \| Rated power Pn1: 50.9 kW \| Output speed n2: 28.2 rpm
B3Z 219 53,7		Size: 219 \| Gear stages: 3 \| Ratio i: 53.7 \| Rated torque Mn2: 15400 Nm \| Rated power Pn1: 44.7 kW \| Output speed n2: 26.1 rpm
B3Z 219 58,4		Size: 219 \| Gear stages: 3 \| Ratio i: 58.4 \| Rated torque Mn2: 14500 Nm \| Rated power Pn1: 38.7 kW \| Output speed n2: 24.0 rpm
B3Z 249 15,3		Size: 249 \| Gear stages: 3 \| Ratio i: 15.3 \| Rated torque Mn2: 14100 Nm \| Rated power Pn1: 144 kW \| Output speed n2: 91.7 rpm
B3Z 249 17,7		Size: 249 \| Gear stages: 3 \| Ratio i: 17.7 \| Rated torque Mn2: 15700 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 79.1 rpm
B3Z 249 19,1		Size: 249 \| Gear stages: 3 \| Ratio i: 19.1 \| Rated torque Mn2: 16500 Nm \| Rated power Pn1: 135 kW \| Output speed n2: 73.3 rpm
B3Z 249 20,7		Size: 249 \| Gear stages: 3 \| Ratio i: 20.7 \| Rated torque Mn2: 17400 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 67.8 rpm
B3Z 249 22,4		Size: 249 \| Gear stages: 3 \| Ratio i: 22.4 \| Rated torque Mn2: 18400 Nm \| Rated power Pn1: 128 kW \| Output speed n2: 62.5 rpm
B3Z 249 24,4		Size: 249 \| Gear stages: 3 \| Ratio i: 24.4 \| Rated torque Mn2: 19400 Nm \| Rated power Pn1: 124 kW \| Output speed n2: 57.4 rpm
B3Z 249 26,6		Size: 249 \| Gear stages: 3 \| Ratio i: 26.6 \| Rated torque Mn2: 20500 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 52.6 rpm
B3Z 249 30,9		Size: 249 \| Gear stages: 3 \| Ratio i: 30.9 \| Rated torque Mn2: 22500 Nm \| Rated power Pn1: 114 kW \| Output speed n2: 45.4 rpm
B3Z 249 35,7		Size: 249 \| Gear stages: 3 \| Ratio i: 35.7 \| Rated torque Mn2: 18700 Nm \| Rated power Pn1: 81.7 kW \| Output speed n2: 39.2 rpm
B3Z 249 39,2		Size: 249 \| Gear stages: 3 \| Ratio i: 39.2 \| Rated torque Mn2: 15400 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 35.7 rpm
B3Z 249 42,8		Size: 249 \| Gear stages: 3 \| Ratio i: 42.8 \| Rated torque Mn2: 16800 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 32.7 rpm
B3Z 249 49,6		Size: 249 \| Gear stages: 3 \| Ratio i: 49.6 \| Rated torque Mn2: 19500 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 28.2 rpm
B3Z 249 57,4		Size: 249 \| Gear stages: 3 \| Ratio i: 57.4 \| Rated torque Mn2: 22200 Nm \| Rated power Pn1: 60.2 kW \| Output speed n2: 24.4 rpm
B3Z 249 62,9		Size: 249 \| Gear stages: 3 \| Ratio i: 62.9 \| Rated torque Mn2: 20600 Nm \| Rated power Pn1: 51.0 kW \| Output speed n2: 22.2 rpm
B3Z 249 68,1		Size: 249 \| Gear stages: 3 \| Ratio i: 68.1 \| Rated torque Mn2: 19500 Nm \| Rated power Pn1: 44.6 kW \| Output speed n2: 20.6 rpm
B3Z 249 74,0		Size: 249 \| Gear stages: 3 \| Ratio i: 74.0 \| Rated torque Mn2: 18400 Nm \| Rated power Pn1: 38.8 kW \| Output speed n2: 18.9 rpm
B3Z 269 12,3		Size: 269 \| Gear stages: 3 \| Ratio i: 12.3 \| Rated torque Mn2: 19500 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 113 rpm
B3Z 269 14,3		Size: 269 \| Gear stages: 3 \| Ratio i: 14.3 \| Rated torque Mn2: 22600 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 97.8 rpm
B3Z 269 16,8		Size: 269 \| Gear stages: 3 \| Ratio i: 16.8 \| Rated torque Mn2: 26400 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 83.6 rpm
B3Z 269 18,2		Size: 269 \| Gear stages: 3 \| Ratio i: 18.2 \| Rated torque Mn2: 28700 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 77.0 rpm
B3Z 269 19,8		Size: 269 \| Gear stages: 3 \| Ratio i: 19.8 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 229 kW \| Output speed n2: 70.7 rpm
B3Z 269 21,4		Size: 269 \| Gear stages: 3 \| Ratio i: 21.4 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 212 kW \| Output speed n2: 65.5 rpm
B3Z 269 23,1		Size: 269 \| Gear stages: 3 \| Ratio i: 23.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 196 kW \| Output speed n2: 60.7 rpm
B3Z 269 27,1		Size: 269 \| Gear stages: 3 \| Ratio i: 27.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 167 kW \| Output speed n2: 51.6 rpm
B3Z 269 31,2		Size: 269 \| Gear stages: 3 \| Ratio i: 31.2 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 145 kW \| Output speed n2: 44.9 rpm
B3Z 269 34,4		Size: 269 \| Gear stages: 3 \| Ratio i: 34.4 \| Rated torque Mn2: 23300 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 40.7 rpm
B3Z 269 37,1		Size: 269 \| Gear stages: 3 \| Ratio i: 37.1 \| Rated torque Mn2: 25100 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 37.7 rpm
B3Z 269 43,7		Size: 269 \| Gear stages: 3 \| Ratio i: 43.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 104 kW \| Output speed n2: 32.1 rpm
B3Z 269 50,1		Size: 269 \| Gear stages: 3 \| Ratio i: 50.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 90.2 kW \| Output speed n2: 27.9 rpm
B3Z 269 53,8		Size: 269 \| Gear stages: 3 \| Ratio i: 53.8 \| Rated torque Mn2: 27200 Nm \| Rated power Pn1: 78.7 kW \| Output speed n2: 26.0 rpm
B3Z 269 58,2		Size: 269 \| Gear stages: 3 \| Ratio i: 58.2 \| Rated torque Mn2: 27500 Nm \| Rated power Pn1: 73.5 kW \| Output speed n2: 24.1 rpm
B3Z 269 63,7		Size: 269 \| Gear stages: 3 \| Ratio i: 63.7 \| Rated torque Mn2: 23200 Nm \| Rated power Pn1: 56.8 kW \| Output speed n2: 22.0 rpm
B3Z 279 15,3		Size: 279 \| Gear stages: 3 \| Ratio i: 15.3 \| Rated torque Mn2: 24100 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 91.7 rpm
B3Z 279 17,7		Size: 279 \| Gear stages: 3 \| Ratio i: 17.7 \| Rated torque Mn2: 28000 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 79.0 rpm
B3Z 279 20,7		Size: 279 \| Gear stages: 3 \| Ratio i: 20.7 \| Rated torque Mn2: 32700 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 67.5 rpm
B3Z 279 22,5		Size: 279 \| Gear stages: 3 \| Ratio i: 22.5 \| Rated torque Mn2: 35500 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 62.2 rpm
B3Z 279 24,5		Size: 279 \| Gear stages: 3 \| Ratio i: 24.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 229 kW \| Output speed n2: 57.2 rpm
B3Z 279 26,4		Size: 279 \| Gear stages: 3 \| Ratio i: 26.4 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 212 kW \| Output speed n2: 53.0 rpm
B3Z 279 28,5		Size: 279 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 197 kW \| Output speed n2: 49.1 rpm
B3Z 279 33,6		Size: 279 \| Gear stages: 3 \| Ratio i: 33.6 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 167 kW \| Output speed n2: 41.7 rpm
B3Z 279 38,6		Size: 279 \| Gear stages: 3 \| Ratio i: 38.6 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 146 kW \| Output speed n2: 36.3 rpm
B3Z 279 42,5		Size: 279 \| Gear stages: 3 \| Ratio i: 42.5 \| Rated torque Mn2: 28800 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 32.9 rpm
B3Z 279 45,9		Size: 279 \| Gear stages: 3 \| Ratio i: 45.9 \| Rated torque Mn2: 31100 Nm \| Rated power Pn1: 105 kW \| Output speed n2: 30.5 rpm
B3Z 279 54,0		Size: 279 \| Gear stages: 3 \| Ratio i: 54.0 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 104 kW \| Output speed n2: 25.9 rpm
B3Z 279 62,0		Size: 279 \| Gear stages: 3 \| Ratio i: 62.0 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 90.5 kW \| Output speed n2: 22.6 rpm
B3Z 279 66,6		Size: 279 \| Gear stages: 3 \| Ratio i: 66.6 \| Rated torque Mn2: 33600 Nm \| Rated power Pn1: 78.7 kW \| Output speed n2: 21.0 rpm
B3Z 279 72,0		Size: 279 \| Gear stages: 3 \| Ratio i: 72.0 \| Rated torque Mn2: 34000 Nm \| Rated power Pn1: 73.6 kW \| Output speed n2: 19.4 rpm
B3Z 279 78,8		Size: 279 \| Gear stages: 3 \| Ratio i: 78.8 \| Rated torque Mn2: 28700 Nm \| Rated power Pn1: 56.7 kW \| Output speed n2: 17.8 rpm
B3Z 319 12,1		Size: 319 \| Gear stages: 3 \| Ratio i: 12.1 \| Rated torque Mn2: 30400 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 115 rpm
B3Z 319 14,0		Size: 319 \| Gear stages: 3 \| Ratio i: 14.0 \| Rated torque Mn2: 35100 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 99.9 rpm
B3Z 319 16,3		Size: 319 \| Gear stages: 3 \| Ratio i: 16.3 \| Rated torque Mn2: 40800 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 85.9 rpm
B3Z 319 18,7		Size: 319 \| Gear stages: 3 \| Ratio i: 18.7 \| Rated torque Mn2: 46700 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 75.1 rpm
B3Z 319 20,3		Size: 319 \| Gear stages: 3 \| Ratio i: 20.3 \| Rated torque Mn2: 50700 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 69.0 rpm
B3Z 319 22,1		Size: 319 \| Gear stages: 3 \| Ratio i: 22.1 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 387 kW \| Output speed n2: 63.2 rpm
B3Z 319 25,5		Size: 319 \| Gear stages: 3 \| Ratio i: 25.5 \| Rated torque Mn2: 53300 Nm \| Rated power Pn1: 326 kW \| Output speed n2: 55.0 rpm
B3Z 319 27,7		Size: 319 \| Gear stages: 3 \| Ratio i: 27.7 \| Rated torque Mn2: 53700 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 50.6 rpm
B3Z 319 29,7		Size: 319 \| Gear stages: 3 \| Ratio i: 29.7 \| Rated torque Mn2: 47800 Nm \| Rated power Pn1: 251 kW \| Output speed n2: 47.1 rpm
B3Z 319 32,1		Size: 319 \| Gear stages: 3 \| Ratio i: 32.1 \| Rated torque Mn2: 48400 Nm \| Rated power Pn1: 235 kW \| Output speed n2: 43.7 rpm
B3Z 319 38,8		Size: 319 \| Gear stages: 3 \| Ratio i: 38.8 \| Rated torque Mn2: 40700 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 36.1 rpm
B3Z 319 42,1		Size: 319 \| Gear stages: 3 \| Ratio i: 42.1 \| Rated torque Mn2: 44200 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 33.2 rpm
B3Z 319 45,3		Size: 319 \| Gear stages: 3 \| Ratio i: 45.3 \| Rated torque Mn2: 47500 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 30.9 rpm
B3Z 319 48,8		Size: 319 \| Gear stages: 3 \| Ratio i: 48.8 \| Rated torque Mn2: 48900 Nm \| Rated power Pn1: 156 kW \| Output speed n2: 28.7 rpm
B3Z 319 55,3		Size: 319 \| Gear stages: 3 \| Ratio i: 55.3 \| Rated torque Mn2: 42900 Nm \| Rated power Pn1: 121 kW \| Output speed n2: 25.3 rpm
B3Z 319 59,7		Size: 319 \| Gear stages: 3 \| Ratio i: 59.7 \| Rated torque Mn2: 42100 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 23.4 rpm
B3Z 349 15,6		Size: 349 \| Gear stages: 3 \| Ratio i: 15.6 \| Rated torque Mn2: 39100 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 89.7 rpm
B3Z 349 18,0		Size: 349 \| Gear stages: 3 \| Ratio i: 18.0 \| Rated torque Mn2: 45100 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 77.7 rpm
B3Z 349 20,9		Size: 349 \| Gear stages: 3 \| Ratio i: 20.9 \| Rated torque Mn2: 52400 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 66.9 rpm
B3Z 349 24,0		Size: 349 \| Gear stages: 3 \| Ratio i: 24.0 \| Rated torque Mn2: 60000 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 58.4 rpm
B3Z 349 26,1		Size: 349 \| Gear stages: 3 \| Ratio i: 26.1 \| Rated torque Mn2: 65200 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 53.7 rpm
B3Z 349 28,5		Size: 349 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 384 kW \| Output speed n2: 49.2 rpm
B3Z 349 32,8		Size: 349 \| Gear stages: 3 \| Ratio i: 32.8 \| Rated torque Mn2: 68600 Nm \| Rated power Pn1: 326 kW \| Output speed n2: 42.7 rpm
B3Z 349 35,6		Size: 349 \| Gear stages: 3 \| Ratio i: 35.6 \| Rated torque Mn2: 69000 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 39.3 rpm
B3Z 349 38,2		Size: 349 \| Gear stages: 3 \| Ratio i: 38.2 \| Rated torque Mn2: 61500 Nm \| Rated power Pn1: 251 kW \| Output speed n2: 36.6 rpm
B3Z 349 41,2		Size: 349 \| Gear stages: 3 \| Ratio i: 41.2 \| Rated torque Mn2: 62200 Nm \| Rated power Pn1: 235 kW \| Output speed n2: 33.9 rpm
B3Z 349 49,8		Size: 349 \| Gear stages: 3 \| Ratio i: 49.8 \| Rated torque Mn2: 52300 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 28.1 rpm
B3Z 349 54,1		Size: 349 \| Gear stages: 3 \| Ratio i: 54.1 \| Rated torque Mn2: 56700 Nm \| Rated power Pn1: 163 kW \| Output speed n2: 25.9 rpm
B3Z 349 58,2		Size: 349 \| Gear stages: 3 \| Ratio i: 58.2 \| Rated torque Mn2: 61000 Nm \| Rated power Pn1: 163 kW \| Output speed n2: 24.1 rpm
B3Z 349 62,8		Size: 349 \| Gear stages: 3 \| Ratio i: 62.8 \| Rated torque Mn2: 62900 Nm \| Rated power Pn1: 156 kW \| Output speed n2: 22.3 rpm
B3Z 349 71,1		Size: 349 \| Gear stages: 3 \| Ratio i: 71.1 \| Rated torque Mn2: 55200 Nm \| Rated power Pn1: 121 kW \| Output speed n2: 19.7 rpm
B3Z 349 76,8		Size: 349 \| Gear stages: 3 \| Ratio i: 76.8 \| Rated torque Mn2: 54200 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 18.2 rpm
B3Z 399 12,7		Size: 399 \| Gear stages: 3 \| Ratio i: 12.7 \| Rated torque Mn2: 54700 Nm \| Rated power Pn1: 672 kW \| Output speed n2: 110 rpm
B3Z 399 14,5		Size: 399 \| Gear stages: 3 \| Ratio i: 14.5 \| Rated torque Mn2: 62600 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 96.4 rpm
B3Z 399 16,7		Size: 399 \| Gear stages: 3 \| Ratio i: 16.7 \| Rated torque Mn2: 72100 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 83.8 rpm
B3Z 399 18,0		Size: 399 \| Gear stages: 3 \| Ratio i: 18.0 \| Rated torque Mn2: 77600 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 77.9 rpm
B3Z 399 19,4		Size: 399 \| Gear stages: 3 \| Ratio i: 19.4 \| Rated torque Mn2: 82100 Nm \| Rated power Pn1: 660 kW \| Output speed n2: 72.2 rpm
B3Z 399 21,0		Size: 399 \| Gear stages: 3 \| Ratio i: 21.0 \| Rated torque Mn2: 87000 Nm \| Rated power Pn1: 647 kW \| Output speed n2: 66.8 rpm
B3Z 399 23,5		Size: 399 \| Gear stages: 3 \| Ratio i: 23.5 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 597 kW \| Output speed n2: 59.5 rpm
B3Z 399 25,3		Size: 399 \| Gear stages: 3 \| Ratio i: 25.3 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 554 kW \| Output speed n2: 55.2 rpm
B3Z 399 29,2		Size: 399 \| Gear stages: 3 \| Ratio i: 29.2 \| Rated torque Mn2: 89300 Nm \| Rated power Pn1: 477 kW \| Output speed n2: 47.9 rpm
B3Z 399 33,7		Size: 399 \| Gear stages: 3 \| Ratio i: 33.7 \| Rated torque Mn2: 65900 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 41.5 rpm
B3Z 399 37,8		Size: 399 \| Gear stages: 3 \| Ratio i: 37.8 \| Rated torque Mn2: 73900 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 37.0 rpm
B3Z 399 40,8		Size: 399 \| Gear stages: 3 \| Ratio i: 40.8 \| Rated torque Mn2: 79600 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 34.3 rpm
B3Z 399 47,0		Size: 399 \| Gear stages: 3 \| Ratio i: 47.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 299 kW \| Output speed n2: 29.8 rpm
B3Z 399 53,0		Size: 399 \| Gear stages: 3 \| Ratio i: 53.0 \| Rated torque Mn2: 79500 Nm \| Rated power Pn1: 234 kW \| Output speed n2: 26.4 rpm
B3Z 399 57,4		Size: 399 \| Gear stages: 3 \| Ratio i: 57.4 \| Rated torque Mn2: 80300 Nm \| Rated power Pn1: 218 kW \| Output speed n2: 24.4 rpm
B3Z 399 62,3		Size: 399 \| Gear stages: 3 \| Ratio i: 62.3 \| Rated torque Mn2: 78200 Nm \| Rated power Pn1: 196 kW \| Output speed n2: 22.5 rpm
B3Z 409 15,4		Size: 409 \| Gear stages: 3 \| Ratio i: 15.4 \| Rated torque Mn2: 66200 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 91.2 rpm
B3Z 409 17,6		Size: 409 \| Gear stages: 3 \| Ratio i: 17.6 \| Rated torque Mn2: 75800 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 79.7 rpm
B3Z 409 20,2		Size: 409 \| Gear stages: 3 \| Ratio i: 20.2 \| Rated torque Mn2: 87200 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 69.3 rpm
B3Z 409 21,8		Size: 409 \| Gear stages: 3 \| Ratio i: 21.8 \| Rated torque Mn2: 93800 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 64.4 rpm
B3Z 409 23,5		Size: 409 \| Gear stages: 3 \| Ratio i: 23.5 \| Rated torque Mn2: 99300 Nm \| Rated power Pn1: 660 kW \| Output speed n2: 59.7 rpm
B3Z 409 25,4		Size: 409 \| Gear stages: 3 \| Ratio i: 25.4 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 647 kW \| Output speed n2: 55.2 rpm
B3Z 409 28,5		Size: 409 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 603 kW \| Output speed n2: 49.2 rpm
B3Z 409 30,7		Size: 409 \| Gear stages: 3 \| Ratio i: 30.7 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 560 kW \| Output speed n2: 45.7 rpm
B3Z 409 35,3		Size: 409 \| Gear stages: 3 \| Ratio i: 35.3 \| Rated torque Mn2: 108000 Nm \| Rated power Pn1: 476 kW \| Output speed n2: 39.6 rpm
B3Z 409 40,8		Size: 409 \| Gear stages: 3 \| Ratio i: 40.8 \| Rated torque Mn2: 79700 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 34.3 rpm
B3Z 409 45,8		Size: 409 \| Gear stages: 3 \| Ratio i: 45.8 \| Rated torque Mn2: 89400 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 30.6 rpm
B3Z 409 49,3		Size: 409 \| Gear stages: 3 \| Ratio i: 49.3 \| Rated torque Mn2: 96300 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 28.4 rpm
B3Z 409 56,9		Size: 409 \| Gear stages: 3 \| Ratio i: 56.9 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 24.6 rpm
B3Z 409 64,1		Size: 409 \| Gear stages: 3 \| Ratio i: 64.1 \| Rated torque Mn2: 96200 Nm \| Rated power Pn1: 234 kW \| Output speed n2: 21.8 rpm
B3Z 409 69,4		Size: 409 \| Gear stages: 3 \| Ratio i: 69.4 \| Rated torque Mn2: 97100 Nm \| Rated power Pn1: 218 kW \| Output speed n2: 20.2 rpm
B3Z 409 75,4		Size: 409 \| Gear stages: 3 \| Ratio i: 75.4 \| Rated torque Mn2: 94600 Nm \| Rated power Pn1: 196 kW \| Output speed n2: 18.6 rpm
B4Z 219 60,6		Size: 219 \| Gear stages: 4 \| Ratio i: 60.6 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 50.0 kW \| Output speed n2: 23.1 rpm
B4Z 219 70,3		Size: 219 \| Gear stages: 4 \| Ratio i: 70.3 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 43.1 kW \| Output speed n2: 19.9 rpm
B4Z 219 76,0		Size: 219 \| Gear stages: 4 \| Ratio i: 76.0 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 39.8 kW \| Output speed n2: 18.4 rpm
B4Z 219 91,2		Size: 219 \| Gear stages: 4 \| Ratio i: 91.2 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 33.2 kW \| Output speed n2: 15.3 rpm
B4Z 219 106		Size: 219 \| Gear stages: 4 \| Ratio i: 106 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 28.6 kW \| Output speed n2: 13.2 rpm
B4Z 219 115		Size: 219 \| Gear stages: 4 \| Ratio i: 115 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 26.4 kW \| Output speed n2: 12.2 rpm
B4Z 219 128		Size: 219 \| Gear stages: 4 \| Ratio i: 128 \| Rated torque Mn2: 15000 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 11.0 rpm
B4Z 219 153		Size: 219 \| Gear stages: 4 \| Ratio i: 153 \| Rated torque Mn2: 18000 Nm \| Rated power Pn1: 18.6 kW \| Output speed n2: 9.12 rpm
B4Z 219 178		Size: 219 \| Gear stages: 4 \| Ratio i: 178 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 17.0 kW \| Output speed n2: 7.85 rpm
B4Z 219 193		Size: 219 \| Gear stages: 4 \| Ratio i: 193 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 15.7 kW \| Output speed n2: 7.25 rpm
B4Z 219 238		Size: 219 \| Gear stages: 4 \| Ratio i: 238 \| Rated torque Mn2: 18100 Nm \| Rated power Pn1: 12.1 kW \| Output speed n2: 5.88 rpm
B4Z 219 275		Size: 219 \| Gear stages: 4 \| Ratio i: 275 \| Rated torque Mn2: 16100 Nm \| Rated power Pn1: 9.32 kW \| Output speed n2: 5.09 rpm
B4Z 219 323		Size: 219 \| Gear stages: 4 \| Ratio i: 323 \| Rated torque Mn2: 15300 Nm \| Rated power Pn1: 7.55 kW \| Output speed n2: 4.33 rpm
B4Z 249 76,8		Size: 249 \| Gear stages: 4 \| Ratio i: 76.8 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 49.8 kW \| Output speed n2: 18.2 rpm
B4Z 249 89,1		Size: 249 \| Gear stages: 4 \| Ratio i: 89.1 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 42.9 kW \| Output speed n2: 15.7 rpm
B4Z 249 96,4		Size: 249 \| Gear stages: 4 \| Ratio i: 96.4 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 39.7 kW \| Output speed n2: 14.5 rpm
B4Z 249 116		Size: 249 \| Gear stages: 4 \| Ratio i: 116 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 33.1 kW \| Output speed n2: 12.1 rpm
B4Z 249 134		Size: 249 \| Gear stages: 4 \| Ratio i: 134 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 28.5 kW \| Output speed n2: 10.4 rpm
B4Z 249 146		Size: 249 \| Gear stages: 4 \| Ratio i: 146 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 26.3 kW \| Output speed n2: 9.61 rpm
B4Z 249 162		Size: 249 \| Gear stages: 4 \| Ratio i: 162 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 8.64 rpm
B4Z 249 195		Size: 249 \| Gear stages: 4 \| Ratio i: 195 \| Rated torque Mn2: 22800 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 7.20 rpm
B4Z 249 226		Size: 249 \| Gear stages: 4 \| Ratio i: 226 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 16.9 kW \| Output speed n2: 6.19 rpm
B4Z 249 245		Size: 249 \| Gear stages: 4 \| Ratio i: 245 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 15.6 kW \| Output speed n2: 5.72 rpm
B4Z 249 302		Size: 249 \| Gear stages: 4 \| Ratio i: 302 \| Rated torque Mn2: 22900 Nm \| Rated power Pn1: 12.1 kW \| Output speed n2: 4.63 rpm
B4Z 249 349		Size: 249 \| Gear stages: 4 \| Ratio i: 349 \| Rated torque Mn2: 20400 Nm \| Rated power Pn1: 9.31 kW \| Output speed n2: 4.01 rpm
B4Z 249 410		Size: 249 \| Gear stages: 4 \| Ratio i: 410 \| Rated torque Mn2: 19400 Nm \| Rated power Pn1: 7.53 kW \| Output speed n2: 3.42 rpm
B4Z 269 79,0		Size: 269 \| Gear stages: 4 \| Ratio i: 79.0 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 58.5 kW \| Output speed n2: 17.7 rpm
B4Z 269 85,7		Size: 269 \| Gear stages: 4 \| Ratio i: 85.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 53.9 kW \| Output speed n2: 16.3 rpm
B4Z 269 93,1		Size: 269 \| Gear stages: 4 \| Ratio i: 93.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 49.6 kW \| Output speed n2: 15.0 rpm
B4Z 269 112		Size: 269 \| Gear stages: 4 \| Ratio i: 112 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 41.2 kW \| Output speed n2: 12.5 rpm
B4Z 269 128		Size: 269 \| Gear stages: 4 \| Ratio i: 128 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 36.2 kW \| Output speed n2: 11.0 rpm
B4Z 269 138		Size: 269 \| Gear stages: 4 \| Ratio i: 138 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 33.6 kW \| Output speed n2: 10.2 rpm
B4Z 269 149		Size: 269 \| Gear stages: 4 \| Ratio i: 149 \| Rated torque Mn2: 26400 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 9.39 rpm
B4Z 269 180		Size: 269 \| Gear stages: 4 \| Ratio i: 180 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 25.7 kW \| Output speed n2: 7.80 rpm
B4Z 269 204		Size: 269 \| Gear stages: 4 \| Ratio i: 204 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 22.6 kW \| Output speed n2: 6.86 rpm
B4Z 269 220		Size: 269 \| Gear stages: 4 \| Ratio i: 220 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 21.0 kW \| Output speed n2: 6.36 rpm
B4Z 269 256		Size: 269 \| Gear stages: 4 \| Ratio i: 256 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 18.1 kW \| Output speed n2: 5.47 rpm
B4Z 269 292		Size: 269 \| Gear stages: 4 \| Ratio i: 292 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 15.8 kW \| Output speed n2: 4.79 rpm
B4Z 269 348		Size: 269 \| Gear stages: 4 \| Ratio i: 348 \| Rated torque Mn2: 26300 Nm \| Rated power Pn1: 12.0 kW \| Output speed n2: 4.02 rpm
B4Z 279 97,8		Size: 279 \| Gear stages: 4 \| Ratio i: 97.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 58.7 kW \| Output speed n2: 14.3 rpm
B4Z 279 106		Size: 279 \| Gear stages: 4 \| Ratio i: 106 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 54.1 kW \| Output speed n2: 13.2 rpm
B4Z 279 115		Size: 279 \| Gear stages: 4 \| Ratio i: 115 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 49.8 kW \| Output speed n2: 12.1 rpm
B4Z 279 139		Size: 279 \| Gear stages: 4 \| Ratio i: 139 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 41.3 kW \| Output speed n2: 10.1 rpm
B4Z 279 158		Size: 279 \| Gear stages: 4 \| Ratio i: 158 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 36.4 kW \| Output speed n2: 8.87 rpm
B4Z 279 170		Size: 279 \| Gear stages: 4 \| Ratio i: 170 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 33.7 kW \| Output speed n2: 8.22 rpm
B4Z 279 184		Size: 279 \| Gear stages: 4 \| Ratio i: 184 \| Rated torque Mn2: 32700 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 7.59 rpm
B4Z 279 222		Size: 279 \| Gear stages: 4 \| Ratio i: 222 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 25.8 kW \| Output speed n2: 6.30 rpm
B4Z 279 252		Size: 279 \| Gear stages: 4 \| Ratio i: 252 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 22.7 kW \| Output speed n2: 5.55 rpm
B4Z 279 272		Size: 279 \| Gear stages: 4 \| Ratio i: 272 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 21.1 kW \| Output speed n2: 5.14 rpm
B4Z 279 317		Size: 279 \| Gear stages: 4 \| Ratio i: 317 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 18.1 kW \| Output speed n2: 4.42 rpm
B4Z 279 362		Size: 279 \| Gear stages: 4 \| Ratio i: 362 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 15.9 kW \| Output speed n2: 3.87 rpm
B4Z 279 431		Size: 279 \| Gear stages: 4 \| Ratio i: 431 \| Rated torque Mn2: 32500 Nm \| Rated power Pn1: 12.0 kW \| Output speed n2: 3.25 rpm
B4Z 319 63,0		Size: 319 \| Gear stages: 4 \| Ratio i: 63.0 \| Rated torque Mn2: 51300 Nm \| Rated power Pn1: 130 kW \| Output speed n2: 22.2 rpm
B4Z 319 68,4		Size: 319 \| Gear stages: 4 \| Ratio i: 68.4 \| Rated torque Mn2: 52800 Nm \| Rated power Pn1: 123 kW \| Output speed n2: 20.5 rpm
B4Z 319 74,4		Size: 319 \| Gear stages: 4 \| Ratio i: 74.4 \| Rated torque Mn2: 54400 Nm \| Rated power Pn1: 116 kW \| Output speed n2: 18.8 rpm
B4Z 319 81,2		Size: 319 \| Gear stages: 4 \| Ratio i: 81.2 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 17.2 rpm
B4Z 319 94,1		Size: 319 \| Gear stages: 4 \| Ratio i: 94.1 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 93.2 kW \| Output speed n2: 14.9 rpm
B4Z 319 109		Size: 319 \| Gear stages: 4 \| Ratio i: 109 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 80.5 kW \| Output speed n2: 12.9 rpm
B4Z 319 120		Size: 319 \| Gear stages: 4 \| Ratio i: 120 \| Rated torque Mn2: 45900 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 11.7 rpm
B4Z 319 131		Size: 319 \| Gear stages: 4 \| Ratio i: 131 \| Rated torque Mn2: 50100 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 10.7 rpm
B4Z 319 151		Size: 319 \| Gear stages: 4 \| Ratio i: 151 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 57.9 kW \| Output speed n2: 9.25 rpm
B4Z 319 188		Size: 319 \| Gear stages: 4 \| Ratio i: 188 \| Rated torque Mn2: 51900 Nm \| Rated power Pn1: 43.9 kW \| Output speed n2: 7.44 rpm
B4Z 319 223		Size: 319 \| Gear stages: 4 \| Ratio i: 223 \| Rated torque Mn2: 52500 Nm \| Rated power Pn1: 37.6 kW \| Output speed n2: 6.29 rpm
B4Z 319 273		Size: 319 \| Gear stages: 4 \| Ratio i: 273 \| Rated torque Mn2: 46200 Nm \| Rated power Pn1: 27.0 kW \| Output speed n2: 5.13 rpm
B4Z 319 320		Size: 319 \| Gear stages: 4 \| Ratio i: 320 \| Rated torque Mn2: 46900 Nm \| Rated power Pn1: 23.3 kW \| Output speed n2: 4.37 rpm
B4Z 349 81,0		Size: 349 \| Gear stages: 4 \| Ratio i: 81.0 \| Rated torque Mn2: 66000 Nm \| Rated power Pn1: 130 kW \| Output speed n2: 17.3 rpm
B4Z 349 87,9		Size: 349 \| Gear stages: 4 \| Ratio i: 87.9 \| Rated torque Mn2: 67900 Nm \| Rated power Pn1: 123 kW \| Output speed n2: 15.9 rpm
B4Z 349 95,6		Size: 349 \| Gear stages: 4 \| Ratio i: 95.6 \| Rated torque Mn2: 69900 Nm \| Rated power Pn1: 116 kW \| Output speed n2: 14.6 rpm
B4Z 349 104		Size: 349 \| Gear stages: 4 \| Ratio i: 104 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 107 kW \| Output speed n2: 13.4 rpm
B4Z 349 121		Size: 349 \| Gear stages: 4 \| Ratio i: 121 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 92.2 kW \| Output speed n2: 11.6 rpm
B4Z 349 140		Size: 349 \| Gear stages: 4 \| Ratio i: 140 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 79.7 kW \| Output speed n2: 10.0 rpm
B4Z 349 154		Size: 349 \| Gear stages: 4 \| Ratio i: 154 \| Rated torque Mn2: 59000 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 9.10 rpm
B4Z 349 168		Size: 349 \| Gear stages: 4 \| Ratio i: 168 \| Rated torque Mn2: 64400 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 8.34 rpm
B4Z 349 195		Size: 349 \| Gear stages: 4 \| Ratio i: 195 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 57.3 kW \| Output speed n2: 7.19 rpm
B4Z 349 242		Size: 349 \| Gear stages: 4 \| Ratio i: 242 \| Rated torque Mn2: 66700 Nm \| Rated power Pn1: 43.9 kW \| Output speed n2: 5.79 rpm
B4Z 349 286		Size: 349 \| Gear stages: 4 \| Ratio i: 286 \| Rated torque Mn2: 67500 Nm \| Rated power Pn1: 37.6 kW \| Output speed n2: 4.89 rpm
B4Z 349 351		Size: 349 \| Gear stages: 4 \| Ratio i: 351 \| Rated torque Mn2: 59400 Nm \| Rated power Pn1: 27.0 kW \| Output speed n2: 3.99 rpm
B4Z 349 412		Size: 349 \| Gear stages: 4 \| Ratio i: 412 \| Rated torque Mn2: 60200 Nm \| Rated power Pn1: 23.3 kW \| Output speed n2: 3.40 rpm
B4Z 399 70,5		Size: 399 \| Gear stages: 4 \| Ratio i: 70.5 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 204 kW \| Output speed n2: 19.9 rpm
B4Z 399 76,7		Size: 399 \| Gear stages: 4 \| Ratio i: 76.7 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 187 kW \| Output speed n2: 18.3 rpm
B4Z 399 82,8		Size: 399 \| Gear stages: 4 \| Ratio i: 82.8 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 173 kW \| Output speed n2: 16.9 rpm
B4Z 399 89,4		Size: 399 \| Gear stages: 4 \| Ratio i: 89.4 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 160 kW \| Output speed n2: 15.7 rpm
B4Z 399 105		Size: 399 \| Gear stages: 4 \| Ratio i: 105 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 136 kW \| Output speed n2: 13.3 rpm
B4Z 399 121		Size: 399 \| Gear stages: 4 \| Ratio i: 121 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 119 kW \| Output speed n2: 11.6 rpm
B4Z 399 123		Size: 399 \| Gear stages: 4 \| Ratio i: 123 \| Rated torque Mn2: 81800 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 11.3 rpm
B4Z 399 133		Size: 399 \| Gear stages: 4 \| Ratio i: 133 \| Rated torque Mn2: 88300 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 10.5 rpm
B4Z 399 144		Size: 399 \| Gear stages: 4 \| Ratio i: 144 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 99.8 kW \| Output speed n2: 9.74 rpm
B4Z 399 169		Size: 399 \| Gear stages: 4 \| Ratio i: 169 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 84.8 kW \| Output speed n2: 8.28 rpm
B4Z 399 194		Size: 399 \| Gear stages: 4 \| Ratio i: 194 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 73.8 kW \| Output speed n2: 7.21 rpm
B4Z 399 235		Size: 399 \| Gear stages: 4 \| Ratio i: 235 \| Rated torque Mn2: 85500 Nm \| Rated power Pn1: 57.9 kW \| Output speed n2: 5.95 rpm
B4Z 399 275		Size: 399 \| Gear stages: 4 \| Ratio i: 275 \| Rated torque Mn2: 86500 Nm \| Rated power Pn1: 50.0 kW \| Output speed n2: 5.09 rpm
B4Z 399 327		Size: 399 \| Gear stages: 4 \| Ratio i: 327 \| Rated torque Mn2: 87300 Nm \| Rated power Pn1: 42.5 kW \| Output speed n2: 4.28 rpm
B4Z 409 85,2		Size: 409 \| Gear stages: 4 \| Ratio i: 85.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 206 kW \| Output speed n2: 16.4 rpm
B4Z 409 92,8		Size: 409 \| Gear stages: 4 \| Ratio i: 92.8 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 189 kW \| Output speed n2: 15.1 rpm
B4Z 409 100		Size: 409 \| Gear stages: 4 \| Ratio i: 100 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 175 kW \| Output speed n2: 14.0 rpm
B4Z 409 108		Size: 409 \| Gear stages: 4 \| Ratio i: 108 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 162 kW \| Output speed n2: 13.0 rpm
B4Z 409 127		Size: 409 \| Gear stages: 4 \| Ratio i: 127 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 11.0 rpm
B4Z 409 146		Size: 409 \| Gear stages: 4 \| Ratio i: 146 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 9.58 rpm
B4Z 409 149		Size: 409 \| Gear stages: 4 \| Ratio i: 149 \| Rated torque Mn2: 99000 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 9.38 rpm
B4Z 409 161		Size: 409 \| Gear stages: 4 \| Ratio i: 161 \| Rated torque Mn2: 107000 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 8.69 rpm
B4Z 409 174		Size: 409 \| Gear stages: 4 \| Ratio i: 174 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 101 kW \| Output speed n2: 8.05 rpm
B4Z 409 205		Size: 409 \| Gear stages: 4 \| Ratio i: 205 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 85.6 kW \| Output speed n2: 6.84 rpm
B4Z 409 235		Size: 409 \| Gear stages: 4 \| Ratio i: 235 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 74.6 kW \| Output speed n2: 5.96 rpm
B4Z 409 285		Size: 409 \| Gear stages: 4 \| Ratio i: 285 \| Rated torque Mn2: 103000 Nm \| Rated power Pn1: 57.9 kW \| Output speed n2: 4.92 rpm
B4Z 409 333		Size: 409 \| Gear stages: 4 \| Ratio i: 333 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 50.1 kW \| Output speed n2: 4.20 rpm
B4Z 409 396		Size: 409 \| Gear stages: 4 \| Ratio i: 396 \| Rated torque Mn2: 106000 Nm \| Rated power Pn1: 42.5 kW \| Output speed n2: 3.54 rpm

Industrial GearboxesMotovario

266 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario PBZ Bevel Helical Gear Reducers (B3Z/B4Z 179-409)

Brand Motovario·Industrial Gearboxes

Available part numbers (266)

B3Z 179 13,3, B3Z 179 14,9, B3Z 179 16,8, B3Z 179 20,1, B3Z 179 21,8, B3Z 179 23,7, B3Z 179 28,5, B3Z 179 32,4, B3Z 179 35,0, B3Z 179 37,9 + 256 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	B3Z 179 13,3	Size: 179 \| Gear stages: 3 \| Ratio i: 13.3 \| Rated torque Mn2: 6060 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 105 rpm
	B3Z 179 14,9	Size: 179 \| Gear stages: 3 \| Ratio i: 14.9 \| Rated torque Mn2: 6790 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 94.1 rpm
	B3Z 179 16,8	Size: 179 \| Gear stages: 3 \| Ratio i: 16.8 \| Rated torque Mn2: 7670 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 83.4 rpm
	B3Z 179 20,1	Size: 179 \| Gear stages: 3 \| Ratio i: 20.1 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 69.9 kW \| Output speed n2: 69.7 rpm
	B3Z 179 21,8	Size: 179 \| Gear stages: 3 \| Ratio i: 21.8 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 64.4 kW \| Output speed n2: 64.3 rpm
	B3Z 179 23,7	Size: 179 \| Gear stages: 3 \| Ratio i: 23.7 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 59.3 kW \| Output speed n2: 59.1 rpm
	B3Z 179 28,5	Size: 179 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 49.2 kW \| Output speed n2: 49.1 rpm
	B3Z 179 32,4	Size: 179 \| Gear stages: 3 \| Ratio i: 32.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 43.3 kW \| Output speed n2: 43.2 rpm
	B3Z 179 35,0	Size: 179 \| Gear stages: 3 \| Ratio i: 35.0 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 40.1 kW \| Output speed n2: 40.0 rpm
	B3Z 179 37,9	Size: 179 \| Gear stages: 3 \| Ratio i: 37.9 \| Rated torque Mn2: 6850 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 36.9 rpm
	B3Z 179 45,6	Size: 179 \| Gear stages: 3 \| Ratio i: 45.6 \| Rated torque Mn2: 8250 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 30.7 rpm
	B3Z 179 51,9	Size: 179 \| Gear stages: 3 \| Ratio i: 51.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 27.1 kW \| Output speed n2: 27.0 rpm
	B3Z 179 56,0	Size: 179 \| Gear stages: 3 \| Ratio i: 56.0 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 25.1 kW \| Output speed n2: 25.0 rpm
	B3Z 179 60,6	Size: 179 \| Gear stages: 3 \| Ratio i: 60.6 \| Rated torque Mn2: 8890 Nm \| Rated power Pn1: 22.9 kW \| Output speed n2: 23.1 rpm
	B3Z 179 64,0	Size: 179 \| Gear stages: 3 \| Ratio i: 64.0 \| Rated torque Mn2: 6680 Nm \| Rated power Pn1: 16.3 kW \| Output speed n2: 21.9 rpm
	B3Z 179 69,8	Size: 179 \| Gear stages: 3 \| Ratio i: 69.8 \| Rated torque Mn2: 7720 Nm \| Rated power Pn1: 17.3 kW \| Output speed n2: 20.1 rpm
	B3Z 199 16,5	Size: 199 \| Gear stages: 3 \| Ratio i: 16.5 \| Rated torque Mn2: 7530 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 84.9 rpm
	B3Z 199 18,5	Size: 199 \| Gear stages: 3 \| Ratio i: 18.5 \| Rated torque Mn2: 8430 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 75.8 rpm
	B3Z 199 20,9	Size: 199 \| Gear stages: 3 \| Ratio i: 20.9 \| Rated torque Mn2: 9520 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 67.1 rpm
	B3Z 199 25,0	Size: 199 \| Gear stages: 3 \| Ratio i: 25.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 68.8 kW \| Output speed n2: 56.1 rpm
	B3Z 199 27,1	Size: 199 \| Gear stages: 3 \| Ratio i: 27.1 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 63.4 kW \| Output speed n2: 51.8 rpm
	B3Z 199 29,4	Size: 199 \| Gear stages: 3 \| Ratio i: 29.4 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 58.3 kW \| Output speed n2: 47.6 rpm
	B3Z 199 35,4	Size: 199 \| Gear stages: 3 \| Ratio i: 35.4 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 48.4 kW \| Output speed n2: 39.5 rpm
	B3Z 199 40,3	Size: 199 \| Gear stages: 3 \| Ratio i: 40.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 42.6 kW \| Output speed n2: 34.8 rpm
	B3Z 199 43,5	Size: 199 \| Gear stages: 3 \| Ratio i: 43.5 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 39.5 kW \| Output speed n2: 32.2 rpm
	B3Z 199 47,1	Size: 199 \| Gear stages: 3 \| Ratio i: 47.1 \| Rated torque Mn2: 8500 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 29.7 rpm
	B3Z 199 56,7	Size: 199 \| Gear stages: 3 \| Ratio i: 56.7 \| Rated torque Mn2: 10200 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 24.7 rpm
	B3Z 199 64,4	Size: 199 \| Gear stages: 3 \| Ratio i: 64.4 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 26.6 kW \| Output speed n2: 21.7 rpm
	B3Z 199 69,5	Size: 199 \| Gear stages: 3 \| Ratio i: 69.5 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 24.7 kW \| Output speed n2: 20.1 rpm
	B3Z 199 75,3	Size: 199 \| Gear stages: 3 \| Ratio i: 75.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 22.8 kW \| Output speed n2: 18.6 rpm
	B3Z 199 79,5	Size: 199 \| Gear stages: 3 \| Ratio i: 79.5 \| Rated torque Mn2: 8290 Nm \| Rated power Pn1: 16.3 kW \| Output speed n2: 17.6 rpm
	B3Z 199 86,6	Size: 199 \| Gear stages: 3 \| Ratio i: 86.6 \| Rated torque Mn2: 9580 Nm \| Rated power Pn1: 17.2 kW \| Output speed n2: 16.2 rpm
	B3Z 219 12,0	Size: 219 \| Gear stages: 3 \| Ratio i: 12.0 \| Rated torque Mn2: 11100 Nm \| Rated power Pn1: 144 kW \| Output speed n2: 116 rpm
	B3Z 219 14,0	Size: 219 \| Gear stages: 3 \| Ratio i: 14.0 \| Rated torque Mn2: 12300 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 100 rpm
	B3Z 219 15,1	Size: 219 \| Gear stages: 3 \| Ratio i: 15.1 \| Rated torque Mn2: 13000 Nm \| Rated power Pn1: 135 kW \| Output speed n2: 93.0 rpm
	B3Z 219 16,3	Size: 219 \| Gear stages: 3 \| Ratio i: 16.3 \| Rated torque Mn2: 13700 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 85.9 rpm
	B3Z 219 17,7	Size: 219 \| Gear stages: 3 \| Ratio i: 17.7 \| Rated torque Mn2: 14500 Nm \| Rated power Pn1: 128 kW \| Output speed n2: 79.2 rpm
	B3Z 219 19,2	Size: 219 \| Gear stages: 3 \| Ratio i: 19.2 \| Rated torque Mn2: 15300 Nm \| Rated power Pn1: 124 kW \| Output speed n2: 72.8 rpm
	B3Z 219 21,0	Size: 219 \| Gear stages: 3 \| Ratio i: 21.0 \| Rated torque Mn2: 16200 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 66.7 rpm
	B3Z 219 24,3	Size: 219 \| Gear stages: 3 \| Ratio i: 24.3 \| Rated torque Mn2: 17800 Nm \| Rated power Pn1: 114 kW \| Output speed n2: 57.5 rpm
	B3Z 219 28,2	Size: 219 \| Gear stages: 3 \| Ratio i: 28.2 \| Rated torque Mn2: 14600 Nm \| Rated power Pn1: 80.9 kW \| Output speed n2: 49.7 rpm
	B3Z 219 30,9	Size: 219 \| Gear stages: 3 \| Ratio i: 30.9 \| Rated torque Mn2: 12100 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 45.2 rpm
	B3Z 219 33,8	Size: 219 \| Gear stages: 3 \| Ratio i: 33.8 \| Rated torque Mn2: 13200 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 41.5 rpm
	B3Z 219 39,1	Size: 219 \| Gear stages: 3 \| Ratio i: 39.1 \| Rated torque Mn2: 15300 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 35.8 rpm
	B3Z 219 45,3	Size: 219 \| Gear stages: 3 \| Ratio i: 45.3 \| Rated torque Mn2: 17500 Nm \| Rated power Pn1: 60.3 kW \| Output speed n2: 30.9 rpm
	B3Z 219 49,6	Size: 219 \| Gear stages: 3 \| Ratio i: 49.6 \| Rated torque Mn2: 16200 Nm \| Rated power Pn1: 50.9 kW \| Output speed n2: 28.2 rpm
	B3Z 219 53,7	Size: 219 \| Gear stages: 3 \| Ratio i: 53.7 \| Rated torque Mn2: 15400 Nm \| Rated power Pn1: 44.7 kW \| Output speed n2: 26.1 rpm
	B3Z 219 58,4	Size: 219 \| Gear stages: 3 \| Ratio i: 58.4 \| Rated torque Mn2: 14500 Nm \| Rated power Pn1: 38.7 kW \| Output speed n2: 24.0 rpm
	B3Z 249 15,3	Size: 249 \| Gear stages: 3 \| Ratio i: 15.3 \| Rated torque Mn2: 14100 Nm \| Rated power Pn1: 144 kW \| Output speed n2: 91.7 rpm
	B3Z 249 17,7	Size: 249 \| Gear stages: 3 \| Ratio i: 17.7 \| Rated torque Mn2: 15700 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 79.1 rpm
	B3Z 249 19,1	Size: 249 \| Gear stages: 3 \| Ratio i: 19.1 \| Rated torque Mn2: 16500 Nm \| Rated power Pn1: 135 kW \| Output speed n2: 73.3 rpm
	B3Z 249 20,7	Size: 249 \| Gear stages: 3 \| Ratio i: 20.7 \| Rated torque Mn2: 17400 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 67.8 rpm
	B3Z 249 22,4	Size: 249 \| Gear stages: 3 \| Ratio i: 22.4 \| Rated torque Mn2: 18400 Nm \| Rated power Pn1: 128 kW \| Output speed n2: 62.5 rpm
	B3Z 249 24,4	Size: 249 \| Gear stages: 3 \| Ratio i: 24.4 \| Rated torque Mn2: 19400 Nm \| Rated power Pn1: 124 kW \| Output speed n2: 57.4 rpm
	B3Z 249 26,6	Size: 249 \| Gear stages: 3 \| Ratio i: 26.6 \| Rated torque Mn2: 20500 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 52.6 rpm
	B3Z 249 30,9	Size: 249 \| Gear stages: 3 \| Ratio i: 30.9 \| Rated torque Mn2: 22500 Nm \| Rated power Pn1: 114 kW \| Output speed n2: 45.4 rpm
	B3Z 249 35,7	Size: 249 \| Gear stages: 3 \| Ratio i: 35.7 \| Rated torque Mn2: 18700 Nm \| Rated power Pn1: 81.7 kW \| Output speed n2: 39.2 rpm
	B3Z 249 39,2	Size: 249 \| Gear stages: 3 \| Ratio i: 39.2 \| Rated torque Mn2: 15400 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 35.7 rpm
	B3Z 249 42,8	Size: 249 \| Gear stages: 3 \| Ratio i: 42.8 \| Rated torque Mn2: 16800 Nm \| Rated power Pn1: 61.0 kW \| Output speed n2: 32.7 rpm
	B3Z 249 49,6	Size: 249 \| Gear stages: 3 \| Ratio i: 49.6 \| Rated torque Mn2: 19500 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 28.2 rpm
	B3Z 249 57,4	Size: 249 \| Gear stages: 3 \| Ratio i: 57.4 \| Rated torque Mn2: 22200 Nm \| Rated power Pn1: 60.2 kW \| Output speed n2: 24.4 rpm
	B3Z 249 62,9	Size: 249 \| Gear stages: 3 \| Ratio i: 62.9 \| Rated torque Mn2: 20600 Nm \| Rated power Pn1: 51.0 kW \| Output speed n2: 22.2 rpm
	B3Z 249 68,1	Size: 249 \| Gear stages: 3 \| Ratio i: 68.1 \| Rated torque Mn2: 19500 Nm \| Rated power Pn1: 44.6 kW \| Output speed n2: 20.6 rpm
	B3Z 249 74,0	Size: 249 \| Gear stages: 3 \| Ratio i: 74.0 \| Rated torque Mn2: 18400 Nm \| Rated power Pn1: 38.8 kW \| Output speed n2: 18.9 rpm
	B3Z 269 12,3	Size: 269 \| Gear stages: 3 \| Ratio i: 12.3 \| Rated torque Mn2: 19500 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 113 rpm
	B3Z 269 14,3	Size: 269 \| Gear stages: 3 \| Ratio i: 14.3 \| Rated torque Mn2: 22600 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 97.8 rpm
	B3Z 269 16,8	Size: 269 \| Gear stages: 3 \| Ratio i: 16.8 \| Rated torque Mn2: 26400 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 83.6 rpm
	B3Z 269 18,2	Size: 269 \| Gear stages: 3 \| Ratio i: 18.2 \| Rated torque Mn2: 28700 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 77.0 rpm
	B3Z 269 19,8	Size: 269 \| Gear stages: 3 \| Ratio i: 19.8 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 229 kW \| Output speed n2: 70.7 rpm
	B3Z 269 21,4	Size: 269 \| Gear stages: 3 \| Ratio i: 21.4 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 212 kW \| Output speed n2: 65.5 rpm
	B3Z 269 23,1	Size: 269 \| Gear stages: 3 \| Ratio i: 23.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 196 kW \| Output speed n2: 60.7 rpm
	B3Z 269 27,1	Size: 269 \| Gear stages: 3 \| Ratio i: 27.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 167 kW \| Output speed n2: 51.6 rpm
	B3Z 269 31,2	Size: 269 \| Gear stages: 3 \| Ratio i: 31.2 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 145 kW \| Output speed n2: 44.9 rpm
	B3Z 269 34,4	Size: 269 \| Gear stages: 3 \| Ratio i: 34.4 \| Rated torque Mn2: 23300 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 40.7 rpm
	B3Z 269 37,1	Size: 269 \| Gear stages: 3 \| Ratio i: 37.1 \| Rated torque Mn2: 25100 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 37.7 rpm
	B3Z 269 43,7	Size: 269 \| Gear stages: 3 \| Ratio i: 43.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 104 kW \| Output speed n2: 32.1 rpm
	B3Z 269 50,1	Size: 269 \| Gear stages: 3 \| Ratio i: 50.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 90.2 kW \| Output speed n2: 27.9 rpm
	B3Z 269 53,8	Size: 269 \| Gear stages: 3 \| Ratio i: 53.8 \| Rated torque Mn2: 27200 Nm \| Rated power Pn1: 78.7 kW \| Output speed n2: 26.0 rpm
	B3Z 269 58,2	Size: 269 \| Gear stages: 3 \| Ratio i: 58.2 \| Rated torque Mn2: 27500 Nm \| Rated power Pn1: 73.5 kW \| Output speed n2: 24.1 rpm
	B3Z 269 63,7	Size: 269 \| Gear stages: 3 \| Ratio i: 63.7 \| Rated torque Mn2: 23200 Nm \| Rated power Pn1: 56.8 kW \| Output speed n2: 22.0 rpm
	B3Z 279 15,3	Size: 279 \| Gear stages: 3 \| Ratio i: 15.3 \| Rated torque Mn2: 24100 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 91.7 rpm
	B3Z 279 17,7	Size: 279 \| Gear stages: 3 \| Ratio i: 17.7 \| Rated torque Mn2: 28000 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 79.0 rpm
	B3Z 279 20,7	Size: 279 \| Gear stages: 3 \| Ratio i: 20.7 \| Rated torque Mn2: 32700 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 67.5 rpm
	B3Z 279 22,5	Size: 279 \| Gear stages: 3 \| Ratio i: 22.5 \| Rated torque Mn2: 35500 Nm \| Rated power Pn1: 246 kW \| Output speed n2: 62.2 rpm
	B3Z 279 24,5	Size: 279 \| Gear stages: 3 \| Ratio i: 24.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 229 kW \| Output speed n2: 57.2 rpm
	B3Z 279 26,4	Size: 279 \| Gear stages: 3 \| Ratio i: 26.4 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 212 kW \| Output speed n2: 53.0 rpm
	B3Z 279 28,5	Size: 279 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 197 kW \| Output speed n2: 49.1 rpm
	B3Z 279 33,6	Size: 279 \| Gear stages: 3 \| Ratio i: 33.6 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 167 kW \| Output speed n2: 41.7 rpm
	B3Z 279 38,6	Size: 279 \| Gear stages: 3 \| Ratio i: 38.6 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 146 kW \| Output speed n2: 36.3 rpm
	B3Z 279 42,5	Size: 279 \| Gear stages: 3 \| Ratio i: 42.5 \| Rated torque Mn2: 28800 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 32.9 rpm
	B3Z 279 45,9	Size: 279 \| Gear stages: 3 \| Ratio i: 45.9 \| Rated torque Mn2: 31100 Nm \| Rated power Pn1: 105 kW \| Output speed n2: 30.5 rpm
	B3Z 279 54,0	Size: 279 \| Gear stages: 3 \| Ratio i: 54.0 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 104 kW \| Output speed n2: 25.9 rpm
	B3Z 279 62,0	Size: 279 \| Gear stages: 3 \| Ratio i: 62.0 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 90.5 kW \| Output speed n2: 22.6 rpm
	B3Z 279 66,6	Size: 279 \| Gear stages: 3 \| Ratio i: 66.6 \| Rated torque Mn2: 33600 Nm \| Rated power Pn1: 78.7 kW \| Output speed n2: 21.0 rpm
	B3Z 279 72,0	Size: 279 \| Gear stages: 3 \| Ratio i: 72.0 \| Rated torque Mn2: 34000 Nm \| Rated power Pn1: 73.6 kW \| Output speed n2: 19.4 rpm
	B3Z 279 78,8	Size: 279 \| Gear stages: 3 \| Ratio i: 78.8 \| Rated torque Mn2: 28700 Nm \| Rated power Pn1: 56.7 kW \| Output speed n2: 17.8 rpm
	B3Z 319 12,1	Size: 319 \| Gear stages: 3 \| Ratio i: 12.1 \| Rated torque Mn2: 30400 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 115 rpm
	B3Z 319 14,0	Size: 319 \| Gear stages: 3 \| Ratio i: 14.0 \| Rated torque Mn2: 35100 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 99.9 rpm
	B3Z 319 16,3	Size: 319 \| Gear stages: 3 \| Ratio i: 16.3 \| Rated torque Mn2: 40800 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 85.9 rpm
	B3Z 319 18,7	Size: 319 \| Gear stages: 3 \| Ratio i: 18.7 \| Rated torque Mn2: 46700 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 75.1 rpm
	B3Z 319 20,3	Size: 319 \| Gear stages: 3 \| Ratio i: 20.3 \| Rated torque Mn2: 50700 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 69.0 rpm
	B3Z 319 22,1	Size: 319 \| Gear stages: 3 \| Ratio i: 22.1 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 387 kW \| Output speed n2: 63.2 rpm
	B3Z 319 25,5	Size: 319 \| Gear stages: 3 \| Ratio i: 25.5 \| Rated torque Mn2: 53300 Nm \| Rated power Pn1: 326 kW \| Output speed n2: 55.0 rpm
	B3Z 319 27,7	Size: 319 \| Gear stages: 3 \| Ratio i: 27.7 \| Rated torque Mn2: 53700 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 50.6 rpm
	B3Z 319 29,7	Size: 319 \| Gear stages: 3 \| Ratio i: 29.7 \| Rated torque Mn2: 47800 Nm \| Rated power Pn1: 251 kW \| Output speed n2: 47.1 rpm
	B3Z 319 32,1	Size: 319 \| Gear stages: 3 \| Ratio i: 32.1 \| Rated torque Mn2: 48400 Nm \| Rated power Pn1: 235 kW \| Output speed n2: 43.7 rpm
	B3Z 319 38,8	Size: 319 \| Gear stages: 3 \| Ratio i: 38.8 \| Rated torque Mn2: 40700 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 36.1 rpm
	B3Z 319 42,1	Size: 319 \| Gear stages: 3 \| Ratio i: 42.1 \| Rated torque Mn2: 44200 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 33.2 rpm
	B3Z 319 45,3	Size: 319 \| Gear stages: 3 \| Ratio i: 45.3 \| Rated torque Mn2: 47500 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 30.9 rpm
	B3Z 319 48,8	Size: 319 \| Gear stages: 3 \| Ratio i: 48.8 \| Rated torque Mn2: 48900 Nm \| Rated power Pn1: 156 kW \| Output speed n2: 28.7 rpm
	B3Z 319 55,3	Size: 319 \| Gear stages: 3 \| Ratio i: 55.3 \| Rated torque Mn2: 42900 Nm \| Rated power Pn1: 121 kW \| Output speed n2: 25.3 rpm
	B3Z 319 59,7	Size: 319 \| Gear stages: 3 \| Ratio i: 59.7 \| Rated torque Mn2: 42100 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 23.4 rpm
	B3Z 349 15,6	Size: 349 \| Gear stages: 3 \| Ratio i: 15.6 \| Rated torque Mn2: 39100 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 89.7 rpm
	B3Z 349 18,0	Size: 349 \| Gear stages: 3 \| Ratio i: 18.0 \| Rated torque Mn2: 45100 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 77.7 rpm
	B3Z 349 20,9	Size: 349 \| Gear stages: 3 \| Ratio i: 20.9 \| Rated torque Mn2: 52400 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 66.9 rpm
	B3Z 349 24,0	Size: 349 \| Gear stages: 3 \| Ratio i: 24.0 \| Rated torque Mn2: 60000 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 58.4 rpm
	B3Z 349 26,1	Size: 349 \| Gear stages: 3 \| Ratio i: 26.1 \| Rated torque Mn2: 65200 Nm \| Rated power Pn1: 390 kW \| Output speed n2: 53.7 rpm
	B3Z 349 28,5	Size: 349 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 384 kW \| Output speed n2: 49.2 rpm
	B3Z 349 32,8	Size: 349 \| Gear stages: 3 \| Ratio i: 32.8 \| Rated torque Mn2: 68600 Nm \| Rated power Pn1: 326 kW \| Output speed n2: 42.7 rpm
	B3Z 349 35,6	Size: 349 \| Gear stages: 3 \| Ratio i: 35.6 \| Rated torque Mn2: 69000 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 39.3 rpm
	B3Z 349 38,2	Size: 349 \| Gear stages: 3 \| Ratio i: 38.2 \| Rated torque Mn2: 61500 Nm \| Rated power Pn1: 251 kW \| Output speed n2: 36.6 rpm
	B3Z 349 41,2	Size: 349 \| Gear stages: 3 \| Ratio i: 41.2 \| Rated torque Mn2: 62200 Nm \| Rated power Pn1: 235 kW \| Output speed n2: 33.9 rpm
	B3Z 349 49,8	Size: 349 \| Gear stages: 3 \| Ratio i: 49.8 \| Rated torque Mn2: 52300 Nm \| Rated power Pn1: 164 kW \| Output speed n2: 28.1 rpm
	B3Z 349 54,1	Size: 349 \| Gear stages: 3 \| Ratio i: 54.1 \| Rated torque Mn2: 56700 Nm \| Rated power Pn1: 163 kW \| Output speed n2: 25.9 rpm
	B3Z 349 58,2	Size: 349 \| Gear stages: 3 \| Ratio i: 58.2 \| Rated torque Mn2: 61000 Nm \| Rated power Pn1: 163 kW \| Output speed n2: 24.1 rpm
	B3Z 349 62,8	Size: 349 \| Gear stages: 3 \| Ratio i: 62.8 \| Rated torque Mn2: 62900 Nm \| Rated power Pn1: 156 kW \| Output speed n2: 22.3 rpm
	B3Z 349 71,1	Size: 349 \| Gear stages: 3 \| Ratio i: 71.1 \| Rated torque Mn2: 55200 Nm \| Rated power Pn1: 121 kW \| Output speed n2: 19.7 rpm
	B3Z 349 76,8	Size: 349 \| Gear stages: 3 \| Ratio i: 76.8 \| Rated torque Mn2: 54200 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 18.2 rpm
	B3Z 399 12,7	Size: 399 \| Gear stages: 3 \| Ratio i: 12.7 \| Rated torque Mn2: 54700 Nm \| Rated power Pn1: 672 kW \| Output speed n2: 110 rpm
	B3Z 399 14,5	Size: 399 \| Gear stages: 3 \| Ratio i: 14.5 \| Rated torque Mn2: 62600 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 96.4 rpm
	B3Z 399 16,7	Size: 399 \| Gear stages: 3 \| Ratio i: 16.7 \| Rated torque Mn2: 72100 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 83.8 rpm
	B3Z 399 18,0	Size: 399 \| Gear stages: 3 \| Ratio i: 18.0 \| Rated torque Mn2: 77600 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 77.9 rpm
	B3Z 399 19,4	Size: 399 \| Gear stages: 3 \| Ratio i: 19.4 \| Rated torque Mn2: 82100 Nm \| Rated power Pn1: 660 kW \| Output speed n2: 72.2 rpm
	B3Z 399 21,0	Size: 399 \| Gear stages: 3 \| Ratio i: 21.0 \| Rated torque Mn2: 87000 Nm \| Rated power Pn1: 647 kW \| Output speed n2: 66.8 rpm
	B3Z 399 23,5	Size: 399 \| Gear stages: 3 \| Ratio i: 23.5 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 597 kW \| Output speed n2: 59.5 rpm
	B3Z 399 25,3	Size: 399 \| Gear stages: 3 \| Ratio i: 25.3 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 554 kW \| Output speed n2: 55.2 rpm
	B3Z 399 29,2	Size: 399 \| Gear stages: 3 \| Ratio i: 29.2 \| Rated torque Mn2: 89300 Nm \| Rated power Pn1: 477 kW \| Output speed n2: 47.9 rpm
	B3Z 399 33,7	Size: 399 \| Gear stages: 3 \| Ratio i: 33.7 \| Rated torque Mn2: 65900 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 41.5 rpm
	B3Z 399 37,8	Size: 399 \| Gear stages: 3 \| Ratio i: 37.8 \| Rated torque Mn2: 73900 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 37.0 rpm
	B3Z 399 40,8	Size: 399 \| Gear stages: 3 \| Ratio i: 40.8 \| Rated torque Mn2: 79600 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 34.3 rpm
	B3Z 399 47,0	Size: 399 \| Gear stages: 3 \| Ratio i: 47.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 299 kW \| Output speed n2: 29.8 rpm
	B3Z 399 53,0	Size: 399 \| Gear stages: 3 \| Ratio i: 53.0 \| Rated torque Mn2: 79500 Nm \| Rated power Pn1: 234 kW \| Output speed n2: 26.4 rpm
	B3Z 399 57,4	Size: 399 \| Gear stages: 3 \| Ratio i: 57.4 \| Rated torque Mn2: 80300 Nm \| Rated power Pn1: 218 kW \| Output speed n2: 24.4 rpm
	B3Z 399 62,3	Size: 399 \| Gear stages: 3 \| Ratio i: 62.3 \| Rated torque Mn2: 78200 Nm \| Rated power Pn1: 196 kW \| Output speed n2: 22.5 rpm
	B3Z 409 15,4	Size: 409 \| Gear stages: 3 \| Ratio i: 15.4 \| Rated torque Mn2: 66200 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 91.2 rpm
	B3Z 409 17,6	Size: 409 \| Gear stages: 3 \| Ratio i: 17.6 \| Rated torque Mn2: 75800 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 79.7 rpm
	B3Z 409 20,2	Size: 409 \| Gear stages: 3 \| Ratio i: 20.2 \| Rated torque Mn2: 87200 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 69.3 rpm
	B3Z 409 21,8	Size: 409 \| Gear stages: 3 \| Ratio i: 21.8 \| Rated torque Mn2: 93800 Nm \| Rated power Pn1: 673 kW \| Output speed n2: 64.4 rpm
	B3Z 409 23,5	Size: 409 \| Gear stages: 3 \| Ratio i: 23.5 \| Rated torque Mn2: 99300 Nm \| Rated power Pn1: 660 kW \| Output speed n2: 59.7 rpm
	B3Z 409 25,4	Size: 409 \| Gear stages: 3 \| Ratio i: 25.4 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 647 kW \| Output speed n2: 55.2 rpm
	B3Z 409 28,5	Size: 409 \| Gear stages: 3 \| Ratio i: 28.5 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 603 kW \| Output speed n2: 49.2 rpm
	B3Z 409 30,7	Size: 409 \| Gear stages: 3 \| Ratio i: 30.7 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 560 kW \| Output speed n2: 45.7 rpm
	B3Z 409 35,3	Size: 409 \| Gear stages: 3 \| Ratio i: 35.3 \| Rated torque Mn2: 108000 Nm \| Rated power Pn1: 476 kW \| Output speed n2: 39.6 rpm
	B3Z 409 40,8	Size: 409 \| Gear stages: 3 \| Ratio i: 40.8 \| Rated torque Mn2: 79700 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 34.3 rpm
	B3Z 409 45,8	Size: 409 \| Gear stages: 3 \| Ratio i: 45.8 \| Rated torque Mn2: 89400 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 30.6 rpm
	B3Z 409 49,3	Size: 409 \| Gear stages: 3 \| Ratio i: 49.3 \| Rated torque Mn2: 96300 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 28.4 rpm
	B3Z 409 56,9	Size: 409 \| Gear stages: 3 \| Ratio i: 56.9 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 24.6 rpm
	B3Z 409 64,1	Size: 409 \| Gear stages: 3 \| Ratio i: 64.1 \| Rated torque Mn2: 96200 Nm \| Rated power Pn1: 234 kW \| Output speed n2: 21.8 rpm
	B3Z 409 69,4	Size: 409 \| Gear stages: 3 \| Ratio i: 69.4 \| Rated torque Mn2: 97100 Nm \| Rated power Pn1: 218 kW \| Output speed n2: 20.2 rpm
	B3Z 409 75,4	Size: 409 \| Gear stages: 3 \| Ratio i: 75.4 \| Rated torque Mn2: 94600 Nm \| Rated power Pn1: 196 kW \| Output speed n2: 18.6 rpm
	B4Z 219 60,6	Size: 219 \| Gear stages: 4 \| Ratio i: 60.6 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 50.0 kW \| Output speed n2: 23.1 rpm
	B4Z 219 70,3	Size: 219 \| Gear stages: 4 \| Ratio i: 70.3 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 43.1 kW \| Output speed n2: 19.9 rpm
	B4Z 219 76,0	Size: 219 \| Gear stages: 4 \| Ratio i: 76.0 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 39.8 kW \| Output speed n2: 18.4 rpm
	B4Z 219 91,2	Size: 219 \| Gear stages: 4 \| Ratio i: 91.2 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 33.2 kW \| Output speed n2: 15.3 rpm
	B4Z 219 106	Size: 219 \| Gear stages: 4 \| Ratio i: 106 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 28.6 kW \| Output speed n2: 13.2 rpm
	B4Z 219 115	Size: 219 \| Gear stages: 4 \| Ratio i: 115 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 26.4 kW \| Output speed n2: 12.2 rpm
	B4Z 219 128	Size: 219 \| Gear stages: 4 \| Ratio i: 128 \| Rated torque Mn2: 15000 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 11.0 rpm
	B4Z 219 153	Size: 219 \| Gear stages: 4 \| Ratio i: 153 \| Rated torque Mn2: 18000 Nm \| Rated power Pn1: 18.6 kW \| Output speed n2: 9.12 rpm
	B4Z 219 178	Size: 219 \| Gear stages: 4 \| Ratio i: 178 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 17.0 kW \| Output speed n2: 7.85 rpm
	B4Z 219 193	Size: 219 \| Gear stages: 4 \| Ratio i: 193 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 15.7 kW \| Output speed n2: 7.25 rpm
	B4Z 219 238	Size: 219 \| Gear stages: 4 \| Ratio i: 238 \| Rated torque Mn2: 18100 Nm \| Rated power Pn1: 12.1 kW \| Output speed n2: 5.88 rpm
	B4Z 219 275	Size: 219 \| Gear stages: 4 \| Ratio i: 275 \| Rated torque Mn2: 16100 Nm \| Rated power Pn1: 9.32 kW \| Output speed n2: 5.09 rpm
	B4Z 219 323	Size: 219 \| Gear stages: 4 \| Ratio i: 323 \| Rated torque Mn2: 15300 Nm \| Rated power Pn1: 7.55 kW \| Output speed n2: 4.33 rpm
	B4Z 249 76,8	Size: 249 \| Gear stages: 4 \| Ratio i: 76.8 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 49.8 kW \| Output speed n2: 18.2 rpm
	B4Z 249 89,1	Size: 249 \| Gear stages: 4 \| Ratio i: 89.1 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 42.9 kW \| Output speed n2: 15.7 rpm
	B4Z 249 96,4	Size: 249 \| Gear stages: 4 \| Ratio i: 96.4 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 39.7 kW \| Output speed n2: 14.5 rpm
	B4Z 249 116	Size: 249 \| Gear stages: 4 \| Ratio i: 116 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 33.1 kW \| Output speed n2: 12.1 rpm
	B4Z 249 134	Size: 249 \| Gear stages: 4 \| Ratio i: 134 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 28.5 kW \| Output speed n2: 10.4 rpm
	B4Z 249 146	Size: 249 \| Gear stages: 4 \| Ratio i: 146 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 26.3 kW \| Output speed n2: 9.61 rpm
	B4Z 249 162	Size: 249 \| Gear stages: 4 \| Ratio i: 162 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 8.64 rpm
	B4Z 249 195	Size: 249 \| Gear stages: 4 \| Ratio i: 195 \| Rated torque Mn2: 22800 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 7.20 rpm
	B4Z 249 226	Size: 249 \| Gear stages: 4 \| Ratio i: 226 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 16.9 kW \| Output speed n2: 6.19 rpm
	B4Z 249 245	Size: 249 \| Gear stages: 4 \| Ratio i: 245 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 15.6 kW \| Output speed n2: 5.72 rpm
	B4Z 249 302	Size: 249 \| Gear stages: 4 \| Ratio i: 302 \| Rated torque Mn2: 22900 Nm \| Rated power Pn1: 12.1 kW \| Output speed n2: 4.63 rpm
	B4Z 249 349	Size: 249 \| Gear stages: 4 \| Ratio i: 349 \| Rated torque Mn2: 20400 Nm \| Rated power Pn1: 9.31 kW \| Output speed n2: 4.01 rpm
	B4Z 249 410	Size: 249 \| Gear stages: 4 \| Ratio i: 410 \| Rated torque Mn2: 19400 Nm \| Rated power Pn1: 7.53 kW \| Output speed n2: 3.42 rpm
	B4Z 269 79,0	Size: 269 \| Gear stages: 4 \| Ratio i: 79.0 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 58.5 kW \| Output speed n2: 17.7 rpm
	B4Z 269 85,7	Size: 269 \| Gear stages: 4 \| Ratio i: 85.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 53.9 kW \| Output speed n2: 16.3 rpm
	B4Z 269 93,1	Size: 269 \| Gear stages: 4 \| Ratio i: 93.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 49.6 kW \| Output speed n2: 15.0 rpm
	B4Z 269 112	Size: 269 \| Gear stages: 4 \| Ratio i: 112 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 41.2 kW \| Output speed n2: 12.5 rpm
	B4Z 269 128	Size: 269 \| Gear stages: 4 \| Ratio i: 128 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 36.2 kW \| Output speed n2: 11.0 rpm
	B4Z 269 138	Size: 269 \| Gear stages: 4 \| Ratio i: 138 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 33.6 kW \| Output speed n2: 10.2 rpm
	B4Z 269 149	Size: 269 \| Gear stages: 4 \| Ratio i: 149 \| Rated torque Mn2: 26400 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 9.39 rpm
	B4Z 269 180	Size: 269 \| Gear stages: 4 \| Ratio i: 180 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 25.7 kW \| Output speed n2: 7.80 rpm
	B4Z 269 204	Size: 269 \| Gear stages: 4 \| Ratio i: 204 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 22.6 kW \| Output speed n2: 6.86 rpm
	B4Z 269 220	Size: 269 \| Gear stages: 4 \| Ratio i: 220 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 21.0 kW \| Output speed n2: 6.36 rpm
	B4Z 269 256	Size: 269 \| Gear stages: 4 \| Ratio i: 256 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 18.1 kW \| Output speed n2: 5.47 rpm
	B4Z 269 292	Size: 269 \| Gear stages: 4 \| Ratio i: 292 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 15.8 kW \| Output speed n2: 4.79 rpm
	B4Z 269 348	Size: 269 \| Gear stages: 4 \| Ratio i: 348 \| Rated torque Mn2: 26300 Nm \| Rated power Pn1: 12.0 kW \| Output speed n2: 4.02 rpm
	B4Z 279 97,8	Size: 279 \| Gear stages: 4 \| Ratio i: 97.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 58.7 kW \| Output speed n2: 14.3 rpm
	B4Z 279 106	Size: 279 \| Gear stages: 4 \| Ratio i: 106 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 54.1 kW \| Output speed n2: 13.2 rpm
	B4Z 279 115	Size: 279 \| Gear stages: 4 \| Ratio i: 115 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 49.8 kW \| Output speed n2: 12.1 rpm
	B4Z 279 139	Size: 279 \| Gear stages: 4 \| Ratio i: 139 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 41.3 kW \| Output speed n2: 10.1 rpm
	B4Z 279 158	Size: 279 \| Gear stages: 4 \| Ratio i: 158 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 36.4 kW \| Output speed n2: 8.87 rpm
	B4Z 279 170	Size: 279 \| Gear stages: 4 \| Ratio i: 170 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 33.7 kW \| Output speed n2: 8.22 rpm
	B4Z 279 184	Size: 279 \| Gear stages: 4 \| Ratio i: 184 \| Rated torque Mn2: 32700 Nm \| Rated power Pn1: 28.2 kW \| Output speed n2: 7.59 rpm
	B4Z 279 222	Size: 279 \| Gear stages: 4 \| Ratio i: 222 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 25.8 kW \| Output speed n2: 6.30 rpm
	B4Z 279 252	Size: 279 \| Gear stages: 4 \| Ratio i: 252 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 22.7 kW \| Output speed n2: 5.55 rpm
	B4Z 279 272	Size: 279 \| Gear stages: 4 \| Ratio i: 272 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 21.1 kW \| Output speed n2: 5.14 rpm
	B4Z 279 317	Size: 279 \| Gear stages: 4 \| Ratio i: 317 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 18.1 kW \| Output speed n2: 4.42 rpm
	B4Z 279 362	Size: 279 \| Gear stages: 4 \| Ratio i: 362 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 15.9 kW \| Output speed n2: 3.87 rpm
	B4Z 279 431	Size: 279 \| Gear stages: 4 \| Ratio i: 431 \| Rated torque Mn2: 32500 Nm \| Rated power Pn1: 12.0 kW \| Output speed n2: 3.25 rpm
	B4Z 319 63,0	Size: 319 \| Gear stages: 4 \| Ratio i: 63.0 \| Rated torque Mn2: 51300 Nm \| Rated power Pn1: 130 kW \| Output speed n2: 22.2 rpm
	B4Z 319 68,4	Size: 319 \| Gear stages: 4 \| Ratio i: 68.4 \| Rated torque Mn2: 52800 Nm \| Rated power Pn1: 123 kW \| Output speed n2: 20.5 rpm
	B4Z 319 74,4	Size: 319 \| Gear stages: 4 \| Ratio i: 74.4 \| Rated torque Mn2: 54400 Nm \| Rated power Pn1: 116 kW \| Output speed n2: 18.8 rpm
	B4Z 319 81,2	Size: 319 \| Gear stages: 4 \| Ratio i: 81.2 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 17.2 rpm
	B4Z 319 94,1	Size: 319 \| Gear stages: 4 \| Ratio i: 94.1 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 93.2 kW \| Output speed n2: 14.9 rpm
	B4Z 319 109	Size: 319 \| Gear stages: 4 \| Ratio i: 109 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 80.5 kW \| Output speed n2: 12.9 rpm
	B4Z 319 120	Size: 319 \| Gear stages: 4 \| Ratio i: 120 \| Rated torque Mn2: 45900 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 11.7 rpm
	B4Z 319 131	Size: 319 \| Gear stages: 4 \| Ratio i: 131 \| Rated torque Mn2: 50100 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 10.7 rpm
	B4Z 319 151	Size: 319 \| Gear stages: 4 \| Ratio i: 151 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 57.9 kW \| Output speed n2: 9.25 rpm
	B4Z 319 188	Size: 319 \| Gear stages: 4 \| Ratio i: 188 \| Rated torque Mn2: 51900 Nm \| Rated power Pn1: 43.9 kW \| Output speed n2: 7.44 rpm
	B4Z 319 223	Size: 319 \| Gear stages: 4 \| Ratio i: 223 \| Rated torque Mn2: 52500 Nm \| Rated power Pn1: 37.6 kW \| Output speed n2: 6.29 rpm
	B4Z 319 273	Size: 319 \| Gear stages: 4 \| Ratio i: 273 \| Rated torque Mn2: 46200 Nm \| Rated power Pn1: 27.0 kW \| Output speed n2: 5.13 rpm
	B4Z 319 320	Size: 319 \| Gear stages: 4 \| Ratio i: 320 \| Rated torque Mn2: 46900 Nm \| Rated power Pn1: 23.3 kW \| Output speed n2: 4.37 rpm
	B4Z 349 81,0	Size: 349 \| Gear stages: 4 \| Ratio i: 81.0 \| Rated torque Mn2: 66000 Nm \| Rated power Pn1: 130 kW \| Output speed n2: 17.3 rpm
	B4Z 349 87,9	Size: 349 \| Gear stages: 4 \| Ratio i: 87.9 \| Rated torque Mn2: 67900 Nm \| Rated power Pn1: 123 kW \| Output speed n2: 15.9 rpm
	B4Z 349 95,6	Size: 349 \| Gear stages: 4 \| Ratio i: 95.6 \| Rated torque Mn2: 69900 Nm \| Rated power Pn1: 116 kW \| Output speed n2: 14.6 rpm
	B4Z 349 104	Size: 349 \| Gear stages: 4 \| Ratio i: 104 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 107 kW \| Output speed n2: 13.4 rpm
	B4Z 349 121	Size: 349 \| Gear stages: 4 \| Ratio i: 121 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 92.2 kW \| Output speed n2: 11.6 rpm
	B4Z 349 140	Size: 349 \| Gear stages: 4 \| Ratio i: 140 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 79.7 kW \| Output speed n2: 10.0 rpm
	B4Z 349 154	Size: 349 \| Gear stages: 4 \| Ratio i: 154 \| Rated torque Mn2: 59000 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 9.10 rpm
	B4Z 349 168	Size: 349 \| Gear stages: 4 \| Ratio i: 168 \| Rated torque Mn2: 64400 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 8.34 rpm
	B4Z 349 195	Size: 349 \| Gear stages: 4 \| Ratio i: 195 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 57.3 kW \| Output speed n2: 7.19 rpm
	B4Z 349 242	Size: 349 \| Gear stages: 4 \| Ratio i: 242 \| Rated torque Mn2: 66700 Nm \| Rated power Pn1: 43.9 kW \| Output speed n2: 5.79 rpm
	B4Z 349 286	Size: 349 \| Gear stages: 4 \| Ratio i: 286 \| Rated torque Mn2: 67500 Nm \| Rated power Pn1: 37.6 kW \| Output speed n2: 4.89 rpm
	B4Z 349 351	Size: 349 \| Gear stages: 4 \| Ratio i: 351 \| Rated torque Mn2: 59400 Nm \| Rated power Pn1: 27.0 kW \| Output speed n2: 3.99 rpm
	B4Z 349 412	Size: 349 \| Gear stages: 4 \| Ratio i: 412 \| Rated torque Mn2: 60200 Nm \| Rated power Pn1: 23.3 kW \| Output speed n2: 3.40 rpm
	B4Z 399 70,5	Size: 399 \| Gear stages: 4 \| Ratio i: 70.5 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 204 kW \| Output speed n2: 19.9 rpm
	B4Z 399 76,7	Size: 399 \| Gear stages: 4 \| Ratio i: 76.7 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 187 kW \| Output speed n2: 18.3 rpm
	B4Z 399 82,8	Size: 399 \| Gear stages: 4 \| Ratio i: 82.8 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 173 kW \| Output speed n2: 16.9 rpm
	B4Z 399 89,4	Size: 399 \| Gear stages: 4 \| Ratio i: 89.4 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 160 kW \| Output speed n2: 15.7 rpm
	B4Z 399 105	Size: 399 \| Gear stages: 4 \| Ratio i: 105 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 136 kW \| Output speed n2: 13.3 rpm
	B4Z 399 121	Size: 399 \| Gear stages: 4 \| Ratio i: 121 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 119 kW \| Output speed n2: 11.6 rpm
	B4Z 399 123	Size: 399 \| Gear stages: 4 \| Ratio i: 123 \| Rated torque Mn2: 81800 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 11.3 rpm
	B4Z 399 133	Size: 399 \| Gear stages: 4 \| Ratio i: 133 \| Rated torque Mn2: 88300 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 10.5 rpm
	B4Z 399 144	Size: 399 \| Gear stages: 4 \| Ratio i: 144 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 99.8 kW \| Output speed n2: 9.74 rpm
	B4Z 399 169	Size: 399 \| Gear stages: 4 \| Ratio i: 169 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 84.8 kW \| Output speed n2: 8.28 rpm
	B4Z 399 194	Size: 399 \| Gear stages: 4 \| Ratio i: 194 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 73.8 kW \| Output speed n2: 7.21 rpm
	B4Z 399 235	Size: 399 \| Gear stages: 4 \| Ratio i: 235 \| Rated torque Mn2: 85500 Nm \| Rated power Pn1: 57.9 kW \| Output speed n2: 5.95 rpm
	B4Z 399 275	Size: 399 \| Gear stages: 4 \| Ratio i: 275 \| Rated torque Mn2: 86500 Nm \| Rated power Pn1: 50.0 kW \| Output speed n2: 5.09 rpm
	B4Z 399 327	Size: 399 \| Gear stages: 4 \| Ratio i: 327 \| Rated torque Mn2: 87300 Nm \| Rated power Pn1: 42.5 kW \| Output speed n2: 4.28 rpm
	B4Z 409 85,2	Size: 409 \| Gear stages: 4 \| Ratio i: 85.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 206 kW \| Output speed n2: 16.4 rpm
	B4Z 409 92,8	Size: 409 \| Gear stages: 4 \| Ratio i: 92.8 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 189 kW \| Output speed n2: 15.1 rpm
	B4Z 409 100	Size: 409 \| Gear stages: 4 \| Ratio i: 100 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 175 kW \| Output speed n2: 14.0 rpm
	B4Z 409 108	Size: 409 \| Gear stages: 4 \| Ratio i: 108 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 162 kW \| Output speed n2: 13.0 rpm
	B4Z 409 127	Size: 409 \| Gear stages: 4 \| Ratio i: 127 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 11.0 rpm
	B4Z 409 146	Size: 409 \| Gear stages: 4 \| Ratio i: 146 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 9.58 rpm
	B4Z 409 149	Size: 409 \| Gear stages: 4 \| Ratio i: 149 \| Rated torque Mn2: 99000 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 9.38 rpm
	B4Z 409 161	Size: 409 \| Gear stages: 4 \| Ratio i: 161 \| Rated torque Mn2: 107000 Nm \| Rated power Pn1: 106 kW \| Output speed n2: 8.69 rpm
	B4Z 409 174	Size: 409 \| Gear stages: 4 \| Ratio i: 174 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 101 kW \| Output speed n2: 8.05 rpm
	B4Z 409 205	Size: 409 \| Gear stages: 4 \| Ratio i: 205 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 85.6 kW \| Output speed n2: 6.84 rpm
	B4Z 409 235	Size: 409 \| Gear stages: 4 \| Ratio i: 235 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 74.6 kW \| Output speed n2: 5.96 rpm
	B4Z 409 285	Size: 409 \| Gear stages: 4 \| Ratio i: 285 \| Rated torque Mn2: 103000 Nm \| Rated power Pn1: 57.9 kW \| Output speed n2: 4.92 rpm
	B4Z 409 333	Size: 409 \| Gear stages: 4 \| Ratio i: 333 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 50.1 kW \| Output speed n2: 4.20 rpm
	B4Z 409 396	Size: 409 \| Gear stages: 4 \| Ratio i: 396 \| Rated torque Mn2: 106000 Nm \| Rated power Pn1: 42.5 kW \| Output speed n2: 3.54 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario PBZ Bevel Helical Gear Reducers (B3Z/B4Z 179-409)
