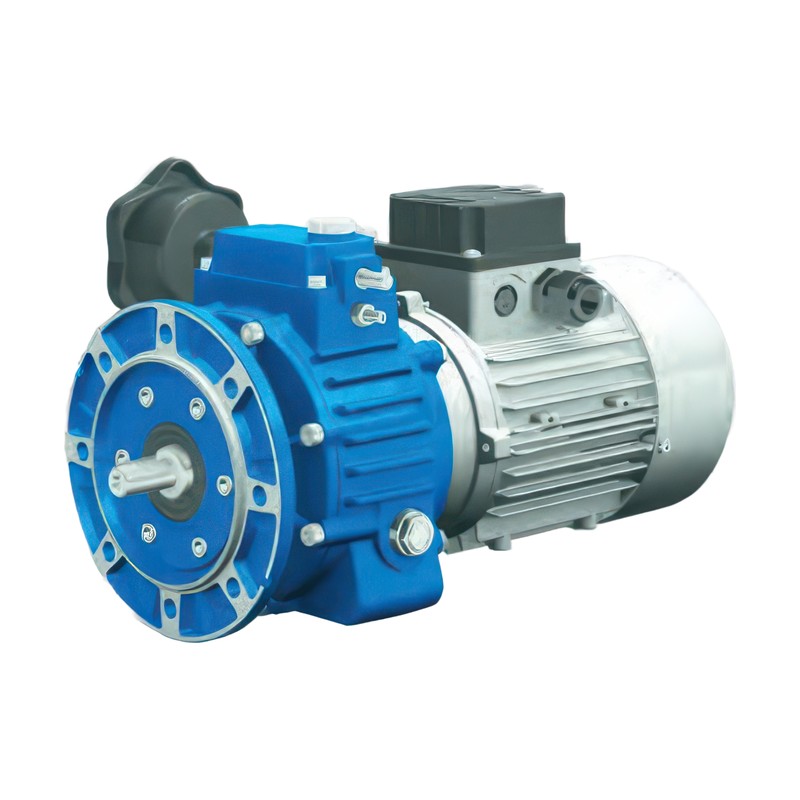

Motovario S Mechanical Speed Variators (Sizes 003-100, 0.25-7.5 kW)

Motovario S Mechanical Speed Variators (Sizes 003-100, 0.25-7.5 kW)

Motovario S mechanical speed variators in sizes 003 to 100 with fitted IEC motor, plus S.D differential versions reaching zero output speed, as listed in the current performance tables.

Key features

  • Friction planetary-disk variator: stepless output speed adjustment by handwheel, with the unit running
  • Seven sizes 003-100 with motor frames 63 to 132 (2, 4 and 6 poles), 0.25 to 7.5 kW
  • Output speed range approx. 122-2000 rpm; output torque up to 144 Nm (S100)
  • S.D version with epicyclic differential: output speed adjustable from 0 rpm to maximum
  • Versions F (flange), T and P (foot), motor, PAM, ECE input shaft, open PAM and compact executions
  • Supplied lubricated with ENI BLASIA 32 mineral oil (ISO VG32); oil change approx. every 5,000 h

Specifications

Brand Motovario (Italy)
Product type Mechanical speed variator (motovariator)
Series S, SD (differential)
Sizes 003, 005, 010, 020, 030, 050, 100
Motor frames 63, 71, 80, 90S, 90L, 100, 112, 132 (IEC)
Power range 0.25 - 7.5 kW
Input speed n1 900 / 1400 / 2800 rpm (6/4/2 poles)
Max output torque 144 Nm (S100)
Mounting positions B3, B5, B6, B6S, B6D, B7, B8, V1, V5, V3, V6
Lubricant ENI BLASIA 32 mineral oil (ISO VG32)
Weight (without motor) SF 2.7 - 73 kg
Source Motovario VAR Technical Catalogue IEC STD, p. 16-18, 27-41, 54-59
S005 TH71A4 Size: S005 | Motor: TH71A4 | Power P1: 0.25 kW | Output n2: 190-950 rpm | Output torque M2: 2-6 Nm | Radial load Fr2: 802-1120 N
S005 TH71B6 Size: S005 | Motor: TH71B6 | Power P1: 0.25 kW | Output n2: 122-610 rpm | Output torque M2: 3-6 Nm | Radial load Fr2: 930-1120 N
S003 TH63C2 Size: S003 | Motor: TH63C2 | Power P1: 0.37 kW | Output n2: 380-1900 rpm | Output torque M2: 1.7-4 Nm | Radial load Fr2: 340-670 N
S005 TH71B4 Size: S005 | Motor: TH71B4 | Power P1: 0.37 kW | Output n2: 190-950 rpm | Output torque M2: 3-6 Nm | Radial load Fr2: 810-1120 N
S005 TH71B2 Size: S005 | Motor: TH71B2 | Power P1: 0.55 kW | Output n2: 380-1900 rpm | Output torque M2: 2.2-6 Nm | Radial load Fr2: 640-1120 N
S005 TH71C4 Size: S005 | Motor: TH71C4 | Power P1: 0.55 kW | Output n2: 190-950 rpm | Output torque M2: 4.4-6 Nm | Radial load Fr2: 720-1120 N
S010 TH80A4 Size: S010 | Motor: TH80A4 | Power P1: 0.55 kW | Output n2: 190-950 rpm | Output torque M2: 4.4-12 Nm | Radial load Fr2: 930-1910 N
S010 TH80B6 Size: S010 | Motor: TH80B6 | Power P1: 0.55 kW | Output n2: 122-610 rpm | Output torque M2: 6.6-12 Nm | Radial load Fr2: 1080-1910 N
S005 TP80A2 Size: S005 | Motor: TP80A2 | Power P1: 0.75 kW | Output n2: 380-1900 rpm | Output torque M2: 3-6 Nm | Radial load Fr2: 640-1120 N
S010 TP80B4 Size: S010 | Motor: TP80B4 | Power P1: 0.75 kW | Output n2: 190-950 rpm | Output torque M2: 6-12 Nm | Radial load Fr2: 940-1640 N
S010 TP80B2 Size: S010 | Motor: TP80B2 | Power P1: 1.1 kW | Output n2: 380-1900 rpm | Output torque M2: 4.4-12 Nm | Radial load Fr2: 740-1300 N
S020 TP90S4 Size: S020 | Motor: TP90S4 | Power P1: 1.1 kW | Output n2: 190-1000 rpm | Output torque M2: 9-24 Nm | Radial load Fr2: 1130-1960 N
S020 TP100LR6 Size: S020 | Motor: TP100LR6 | Power P1: 1.1 kW | Output n2: 122-660 rpm | Output torque M2: 13.5-24 Nm | Radial load Fr2: 1300-2290 N
S020 TP90S2 Size: S020 | Motor: TP90S2 | Power P1: 1.5 kW | Output n2: 380-2000 rpm | Output torque M2: 6-24 Nm | Radial load Fr2: 890-1560 N
S020 TP90L4 Size: S020 | Motor: TP90L4 | Power P1: 1.5 kW | Output n2: 190-1000 rpm | Output torque M2: 12-24 Nm | Radial load Fr2: 1130-1960 N
S030 TP100L6 Size: S030 | Motor: TP100L6 | Power P1: 1.5 kW | Output n2: 122-660 rpm | Output torque M2: 18-48 Nm | Radial load Fr2: 2570-4540 N
S020 TP90L2 Size: S020 | Motor: TP90L2 | Power P1: 2.2 kW | Output n2: 380-2000 rpm | Output torque M2: 9-24 Nm | Radial load Fr2: 890-1560 N
S030 TP100LA4 Size: S030 | Motor: TP100LA4 | Power P1: 2.2 kW | Output n2: 190-1000 rpm | Output torque M2: 18-48 Nm | Radial load Fr2: 2240-3890 N
S050 TP112M6 Size: S050 | Motor: TP112M6 | Power P1: 2.2 kW | Output n2: 122-660 rpm | Output torque M2: 27-64 Nm | Radial load Fr2: 2570-4540 N
S030 TP112MS4 Size: S030 | Motor: TP112MS4 | Power P1: 3 kW | Output n2: 190-1000 rpm | Output torque M2: 24-48 Nm | Radial load Fr2: 2240-3890 N
S050 TP112M4 Size: S050 | Motor: TP112M4 | Power P1: 4 kW | Output n2: 190-1000 rpm | Output torque M2: 32-64 Nm | Radial load Fr2: 2240-3890 N
S100 TP132MS4 Size: S100 | Motor: TP132MS4 | Power P1: 5.5 kW | Output n2: 190-1000 rpm | Output torque M2: 44-144 Nm | Radial load Fr2: 2900-5050 N
S100 TP132MA6 Size: S100 | Motor: TP132MA6 | Power P1: 5.5 kW | Output n2: 122-660 rpm | Output torque M2: 66-144 Nm | Radial load Fr2: 3330-5890 N
S100 TP132M4 Size: S100 | Motor: TP132M4 | Power P1: 7.5 kW | Output n2: 190-1000 rpm | Output torque M2: 60-144 Nm | Radial load Fr2: 2900-5050 N
SD005 Size: SD005 | Version: S.D differential | Output n2: 0 to 610/950/1900 rpm max | Output torque M2 max: 6 Nm
SD010 Size: SD010 | Version: S.D differential | Output n2: 0 to 610/950/1900 rpm max | Output torque M2 max: 12 Nm
SD020 Size: SD020 | Version: S.D differential | Output n2: 0 to 660/1000/2000 rpm max | Output torque M2 max: 24 Nm
SD030 Size: SD030 | Version: S.D differential | Output n2: 0 to 660/1000 rpm max | Output torque M2 max: 48 Nm
SD050 Size: SD050 | Version: S.D differential | Output n2: 0 to 660/1000 rpm max | Output torque M2 max: 64 Nm
SD100 Size: SD100 | Version: S.D differential | Output n2: 0 to 660/1000 rpm max | Output torque M2 max: 144 Nm
S 003 63C6 Legacy code | Note: older-edition combination | Current: not in current tables
S 003 63C4 Legacy code | Note: older-edition combination | Current: not in current tables
S 005 71A4 Legacy code | Note: older-edition motor designation | Current: S005 TH71A4
S 005 71B6 Legacy code | Note: older-edition motor designation | Current: S005 TH71B6
SD 005 71B6 Legacy code | Note: older-edition motor designation | Current: SD005 (unit code; motor per S table)
S 003 63C2 Legacy code | Note: older-edition motor designation | Current: S003 TH63C2
S 005 71B4 Legacy code | Note: older-edition motor designation | Current: S005 TH71B4
SD 005 71B4 Legacy code | Note: older-edition motor designation | Current: SD005 (unit code; motor per S table)
S 005 71B2 Legacy code | Note: older-edition motor designation | Current: S005 TH71B2
SD 005 71B2 Legacy code | Note: older-edition motor designation | Current: SD005 (unit code; motor per S table)
S 005 71C4 Legacy code | Note: older-edition motor designation | Current: S005 TH71C4
SD 005 71C4 Legacy code | Note: older-edition motor designation | Current: SD005 (unit code; motor per S table)
S 010 80A4 Legacy code | Note: older-edition motor designation | Current: S010 TH80A4
S 010 80B6 Legacy code | Note: older-edition motor designation | Current: S010 TH80B6
SD 010 80B6 Legacy code | Note: older-edition motor designation | Current: SD010 (unit code; motor per S table)
S 005 71C2 Legacy code | Note: older-edition combination | Current: not in current tables
SD 005 71C2 Legacy code | Note: older-edition motor designation | Current: SD005 (unit code; motor per S table)
S 010 80B4 Legacy code | Note: older-edition motor designation | Current: S010 TP80B4
SD 010 80B4 Legacy code | Note: older-edition motor designation | Current: SD010 (unit code; motor per S table)
S 010 80C4 Legacy code | Note: older-edition combination | Current: not in current tables
SD 010 80C4 Legacy code | Note: older-edition motor designation | Current: SD010 (unit code; motor per S table)
S 010 80B2 Legacy code | Note: older-edition motor designation | Current: S010 TP80B2
SD 010 80B2 Legacy code | Note: older-edition motor designation | Current: SD010 (unit code; motor per S table)
S 020 90S4 Legacy code | Note: older-edition motor designation | Current: S020 TP90S4
SD 020 90S4 Legacy code | Note: older-edition motor designation | Current: SD020 (unit code; motor per S table)
S 020 90L6 Legacy code | Note: older-edition combination | Current: not in current tables
SD 020 90L6 Legacy code | Note: older-edition motor designation | Current: SD020 (unit code; motor per S table)
S 010 80C2 Legacy code | Note: older-edition combination | Current: not in current tables
SD 010 80C2 Legacy code | Note: older-edition motor designation | Current: SD010 (unit code; motor per S table)
S 020 90S2 Legacy code | Note: older-edition motor designation | Current: S020 TP90S2
SD 020 90S2 Legacy code | Note: older-edition motor designation | Current: SD020 (unit code; motor per S table)
S 020 90L4 Legacy code | Note: older-edition motor designation | Current: S020 TP90L4
SD 020 90L4 Legacy code | Note: older-edition motor designation | Current: SD020 (unit code; motor per S table)
S 030 100LA6 Legacy code | Note: older-edition combination | Current: not in current tables
SD 030 100LA6 Legacy code | Note: older-edition motor designation | Current: SD030 (unit code; motor per S table)
S 020 90LL4 Legacy code | Note: older-edition combination | Current: not in current tables
SD 020 90LL4 Legacy code | Note: older-edition motor designation | Current: SD020 (unit code; motor per S table)
S 020 90L2 Legacy code | Note: older-edition motor designation | Current: S020 TP90L2
SD 020 90L2 Legacy code | Note: older-edition motor designation | Current: SD020 (unit code; motor per S table)
S 030 100LA4 Legacy code | Note: older-edition motor designation | Current: S030 TP100LA4
SD 030 100LA4 Legacy code | Note: older-edition motor designation | Current: SD030 (unit code; motor per S table)
S 050 112M6 Legacy code | Note: older-edition motor designation | Current: S050 TP112M6
SD 050 112M6 Legacy code | Note: older-edition motor designation | Current: SD050 (unit code; motor per S table)
S 030 100LB4 Legacy code | Note: older-edition combination | Current: not in current tables
SD 030 100LB4 Legacy code | Note: older-edition motor designation | Current: SD030 (unit code; motor per S table)
S 050 112M4 Legacy code | Note: older-edition motor designation | Current: S050 TP112M4
SD 050 112M4 Legacy code | Note: older-edition motor designation | Current: SD050 (unit code; motor per S table)
S 050 112MS4 Legacy code | Note: older-edition combination | Current: not in current tables
SD 050 112MS4 Legacy code | Note: older-edition motor designation | Current: SD050 (unit code; motor per S table)
S 100 132S4 Legacy code | Note: older-edition combination | Current: not in current tables
SD 100 132S4 Legacy code | Note: older-edition motor designation | Current: SD100 (unit code; motor per S table)
S 100 132M6 Legacy code | Note: older-edition combination | Current: not in current tables
SD 100 132M6 Legacy code | Note: older-edition motor designation | Current: SD100 (unit code; motor per S table)
S 100 132L4 Legacy code | Note: older-edition combination | Current: not in current tables
SD 100 132L4 Legacy code | Note: older-edition motor designation | Current: SD100 (unit code; motor per S table)
S 100 132M4 Legacy code | Note: older-edition motor designation | Current: S100 TP132M4
SD 100 132M4 Legacy code | Note: older-edition motor designation | Current: SD100 (unit code; motor per S table)
S003 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
S005 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
S010 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
S020 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
S030 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
S050 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
S100 Legacy code | Note: variator unit only, older edition | Current: see unit + motor rows
