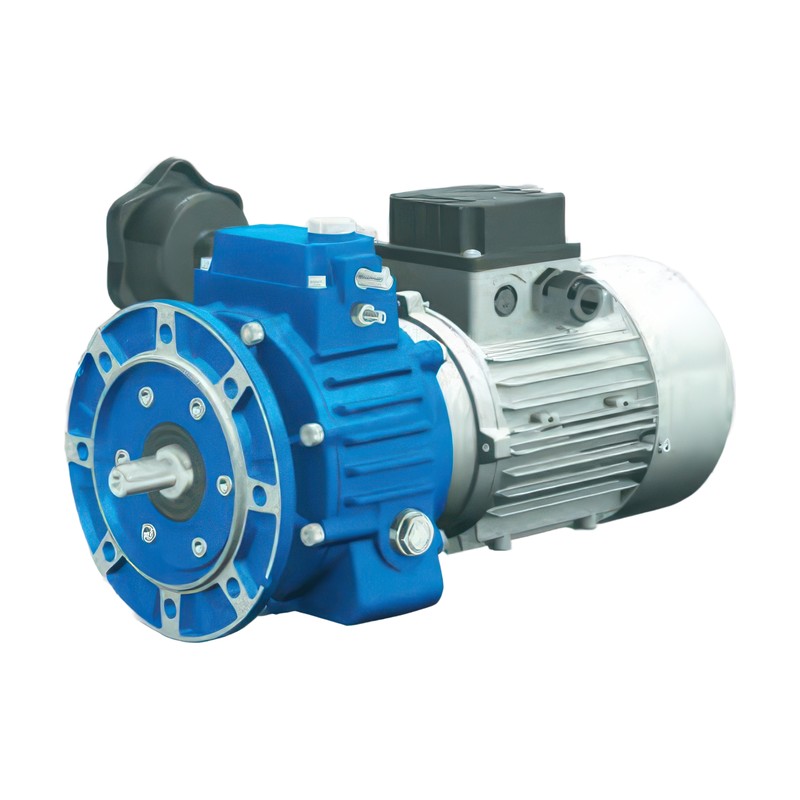

Motovario SF+NMRV Variator Worm Gearmotors (SF020-100, 0.75-7.5 kW)

Motovario SF+NMRV Variator Worm Gearmotors (SF020-100, 0.75-7.5 kW)

Motovario SF+NMRV motovariator-worm gearmotors combine a flanged S series planetary mechanical speed variator with an NMRV/NMRV-P worm gear reducer for continuously adjustable right-angle output speed from 0.75 to 7.5 kW.

Key features

  • SF variator sizes 020, 030, 050 and 100 coupled to NMRV-P 075-110 and NMRV 130-150 worm reducers
  • Worm ratios i 7.5 to 100; performance given at maximum (a) and minimum (b) variator speed
  • Continuous speed adjustment by control handwheel; electrical servocontrol available as an option
  • Executions BS, AS, VS and PS per mounting-position charts; terminal box position 1 unless specified
  • Hollow output shaft as standard; low speed shafts, output flanges, torque arm and shaft cover available
  • Fitted with TP premium-efficiency IEC motors, frames 90 to 160, 2-, 4- and 6-pole

Specifications

Construction SF variator + NMRV worm gear reducer
Variator sizes 020, 030, 050, 100
Worm reducer sizes P075, P090, P110, 130, 150
Motor power range 0.75-7.5 kW
Ratio range i 7.5-100
Speed regulation Handwheel, approx. 5:1 range
Input PAM 200/24, 250/28, 300/38, 350/42
Output flange FA, FB, FC, FD (per size)
Code format Unit / ratio i / motor (e.g. SF030+NMRV130 40,00 TP112MS4)
Source Motovario VAR Technical Catalogue IEC STD, p. 152-190
SF020+NMRV-P075 7,50 TP90S6 Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 58-148 Nm | Service factor fs (a-b): 4.5-2.7 | Radial load Fr2: 3610 N
SF020+NMRV-P075 10,00 TP90S6 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 75-190 Nm | Service factor fs (a-b): 3.6-2.2 | Radial load Fr2: 3973 N
SF020+NMRV-P075 15,00 TP90S6 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 109-269 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 4548 N
SF020+NMRV-P090 15,00 TP90S6 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 111-276 Nm | Service factor fs (a-b): 4.8-2.4 | Radial load Fr2: 5032 N
SF020+NMRV-P075 20,00 TP90S6 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 140-338 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 5005 N
SF020+NMRV-P090 20,00 TP90S6 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 143-354 Nm | Service factor fs (a-b): 3.6-1.7 | Radial load Fr2: 5538 N
SF020+NMRV-P075 25,00 TP90S6 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 168-404 Nm | Service factor fs (a-b): 1.7-0.9 | Radial load Fr2: 5392 N
SF020+NMRV-P090 25,00 TP90S6 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 172-424 Nm | Service factor fs (a-b): 2.8-1.3 | Radial load Fr2: 5966 N
SF020+NMRV-P075 30,00 TP90S6 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 188-449 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 5730 N
SF020+NMRV-P090 30,00 TP90S6 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 196-470 Nm | Service factor fs (a-b): 3.0-1.5 | Radial load Fr2: 6340 N
SF020+NMRV-P075 40,00 TP90S6 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 232-550 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 6307 N
SF020+NMRV-P090 40,00 TP90S6 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 243-579 Nm | Service factor fs (a-b): 2.2-1.1 | Radial load Fr2: 6978 N
SF020+NMRV-P110 40,00 TP90S6 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 257-605 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 8817 N
SF020+NMRV-P090 50,00 TP90S6 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 290-672 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 7517 N
SF020+NMRV-P110 50,00 TP90S6 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 304-724 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 9498 N
SF020+NMRV130 50,00 TP90S6 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 308-720 Nm | Service factor fs (a-b): 4.0-2.2 | Radial load Fr2: 12423 N
SF020+NMRV-P110 60,00 TP90S6 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 348-806 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 10093 N
SF020+NMRV130 60,00 TP90S6 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 348-806 Nm | Service factor fs (a-b): 3.1-1.7 | Radial load Fr2: 13202 N
SF020+NMRV150 60,00 TP90S6 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 353-821 Nm | Service factor fs (a-b): 4.8-2.5 | Radial load Fr2: 18000 N
SF020+NMRV-P110 80,00 TP90S6 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 420-986 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 10320 N
SF020+NMRV130 80,00 TP90S6 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 428-979 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 13500 N
SF020+NMRV150 80,00 TP90S6 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 435-979 Nm | Service factor fs (a-b): 3.5-1.9 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP90S6 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 489-1128 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP90S6 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 498-1128 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 18000 N
SF020+NMRV-P075 7,50 TP90S4 Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 58-148 Nm | Service factor fs (a-b): 3.7-2.7 | Radial load Fr2: 3115 N
SF020+NMRV-P075 10,00 TP90S4 Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 75-190 Nm | Service factor fs (a-b): 3.1-2.2 | Radial load Fr2: 3429 N
SF020+NMRV-P075 7,50 TP100LR6 Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 85-148 Nm | Service factor fs (a-b): 3.1-2.7 | Radial load Fr2: 3610 N
SF020+NMRV-P075 15,00 TP90S4 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 109-269 Nm | Service factor fs (a-b): 2.4-1.6 | Radial load Fr2: 3925 N
SF020+NMRV-P090 15,00 TP90S4 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 112-276 Nm | Service factor fs (a-b): 4.1-2.4 | Radial load Fr2: 4343 N
SF020+NMRV-P075 10,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 110-190 Nm | Service factor fs (a-b): 2.4-2.2 | Radial load Fr2: 3973 N
SF020+NMRV-P090 10,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 113-194 Nm | Service factor fs (a-b): 4.2-3.0 | Radial load Fr2: 4396 N
SF020+NMRV-P075 20,00 TP90S4 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 140-338 Nm | Service factor fs (a-b): 1.9-1.2 | Radial load Fr2: 4320 N
SF020+NMRV-P090 20,00 TP90S4 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 144-354 Nm | Service factor fs (a-b): 3.0-1.7 | Radial load Fr2: 4780 N
SF020+NMRV-P110 20,00 TP90S4 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 147-363 Nm | Service factor fs (a-b): 4.9-3.1 | Radial load Fr2: 6040 N
SF020+NMRV-P075 15,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 159-269 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 4548 N
SF020+NMRV-P090 15,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 163-276 Nm | Service factor fs (a-b): 3.3-2.4 | Radial load Fr2: 5032 N
SF020+NMRV-P075 25,00 TP90S4 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 171-404 Nm | Service factor fs (a-b): 1.4-0.9 | Radial load Fr2: 4654 N
SF020+NMRV-P090 25,00 TP90S4 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 175-424 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 5149 N
SF020+NMRV-P110 25,00 TP90S4 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 179-442 Nm | Service factor fs (a-b): 4.2-2.7 | Radial load Fr2: 6506 N
SF020+NMRV-P075 30,00 TP90S4 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 194-449 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 4945 N
SF020+NMRV-P090 30,00 TP90S4 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 200-470 Nm | Service factor fs (a-b): 2.4-1.5 | Radial load Fr2: 5472 N
SF020+NMRV-P110 30,00 TP90S4 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 202-468 Nm | Service factor fs (a-b): 4.2-2.7 | Radial load Fr2: 6914 N
SF020+NMRV-P075 20,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 205-338 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 5005 N
SF020+NMRV-P090 20,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 210-354 Nm | Service factor fs (a-b): 2.5-1.7 | Radial load Fr2: 5538 N
SF020+NMRV-P110 20,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 215-363 Nm | Service factor fs (a-b): 4.0-3.1 | Radial load Fr2: 6998 N
SF020+NMRV-P075 25,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 246-404 Nm | Service factor fs (a-b): 1.2-0.9 | Radial load Fr2: 5392 N
SF020+NMRV-P090 25,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 253-424 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 5966 N
SF020+NMRV-P110 25,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 262-442 Nm | Service factor fs (a-b): 3.5-2.7 | Radial load Fr2: 7539 N
SF020+NMRV130 25,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 262-438 Nm | Service factor fs (a-b): 4.6-3.5 | Radial load Fr2: 9860 N
SF020+NMRV-P075 40,00 TP90S4 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 242-550 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 5443 N
SF020+NMRV-P090 40,00 TP90S4 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 252-579 Nm | Service factor fs (a-b): 1.8-1.1 | Radial load Fr2: 6022 N
SF020+NMRV-P110 40,00 TP90S4 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 263-605 Nm | Service factor fs (a-b): 3.0-2.0 | Radial load Fr2: 7610 N
SF020+NMRV130 40,00 TP90S4 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 266-605 Nm | Service factor fs (a-b): 4.1-2.7 | Radial load Fr2: 9953 N
SF020+NMRV-P075 30,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 275-449 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 5730 N
SF020+NMRV-P090 30,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 287-470 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 6340 N
SF020+NMRV-P110 30,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 291-468 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 8011 N
SF020+NMRV130 30,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 295-475 Nm | Service factor fs (a-b): 4.7-3.7 | Radial load Fr2: 10478 N
SF020+NMRV-P090 50,00 TP90S4 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 302-672 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 6487 N
SF020+NMRV-P110 50,00 TP90S4 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 315-724 Nm | Service factor fs (a-b): 2.4-1.5 | Radial load Fr2: 8198 N
SF020+NMRV130 50,00 TP90S4 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 319-720 Nm | Service factor fs (a-b): 3.3-2.2 | Radial load Fr2: 10722 N
SF020+NMRV150 50,00 TP90S4 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 324-720 Nm | Service factor fs (a-b): 4.9-3.2 | Radial load Fr2: 14658 N
SF020+NMRV-P110 60,00 TP90S4 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 362-806 Nm | Service factor fs (a-b): 1.9-1.2 | Radial load Fr2: 8711 N
SF020+NMRV130 60,00 TP90S4 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 368-806 Nm | Service factor fs (a-b): 2.6-1.7 | Radial load Fr2: 11394 N
SF020+NMRV150 60,00 TP90S4 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 373-821 Nm | Service factor fs (a-b): 3.9-2.5 | Radial load Fr2: 15576 N
SF020+NMRV-P075 40,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 340-550 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 6307 N
SF020+NMRV-P090 40,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 356-579 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 6978 N
SF020+NMRV-P110 40,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 377-605 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 8817 N
SF020+NMRV130 40,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 377-605 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 11533 N
SF020+NMRV-P090 50,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 425-672 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 7517 N
SF020+NMRV-P110 50,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 445-724 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 9498 N
SF020+NMRV-P110 80,00 TP90S4 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 448-986 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 9588 N
SF020+NMRV130 50,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 452-720 Nm | Service factor fs (a-b): 2.7-2.2 | Radial load Fr2: 12423 N
SF020+NMRV130 80,00 TP90S4 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 455-979 Nm | Service factor fs (a-b): 1.9-1.2 | Radial load Fr2: 12540 N
SF020+NMRV150 50,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 459-720 Nm | Service factor fs (a-b): 4.1-3.2 | Radial load Fr2: 16984 N
SF020+NMRV150 80,00 TP90S4 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 462-979 Nm | Service factor fs (a-b): 2.8-1.9 | Radial load Fr2: 17144 N
SF020+NMRV-P110 60,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 510-806 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 10093 N
SF020+NMRV130 60,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 510-806 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 13202 N
SF020+NMRV150 60,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 518-821 Nm | Service factor fs (a-b): 3.2-2.5 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP90S4 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 525-1128 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP90S4 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 534-1128 Nm | Service factor fs (a-b): 2.2-1.5 | Radial load Fr2: 18000 N
SF020+NMRV-P110 80,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 617-986 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 10320 N
SF020+NMRV130 80,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 627-979 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 13500 N
SF020+NMRV150 80,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 638-979 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 718-1128 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP100LR6 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 731-1128 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 18000 N
SF020+NMRV-P075 7,50 TP90S2 Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-51.0 rpm | Output torque M2 (a-b): 41-149 Nm | Service factor fs (a-b): 4.3-2.4 | Radial load Fr2: 2473 N
SF020+NMRV-P075 10,00 TP90S2 Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 54-192 Nm | Service factor fs (a-b): 3.5-2.1 | Radial load Fr2: 2721 N
SF020+NMRV-P075 7,50 TP90L4 Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 79-148 Nm | Service factor fs (a-b): 2.7-2.7 | Radial load Fr2: 3115 N
SF020+NMRV-P075 15,00 TP90S2 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 79-274 Nm | Service factor fs (a-b): 2.7-1.6 | Radial load Fr2: 3115 N
SF020+NMRV-P090 7,50 TP90L4 Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 80-150 Nm | Service factor fs (a-b): 4.7-3.7 | Radial load Fr2: 3447 N
SF020+NMRV-P090 15,00 TP90S2 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 80-281 Nm | Service factor fs (a-b): 4.7-2.4 | Radial load Fr2: 3447 N
SF020+NMRV-P075 20,00 TP90S2 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 101-346 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 3429 N
SF020+NMRV-P090 10,00 TP90L4 Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 104-194 Nm | Service factor fs (a-b): 3.9-3.0 | Radial load Fr2: 3794 N
SF020+NMRV-P090 20,00 TP90S2 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 104-360 Nm | Service factor fs (a-b): 3.6-1.7 | Radial load Fr2: 3794 N
SF020+NMRV-P090 7,50 TP100L6 Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 117-150 Nm | Service factor fs (a-b): 3.9-3.7 | Radial load Fr2: 3994 N
SF030+NMRV-P090 7,50 TP100L6 Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 117-300 Nm | Service factor fs (a-b): 3.9-1.9 | Radial load Fr2: 3994 N
SF020+NMRV-P075 25,00 TP90S2 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 124-414 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 3694 N
SF020+NMRV-P090 25,00 TP90S2 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 127-432 Nm | Service factor fs (a-b): 2.8-1.3 | Radial load Fr2: 4087 N
SF020+NMRV-P110 25,00 TP90S2 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 130-450 Nm | Service factor fs (a-b): 5.0-2.6 | Radial load Fr2: 5164 N
SF020+NMRV-P075 15,00 TP90L4 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 149-269 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 3925 N
SF020+NMRV-P075 30,00 TP90S2 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 142-461 Nm | Service factor fs (a-b): 1.6-1.0 | Radial load Fr2: 3925 N
SF020+NMRV-P090 15,00 TP90L4 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 152-276 Nm | Service factor fs (a-b): 3.0-2.4 | Radial load Fr2: 4343 N
SF020+NMRV-P090 30,00 TP90S2 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 145-482 Nm | Service factor fs (a-b): 2.8-1.5 | Radial load Fr2: 4343 N
SF020+NMRV-P110 15,00 TP90L4 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 154-280 Nm | Service factor fs (a-b): 4.9-4.3 | Radial load Fr2: 5488 N
SF020+NMRV-P110 30,00 TP90S2 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 147-482 Nm | Service factor fs (a-b): 4.7-2.6 | Radial load Fr2: 5488 N
SF020+NMRV-P090 10,00 TP100L6 Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 154-194 Nm | Service factor fs (a-b): 3.1-3.0 | Radial load Fr2: 4396 N
SF030+NMRV-P090 10,00 TP100L6 Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 154-389 Nm | Service factor fs (a-b): 3.1-1.5 | Radial load Fr2: 4396 N
SF020+NMRV-P075 20,00 TP90L4 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 191-338 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 4320 N
SF020+NMRV-P075 40,00 TP90S2 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 180-566 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 4320 N
SF020+NMRV-P090 20,00 TP90L4 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 196-354 Nm | Service factor fs (a-b): 2.2-1.7 | Radial load Fr2: 4780 N
SF020+NMRV-P090 40,00 TP90S2 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 186-595 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 4780 N
SF020+NMRV-P110 20,00 TP90L4 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 200-363 Nm | Service factor fs (a-b): 3.6-3.1 | Radial load Fr2: 6040 N
SF020+NMRV-P110 40,00 TP90S2 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 194-624 Nm | Service factor fs (a-b): 3.4-1.9 | Radial load Fr2: 6040 N
SF020+NMRV-P090 15,00 TP100L6 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 223-276 Nm | Service factor fs (a-b): 2.4-2.4 | Radial load Fr2: 5032 N
SF030+NMRV-P090 15,00 TP100L6 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 223-552 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 5032 N
SF030+NMRV-P110 15,00 TP100L6 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 226-559 Nm | Service factor fs (a-b): 4.0-2.1 | Radial load Fr2: 6358 N
SF020+NMRV-P075 25,00 TP90L4 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 233-404 Nm | Service factor fs (a-b): 1.0-0.9 | Radial load Fr2: 4654 N
SF020+NMRV-P090 25,00 TP90L4 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 239-424 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 5149 N
SF020+NMRV-P090 50,00 TP90S2 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 224-696 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 5149 N
SF020+NMRV-P110 25,00 TP90L4 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 245-442 Nm | Service factor fs (a-b): 3.1-2.7 | Radial load Fr2: 6506 N
SF020+NMRV-P110 50,00 TP90S2 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 233-744 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 6506 N
SF020+NMRV130 25,00 TP90L4 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 248-438 Nm | Service factor fs (a-b): 4.2-3.5 | Radial load Fr2: 8510 N
SF020+NMRV130 50,00 TP90S2 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 231-744 Nm | Service factor fs (a-b): 4.0-2.1 | Radial load Fr2: 8510 N
SF020+NMRV-P075 30,00 TP90L4 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 265-449 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 4945 N
SF020+NMRV-P090 30,00 TP90L4 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 272-470 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 5472 N
SF020+NMRV-P110 30,00 TP90L4 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 276-468 Nm | Service factor fs (a-b): 3.0-2.7 | Radial load Fr2: 6914 N
SF020+NMRV-P110 60,00 TP90S2 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 272-835 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 6914 N
SF020+NMRV130 30,00 TP90L4 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 283-475 Nm | Service factor fs (a-b): 4.1-3.7 | Radial load Fr2: 9043 N
SF020+NMRV130 60,00 TP90S2 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 266-835 Nm | Service factor fs (a-b): 3.2-1.7 | Radial load Fr2: 9043 N
SF020+NMRV150 60,00 TP90S2 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 269-850 Nm | Service factor fs (a-b): 4.4-2.4 | Radial load Fr2: 12363 N
SF020+NMRV-P090 20,00 TP100L6 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 286-354 Nm | Service factor fs (a-b): 1.8-1.7 | Radial load Fr2: 5538 N
SF030+NMRV-P090 20,00 TP100L6 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 286-707 Nm | Service factor fs (a-b): 1.8-0.9 | Radial load Fr2: 5538 N
SF030+NMRV-P110 20,00 TP100L6 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 294-726 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 6998 N
SF030+NMRV130 20,00 TP100L6 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 297-720 Nm | Service factor fs (a-b): 4.1-2.2 | Radial load Fr2: 9154 N
SF020+NMRV-P090 25,00 TP100L6 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 344-424 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 5966 N
SF030+NMRV-P110 25,00 TP100L6 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 358-884 Nm | Service factor fs (a-b): 2.5-1.3 | Radial load Fr2: 7539 N
SF030+NMRV130 25,00 TP100L6 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 358-876 Nm | Service factor fs (a-b): 3.4-1.7 | Radial load Fr2: 9860 N
SF030+NMRV150 25,00 TP100L6 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 362-876 Nm | Service factor fs (a-b): 4.5-2.3 | Radial load Fr2: 13480 N
SF020+NMRV-P075 40,00 TP90L4 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 329-550 Nm | Service factor fs (a-b): 0.8-0.8 | Radial load Fr2: 5443 N
SF020+NMRV-P090 40,00 TP90L4 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 344-579 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 6022 N
SF020+NMRV-P110 40,00 TP90L4 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 358-605 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 7610 N
SF020+NMRV-P110 80,00 TP90S2 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 336-1018 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 7610 N
SF020+NMRV130 40,00 TP90L4 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 363-605 Nm | Service factor fs (a-b): 3.0-2.7 | Radial load Fr2: 9953 N
SF020+NMRV130 80,00 TP90S2 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 335-1018 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 9953 N
SF020+NMRV150 80,00 TP90S2 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 335-1018 Nm | Service factor fs (a-b): 3.3-1.8 | Radial load Fr2: 13607 N
SF030+NMRV-P090 30,00 TP100L6 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 391-941 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 6340 N
SF030+NMRV-P110 30,00 TP100L6 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 397-936 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 8011 N
SF030+NMRV130 30,00 TP100L6 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 402-950 Nm | Service factor fs (a-b): 3.5-1.9 | Radial load Fr2: 10478 N
SF030+NMRV150 30,00 TP100L6 Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 424-1022 Nm | Service factor fs (a-b): 3.9-2.1 | Radial load Fr2: 14325 N
SF020+NMRV-P090 50,00 TP90L4 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 412-672 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 6487 N
SF020+NMRV-P110 50,00 TP90L4 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 430-724 Nm | Service factor fs (a-b): 1.7-1.5 | Radial load Fr2: 8198 N
SF020+NMRV130 50,00 TP90L4 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 436-720 Nm | Service factor fs (a-b): 2.4-2.2 | Radial load Fr2: 10722 N
SF020+NMRV130 100,00 TP90S2 Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 394-1152 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 10722 N
SF020+NMRV150 50,00 TP90L4 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 442-720 Nm | Service factor fs (a-b): 3.6-3.2 | Radial load Fr2: 14658 N
SF020+NMRV150 100,00 TP90S2 Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 394-1152 Nm | Service factor fs (a-b): 2.4-1.4 | Radial load Fr2: 14658 N
SF020+NMRV-P110 60,00 TP90L4 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 494-806 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 8711 N
SF020+NMRV130 60,00 TP90L4 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 501-806 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 11394 N
SF020+NMRV150 60,00 TP90L4 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 508-821 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 15576 N
SF020+NMRV-P090 40,00 TP100L6 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 486-579 Nm | Service factor fs (a-b): 1.1-1.1 | Radial load Fr2: 6978 N
SF030+NMRV-P110 40,00 TP100L6 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 515-1210 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 8817 N
SF030+NMRV130 40,00 TP100L6 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 515-1210 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 11533 N
SF030+NMRV150 40,00 TP100L6 Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 594-1229 Nm | Service factor fs (a-b): 3.6-2.2 | Radial load Fr2: 15766 N
SF020+NMRV-P090 50,00 TP100L6 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 580-672 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 7517 N
SF020+NMRV-P110 80,00 TP90L4 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 611-986 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 9588 N
SF020+NMRV130 80,00 TP90L4 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 621-979 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 12540 N
SF020+NMRV150 80,00 TP90L4 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 630-979 Nm | Service factor fs (a-b): 2.1-1.9 | Radial load Fr2: 17144 N
SF030+NMRV-P110 50,00 TP100L6 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 607-1448 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 9498 N
SF030+NMRV130 50,00 TP100L6 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 616-1440 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 12423 N
SF030+NMRV150 50,00 TP100L6 Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 625-1440 Nm | Service factor fs (a-b): 3.0-1.6 | Radial load Fr2: 16984 N
SF030+NMRV130 60,00 TP100L6 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 696-1613 Nm | Service factor fs (a-b): 1.5-0.9 | Radial load Fr2: 13202 N
SF030+NMRV150 60,00 TP100L6 Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 707-1642 Nm | Service factor fs (a-b): 2.4-1.3 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP90L4 Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 716-1128 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP90L4 Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 728-1128 Nm | Service factor fs (a-b): 1.6-1.5 | Radial load Fr2: 18000 N
SF030+NMRV150 80,00 TP100L6 Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 870-1958 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP100L6 Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 997-2256 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 18000 N
SF020+NMRV-P075 7,50 TP90L2 Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-51.0 rpm | Output torque M2 (a-b): 60-149 Nm | Service factor fs (a-b): 2.9-2.4 | Radial load Fr2: 2473 N
SF020+NMRV-P075 10,00 TP90L2 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 79-192 Nm | Service factor fs (a-b): 2.4-2.1 | Radial load Fr2: 2721 N
SF020+NMRV-P090 10,00 TP90L2 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 79-197 Nm | Service factor fs (a-b): 4.1-3.0 | Radial load Fr2: 3011 N
SF020+NMRV-P075 15,00 TP90L2 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 115-274 Nm | Service factor fs (a-b): 1.9-1.6 | Radial load Fr2: 3115 N
SF020+NMRV-P090 15,00 TP90L2 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 117-281 Nm | Service factor fs (a-b): 3.2-2.4 | Radial load Fr2: 3447 N
SF030+NMRV-P090 7,50 TP100LA4 Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 117-300 Nm | Service factor fs (a-b): 3.2-1.9 | Radial load Fr2: 3447 N
SF020+NMRV-P075 20,00 TP90L2 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 149-346 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 3429 N
SF020+NMRV-P090 20,00 TP90L2 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 152-360 Nm | Service factor fs (a-b): 2.4-1.7 | Radial load Fr2: 3794 N
SF020+NMRV-P110 20,00 TP90L2 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 154-370 Nm | Service factor fs (a-b): 4.0-3.1 | Radial load Fr2: 4794 N
SF030+NMRV-P090 10,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 152-389 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 3794 N
SF030+NMRV-P110 10,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 154-389 Nm | Service factor fs (a-b): 4.6-2.9 | Radial load Fr2: 4794 N
SF030+NMRV-P090 7,50 TP112M6 Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 171-300 Nm | Service factor fs (a-b): 2.6-1.9 | Radial load Fr2: 3994 N
SF030+NMRV-P110 7,50 TP112M6 Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 173-299 Nm | Service factor fs (a-b): 4.6-3.6 | Radial load Fr2: 5047 N
SF050+NMRV-P110 7,50 TP112M6 Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 173-398 Nm | Service factor fs (a-b): 4.6-2.7 | Radial load Fr2: 5047 N
SF020+NMRV-P075 25,00 TP90L2 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 182-414 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 3694 N
SF020+NMRV-P090 25,00 TP90L2 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 186-432 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 4087 N
SF020+NMRV-P110 25,00 TP90L2 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 190-450 Nm | Service factor fs (a-b): 3.4-2.6 | Radial load Fr2: 5164 N
SF020+NMRV130 25,00 TP90L2 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 189-450 Nm | Service factor fs (a-b): 4.7-3.4 | Radial load Fr2: 6754 N
SF020+NMRV-P075 30,00 TP90L2 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 208-461 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 3925 N
SF020+NMRV-P090 30,00 TP90L2 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 213-482 Nm | Service factor fs (a-b): 1.9-1.5 | Radial load Fr2: 4343 N
SF020+NMRV-P110 30,00 TP90L2 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 216-482 Nm | Service factor fs (a-b): 3.2-2.6 | Radial load Fr2: 5488 N
SF020+NMRV130 30,00 TP90L2 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 216-490 Nm | Service factor fs (a-b): 4.6-3.6 | Radial load Fr2: 7178 N
SF030+NMRV-P090 15,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 223-552 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 4343 N
SF030+NMRV-P110 15,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 226-559 Nm | Service factor fs (a-b): 3.4-2.1 | Radial load Fr2: 5488 N
SF030+NMRV130 15,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 223-547 Nm | Service factor fs (a-b): 4.7-3.1 | Radial load Fr2: 7178 N
SF030+NMRV-P090 10,00 TP112M6 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 226-389 Nm | Service factor fs (a-b): 2.1-1.5 | Radial load Fr2: 4396 N
SF030+NMRV-P110 10,00 TP112M6 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 226-389 Nm | Service factor fs (a-b): 3.8-2.9 | Radial load Fr2: 5555 N
SF050+NMRV-P110 10,00 TP112M6 Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 226-518 Nm | Service factor fs (a-b): 3.8-2.2 | Radial load Fr2: 5555 N
SF020+NMRV-P075 40,00 TP90L2 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 264-566 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 4320 N
SF020+NMRV-P090 40,00 TP90L2 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 274-595 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 4780 N
SF020+NMRV-P110 40,00 TP90L2 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 284-624 Nm | Service factor fs (a-b): 2.3-1.9 | Radial load Fr2: 6040 N
SF020+NMRV130 40,00 TP90L2 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 281-624 Nm | Service factor fs (a-b): 3.5-2.6 | Radial load Fr2: 7900 N
SF030+NMRV-P090 20,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 287-707 Nm | Service factor fs (a-b): 1.5-0.9 | Radial load Fr2: 4780 N
SF030+NMRV-P110 20,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 294-726 Nm | Service factor fs (a-b): 2.5-1.6 | Radial load Fr2: 6040 N
SF030+NMRV130 20,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 298-720 Nm | Service factor fs (a-b): 3.5-2.2 | Radial load Fr2: 7900 N
SF030+NMRV-P090 15,00 TP112M6 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 327-552 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 5032 N
SF030+NMRV-P110 15,00 TP112M6 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-559 Nm | Service factor fs (a-b): 2.7-2.1 | Radial load Fr2: 6358 N
SF030+NMRV130 15,00 TP112M6 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-547 Nm | Service factor fs (a-b): 3.9-3.1 | Radial load Fr2: 8317 N
SF050+NMRV-P110 15,00 TP112M6 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-746 Nm | Service factor fs (a-b): 2.7-1.6 | Radial load Fr2: 6358 N
SF050+NMRV130 15,00 TP112M6 Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-730 Nm | Service factor fs (a-b): 3.9-2.3 | Radial load Fr2: 8317 N
SF020+NMRV-P090 50,00 TP90L2 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 329-696 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 5149 N
SF020+NMRV-P110 50,00 TP90L2 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 342-744 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 6506 N
SF020+NMRV130 50,00 TP90L2 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 338-744 Nm | Service factor fs (a-b): 2.8-2.1 | Radial load Fr2: 8510 N
SF020+NMRV150 50,00 TP90L2 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 343-744 Nm | Service factor fs (a-b): 3.9-3.1 | Radial load Fr2: 11634 N
SF030+NMRV-P110 25,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 359-884 Nm | Service factor fs (a-b): 2.1-1.3 | Radial load Fr2: 6506 N
SF030+NMRV130 25,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 363-876 Nm | Service factor fs (a-b): 2.9-1.7 | Radial load Fr2: 8510 N
SF030+NMRV150 25,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 368-876 Nm | Service factor fs (a-b): 3.8-2.3 | Radial load Fr2: 11634 N
SF020+NMRV-P110 60,00 TP90L2 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 400-835 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 6914 N
SF020+NMRV130 60,00 TP90L2 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 390-835 Nm | Service factor fs (a-b): 2.2-1.7 | Radial load Fr2: 9043 N
SF020+NMRV150 60,00 TP90L2 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 395-850 Nm | Service factor fs (a-b): 3.0-2.4 | Radial load Fr2: 12363 N
SF030+NMRV-P090 30,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 399-941 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 5472 N
SF030+NMRV-P110 30,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 404-936 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 6914 N
SF030+NMRV130 30,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 415-950 Nm | Service factor fs (a-b): 2.8-1.9 | Radial load Fr2: 9043 N
SF030+NMRV150 30,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 431-1022 Nm | Service factor fs (a-b): 3.3-2.1 | Radial load Fr2: 12363 N
SF030+NMRV-P090 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 420-707 Nm | Service factor fs (a-b): 1.2-0.9 | Radial load Fr2: 5538 N
SF030+NMRV-P110 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 431-726 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 6998 N
SF030+NMRV130 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-720 Nm | Service factor fs (a-b): 2.8-2.2 | Radial load Fr2: 9154 N
SF030+NMRV150 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-720 Nm | Service factor fs (a-b): 4.2-3.2 | Radial load Fr2: 12514 N
SF050+NMRV-P110 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 431-969 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 6998 N
SF050+NMRV130 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-960 Nm | Service factor fs (a-b): 2.8-1.7 | Radial load Fr2: 9154 N
SF050+NMRV150 20,00 TP112M6 Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-960 Nm | Service factor fs (a-b): 4.2-2.4 | Radial load Fr2: 12514 N
SF030+NMRV-P110 25,00 TP112M6 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-884 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 7539 N
SF030+NMRV130 25,00 TP112M6 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-876 Nm | Service factor fs (a-b): 2.3-1.7 | Radial load Fr2: 9860 N
SF030+NMRV150 25,00 TP112M6 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 532-876 Nm | Service factor fs (a-b): 3.1-2.3 | Radial load Fr2: 13480 N
SF050+NMRV-P110 25,00 TP112M6 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-1179 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 7539 N
SF050+NMRV130 25,00 TP112M6 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-1168 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 9860 N
SF050+NMRV150 25,00 TP112M6 Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 532-1168 Nm | Service factor fs (a-b): 3.1-1.8 | Radial load Fr2: 13480 N
SF020+NMRV-P110 80,00 TP90L2 Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 493-1018 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 7610 N
SF020+NMRV130 80,00 TP90L2 Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 491-1018 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 9953 N
SF020+NMRV150 80,00 TP90L2 Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 491-1018 Nm | Service factor fs (a-b): 2.2-1.8 | Radial load Fr2: 13607 N
SF030+NMRV-P110 40,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 525-1210 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 7610 N
SF030+NMRV130 40,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 532-1210 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 9953 N
SF030+NMRV150 40,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 532-1229 Nm | Service factor fs (a-b): 3.4-2.2 | Radial load Fr2: 13607 N
SF030+NMRV-P090 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 574-941 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 6340 N
SF030+NMRV-P110 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 582-936 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 8011 N
SF030+NMRV130 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 590-950 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 10478 N
SF030+NMRV150 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 622-1022 Nm | Service factor fs (a-b): 2.7-2.1 | Radial load Fr2: 14325 N
SF050+NMRV-P110 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 582-1248 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 8011 N
SF050+NMRV130 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 590-1267 Nm | Service factor fs (a-b): 2.4-1.4 | Radial load Fr2: 10478 N
SF050+NMRV150 30,00 TP112M6 Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 622-1363 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 14325 N
SF020+NMRV130 100,00 TP90L2 Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 578-1152 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 10722 N
SF020+NMRV150 100,00 TP90L2 Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 578-1152 Nm | Service factor fs (a-b): 1.6-1.4 | Radial load Fr2: 14658 N
SF030+NMRV-P110 50,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 630-1448 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 8198 N
SF030+NMRV130 50,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 639-1440 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 10722 N
SF030+NMRV150 50,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 648-1440 Nm | Service factor fs (a-b): 2.5-1.6 | Radial load Fr2: 14658 N
SF030+NMRV130 60,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 735-1613 Nm | Service factor fs (a-b): 1.3-0.9 | Radial load Fr2: 11394 N
SF030+NMRV150 60,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 746-1642 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 15576 N
SF030+NMRV-P110 40,00 TP112M6 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1210 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 8817 N
SF030+NMRV130 40,00 TP112M6 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1210 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 11533 N
SF030+NMRV150 40,00 TP112M6 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 872-1229 Nm | Service factor fs (a-b): 2.4-2.2 | Radial load Fr2: 15766 N
SF050+NMRV-P110 40,00 TP112M6 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1613 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 8817 N
SF050+NMRV130 40,00 TP112M6 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1613 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 11533 N
SF050+NMRV150 40,00 TP112M6 Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 872-1638 Nm | Service factor fs (a-b): 2.4-1.6 | Radial load Fr2: 15766 N
SF030+NMRV-P110 50,00 TP112M6 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 890-1448 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 9498 N
SF030+NMRV130 50,00 TP112M6 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 904-1440 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 12423 N
SF030+NMRV150 50,00 TP112M6 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 917-1440 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 16984 N
SF030+NMRV150 80,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 924-1958 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 17144 N
SF050+NMRV130 50,00 TP112M6 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 904-1920 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 12423 N
SF050+NMRV150 50,00 TP112M6 Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 917-1920 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 16984 N
SF030+NMRV130 60,00 TP112M6 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1021-1613 Nm | Service factor fs (a-b): 1.0-0.9 | Radial load Fr2: 13202 N
SF030+NMRV150 60,00 TP112M6 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1037-1642 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 18000 N
SF050+NMRV150 60,00 TP112M6 Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1037-2189 Nm | Service factor fs (a-b): 1.6-1.0 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP100LA4 Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 1068-2256 Nm | Service factor fs (a-b): 1.1-0.7 | Radial load Fr2: 18000 N
SF030+NMRV150 80,00 TP112M6 Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 1276-1958 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 18000 N
SF050+NMRV150 80,00 TP112M6 Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 1276-2611 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP112M6 Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 1462-2256 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 18000 N
SF030+NMRV-P090 7,50 TP100L2 Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-51.0 rpm | Output torque M2 (a-b): 82-302 Nm | Service factor fs (a-b): 3.7-1.9 | Radial load Fr2: 2736 N
SF030+NMRV-P090 10,00 TP100L2 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 108-394 Nm | Service factor fs (a-b): 3.0-1.5 | Radial load Fr2: 3011 N
SF020+NMRV-P090 15,00 TP100L2 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-281 Nm | Service factor fs (a-b): 2.4-2.4 | Radial load Fr2: 3447 N
SF030+NMRV-P090 7,50 TP112MS4 Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-300 Nm | Service factor fs (a-b): 2.3-1.9 | Radial load Fr2: 3447 N
SF030+NMRV-P090 15,00 TP100L2 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-562 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 3447 N
SF030+NMRV-P110 7,50 TP112MS4 Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-299 Nm | Service factor fs (a-b): 4.1-3.6 | Radial load Fr2: 4356 N
SF030+NMRV-P110 15,00 TP100L2 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-569 Nm | Service factor fs (a-b): 3.9-2.1 | Radial load Fr2: 4356 N
SF020+NMRV-P090 20,00 TP100L2 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 208-360 Nm | Service factor fs (a-b): 1.8-1.7 | Radial load Fr2: 3794 N
SF030+NMRV-P090 10,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 208-389 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 3794 N
SF030+NMRV-P090 20,00 TP100L2 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 208-720 Nm | Service factor fs (a-b): 1.8-0.8 | Radial load Fr2: 3794 N
SF030+NMRV-P110 10,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 210-389 Nm | Service factor fs (a-b): 3.4-2.9 | Radial load Fr2: 4794 N
SF030+NMRV-P110 20,00 TP100L2 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 210-739 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 4794 N
SF030+NMRV130 10,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 210-389 Nm | Service factor fs (a-b): 4.6-3.9 | Radial load Fr2: 6270 N
SF030+NMRV130 20,00 TP100L2 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 211-739 Nm | Service factor fs (a-b): 4.1-2.2 | Radial load Fr2: 6270 N
SF030+NMRV-P090 7,50 TP132S6 Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 234-300 Nm | Service factor fs (a-b): 1.9-1.9 | Radial load Fr2: 3994 N
SF050+NMRV-P110 7,50 TP132S6 Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 237-398 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 5047 N
SF050+NMRV130 7,50 TP132S6 Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 239-394 Nm | Service factor fs (a-b): 4.5-3.7 | Radial load Fr2: 6601 N
SF020+NMRV-P090 25,00 TP100L2 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 254-432 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 4087 N
SF020+NMRV130 25,00 TP100L2 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 258-450 Nm | Service factor fs (a-b): 3.4-3.4 | Radial load Fr2: 6754 N
SF030+NMRV-P110 25,00 TP100L2 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 260-900 Nm | Service factor fs (a-b): 2.5-1.3 | Radial load Fr2: 5164 N
SF030+NMRV130 25,00 TP100L2 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 258-900 Nm | Service factor fs (a-b): 3.4-1.7 | Radial load Fr2: 6754 N
SF030+NMRV150 25,00 TP100L2 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 258-900 Nm | Service factor fs (a-b): 4.4-2.3 | Radial load Fr2: 9234 N
SF030+NMRV-P090 15,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 304-552 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 4343 N
SF030+NMRV-P090 30,00 TP100L2 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 291-965 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 4343 N
SF030+NMRV-P110 15,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 308-559 Nm | Service factor fs (a-b): 2.5-2.1 | Radial load Fr2: 5488 N
SF030+NMRV-P110 30,00 TP100L2 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 294-965 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 5488 N
SF030+NMRV130 15,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 304-547 Nm | Service factor fs (a-b): 3.5-3.1 | Radial load Fr2: 7178 N
SF030+NMRV130 30,00 TP100L2 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 295-979 Nm | Service factor fs (a-b): 3.4-1.8 | Radial load Fr2: 7178 N
SF030+NMRV150 30,00 TP100L2 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 306-1051 Nm | Service factor fs (a-b): 3.7-2.0 | Radial load Fr2: 9812 N
SF030+NMRV-P090 10,00 TP132S6 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 308-389 Nm | Service factor fs (a-b): 1.6-1.5 | Radial load Fr2: 4396 N
SF050+NMRV-P110 10,00 TP132S6 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 308-518 Nm | Service factor fs (a-b): 2.8-2.2 | Radial load Fr2: 5555 N
SF050+NMRV130 10,00 TP132S6 Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 312-518 Nm | Service factor fs (a-b): 3.7-3.0 | Radial load Fr2: 7265 N
SF030+NMRV-P090 20,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 391-707 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 4780 N
SF030+NMRV-P110 20,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 401-726 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 6040 N
SF030+NMRV-P110 40,00 TP100L2 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 388-1248 Nm | Service factor fs (a-b): 1.7-0.9 | Radial load Fr2: 6040 N
SF030+NMRV130 20,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 406-720 Nm | Service factor fs (a-b): 2.6-2.2 | Radial load Fr2: 7900 N
SF030+NMRV130 40,00 TP100L2 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 383-1248 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 7900 N
SF030+NMRV150 20,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 406-720 Nm | Service factor fs (a-b): 3.7-3.2 | Radial load Fr2: 10800 N
SF030+NMRV150 40,00 TP100L2 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 383-1267 Nm | Service factor fs (a-b): 3.8-2.1 | Radial load Fr2: 10800 N
SF030+NMRV-P090 15,00 TP132S6 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 446-552 Nm | Service factor fs (a-b): 1.2-1.2 | Radial load Fr2: 5032 N
SF050+NMRV-P110 15,00 TP132S6 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 451-746 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 6358 N
SF050+NMRV130 15,00 TP132S6 Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 451-730 Nm | Service factor fs (a-b): 2.9-2.3 | Radial load Fr2: 8317 N
SF030+NMRV-P110 25,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 489-884 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 6506 N
SF030+NMRV-P110 50,00 TP100L2 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 466-1488 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 6506 N
SF030+NMRV130 25,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 495-876 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 8510 N
SF030+NMRV130 50,00 TP100L2 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 461-1488 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 8510 N
SF030+NMRV150 25,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 501-876 Nm | Service factor fs (a-b): 2.8-2.3 | Radial load Fr2: 11634 N
SF030+NMRV150 50,00 TP100L2 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 467-1488 Nm | Service factor fs (a-b): 2.8-1.6 | Radial load Fr2: 11634 N
SF030+NMRV-P090 30,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 544-941 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 5472 N
SF030+NMRV-P110 30,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 551-936 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 6914 N
SF030+NMRV130 30,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 566-950 Nm | Service factor fs (a-b): 2.1-1.9 | Radial load Fr2: 9043 N
SF030+NMRV130 60,00 TP100L2 Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 531-1670 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 9043 N
SF030+NMRV150 30,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 587-1022 Nm | Service factor fs (a-b): 2.4-2.1 | Radial load Fr2: 12363 N
SF030+NMRV150 60,00 TP100L2 Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 539-1699 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 12363 N
SF030+NMRV-P090 20,00 TP132S6 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 573-707 Nm | Service factor fs (a-b): 0.9-0.9 | Radial load Fr2: 5538 N
SF050+NMRV-P110 20,00 TP132S6 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 587-969 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 6998 N
SF050+NMRV130 20,00 TP132S6 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 594-960 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 9154 N
SF050+NMRV150 20,00 TP132S6 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 594-960 Nm | Service factor fs (a-b): 3.1-2.4 | Radial load Fr2: 12514 N
SF100+NMRV150 20,00 TP132S6 Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 594-2160 Nm | Service factor fs (a-b): 3.1-1.1 | Radial load Fr2: 12514 N
SF050+NMRV-P110 25,00 TP132S6 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 716-1179 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 7539 N
SF050+NMRV130 25,00 TP132S6 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 716-1168 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 9860 N
SF050+NMRV150 25,00 TP132S6 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 725-1168 Nm | Service factor fs (a-b): 2.2-1.8 | Radial load Fr2: 13480 N
SF100+NMRV150 25,00 TP132S6 Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 725-2628 Nm | Service factor fs (a-b): 2.2-0.8 | Radial load Fr2: 13480 N
SF030+NMRV-P110 40,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 716-1210 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 7610 N
SF030+NMRV130 40,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 726-1210 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 9953 N
SF030+NMRV150 40,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 726-1229 Nm | Service factor fs (a-b): 2.5-2.2 | Radial load Fr2: 13607 N
SF030+NMRV150 80,00 TP100L2 Power P1: 3.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 670-2035 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 13607 N
SF050+NMRV-P110 30,00 TP132S6 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 794-1248 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 8011 N
SF050+NMRV130 30,00 TP132S6 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 805-1267 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 10478 N
SF050+NMRV150 30,00 TP132S6 Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 848-1363 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 14325 N
SF030+NMRV-P110 50,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 859-1448 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 8198 N
SF030+NMRV130 50,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 871-1440 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 10722 N
SF030+NMRV150 50,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 883-1440 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 14658 N
SF030+NMRV150 100,00 TP100L2 Power P1: 3.00 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 789-2304 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 14658 N
SF030+NMRV130 60,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 1002-1613 Nm | Service factor fs (a-b): 0.9-0.9 | Radial load Fr2: 11394 N
SF030+NMRV150 60,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 1017-1642 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 15576 N
SF050+NMRV-P110 40,00 TP132S6 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1029-1613 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 8817 N
SF050+NMRV130 40,00 TP132S6 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1029-1613 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 11533 N
SF050+NMRV150 40,00 TP132S6 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1189-1638 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 15766 N
SF100+NMRV150 40,00 TP132S6 Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1189-3686 Nm | Service factor fs (a-b): 1.8-0.7 | Radial load Fr2: 15766 N
SF030+NMRV150 80,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1260-1958 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 17144 N
SF050+NMRV130 50,00 TP132S6 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1232-1920 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 12423 N
SF050+NMRV150 50,00 TP132S6 Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1250-1920 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 16984 N
SF050+NMRV150 60,00 TP132S6 Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1414-2189 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP112MS4 Power P1: 3.00 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 1456-2256 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 18000 N
SF050+NMRV150 80,00 TP132S6 Power P1: 3.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 1740-2611 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 18000 N
SF050+NMRV-P110 7,50 TP112M4 Power P1: 4.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 212-398 Nm | Service factor fs (a-b): 3.1-2.7 | Radial load Fr2: 4356 N
SF050+NMRV130 7,50 TP112M4 Power P1: 4.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 215-394 Nm | Service factor fs (a-b): 4.1-3.7 | Radial load Fr2: 5697 N
SF050+NMRV-P110 10,00 TP112M4 Power P1: 4.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 280-518 Nm | Service factor fs (a-b): 2.5-2.2 | Radial load Fr2: 4794 N
SF050+NMRV130 10,00 TP112M4 Power P1: 4.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 280-518 Nm | Service factor fs (a-b): 3.4-3.0 | Radial load Fr2: 6270 N
SF050+NMRV-P110 15,00 TP112M4 Power P1: 4.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 411-746 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 5488 N
SF050+NMRV130 15,00 TP112M4 Power P1: 4.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 406-730 Nm | Service factor fs (a-b): 2.6-2.3 | Radial load Fr2: 7178 N
SF050+NMRV-P110 20,00 TP112M4 Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 535-969 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 6040 N
SF050+NMRV130 20,00 TP112M4 Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 541-960 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 7900 N
SF050+NMRV150 20,00 TP112M4 Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 541-960 Nm | Service factor fs (a-b): 2.8-2.4 | Radial load Fr2: 10800 N
SF050+NMRV-P110 25,00 TP112M4 Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 652-1179 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 6506 N
SF050+NMRV130 25,00 TP112M4 Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 660-1168 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 8510 N
SF050+NMRV150 25,00 TP112M4 Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 668-1168 Nm | Service factor fs (a-b): 2.1-1.8 | Radial load Fr2: 11634 N
SF050+NMRV-P110 30,00 TP112M4 Power P1: 4.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 735-1248 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 6914 N
SF050+NMRV130 30,00 TP112M4 Power P1: 4.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 754-1267 Nm | Service factor fs (a-b): 1.6-1.4 | Radial load Fr2: 9043 N
SF050+NMRV150 30,00 TP112M4 Power P1: 4.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 783-1363 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 12363 N
SF100+NMRV150 20,00 TP132MA6 Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 793-2160 Nm | Service factor fs (a-b): 2.3-1.1 | Radial load Fr2: 12514 N
SF100+NMRV150 25,00 TP132MA6 Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 967-2628 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 13480 N
SF050+NMRV-P110 40,00 TP112M4 Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 955-1613 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 7610 N
SF050+NMRV130 40,00 TP112M4 Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 967-1613 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 9953 N
SF050+NMRV150 40,00 TP112M4 Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 967-1638 Nm | Service factor fs (a-b): 1.9-1.6 | Radial load Fr2: 13607 N
SF050+NMRV130 50,00 TP112M4 Power P1: 4.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 1162-1920 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 10722 N
SF050+NMRV150 50,00 TP112M4 Power P1: 4.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 1177-1920 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 14658 N
SF050+NMRV150 60,00 TP112M4 Power P1: 4.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 1356-2189 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 15576 N
SF100+NMRV150 40,00 TP132MA6 Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1585-3686 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 15766 N
SF050+NMRV150 80,00 TP112M4 Power P1: 4.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1680-2611 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 17144 N
SF100+NMRV150 20,00 TP132MS4 Power P1: 5.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 744-2160 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 10800 N
SF100+NMRV150 25,00 TP132MS4 Power P1: 5.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 919-2628 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 11634 N
SF100+NMRV150 20,00 TP132MB6 Power P1: 5.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 1090-2160 Nm | Service factor fs (a-b): 1.7-1.1 | Radial load Fr2: 12514 N
SF100+NMRV150 25,00 TP132MB6 Power P1: 5.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 1329-2628 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 13480 N
SF100+NMRV150 40,00 TP132MS4 Power P1: 5.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 1330-3686 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 13607 N
SF100+NMRV150 40,00 TP132MB6 Power P1: 5.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 2180-3686 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 15766 N
SF100+NMRV150 20,00 TP132M4 Power P1: 7.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 1014-2160 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 10800 N
SF100+NMRV150 25,00 TP132M4 Power P1: 7.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 1253-2628 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 11634 N
SF100+NMRV150 20,00 TP160M6 Power P1: 7.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 1486-2160 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 12514 N
SF100+NMRV150 25,00 TP160M6 Power P1: 7.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 1812-2628 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 13480 N
SF100+NMRV150 40,00 TP132M4 Power P1: 7.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 1814-3686 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 13607 N
S020 NMRV075 7,5 90L6 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90L6
S020 NMRV075 7,5 90S4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90S4
S020 NMRV075 10 90L6 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90L6
S020 NMRV075 10 90S4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90S4
S020 NMRV075 15 90L6 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90L6
S020 NMRV075 15 90S4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90S4
S020 NMRV075 20 90L6 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90L6
S020 NMRV075 20 90S4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90S4
S020 NMRV075 25 90L6 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 25 | Motor: 90L6
S020 NMRV075 30 90L6 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 30 | Motor: 90L6
S020 NMRV075 7,5 90L4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90L4
S020 NMRV075 7,5 90S2 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90S2
S020 NMRV075 10 90L4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90L4
S020 NMRV075 10 90S2 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90S2
S020 NMRV075 15 90L4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90L4
S020 NMRV075 15 90S2 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90S2
S020 NMRV075 20 90L4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90L4
S020 NMRV075 7,5 90LL4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90LL4
S020 NMRV075 10 90LL4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90LL4
S020 NMRV075 15 90LL4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90LL4
S020 NMRV075 20 90LL4 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90LL4
S020 NMRV075 7,5 90L2 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90L2
S020 NMRV075 10 90L2 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90L2
S020 NMRV075 15 90L2 Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90L2
S020 NMRV090 7,5 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90L6
S020 NMRV090 7,5 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90S4
S020 NMRV090 10 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90L6
S020 NMRV090 10 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90S4
S020 NMRV090 15 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90L6
S020 NMRV090 15 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90S4
S020 NMRV090 20 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90L6
S020 NMRV090 20 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90S4
S020 NMRV090 25 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90L6
S020 NMRV090 25 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90S4
S020 NMRV090 30 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90L6
S020 NMRV090 30 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90S4
S020 NMRV090 40 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90L6
S020 NMRV090 40 90S4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90S4
S020 NMRV090 50 90L6 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 50 | Motor: 90L6
S020 NMRV090 7,5 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90L4
S020 NMRV090 7,5 90S2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90S2
S020 NMRV090 10 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90L4
S020 NMRV090 10 90S2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90S2
S020 NMRV090 15 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90L4
S020 NMRV090 15 90S2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90S2
S020 NMRV090 20 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90L4
S020 NMRV090 20 90S2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90S2
S020 NMRV090 25 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90L4
S020 NMRV090 25 90S2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90S2
S020 NMRV090 30 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90L4
S020 NMRV090 30 90S2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90S2
S020 NMRV090 40 90L4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90L4
S020 NMRV090 7,5 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90LL4
S020 NMRV090 10 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90LL4
S020 NMRV090 15 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90LL4
S020 NMRV090 20 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90LL4
S020 NMRV090 25 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90LL4
S020 NMRV090 30 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90LL4
S020 NMRV090 40 90LL4 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90LL4
S020 NMRV090 7,5 90L2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90L2
S020 NMRV090 10 90L2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90L2
S020 NMRV090 15 90L2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90L2
S020 NMRV090 20 90L2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90L2
S020 NMRV090 25 90L2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90L2
S020 NMRV090 30 90L2 Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90L2
S020 NMRV105 7,5 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 7.5 | Motor: 90L6
S020 NMRV105 10 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 10 | Motor: 90S4
S020 NMRV105 15 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90L6
S020 NMRV105 15 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90S4
S020 NMRV105 20 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90L6
S020 NMRV105 20 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90S4
S020 NMRV105 25 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90L6
S020 NMRV105 25 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90S4
S020 NMRV105 30 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90L6
S020 NMRV105 30 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90S4
S020 NMRV105 40 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90L6
S020 NMRV105 40 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90S4
S020 NMRV105 50 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90L6
S020 NMRV105 50 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90S4
S020 NMRV105 60 90L6 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90L6
S020 NMRV105 60 90S4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90S4
S020 NMRV105 7,5 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 7.5 | Motor: 90S2
S020 NMRV105 10 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 10 | Motor: 90L4
S020 NMRV105 15 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90L4
S020 NMRV105 15 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90S2
S020 NMRV105 20 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90L4
S020 NMRV105 20 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90S2
S020 NMRV105 25 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90L4
S020 NMRV105 25 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90S2
S020 NMRV105 30 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90L4
S020 NMRV105 30 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90S2
S020 NMRV105 40 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90L4
S020 NMRV105 40 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90S2
S020 NMRV105 50 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90L4
S020 NMRV105 50 90S2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90S2
S020 NMRV105 60 90L4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90L4
S020 NMRV105 10 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 10 | Motor: 90LL4
S020 NMRV105 15 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90LL4
S020 NMRV105 20 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90LL4
S020 NMRV105 25 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90LL4
S020 NMRV105 30 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90LL4
S020 NMRV105 40 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90LL4
S020 NMRV105 50 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90LL4
S020 NMRV105 60 90LL4 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90LL4
S020 NMRV105 7,5 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 7.5 | Motor: 90L2
S020 NMRV105 15 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90L2
S020 NMRV105 20 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90L2
S020 NMRV105 25 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90L2
S020 NMRV105 30 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90L2
S020 NMRV105 40 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90L2
S020 NMRV105 50 90L2 Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90L2
S020 NMRV110 7,5 90S4 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 7.5 | Motor: 90S4
S020 NMRV110 10 90L6 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 10 | Motor: 90L6
S020 NMRV110 80 90L6 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 80 | Motor: 90L6
S020 NMRV110 7,5 90L4 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 7.5 | Motor: 90L4
S020 NMRV110 10 90S2 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 10 | Motor: 90S2
S020 NMRV110 7,5 90LL4 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 7.5 | Motor: 90LL4
S020 NMRV110 10 90L2 Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 10 | Motor: 90L2
S020 NMRV130 25 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90L6
S020 NMRV130 25 90S4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90S4
S020 NMRV130 30 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90L6
S020 NMRV130 30 90S4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90S4
S020 NMRV130 40 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90L6
S020 NMRV130 40 90S4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90S4
S020 NMRV130 50 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90L6
S020 NMRV130 50 90S4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90S4
S020 NMRV130 60 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90L6
S020 NMRV130 60 90S4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90S4
S020 NMRV130 80 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90L6
S020 NMRV130 80 90S4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90S4
S020 NMRV130 100 90L6 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 100 | Motor: 90L6
S020 NMRV130 25 90L4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90L4
S020 NMRV130 25 90S2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90S2
S020 NMRV130 30 90L4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90L4
S020 NMRV130 30 90S2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90S2
S020 NMRV130 40 90L4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90L4
S020 NMRV130 40 90S2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90S2
S020 NMRV130 50 90L4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90L4
S020 NMRV130 50 90S2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90S2
S020 NMRV130 60 90L4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90L4
S020 NMRV130 60 90S2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90S2
S020 NMRV130 80 90L4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90L4
S020 NMRV130 25 90LL4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90LL4
S020 NMRV130 30 90LL4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90LL4
S020 NMRV130 40 90LL4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90LL4
S020 NMRV130 50 90LL4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90LL4
S020 NMRV130 60 90LL4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90LL4
S020 NMRV130 80 90LL4 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90LL4
S020 NMRV130 25 90L2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90L2
S020 NMRV130 30 90L2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90L2
S020 NMRV130 40 90L2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90L2
S020 NMRV130 50 90L2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90L2
S020 NMRV130 60 90L2 Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90L2
S020 NMRV150 50 90L6 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90L6
S020 NMRV150 50 90S4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90S4
S020 NMRV150 60 90L6 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90L6
S020 NMRV150 60 90S4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90S4
S020 NMRV150 80 90L6 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90L6
S020 NMRV150 80 90S4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90S4
S020 NMRV150 100 90L6 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90L6
S020 NMRV150 100 90S4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90S4
S020 NMRV150 50 90L4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90L4
S020 NMRV150 50 90S2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90S2
S020 NMRV150 60 90L4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90L4
S020 NMRV150 60 90S2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90S2
S020 NMRV150 80 90L4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90L4
S020 NMRV150 80 90S2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90S2
S020 NMRV150 100 90L4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90L4
S020 NMRV150 100 90S2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90S2
S020 NMRV150 50 90LL4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90LL4
S020 NMRV150 60 90LL4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90LL4
S020 NMRV150 80 90LL4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90LL4
S020 NMRV150 100 90LL4 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90LL4
S020 NMRV150 50 90L2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90L2
S020 NMRV150 60 90L2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90L2
S020 NMRV150 80 90L2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90L2
S020 NMRV150 100 90L2 Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90L2
S030 NMRV090 7,5 100LA6 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 7.5 | Motor: 100LA6
S030 NMRV090 10 100LA6 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 10 | Motor: 100LA6
S030 NMRV090 15 100LA6 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 15 | Motor: 100LA6
S030 NMRV090 20 100LA6 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 20 | Motor: 100LA6
S030 NMRV090 7,5 100LA4 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 7.5 | Motor: 100LA4
S030 NMRV090 10 100LA4 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 10 | Motor: 100LA4
S030 NMRV090 15 100LA4 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 15 | Motor: 100LA4
S030 NMRV090 7,5 100LB4 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 7.5 | Motor: 100LB4
S030 NMRV090 10 100LB4 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 10 | Motor: 100LB4
S030 NMRV090 15 100LB4 Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 15 | Motor: 100LB4
S030 NMRV105 7,5 100LA6 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 7.5 | Motor: 100LA6
S030 NMRV105 15 100LA6 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 15 | Motor: 100LA6
S030 NMRV105 20 100LA6 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 20 | Motor: 100LA6
S030 NMRV105 25 100LA6 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 25 | Motor: 100LA6
S030 NMRV105 30 100LA6 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 30 | Motor: 100LA6
S030 NMRV105 40 100LA6 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 40 | Motor: 100LA6
S030 NMRV105 10 100LA4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 10 | Motor: 100LA4
S030 NMRV105 15 100LA4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 15 | Motor: 100LA4
S030 NMRV105 20 100LA4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 20 | Motor: 100LA4
S030 NMRV105 25 100LA4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 25 | Motor: 100LA4
S030 NMRV105 30 100LA4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 30 | Motor: 100LA4
S030 NMRV105 10 100LB4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 10 | Motor: 100LB4
S030 NMRV105 15 100LB4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 15 | Motor: 100LB4
S030 NMRV105 20 100LB4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 20 | Motor: 100LB4
S030 NMRV105 25 100LB4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 25 | Motor: 100LB4
S030 NMRV105 30 100LB4 Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 30 | Motor: 100LB4
S030 NMRV110 10 100LA6 Legacy code (older edition) | Unit: S030 NMRV110 | Ratio i: 10 | Motor: 100LA6
S030 NMRV110 7,5 100LA4 Legacy code (older edition) | Unit: S030 NMRV110 | Ratio i: 7.5 | Motor: 100LA4
S030 NMRV110 7,5 100LB4 Legacy code (older edition) | Unit: S030 NMRV110 | Ratio i: 7.5 | Motor: 100LB4
S030 NMRV130 7,5 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 7.5 | Motor: 100LA6
S030 NMRV130 10 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 10 | Motor: 100LA6
S030 NMRV130 15 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 15 | Motor: 100LA6
S030 NMRV130 20 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 20 | Motor: 100LA6
S030 NMRV130 25 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 25 | Motor: 100LA6
S030 NMRV130 30 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 30 | Motor: 100LA6
S030 NMRV130 40 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 40 | Motor: 100LA6
S030 NMRV130 50 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 50 | Motor: 100LA6
S030 NMRV130 60 100LA6 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 60 | Motor: 100LA6
S030 NMRV130 7,5 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 7.5 | Motor: 100LA4
S030 NMRV130 10 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 10 | Motor: 100LA4
S030 NMRV130 15 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 15 | Motor: 100LA4
S030 NMRV130 20 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 20 | Motor: 100LA4
S030 NMRV130 25 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 25 | Motor: 100LA4
S030 NMRV130 30 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 30 | Motor: 100LA4
S030 NMRV130 40 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 40 | Motor: 100LA4
S030 NMRV130 50 100LA4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 50 | Motor: 100LA4
S030 NMRV130 7,5 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 7.5 | Motor: 100LB4
S030 NMRV130 10 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 10 | Motor: 100LB4
S030 NMRV130 15 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 15 | Motor: 100LB4
S030 NMRV130 20 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 20 | Motor: 100LB4
S030 NMRV130 25 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 25 | Motor: 100LB4
S030 NMRV130 30 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 30 | Motor: 100LB4
S030 NMRV130 40 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 40 | Motor: 100LB4
S030 NMRV130 50 100LB4 Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 50 | Motor: 100LB4
S030 NMRV150 25 100LA6 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 25 | Motor: 100LA6
S030 NMRV150 30 100LA6 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 30 | Motor: 100LA6
S030 NMRV150 40 100LA6 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 40 | Motor: 100LA6
S030 NMRV150 50 100LA6 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 50 | Motor: 100LA6
S030 NMRV150 60 100LA6 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 60 | Motor: 100LA6
S030 NMRV150 80 100LA6 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 80 | Motor: 100LA6
S030 NMRV150 25 100LA4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 25 | Motor: 100LA4
S030 NMRV150 30 100LA4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 30 | Motor: 100LA4
S030 NMRV150 40 100LA4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 40 | Motor: 100LA4
S030 NMRV150 50 100LA4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 50 | Motor: 100LA4
S030 NMRV150 60 100LA4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 60 | Motor: 100LA4
S030 NMRV150 25 100LB4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 25 | Motor: 100LB4
S030 NMRV150 30 100LB4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 30 | Motor: 100LB4
S030 NMRV150 40 100LB4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 40 | Motor: 100LB4
S030 NMRV150 50 100LB4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 50 | Motor: 100LB4
S030 NMRV150 60 100LB4 Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 60 | Motor: 100LB4
S050 NMRV105 7,5 112M6 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 7.5 | Motor: 112M6
S050 NMRV105 10 112M6 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 10 | Motor: 112M6
S050 NMRV105 15 112M6 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 15 | Motor: 112M6
S050 NMRV105 20 112M6 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 20 | Motor: 112M6
S050 NMRV105 25 112M6 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 25 | Motor: 112M6
S050 NMRV105 30 112M6 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 30 | Motor: 112M6
S050 NMRV105 7,5 112M4 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 7.5 | Motor: 112M4
S050 NMRV105 10 112M4 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 10 | Motor: 112M4
S050 NMRV105 15 112M4 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 15 | Motor: 112M4
S050 NMRV105 7,5 112MS4 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 7.5 | Motor: 112MS4
S050 NMRV105 10 112MS4 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 10 | Motor: 112MS4
S050 NMRV105 15 112MS4 Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 15 | Motor: 112MS4
S050 NMRV110 20 112M4 Legacy code (older edition) | Unit: S050 NMRV110 | Ratio i: 20 | Motor: 112M4
S050 NMRV110 20 112MS4 Legacy code (older edition) | Unit: S050 NMRV110 | Ratio i: 20 | Motor: 112MS4
S050 NMRV130 7,5 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 7.5 | Motor: 112M6
S050 NMRV130 10 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 10 | Motor: 112M6
S050 NMRV130 15 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 15 | Motor: 112M6
S050 NMRV130 20 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 20 | Motor: 112M6
S050 NMRV130 25 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 25 | Motor: 112M6
S050 NMRV130 30 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 30 | Motor: 112M6
S050 NMRV130 40 112M6 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 40 | Motor: 112M6
S050 NMRV130 7,5 112M4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 7.5 | Motor: 112M4
S050 NMRV130 10 112M4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 10 | Motor: 112M4
S050 NMRV130 15 112M4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 15 | Motor: 112M4
S050 NMRV130 20 112M4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 20 | Motor: 112M4
S050 NMRV130 25 112M4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 25 | Motor: 112M4
S050 NMRV130 30 112M4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 30 | Motor: 112M4
S050 NMRV130 7,5 112MS4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 7.5 | Motor: 112MS4
S050 NMRV130 10 112MS4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 10 | Motor: 112MS4
S050 NMRV130 15 112MS4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 15 | Motor: 112MS4
S050 NMRV130 20 112MS4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 20 | Motor: 112MS4
S050 NMRV130 25 112MS4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 25 | Motor: 112MS4
S050 NMRV130 30 112MS4 Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 30 | Motor: 112MS4
S050 NMRV150 25 112M6 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 25 | Motor: 112M6
S050 NMRV150 30 112M6 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 30 | Motor: 112M6
S050 NMRV150 40 112M6 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 40 | Motor: 112M6
S050 NMRV150 50 112M6 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 50 | Motor: 112M6
S050 NMRV150 60 112M6 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 60 | Motor: 112M6
S050 NMRV150 25 112M4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 25 | Motor: 112M4
S050 NMRV150 30 112M4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 30 | Motor: 112M4
S050 NMRV150 40 112M4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 40 | Motor: 112M4
S050 NMRV150 50 112M4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 50 | Motor: 112M4
S050 NMRV150 25 112MS4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 25 | Motor: 112MS4
S050 NMRV150 30 112MS4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 30 | Motor: 112MS4
S050 NMRV150 40 112MS4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 40 | Motor: 112MS4
S050 NMRV150 50 112MS4 Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 50 | Motor: 112MS4
S100 NMRV150 7,5 132M6 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132M6
S100 NMRV150 7,5 132S4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132S4
S100 NMRV150 10 132M6 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132M6
S100 NMRV150 10 132S4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132S4
S100 NMRV150 15 132M6 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132M6
S100 NMRV150 15 132S4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132S4
S100 NMRV150 20 132M6 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132M6
S100 NMRV150 20 132S4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132S4
S100 NMRV150 7,5 132L4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132L4
S100 NMRV150 10 132L4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132L4
S100 NMRV150 15 132L4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132L4
S100 NMRV150 20 132L4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132L4
S100 NMRV150 7,5 132M4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132M4
S100 NMRV150 10 132M4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132M4
S100 NMRV150 15 132M4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132M4
S100 NMRV150 20 132M4 Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132M4
S020 NMRV075 Legacy code (older edition) | Unit: S020 NMRV075
S020 NMRV090 Legacy code (older edition) | Unit: S020 NMRV090
S020 NMRV110 Legacy code (older edition) | Unit: S020 NMRV110
S020 NMRV105 Legacy code (older edition) | Unit: S020 NMRV105
S020 NMRV130 Legacy code (older edition) | Unit: S020 NMRV130
S020 NMRV150 Legacy code (older edition) | Unit: S020 NMRV150
S030 NMRV090 Legacy code (older edition) | Unit: S030 NMRV090
S030 NMRV105 Legacy code (older edition) | Unit: S030 NMRV105
S030 NMRV130 Legacy code (older edition) | Unit: S030 NMRV130
S030 NMRV110 Legacy code (older edition) | Unit: S030 NMRV110
S030 NMRV150 Legacy code (older edition) | Unit: S030 NMRV150
S050 NMRV105 Legacy code (older edition) | Unit: S050 NMRV105
S050 NMRV130 Legacy code (older edition) | Unit: S050 NMRV130
S050 NMRV150 Legacy code (older edition) | Unit: S050 NMRV150
S050 NMRV110 Legacy code (older edition) | Unit: S050 NMRV110
S100 NMRV150 Legacy code (older edition) | Unit: S100 NMRV150
Speed VariatorsMotovario
728 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario SF+NMRV Variator Worm Gearmotors (SF020-100, 0.75-7.5 kW)

Brand Motovario·Speed Variators

Available part numbers (728)

SF020+NMRV-P075 7,50 TP90S6, SF020+NMRV-P075 10,00 TP90S6, SF020+NMRV-P075 15,00 TP90S6, SF020+NMRV-P090 15,00 TP90S6, SF020+NMRV-P075 20,00 TP90S6, SF020+NMRV-P090 20,00 TP90S6, SF020+NMRV-P075 25,00 TP90S6, SF020+NMRV-P090 25,00 TP90S6, SF020+NMRV-P075 30,00 TP90S6, SF020+NMRV-P090 30,00 TP90S6 + 718 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SF020+NMRV-P075 7,50 TP90S6Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 58-148 Nm | Service factor fs (a-b): 4.5-2.7 | Radial load Fr2: 3610 N
SF020+NMRV-P075 10,00 TP90S6Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 75-190 Nm | Service factor fs (a-b): 3.6-2.2 | Radial load Fr2: 3973 N
SF020+NMRV-P075 15,00 TP90S6Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 109-269 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 4548 N
SF020+NMRV-P090 15,00 TP90S6Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 111-276 Nm | Service factor fs (a-b): 4.8-2.4 | Radial load Fr2: 5032 N
SF020+NMRV-P075 20,00 TP90S6Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 140-338 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 5005 N
SF020+NMRV-P090 20,00 TP90S6Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 143-354 Nm | Service factor fs (a-b): 3.6-1.7 | Radial load Fr2: 5538 N
SF020+NMRV-P075 25,00 TP90S6Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 168-404 Nm | Service factor fs (a-b): 1.7-0.9 | Radial load Fr2: 5392 N
SF020+NMRV-P090 25,00 TP90S6Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 172-424 Nm | Service factor fs (a-b): 2.8-1.3 | Radial load Fr2: 5966 N
SF020+NMRV-P075 30,00 TP90S6Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 188-449 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 5730 N
SF020+NMRV-P090 30,00 TP90S6Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 196-470 Nm | Service factor fs (a-b): 3.0-1.5 | Radial load Fr2: 6340 N
SF020+NMRV-P075 40,00 TP90S6Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 232-550 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 6307 N
SF020+NMRV-P090 40,00 TP90S6Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 243-579 Nm | Service factor fs (a-b): 2.2-1.1 | Radial load Fr2: 6978 N
SF020+NMRV-P110 40,00 TP90S6Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 257-605 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 8817 N
SF020+NMRV-P090 50,00 TP90S6Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 290-672 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 7517 N
SF020+NMRV-P110 50,00 TP90S6Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 304-724 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 9498 N
SF020+NMRV130 50,00 TP90S6Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 308-720 Nm | Service factor fs (a-b): 4.0-2.2 | Radial load Fr2: 12423 N
SF020+NMRV-P110 60,00 TP90S6Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 348-806 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 10093 N
SF020+NMRV130 60,00 TP90S6Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 348-806 Nm | Service factor fs (a-b): 3.1-1.7 | Radial load Fr2: 13202 N
SF020+NMRV150 60,00 TP90S6Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 353-821 Nm | Service factor fs (a-b): 4.8-2.5 | Radial load Fr2: 18000 N
SF020+NMRV-P110 80,00 TP90S6Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 420-986 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 10320 N
SF020+NMRV130 80,00 TP90S6Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 428-979 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 13500 N
SF020+NMRV150 80,00 TP90S6Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 435-979 Nm | Service factor fs (a-b): 3.5-1.9 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP90S6Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 489-1128 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP90S6Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 498-1128 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 18000 N
SF020+NMRV-P075 7,50 TP90S4Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 58-148 Nm | Service factor fs (a-b): 3.7-2.7 | Radial load Fr2: 3115 N
SF020+NMRV-P075 10,00 TP90S4Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 75-190 Nm | Service factor fs (a-b): 3.1-2.2 | Radial load Fr2: 3429 N
SF020+NMRV-P075 7,50 TP100LR6Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 85-148 Nm | Service factor fs (a-b): 3.1-2.7 | Radial load Fr2: 3610 N
SF020+NMRV-P075 15,00 TP90S4Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 109-269 Nm | Service factor fs (a-b): 2.4-1.6 | Radial load Fr2: 3925 N
SF020+NMRV-P090 15,00 TP90S4Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 112-276 Nm | Service factor fs (a-b): 4.1-2.4 | Radial load Fr2: 4343 N
SF020+NMRV-P075 10,00 TP100LR6Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 110-190 Nm | Service factor fs (a-b): 2.4-2.2 | Radial load Fr2: 3973 N
SF020+NMRV-P090 10,00 TP100LR6Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 113-194 Nm | Service factor fs (a-b): 4.2-3.0 | Radial load Fr2: 4396 N
SF020+NMRV-P075 20,00 TP90S4Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 140-338 Nm | Service factor fs (a-b): 1.9-1.2 | Radial load Fr2: 4320 N
SF020+NMRV-P090 20,00 TP90S4Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 144-354 Nm | Service factor fs (a-b): 3.0-1.7 | Radial load Fr2: 4780 N
SF020+NMRV-P110 20,00 TP90S4Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 147-363 Nm | Service factor fs (a-b): 4.9-3.1 | Radial load Fr2: 6040 N
SF020+NMRV-P075 15,00 TP100LR6Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 159-269 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 4548 N
SF020+NMRV-P090 15,00 TP100LR6Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 163-276 Nm | Service factor fs (a-b): 3.3-2.4 | Radial load Fr2: 5032 N
SF020+NMRV-P075 25,00 TP90S4Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 171-404 Nm | Service factor fs (a-b): 1.4-0.9 | Radial load Fr2: 4654 N
SF020+NMRV-P090 25,00 TP90S4Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 175-424 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 5149 N
SF020+NMRV-P110 25,00 TP90S4Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 179-442 Nm | Service factor fs (a-b): 4.2-2.7 | Radial load Fr2: 6506 N
SF020+NMRV-P075 30,00 TP90S4Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 194-449 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 4945 N
SF020+NMRV-P090 30,00 TP90S4Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 200-470 Nm | Service factor fs (a-b): 2.4-1.5 | Radial load Fr2: 5472 N
SF020+NMRV-P110 30,00 TP90S4Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 202-468 Nm | Service factor fs (a-b): 4.2-2.7 | Radial load Fr2: 6914 N
SF020+NMRV-P075 20,00 TP100LR6Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 205-338 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 5005 N
SF020+NMRV-P090 20,00 TP100LR6Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 210-354 Nm | Service factor fs (a-b): 2.5-1.7 | Radial load Fr2: 5538 N
SF020+NMRV-P110 20,00 TP100LR6Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 215-363 Nm | Service factor fs (a-b): 4.0-3.1 | Radial load Fr2: 6998 N
SF020+NMRV-P075 25,00 TP100LR6Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 246-404 Nm | Service factor fs (a-b): 1.2-0.9 | Radial load Fr2: 5392 N
SF020+NMRV-P090 25,00 TP100LR6Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 253-424 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 5966 N
SF020+NMRV-P110 25,00 TP100LR6Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 262-442 Nm | Service factor fs (a-b): 3.5-2.7 | Radial load Fr2: 7539 N
SF020+NMRV130 25,00 TP100LR6Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 262-438 Nm | Service factor fs (a-b): 4.6-3.5 | Radial load Fr2: 9860 N
SF020+NMRV-P075 40,00 TP90S4Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 242-550 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 5443 N
SF020+NMRV-P090 40,00 TP90S4Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 252-579 Nm | Service factor fs (a-b): 1.8-1.1 | Radial load Fr2: 6022 N
SF020+NMRV-P110 40,00 TP90S4Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 263-605 Nm | Service factor fs (a-b): 3.0-2.0 | Radial load Fr2: 7610 N
SF020+NMRV130 40,00 TP90S4Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 266-605 Nm | Service factor fs (a-b): 4.1-2.7 | Radial load Fr2: 9953 N
SF020+NMRV-P075 30,00 TP100LR6Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 275-449 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 5730 N
SF020+NMRV-P090 30,00 TP100LR6Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 287-470 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 6340 N
SF020+NMRV-P110 30,00 TP100LR6Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 291-468 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 8011 N
SF020+NMRV130 30,00 TP100LR6Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 295-475 Nm | Service factor fs (a-b): 4.7-3.7 | Radial load Fr2: 10478 N
SF020+NMRV-P090 50,00 TP90S4Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 302-672 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 6487 N
SF020+NMRV-P110 50,00 TP90S4Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 315-724 Nm | Service factor fs (a-b): 2.4-1.5 | Radial load Fr2: 8198 N
SF020+NMRV130 50,00 TP90S4Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 319-720 Nm | Service factor fs (a-b): 3.3-2.2 | Radial load Fr2: 10722 N
SF020+NMRV150 50,00 TP90S4Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 324-720 Nm | Service factor fs (a-b): 4.9-3.2 | Radial load Fr2: 14658 N
SF020+NMRV-P110 60,00 TP90S4Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 362-806 Nm | Service factor fs (a-b): 1.9-1.2 | Radial load Fr2: 8711 N
SF020+NMRV130 60,00 TP90S4Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 368-806 Nm | Service factor fs (a-b): 2.6-1.7 | Radial load Fr2: 11394 N
SF020+NMRV150 60,00 TP90S4Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 373-821 Nm | Service factor fs (a-b): 3.9-2.5 | Radial load Fr2: 15576 N
SF020+NMRV-P075 40,00 TP100LR6Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 340-550 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 6307 N
SF020+NMRV-P090 40,00 TP100LR6Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 356-579 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 6978 N
SF020+NMRV-P110 40,00 TP100LR6Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 377-605 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 8817 N
SF020+NMRV130 40,00 TP100LR6Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 377-605 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 11533 N
SF020+NMRV-P090 50,00 TP100LR6Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 425-672 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 7517 N
SF020+NMRV-P110 50,00 TP100LR6Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 445-724 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 9498 N
SF020+NMRV-P110 80,00 TP90S4Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 448-986 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 9588 N
SF020+NMRV130 50,00 TP100LR6Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 452-720 Nm | Service factor fs (a-b): 2.7-2.2 | Radial load Fr2: 12423 N
SF020+NMRV130 80,00 TP90S4Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 455-979 Nm | Service factor fs (a-b): 1.9-1.2 | Radial load Fr2: 12540 N
SF020+NMRV150 50,00 TP100LR6Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 459-720 Nm | Service factor fs (a-b): 4.1-3.2 | Radial load Fr2: 16984 N
SF020+NMRV150 80,00 TP90S4Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 462-979 Nm | Service factor fs (a-b): 2.8-1.9 | Radial load Fr2: 17144 N
SF020+NMRV-P110 60,00 TP100LR6Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 510-806 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 10093 N
SF020+NMRV130 60,00 TP100LR6Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 510-806 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 13202 N
SF020+NMRV150 60,00 TP100LR6Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 518-821 Nm | Service factor fs (a-b): 3.2-2.5 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP90S4Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 525-1128 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP90S4Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 534-1128 Nm | Service factor fs (a-b): 2.2-1.5 | Radial load Fr2: 18000 N
SF020+NMRV-P110 80,00 TP100LR6Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 617-986 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 10320 N
SF020+NMRV130 80,00 TP100LR6Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 627-979 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 13500 N
SF020+NMRV150 80,00 TP100LR6Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 638-979 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP100LR6Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 718-1128 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP100LR6Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 731-1128 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 18000 N
SF020+NMRV-P075 7,50 TP90S2Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-51.0 rpm | Output torque M2 (a-b): 41-149 Nm | Service factor fs (a-b): 4.3-2.4 | Radial load Fr2: 2473 N
SF020+NMRV-P075 10,00 TP90S2Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 54-192 Nm | Service factor fs (a-b): 3.5-2.1 | Radial load Fr2: 2721 N
SF020+NMRV-P075 7,50 TP90L4Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 79-148 Nm | Service factor fs (a-b): 2.7-2.7 | Radial load Fr2: 3115 N
SF020+NMRV-P075 15,00 TP90S2Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 79-274 Nm | Service factor fs (a-b): 2.7-1.6 | Radial load Fr2: 3115 N
SF020+NMRV-P090 7,50 TP90L4Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 80-150 Nm | Service factor fs (a-b): 4.7-3.7 | Radial load Fr2: 3447 N
SF020+NMRV-P090 15,00 TP90S2Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 80-281 Nm | Service factor fs (a-b): 4.7-2.4 | Radial load Fr2: 3447 N
SF020+NMRV-P075 20,00 TP90S2Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 101-346 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 3429 N
SF020+NMRV-P090 10,00 TP90L4Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 104-194 Nm | Service factor fs (a-b): 3.9-3.0 | Radial load Fr2: 3794 N
SF020+NMRV-P090 20,00 TP90S2Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 104-360 Nm | Service factor fs (a-b): 3.6-1.7 | Radial load Fr2: 3794 N
SF020+NMRV-P090 7,50 TP100L6Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 117-150 Nm | Service factor fs (a-b): 3.9-3.7 | Radial load Fr2: 3994 N
SF030+NMRV-P090 7,50 TP100L6Power P1: 1.50 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 117-300 Nm | Service factor fs (a-b): 3.9-1.9 | Radial load Fr2: 3994 N
SF020+NMRV-P075 25,00 TP90S2Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 124-414 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 3694 N
SF020+NMRV-P090 25,00 TP90S2Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 127-432 Nm | Service factor fs (a-b): 2.8-1.3 | Radial load Fr2: 4087 N
SF020+NMRV-P110 25,00 TP90S2Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 130-450 Nm | Service factor fs (a-b): 5.0-2.6 | Radial load Fr2: 5164 N
SF020+NMRV-P075 15,00 TP90L4Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 149-269 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 3925 N
SF020+NMRV-P075 30,00 TP90S2Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 142-461 Nm | Service factor fs (a-b): 1.6-1.0 | Radial load Fr2: 3925 N
SF020+NMRV-P090 15,00 TP90L4Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 152-276 Nm | Service factor fs (a-b): 3.0-2.4 | Radial load Fr2: 4343 N
SF020+NMRV-P090 30,00 TP90S2Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 145-482 Nm | Service factor fs (a-b): 2.8-1.5 | Radial load Fr2: 4343 N
SF020+NMRV-P110 15,00 TP90L4Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 154-280 Nm | Service factor fs (a-b): 4.9-4.3 | Radial load Fr2: 5488 N
SF020+NMRV-P110 30,00 TP90S2Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 147-482 Nm | Service factor fs (a-b): 4.7-2.6 | Radial load Fr2: 5488 N
SF020+NMRV-P090 10,00 TP100L6Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 154-194 Nm | Service factor fs (a-b): 3.1-3.0 | Radial load Fr2: 4396 N
SF030+NMRV-P090 10,00 TP100L6Power P1: 1.50 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 154-389 Nm | Service factor fs (a-b): 3.1-1.5 | Radial load Fr2: 4396 N
SF020+NMRV-P075 20,00 TP90L4Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 191-338 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 4320 N
SF020+NMRV-P075 40,00 TP90S2Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 180-566 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 4320 N
SF020+NMRV-P090 20,00 TP90L4Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 196-354 Nm | Service factor fs (a-b): 2.2-1.7 | Radial load Fr2: 4780 N
SF020+NMRV-P090 40,00 TP90S2Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 186-595 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 4780 N
SF020+NMRV-P110 20,00 TP90L4Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 200-363 Nm | Service factor fs (a-b): 3.6-3.1 | Radial load Fr2: 6040 N
SF020+NMRV-P110 40,00 TP90S2Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 194-624 Nm | Service factor fs (a-b): 3.4-1.9 | Radial load Fr2: 6040 N
SF020+NMRV-P090 15,00 TP100L6Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 223-276 Nm | Service factor fs (a-b): 2.4-2.4 | Radial load Fr2: 5032 N
SF030+NMRV-P090 15,00 TP100L6Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 223-552 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 5032 N
SF030+NMRV-P110 15,00 TP100L6Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 226-559 Nm | Service factor fs (a-b): 4.0-2.1 | Radial load Fr2: 6358 N
SF020+NMRV-P075 25,00 TP90L4Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 233-404 Nm | Service factor fs (a-b): 1.0-0.9 | Radial load Fr2: 4654 N
SF020+NMRV-P090 25,00 TP90L4Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 239-424 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 5149 N
SF020+NMRV-P090 50,00 TP90S2Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 224-696 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 5149 N
SF020+NMRV-P110 25,00 TP90L4Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 245-442 Nm | Service factor fs (a-b): 3.1-2.7 | Radial load Fr2: 6506 N
SF020+NMRV-P110 50,00 TP90S2Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 233-744 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 6506 N
SF020+NMRV130 25,00 TP90L4Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 248-438 Nm | Service factor fs (a-b): 4.2-3.5 | Radial load Fr2: 8510 N
SF020+NMRV130 50,00 TP90S2Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 231-744 Nm | Service factor fs (a-b): 4.0-2.1 | Radial load Fr2: 8510 N
SF020+NMRV-P075 30,00 TP90L4Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 265-449 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 4945 N
SF020+NMRV-P090 30,00 TP90L4Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 272-470 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 5472 N
SF020+NMRV-P110 30,00 TP90L4Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 276-468 Nm | Service factor fs (a-b): 3.0-2.7 | Radial load Fr2: 6914 N
SF020+NMRV-P110 60,00 TP90S2Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 272-835 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 6914 N
SF020+NMRV130 30,00 TP90L4Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 283-475 Nm | Service factor fs (a-b): 4.1-3.7 | Radial load Fr2: 9043 N
SF020+NMRV130 60,00 TP90S2Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 266-835 Nm | Service factor fs (a-b): 3.2-1.7 | Radial load Fr2: 9043 N
SF020+NMRV150 60,00 TP90S2Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 269-850 Nm | Service factor fs (a-b): 4.4-2.4 | Radial load Fr2: 12363 N
SF020+NMRV-P090 20,00 TP100L6Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 286-354 Nm | Service factor fs (a-b): 1.8-1.7 | Radial load Fr2: 5538 N
SF030+NMRV-P090 20,00 TP100L6Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 286-707 Nm | Service factor fs (a-b): 1.8-0.9 | Radial load Fr2: 5538 N
SF030+NMRV-P110 20,00 TP100L6Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 294-726 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 6998 N
SF030+NMRV130 20,00 TP100L6Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 297-720 Nm | Service factor fs (a-b): 4.1-2.2 | Radial load Fr2: 9154 N
SF020+NMRV-P090 25,00 TP100L6Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 344-424 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 5966 N
SF030+NMRV-P110 25,00 TP100L6Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 358-884 Nm | Service factor fs (a-b): 2.5-1.3 | Radial load Fr2: 7539 N
SF030+NMRV130 25,00 TP100L6Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 358-876 Nm | Service factor fs (a-b): 3.4-1.7 | Radial load Fr2: 9860 N
SF030+NMRV150 25,00 TP100L6Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 362-876 Nm | Service factor fs (a-b): 4.5-2.3 | Radial load Fr2: 13480 N
SF020+NMRV-P075 40,00 TP90L4Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 329-550 Nm | Service factor fs (a-b): 0.8-0.8 | Radial load Fr2: 5443 N
SF020+NMRV-P090 40,00 TP90L4Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 344-579 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 6022 N
SF020+NMRV-P110 40,00 TP90L4Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 358-605 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 7610 N
SF020+NMRV-P110 80,00 TP90S2Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 336-1018 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 7610 N
SF020+NMRV130 40,00 TP90L4Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 363-605 Nm | Service factor fs (a-b): 3.0-2.7 | Radial load Fr2: 9953 N
SF020+NMRV130 80,00 TP90S2Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 335-1018 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 9953 N
SF020+NMRV150 80,00 TP90S2Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 335-1018 Nm | Service factor fs (a-b): 3.3-1.8 | Radial load Fr2: 13607 N
SF030+NMRV-P090 30,00 TP100L6Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 391-941 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 6340 N
SF030+NMRV-P110 30,00 TP100L6Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 397-936 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 8011 N
SF030+NMRV130 30,00 TP100L6Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 402-950 Nm | Service factor fs (a-b): 3.5-1.9 | Radial load Fr2: 10478 N
SF030+NMRV150 30,00 TP100L6Power P1: 1.50 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 424-1022 Nm | Service factor fs (a-b): 3.9-2.1 | Radial load Fr2: 14325 N
SF020+NMRV-P090 50,00 TP90L4Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 412-672 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 6487 N
SF020+NMRV-P110 50,00 TP90L4Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 430-724 Nm | Service factor fs (a-b): 1.7-1.5 | Radial load Fr2: 8198 N
SF020+NMRV130 50,00 TP90L4Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 436-720 Nm | Service factor fs (a-b): 2.4-2.2 | Radial load Fr2: 10722 N
SF020+NMRV130 100,00 TP90S2Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 394-1152 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 10722 N
SF020+NMRV150 50,00 TP90L4Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 442-720 Nm | Service factor fs (a-b): 3.6-3.2 | Radial load Fr2: 14658 N
SF020+NMRV150 100,00 TP90S2Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 394-1152 Nm | Service factor fs (a-b): 2.4-1.4 | Radial load Fr2: 14658 N
SF020+NMRV-P110 60,00 TP90L4Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 494-806 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 8711 N
SF020+NMRV130 60,00 TP90L4Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 501-806 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 11394 N
SF020+NMRV150 60,00 TP90L4Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 508-821 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 15576 N
SF020+NMRV-P090 40,00 TP100L6Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 486-579 Nm | Service factor fs (a-b): 1.1-1.1 | Radial load Fr2: 6978 N
SF030+NMRV-P110 40,00 TP100L6Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 515-1210 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 8817 N
SF030+NMRV130 40,00 TP100L6Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 515-1210 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 11533 N
SF030+NMRV150 40,00 TP100L6Power P1: 1.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 594-1229 Nm | Service factor fs (a-b): 3.6-2.2 | Radial load Fr2: 15766 N
SF020+NMRV-P090 50,00 TP100L6Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 580-672 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 7517 N
SF020+NMRV-P110 80,00 TP90L4Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 611-986 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 9588 N
SF020+NMRV130 80,00 TP90L4Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 621-979 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 12540 N
SF020+NMRV150 80,00 TP90L4Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 630-979 Nm | Service factor fs (a-b): 2.1-1.9 | Radial load Fr2: 17144 N
SF030+NMRV-P110 50,00 TP100L6Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 607-1448 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 9498 N
SF030+NMRV130 50,00 TP100L6Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 616-1440 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 12423 N
SF030+NMRV150 50,00 TP100L6Power P1: 1.50 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 625-1440 Nm | Service factor fs (a-b): 3.0-1.6 | Radial load Fr2: 16984 N
SF030+NMRV130 60,00 TP100L6Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 696-1613 Nm | Service factor fs (a-b): 1.5-0.9 | Radial load Fr2: 13202 N
SF030+NMRV150 60,00 TP100L6Power P1: 1.50 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 707-1642 Nm | Service factor fs (a-b): 2.4-1.3 | Radial load Fr2: 18000 N
SF020+NMRV130 100,00 TP90L4Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 716-1128 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 13500 N
SF020+NMRV150 100,00 TP90L4Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 728-1128 Nm | Service factor fs (a-b): 1.6-1.5 | Radial load Fr2: 18000 N
SF030+NMRV150 80,00 TP100L6Power P1: 1.50 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 870-1958 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP100L6Power P1: 1.50 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 997-2256 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 18000 N
SF020+NMRV-P075 7,50 TP90L2Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-51.0 rpm | Output torque M2 (a-b): 60-149 Nm | Service factor fs (a-b): 2.9-2.4 | Radial load Fr2: 2473 N
SF020+NMRV-P075 10,00 TP90L2Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 79-192 Nm | Service factor fs (a-b): 2.4-2.1 | Radial load Fr2: 2721 N
SF020+NMRV-P090 10,00 TP90L2Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 79-197 Nm | Service factor fs (a-b): 4.1-3.0 | Radial load Fr2: 3011 N
SF020+NMRV-P075 15,00 TP90L2Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 115-274 Nm | Service factor fs (a-b): 1.9-1.6 | Radial load Fr2: 3115 N
SF020+NMRV-P090 15,00 TP90L2Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 117-281 Nm | Service factor fs (a-b): 3.2-2.4 | Radial load Fr2: 3447 N
SF030+NMRV-P090 7,50 TP100LA4Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 117-300 Nm | Service factor fs (a-b): 3.2-1.9 | Radial load Fr2: 3447 N
SF020+NMRV-P075 20,00 TP90L2Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 149-346 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 3429 N
SF020+NMRV-P090 20,00 TP90L2Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 152-360 Nm | Service factor fs (a-b): 2.4-1.7 | Radial load Fr2: 3794 N
SF020+NMRV-P110 20,00 TP90L2Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 154-370 Nm | Service factor fs (a-b): 4.0-3.1 | Radial load Fr2: 4794 N
SF030+NMRV-P090 10,00 TP100LA4Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 152-389 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 3794 N
SF030+NMRV-P110 10,00 TP100LA4Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 154-389 Nm | Service factor fs (a-b): 4.6-2.9 | Radial load Fr2: 4794 N
SF030+NMRV-P090 7,50 TP112M6Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 171-300 Nm | Service factor fs (a-b): 2.6-1.9 | Radial load Fr2: 3994 N
SF030+NMRV-P110 7,50 TP112M6Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 173-299 Nm | Service factor fs (a-b): 4.6-3.6 | Radial load Fr2: 5047 N
SF050+NMRV-P110 7,50 TP112M6Power P1: 2.20 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 173-398 Nm | Service factor fs (a-b): 4.6-2.7 | Radial load Fr2: 5047 N
SF020+NMRV-P075 25,00 TP90L2Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 182-414 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 3694 N
SF020+NMRV-P090 25,00 TP90L2Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 186-432 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 4087 N
SF020+NMRV-P110 25,00 TP90L2Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 190-450 Nm | Service factor fs (a-b): 3.4-2.6 | Radial load Fr2: 5164 N
SF020+NMRV130 25,00 TP90L2Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 189-450 Nm | Service factor fs (a-b): 4.7-3.4 | Radial load Fr2: 6754 N
SF020+NMRV-P075 30,00 TP90L2Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 208-461 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 3925 N
SF020+NMRV-P090 30,00 TP90L2Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 213-482 Nm | Service factor fs (a-b): 1.9-1.5 | Radial load Fr2: 4343 N
SF020+NMRV-P110 30,00 TP90L2Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 216-482 Nm | Service factor fs (a-b): 3.2-2.6 | Radial load Fr2: 5488 N
SF020+NMRV130 30,00 TP90L2Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 216-490 Nm | Service factor fs (a-b): 4.6-3.6 | Radial load Fr2: 7178 N
SF030+NMRV-P090 15,00 TP100LA4Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 223-552 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 4343 N
SF030+NMRV-P110 15,00 TP100LA4Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 226-559 Nm | Service factor fs (a-b): 3.4-2.1 | Radial load Fr2: 5488 N
SF030+NMRV130 15,00 TP100LA4Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 223-547 Nm | Service factor fs (a-b): 4.7-3.1 | Radial load Fr2: 7178 N
SF030+NMRV-P090 10,00 TP112M6Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 226-389 Nm | Service factor fs (a-b): 2.1-1.5 | Radial load Fr2: 4396 N
SF030+NMRV-P110 10,00 TP112M6Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 226-389 Nm | Service factor fs (a-b): 3.8-2.9 | Radial load Fr2: 5555 N
SF050+NMRV-P110 10,00 TP112M6Power P1: 2.20 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 226-518 Nm | Service factor fs (a-b): 3.8-2.2 | Radial load Fr2: 5555 N
SF020+NMRV-P075 40,00 TP90L2Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 264-566 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 4320 N
SF020+NMRV-P090 40,00 TP90L2Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 274-595 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 4780 N
SF020+NMRV-P110 40,00 TP90L2Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 284-624 Nm | Service factor fs (a-b): 2.3-1.9 | Radial load Fr2: 6040 N
SF020+NMRV130 40,00 TP90L2Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 281-624 Nm | Service factor fs (a-b): 3.5-2.6 | Radial load Fr2: 7900 N
SF030+NMRV-P090 20,00 TP100LA4Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 287-707 Nm | Service factor fs (a-b): 1.5-0.9 | Radial load Fr2: 4780 N
SF030+NMRV-P110 20,00 TP100LA4Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 294-726 Nm | Service factor fs (a-b): 2.5-1.6 | Radial load Fr2: 6040 N
SF030+NMRV130 20,00 TP100LA4Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 298-720 Nm | Service factor fs (a-b): 3.5-2.2 | Radial load Fr2: 7900 N
SF030+NMRV-P090 15,00 TP112M6Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 327-552 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 5032 N
SF030+NMRV-P110 15,00 TP112M6Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-559 Nm | Service factor fs (a-b): 2.7-2.1 | Radial load Fr2: 6358 N
SF030+NMRV130 15,00 TP112M6Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-547 Nm | Service factor fs (a-b): 3.9-3.1 | Radial load Fr2: 8317 N
SF050+NMRV-P110 15,00 TP112M6Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-746 Nm | Service factor fs (a-b): 2.7-1.6 | Radial load Fr2: 6358 N
SF050+NMRV130 15,00 TP112M6Power P1: 2.20 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 331-730 Nm | Service factor fs (a-b): 3.9-2.3 | Radial load Fr2: 8317 N
SF020+NMRV-P090 50,00 TP90L2Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 329-696 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 5149 N
SF020+NMRV-P110 50,00 TP90L2Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 342-744 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 6506 N
SF020+NMRV130 50,00 TP90L2Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 338-744 Nm | Service factor fs (a-b): 2.8-2.1 | Radial load Fr2: 8510 N
SF020+NMRV150 50,00 TP90L2Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 343-744 Nm | Service factor fs (a-b): 3.9-3.1 | Radial load Fr2: 11634 N
SF030+NMRV-P110 25,00 TP100LA4Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 359-884 Nm | Service factor fs (a-b): 2.1-1.3 | Radial load Fr2: 6506 N
SF030+NMRV130 25,00 TP100LA4Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 363-876 Nm | Service factor fs (a-b): 2.9-1.7 | Radial load Fr2: 8510 N
SF030+NMRV150 25,00 TP100LA4Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 368-876 Nm | Service factor fs (a-b): 3.8-2.3 | Radial load Fr2: 11634 N
SF020+NMRV-P110 60,00 TP90L2Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 400-835 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 6914 N
SF020+NMRV130 60,00 TP90L2Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 390-835 Nm | Service factor fs (a-b): 2.2-1.7 | Radial load Fr2: 9043 N
SF020+NMRV150 60,00 TP90L2Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 395-850 Nm | Service factor fs (a-b): 3.0-2.4 | Radial load Fr2: 12363 N
SF030+NMRV-P090 30,00 TP100LA4Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 399-941 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 5472 N
SF030+NMRV-P110 30,00 TP100LA4Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 404-936 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 6914 N
SF030+NMRV130 30,00 TP100LA4Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 415-950 Nm | Service factor fs (a-b): 2.8-1.9 | Radial load Fr2: 9043 N
SF030+NMRV150 30,00 TP100LA4Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 431-1022 Nm | Service factor fs (a-b): 3.3-2.1 | Radial load Fr2: 12363 N
SF030+NMRV-P090 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 420-707 Nm | Service factor fs (a-b): 1.2-0.9 | Radial load Fr2: 5538 N
SF030+NMRV-P110 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 431-726 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 6998 N
SF030+NMRV130 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-720 Nm | Service factor fs (a-b): 2.8-2.2 | Radial load Fr2: 9154 N
SF030+NMRV150 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-720 Nm | Service factor fs (a-b): 4.2-3.2 | Radial load Fr2: 12514 N
SF050+NMRV-P110 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 431-969 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 6998 N
SF050+NMRV130 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-960 Nm | Service factor fs (a-b): 2.8-1.7 | Radial load Fr2: 9154 N
SF050+NMRV150 20,00 TP112M6Power P1: 2.20 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 436-960 Nm | Service factor fs (a-b): 4.2-2.4 | Radial load Fr2: 12514 N
SF030+NMRV-P110 25,00 TP112M6Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-884 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 7539 N
SF030+NMRV130 25,00 TP112M6Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-876 Nm | Service factor fs (a-b): 2.3-1.7 | Radial load Fr2: 9860 N
SF030+NMRV150 25,00 TP112M6Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 532-876 Nm | Service factor fs (a-b): 3.1-2.3 | Radial load Fr2: 13480 N
SF050+NMRV-P110 25,00 TP112M6Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-1179 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 7539 N
SF050+NMRV130 25,00 TP112M6Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 525-1168 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 9860 N
SF050+NMRV150 25,00 TP112M6Power P1: 2.20 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 532-1168 Nm | Service factor fs (a-b): 3.1-1.8 | Radial load Fr2: 13480 N
SF020+NMRV-P110 80,00 TP90L2Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 493-1018 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 7610 N
SF020+NMRV130 80,00 TP90L2Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 491-1018 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 9953 N
SF020+NMRV150 80,00 TP90L2Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 491-1018 Nm | Service factor fs (a-b): 2.2-1.8 | Radial load Fr2: 13607 N
SF030+NMRV-P110 40,00 TP100LA4Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 525-1210 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 7610 N
SF030+NMRV130 40,00 TP100LA4Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 532-1210 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 9953 N
SF030+NMRV150 40,00 TP100LA4Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 532-1229 Nm | Service factor fs (a-b): 3.4-2.2 | Radial load Fr2: 13607 N
SF030+NMRV-P090 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 574-941 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 6340 N
SF030+NMRV-P110 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 582-936 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 8011 N
SF030+NMRV130 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 590-950 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 10478 N
SF030+NMRV150 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 622-1022 Nm | Service factor fs (a-b): 2.7-2.1 | Radial load Fr2: 14325 N
SF050+NMRV-P110 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 582-1248 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 8011 N
SF050+NMRV130 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 590-1267 Nm | Service factor fs (a-b): 2.4-1.4 | Radial load Fr2: 10478 N
SF050+NMRV150 30,00 TP112M6Power P1: 2.20 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 622-1363 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 14325 N
SF020+NMRV130 100,00 TP90L2Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 578-1152 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 10722 N
SF020+NMRV150 100,00 TP90L2Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 578-1152 Nm | Service factor fs (a-b): 1.6-1.4 | Radial load Fr2: 14658 N
SF030+NMRV-P110 50,00 TP100LA4Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 630-1448 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 8198 N
SF030+NMRV130 50,00 TP100LA4Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 639-1440 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 10722 N
SF030+NMRV150 50,00 TP100LA4Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 648-1440 Nm | Service factor fs (a-b): 2.5-1.6 | Radial load Fr2: 14658 N
SF030+NMRV130 60,00 TP100LA4Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 735-1613 Nm | Service factor fs (a-b): 1.3-0.9 | Radial load Fr2: 11394 N
SF030+NMRV150 60,00 TP100LA4Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 746-1642 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 15576 N
SF030+NMRV-P110 40,00 TP112M6Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1210 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 8817 N
SF030+NMRV130 40,00 TP112M6Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1210 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 11533 N
SF030+NMRV150 40,00 TP112M6Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 872-1229 Nm | Service factor fs (a-b): 2.4-2.2 | Radial load Fr2: 15766 N
SF050+NMRV-P110 40,00 TP112M6Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1613 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 8817 N
SF050+NMRV130 40,00 TP112M6Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 755-1613 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 11533 N
SF050+NMRV150 40,00 TP112M6Power P1: 2.20 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 872-1638 Nm | Service factor fs (a-b): 2.4-1.6 | Radial load Fr2: 15766 N
SF030+NMRV-P110 50,00 TP112M6Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 890-1448 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 9498 N
SF030+NMRV130 50,00 TP112M6Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 904-1440 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 12423 N
SF030+NMRV150 50,00 TP112M6Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 917-1440 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 16984 N
SF030+NMRV150 80,00 TP100LA4Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 924-1958 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 17144 N
SF050+NMRV130 50,00 TP112M6Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 904-1920 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 12423 N
SF050+NMRV150 50,00 TP112M6Power P1: 2.20 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 917-1920 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 16984 N
SF030+NMRV130 60,00 TP112M6Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1021-1613 Nm | Service factor fs (a-b): 1.0-0.9 | Radial load Fr2: 13202 N
SF030+NMRV150 60,00 TP112M6Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1037-1642 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 18000 N
SF050+NMRV150 60,00 TP112M6Power P1: 2.20 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1037-2189 Nm | Service factor fs (a-b): 1.6-1.0 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP100LA4Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 1068-2256 Nm | Service factor fs (a-b): 1.1-0.7 | Radial load Fr2: 18000 N
SF030+NMRV150 80,00 TP112M6Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 1276-1958 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 18000 N
SF050+NMRV150 80,00 TP112M6Power P1: 2.20 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 1276-2611 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP112M6Power P1: 2.20 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.2 rpm | Output torque M2 (a-b): 1462-2256 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 18000 N
SF030+NMRV-P090 7,50 TP100L2Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-51.0 rpm | Output torque M2 (a-b): 82-302 Nm | Service factor fs (a-b): 3.7-1.9 | Radial load Fr2: 2736 N
SF030+NMRV-P090 10,00 TP100L2Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-38.0 rpm | Output torque M2 (a-b): 108-394 Nm | Service factor fs (a-b): 3.0-1.5 | Radial load Fr2: 3011 N
SF020+NMRV-P090 15,00 TP100L2Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-281 Nm | Service factor fs (a-b): 2.4-2.4 | Radial load Fr2: 3447 N
SF030+NMRV-P090 7,50 TP112MS4Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-300 Nm | Service factor fs (a-b): 2.3-1.9 | Radial load Fr2: 3447 N
SF030+NMRV-P090 15,00 TP100L2Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-562 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 3447 N
SF030+NMRV-P110 7,50 TP112MS4Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-299 Nm | Service factor fs (a-b): 4.1-3.6 | Radial load Fr2: 4356 N
SF030+NMRV-P110 15,00 TP100L2Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 159-569 Nm | Service factor fs (a-b): 3.9-2.1 | Radial load Fr2: 4356 N
SF020+NMRV-P090 20,00 TP100L2Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 208-360 Nm | Service factor fs (a-b): 1.8-1.7 | Radial load Fr2: 3794 N
SF030+NMRV-P090 10,00 TP112MS4Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 208-389 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 3794 N
SF030+NMRV-P090 20,00 TP100L2Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 208-720 Nm | Service factor fs (a-b): 1.8-0.8 | Radial load Fr2: 3794 N
SF030+NMRV-P110 10,00 TP112MS4Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 210-389 Nm | Service factor fs (a-b): 3.4-2.9 | Radial load Fr2: 4794 N
SF030+NMRV-P110 20,00 TP100L2Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 210-739 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 4794 N
SF030+NMRV130 10,00 TP112MS4Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 210-389 Nm | Service factor fs (a-b): 4.6-3.9 | Radial load Fr2: 6270 N
SF030+NMRV130 20,00 TP100L2Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 211-739 Nm | Service factor fs (a-b): 4.1-2.2 | Radial load Fr2: 6270 N
SF030+NMRV-P090 7,50 TP132S6Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 234-300 Nm | Service factor fs (a-b): 1.9-1.9 | Radial load Fr2: 3994 N
SF050+NMRV-P110 7,50 TP132S6Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 237-398 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 5047 N
SF050+NMRV130 7,50 TP132S6Power P1: 3.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-16.0 rpm | Output torque M2 (a-b): 239-394 Nm | Service factor fs (a-b): 4.5-3.7 | Radial load Fr2: 6601 N
SF020+NMRV-P090 25,00 TP100L2Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 254-432 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 4087 N
SF020+NMRV130 25,00 TP100L2Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 258-450 Nm | Service factor fs (a-b): 3.4-3.4 | Radial load Fr2: 6754 N
SF030+NMRV-P110 25,00 TP100L2Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 260-900 Nm | Service factor fs (a-b): 2.5-1.3 | Radial load Fr2: 5164 N
SF030+NMRV130 25,00 TP100L2Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 258-900 Nm | Service factor fs (a-b): 3.4-1.7 | Radial load Fr2: 6754 N
SF030+NMRV150 25,00 TP100L2Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-15.0 rpm | Output torque M2 (a-b): 258-900 Nm | Service factor fs (a-b): 4.4-2.3 | Radial load Fr2: 9234 N
SF030+NMRV-P090 15,00 TP112MS4Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 304-552 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 4343 N
SF030+NMRV-P090 30,00 TP100L2Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 291-965 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 4343 N
SF030+NMRV-P110 15,00 TP112MS4Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 308-559 Nm | Service factor fs (a-b): 2.5-2.1 | Radial load Fr2: 5488 N
SF030+NMRV-P110 30,00 TP100L2Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 294-965 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 5488 N
SF030+NMRV130 15,00 TP112MS4Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 304-547 Nm | Service factor fs (a-b): 3.5-3.1 | Radial load Fr2: 7178 N
SF030+NMRV130 30,00 TP100L2Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 295-979 Nm | Service factor fs (a-b): 3.4-1.8 | Radial load Fr2: 7178 N
SF030+NMRV150 30,00 TP100L2Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 306-1051 Nm | Service factor fs (a-b): 3.7-2.0 | Radial load Fr2: 9812 N
SF030+NMRV-P090 10,00 TP132S6Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 308-389 Nm | Service factor fs (a-b): 1.6-1.5 | Radial load Fr2: 4396 N
SF050+NMRV-P110 10,00 TP132S6Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 308-518 Nm | Service factor fs (a-b): 2.8-2.2 | Radial load Fr2: 5555 N
SF050+NMRV130 10,00 TP132S6Power P1: 3.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-12.0 rpm | Output torque M2 (a-b): 312-518 Nm | Service factor fs (a-b): 3.7-3.0 | Radial load Fr2: 7265 N
SF030+NMRV-P090 20,00 TP112MS4Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 391-707 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 4780 N
SF030+NMRV-P110 20,00 TP112MS4Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 401-726 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 6040 N
SF030+NMRV-P110 40,00 TP100L2Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 388-1248 Nm | Service factor fs (a-b): 1.7-0.9 | Radial load Fr2: 6040 N
SF030+NMRV130 20,00 TP112MS4Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 406-720 Nm | Service factor fs (a-b): 2.6-2.2 | Radial load Fr2: 7900 N
SF030+NMRV130 40,00 TP100L2Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 383-1248 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 7900 N
SF030+NMRV150 20,00 TP112MS4Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 406-720 Nm | Service factor fs (a-b): 3.7-3.2 | Radial load Fr2: 10800 N
SF030+NMRV150 40,00 TP100L2Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 383-1267 Nm | Service factor fs (a-b): 3.8-2.1 | Radial load Fr2: 10800 N
SF030+NMRV-P090 15,00 TP132S6Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 446-552 Nm | Service factor fs (a-b): 1.2-1.2 | Radial load Fr2: 5032 N
SF050+NMRV-P110 15,00 TP132S6Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 451-746 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 6358 N
SF050+NMRV130 15,00 TP132S6Power P1: 3.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-8.1 rpm | Output torque M2 (a-b): 451-730 Nm | Service factor fs (a-b): 2.9-2.3 | Radial load Fr2: 8317 N
SF030+NMRV-P110 25,00 TP112MS4Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 489-884 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 6506 N
SF030+NMRV-P110 50,00 TP100L2Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 466-1488 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 6506 N
SF030+NMRV130 25,00 TP112MS4Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 495-876 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 8510 N
SF030+NMRV130 50,00 TP100L2Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 461-1488 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 8510 N
SF030+NMRV150 25,00 TP112MS4Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 501-876 Nm | Service factor fs (a-b): 2.8-2.3 | Radial load Fr2: 11634 N
SF030+NMRV150 50,00 TP100L2Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 467-1488 Nm | Service factor fs (a-b): 2.8-1.6 | Radial load Fr2: 11634 N
SF030+NMRV-P090 30,00 TP112MS4Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 544-941 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 5472 N
SF030+NMRV-P110 30,00 TP112MS4Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 551-936 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 6914 N
SF030+NMRV130 30,00 TP112MS4Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 566-950 Nm | Service factor fs (a-b): 2.1-1.9 | Radial load Fr2: 9043 N
SF030+NMRV130 60,00 TP100L2Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 531-1670 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 9043 N
SF030+NMRV150 30,00 TP112MS4Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 587-1022 Nm | Service factor fs (a-b): 2.4-2.1 | Radial load Fr2: 12363 N
SF030+NMRV150 60,00 TP100L2Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 539-1699 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 12363 N
SF030+NMRV-P090 20,00 TP132S6Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 573-707 Nm | Service factor fs (a-b): 0.9-0.9 | Radial load Fr2: 5538 N
SF050+NMRV-P110 20,00 TP132S6Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 587-969 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 6998 N
SF050+NMRV130 20,00 TP132S6Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 594-960 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 9154 N
SF050+NMRV150 20,00 TP132S6Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 594-960 Nm | Service factor fs (a-b): 3.1-2.4 | Radial load Fr2: 12514 N
SF100+NMRV150 20,00 TP132S6Power P1: 3.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 594-2160 Nm | Service factor fs (a-b): 3.1-1.1 | Radial load Fr2: 12514 N
SF050+NMRV-P110 25,00 TP132S6Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 716-1179 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 7539 N
SF050+NMRV130 25,00 TP132S6Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 716-1168 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 9860 N
SF050+NMRV150 25,00 TP132S6Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 725-1168 Nm | Service factor fs (a-b): 2.2-1.8 | Radial load Fr2: 13480 N
SF100+NMRV150 25,00 TP132S6Power P1: 3.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 725-2628 Nm | Service factor fs (a-b): 2.2-0.8 | Radial load Fr2: 13480 N
SF030+NMRV-P110 40,00 TP112MS4Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 716-1210 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 7610 N
SF030+NMRV130 40,00 TP112MS4Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 726-1210 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 9953 N
SF030+NMRV150 40,00 TP112MS4Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 726-1229 Nm | Service factor fs (a-b): 2.5-2.2 | Radial load Fr2: 13607 N
SF030+NMRV150 80,00 TP100L2Power P1: 3.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 670-2035 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 13607 N
SF050+NMRV-P110 30,00 TP132S6Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 794-1248 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 8011 N
SF050+NMRV130 30,00 TP132S6Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 805-1267 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 10478 N
SF050+NMRV150 30,00 TP132S6Power P1: 3.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-4.1 rpm | Output torque M2 (a-b): 848-1363 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 14325 N
SF030+NMRV-P110 50,00 TP112MS4Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 859-1448 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 8198 N
SF030+NMRV130 50,00 TP112MS4Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 871-1440 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 10722 N
SF030+NMRV150 50,00 TP112MS4Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 883-1440 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 14658 N
SF030+NMRV150 100,00 TP100L2Power P1: 3.00 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 789-2304 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 14658 N
SF030+NMRV130 60,00 TP112MS4Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 1002-1613 Nm | Service factor fs (a-b): 0.9-0.9 | Radial load Fr2: 11394 N
SF030+NMRV150 60,00 TP112MS4Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 1017-1642 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 15576 N
SF050+NMRV-P110 40,00 TP132S6Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1029-1613 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 8817 N
SF050+NMRV130 40,00 TP132S6Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1029-1613 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 11533 N
SF050+NMRV150 40,00 TP132S6Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1189-1638 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 15766 N
SF100+NMRV150 40,00 TP132S6Power P1: 3.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1189-3686 Nm | Service factor fs (a-b): 1.8-0.7 | Radial load Fr2: 15766 N
SF030+NMRV150 80,00 TP112MS4Power P1: 3.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1260-1958 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 17144 N
SF050+NMRV130 50,00 TP132S6Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1232-1920 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 12423 N
SF050+NMRV150 50,00 TP132S6Power P1: 3.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1250-1920 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 16984 N
SF050+NMRV150 60,00 TP132S6Power P1: 3.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-2.0 rpm | Output torque M2 (a-b): 1414-2189 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 18000 N
SF030+NMRV150 100,00 TP112MS4Power P1: 3.00 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.9 rpm | Output torque M2 (a-b): 1456-2256 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 18000 N
SF050+NMRV150 80,00 TP132S6Power P1: 3.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.5 rpm | Output torque M2 (a-b): 1740-2611 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 18000 N
SF050+NMRV-P110 7,50 TP112M4Power P1: 4.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 212-398 Nm | Service factor fs (a-b): 3.1-2.7 | Radial load Fr2: 4356 N
SF050+NMRV130 7,50 TP112M4Power P1: 4.00 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-25.0 rpm | Output torque M2 (a-b): 215-394 Nm | Service factor fs (a-b): 4.1-3.7 | Radial load Fr2: 5697 N
SF050+NMRV-P110 10,00 TP112M4Power P1: 4.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 280-518 Nm | Service factor fs (a-b): 2.5-2.2 | Radial load Fr2: 4794 N
SF050+NMRV130 10,00 TP112M4Power P1: 4.00 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-19.0 rpm | Output torque M2 (a-b): 280-518 Nm | Service factor fs (a-b): 3.4-3.0 | Radial load Fr2: 6270 N
SF050+NMRV-P110 15,00 TP112M4Power P1: 4.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 411-746 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 5488 N
SF050+NMRV130 15,00 TP112M4Power P1: 4.00 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-13.0 rpm | Output torque M2 (a-b): 406-730 Nm | Service factor fs (a-b): 2.6-2.3 | Radial load Fr2: 7178 N
SF050+NMRV-P110 20,00 TP112M4Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 535-969 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 6040 N
SF050+NMRV130 20,00 TP112M4Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 541-960 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 7900 N
SF050+NMRV150 20,00 TP112M4Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 541-960 Nm | Service factor fs (a-b): 2.8-2.4 | Radial load Fr2: 10800 N
SF050+NMRV-P110 25,00 TP112M4Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 652-1179 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 6506 N
SF050+NMRV130 25,00 TP112M4Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 660-1168 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 8510 N
SF050+NMRV150 25,00 TP112M4Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 668-1168 Nm | Service factor fs (a-b): 2.1-1.8 | Radial load Fr2: 11634 N
SF050+NMRV-P110 30,00 TP112M4Power P1: 4.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 735-1248 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 6914 N
SF050+NMRV130 30,00 TP112M4Power P1: 4.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 754-1267 Nm | Service factor fs (a-b): 1.6-1.4 | Radial load Fr2: 9043 N
SF050+NMRV150 30,00 TP112M4Power P1: 4.00 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-6.3 rpm | Output torque M2 (a-b): 783-1363 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 12363 N
SF100+NMRV150 20,00 TP132MA6Power P1: 4.00 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 793-2160 Nm | Service factor fs (a-b): 2.3-1.1 | Radial load Fr2: 12514 N
SF100+NMRV150 25,00 TP132MA6Power P1: 4.00 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 967-2628 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 13480 N
SF050+NMRV-P110 40,00 TP112M4Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 955-1613 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 7610 N
SF050+NMRV130 40,00 TP112M4Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 967-1613 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 9953 N
SF050+NMRV150 40,00 TP112M4Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 967-1638 Nm | Service factor fs (a-b): 1.9-1.6 | Radial load Fr2: 13607 N
SF050+NMRV130 50,00 TP112M4Power P1: 4.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 1162-1920 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 10722 N
SF050+NMRV150 50,00 TP112M4Power P1: 4.00 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.8 rpm | Output torque M2 (a-b): 1177-1920 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 14658 N
SF050+NMRV150 60,00 TP112M4Power P1: 4.00 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-3.2 rpm | Output torque M2 (a-b): 1356-2189 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 15576 N
SF100+NMRV150 40,00 TP132MA6Power P1: 4.00 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 1585-3686 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 15766 N
SF050+NMRV150 80,00 TP112M4Power P1: 4.00 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.4 rpm | Output torque M2 (a-b): 1680-2611 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 17144 N
SF100+NMRV150 20,00 TP132MS4Power P1: 5.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 744-2160 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 10800 N
SF100+NMRV150 25,00 TP132MS4Power P1: 5.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 919-2628 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 11634 N
SF100+NMRV150 20,00 TP132MB6Power P1: 5.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 1090-2160 Nm | Service factor fs (a-b): 1.7-1.1 | Radial load Fr2: 12514 N
SF100+NMRV150 25,00 TP132MB6Power P1: 5.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 1329-2628 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 13480 N
SF100+NMRV150 40,00 TP132MS4Power P1: 5.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 1330-3686 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 13607 N
SF100+NMRV150 40,00 TP132MB6Power P1: 5.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-3.1 rpm | Output torque M2 (a-b): 2180-3686 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 15766 N
SF100+NMRV150 20,00 TP132M4Power P1: 7.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-9.5 rpm | Output torque M2 (a-b): 1014-2160 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 10800 N
SF100+NMRV150 25,00 TP132M4Power P1: 7.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-7.6 rpm | Output torque M2 (a-b): 1253-2628 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 11634 N
SF100+NMRV150 20,00 TP160M6Power P1: 7.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-6.1 rpm | Output torque M2 (a-b): 1486-2160 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 12514 N
SF100+NMRV150 25,00 TP160M6Power P1: 7.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.9 rpm | Output torque M2 (a-b): 1812-2628 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 13480 N
SF100+NMRV150 40,00 TP132M4Power P1: 7.50 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.8 rpm | Output torque M2 (a-b): 1814-3686 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 13607 N
S020 NMRV075 7,5 90L6Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90L6
S020 NMRV075 7,5 90S4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90S4
S020 NMRV075 10 90L6Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90L6
S020 NMRV075 10 90S4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90S4
S020 NMRV075 15 90L6Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90L6
S020 NMRV075 15 90S4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90S4
S020 NMRV075 20 90L6Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90L6
S020 NMRV075 20 90S4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90S4
S020 NMRV075 25 90L6Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 25 | Motor: 90L6
S020 NMRV075 30 90L6Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 30 | Motor: 90L6
S020 NMRV075 7,5 90L4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90L4
S020 NMRV075 7,5 90S2Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90S2
S020 NMRV075 10 90L4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90L4
S020 NMRV075 10 90S2Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90S2
S020 NMRV075 15 90L4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90L4
S020 NMRV075 15 90S2Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90S2
S020 NMRV075 20 90L4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90L4
S020 NMRV075 7,5 90LL4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90LL4
S020 NMRV075 10 90LL4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90LL4
S020 NMRV075 15 90LL4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90LL4
S020 NMRV075 20 90LL4Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 20 | Motor: 90LL4
S020 NMRV075 7,5 90L2Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 7.5 | Motor: 90L2
S020 NMRV075 10 90L2Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 10 | Motor: 90L2
S020 NMRV075 15 90L2Legacy code (older edition) | Unit: S020 NMRV075 | Ratio i: 15 | Motor: 90L2
S020 NMRV090 7,5 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90L6
S020 NMRV090 7,5 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90S4
S020 NMRV090 10 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90L6
S020 NMRV090 10 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90S4
S020 NMRV090 15 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90L6
S020 NMRV090 15 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90S4
S020 NMRV090 20 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90L6
S020 NMRV090 20 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90S4
S020 NMRV090 25 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90L6
S020 NMRV090 25 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90S4
S020 NMRV090 30 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90L6
S020 NMRV090 30 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90S4
S020 NMRV090 40 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90L6
S020 NMRV090 40 90S4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90S4
S020 NMRV090 50 90L6Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 50 | Motor: 90L6
S020 NMRV090 7,5 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90L4
S020 NMRV090 7,5 90S2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90S2
S020 NMRV090 10 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90L4
S020 NMRV090 10 90S2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90S2
S020 NMRV090 15 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90L4
S020 NMRV090 15 90S2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90S2
S020 NMRV090 20 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90L4
S020 NMRV090 20 90S2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90S2
S020 NMRV090 25 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90L4
S020 NMRV090 25 90S2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90S2
S020 NMRV090 30 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90L4
S020 NMRV090 30 90S2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90S2
S020 NMRV090 40 90L4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90L4
S020 NMRV090 7,5 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90LL4
S020 NMRV090 10 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90LL4
S020 NMRV090 15 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90LL4
S020 NMRV090 20 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90LL4
S020 NMRV090 25 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90LL4
S020 NMRV090 30 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90LL4
S020 NMRV090 40 90LL4Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 40 | Motor: 90LL4
S020 NMRV090 7,5 90L2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 7.5 | Motor: 90L2
S020 NMRV090 10 90L2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 10 | Motor: 90L2
S020 NMRV090 15 90L2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 15 | Motor: 90L2
S020 NMRV090 20 90L2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 20 | Motor: 90L2
S020 NMRV090 25 90L2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 25 | Motor: 90L2
S020 NMRV090 30 90L2Legacy code (older edition) | Unit: S020 NMRV090 | Ratio i: 30 | Motor: 90L2
S020 NMRV105 7,5 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 7.5 | Motor: 90L6
S020 NMRV105 10 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 10 | Motor: 90S4
S020 NMRV105 15 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90L6
S020 NMRV105 15 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90S4
S020 NMRV105 20 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90L6
S020 NMRV105 20 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90S4
S020 NMRV105 25 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90L6
S020 NMRV105 25 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90S4
S020 NMRV105 30 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90L6
S020 NMRV105 30 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90S4
S020 NMRV105 40 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90L6
S020 NMRV105 40 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90S4
S020 NMRV105 50 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90L6
S020 NMRV105 50 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90S4
S020 NMRV105 60 90L6Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90L6
S020 NMRV105 60 90S4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90S4
S020 NMRV105 7,5 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 7.5 | Motor: 90S2
S020 NMRV105 10 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 10 | Motor: 90L4
S020 NMRV105 15 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90L4
S020 NMRV105 15 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90S2
S020 NMRV105 20 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90L4
S020 NMRV105 20 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90S2
S020 NMRV105 25 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90L4
S020 NMRV105 25 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90S2
S020 NMRV105 30 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90L4
S020 NMRV105 30 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90S2
S020 NMRV105 40 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90L4
S020 NMRV105 40 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90S2
S020 NMRV105 50 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90L4
S020 NMRV105 50 90S2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90S2
S020 NMRV105 60 90L4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90L4
S020 NMRV105 10 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 10 | Motor: 90LL4
S020 NMRV105 15 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90LL4
S020 NMRV105 20 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90LL4
S020 NMRV105 25 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90LL4
S020 NMRV105 30 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90LL4
S020 NMRV105 40 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90LL4
S020 NMRV105 50 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90LL4
S020 NMRV105 60 90LL4Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 60 | Motor: 90LL4
S020 NMRV105 7,5 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 7.5 | Motor: 90L2
S020 NMRV105 15 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 15 | Motor: 90L2
S020 NMRV105 20 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 20 | Motor: 90L2
S020 NMRV105 25 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 25 | Motor: 90L2
S020 NMRV105 30 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 30 | Motor: 90L2
S020 NMRV105 40 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 40 | Motor: 90L2
S020 NMRV105 50 90L2Legacy code (older edition) | Unit: S020 NMRV105 | Ratio i: 50 | Motor: 90L2
S020 NMRV110 7,5 90S4Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 7.5 | Motor: 90S4
S020 NMRV110 10 90L6Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 10 | Motor: 90L6
S020 NMRV110 80 90L6Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 80 | Motor: 90L6
S020 NMRV110 7,5 90L4Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 7.5 | Motor: 90L4
S020 NMRV110 10 90S2Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 10 | Motor: 90S2
S020 NMRV110 7,5 90LL4Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 7.5 | Motor: 90LL4
S020 NMRV110 10 90L2Legacy code (older edition) | Unit: S020 NMRV110 | Ratio i: 10 | Motor: 90L2
S020 NMRV130 25 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90L6
S020 NMRV130 25 90S4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90S4
S020 NMRV130 30 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90L6
S020 NMRV130 30 90S4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90S4
S020 NMRV130 40 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90L6
S020 NMRV130 40 90S4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90S4
S020 NMRV130 50 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90L6
S020 NMRV130 50 90S4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90S4
S020 NMRV130 60 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90L6
S020 NMRV130 60 90S4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90S4
S020 NMRV130 80 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90L6
S020 NMRV130 80 90S4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90S4
S020 NMRV130 100 90L6Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 100 | Motor: 90L6
S020 NMRV130 25 90L4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90L4
S020 NMRV130 25 90S2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90S2
S020 NMRV130 30 90L4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90L4
S020 NMRV130 30 90S2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90S2
S020 NMRV130 40 90L4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90L4
S020 NMRV130 40 90S2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90S2
S020 NMRV130 50 90L4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90L4
S020 NMRV130 50 90S2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90S2
S020 NMRV130 60 90L4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90L4
S020 NMRV130 60 90S2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90S2
S020 NMRV130 80 90L4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90L4
S020 NMRV130 25 90LL4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90LL4
S020 NMRV130 30 90LL4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90LL4
S020 NMRV130 40 90LL4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90LL4
S020 NMRV130 50 90LL4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90LL4
S020 NMRV130 60 90LL4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90LL4
S020 NMRV130 80 90LL4Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 80 | Motor: 90LL4
S020 NMRV130 25 90L2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 25 | Motor: 90L2
S020 NMRV130 30 90L2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 30 | Motor: 90L2
S020 NMRV130 40 90L2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 40 | Motor: 90L2
S020 NMRV130 50 90L2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 50 | Motor: 90L2
S020 NMRV130 60 90L2Legacy code (older edition) | Unit: S020 NMRV130 | Ratio i: 60 | Motor: 90L2
S020 NMRV150 50 90L6Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90L6
S020 NMRV150 50 90S4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90S4
S020 NMRV150 60 90L6Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90L6
S020 NMRV150 60 90S4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90S4
S020 NMRV150 80 90L6Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90L6
S020 NMRV150 80 90S4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90S4
S020 NMRV150 100 90L6Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90L6
S020 NMRV150 100 90S4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90S4
S020 NMRV150 50 90L4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90L4
S020 NMRV150 50 90S2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90S2
S020 NMRV150 60 90L4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90L4
S020 NMRV150 60 90S2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90S2
S020 NMRV150 80 90L4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90L4
S020 NMRV150 80 90S2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90S2
S020 NMRV150 100 90L4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90L4
S020 NMRV150 100 90S2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90S2
S020 NMRV150 50 90LL4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90LL4
S020 NMRV150 60 90LL4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90LL4
S020 NMRV150 80 90LL4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90LL4
S020 NMRV150 100 90LL4Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90LL4
S020 NMRV150 50 90L2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 50 | Motor: 90L2
S020 NMRV150 60 90L2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 60 | Motor: 90L2
S020 NMRV150 80 90L2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 80 | Motor: 90L2
S020 NMRV150 100 90L2Legacy code (older edition) | Unit: S020 NMRV150 | Ratio i: 100 | Motor: 90L2
S030 NMRV090 7,5 100LA6Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 7.5 | Motor: 100LA6
S030 NMRV090 10 100LA6Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 10 | Motor: 100LA6
S030 NMRV090 15 100LA6Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 15 | Motor: 100LA6
S030 NMRV090 20 100LA6Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 20 | Motor: 100LA6
S030 NMRV090 7,5 100LA4Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 7.5 | Motor: 100LA4
S030 NMRV090 10 100LA4Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 10 | Motor: 100LA4
S030 NMRV090 15 100LA4Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 15 | Motor: 100LA4
S030 NMRV090 7,5 100LB4Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 7.5 | Motor: 100LB4
S030 NMRV090 10 100LB4Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 10 | Motor: 100LB4
S030 NMRV090 15 100LB4Legacy code (older edition) | Unit: S030 NMRV090 | Ratio i: 15 | Motor: 100LB4
S030 NMRV105 7,5 100LA6Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 7.5 | Motor: 100LA6
S030 NMRV105 15 100LA6Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 15 | Motor: 100LA6
S030 NMRV105 20 100LA6Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 20 | Motor: 100LA6
S030 NMRV105 25 100LA6Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 25 | Motor: 100LA6
S030 NMRV105 30 100LA6Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 30 | Motor: 100LA6
S030 NMRV105 40 100LA6Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 40 | Motor: 100LA6
S030 NMRV105 10 100LA4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 10 | Motor: 100LA4
S030 NMRV105 15 100LA4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 15 | Motor: 100LA4
S030 NMRV105 20 100LA4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 20 | Motor: 100LA4
S030 NMRV105 25 100LA4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 25 | Motor: 100LA4
S030 NMRV105 30 100LA4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 30 | Motor: 100LA4
S030 NMRV105 10 100LB4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 10 | Motor: 100LB4
S030 NMRV105 15 100LB4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 15 | Motor: 100LB4
S030 NMRV105 20 100LB4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 20 | Motor: 100LB4
S030 NMRV105 25 100LB4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 25 | Motor: 100LB4
S030 NMRV105 30 100LB4Legacy code (older edition) | Unit: S030 NMRV105 | Ratio i: 30 | Motor: 100LB4
S030 NMRV110 10 100LA6Legacy code (older edition) | Unit: S030 NMRV110 | Ratio i: 10 | Motor: 100LA6
S030 NMRV110 7,5 100LA4Legacy code (older edition) | Unit: S030 NMRV110 | Ratio i: 7.5 | Motor: 100LA4
S030 NMRV110 7,5 100LB4Legacy code (older edition) | Unit: S030 NMRV110 | Ratio i: 7.5 | Motor: 100LB4
S030 NMRV130 7,5 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 7.5 | Motor: 100LA6
S030 NMRV130 10 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 10 | Motor: 100LA6
S030 NMRV130 15 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 15 | Motor: 100LA6
S030 NMRV130 20 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 20 | Motor: 100LA6
S030 NMRV130 25 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 25 | Motor: 100LA6
S030 NMRV130 30 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 30 | Motor: 100LA6
S030 NMRV130 40 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 40 | Motor: 100LA6
S030 NMRV130 50 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 50 | Motor: 100LA6
S030 NMRV130 60 100LA6Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 60 | Motor: 100LA6
S030 NMRV130 7,5 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 7.5 | Motor: 100LA4
S030 NMRV130 10 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 10 | Motor: 100LA4
S030 NMRV130 15 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 15 | Motor: 100LA4
S030 NMRV130 20 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 20 | Motor: 100LA4
S030 NMRV130 25 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 25 | Motor: 100LA4
S030 NMRV130 30 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 30 | Motor: 100LA4
S030 NMRV130 40 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 40 | Motor: 100LA4
S030 NMRV130 50 100LA4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 50 | Motor: 100LA4
S030 NMRV130 7,5 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 7.5 | Motor: 100LB4
S030 NMRV130 10 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 10 | Motor: 100LB4
S030 NMRV130 15 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 15 | Motor: 100LB4
S030 NMRV130 20 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 20 | Motor: 100LB4
S030 NMRV130 25 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 25 | Motor: 100LB4
S030 NMRV130 30 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 30 | Motor: 100LB4
S030 NMRV130 40 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 40 | Motor: 100LB4
S030 NMRV130 50 100LB4Legacy code (older edition) | Unit: S030 NMRV130 | Ratio i: 50 | Motor: 100LB4
S030 NMRV150 25 100LA6Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 25 | Motor: 100LA6
S030 NMRV150 30 100LA6Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 30 | Motor: 100LA6
S030 NMRV150 40 100LA6Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 40 | Motor: 100LA6
S030 NMRV150 50 100LA6Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 50 | Motor: 100LA6
S030 NMRV150 60 100LA6Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 60 | Motor: 100LA6
S030 NMRV150 80 100LA6Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 80 | Motor: 100LA6
S030 NMRV150 25 100LA4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 25 | Motor: 100LA4
S030 NMRV150 30 100LA4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 30 | Motor: 100LA4
S030 NMRV150 40 100LA4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 40 | Motor: 100LA4
S030 NMRV150 50 100LA4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 50 | Motor: 100LA4
S030 NMRV150 60 100LA4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 60 | Motor: 100LA4
S030 NMRV150 25 100LB4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 25 | Motor: 100LB4
S030 NMRV150 30 100LB4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 30 | Motor: 100LB4
S030 NMRV150 40 100LB4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 40 | Motor: 100LB4
S030 NMRV150 50 100LB4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 50 | Motor: 100LB4
S030 NMRV150 60 100LB4Legacy code (older edition) | Unit: S030 NMRV150 | Ratio i: 60 | Motor: 100LB4
S050 NMRV105 7,5 112M6Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 7.5 | Motor: 112M6
S050 NMRV105 10 112M6Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 10 | Motor: 112M6
S050 NMRV105 15 112M6Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 15 | Motor: 112M6
S050 NMRV105 20 112M6Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 20 | Motor: 112M6
S050 NMRV105 25 112M6Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 25 | Motor: 112M6
S050 NMRV105 30 112M6Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 30 | Motor: 112M6
S050 NMRV105 7,5 112M4Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 7.5 | Motor: 112M4
S050 NMRV105 10 112M4Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 10 | Motor: 112M4
S050 NMRV105 15 112M4Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 15 | Motor: 112M4
S050 NMRV105 7,5 112MS4Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 7.5 | Motor: 112MS4
S050 NMRV105 10 112MS4Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 10 | Motor: 112MS4
S050 NMRV105 15 112MS4Legacy code (older edition) | Unit: S050 NMRV105 | Ratio i: 15 | Motor: 112MS4
S050 NMRV110 20 112M4Legacy code (older edition) | Unit: S050 NMRV110 | Ratio i: 20 | Motor: 112M4
S050 NMRV110 20 112MS4Legacy code (older edition) | Unit: S050 NMRV110 | Ratio i: 20 | Motor: 112MS4
S050 NMRV130 7,5 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 7.5 | Motor: 112M6
S050 NMRV130 10 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 10 | Motor: 112M6
S050 NMRV130 15 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 15 | Motor: 112M6
S050 NMRV130 20 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 20 | Motor: 112M6
S050 NMRV130 25 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 25 | Motor: 112M6
S050 NMRV130 30 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 30 | Motor: 112M6
S050 NMRV130 40 112M6Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 40 | Motor: 112M6
S050 NMRV130 7,5 112M4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 7.5 | Motor: 112M4
S050 NMRV130 10 112M4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 10 | Motor: 112M4
S050 NMRV130 15 112M4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 15 | Motor: 112M4
S050 NMRV130 20 112M4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 20 | Motor: 112M4
S050 NMRV130 25 112M4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 25 | Motor: 112M4
S050 NMRV130 30 112M4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 30 | Motor: 112M4
S050 NMRV130 7,5 112MS4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 7.5 | Motor: 112MS4
S050 NMRV130 10 112MS4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 10 | Motor: 112MS4
S050 NMRV130 15 112MS4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 15 | Motor: 112MS4
S050 NMRV130 20 112MS4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 20 | Motor: 112MS4
S050 NMRV130 25 112MS4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 25 | Motor: 112MS4
S050 NMRV130 30 112MS4Legacy code (older edition) | Unit: S050 NMRV130 | Ratio i: 30 | Motor: 112MS4
S050 NMRV150 25 112M6Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 25 | Motor: 112M6
S050 NMRV150 30 112M6Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 30 | Motor: 112M6
S050 NMRV150 40 112M6Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 40 | Motor: 112M6
S050 NMRV150 50 112M6Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 50 | Motor: 112M6
S050 NMRV150 60 112M6Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 60 | Motor: 112M6
S050 NMRV150 25 112M4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 25 | Motor: 112M4
S050 NMRV150 30 112M4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 30 | Motor: 112M4
S050 NMRV150 40 112M4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 40 | Motor: 112M4
S050 NMRV150 50 112M4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 50 | Motor: 112M4
S050 NMRV150 25 112MS4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 25 | Motor: 112MS4
S050 NMRV150 30 112MS4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 30 | Motor: 112MS4
S050 NMRV150 40 112MS4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 40 | Motor: 112MS4
S050 NMRV150 50 112MS4Legacy code (older edition) | Unit: S050 NMRV150 | Ratio i: 50 | Motor: 112MS4
S100 NMRV150 7,5 132M6Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132M6
S100 NMRV150 7,5 132S4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132S4
S100 NMRV150 10 132M6Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132M6
S100 NMRV150 10 132S4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132S4
S100 NMRV150 15 132M6Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132M6
S100 NMRV150 15 132S4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132S4
S100 NMRV150 20 132M6Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132M6
S100 NMRV150 20 132S4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132S4
S100 NMRV150 7,5 132L4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132L4
S100 NMRV150 10 132L4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132L4
S100 NMRV150 15 132L4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132L4
S100 NMRV150 20 132L4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132L4
S100 NMRV150 7,5 132M4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 7.5 | Motor: 132M4
S100 NMRV150 10 132M4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 10 | Motor: 132M4
S100 NMRV150 15 132M4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 15 | Motor: 132M4
S100 NMRV150 20 132M4Legacy code (older edition) | Unit: S100 NMRV150 | Ratio i: 20 | Motor: 132M4
S020 NMRV075Legacy code (older edition) | Unit: S020 NMRV075
S020 NMRV090Legacy code (older edition) | Unit: S020 NMRV090
S020 NMRV110Legacy code (older edition) | Unit: S020 NMRV110
S020 NMRV105Legacy code (older edition) | Unit: S020 NMRV105
S020 NMRV130Legacy code (older edition) | Unit: S020 NMRV130
S020 NMRV150Legacy code (older edition) | Unit: S020 NMRV150
S030 NMRV090Legacy code (older edition) | Unit: S030 NMRV090
S030 NMRV105Legacy code (older edition) | Unit: S030 NMRV105
S030 NMRV130Legacy code (older edition) | Unit: S030 NMRV130
S030 NMRV110Legacy code (older edition) | Unit: S030 NMRV110
S030 NMRV150Legacy code (older edition) | Unit: S030 NMRV150
S050 NMRV105Legacy code (older edition) | Unit: S050 NMRV105
S050 NMRV130Legacy code (older edition) | Unit: S050 NMRV130
S050 NMRV150Legacy code (older edition) | Unit: S050 NMRV150
S050 NMRV110Legacy code (older edition) | Unit: S050 NMRV110
S100 NMRV150Legacy code (older edition) | Unit: S100 NMRV150

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
