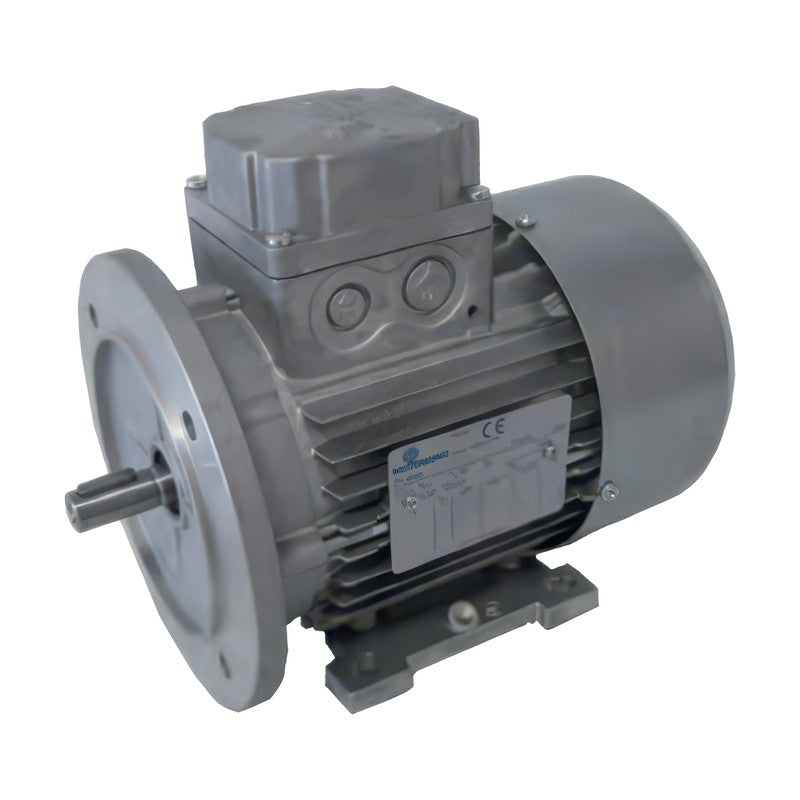

Motovario S Single-Phase Capacitor Motors (4-pole, 0.12-2.2 kW)

Motovario S series single-phase asynchronous motors with permanently connected run capacitor, 4-pole, 230 V 50 Hz, IEC frames 63 to 100.

Key features

Single-phase 230 V 50 Hz supply with permanent run capacitor (Cr) for operation where no three-phase supply is available
4-pole design, rated outputs 0.12 to 2.2 kW in IEC frames 63 to 100
Insulation class F, continuous duty S1, voltage tolerance +/-5%; special voltages and 60 Hz windings on request
Run winding on 2/3 and auxiliary winding on 1/3 of the stator slots - rotation reversed at the terminal board or by two contactors
Optional balanced winding (sizes 63/71/80) for reversing via a simple 0-1-2 switch

Specifications

Motor type	Single-phase asynchronous, run capacitor
Poles	4
Supply	230 V 50 Hz single-phase
Power range	0.12 - 2.2 kW
Frame sizes	IEC 63 - 100
Starting torque Ms/Mn	0.50 - 0.85
Duty / insulation	S1 / class F
Mounting positions	B5, B14, B3, B10, B11, B34, B35
Winding options	Standard or balanced (sizes 63/71/80)
Source	Motovario Electric Motors catalog, p. 31, 102-103, 161

S 63A4		Frame: 63A \| Power Pn: 0.12 kW \| Speed nn: 1420 rpm \| Current In 230V: 1.3 A \| Rated torque Mn: 0.81 Nm \| Run capacitor Cr: 6.3 uF
S 63B4		Frame: 63B \| Power Pn: 0.18 kW \| Speed nn: 1400 rpm \| Current In 230V: 1.6 A \| Rated torque Mn: 1.23 Nm \| Run capacitor Cr: 8 uF
S 71A4		Frame: 71A \| Power Pn: 0.25 kW \| Speed nn: 1340 rpm \| Current In 230V: 2.1 A \| Rated torque Mn: 1.78 Nm \| Run capacitor Cr: 10 uF
S 71B4		Frame: 71B \| Power Pn: 0.37 kW \| Speed nn: 1360 rpm \| Current In 230V: 2.8 A \| Rated torque Mn: 2.6 Nm \| Run capacitor Cr: 14 uF
S 80A4		Frame: 80A \| Power Pn: 0.55 kW \| Speed nn: 1400 rpm \| Current In 230V: 3.8 A \| Rated torque Mn: 3.8 Nm \| Run capacitor Cr: 20 uF
S 80B4		Frame: 80B \| Power Pn: 0.75 kW \| Speed nn: 1400 rpm \| Current In 230V: 5.1 A \| Rated torque Mn: 5.1 Nm \| Run capacitor Cr: 25 uF
S 90S4		Frame: 90S \| Power Pn: 1.1 kW \| Speed nn: 1370 rpm \| Current In 230V: 7.7 A \| Rated torque Mn: 7.7 Nm \| Run capacitor Cr: 30 uF
S 90L4		Frame: 90L \| Power Pn: 1.5 kW \| Speed nn: 1350 rpm \| Current In 230V: 9.3 A \| Rated torque Mn: 10.6 Nm \| Run capacitor Cr: 40 uF
S 100LA4		Frame: 100LA \| Power Pn: 2.2 kW \| Speed nn: 1400 rpm \| Current In 230V: 13.2 A \| Rated torque Mn: 15.0 Nm \| Run capacitor Cr: 50 uF

Induction MotorsMotovario

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario S Single-Phase Capacitor Motors (4-pole, 0.12-2.2 kW)

Brand Motovario·Induction Motors

Available part numbers (9)

S 63A4, S 63B4, S 71A4, S 71B4, S 80A4, S 80B4, S 90S4, S 90L4, S 100LA4
