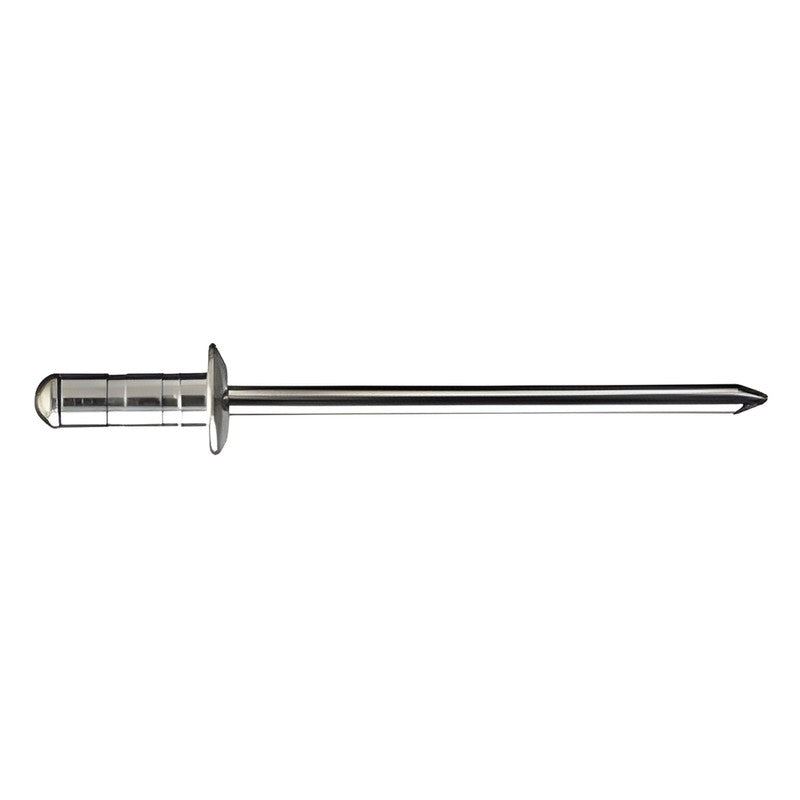

Myunghwa Metal Aluminium Blind Rivet (Ø2.4-6.3 mm)

Myunghwa Metal Aluminium Blind Rivet (Ø2.4-6.3 mm)

Standard dome head aluminium blind rivets for joining sheet metal from one side.

Key features

  • Diameters 2.4 to 6.3 mm
  • Recommended hole 0.1-0.2 mm over nominal
  • Aluminium body, dome head
  • Wide grip range lengths

Specifications

Type Blind (pop) rivet
Head Dome head
Body material Aluminium
Recommended hole Ø3.2: 3.3-3.4 mm; Ø4.0: 4.1-4.2 mm; Ø4.8: 4.9-5.0 mm; Ø5.0: 5.1-5.2 mm; Ø5.5: 5.6-5.7 mm; Ø6.3: 6.4-6.5 mm
Application Sheet metal joining from one side
Source Myunghwa Metal product list (mhs.co.kr)
B2405W Size: Ø2.4 x 5 mm | Material: Aluminium
B2408W Size: Ø2.4 x 8 mm | Material: Aluminium
B3206W Size: Ø3.2 x 6 mm | Material: Aluminium
B3209W Size: Ø3.2 x 9 mm | Material: Aluminium
B3213W Size: Ø3.2 x 13 mm | Material: Aluminium
B3216W Size: Ø3.2 x 16 mm | Material: Aluminium
B408W Size: Ø4 x 8 mm | Material: Aluminium
B411W Size: Ø4 x 11 mm | Material: Aluminium
B412W Size: Ø4 x 12 mm | Material: Aluminium
B413W Size: Ø4 x 13 mm | Material: Aluminium
B414W Size: Ø4 x 14 mm | Material: Aluminium
B416W Size: Ø4 x 16 mm | Material: Aluminium
B420W Size: Ø4 x 20 mm | Material: Aluminium
B4808W Size: Ø4.8 x 8 mm | Material: Aluminium
B4813W Size: Ø4.8 x 13 mm | Material: Aluminium
B4820W Size: Ø4.8 x 20 mm | Material: Aluminium
B4825W Size: Ø4.8 x 25 mm | Material: Aluminium
B5520W Size: Ø5.5 x 20 mm | Material: Aluminium
B5525W Size: Ø5.5 x 25 mm | Material: Aluminium
B5530W Size: Ø5.5 x 30 mm | Material: Aluminium
B5534W Size: Ø5.5 x 34 mm | Material: Aluminium
B6311W Size: Ø6.3 x 11 mm | Material: Aluminium
B6313W Size: Ø6.3 x 13 mm | Material: Aluminium
B6316W Size: Ø6.3 x 16 mm | Material: Aluminium
Blind RivetsMyunghwa Metal
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Aluminium Blind Rivet (Ø2.4-6.3 mm)

Brand Myunghwa Metal·Blind Rivets

Available part numbers (24)

B2405W, B2408W, B3206W, B3209W, B3213W, B3216W, B408W, B411W, B412W, B413W + 14 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B2405WSize: Ø2.4 x 5 mm | Material: Aluminium
B2408WSize: Ø2.4 x 8 mm | Material: Aluminium
B3206WSize: Ø3.2 x 6 mm | Material: Aluminium
B3209WSize: Ø3.2 x 9 mm | Material: Aluminium
B3213WSize: Ø3.2 x 13 mm | Material: Aluminium
B3216WSize: Ø3.2 x 16 mm | Material: Aluminium
B408WSize: Ø4 x 8 mm | Material: Aluminium
B411WSize: Ø4 x 11 mm | Material: Aluminium
B412WSize: Ø4 x 12 mm | Material: Aluminium
B413WSize: Ø4 x 13 mm | Material: Aluminium
B414WSize: Ø4 x 14 mm | Material: Aluminium
B416WSize: Ø4 x 16 mm | Material: Aluminium
B420WSize: Ø4 x 20 mm | Material: Aluminium
B4808WSize: Ø4.8 x 8 mm | Material: Aluminium
B4813WSize: Ø4.8 x 13 mm | Material: Aluminium
B4820WSize: Ø4.8 x 20 mm | Material: Aluminium
B4825WSize: Ø4.8 x 25 mm | Material: Aluminium
B5520WSize: Ø5.5 x 20 mm | Material: Aluminium
B5525WSize: Ø5.5 x 25 mm | Material: Aluminium
B5530WSize: Ø5.5 x 30 mm | Material: Aluminium
B5534WSize: Ø5.5 x 34 mm | Material: Aluminium
B6311WSize: Ø6.3 x 11 mm | Material: Aluminium
B6313WSize: Ø6.3 x 13 mm | Material: Aluminium
B6316WSize: Ø6.3 x 16 mm | Material: Aluminium

Need a different model, or a part not listed here? Send us your parts list →
