• Myunghwa Metal Flat Head Self-Drilling Screw #14-3PT (25-300 mm)
1 1

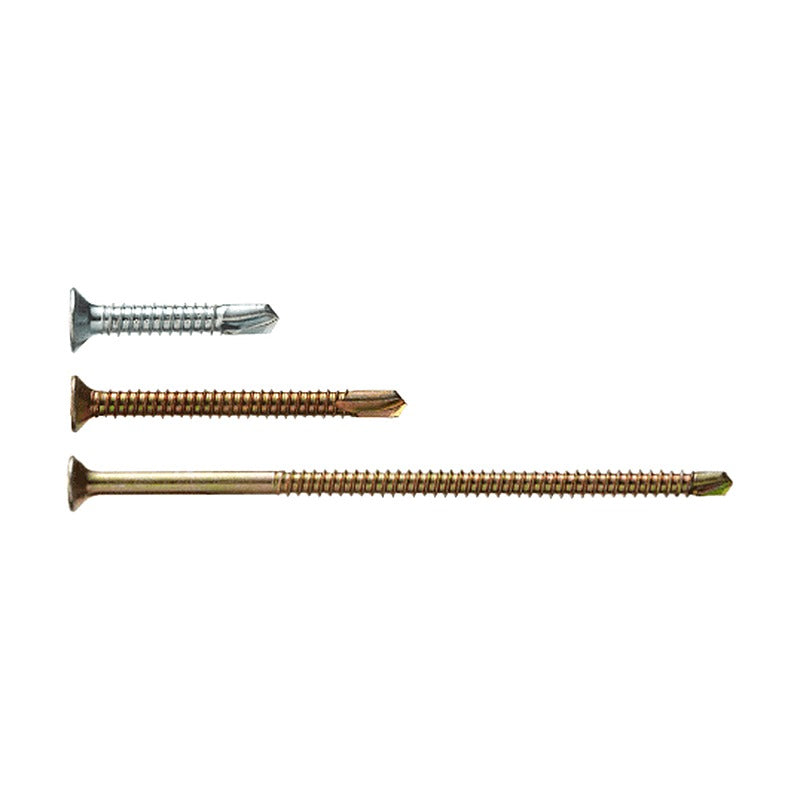

Myunghwa Metal Flat Head Self-Drilling Screw #14-3PT (25-300 mm)

Myunghwa Metal Flat Head Self-Drilling Screw #14-3PT (25-300 mm)

#14 flat (countersunk) head self-drilling screws with a No. 3 drill point for flush fastening into steel sheet 2-6 mm, up to 300 mm long.

Key features

  • Standard application: steel sheet 2-6 mm
  • Countersunk head for flush finish
  • No. 3 drill point
  • Lengths 25-300 mm

Specifications

Head Flat (countersunk) head
Drive Phillips
Point Drill point No. 3 (3PT)
Gauge / diameter #14 (6.3 mm)
Material Carbon steel (case-hardened)
Application Steel sheet 2-6 mm
Source Myunghwa Metal product list (mhs.co.kr)
14025 FH Size: #14 (6.3 mm) x 25 mm | Point: No. 3 drill point
14032 FH Size: #14 (6.3 mm) x 32 mm | Point: No. 3 drill point
14038 FH Size: #14 (6.3 mm) x 38 mm | Point: No. 3 drill point
14050 FH Size: #14 (6.3 mm) x 50 mm | Point: No. 3 drill point
14065 FH Size: #14 (6.3 mm) x 65 mm | Point: No. 3 drill point
14075 FH Size: #14 (6.3 mm) x 75 mm | Point: No. 3 drill point
14080 FH Size: #14 (6.3 mm) x 80 mm | Point: No. 3 drill point
14100 FH Size: #14 (6.3 mm) x 100 mm | Point: No. 3 drill point
14120 FH Size: #14 (6.3 mm) x 120 mm | Point: No. 3 drill point
14130 FH Size: #14 (6.3 mm) x 130 mm | Point: No. 3 drill point
14150 FH Size: #14 (6.3 mm) x 150 mm | Point: No. 3 drill point
14165 FH Size: #14 (6.3 mm) x 165 mm | Point: No. 3 drill point
14180 FH Size: #14 (6.3 mm) x 180 mm | Point: No. 3 drill point
14200 FH Size: #14 (6.3 mm) x 200 mm | Point: No. 3 drill point
14210 FH Size: #14 (6.3 mm) x 210 mm | Point: No. 3 drill point
14230 FH Size: #14 (6.3 mm) x 230 mm | Point: No. 3 drill point
14250 FH Size: #14 (6.3 mm) x 250 mm | Point: No. 3 drill point
14280 FH Size: #14 (6.3 mm) x 280 mm | Point: No. 3 drill point
14300 FH Size: #14 (6.3 mm) x 300 mm | Point: No. 3 drill point
Self-Drilling ScrewsMyunghwa Metal
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Flat Head Self-Drilling Screw #14-3PT (25-300 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (19)

14025 FH, 14032 FH, 14038 FH, 14050 FH, 14065 FH, 14075 FH, 14080 FH, 14100 FH, 14120 FH, 14130 FH + 9 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14025 FHSize: #14 (6.3 mm) x 25 mm | Point: No. 3 drill point
14032 FHSize: #14 (6.3 mm) x 32 mm | Point: No. 3 drill point
14038 FHSize: #14 (6.3 mm) x 38 mm | Point: No. 3 drill point
14050 FHSize: #14 (6.3 mm) x 50 mm | Point: No. 3 drill point
14065 FHSize: #14 (6.3 mm) x 65 mm | Point: No. 3 drill point
14075 FHSize: #14 (6.3 mm) x 75 mm | Point: No. 3 drill point
14080 FHSize: #14 (6.3 mm) x 80 mm | Point: No. 3 drill point
14100 FHSize: #14 (6.3 mm) x 100 mm | Point: No. 3 drill point
14120 FHSize: #14 (6.3 mm) x 120 mm | Point: No. 3 drill point
14130 FHSize: #14 (6.3 mm) x 130 mm | Point: No. 3 drill point
14150 FHSize: #14 (6.3 mm) x 150 mm | Point: No. 3 drill point
14165 FHSize: #14 (6.3 mm) x 165 mm | Point: No. 3 drill point
14180 FHSize: #14 (6.3 mm) x 180 mm | Point: No. 3 drill point
14200 FHSize: #14 (6.3 mm) x 200 mm | Point: No. 3 drill point
14210 FHSize: #14 (6.3 mm) x 210 mm | Point: No. 3 drill point
14230 FHSize: #14 (6.3 mm) x 230 mm | Point: No. 3 drill point
14250 FHSize: #14 (6.3 mm) x 250 mm | Point: No. 3 drill point
14280 FHSize: #14 (6.3 mm) x 280 mm | Point: No. 3 drill point
14300 FHSize: #14 (6.3 mm) x 300 mm | Point: No. 3 drill point
