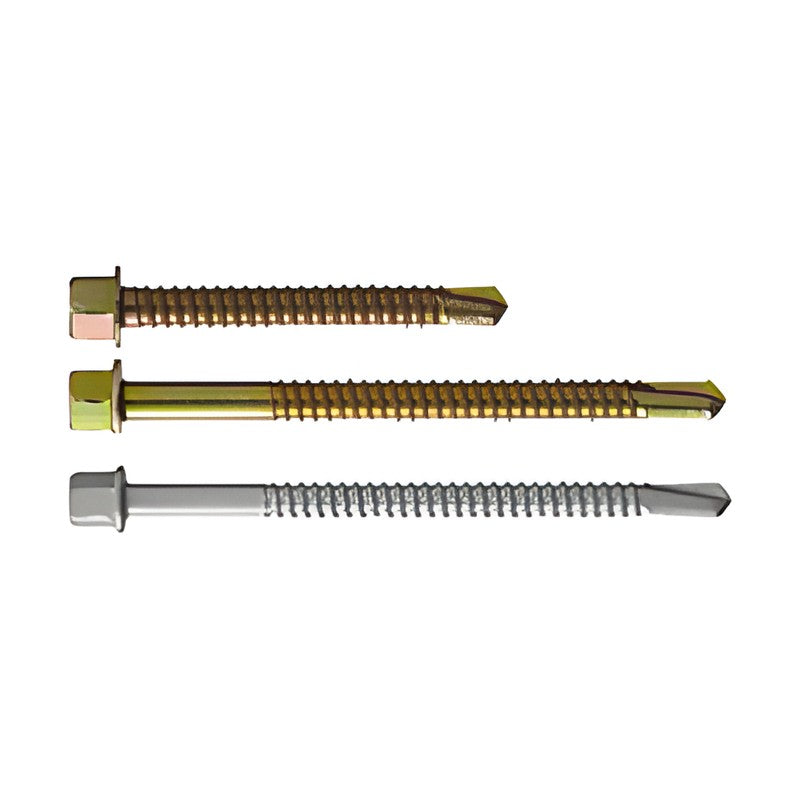

Myunghwa Metal Hex Washer Head Self-Drilling Screw #14-3PT (90-380 mm)

Myunghwa Metal Hex Washer Head Self-Drilling Screw #14-3PT (90-380 mm)

Long-length #14 hex washer head self-drilling screws with a No. 3 drill point for fastening steel sheet 2-6 mm thick, typically roofing and cladding to purlins.

Key features

  • Standard application: steel sheet 2-6 mm
  • No. 3 drill point drills and taps in one operation
  • Integrated washer face under the hex head
  • Long lengths up to 380 mm for insulated panel fixing

Specifications

Head Hex washer head
Drive Hex
Point Drill point No. 3 (3PT)
Gauge / diameter #14 (6.3 mm)
Material Carbon steel (case-hardened)
Application Steel sheet 2-6 mm
Source Myunghwa Metal product list (mhs.co.kr)
14090 HW Size: #14 (6.3 mm) x 90 mm | Point: No. 3 drill point
14110 HW Size: #14 (6.3 mm) x 110 mm | Point: No. 3 drill point
14165 HW Size: #14 (6.3 mm) x 165 mm | Point: No. 3 drill point
14190 HW Size: #14 (6.3 mm) x 190 mm | Point: No. 3 drill point
14210 HW Size: #14 (6.3 mm) x 210 mm | Point: No. 3 drill point
14270 HW Size: #14 (6.3 mm) x 270 mm | Point: No. 3 drill point
14280 HW Size: #14 (6.3 mm) x 280 mm | Point: No. 3 drill point
14300 HW Size: #14 (6.3 mm) x 300 mm | Point: No. 3 drill point
14320 HW Size: #14 (6.3 mm) x 320 mm | Point: No. 3 drill point
14330 HW Size: #14 (6.3 mm) x 330 mm | Point: No. 3 drill point
14350 HW Size: #14 (6.3 mm) x 350 mm | Point: No. 3 drill point
14380 HW Size: #14 (6.3 mm) x 380 mm | Point: No. 3 drill point
Self-Drilling ScrewsMyunghwa Metal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Hex Washer Head Self-Drilling Screw #14-3PT (90-380 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (12)

14090 HW, 14110 HW, 14165 HW, 14190 HW, 14210 HW, 14270 HW, 14280 HW, 14300 HW, 14320 HW, 14330 HW + 2 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14090 HWSize: #14 (6.3 mm) x 90 mm | Point: No. 3 drill point
14110 HWSize: #14 (6.3 mm) x 110 mm | Point: No. 3 drill point
14165 HWSize: #14 (6.3 mm) x 165 mm | Point: No. 3 drill point
14190 HWSize: #14 (6.3 mm) x 190 mm | Point: No. 3 drill point
14210 HWSize: #14 (6.3 mm) x 210 mm | Point: No. 3 drill point
14270 HWSize: #14 (6.3 mm) x 270 mm | Point: No. 3 drill point
14280 HWSize: #14 (6.3 mm) x 280 mm | Point: No. 3 drill point
14300 HWSize: #14 (6.3 mm) x 300 mm | Point: No. 3 drill point
14320 HWSize: #14 (6.3 mm) x 320 mm | Point: No. 3 drill point
14330 HWSize: #14 (6.3 mm) x 330 mm | Point: No. 3 drill point
14350 HWSize: #14 (6.3 mm) x 350 mm | Point: No. 3 drill point
14380 HWSize: #14 (6.3 mm) x 380 mm | Point: No. 3 drill point
