Myunghwa Metal Beam Self-Drilling Screw #14-5PT, Magni (75-300 mm)

Myunghwa Metal Beam Self-Drilling Screw #14-5PT, Magni (75-300 mm)

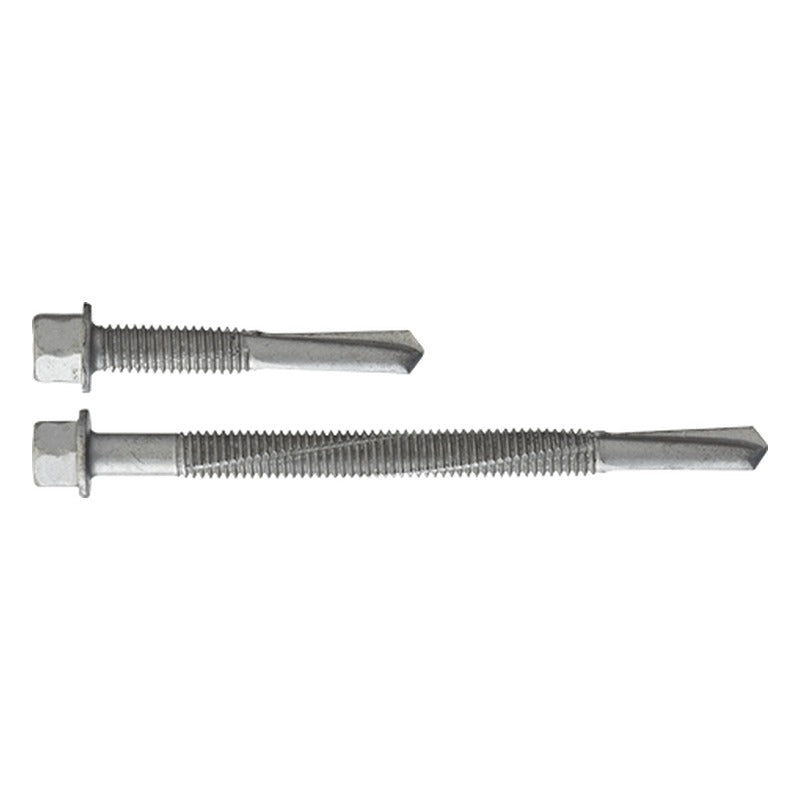

#14 hex washer head self-drilling screws with a No. 5 drill point for fastening into heavy steel plate, sections and beams 6-12 mm thick, finished with Magni anti-corrosion coating.

Key features

  • Standard application: steel plate, sections and beams 6-12 mm
  • Long No. 5 drill point for thick steel
  • Magni anti-corrosion coating
  • Lengths up to 300 mm for insulated roof and wall panels

Specifications

Head Hex washer head
Drive Hex
Point Drill point No. 5 (5PT)
Gauge / diameter #14 (6.0 mm)
Material Carbon steel (case-hardened)
Finish Magni coating (anti-corrosion)
Application Steel plate, sections and beams 6-12 mm
Source Myunghwa Metal product list (mhs.co.kr)
14075 5P Size: #14 (6.0 mm) x 75 mm | Finish: Magni coating
14110 5P Size: #14 (6.0 mm) x 110 mm | Finish: Magni coating
14120 5P Size: #14 (6.0 mm) x 120 mm | Finish: Magni coating
14165 5P Size: #14 (6.0 mm) x 165 mm | Finish: Magni coating
14190 5P Size: #14 (6.0 mm) x 190 mm | Finish: Magni coating
14200 5P Size: #14 (6.0 mm) x 200 mm | Finish: Magni coating
14210 5P Size: #14 (6.0 mm) x 210 mm | Finish: Magni coating
14230 5P Size: #14 (6.0 mm) x 230 mm | Finish: Magni coating
14250 5P Size: #14 (6.0 mm) x 250 mm | Finish: Magni coating
14270 5P Size: #14 (6.0 mm) x 270 mm | Finish: Magni coating
14280 5P Size: #14 (6.0 mm) x 280 mm | Finish: Magni coating
14300 5P Size: #14 (6.0 mm) x 300 mm | Finish: Magni coating
Self-Drilling ScrewsMyunghwa Metal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Beam Self-Drilling Screw #14-5PT, Magni (75-300 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (12)

14075 5P, 14110 5P, 14120 5P, 14165 5P, 14190 5P, 14200 5P, 14210 5P, 14230 5P, 14250 5P, 14270 5P + 2 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14075 5PSize: #14 (6.0 mm) x 75 mm | Finish: Magni coating
14110 5PSize: #14 (6.0 mm) x 110 mm | Finish: Magni coating
14120 5PSize: #14 (6.0 mm) x 120 mm | Finish: Magni coating
14165 5PSize: #14 (6.0 mm) x 165 mm | Finish: Magni coating
14190 5PSize: #14 (6.0 mm) x 190 mm | Finish: Magni coating
14200 5PSize: #14 (6.0 mm) x 200 mm | Finish: Magni coating
14210 5PSize: #14 (6.0 mm) x 210 mm | Finish: Magni coating
14230 5PSize: #14 (6.0 mm) x 230 mm | Finish: Magni coating
14250 5PSize: #14 (6.0 mm) x 250 mm | Finish: Magni coating
14270 5PSize: #14 (6.0 mm) x 270 mm | Finish: Magni coating
14280 5PSize: #14 (6.0 mm) x 280 mm | Finish: Magni coating
14300 5PSize: #14 (6.0 mm) x 300 mm | Finish: Magni coating
