• Myunghwa Metal Large Hex Washer Self-Drilling Screw #14 (20-38 mm)
1 1

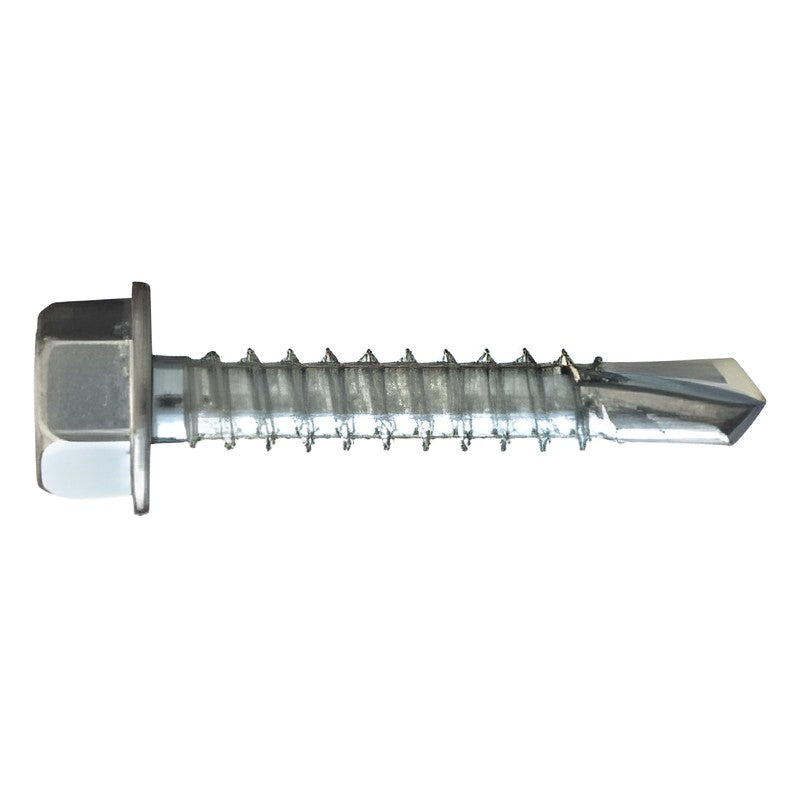

Myunghwa Metal Large Hex Washer Self-Drilling Screw #14 (20-38 mm)

Myunghwa Metal Large Hex Washer Self-Drilling Screw #14 (20-38 mm)

#14 hex washer head self-drilling screws with an oversize washer face for a larger bearing area on thin or soft cladding.

Key features

  • Standard application: steel sheet 2-6 mm
  • Large head spreads load and resists pull-through
  • Drill point drills and taps in one operation
  • Short lengths 20-38 mm

Specifications

Head Hex washer head, large (oversize) washer face
Drive Hex
Point Drill point No. 3
Gauge / diameter #14 (6.3 mm)
Material Carbon steel (case-hardened)
Application Steel sheet 2-6 mm
Source Myunghwa Metal product list (mhs.co.kr)
14020 L Size: #14 (6.3 mm) x 20 mm | Head: Large hex washer
14025 L Size: #14 (6.3 mm) x 25 mm | Head: Large hex washer
14032 L Size: #14 (6.3 mm) x 32 mm | Head: Large hex washer
14038 L Size: #14 (6.3 mm) x 38 mm | Head: Large hex washer
Self-Drilling ScrewsMyunghwa Metal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Large Hex Washer Self-Drilling Screw #14 (20-38 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (4)

14020 L, 14025 L, 14032 L, 14038 L

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14020 LSize: #14 (6.3 mm) x 20 mm | Head: Large hex washer
14025 LSize: #14 (6.3 mm) x 25 mm | Head: Large hex washer
14032 LSize: #14 (6.3 mm) x 32 mm | Head: Large hex washer
14038 LSize: #14 (6.3 mm) x 38 mm | Head: Large hex washer
