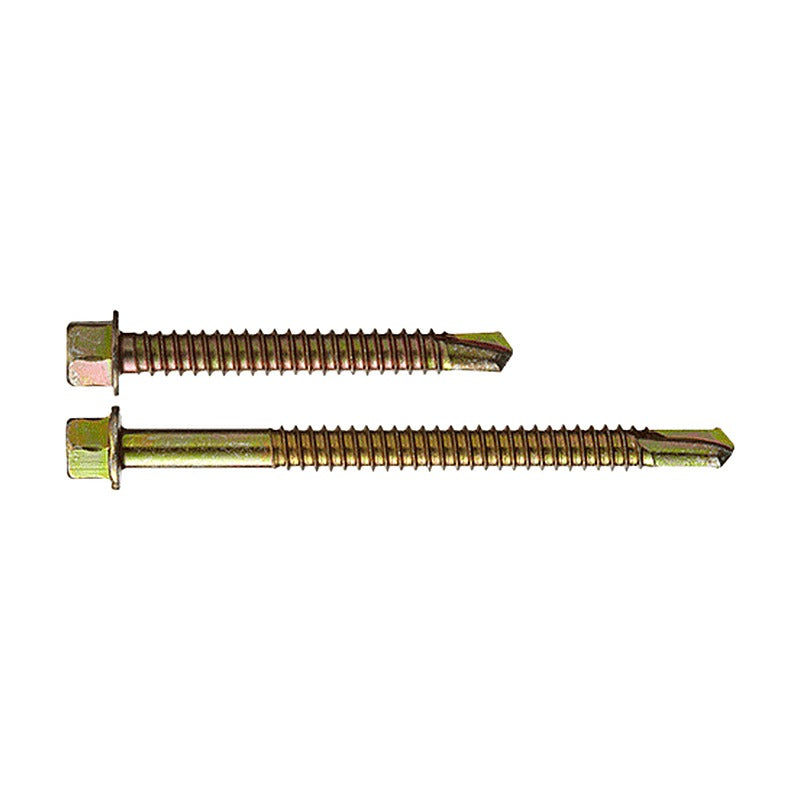

Myunghwa Metal High-Strength Self-Drilling Screw #15-3PT (25-280 mm)

Myunghwa Metal High-Strength Self-Drilling Screw #15-3PT (25-280 mm)

High-strength #15 (7.0 mm) hex washer head self-drilling screws with a No. 3 drill point, for heavier steel sheet fastening where extra shear and torque capacity is needed.

Key features

  • Standard application: steel sheet 2-6 mm
  • Larger #15 (7.0 mm) shank for higher strength
  • No. 3 drill point, drills and taps in one step
  • Lengths from 25 mm to 280 mm

Specifications

Head Hex washer head
Drive Hex
Point Drill point No. 3 (3PT)
Gauge / diameter #15 (7.0 mm)
Material Carbon steel (case-hardened), high-strength grade
Application Steel sheet 2-6 mm
Source Myunghwa Metal product list (mhs.co.kr)
15025 HW Size: #15 (7.0 mm) x 25 mm | Point: No. 3 drill point
15032 HW Size: #15 (7.0 mm) x 32 mm | Point: No. 3 drill point
15038 HW Size: #15 (7.0 mm) x 38 mm | Point: No. 3 drill point
15050 HW Size: #15 (7.0 mm) x 50 mm | Point: No. 3 drill point
15065 HW Size: #15 (7.0 mm) x 65 mm | Point: No. 3 drill point
15075 HW Size: #15 (7.0 mm) x 75 mm | Point: No. 3 drill point
15080 HW Size: #15 (7.0 mm) x 80 mm | Point: No. 3 drill point
15100 HW Size: #15 (7.0 mm) x 100 mm | Point: No. 3 drill point
15110 HW Size: #15 (7.0 mm) x 110 mm | Point: No. 3 drill point
15120 HW Size: #15 (7.0 mm) x 120 mm | Point: No. 3 drill point
15130 HW Size: #15 (7.0 mm) x 130 mm | Point: No. 3 drill point
15150 HW Size: #15 (7.0 mm) x 150 mm | Point: No. 3 drill point
15180 HW Size: #15 (7.0 mm) x 180 mm | Point: No. 3 drill point
15200 HW Size: #15 (7.0 mm) x 200 mm | Point: No. 3 drill point
15210 HW Size: #15 (7.0 mm) x 210 mm | Point: No. 3 drill point
15230 HW Size: #15 (7.0 mm) x 230 mm | Point: No. 3 drill point
15250 HW Size: #15 (7.0 mm) x 250 mm | Point: No. 3 drill point
15270 HW Size: #15 (7.0 mm) x 270 mm | Point: No. 3 drill point
15280 HW Size: #15 (7.0 mm) x 280 mm | Point: No. 3 drill point
Self-Drilling ScrewsMyunghwa Metal
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal High-Strength Self-Drilling Screw #15-3PT (25-280 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (19)

15025 HW, 15032 HW, 15038 HW, 15050 HW, 15065 HW, 15075 HW, 15080 HW, 15100 HW, 15110 HW, 15120 HW + 9 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
15025 HWSize: #15 (7.0 mm) x 25 mm | Point: No. 3 drill point
15032 HWSize: #15 (7.0 mm) x 32 mm | Point: No. 3 drill point
15038 HWSize: #15 (7.0 mm) x 38 mm | Point: No. 3 drill point
15050 HWSize: #15 (7.0 mm) x 50 mm | Point: No. 3 drill point
15065 HWSize: #15 (7.0 mm) x 65 mm | Point: No. 3 drill point
15075 HWSize: #15 (7.0 mm) x 75 mm | Point: No. 3 drill point
15080 HWSize: #15 (7.0 mm) x 80 mm | Point: No. 3 drill point
15100 HWSize: #15 (7.0 mm) x 100 mm | Point: No. 3 drill point
15110 HWSize: #15 (7.0 mm) x 110 mm | Point: No. 3 drill point
15120 HWSize: #15 (7.0 mm) x 120 mm | Point: No. 3 drill point
15130 HWSize: #15 (7.0 mm) x 130 mm | Point: No. 3 drill point
15150 HWSize: #15 (7.0 mm) x 150 mm | Point: No. 3 drill point
15180 HWSize: #15 (7.0 mm) x 180 mm | Point: No. 3 drill point
15200 HWSize: #15 (7.0 mm) x 200 mm | Point: No. 3 drill point
15210 HWSize: #15 (7.0 mm) x 210 mm | Point: No. 3 drill point
15230 HWSize: #15 (7.0 mm) x 230 mm | Point: No. 3 drill point
15250 HWSize: #15 (7.0 mm) x 250 mm | Point: No. 3 drill point
15270 HWSize: #15 (7.0 mm) x 270 mm | Point: No. 3 drill point
15280 HWSize: #15 (7.0 mm) x 280 mm | Point: No. 3 drill point
