Myunghwa Metal Hex Washer Self-Drilling Screw, Phillips (20-25 mm)

Myunghwa Metal Hex Washer Self-Drilling Screw, Phillips (20-25 mm)

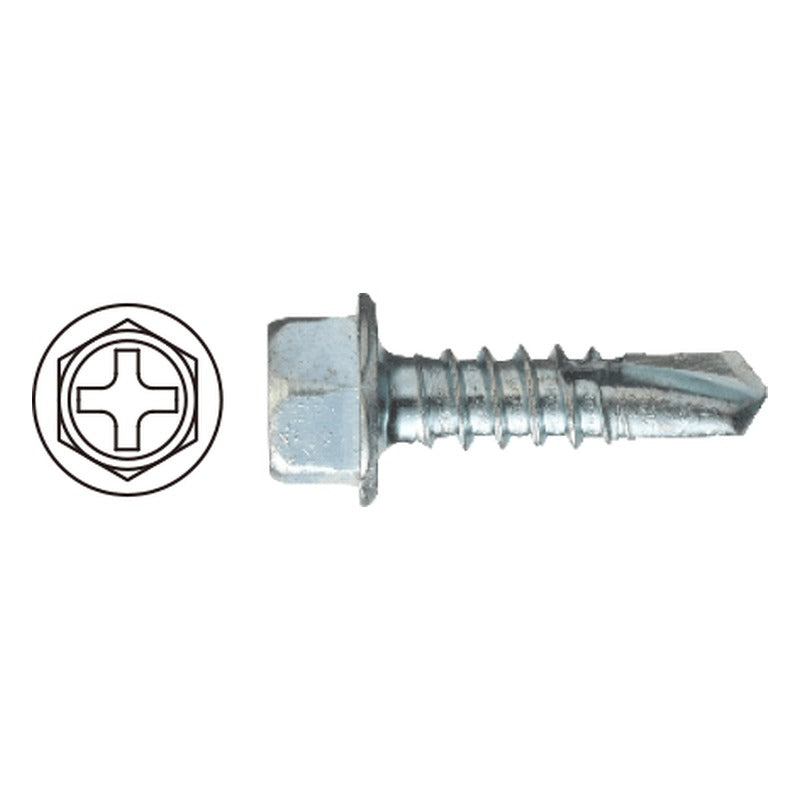

Hex washer head self-drilling screws with an additional cross recess, allowing installation with either a hex socket or a Phillips bit.

Key features

  • Standard application: steel sheet 2-6 mm
  • Combination hex and cross-recess drive
  • Available in #12 and #14 gauges
  • Washer face under head

Specifications

Head Hex washer head with cross (Phillips) recess
Drive Hex / Phillips
Point Drill point No. 3
Gauge / diameter #12 (5.5 mm), #14 (6.3 mm)
Material Carbon steel (case-hardened)
Application Steel sheet 2-6 mm
Source Myunghwa Metal product list (mhs.co.kr)
12020 CR Size: #12 (5.5 mm) x 20 mm | Drive: Hex + Phillips
14020 CR Size: #14 (6.3 mm) x 20 mm | Drive: Hex + Phillips
14025 CR Size: #14 (6.3 mm) x 25 mm | Drive: Hex + Phillips
Self-Drilling ScrewsMyunghwa Metal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Hex Washer Self-Drilling Screw, Phillips (20-25 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (3)

12020 CR, 14020 CR, 14025 CR

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
12020 CRSize: #12 (5.5 mm) x 20 mm | Drive: Hex + Phillips
14020 CRSize: #14 (6.3 mm) x 20 mm | Drive: Hex + Phillips
14025 CRSize: #14 (6.3 mm) x 25 mm | Drive: Hex + Phillips
