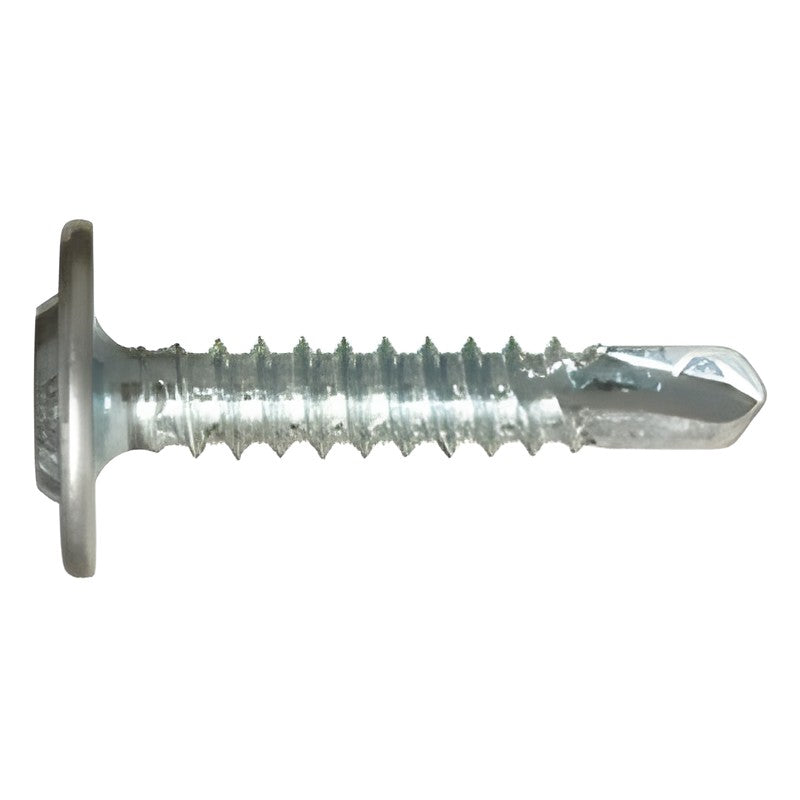

Myunghwa Metal Large Pan Washer Self-Drilling Screw #10 (20-38 mm)

#10 large pan washer head self-drilling screws for steel sheet 1-3 mm, with an oversize head for a wide bearing surface.

Key features

Standard application: steel sheet 1-3 mm
Large pan washer head for wide bearing area
#10 (4.8 mm) gauge
Lengths 20-38 mm

Specifications

Head	Pan washer head, large
Drive	Phillips
Point	Drill point
Gauge / diameter	#10 (4.8 mm)
Material	Carbon steel (case-hardened)
Application	Steel sheet 1-3 mm
Source	Myunghwa Metal product list (mhs.co.kr)

1020 PWFL		Size: #10 (4.8 mm) x 20 mm \| Head: Large pan washer
1025 PWFL		Size: #10 (4.8 mm) x 25 mm \| Head: Large pan washer
1032 PWFL		Size: #10 (4.8 mm) x 32 mm \| Head: Large pan washer
1038 PWFL		Size: #10 (4.8 mm) x 38 mm \| Head: Large pan washer

Self-Drilling ScrewsMyunghwa Metal

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Large Pan Washer Self-Drilling Screw #10 (20-38 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (4)

1020 PWFL, 1025 PWFL, 1032 PWFL, 1038 PWFL

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	1020 PWFL	Size: #10 (4.8 mm) x 20 mm \| Head: Large pan washer
	1025 PWFL	Size: #10 (4.8 mm) x 25 mm \| Head: Large pan washer
	1032 PWFL	Size: #10 (4.8 mm) x 32 mm \| Head: Large pan washer
	1038 PWFL	Size: #10 (4.8 mm) x 38 mm \| Head: Large pan washer
