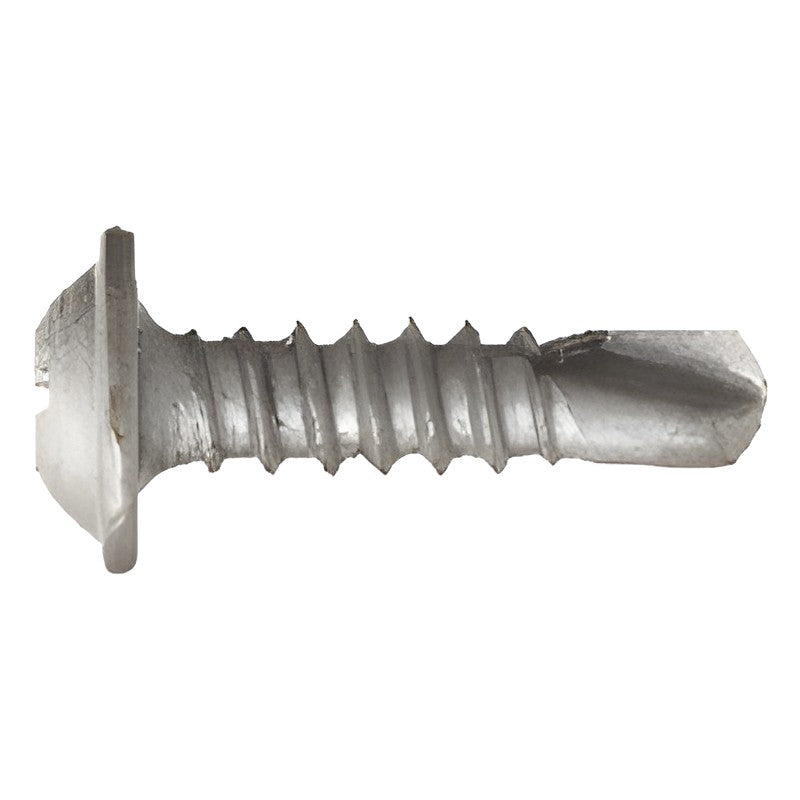

• Myunghwa Metal Pan Washer Self-Drilling Screw #8, Magni (13-64 mm)
1 1

Myunghwa Metal Pan Washer Self-Drilling Screw #8, Magni (13-64 mm)

Myunghwa Metal Pan Washer Self-Drilling Screw #8, Magni (13-64 mm)

#8 pan washer head self-drilling screws with Magni anti-corrosion coating for light-gauge steel sheet 0.6-2 mm.

Key features

  • Standard application: steel sheet 0.6-2 mm
  • Magni anti-corrosion coating
  • Pan head with integrated washer face
  • Lengths 13-64 mm

Specifications

Head Pan washer head
Drive Phillips
Point Drill point
Gauge / diameter #8 (4.2 mm)
Material Carbon steel (case-hardened)
Finish Magni coating (anti-corrosion)
Application Steel sheet 0.6-2 mm
Source Myunghwa Metal product list (mhs.co.kr)
813 PWMGT Size: #8 (4.2 mm) x 13 mm | Finish: Magni coating
816 PWMGT Size: #8 (4.2 mm) x 16 mm | Finish: Magni coating
820 PWMGT Size: #8 (4.2 mm) x 20 mm | Finish: Magni coating
825 PWMGT Size: #8 (4.2 mm) x 25 mm | Finish: Magni coating
832 PWMGT Size: #8 (4.2 mm) x 32 mm | Finish: Magni coating
838 PWMGT Size: #8 (4.2 mm) x 38 mm | Finish: Magni coating
850 PWMGT Size: #8 (4.2 mm) x 50 mm | Finish: Magni coating
864 PWMGT Size: #8 (4.2 mm) x 64 mm | Finish: Magni coating
Self-Drilling ScrewsMyunghwa Metal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Pan Washer Self-Drilling Screw #8, Magni (13-64 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (8)

813 PWMGT, 816 PWMGT, 820 PWMGT, 825 PWMGT, 832 PWMGT, 838 PWMGT, 850 PWMGT, 864 PWMGT

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
813 PWMGTSize: #8 (4.2 mm) x 13 mm | Finish: Magni coating
816 PWMGTSize: #8 (4.2 mm) x 16 mm | Finish: Magni coating
820 PWMGTSize: #8 (4.2 mm) x 20 mm | Finish: Magni coating
825 PWMGTSize: #8 (4.2 mm) x 25 mm | Finish: Magni coating
832 PWMGTSize: #8 (4.2 mm) x 32 mm | Finish: Magni coating
838 PWMGTSize: #8 (4.2 mm) x 38 mm | Finish: Magni coating
850 PWMGTSize: #8 (4.2 mm) x 50 mm | Finish: Magni coating
864 PWMGTSize: #8 (4.2 mm) x 64 mm | Finish: Magni coating

Need a different model, or a part not listed here? Send us your parts list →
