• Myunghwa Metal Window Sash Self-Drilling Screw #8 Flat Head (13-38 mm)
1 1

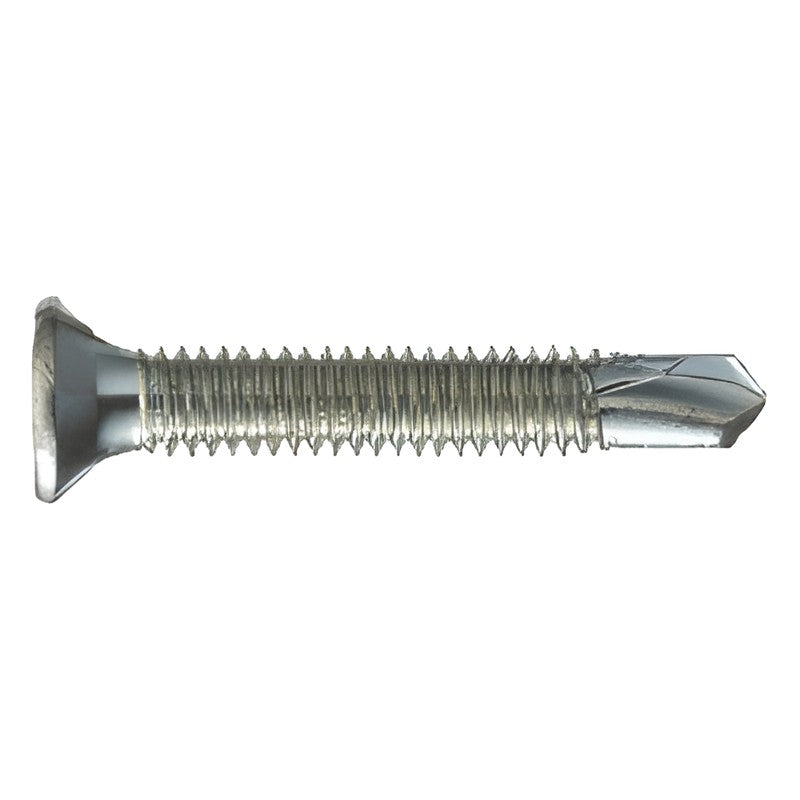

Myunghwa Metal Window Sash Self-Drilling Screw #8 Flat Head (13-38 mm)

Myunghwa Metal Window Sash Self-Drilling Screw #8 Flat Head (13-38 mm)

#8 flat head self-drilling screws (MS type) for assembling aluminium and PVC window sashes.

Key features

  • Standard application: aluminium/PVC window sash
  • Countersunk head
  • #8 (4.0 mm) MS type
  • Lengths 13-38 mm

Specifications

Head Flat (countersunk) head
Drive Phillips
Point Drill point
Gauge / diameter #8 (4.0 mm)
Material Carbon steel (case-hardened)
Application Aluminium/PVC window sash
Source Myunghwa Metal product list (mhs.co.kr)
813 FHMS Size: #8 (4.0 mm) x 13 mm | Head: Flat (countersunk)
816 FHMS Size: #8 (4.0 mm) x 16 mm | Head: Flat (countersunk)
819 FHMS Size: #8 (4.0 mm) x 19 mm | Head: Flat (countersunk)
825 FHMS Size: #8 (4.0 mm) x 25 mm | Head: Flat (countersunk)
832 FHMS Size: #8 (4.0 mm) x 32 mm | Head: Flat (countersunk)
838 FHMS Size: #8 (4.0 mm) x 38 mm | Head: Flat (countersunk)
Self-Drilling ScrewsMyunghwa Metal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal Window Sash Self-Drilling Screw #8 Flat Head (13-38 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (6)

813 FHMS, 816 FHMS, 819 FHMS, 825 FHMS, 832 FHMS, 838 FHMS

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
813 FHMSSize: #8 (4.0 mm) x 13 mm | Head: Flat (countersunk)
816 FHMSSize: #8 (4.0 mm) x 16 mm | Head: Flat (countersunk)
819 FHMSSize: #8 (4.0 mm) x 19 mm | Head: Flat (countersunk)
825 FHMSSize: #8 (4.0 mm) x 25 mm | Head: Flat (countersunk)
832 FHMSSize: #8 (4.0 mm) x 32 mm | Head: Flat (countersunk)
838 FHMSSize: #8 (4.0 mm) x 38 mm | Head: Flat (countersunk)
