Myunghwa Metal STS410 Beam Self-Drilling Screw #14-5PT (38-300 mm)

Myunghwa Metal STS410 Beam Self-Drilling Screw #14-5PT (38-300 mm)

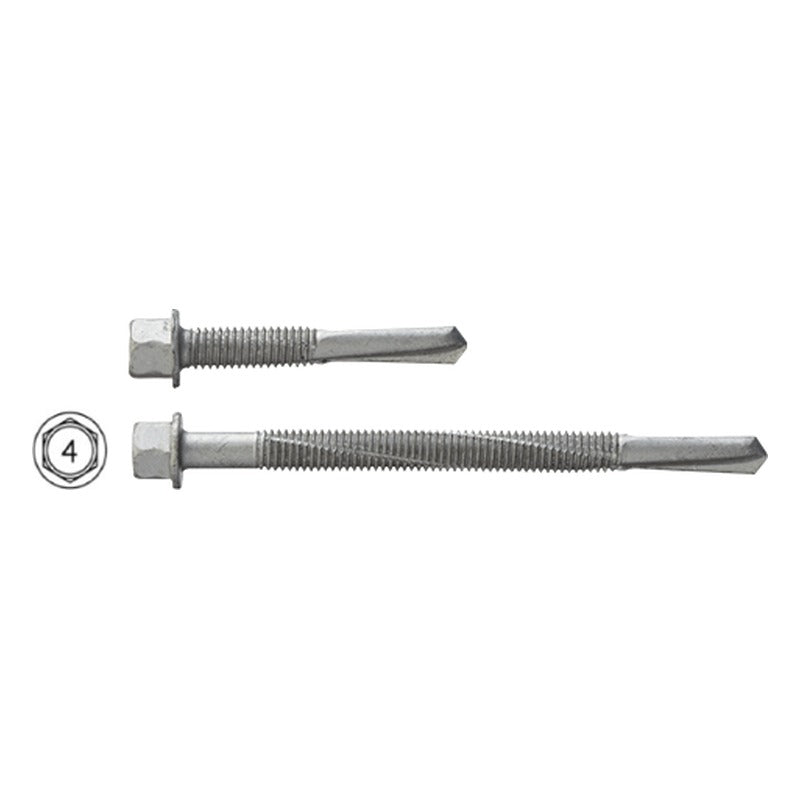

STS410 stainless #14 hex washer head self-drilling screws with No. 5 drill point and Magni coating for steel plate, sections and beams 6-12 mm.

Key features

  • Standard application: steel plate, sections and beams 6-12 mm
  • No. 5 drill point for heavy steel
  • STS410 stainless with Magni coating
  • Lengths 38-300 mm

Specifications

Head Hex washer head
Drive Hex
Point Drill point No. 5 (5PT)
Gauge / diameter #14 (6.0 mm)
Material Stainless steel STS410 (hardened)
Finish Magni coating (anti-corrosion)
Application Steel plate, sections and beams 6-12 mm
Source Myunghwa Metal product list (mhs.co.kr)
14038 5P41MGT Size: #14 (6.0 mm) x 38 mm | Material: STS410 + Magni
14050 5P41MGT Size: #14 (6.0 mm) x 50 mm | Material: STS410 + Magni
14065 5P41MGT Size: #14 (6.0 mm) x 65 mm | Material: STS410 + Magni
14075 5P41MGT Size: #14 (6.0 mm) x 75 mm | Material: STS410 + Magni
14080 5P41MGT Size: #14 (6.0 mm) x 80 mm | Material: STS410 + Magni
14090 5P41MGT Size: #14 (6.0 mm) x 90 mm | Material: STS410 + Magni
14100 5P41MGT Size: #14 (6.0 mm) x 100 mm | Material: STS410 + Magni
14110 5P41MGT Size: #14 (6.0 mm) x 110 mm | Material: STS410 + Magni
14120 5P41MGT Size: #14 (6.0 mm) x 120 mm | Material: STS410 + Magni
14130 5P41MGT Size: #14 (6.0 mm) x 130 mm | Material: STS410 + Magni
14150 5P41MGT Size: #14 (6.0 mm) x 150 mm | Material: STS410 + Magni
14165 5P41MGT Size: #14 (6.0 mm) x 165 mm | Material: STS410 + Magni
14180 5P41MGT Size: #14 (6.0 mm) x 180 mm | Material: STS410 + Magni
14190 5P41MGT Size: #14 (6.0 mm) x 190 mm | Material: STS410 + Magni
14200 5P41MGT Size: #14 (6.0 mm) x 200 mm | Material: STS410 + Magni
14210 5P41MGT Size: #14 (6.0 mm) x 210 mm | Material: STS410 + Magni
14230 5P41MGT Size: #14 (6.0 mm) x 230 mm | Material: STS410 + Magni
14300 5P41MGT Size: #14 (6.0 mm) x 300 mm | Material: STS410 + Magni
Self-Drilling ScrewsMyunghwa Metal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal STS410 Beam Self-Drilling Screw #14-5PT (38-300 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (18)

14038 5P41MGT, 14050 5P41MGT, 14065 5P41MGT, 14075 5P41MGT, 14080 5P41MGT, 14090 5P41MGT, 14100 5P41MGT, 14110 5P41MGT, 14120 5P41MGT, 14130 5P41MGT + 8 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14038 5P41MGTSize: #14 (6.0 mm) x 38 mm | Material: STS410 + Magni
14050 5P41MGTSize: #14 (6.0 mm) x 50 mm | Material: STS410 + Magni
14065 5P41MGTSize: #14 (6.0 mm) x 65 mm | Material: STS410 + Magni
14075 5P41MGTSize: #14 (6.0 mm) x 75 mm | Material: STS410 + Magni
14080 5P41MGTSize: #14 (6.0 mm) x 80 mm | Material: STS410 + Magni
14090 5P41MGTSize: #14 (6.0 mm) x 90 mm | Material: STS410 + Magni
14100 5P41MGTSize: #14 (6.0 mm) x 100 mm | Material: STS410 + Magni
14110 5P41MGTSize: #14 (6.0 mm) x 110 mm | Material: STS410 + Magni
14120 5P41MGTSize: #14 (6.0 mm) x 120 mm | Material: STS410 + Magni
14130 5P41MGTSize: #14 (6.0 mm) x 130 mm | Material: STS410 + Magni
14150 5P41MGTSize: #14 (6.0 mm) x 150 mm | Material: STS410 + Magni
14165 5P41MGTSize: #14 (6.0 mm) x 165 mm | Material: STS410 + Magni
14180 5P41MGTSize: #14 (6.0 mm) x 180 mm | Material: STS410 + Magni
14190 5P41MGTSize: #14 (6.0 mm) x 190 mm | Material: STS410 + Magni
14200 5P41MGTSize: #14 (6.0 mm) x 200 mm | Material: STS410 + Magni
14210 5P41MGTSize: #14 (6.0 mm) x 210 mm | Material: STS410 + Magni
14230 5P41MGTSize: #14 (6.0 mm) x 230 mm | Material: STS410 + Magni
14300 5P41MGTSize: #14 (6.0 mm) x 300 mm | Material: STS410 + Magni
