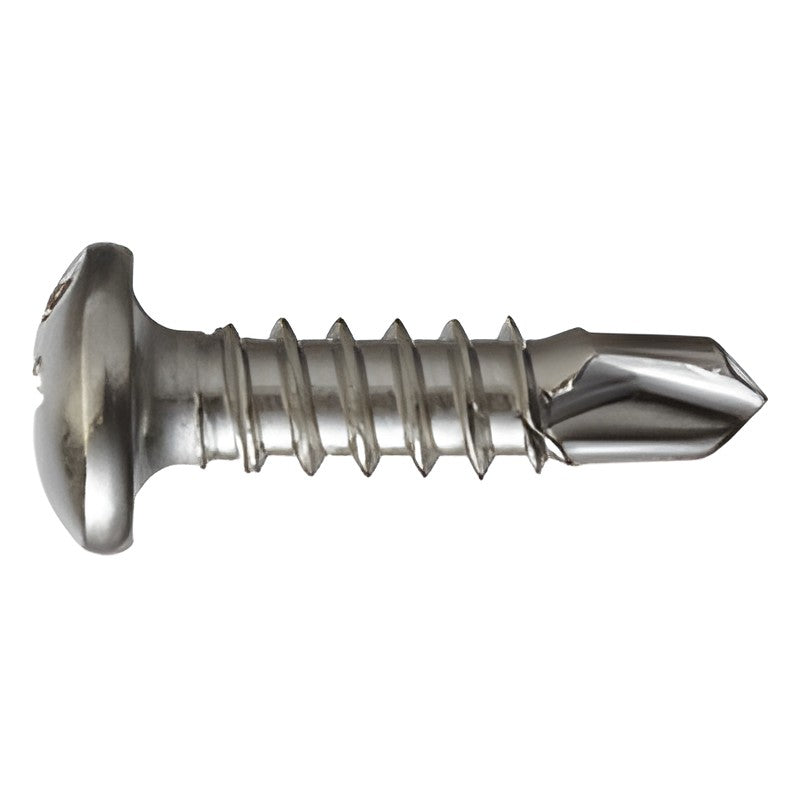

Myunghwa Metal STS410 Pan Head Self-Drilling Screw #8 (10-100 mm)

Myunghwa Metal STS410 Pan Head Self-Drilling Screw #8 (10-100 mm)

STS410 stainless #8 pan head self-drilling screws for light-gauge steel sheet 0.6-2 mm.

Key features

  • Standard application: steel sheet 0.6-2 mm
  • STS410 stainless, drills its own hole
  • Pan head without washer
  • Lengths 10-100 mm

Specifications

Head Pan head
Drive Phillips
Point Drill point
Gauge / diameter #8 (4.2 mm)
Material Stainless steel STS410 (hardened)
Application Steel sheet 0.6-2 mm
Source Myunghwa Metal product list (mhs.co.kr)
810 PHS41 Size: #8 (4.2 mm) x 10 mm | Material: STS410
813 PHS41 Size: #8 (4.2 mm) x 13 mm | Material: STS410
816 PHS41 Size: #8 (4.2 mm) x 16 mm | Material: STS410
820 PHS41 Size: #8 (4.2 mm) x 20 mm | Material: STS410
825 PHS41 Size: #8 (4.2 mm) x 25 mm | Material: STS410
832 PHS41 Size: #8 (4.2 mm) x 32 mm | Material: STS410
838 PHS41 Size: #8 (4.2 mm) x 38 mm | Material: STS410
850 PHS41 Size: #8 (4.2 mm) x 50 mm | Material: STS410
864 PHS41 Size: #8 (4.2 mm) x 64 mm | Material: STS410
875 PHS41 Size: #8 (4.2 mm) x 75 mm | Material: STS410
8100 PHS41 Size: #8 (4.2 mm) x 100 mm | Material: STS410
890 PHS41 Size: #8 (4.2 mm) x 90 mm | Material: STS410
Self-Drilling ScrewsMyunghwa Metal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal STS410 Pan Head Self-Drilling Screw #8 (10-100 mm)

Brand Myunghwa Metal·Self-Drilling Screws

Available part numbers (12)

810 PHS41, 813 PHS41, 816 PHS41, 820 PHS41, 825 PHS41, 832 PHS41, 838 PHS41, 850 PHS41, 864 PHS41, 875 PHS41 + 2 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
810 PHS41Size: #8 (4.2 mm) x 10 mm | Material: STS410
813 PHS41Size: #8 (4.2 mm) x 13 mm | Material: STS410
816 PHS41Size: #8 (4.2 mm) x 16 mm | Material: STS410
820 PHS41Size: #8 (4.2 mm) x 20 mm | Material: STS410
825 PHS41Size: #8 (4.2 mm) x 25 mm | Material: STS410
832 PHS41Size: #8 (4.2 mm) x 32 mm | Material: STS410
838 PHS41Size: #8 (4.2 mm) x 38 mm | Material: STS410
850 PHS41Size: #8 (4.2 mm) x 50 mm | Material: STS410
864 PHS41Size: #8 (4.2 mm) x 64 mm | Material: STS410
875 PHS41Size: #8 (4.2 mm) x 75 mm | Material: STS410
8100 PHS41Size: #8 (4.2 mm) x 100 mm | Material: STS410
890 PHS41Size: #8 (4.2 mm) x 90 mm | Material: STS410
