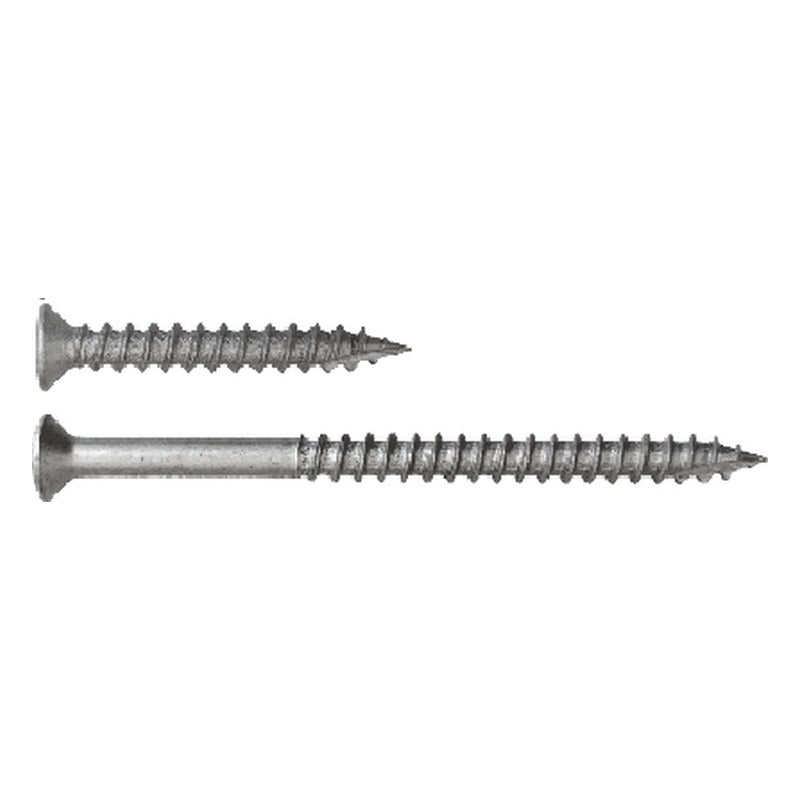

Myunghwa Metal TYPE17 Flat Head Wood Screw #14 (50-300 mm)

Myunghwa Metal TYPE17 Flat Head Wood Screw #14 (50-300 mm)

#14 flat head TYPE17 coarse-thread (bugle-neck) screws with Magni coating for countersunk timber fixing.

Key features

  • Standard application: steel up to 1 mm + hardwood
  • TYPE17 cutting point, coarse thread
  • Magni anti-corrosion coating
  • Lengths 50-300 mm

Specifications

Head Flat head
Drive Phillips
Point Type 17 (cut point)
Gauge / diameter #14 (6.3 mm)
Material Carbon steel (case-hardened)
Finish Magni coating (anti-corrosion)
Application Steel up to 1 mm + hardwood
Source Myunghwa Metal product list (mhs.co.kr)
T14050FHCOMGT17 Size: #14 (6.3 mm) x 50 mm | Point: Type 17
T14075FHCOMGT17 Size: #14 (6.3 mm) x 75 mm | Point: Type 17
T14080FHCOMGT17 Size: #14 (6.3 mm) x 80 mm | Point: Type 17
T14090FHCOMGT17 Size: #14 (6.3 mm) x 90 mm | Point: Type 17
T14110FHCOMGT17 Size: #14 (6.3 mm) x 110 mm | Point: Type 17
T14120FHCOMGT17 Size: #14 (6.3 mm) x 120 mm | Point: Type 17
T14130FHCOMGT17 Size: #14 (6.3 mm) x 130 mm | Point: Type 17
T14180FHCOMGT17 Size: #14 (6.3 mm) x 180 mm | Point: Type 17
T14200FHCOMGT17 Size: #14 (6.3 mm) x 200 mm | Point: Type 17
T14210FHCOMGT17 Size: #14 (6.3 mm) x 210 mm | Point: Type 17
T14230FHCOMGT17 Size: #14 (6.3 mm) x 230 mm | Point: Type 17
T14250FHCOMGT17 Size: #14 (6.3 mm) x 250 mm | Point: Type 17
T14270FHCOMGT17 Size: #14 (6.3 mm) x 270 mm | Point: Type 17
T14280FHCOMGT17 Size: #14 (6.3 mm) x 280 mm | Point: Type 17
T14300FHCOMGT17 Size: #14 (6.3 mm) x 300 mm | Point: Type 17
Tapping ScrewsMyunghwa Metal
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal TYPE17 Flat Head Wood Screw #14 (50-300 mm)

Brand Myunghwa Metal·Tapping Screws

Available part numbers (15)

T14050FHCOMGT17, T14075FHCOMGT17, T14080FHCOMGT17, T14090FHCOMGT17, T14110FHCOMGT17, T14120FHCOMGT17, T14130FHCOMGT17, T14180FHCOMGT17, T14200FHCOMGT17, T14210FHCOMGT17 + 5 more — see full table ↓

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T14050FHCOMGT17Size: #14 (6.3 mm) x 50 mm | Point: Type 17
T14075FHCOMGT17Size: #14 (6.3 mm) x 75 mm | Point: Type 17
T14080FHCOMGT17Size: #14 (6.3 mm) x 80 mm | Point: Type 17
T14090FHCOMGT17Size: #14 (6.3 mm) x 90 mm | Point: Type 17
T14110FHCOMGT17Size: #14 (6.3 mm) x 110 mm | Point: Type 17
T14120FHCOMGT17Size: #14 (6.3 mm) x 120 mm | Point: Type 17
T14130FHCOMGT17Size: #14 (6.3 mm) x 130 mm | Point: Type 17
T14180FHCOMGT17Size: #14 (6.3 mm) x 180 mm | Point: Type 17
T14200FHCOMGT17Size: #14 (6.3 mm) x 200 mm | Point: Type 17
T14210FHCOMGT17Size: #14 (6.3 mm) x 210 mm | Point: Type 17
T14230FHCOMGT17Size: #14 (6.3 mm) x 230 mm | Point: Type 17
T14250FHCOMGT17Size: #14 (6.3 mm) x 250 mm | Point: Type 17
T14270FHCOMGT17Size: #14 (6.3 mm) x 270 mm | Point: Type 17
T14280FHCOMGT17Size: #14 (6.3 mm) x 280 mm | Point: Type 17
T14300FHCOMGT17Size: #14 (6.3 mm) x 300 mm | Point: Type 17
