Myunghwa Metal TYPE17 Flat Head Screw #6-#10, Magni (32-90 mm)

Myunghwa Metal TYPE17 Flat Head Screw #6-#10, Magni (32-90 mm)

General-grade TYPE17 coarse-thread (bugle-neck) flat head screws with Magni coating for wood and hardwood fixing.

Key features

  • Standard application: steel up to 1 mm + hardwood
  • TYPE17 cutting point, coarse thread

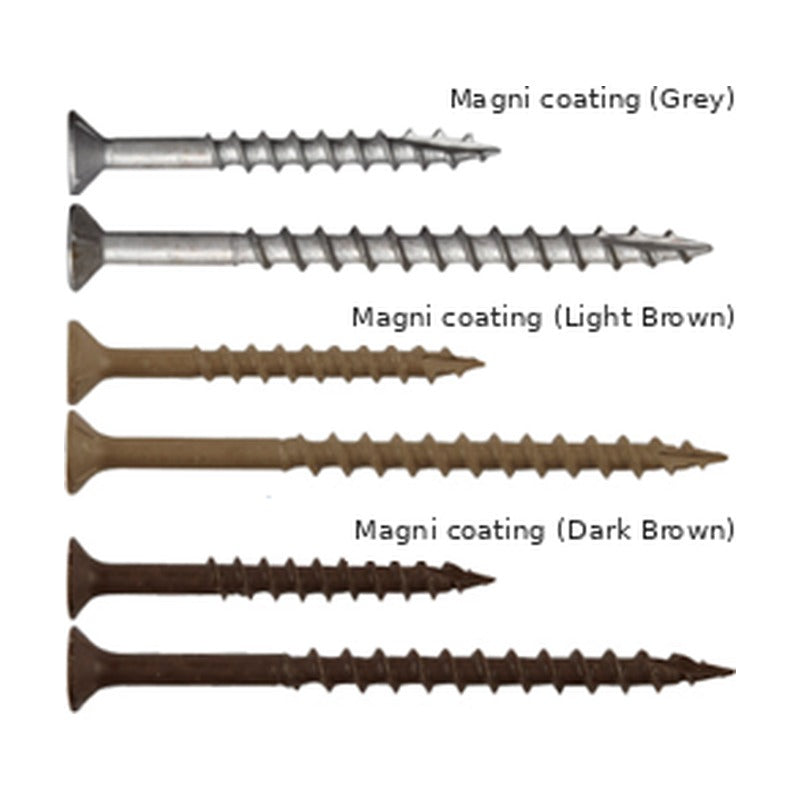

  • Magni coating in grey, light brown or dark brown
  • #6, #8 and #10 gauges

Specifications

Head Flat head with bugle neck
Drive Phillips
Point Type 17 (cut point)
Gauge / diameter #6 (3.8 mm), #8 (4.6 mm), #10 (5.2 mm)
Material Carbon steel (case-hardened)
Finish Magni coating (grey / light brown / dark brown)
Application Steel up to 1 mm + hardwood
Source Myunghwa Metal product list (mhs.co.kr)
D632FHCOMGT17 Size: #6 (3.8 mm) x 32 mm | Finish: Magni coating
D638FHCOMGT17 Size: #6 (3.8 mm) x 38 mm | Finish: Magni coating
D650FHCOMGT17 Size: #6 (3.8 mm) x 50 mm | Finish: Magni coating
D850FHCOMGT17 Size: #8 (4.6 mm) x 50 mm | Finish: Magni coating
D864FHCOMGT17 Size: #8 (4.6 mm) x 64 mm | Finish: Magni coating
D875FHCOMGT17 Size: #8 (4.6 mm) x 75 mm | Finish: Magni coating
D1090FHCOMGT17 Size: #10 (5.2 mm) x 90 mm | Finish: Magni coating
Tapping ScrewsMyunghwa Metal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal TYPE17 Flat Head Screw #6-#10, Magni (32-90 mm)

Brand Myunghwa Metal·Tapping Screws

Available part numbers (7)

D632FHCOMGT17, D638FHCOMGT17, D650FHCOMGT17, D850FHCOMGT17, D864FHCOMGT17, D875FHCOMGT17, D1090FHCOMGT17

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D632FHCOMGT17Size: #6 (3.8 mm) x 32 mm | Finish: Magni coating
D638FHCOMGT17Size: #6 (3.8 mm) x 38 mm | Finish: Magni coating
D650FHCOMGT17Size: #6 (3.8 mm) x 50 mm | Finish: Magni coating
D850FHCOMGT17Size: #8 (4.6 mm) x 50 mm | Finish: Magni coating
D864FHCOMGT17Size: #8 (4.6 mm) x 64 mm | Finish: Magni coating
D875FHCOMGT17Size: #8 (4.6 mm) x 75 mm | Finish: Magni coating
D1090FHCOMGT17Size: #10 (5.2 mm) x 90 mm | Finish: Magni coating
