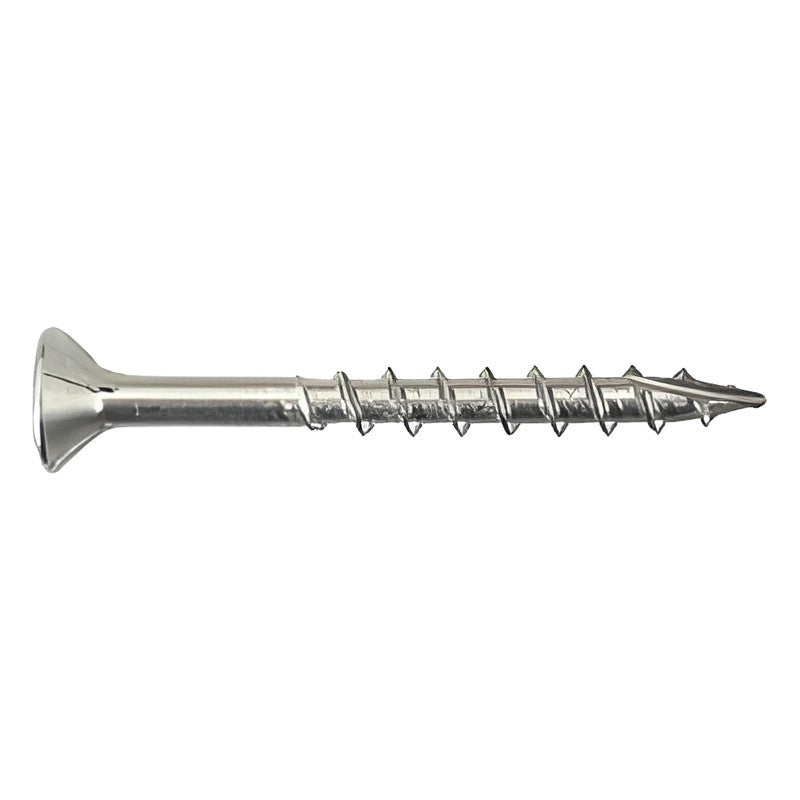

Myunghwa Metal STS410 TYPE17 Flat Head Screw #6/#8 (32-75 mm)

Myunghwa Metal STS410 TYPE17 Flat Head Screw #6/#8 (32-75 mm)

STS410 stainless TYPE17 bugle-neck (coarse thread) flat head screws for fixing hardwood and timber to thin steel up to 1 mm.

Key features

  • Standard application: steel up to 1 mm + hardwood
  • TYPE17 cutting point, coarse thread
  • Bugle neck under the flat head
  • STS410 stainless

Specifications

Head Flat head with bugle neck
Drive Phillips
Point Type 17 (cut point)
Gauge / diameter #6 (3.8 mm), #8 (4.6 mm)
Material Stainless steel STS410 (hardened)
Application Steel up to 1 mm + hardwood
Source Myunghwa Metal product list (mhs.co.kr)
D632FHCOS41WT17 Size: #6 (3.8 mm) x 32 mm | Material: STS410
D638FHCOS41WT17 Size: #6 (3.8 mm) x 38 mm | Material: STS410
D650FHCOS41WT17 Size: #6 (3.8 mm) x 50 mm | Material: STS410
D850FHCOS41WT17 Size: #8 (4.6 mm) x 50 mm | Material: STS410
D864FHCOS41WT17 Size: #8 (4.6 mm) x 64 mm | Material: STS410
D875FHCOS41WT17 Size: #8 (4.6 mm) x 75 mm | Material: STS410
Tapping ScrewsMyunghwa Metal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myunghwa Metal STS410 TYPE17 Flat Head Screw #6/#8 (32-75 mm)

Brand Myunghwa Metal·Tapping Screws

Available part numbers (6)

D632FHCOS41WT17, D638FHCOS41WT17, D650FHCOS41WT17, D850FHCOS41WT17, D864FHCOS41WT17, D875FHCOS41WT17

How to order

Send the Myunghwa Metal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D632FHCOS41WT17Size: #6 (3.8 mm) x 32 mm | Material: STS410
D638FHCOS41WT17Size: #6 (3.8 mm) x 38 mm | Material: STS410
D650FHCOS41WT17Size: #6 (3.8 mm) x 50 mm | Material: STS410
D850FHCOS41WT17Size: #8 (4.6 mm) x 50 mm | Material: STS410
D864FHCOS41WT17Size: #8 (4.6 mm) x 64 mm | Material: STS410
D875FHCOS41WT17Size: #8 (4.6 mm) x 75 mm | Material: STS410
