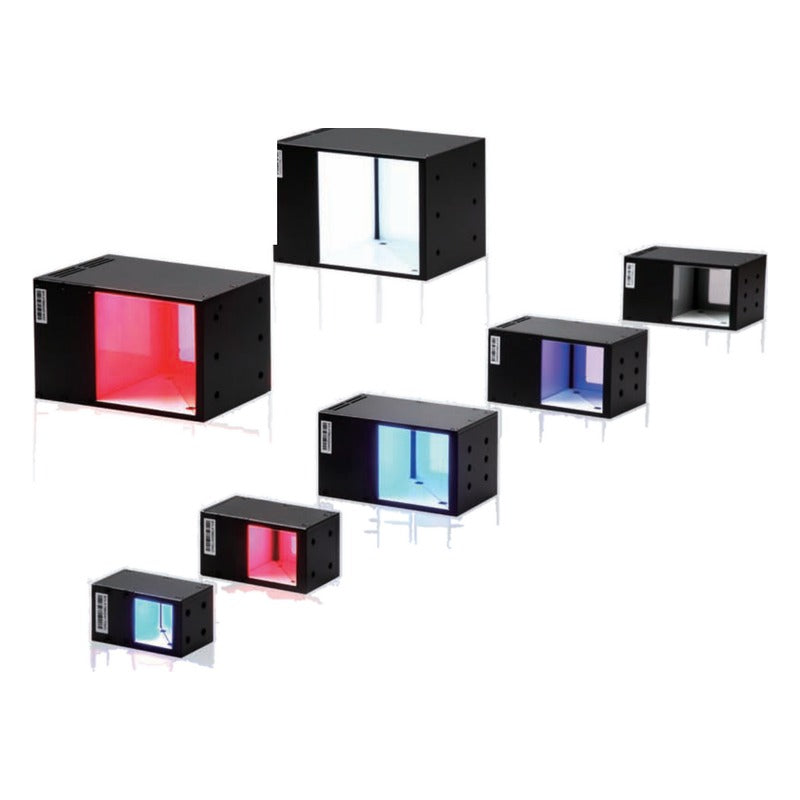

Omron FLV Coaxial Light (FLV-CL, 30-100 mm)

Omron FLV Coaxial Light (FLV-CL, 30-100 mm)

Omron FLV-series coaxial light for machine-vision inspection, available in several sizes and LED colors.

Key features

  • Coaxial (half-mirror) illumination for glossy and flat surfaces
  • Five sizes with 24x25 to 92x92 mm lighting area
  • White, red, blue, IR and UV variants
  • Ideal for marks on metal and mirrored workpieces
  • Connects to FLV-TCC or FLV-ATC controllers

Specifications

Series FLV (Standard Models)
Light type Coaxial Light
Light source LED
Applicable controllers FLV-TCC (camera-mount), FLV-ATC (analog)
Cable 0.8 m pre-wired, extendable with FLV-XC cables
Ambient temperature 0 to 40 °C (operating)
Colors White, Red, Blue (IR/UV on selected sizes)
Source Omron Vision Accessory Catalog Q198-E1-27 (English ed.), p. 12-13
FLV-CL30W Color: White | Power: 2.4 W | Lighting area: 24x25 mm | Outside: 32x59.5 mm
FLV-CL30R Color: Red | Power: 1.4 W | Lighting area: 24x25 mm | Outside: 32x59.5 mm
FLV-CL30B Color: Blue | Power: 2.4 W | Lighting area: 24x25 mm | Outside: 32x59.5 mm
FLV-CL40W Color: White | Power: 3.9 W | Lighting area: 34x34 mm | Outside: 40x74 mm
FLV-CL40R Color: Red | Power: 2.3 W | Lighting area: 34x34 mm | Outside: 40x74 mm
FLV-CL40B Color: Blue | Power: 3.9 W | Lighting area: 34x34 mm | Outside: 40x74 mm
FLV-CL60W Color: White | Power: 10.4 W | Lighting area: 51x52 mm | Outside: 58x104 mm
FLV-CL60R Color: Red | Power: 5.7 W | Lighting area: 51x52 mm | Outside: 58x104 mm
FLV-CL60B Color: Blue | Power: 10.4 W | Lighting area: 51x52 mm | Outside: 58x104 mm
FLV-CL60IR Color: Infrared | Power: 3.9 W | Lighting area: 51x52 mm | Outside: 58x104 mm
FLV-CL60UV Color: Ultraviolet | Power: 3.0 W | Lighting area: 51x52 mm | Outside: 58x104 mm
FLV-CL80W Color: White | Power: 10.8 W | Lighting area: 72x72 mm | Outside: 78x124 mm
FLV-CL80R Color: Red | Power: 7.2 W | Lighting area: 72x72 mm | Outside: 78x124 mm
FLV-CL80B Color: Blue | Power: 10.8 W | Lighting area: 72x72 mm | Outside: 78x124 mm
FLV-CL100W Color: White | Power: 22.7 W | Lighting area: 92x92 mm | Outside: 98x141 mm
FLV-CL100R Color: Red | Power: 15.2 W | Lighting area: 92x92 mm | Outside: 98x141 mm
FLV-CL100B Color: Blue | Power: 22.7 W | Lighting area: 92x92 mm | Outside: 98x141 mm
Vision SensorsOmron
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron FLV Coaxial Light (FLV-CL, 30-100 mm)

Brand Omron·Vision Sensors

Available part numbers (17)

FLV-CL30W, FLV-CL30R, FLV-CL30B, FLV-CL40W, FLV-CL40R, FLV-CL40B, FLV-CL60W, FLV-CL60R, FLV-CL60B, FLV-CL60IR + 7 more — see full table ↓
