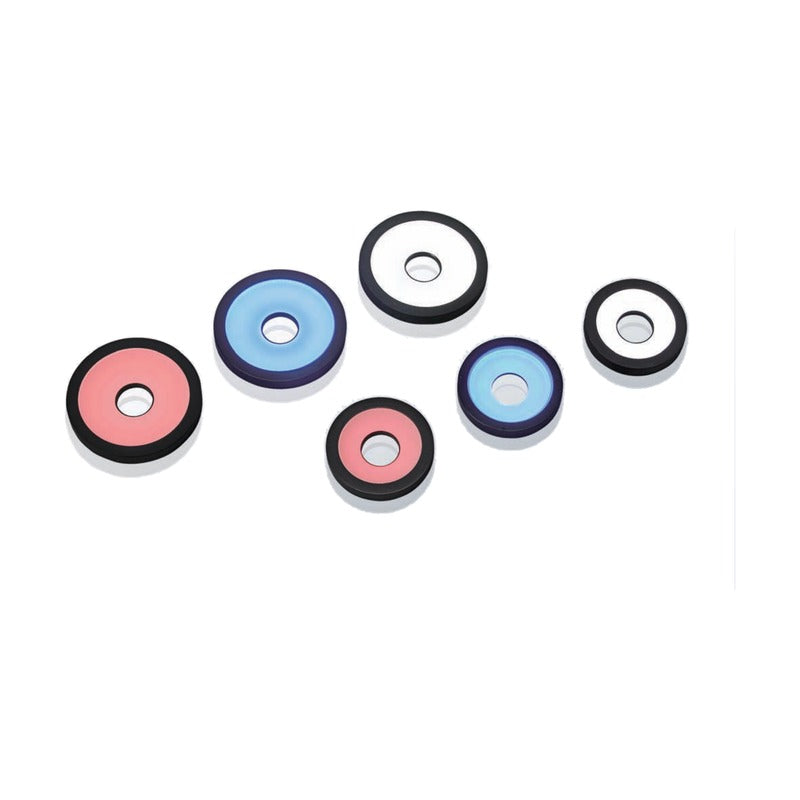

Omron FLV Shadowless Light (FLV-FR/FP/FS/FQ)

Omron FLV Shadowless Light (FLV-FR/FP/FS/FQ)

Omron FLV-series shadowless light for machine-vision inspection, available in several sizes and LED colors.

Key features

  • Shadowless ring (FLV-FR), low angle ring (FLV-FP), dome ring (FLV-FS) and square (FLV-FQ) types
  • Highly uniform illumination without diagonal shadows
  • Suited to printed and marked characters, barcodes and surface defects
  • White, red and blue LED variants
  • Connects to FLV-TCC or FLV-ATC controllers

Specifications

Series FLV (Standard Models)
Light type Shadowless Light
Light source LED
Applicable controllers FLV-TCC (camera-mount), FLV-ATC (analog)
Cable 0.8 m pre-wired, extendable with FLV-XC cables
Ambient temperature 0 to 40 °C (operating)
Colors White, Red, Blue (IR/UV on selected sizes)
Source Omron Vision Accessory Catalog Q198-E1-27 (English ed.), p. 14-18
FLV-FR114W Color: White | Power: 3.9 W | Ring OD/ID: 114 / 40 mm | Lighting area: 92 mm dia.
FLV-FR114R Color: Red | Power: 3.1 W | Ring OD/ID: 114 / 40 mm | Lighting area: 92 mm dia.
FLV-FR114B Color: Blue | Power: 3.9 W | Ring OD/ID: 114 / 40 mm | Lighting area: 92 mm dia.
FLV-FR150W Color: White | Power: 6.1 W | Ring OD/ID: 150 / 40 mm | Lighting area: 123 mm dia.
FLV-FR150R Color: Red | Power: 3.5 W | Ring OD/ID: 150 / 40 mm | Lighting area: 123 mm dia.
FLV-FR150B Color: Blue | Power: 6.1 W | Ring OD/ID: 150 / 40 mm | Lighting area: 123 mm dia.
FLV-FP130W Color: White | Power: 8.1 W | Ring OD/ID: 130 / 100 mm | Lighting area: 120 mm dia.
FLV-FP130R Color: Red | Power: 5.8 W | Ring OD/ID: 130 / 100 mm | Lighting area: 120 mm dia.
FLV-FP130B Color: Blue | Power: 8.1 W | Ring OD/ID: 130 / 100 mm | Lighting area: 120 mm dia.
FLV-FS74W Color: White | Power: 5.2 W | Ring OD/ID: 74 / 20 mm | Lighting area: 64 mm dia.
FLV-FS74R Color: Red | Power: 3.5 W | Ring OD/ID: 74 / 20 mm | Lighting area: 64 mm dia.
FLV-FS74B Color: Blue | Power: 5.2 W | Ring OD/ID: 74 / 20 mm | Lighting area: 64 mm dia.
FLV-FQ48W Color: White | Power: 2.0 W | Lighting area: 41x41 mm | Outside: 48x48 mm
FLV-FQ48R Color: Red | Power: 1.2 W | Lighting area: 41x41 mm | Outside: 48x48 mm
FLV-FQ48B Color: Blue | Power: 2.0 W | Lighting area: 41x41 mm | Outside: 48x48 mm
Vision SensorsOmron
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron FLV Shadowless Light (FLV-FR/FP/FS/FQ)

Brand Omron·Vision Sensors

Available part numbers (15)

FLV-FR114W, FLV-FR114R, FLV-FR114B, FLV-FR150W, FLV-FR150R, FLV-FR150B, FLV-FP130W, FLV-FP130R, FLV-FP130B, FLV-FS74W + 5 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FLV-FR114WColor: White | Power: 3.9 W | Ring OD/ID: 114 / 40 mm | Lighting area: 92 mm dia.
FLV-FR114RColor: Red | Power: 3.1 W | Ring OD/ID: 114 / 40 mm | Lighting area: 92 mm dia.
FLV-FR114BColor: Blue | Power: 3.9 W | Ring OD/ID: 114 / 40 mm | Lighting area: 92 mm dia.
FLV-FR150WColor: White | Power: 6.1 W | Ring OD/ID: 150 / 40 mm | Lighting area: 123 mm dia.
FLV-FR150RColor: Red | Power: 3.5 W | Ring OD/ID: 150 / 40 mm | Lighting area: 123 mm dia.
FLV-FR150BColor: Blue | Power: 6.1 W | Ring OD/ID: 150 / 40 mm | Lighting area: 123 mm dia.
FLV-FP130WColor: White | Power: 8.1 W | Ring OD/ID: 130 / 100 mm | Lighting area: 120 mm dia.
FLV-FP130RColor: Red | Power: 5.8 W | Ring OD/ID: 130 / 100 mm | Lighting area: 120 mm dia.
FLV-FP130BColor: Blue | Power: 8.1 W | Ring OD/ID: 130 / 100 mm | Lighting area: 120 mm dia.
FLV-FS74WColor: White | Power: 5.2 W | Ring OD/ID: 74 / 20 mm | Lighting area: 64 mm dia.
FLV-FS74RColor: Red | Power: 3.5 W | Ring OD/ID: 74 / 20 mm | Lighting area: 64 mm dia.
FLV-FS74BColor: Blue | Power: 5.2 W | Ring OD/ID: 74 / 20 mm | Lighting area: 64 mm dia.
FLV-FQ48WColor: White | Power: 2.0 W | Lighting area: 41x41 mm | Outside: 48x48 mm
FLV-FQ48RColor: Red | Power: 1.2 W | Lighting area: 41x41 mm | Outside: 48x48 mm
FLV-FQ48BColor: Blue | Power: 2.0 W | Lighting area: 41x41 mm | Outside: 48x48 mm
