• Omron R88M-C6 C6 AC Servomotor (50 W-7.5 kW)
1 1

Omron R88M-C6 C6 AC Servomotor (50 W-7.5 kW)

Omron R88M-C6 C6 AC Servomotor (50 W-7.5 kW)

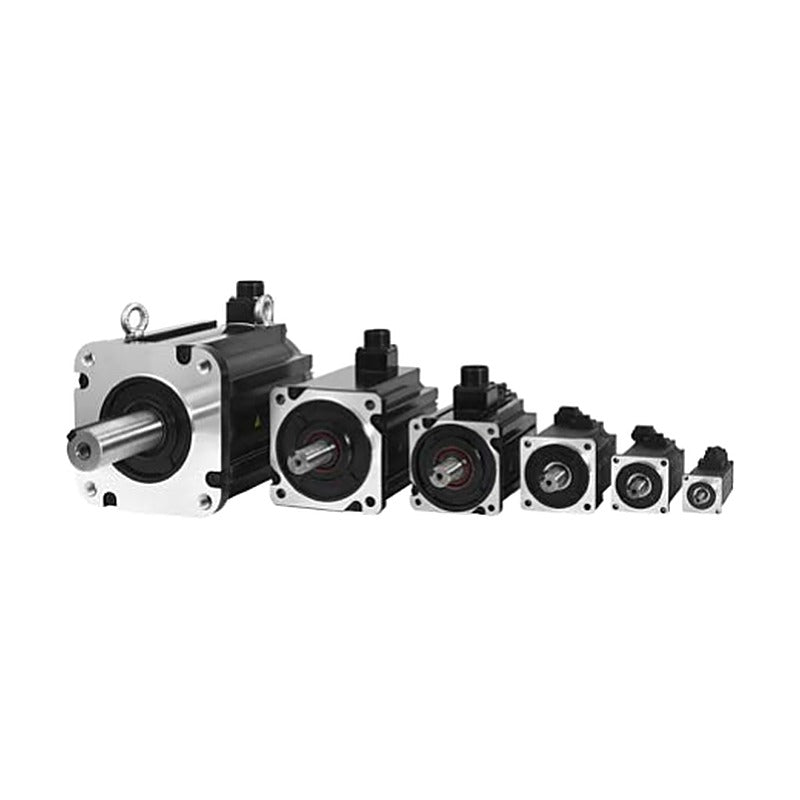

Omron C6 servomotors from 50 W to 7.5 kW at 1,500, 2,000 and 3,000 rpm with absolute encoder, for R88D-C6N EtherCAT drives.

Key features

  • Absolute encoder as standard (battery needed for multi-turn)
  • Compact motor size
  • Low, middle and high inertia types
  • Key and tapped straight shaft as standard
  • Versions with 24 VDC brake

Specifications

Brand Omron
Product type Servomotors
Series C6
Encoder Absolute
Shaft Straight, key and tap
Applicable drive R88D-C6N-ECT-GS
Source Omron C6 Servo Datasheet I226E-EN-01 (English ed.), p. 2-3, 5-11, 17-29, 34-36
R88M-C6H05030T-S2-GS Output: 50 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H10030T-S2-GS Output: 100 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H20030T-S2-GS Output: 200 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H40030T-S2-GS Output: 400 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H75030T-S2-GS Output: 750 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H1K030T-S2-GS Output: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6L1K030T-OS2-10GS Output: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L1K530T-OS2-GS Output: 1.5 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6H05030T-BS2-GS Output: 50 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H10030T-BS2-GS Output: 100 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H20030T-BS2-GS Output: 200 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H40030T-BS2-GS Output: 400 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H75030T-BS2-GS Output: 750 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H1K030T-BS2-GS Output: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6L1K030T-BOS2-10GS Output: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L1K530T-BOS2-GS Output: 1.5 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L1K030C-OS2-GS Output: 1 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L1K530C-OS2-GS Output: 1.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L2K030C-OS2-GS Output: 2 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L2K530C-OS2-GS Output: 2.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L4K030C-OS2-GS Output: 4 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L5K030C-OS2-GS Output: 5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L1K030C-BOS2-GS Output: 1 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L1K530C-BOS2-GS Output: 1.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L2K030C-BOS2-GS Output: 2 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L2K530C-BOS2-GS Output: 2.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L4K030C-BOS2-GS Output: 4 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L5K030C-BOS2-GS Output: 5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K020T-OS2-GS Output: 1 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K520T-OS2-GS Output: 1.5 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K020T-BOS2-GS Output: 1 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K520T-BOS2-GS Output: 1.5 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K020C-OS2-GS Output: 1 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K520C-OS2-GS Output: 1.5 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M2K020C-OS2-GS Output: 2 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M3K020C-OS2-GS Output: 3 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K020C-BOS2-GS Output: 1 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K520C-BOS2-GS Output: 1.5 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M2K020C-BOS2-GS Output: 2 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M3K020C-BOS2-GS Output: 3 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H85015T-OS2-GS Output: 850 W | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H1K315T-OS2-GS Output: 1.3 kW | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H85015T-BOS2-GS Output: 850 W | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H1K315T-BOS2-GS Output: 1.3 kW | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H85015C-OS2-GS Output: 850 W | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H1K315C-OS2-GS Output: 1.3 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H1K815C-OS2-GS Output: 1.8 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H2K915C-OS2-GS Output: 2.9 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H4K415C-OS2-GS Output: 4.4 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H5K515C-OS2-GS Output: 5.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H7K515C-OS2-GS Output: 7.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H85015C-BOS2-GS Output: 850 W | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H1K315C-BOS2-GS Output: 1.3 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H1K815C-BOS2-GS Output: 1.8 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H2K915C-BOS2-GS Output: 2.9 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H4K415C-BOS2-GS Output: 4.4 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H5K515C-BOS2-GS Output: 5.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H7K515C-BOS2-GS Output: 7.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
ServomotorsOmron
58 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron R88M-C6 C6 AC Servomotor (50 W-7.5 kW)

Brand Omron·Servomotors

Available part numbers (58)

R88M-C6H05030T-S2-GS, R88M-C6H10030T-S2-GS, R88M-C6H20030T-S2-GS, R88M-C6H40030T-S2-GS, R88M-C6H75030T-S2-GS, R88M-C6H1K030T-S2-GS, R88M-C6L1K030T-OS2-10GS, R88M-C6L1K530T-OS2-GS, R88M-C6H05030T-BS2-GS, R88M-C6H10030T-BS2-GS + 48 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R88M-C6H05030T-S2-GSOutput: 50 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H10030T-S2-GSOutput: 100 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H20030T-S2-GSOutput: 200 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H40030T-S2-GSOutput: 400 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H75030T-S2-GSOutput: 750 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6H1K030T-S2-GSOutput: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: None
R88M-C6L1K030T-OS2-10GSOutput: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L1K530T-OS2-GSOutput: 1.5 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6H05030T-BS2-GSOutput: 50 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H10030T-BS2-GSOutput: 100 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H20030T-BS2-GSOutput: 200 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H40030T-BS2-GSOutput: 400 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H75030T-BS2-GSOutput: 750 W | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6H1K030T-BS2-GSOutput: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: None
R88M-C6L1K030T-BOS2-10GSOutput: 1 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L1K530T-BOS2-GSOutput: 1.5 kW | Speed: 3,000 r/min | Voltage: 230 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L1K030C-OS2-GSOutput: 1 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L1K530C-OS2-GSOutput: 1.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L2K030C-OS2-GSOutput: 2 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L2K530C-OS2-GSOutput: 2.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L4K030C-OS2-GSOutput: 4 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L5K030C-OS2-GSOutput: 5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: None | Oil seal: Yes
R88M-C6L1K030C-BOS2-GSOutput: 1 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L1K530C-BOS2-GSOutput: 1.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L2K030C-BOS2-GSOutput: 2 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L2K530C-BOS2-GSOutput: 2.5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L4K030C-BOS2-GSOutput: 4 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6L5K030C-BOS2-GSOutput: 5 kW | Speed: 3,000 r/min | Voltage: 400 VAC | Inertia: Low | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K020T-OS2-GSOutput: 1 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K520T-OS2-GSOutput: 1.5 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K020T-BOS2-GSOutput: 1 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K520T-BOS2-GSOutput: 1.5 kW | Speed: 2,000 r/min | Voltage: 230 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K020C-OS2-GSOutput: 1 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K520C-OS2-GSOutput: 1.5 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M2K020C-OS2-GSOutput: 2 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M3K020C-OS2-GSOutput: 3 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: None | Oil seal: Yes
R88M-C6M1K020C-BOS2-GSOutput: 1 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M1K520C-BOS2-GSOutput: 1.5 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M2K020C-BOS2-GSOutput: 2 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6M3K020C-BOS2-GSOutput: 3 kW | Speed: 2,000 r/min | Voltage: 400 VAC | Inertia: Middle | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H85015T-OS2-GSOutput: 850 W | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H1K315T-OS2-GSOutput: 1.3 kW | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H85015T-BOS2-GSOutput: 850 W | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H1K315T-BOS2-GSOutput: 1.3 kW | Speed: 1,500 r/min | Voltage: 230 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H85015C-OS2-GSOutput: 850 W | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H1K315C-OS2-GSOutput: 1.3 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H1K815C-OS2-GSOutput: 1.8 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H2K915C-OS2-GSOutput: 2.9 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H4K415C-OS2-GSOutput: 4.4 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H5K515C-OS2-GSOutput: 5.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H7K515C-OS2-GSOutput: 7.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: None | Oil seal: Yes
R88M-C6H85015C-BOS2-GSOutput: 850 W | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H1K315C-BOS2-GSOutput: 1.3 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H1K815C-BOS2-GSOutput: 1.8 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H2K915C-BOS2-GSOutput: 2.9 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H4K415C-BOS2-GSOutput: 4.4 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H5K515C-BOS2-GSOutput: 5.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes
R88M-C6H7K515C-BOS2-GSOutput: 7.5 kW | Speed: 1,500 r/min | Voltage: 400 VAC | Inertia: High | Brake: 24 VDC brake | Oil seal: Yes

Need a different model, or a part not listed here? Send us your parts list →
