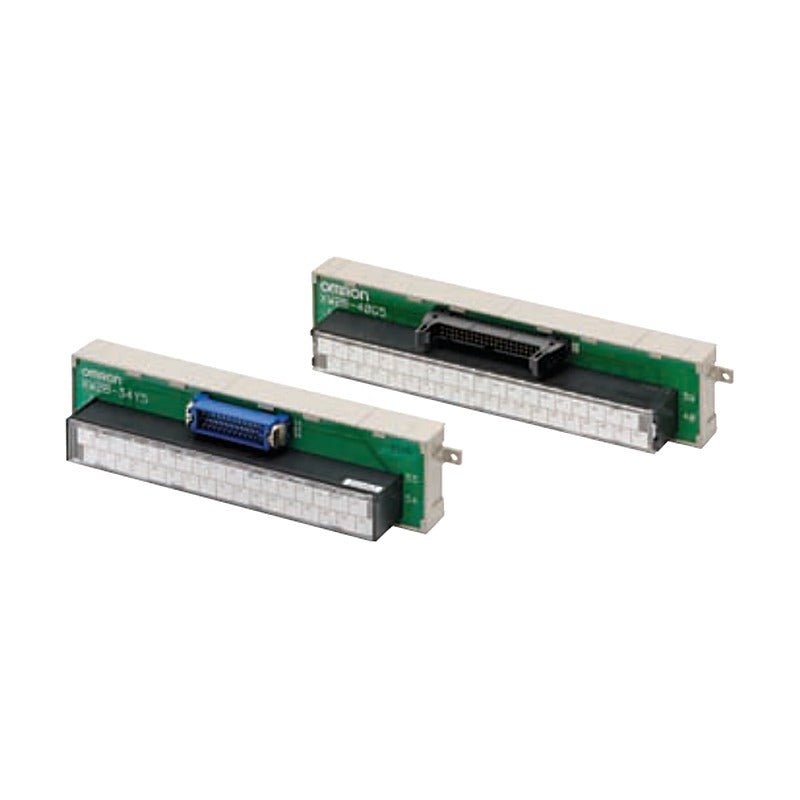

Omron XW2B Standard Connector-Terminal Block Conversion Unit

Omron XW2B Standard Connector-Terminal Block Conversion Unit

XW2B standard connector-terminal block conversion units simplify connector-to-terminal wiring for PLC I/O.

Key features

  • MIL flat-cable and multi-pole square connector types
  • Terminal blocks with M3 or M3.5 screws
  • 20 to 60 poles; twin-connector and daisy-chain models
  • DIN track or screw mounting
  • Connect with XW2Z cables

Specifications

Rated current 1 A
Rated voltage 125 VAC
Insulation resistance 100 MOhm min. (500 VDC)
Dielectric strength 500 VAC 1 min
Ambient temperature 0 to 55 C
Mounting DIN track or screws
Source Omron CSM_XW2B_DS_E_4_2 (English ed.), p. 1-2, 8-9
XW2B-20G4 Connector: MIL flat cable | Poles: 20 | Terminal: M3 screw | Type: Standard
XW2B-34G4 Connector: MIL flat cable | Poles: 34 | Terminal: M3 screw | Type: Standard
XW2B-40G4 Connector: MIL flat cable | Poles: 40 | Terminal: M3 screw | Type: Standard
XW2B-50G4 Connector: MIL flat cable | Poles: 50 | Terminal: M3 screw | Type: Standard
XW2B-60G4 Connector: MIL flat cable | Poles: 60 | Terminal: M3 screw | Type: Standard
XW2B-20G5 Connector: MIL flat cable | Poles: 20 | Terminal: M3.5 screw | Type: Standard
XW2B-34G5 Connector: MIL flat cable | Poles: 34 | Terminal: M3.5 screw | Type: Standard
XW2B-40G5 Connector: MIL flat cable | Poles: 40 | Terminal: M3.5 screw | Type: Standard
XW2B-50G5 Connector: MIL flat cable | Poles: 50 | Terminal: M3.5 screw | Type: Standard
XW2B-60G5 Connector: MIL flat cable | Poles: 60 | Terminal: M3.5 screw | Type: Standard
XW2B-40G5-T Connector: MIL flat cable | Poles: 40 | Terminal: M3.5 screw | Type: Twin-connector
XW2B-20G5-D Connector: MIL flat cable | Poles: 20 | Terminal: M3.5 screw | Type: Daisy chain
XW2B-20Y4 Connector: Multi-pole square (plug) | Poles: 20 | Terminal: M3 screw | Type: Standard
XW2B-34Y4 Connector: Multi-pole square (plug) | Poles: 34 | Terminal: M3 screw | Type: Standard
XW2B-50Y4 Connector: Multi-pole square (plug) | Poles: 50 | Terminal: M3 screw | Type: Standard
XW2B-50Y5 Connector: Multi-pole square (plug) | Poles: 50 | Terminal: M3.5 screw | Type: Standard
XW2B-20X5 Connector: Multi-pole square (socket) | Poles: 20 | Terminal: M3.5 screw | Type: Standard
XW2B-34X5 Connector: Multi-pole square (socket) | Poles: 34 | Terminal: M3.5 screw | Type: Standard
XW2B-50X5 Connector: Multi-pole square (socket) | Poles: 50 | Terminal: M3.5 screw | Type: Standard
XW2B-40F5-P Connector: FCN | Poles: 40 | Terminal: M3.5 screw | Type: Board I/O unit
Wiring SystemsOmron
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron XW2B Standard Connector-Terminal Block Conversion Unit

Brand Omron·Wiring Systems

Available part numbers (20)

XW2B-20G4, XW2B-34G4, XW2B-40G4, XW2B-50G4, XW2B-60G4, XW2B-20G5, XW2B-34G5, XW2B-40G5, XW2B-50G5, XW2B-60G5 + 10 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XW2B-20G4Connector: MIL flat cable | Poles: 20 | Terminal: M3 screw | Type: Standard
XW2B-34G4Connector: MIL flat cable | Poles: 34 | Terminal: M3 screw | Type: Standard
XW2B-40G4Connector: MIL flat cable | Poles: 40 | Terminal: M3 screw | Type: Standard
XW2B-50G4Connector: MIL flat cable | Poles: 50 | Terminal: M3 screw | Type: Standard
XW2B-60G4Connector: MIL flat cable | Poles: 60 | Terminal: M3 screw | Type: Standard
XW2B-20G5Connector: MIL flat cable | Poles: 20 | Terminal: M3.5 screw | Type: Standard
XW2B-34G5Connector: MIL flat cable | Poles: 34 | Terminal: M3.5 screw | Type: Standard
XW2B-40G5Connector: MIL flat cable | Poles: 40 | Terminal: M3.5 screw | Type: Standard
XW2B-50G5Connector: MIL flat cable | Poles: 50 | Terminal: M3.5 screw | Type: Standard
XW2B-60G5Connector: MIL flat cable | Poles: 60 | Terminal: M3.5 screw | Type: Standard
XW2B-40G5-TConnector: MIL flat cable | Poles: 40 | Terminal: M3.5 screw | Type: Twin-connector
XW2B-20G5-DConnector: MIL flat cable | Poles: 20 | Terminal: M3.5 screw | Type: Daisy chain
XW2B-20Y4Connector: Multi-pole square (plug) | Poles: 20 | Terminal: M3 screw | Type: Standard
XW2B-34Y4Connector: Multi-pole square (plug) | Poles: 34 | Terminal: M3 screw | Type: Standard
XW2B-50Y4Connector: Multi-pole square (plug) | Poles: 50 | Terminal: M3 screw | Type: Standard
XW2B-50Y5Connector: Multi-pole square (plug) | Poles: 50 | Terminal: M3.5 screw | Type: Standard
XW2B-20X5Connector: Multi-pole square (socket) | Poles: 20 | Terminal: M3.5 screw | Type: Standard
XW2B-34X5Connector: Multi-pole square (socket) | Poles: 34 | Terminal: M3.5 screw | Type: Standard
XW2B-50X5Connector: Multi-pole square (socket) | Poles: 50 | Terminal: M3.5 screw | Type: Standard
XW2B-40F5-PConnector: FCN | Poles: 40 | Terminal: M3.5 screw | Type: Board I/O unit
