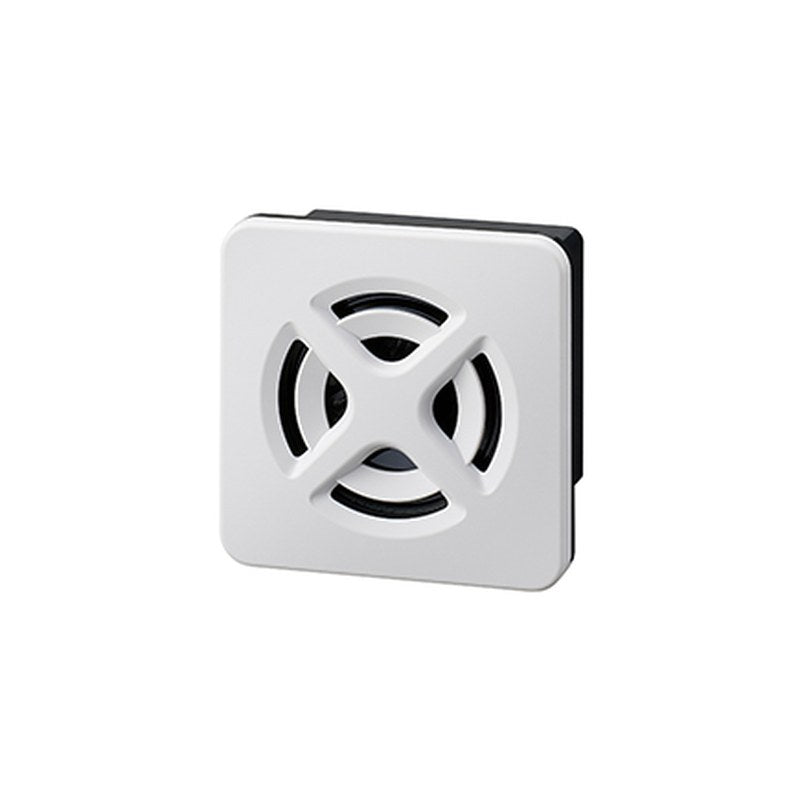

PATLITE BD Slim Audible Alarm for Panel Mounting (80 mm, IP65, 98 dB)

PATLITE BD Slim Audible Alarm for Panel Mounting (80 mm, IP65, 98 dB)

Slim 54 mm-deep, 80 mm square panel-mount audible alarm with 98 dB output and 32 built-in sounds.

Key features

  • 98 dB (typ.) output in a 54 mm deep housing, about 40% slimmer than the previous model
  • IP65 dust and water resistance for outdoor use
  • Front-access structure for mounting, removal and volume adjustment
  • 32 copyright-free sounds in 8 DIP-switch groups, 4 sounds by bit input
  • M1 12-24V DC (NPN or PNP, 4.5G vibration) or M2 100-240V AC (NPN)

Specifications

Size 80 mm square
Sound Output 98 dB (typ.)
Protection IP65
Use Indoor / outdoor
Brand PATLITE
Source patlite.com product page BD
BD-M1N-W Voltage: 12-24V DC | Transistor: NPN | Front Cover: Off-white
BD-M1N-D Voltage: 12-24V DC | Transistor: NPN | Front Cover: Dark gray
BD-M1P-W Voltage: 12-24V DC | Transistor: PNP | Front Cover: Off-white
BD-M1P-D Voltage: 12-24V DC | Transistor: PNP | Front Cover: Dark gray
BD-M2-W Voltage: 100-240V AC | Transistor: NPN | Front Cover: Off-white
BD-M2-D Voltage: 100-240V AC | Transistor: NPN | Front Cover: Dark gray
BuzzersPATLITE
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE BD Slim Audible Alarm for Panel Mounting (80 mm, IP65, 98 dB)

Brand PATLITE·Buzzers

Available part numbers (6)

BD-M1N-W, BD-M1N-D, BD-M1P-W, BD-M1P-D, BD-M2-W, BD-M2-D

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BD-M1N-WVoltage: 12-24V DC | Transistor: NPN | Front Cover: Off-white
BD-M1N-DVoltage: 12-24V DC | Transistor: NPN | Front Cover: Dark gray
BD-M1P-WVoltage: 12-24V DC | Transistor: PNP | Front Cover: Off-white
BD-M1P-DVoltage: 12-24V DC | Transistor: PNP | Front Cover: Dark gray
BD-M2-WVoltage: 100-240V AC | Transistor: NPN | Front Cover: Off-white
BD-M2-DVoltage: 100-240V AC | Transistor: NPN | Front Cover: Dark gray
