• PATLITE CWA+FL010 LED Light Bar (Interim Product, IP65, 24V DC)
1 1

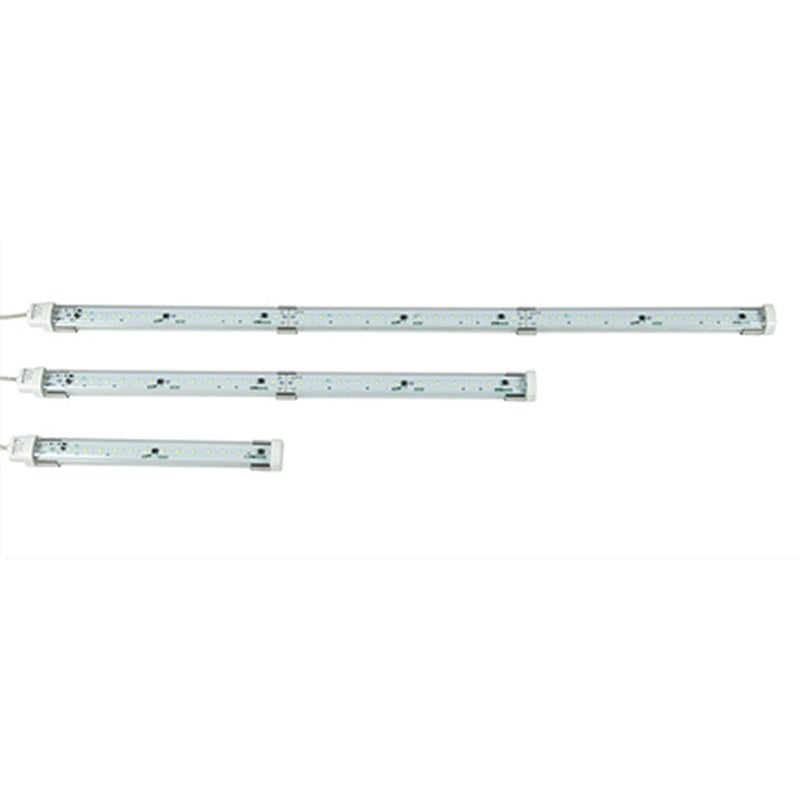

PATLITE CWA+FL010 LED Light Bar (Interim Product, IP65, 24V DC)

PATLITE CWA+FL010 LED Light Bar (Interim Product, IP65, 24V DC)

Interim-version CWA LED light bar (+FL010) in 300, 600 and 900 mm lengths for 24V DC applications.

Key features

  • Daylight 6500K high-power LED array
  • Two stainless steel mounting brackets supplied as standard
  • Mount in any direction; operating range -30 to +60 C
  • Polycarbonate lens, IP65 (IEC 60529)

Specifications

Rated Voltage 24V DC
Luminous Color Daylight (6500K)
Protection IP65
Standards RoHS, CE, UL
Brand PATLITE
Source patlite.com product page CWA+FL010
CWA3S-24-CD+FL010 Length: 300 mm | Current: 180 mA | Output: 110 lx / 480 lm
CWA6S-24-CD+FL010 Length: 600 mm | Current: 360 mA | Output: 220 lx / 980 lm
CWA9S-24-CD+FL010 Length: 900 mm | Current: 540 mA | Output: 330 lx / 1500 lm
LED Work LightsPATLITE
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE CWA+FL010 LED Light Bar (Interim Product, IP65, 24V DC)

Brand PATLITE·LED Work Lights

Available part numbers (3)

CWA3S-24-CD+FL010, CWA6S-24-CD+FL010, CWA9S-24-CD+FL010

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CWA3S-24-CD+FL010Length: 300 mm | Current: 180 mA | Output: 110 lx / 480 lm
CWA6S-24-CD+FL010Length: 600 mm | Current: 360 mA | Output: 220 lx / 980 lm
CWA9S-24-CD+FL010Length: 900 mm | Current: 540 mA | Output: 330 lx / 1500 lm
