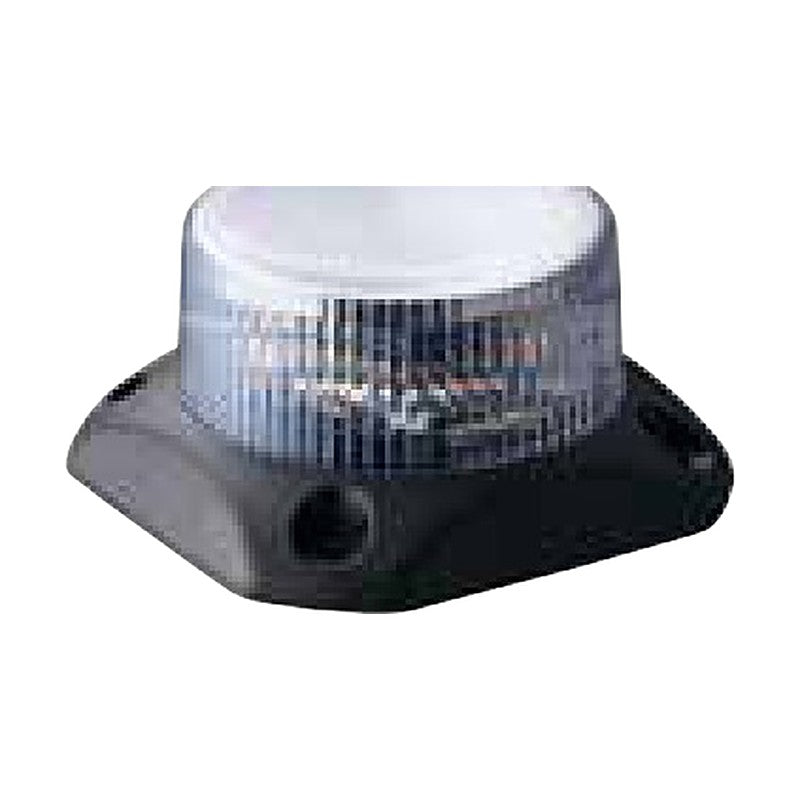

PATLITE GL7 / GL7T / GF7 Rugged Outdoor Warning Beacons
PATLITE GL7 / GL7T / GF7 Rugged Outdoor Warning Beacons
Compact, rugged flashing and rotating LED warning beacons for construction machinery, forklifts and outdoor equipment in harsh environments.
Key features
- IP69K: withstands high-temperature, high-pressure washing
- Vibration resistance 110 m/s², impact resistance 1,000 m/s²
- Three-color LED with distinct flash patterns, accessible for users with color vision deficiency
- CAN (SAE J1939) controlled models with configurable patterns and 4 brightness levels
- Slim, space-saving design for compact construction machinery and forklifts
- Compliant with EMC (ISO 13766-1) and environmental testing (ISO 16750)
Specifications
| Base size | 87.5 x 87.5 mm |
|---|---|
| Mounting location | Indoor / outdoor (construction equipment allowed) |
| Mounting direction | Upright, sideways, inverted (indoor only) |
| Protection | IP6X, IPX6 (IEC 60529), IPX9K (ISO 20653) |
| Vibration resistance | 110 m/s² (JIS D 1601:1995) |
| Impact resistance | 1,000 m/s² 11 ms (IEC 60068-2-27:2008) |
| Mounting holes | φ4.5 x 4 on φ85 PCD |
| Model code | Series (GL7/GL7T/GF7) - voltage (M1: 12-24V DC, 48: 48V DC) N control (blank: voltage, C1: CAN) - color (T: 3 colors, Y: amber) |
| GL7-M1NC1-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: CAN (SAE J1939), configurable patterns, 4 brightness levels | Power: Max. 4.6W | Height: 45.5 mm | Wiring: Waterproof connector DEUTSCH DT04-4P-CE02, 400 mm | Mass: 150g | |
| GL7T-M1NC1-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: CAN (SAE J1939), configurable patterns, 4 brightness levels | Power: Max. 4.6W | Height: 30.5 mm | Wiring: Waterproof connector DEUTSCH DT04-4P-CE02, 400 mm | Mass: 140g | |
| GL7-M1N-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: Wire lead, fixed patterns (pulsing / double / triple flash) | Power: Max. 4.6W | Height: 45.5 mm | Wiring: Lead wires 0.5 mm², 350 mm | Mass: 140g | |
| GL7T-M1N-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: Wire lead, fixed patterns (pulsing / double / triple flash) | Power: Max. 4.6W | Height: 30.5 mm | Wiring: Lead wires 0.5 mm², 350 mm | Mass: 130g | |
| GL7-M1N-Y | Type: Flashing beacon | Colors: 1 (Amber) | Rated voltage: 12-24V DC | Control: Wire lead, fixed double flash | Power: Max. 8.9W | Height: 45.5 mm | Wiring: Lead wires 0.5 mm², 500 mm | Mass: 140g | |
| GF7-48N-Y | Type: Rotating beacon | Colors: 1 (Amber) | Rated voltage: 48V DC | Control: Wire lead, fixed chase light | Power: Max. 5.8W | Height: 45.5 mm | Wiring: Lead wires 0.5 mm², 500 mm | Mass: 140g |
Signal BeaconsPATLITE
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
PATLITE GL7 / GL7T / GF7 Rugged Outdoor Warning Beacons
Available part numbers (6)
GL7-M1NC1-T, GL7T-M1NC1-T, GL7-M1N-T, GL7T-M1N-T, GL7-M1N-Y, GF7-48N-Y
How to order
Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
PATLITE
Signal Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| GL7-M1NC1-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: CAN (SAE J1939), configurable patterns, 4 brightness levels | Power: Max. 4.6W | Height: 45.5 mm | Wiring: Waterproof connector DEUTSCH DT04-4P-CE02, 400 mm | Mass: 150g | ||
| GL7T-M1NC1-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: CAN (SAE J1939), configurable patterns, 4 brightness levels | Power: Max. 4.6W | Height: 30.5 mm | Wiring: Waterproof connector DEUTSCH DT04-4P-CE02, 400 mm | Mass: 140g | ||
| GL7-M1N-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: Wire lead, fixed patterns (pulsing / double / triple flash) | Power: Max. 4.6W | Height: 45.5 mm | Wiring: Lead wires 0.5 mm², 350 mm | Mass: 140g | ||
| GL7T-M1N-T | Type: Flashing beacon | Colors: 3 (Red, Amber, Green) | Rated voltage: 12-24V DC | Control: Wire lead, fixed patterns (pulsing / double / triple flash) | Power: Max. 4.6W | Height: 30.5 mm | Wiring: Lead wires 0.5 mm², 350 mm | Mass: 130g | ||
| GL7-M1N-Y | Type: Flashing beacon | Colors: 1 (Amber) | Rated voltage: 12-24V DC | Control: Wire lead, fixed double flash | Power: Max. 8.9W | Height: 45.5 mm | Wiring: Lead wires 0.5 mm², 500 mm | Mass: 140g | ||
| GF7-48N-Y | Type: Rotating beacon | Colors: 1 (Amber) | Rated voltage: 48V DC | Control: Wire lead, fixed chase light | Power: Max. 5.8W | Height: 45.5 mm | Wiring: Lead wires 0.5 mm², 500 mm | Mass: 140g |
Need a different model, or a part not listed here? Send us your parts list →
Related products
All Electrical & Lighting →-
PATLITEPATLITE GL-001 Magnet Bracket for GL7/GF71 model -
PATLITEPATLITE SZW LED Light Mounting Brackets2 models -
PATLITEPhoto on requestPATLITEPATLITE NHP-TF Dimmer Film for PHE-3FB3N1 model
-
PATLITEPATLITE LB6-BW / LR6-BW Buzzer Units2 models -
PATLITEPATLITE CLK1 LED Spot Light for Machine Tools1 model -

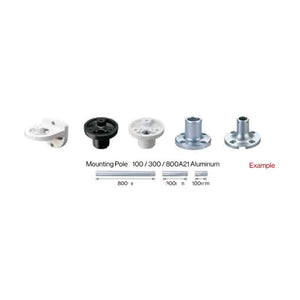

PATLITEPATLITE Signal Tower Mounting Brackets and Poles10 models
