• Qlight MTG60/MTC60/MTR60 Modular LED Tower w/ Terminal (Assembled)
1 1

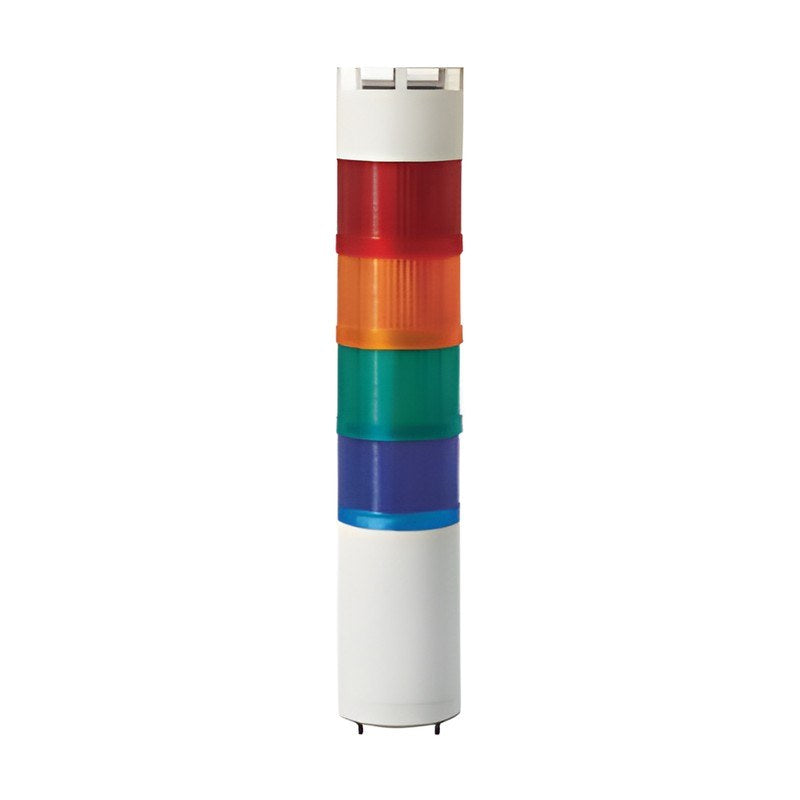

Qlight MTG60/MTC60/MTR60 Modular LED Tower w/ Terminal (Assembled)

Qlight MTG60/MTC60/MTR60 Modular LED Tower w/ Terminal (Assembled)

Pre-assembled Qlight MTG60 / MTC60 / MTR60 Ø60mm modular LED steady/flashing tower lights with push-button terminal base, DC24V or AC110V-220V.

Key features

  • MTG diffusing lens, MTC inner filter lens or MTR translucent lens versions
  • Steady/flashing selectable by dip switch inside each LED module
  • Standard (90dB), high-volume (100dB) or waterproof (85dB, IP65) buzzer module
  • Self-stand, pole (Ø18mm, 9 bracket options) or M12 connector base
  • Ivory standard; silver (-SV) and black (-BK) housings are customised; MTR uses black base
  • Max. 4 LED modules (R/A/G/B) when a buzzer module is fitted

Specifications

Diameter Ø60mm
Materials Lens-PC, Housing-ABS, Pole-Al
Operating temperature -30°C to +50°C
Protection IP65 (LED / waterproof buzzer); high-volume buzzer non-waterproof
Certificates CE, UL
Flashing rate 60-80 flashes/min
Layers 1-5 (1-4 with buzzer module)
Source Qlight Signal Tower Lights Catalog 2026, p. 146-135
MTG60ML-DC Type: Diagram model | Mount: Self stand (direct) | Supply: DC24V | Function: Steady | Buzzer: No
MTG60MLF-DC Type: Diagram model | Mount: Self stand (direct) | Supply: DC24V | Function: Steady/Flashing | Buzzer: No
MTG60L-DC Type: Diagram model | Mount: Pole mount | Supply: DC24V | Function: Steady | Buzzer: No
MTG60LF-DC Type: Diagram model | Mount: Pole mount | Supply: DC24V | Function: Steady/Flashing | Buzzer: No
MTG60L-DC-M12 Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady | Buzzer: No
MTG60LF-DC-M12 Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady/Flashing | Buzzer: No
MTG60ML-BZ-AC Type: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady | Buzzer: Yes
MTG60MLF-BZ-AC Type: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: Yes
MTG60L-BZ-AC Type: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady | Buzzer: Yes
MTG60LF-BZ-AC Type: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: Yes
MTG60L-BZ-DC-M12 Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady | Buzzer: Yes
MTG60LF-BZ-DC-M12 Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady/Flashing | Buzzer: Yes
MTG60ML-AC Type: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady | Buzzer: No
MTG60MLF-AC Type: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: No
MTG60L-AC Type: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady | Buzzer: No
MTG60LF-AC Type: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: No
MTG60ML-4-24-RAGB-SV Type: Example configuration | Mount: Self stand (direct) | Supply: DC24V | Buzzer: No | Lamps: 4 x RAGB, silver housing
MTG60L-WBZ-3-110/220-RAG-LW18 Type: Example configuration | Mount: Pole mount, LW18 | Supply: AC110V-220V | Buzzer: Waterproof | Lamps: 3 x RAG
MTG60L-HBZ-4-24-RAGB-M12 Type: Example configuration | Mount: M12 connector base | Supply: DC24V | Buzzer: High-volume | Lamps: 4 x RAGB
MTC60ML-HBZ-4-24-RAGB Type: Example configuration | Mount: Self stand (direct) | Supply: DC24V | Buzzer: High-volume | Lamps: 4 x RAGB
MTCA60L-4-24-RAGB-SL18 Type: Example configuration | Mount: Pole mount, SL18 | Supply: DC24V | Buzzer: No | Lamps: 4 x RAGB
MTC60L-WBZ-3-24-RAG-M12-SV Type: Example configuration | Mount: M12 connector base | Supply: DC24V | Buzzer: Waterproof | Lamps: 3 x RAG, silver housing
MTRA60ML-3-110/220-RAG-BK Type: Example configuration | Mount: Self stand (direct) | Supply: AC110V-220V | Buzzer: No | Lamps: 3 x RAG, black housing
MTR60L-5-24-RAGBW-QL18-BK Type: Example configuration | Mount: Pole mount, QL18 | Supply: DC24V | Buzzer: No | Lamps: 5 x RAGBW, black housing
MTR60L-HBZ-2-24-RG-M12-BK Type: Example configuration | Mount: M12 connector base | Supply: DC24V | Buzzer: High-volume | Lamps: 2 x RG, black housing
Signal Tower LightsQlight
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight MTG60/MTC60/MTR60 Modular LED Tower w/ Terminal (Assembled)

Brand Qlight·Signal Tower Lights

Available part numbers (25)

MTG60ML-DC, MTG60MLF-DC, MTG60L-DC, MTG60LF-DC, MTG60L-DC-M12, MTG60LF-DC-M12, MTG60ML-BZ-AC, MTG60MLF-BZ-AC, MTG60L-BZ-AC, MTG60LF-BZ-AC + 15 more — see full table ↓

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTG60ML-DCType: Diagram model | Mount: Self stand (direct) | Supply: DC24V | Function: Steady | Buzzer: No
MTG60MLF-DCType: Diagram model | Mount: Self stand (direct) | Supply: DC24V | Function: Steady/Flashing | Buzzer: No
MTG60L-DCType: Diagram model | Mount: Pole mount | Supply: DC24V | Function: Steady | Buzzer: No
MTG60LF-DCType: Diagram model | Mount: Pole mount | Supply: DC24V | Function: Steady/Flashing | Buzzer: No
MTG60L-DC-M12Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady | Buzzer: No
MTG60LF-DC-M12Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady/Flashing | Buzzer: No
MTG60ML-BZ-ACType: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady | Buzzer: Yes
MTG60MLF-BZ-ACType: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: Yes
MTG60L-BZ-ACType: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady | Buzzer: Yes
MTG60LF-BZ-ACType: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: Yes
MTG60L-BZ-DC-M12Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady | Buzzer: Yes
MTG60LF-BZ-DC-M12Type: Diagram model | Mount: M12 connector base | Supply: DC24V | Function: Steady/Flashing | Buzzer: Yes
MTG60ML-ACType: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady | Buzzer: No
MTG60MLF-ACType: Diagram model | Mount: Self stand (direct) | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: No
MTG60L-ACType: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady | Buzzer: No
MTG60LF-ACType: Diagram model | Mount: Pole mount | Supply: AC110V-220V | Function: Steady/Flashing | Buzzer: No
MTG60ML-4-24-RAGB-SVType: Example configuration | Mount: Self stand (direct) | Supply: DC24V | Buzzer: No | Lamps: 4 x RAGB, silver housing
MTG60L-WBZ-3-110/220-RAG-LW18Type: Example configuration | Mount: Pole mount, LW18 | Supply: AC110V-220V | Buzzer: Waterproof | Lamps: 3 x RAG
MTG60L-HBZ-4-24-RAGB-M12Type: Example configuration | Mount: M12 connector base | Supply: DC24V | Buzzer: High-volume | Lamps: 4 x RAGB
MTC60ML-HBZ-4-24-RAGBType: Example configuration | Mount: Self stand (direct) | Supply: DC24V | Buzzer: High-volume | Lamps: 4 x RAGB
MTCA60L-4-24-RAGB-SL18Type: Example configuration | Mount: Pole mount, SL18 | Supply: DC24V | Buzzer: No | Lamps: 4 x RAGB
MTC60L-WBZ-3-24-RAG-M12-SVType: Example configuration | Mount: M12 connector base | Supply: DC24V | Buzzer: Waterproof | Lamps: 3 x RAG, silver housing
MTRA60ML-3-110/220-RAG-BKType: Example configuration | Mount: Self stand (direct) | Supply: AC110V-220V | Buzzer: No | Lamps: 3 x RAG, black housing
MTR60L-5-24-RAGBW-QL18-BKType: Example configuration | Mount: Pole mount, QL18 | Supply: DC24V | Buzzer: No | Lamps: 5 x RAGBW, black housing
MTR60L-HBZ-2-24-RG-M12-BKType: Example configuration | Mount: M12 connector base | Supply: DC24V | Buzzer: High-volume | Lamps: 2 x RG, black housing

Need a different model, or a part not listed here? Send us your parts list →
