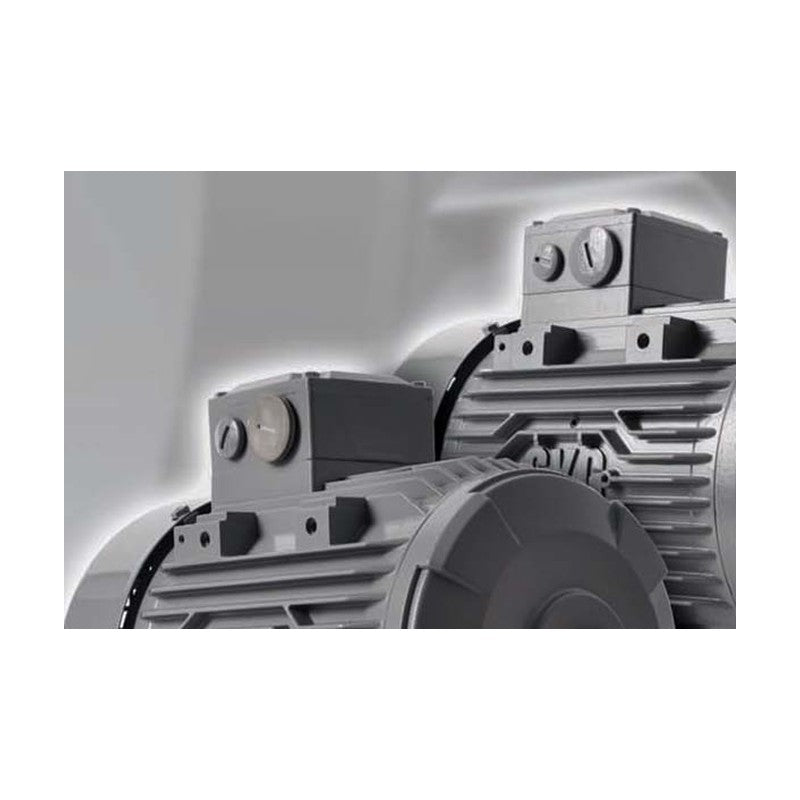

Samyang Motor SK Series Three-Phase Induction Motor (0.2-15 kW)

Samyang Motor SK Series Three-Phase Induction Motor (0.2-15 kW)

Samyang Motor SK series domestically made three-phase low-voltage induction motors, totally enclosed fan-cooled, 0.2 to 15 kW in 2, 4 and 6 poles for 220/380 V 60 Hz.

Key features

  • High-efficiency (E) grade from 0.75 kW, meeting the Korean minimum efficiency (MEPS) rules
  • Aluminium frame with finned design; foot can be attached for B3 or B5 use (up to 5 HP)
  • Model name per chart: series, efficiency grade, structure, mounting, phase, output, voltage, poles
  • Totally enclosed fan-cooled (C) design; other structures (drip-proof, explosion-proof, brake, capacitor types) and gear-motor flanges MG/M2/HM to order
  • Mounting B3 foot (H), B5 flange (V) or B35 foot and flange (C)
  • Other voltages by code letter (e.g. Q 380 V 50 Hz, X 220/380 V 50/60 Hz); options A-L to order

Specifications

Phase Three-phase (T)
Structure Totally enclosed fan-cooled (C)
Voltage (code K) 220/380 V, 60 Hz
Efficiency grade E high efficiency (0.75 kW up); G below
Code example SKECH-T1HPK4
Source Samyang Low Voltage Induction Motor catalog, p. 10-13
SKGCH-T002K2 Output: 0.2 kW | Poles: 2P | Frame: 63M | Mounting: Foot B3 (H) | Efficiency: 63.0 %
SKGCV-T002K2 Output: 0.2 kW | Poles: 2P | Frame: 63M | Mounting: Flange B5 (V) | Efficiency: 63.0 %
SKGCC-T002K2 Output: 0.2 kW | Poles: 2P | Frame: 63M | Mounting: Foot+flange B35 (C) | Efficiency: 63.0 %
SKGCH-T002K4 Output: 0.2 kW | Poles: 4P | Frame: 63M | Mounting: Foot B3 (H) | Efficiency: 64.0 %
SKGCV-T002K4 Output: 0.2 kW | Poles: 4P | Frame: 63M | Mounting: Flange B5 (V) | Efficiency: 64.0 %
SKGCC-T002K4 Output: 0.2 kW | Poles: 4P | Frame: 63M | Mounting: Foot+flange B35 (C) | Efficiency: 64.0 %
SKGCH-T004K2 Output: 0.4 kW | Poles: 2P | Frame: 71M | Mounting: Foot B3 (H) | Efficiency: 70.0 %
SKGCV-T004K2 Output: 0.4 kW | Poles: 2P | Frame: 71M | Mounting: Flange B5 (V) | Efficiency: 70.0 %
SKGCC-T004K2 Output: 0.4 kW | Poles: 2P | Frame: 71M | Mounting: Foot+flange B35 (C) | Efficiency: 70.0 %
SKGCH-T004K4 Output: 0.4 kW | Poles: 4P | Frame: 71M | Mounting: Foot B3 (H) | Efficiency: 73.0 %
SKGCV-T004K4 Output: 0.4 kW | Poles: 4P | Frame: 71M | Mounting: Flange B5 (V) | Efficiency: 73.0 %
SKGCC-T004K4 Output: 0.4 kW | Poles: 4P | Frame: 71M | Mounting: Foot+flange B35 (C) | Efficiency: 73.0 %
SKGCH-T004K6 Output: 0.4 kW | Poles: 6P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 66.0 %
SKGCV-T004K6 Output: 0.4 kW | Poles: 6P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 66.0 %
SKGCC-T004K6 Output: 0.4 kW | Poles: 6P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 66.0 %
SKECH-T1HPK2 Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 76.0 %
SKECV-T1HPK2 Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 76.0 %
SKECC-T1HPK2 Output: 0.75 kW | Poles: 2P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 76.0 %
SKECH-T1HPK4 Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Foot B3 (H) | Efficiency: 83.0 %
SKECV-T1HPK4 Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Flange B5 (V) | Efficiency: 83.0 %
SKECC-T1HPK4 Output: 0.75 kW | Poles: 4P | Frame: 80M | Mounting: Foot+flange B35 (C) | Efficiency: 83.0 %
SKECH-T1HPK6 Output: 0.75 kW | Poles: 6P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 80.0 %
SKECV-T1HPK6 Output: 0.75 kW | Poles: 6P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 80.0 %
SKECC-T1HPK6 Output: 0.75 kW | Poles: 6P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 80.0 %
SKECH-T015K2 Output: 1.5 kW | Poles: 2P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 84.0 %
SKECV-T015K2 Output: 1.5 kW | Poles: 2P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 84.0 %
SKECC-T015K2 Output: 1.5 kW | Poles: 2P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 84.0 %
SKECH-T015K4 Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 84.5 %
SKECV-T015K4 Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 84.5 %
SKECC-T015K4 Output: 1.5 kW | Poles: 4P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 84.5 %
SKECH-T015K6 Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 86.5 %
SKECV-T015K6 Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 86.5 %
SKECC-T015K6 Output: 1.5 kW | Poles: 6P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 86.5 %
SKECH-T022K2 Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Foot B3 (H) | Efficiency: 85.5 %
SKECV-T022K2 Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Flange B5 (V) | Efficiency: 85.5 %
SKECC-T022K2 Output: 2.2 kW | Poles: 2P | Frame: 90L | Mounting: Foot+flange B35 (C) | Efficiency: 85.5 %
SKECH-T022K4 Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SKECV-T022K4 Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SKECC-T022K4 Output: 2.2 kW | Poles: 4P | Frame: 100L | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SKECH-T022K6 Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SKECV-T022K6 Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SKECC-T022K6 Output: 2.2 kW | Poles: 6P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SKECH-T037K2 Output: 3.7 kW | Poles: 2P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SKECV-T037K2 Output: 3.7 kW | Poles: 2P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SKECC-T037K2 Output: 3.7 kW | Poles: 2P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SKECH-T037K4 Output: 3.7 kW | Poles: 4P | Frame: 112M | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SKECV-T037K4 Output: 3.7 kW | Poles: 4P | Frame: 112M | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SKECC-T037K4 Output: 3.7 kW | Poles: 4P | Frame: 112M | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SKECH-T037K6 Output: 3.7 kW | Poles: 6P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 87.5 %
SKECV-T037K6 Output: 3.7 kW | Poles: 6P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 87.5 %
SKECC-T037K6 Output: 3.7 kW | Poles: 6P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 87.5 %
SKECH-T055K2 Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 88.5 %
SKECV-T055K2 Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 88.5 %
SKECC-T055K2 Output: 5.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 88.5 %
SKECH-T055K4 Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SKECV-T055K4 Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SKECC-T055K4 Output: 5.5 kW | Poles: 4P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SKECH-T055K6 Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SKECV-T055K6 Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SKECC-T055K6 Output: 5.5 kW | Poles: 6P | Frame: 132M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SKECH-T075K2 Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SKECV-T075K2 Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SKECC-T075K2 Output: 7.5 kW | Poles: 2P | Frame: 132S | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SKECH-T075K4 Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SKECV-T075K4 Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SKECC-T075K4 Output: 7.5 kW | Poles: 4P | Frame: 132M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SKECH-T075K6 Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 89.5 %
SKECV-T075K6 Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 89.5 %
SKECC-T075K6 Output: 7.5 kW | Poles: 6P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 89.5 %
SKECH-T110K2 Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SKECV-T110K2 Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SKECC-T110K2 Output: 11 kW | Poles: 2P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SKECH-T110K4 Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SKECV-T110K4 Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SKECC-T110K4 Output: 11 kW | Poles: 4P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
SKECH-T110K6 Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SKECV-T110K6 Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SKECC-T110K6 Output: 11 kW | Poles: 6P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SKECH-T150K2 Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Foot B3 (H) | Efficiency: 90.2 %
SKECV-T150K2 Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Flange B5 (V) | Efficiency: 90.2 %
SKECC-T150K2 Output: 15 kW | Poles: 2P | Frame: 160M | Mounting: Foot+flange B35 (C) | Efficiency: 90.2 %
SKECH-T150K4 Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Foot B3 (H) | Efficiency: 91.0 %
SKECV-T150K4 Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Flange B5 (V) | Efficiency: 91.0 %
SKECC-T150K4 Output: 15 kW | Poles: 4P | Frame: 160L | Mounting: Foot+flange B35 (C) | Efficiency: 91.0 %
AC Induction MotorsSamyang Motor
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Motor SK Series Three-Phase Induction Motor (0.2-15 kW)

Brand Samyang Motor·AC Induction Motors

Available part numbers (84)

SKGCH-T002K2, SKGCV-T002K2, SKGCC-T002K2, SKGCH-T002K4, SKGCV-T002K4, SKGCC-T002K4, SKGCH-T004K2, SKGCV-T004K2, SKGCC-T004K2, SKGCH-T004K4 + 74 more — see full table ↓
