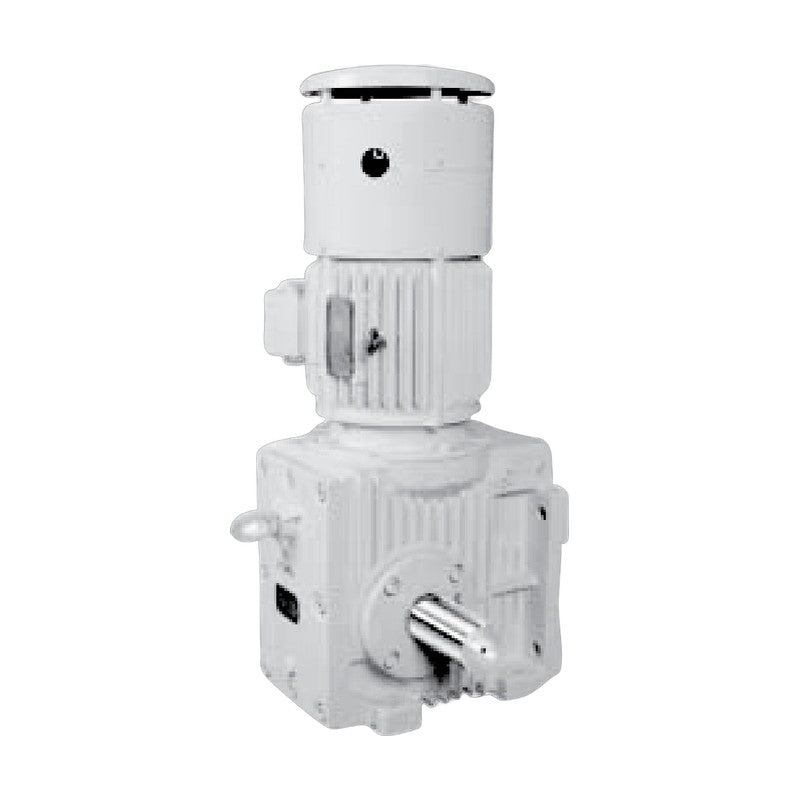

Samyang Reducer MAX HW Helical-Worm Geared Motor, Hollow Shaft (VH)

Samyang Reducer MAX HW Helical-Worm Geared Motor, Hollow Shaft (VH)

Samyang MAX HW hollow-output-shaft helical-worm geared motors (VH) for direct mounting on the driven shaft, sizes 25-70, 0.2-7.5 kW.

Key features

  • Order code per catalog chart, one space per box: HW size type ratio shaft R000 M125 power maker
  • Over 1.5 times the efficiency of conventional double-reduction worm reducers
  • All gearing housed in a one-piece rigid case for compact installation
  • Motor input shaft centred on the reducer for easy selection and layout
  • Motor maker digit: 0 Samyang, 1 Hi-Gen, 3 Hyosung, 4 Siemens; output shaft A right, B left, C both
  • HW70 ratios 1:104 and 1:140 (parking-system duty) available on request

Specifications

Series MAX HW universal-mounting helical-worm
Gearing Helical input stage + worm gear
Ratios 1:10, 15, 20, 30, 40, 50, 60, 75, 90, 120, 150, 180
Rating basis 1800 rpm input, S.F. 1.0
Shaft arrangement in code A (A/B/C/D selectable)
Options in code R000 reducer option, M125 motor option
Mounting Hollow output shaft (VH), shaft mount
Source Samyang Helical & Worm Gear catalog, p. 4-2 to 4-11
HW 25 VH 10 A R000 M125 1HP 0 Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 25 VH 15 A R000 M125 1HP 0 Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 25 VH 20 A R000 M125 1HP 0 Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 25 VH 30 A R000 M125 1HP 0 Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 25 VH 40 A R000 M125 1/2HP 0 Size: HW25 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 25 VH 50 A R000 M125 1/2HP 0 Size: HW25 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 25 VH 60 A R000 M125 1/2HP 0 Size: HW25 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 25 VH 75 A R000 M125 1/4HP 0 Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 25 VH 90 A R000 M125 1/4HP 0 Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 25 VH 120 A R000 M125 1/4HP 0 Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 25 VH 150 A R000 M125 1/4HP 0 Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 25 VH 180 A R000 M125 1/4HP 0 Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 30 VH 10 A R000 M125 2HP 0 Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 30 VH 15 A R000 M125 2HP 0 Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 30 VH 20 A R000 M125 2HP 0 Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 30 VH 30 A R000 M125 2HP 0 Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 30 VH 40 A R000 M125 1HP 0 Size: HW30 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 30 VH 50 A R000 M125 1HP 0 Size: HW30 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 30 VH 60 A R000 M125 1HP 0 Size: HW30 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 30 VH 75 A R000 M125 1/2HP 0 Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 30 VH 90 A R000 M125 1/2HP 0 Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 30 VH 120 A R000 M125 1/2HP 0 Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 30 VH 150 A R000 M125 1/2HP 0 Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 30 VH 180 A R000 M125 1/2HP 0 Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 35 VH 10 A R000 M125 3HP 0 Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 35 VH 15 A R000 M125 3HP 0 Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 35 VH 20 A R000 M125 3HP 0 Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 35 VH 30 A R000 M125 3HP 0 Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 35 VH 40 A R000 M125 2HP 0 Size: HW35 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 35 VH 50 A R000 M125 2HP 0 Size: HW35 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 35 VH 60 A R000 M125 2HP 0 Size: HW35 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 35 VH 75 A R000 M125 1HP 0 Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 35 VH 90 A R000 M125 1HP 0 Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 35 VH 120 A R000 M125 1HP 0 Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 35 VH 150 A R000 M125 1HP 0 Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 35 VH 180 A R000 M125 1HP 0 Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 45 VH 10 A R000 M125 5HP 0 Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 45 VH 15 A R000 M125 5HP 0 Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 45 VH 20 A R000 M125 5HP 0 Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 45 VH 30 A R000 M125 5HP 0 Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 45 VH 40 A R000 M125 3HP 0 Size: HW45 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 45 VH 50 A R000 M125 3HP 0 Size: HW45 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 45 VH 60 A R000 M125 3HP 0 Size: HW45 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 45 VH 75 A R000 M125 2HP 0 Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 45 VH 90 A R000 M125 2HP 0 Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 45 VH 120 A R000 M125 2HP 0 Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 45 VH 150 A R000 M125 2HP 0 Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 45 VH 180 A R000 M125 2HP 0 Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 60 VH 10 A R000 M125 7.5HP 3 Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:10 | Motor maker: Hyosung (3)
HW 60 VH 15 A R000 M125 7.5HP 3 Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:15 | Motor maker: Hyosung (3)
HW 60 VH 20 A R000 M125 7.5HP 3 Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:20 | Motor maker: Hyosung (3)
HW 60 VH 30 A R000 M125 7.5HP 3 Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:30 | Motor maker: Hyosung (3)
HW 60 VH 40 A R000 M125 5HP 0 Size: HW60 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 60 VH 50 A R000 M125 5HP 0 Size: HW60 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 60 VH 60 A R000 M125 5HP 0 Size: HW60 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 60 VH 75 A R000 M125 3HP 0 Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 60 VH 90 A R000 M125 3HP 0 Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 60 VH 120 A R000 M125 3HP 0 Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 60 VH 150 A R000 M125 3HP 0 Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 60 VH 180 A R000 M125 3HP 0 Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 70 VH 10 A R000 M125 10HP 3 Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:10 | Motor maker: Hyosung (3)
HW 70 VH 15 A R000 M125 10HP 3 Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:15 | Motor maker: Hyosung (3)
HW 70 VH 20 A R000 M125 10HP 3 Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:20 | Motor maker: Hyosung (3)
HW 70 VH 30 A R000 M125 10HP 3 Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:30 | Motor maker: Hyosung (3)
HW 70 VH 40 A R000 M125 7.5HP 3 Size: HW70 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:40 | Motor maker: Hyosung (3)
HW 70 VH 50 A R000 M125 7.5HP 3 Size: HW70 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:50 | Motor maker: Hyosung (3)
HW 70 VH 60 A R000 M125 7.5HP 3 Size: HW70 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:60 | Motor maker: Hyosung (3)
HW 70 VH 75 A R000 M125 5HP 3 Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:75 | Motor maker: Hyosung (3)
HW 70 VH 90 A R000 M125 5HP 3 Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:90 | Motor maker: Hyosung (3)
HW 70 VH 120 A R000 M125 5HP 3 Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:120 | Motor maker: Hyosung (3)
HW 70 VH 150 A R000 M125 5HP 3 Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:150 | Motor maker: Hyosung (3)
HW 70 VH 180 A R000 M125 5HP 3 Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:180 | Motor maker: Hyosung (3)
HW25VH Size: HW25 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW30VH Size: HW30 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW35VH Size: HW35 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW45VH Size: HW45 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW60VH Size: HW60 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW70VH Size: HW70 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
Worm ReducersSamyang Reducer
78 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Reducer MAX HW Helical-Worm Geared Motor, Hollow Shaft (VH)

Brand Samyang Reducer·Worm Reducers

Available part numbers (78)

HW 25 VH 10 A R000 M125 1HP 0, HW 25 VH 15 A R000 M125 1HP 0, HW 25 VH 20 A R000 M125 1HP 0, HW 25 VH 30 A R000 M125 1HP 0, HW 25 VH 40 A R000 M125 1/2HP 0, HW 25 VH 50 A R000 M125 1/2HP 0, HW 25 VH 60 A R000 M125 1/2HP 0, HW 25 VH 75 A R000 M125 1/4HP 0, HW 25 VH 90 A R000 M125 1/4HP 0, HW 25 VH 120 A R000 M125 1/4HP 0 + 68 more — see full table ↓

How to order

Send the Samyang Reducer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW 25 VH 10 A R000 M125 1HP 0Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 25 VH 15 A R000 M125 1HP 0Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 25 VH 20 A R000 M125 1HP 0Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 25 VH 30 A R000 M125 1HP 0Size: HW25 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 25 VH 40 A R000 M125 1/2HP 0Size: HW25 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 25 VH 50 A R000 M125 1/2HP 0Size: HW25 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 25 VH 60 A R000 M125 1/2HP 0Size: HW25 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 25 VH 75 A R000 M125 1/4HP 0Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 25 VH 90 A R000 M125 1/4HP 0Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 25 VH 120 A R000 M125 1/4HP 0Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 25 VH 150 A R000 M125 1/4HP 0Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 25 VH 180 A R000 M125 1/4HP 0Size: HW25 | Type: VH | Motor output: 0.2 kW (1/4 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 30 VH 10 A R000 M125 2HP 0Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 30 VH 15 A R000 M125 2HP 0Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 30 VH 20 A R000 M125 2HP 0Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 30 VH 30 A R000 M125 2HP 0Size: HW30 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 30 VH 40 A R000 M125 1HP 0Size: HW30 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 30 VH 50 A R000 M125 1HP 0Size: HW30 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 30 VH 60 A R000 M125 1HP 0Size: HW30 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 30 VH 75 A R000 M125 1/2HP 0Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 30 VH 90 A R000 M125 1/2HP 0Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 30 VH 120 A R000 M125 1/2HP 0Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 30 VH 150 A R000 M125 1/2HP 0Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 30 VH 180 A R000 M125 1/2HP 0Size: HW30 | Type: VH | Motor output: 0.4 kW (1/2 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 35 VH 10 A R000 M125 3HP 0Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 35 VH 15 A R000 M125 3HP 0Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 35 VH 20 A R000 M125 3HP 0Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 35 VH 30 A R000 M125 3HP 0Size: HW35 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 35 VH 40 A R000 M125 2HP 0Size: HW35 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 35 VH 50 A R000 M125 2HP 0Size: HW35 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 35 VH 60 A R000 M125 2HP 0Size: HW35 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 35 VH 75 A R000 M125 1HP 0Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 35 VH 90 A R000 M125 1HP 0Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 35 VH 120 A R000 M125 1HP 0Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 35 VH 150 A R000 M125 1HP 0Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 35 VH 180 A R000 M125 1HP 0Size: HW35 | Type: VH | Motor output: 0.75 kW (1 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 45 VH 10 A R000 M125 5HP 0Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:10 | Motor maker: Samyang (0)
HW 45 VH 15 A R000 M125 5HP 0Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:15 | Motor maker: Samyang (0)
HW 45 VH 20 A R000 M125 5HP 0Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:20 | Motor maker: Samyang (0)
HW 45 VH 30 A R000 M125 5HP 0Size: HW45 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:30 | Motor maker: Samyang (0)
HW 45 VH 40 A R000 M125 3HP 0Size: HW45 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 45 VH 50 A R000 M125 3HP 0Size: HW45 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 45 VH 60 A R000 M125 3HP 0Size: HW45 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 45 VH 75 A R000 M125 2HP 0Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 45 VH 90 A R000 M125 2HP 0Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 45 VH 120 A R000 M125 2HP 0Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 45 VH 150 A R000 M125 2HP 0Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 45 VH 180 A R000 M125 2HP 0Size: HW45 | Type: VH | Motor output: 1.5 kW (2 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 60 VH 10 A R000 M125 7.5HP 3Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:10 | Motor maker: Hyosung (3)
HW 60 VH 15 A R000 M125 7.5HP 3Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:15 | Motor maker: Hyosung (3)
HW 60 VH 20 A R000 M125 7.5HP 3Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:20 | Motor maker: Hyosung (3)
HW 60 VH 30 A R000 M125 7.5HP 3Size: HW60 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:30 | Motor maker: Hyosung (3)
HW 60 VH 40 A R000 M125 5HP 0Size: HW60 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:40 | Motor maker: Samyang (0)
HW 60 VH 50 A R000 M125 5HP 0Size: HW60 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:50 | Motor maker: Samyang (0)
HW 60 VH 60 A R000 M125 5HP 0Size: HW60 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:60 | Motor maker: Samyang (0)
HW 60 VH 75 A R000 M125 3HP 0Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:75 | Motor maker: Samyang (0)
HW 60 VH 90 A R000 M125 3HP 0Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:90 | Motor maker: Samyang (0)
HW 60 VH 120 A R000 M125 3HP 0Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:120 | Motor maker: Samyang (0)
HW 60 VH 150 A R000 M125 3HP 0Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:150 | Motor maker: Samyang (0)
HW 60 VH 180 A R000 M125 3HP 0Size: HW60 | Type: VH | Motor output: 2.2 kW (3 HP) | Ratio: 1:180 | Motor maker: Samyang (0)
HW 70 VH 10 A R000 M125 10HP 3Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:10 | Motor maker: Hyosung (3)
HW 70 VH 15 A R000 M125 10HP 3Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:15 | Motor maker: Hyosung (3)
HW 70 VH 20 A R000 M125 10HP 3Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:20 | Motor maker: Hyosung (3)
HW 70 VH 30 A R000 M125 10HP 3Size: HW70 | Type: VH | Motor output: 7.5 kW (10 HP) | Ratio: 1:30 | Motor maker: Hyosung (3)
HW 70 VH 40 A R000 M125 7.5HP 3Size: HW70 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:40 | Motor maker: Hyosung (3)
HW 70 VH 50 A R000 M125 7.5HP 3Size: HW70 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:50 | Motor maker: Hyosung (3)
HW 70 VH 60 A R000 M125 7.5HP 3Size: HW70 | Type: VH | Motor output: 5.5 kW (7.5 HP) | Ratio: 1:60 | Motor maker: Hyosung (3)
HW 70 VH 75 A R000 M125 5HP 3Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:75 | Motor maker: Hyosung (3)
HW 70 VH 90 A R000 M125 5HP 3Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:90 | Motor maker: Hyosung (3)
HW 70 VH 120 A R000 M125 5HP 3Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:120 | Motor maker: Hyosung (3)
HW 70 VH 150 A R000 M125 5HP 3Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:150 | Motor maker: Hyosung (3)
HW 70 VH 180 A R000 M125 5HP 3Size: HW70 | Type: VH | Motor output: 3.7 kW (5 HP) | Ratio: 1:180 | Motor maker: Hyosung (3)
HW25VHSize: HW25 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW30VHSize: HW30 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW35VHSize: HW35 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW45VHSize: HW45 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW60VHSize: HW60 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order
HW70VHSize: HW70 | Type: VH | Motor output: Base model (see order code) | Ratio: 1:10-1:180 | Motor maker: Per order

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
