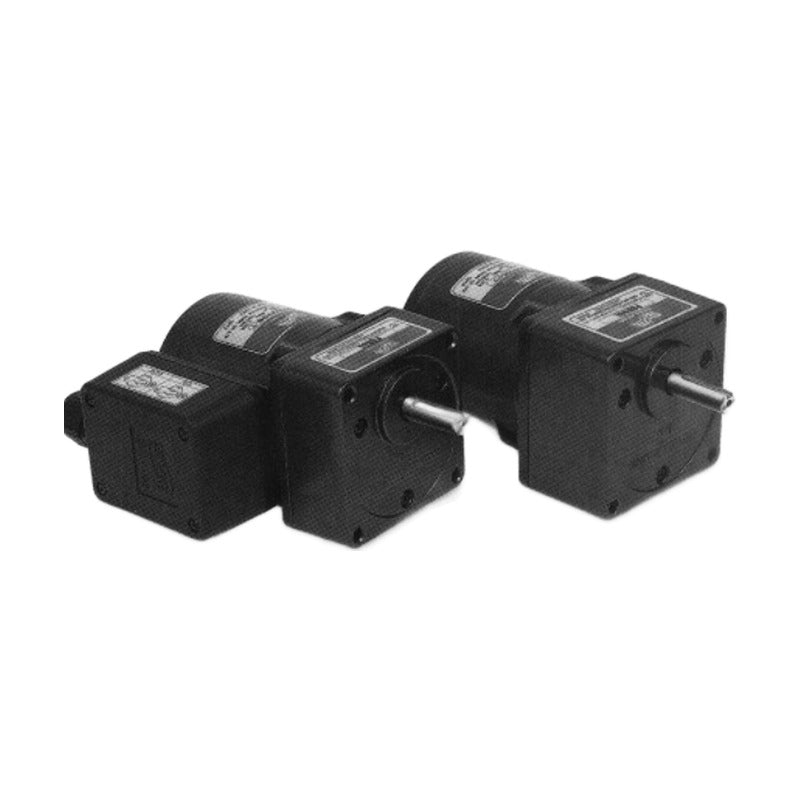

Samyang SYM Electromagnetic Brake Motors (6-200 W)

Samyang SYM Electromagnetic Brake Motors (6-200 W)

Samyang SYM EB motors combine a small AC motor with a power-off electromagnetic brake for holding loads when the supply is cut. Reversible-type motors are used up to 90 W and induction-type motors above.

Key features

  • Power-off electromagnetic brake holds the load at stop
  • Reversible-based up to 90 W, induction-based 120-200 W
  • D-cut, gear, HG and KG pinion shafts
  • Fits SYM P/C/R gear heads
  • Code suffix -E denotes the electromagnetic brake

Specifications

Type AC motor with electromagnetic brake
Output range 6-200 W
Frame sizes 60, 70, 80, 90 mm square
Shaft options D-cut (D), gear pinion (G), HG heavy, KG king
Voltage codes A 110V/B 220V 1ph 60Hz; C/D 100/200V; E 115V; X 220/240V 50Hz; U/T/S 3ph
Poles 4P
Brake Power-off electromagnetic
Source Samyang SYM Small Geared Motor catalogue - Electro Magnetic Brake Motor
SM6R06DB-E Output: 6 W | Frame: 60 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM6R06GB-E Output: 6 W | Frame: 60 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM7R15DB-E Output: 15 W | Frame: 70 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM7R15GB-E Output: 15 W | Frame: 70 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R15DB-E Output: 15 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R15GB-E Output: 15 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R20DB-E Output: 20 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R20GB-E Output: 20 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R25DB-E Output: 25 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R25GB-E Output: 25 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40DB-E Output: 40 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R40GB-E Output: 40 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40GBH-E Output: 40 W | Frame: 90 mm | Shaft: HG heavy gear | Voltage: 1ph 220 V 60 Hz
SM9R60DB-E Output: 60 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R60GB-E Output: 60 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R90DB-E Output: 90 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R90GB-E Output: 90 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N120DB-E Output: 120 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N120GB-E Output: 120 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N120GBK-E Output: 120 W | Frame: 90 mm | Shaft: KG king gear | Voltage: 1ph 220 V 60 Hz
SM9N150DB-E Output: 150 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N150GB-E Output: 150 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N150GBK-E Output: 150 W | Frame: 90 mm | Shaft: KG king gear | Voltage: 1ph 220 V 60 Hz
SM9N180DB-E Output: 180 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N180GB-E Output: 180 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N200DB-E Output: 200 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N200GB-E Output: 200 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
Gear MotorSamyang
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang SYM Electromagnetic Brake Motors (6-200 W)

Brand Samyang·Gear Motor

Available part numbers (27)

SM6R06DB-E, SM6R06GB-E, SM7R15DB-E, SM7R15GB-E, SM8R15DB-E, SM8R15GB-E, SM8R20DB-E, SM8R20GB-E, SM8R25DB-E, SM8R25GB-E + 17 more — see full table ↓

How to order

Send the Samyang part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SM6R06DB-EOutput: 6 W | Frame: 60 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM6R06GB-EOutput: 6 W | Frame: 60 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM7R15DB-EOutput: 15 W | Frame: 70 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM7R15GB-EOutput: 15 W | Frame: 70 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R15DB-EOutput: 15 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R15GB-EOutput: 15 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R20DB-EOutput: 20 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R20GB-EOutput: 20 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R25DB-EOutput: 25 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R25GB-EOutput: 25 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40DB-EOutput: 40 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R40GB-EOutput: 40 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40GBH-EOutput: 40 W | Frame: 90 mm | Shaft: HG heavy gear | Voltage: 1ph 220 V 60 Hz
SM9R60DB-EOutput: 60 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R60GB-EOutput: 60 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R90DB-EOutput: 90 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R90GB-EOutput: 90 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N120DB-EOutput: 120 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N120GB-EOutput: 120 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N120GBK-EOutput: 120 W | Frame: 90 mm | Shaft: KG king gear | Voltage: 1ph 220 V 60 Hz
SM9N150DB-EOutput: 150 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N150GB-EOutput: 150 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N150GBK-EOutput: 150 W | Frame: 90 mm | Shaft: KG king gear | Voltage: 1ph 220 V 60 Hz
SM9N180DB-EOutput: 180 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N180GB-EOutput: 180 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9N200DB-EOutput: 200 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9N200GB-EOutput: 200 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
