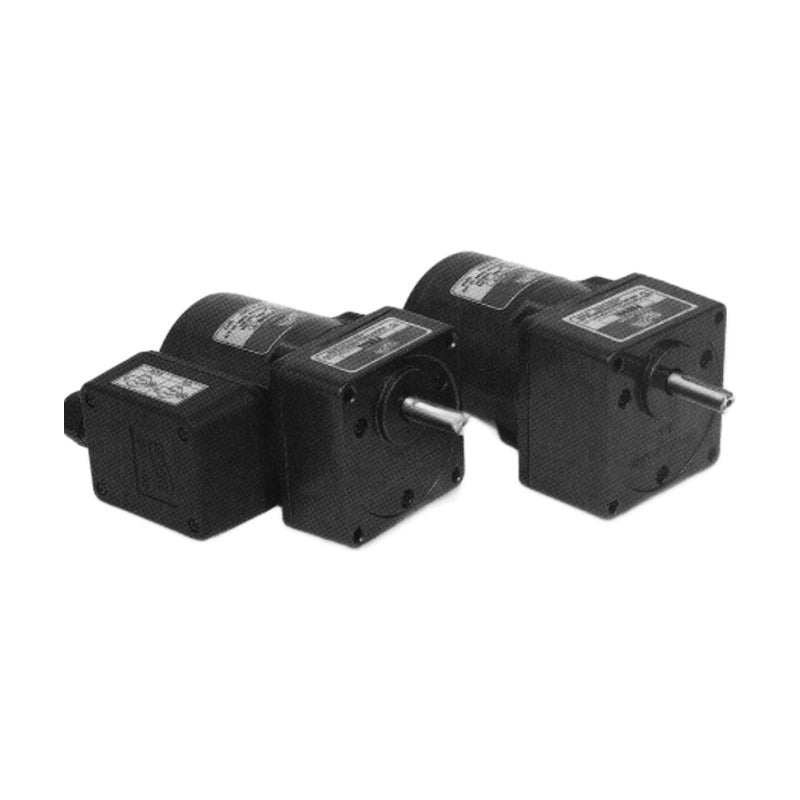

Samyang SYM Reversible Motors (6-90 W, 60-90 mm Frame)

Samyang SYM Reversible Motors (6-90 W, 60-90 mm Frame)

Samyang SYM reversible motors are capacitor-run AC motors built for frequent forward and reverse switching with a built-in friction brake mechanism. They pair with SYM gear heads and are available from 6 W to 90 W.

Key features

  • Designed for frequent CW/CCW reversing
  • Outputs 6-90 W in 60-90 mm square frames
  • D-cut or gear pinion output shaft
  • HG heavy pinion option at 40 W
  • Lead-wire connection with external capacitor

Specifications

Type Reversible motor, lead wire
Output range 6-90 W
Frame sizes 60, 70, 80, 90 mm square
Shaft options D-cut (D), gear pinion (G), HG heavy, KG king
Voltage codes A 110V/B 220V 1ph 60Hz; C/D 100/200V; E 115V; X 220/240V 50Hz; U/T/S 3ph
Poles 4P
Duty 30 min rating (reversing service)
Source Samyang SYM Small Geared Motor catalogue - Reversible Motor
SM6R06DB Output: 6 W | Frame: 60 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM6R06GB Output: 6 W | Frame: 60 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM7R15DB Output: 15 W | Frame: 70 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM7R15GB Output: 15 W | Frame: 70 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R15DB Output: 15 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R15GB Output: 15 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R20DB Output: 20 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R20GB Output: 20 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R25DB Output: 25 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R25GB Output: 25 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40DB Output: 40 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R40GB Output: 40 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40GBH Output: 40 W | Frame: 90 mm | Shaft: HG heavy gear | Voltage: 1ph 220 V 60 Hz
SM9R60DB Output: 60 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R60GB Output: 60 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R90DB Output: 90 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R90GB Output: 90 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
Gear MotorSamyang
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang SYM Reversible Motors (6-90 W, 60-90 mm Frame)

Brand Samyang·Gear Motor

Available part numbers (17)

SM6R06DB, SM6R06GB, SM7R15DB, SM7R15GB, SM8R15DB, SM8R15GB, SM8R20DB, SM8R20GB, SM8R25DB, SM8R25GB + 7 more — see full table ↓

How to order

Send the Samyang part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SM6R06DBOutput: 6 W | Frame: 60 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM6R06GBOutput: 6 W | Frame: 60 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM7R15DBOutput: 15 W | Frame: 70 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM7R15GBOutput: 15 W | Frame: 70 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R15DBOutput: 15 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R15GBOutput: 15 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R20DBOutput: 20 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R20GBOutput: 20 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM8R25DBOutput: 25 W | Frame: 80 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM8R25GBOutput: 25 W | Frame: 80 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40DBOutput: 40 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R40GBOutput: 40 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R40GBHOutput: 40 W | Frame: 90 mm | Shaft: HG heavy gear | Voltage: 1ph 220 V 60 Hz
SM9R60DBOutput: 60 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R60GBOutput: 60 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
SM9R90DBOutput: 90 W | Frame: 90 mm | Shaft: D-cut | Voltage: 1ph 220 V 60 Hz
SM9R90GBOutput: 90 W | Frame: 90 mm | Shaft: G gear | Voltage: 1ph 220 V 60 Hz
