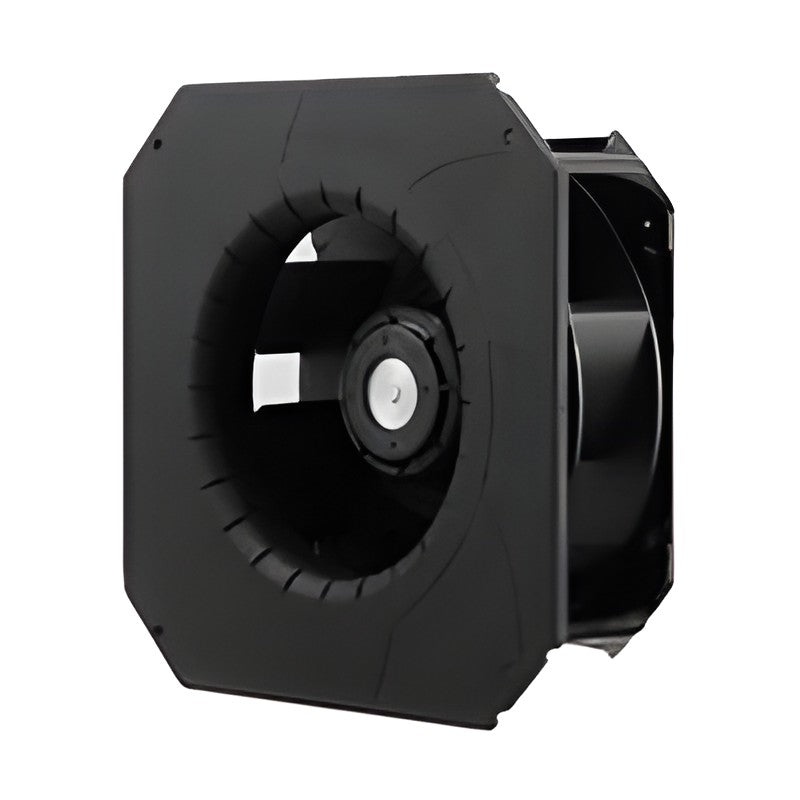

Sanyo Denki San Ace 9B1W2TP Splash Proof Centrifugal (Bracket 270 mm)

Sanyo Denki San Ace 9B1W2TP Splash Proof Centrifugal (Bracket 270 mm)

The San Ace 221W 9B1W2TP type is an IP56-rated bracket-mounted splash proof centrifugal fan, 270x270x99 mm, for cooling equipment exposed to water and dust.

Key features

  • IP56 ingress protection against water and dust (motor and electronics)
  • Rated voltage 24 / 48 VDC; rated speed 3050 to 3400 min-1
  • Max. airflow up to 19.6 m3/min; max. static pressure up to 659 Pa
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control (25 kHz) with pulse sensor output
  • Supplied on a 270 mm square mounting bracket

Specifications

Series 9B1W2TP type
Product Bracket-mounted Splash Proof Centrifugal Fan
Size 270x270x99 mm
Frame Aluminum motor case and bracket
Ingress protection IP56
Operating temperature -25 to +70 C
Expected life (L10) 40000 h at 60 C
Motor protection Locked rotor burnout, reverse polarity
Feature Pulse sensor, PWM
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 445-447
9B1W2TP24P0H001 Voltage: 24 VDC | Speed: 3050 min-1 | Airflow: 17.6 m3/min | Static pressure: 530 Pa
9B1W2TP48P0S001 Voltage: 48 VDC | Speed: 3400 min-1 | Airflow: 19.6 m3/min | Static pressure: 659 Pa
DC Centrifugal FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 9B1W2TP Splash Proof Centrifugal (Bracket 270 mm)

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (2)

9B1W2TP24P0H001, 9B1W2TP48P0S001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9B1W2TP24P0H001Voltage: 24 VDC | Speed: 3050 min-1 | Airflow: 17.6 m3/min | Static pressure: 530 Pa
9B1W2TP48P0S001Voltage: 48 VDC | Speed: 3400 min-1 | Airflow: 19.6 m3/min | Static pressure: 659 Pa
